Dual Power Edj Fire Pump Diesel and Electric Fire Pump Non FM UL Certified for Global B2B Buyers

Customization:	Available
After-sales Service:	Yes
Warranty:	One Year

Basic Specifications

Model NO.

EDJ

Max. Head

110m-150m

Max. Capacity

Max 460m3/H

Driving Type

Motor

Impeller Number

Single-Stage Pump

Working Pressure

Middle Pressure Pump

Position of Pump Shaft

Horizontal Pump

Pump Casing

Horizontal Split Pumps

Usage

Fire Fighting, Irrigation

Diesel Fire Pump

Yes

Electric Fire Pump

Yes

Jockey Pump

Yes

Control Cabinet

Yes

Production Capacity

2000 Sets Per Month

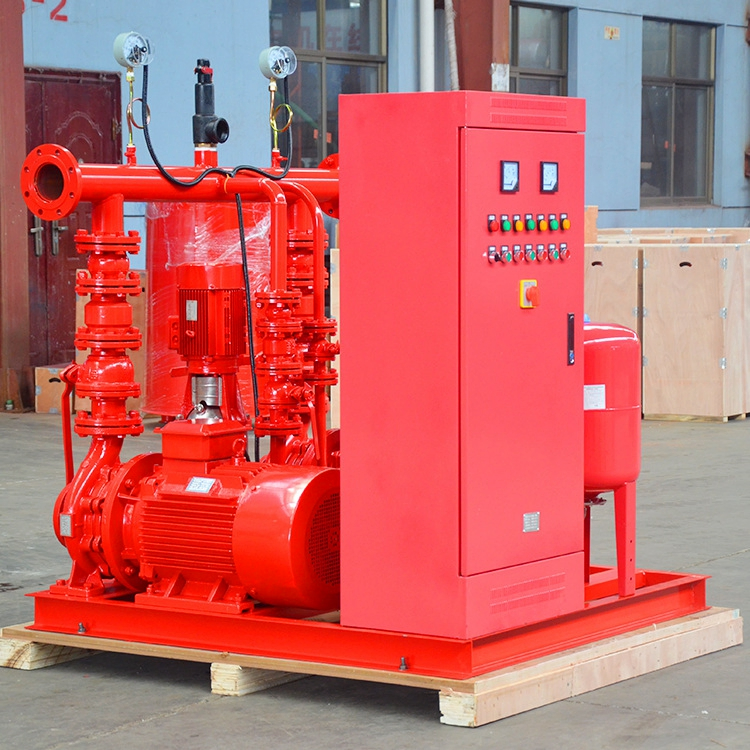

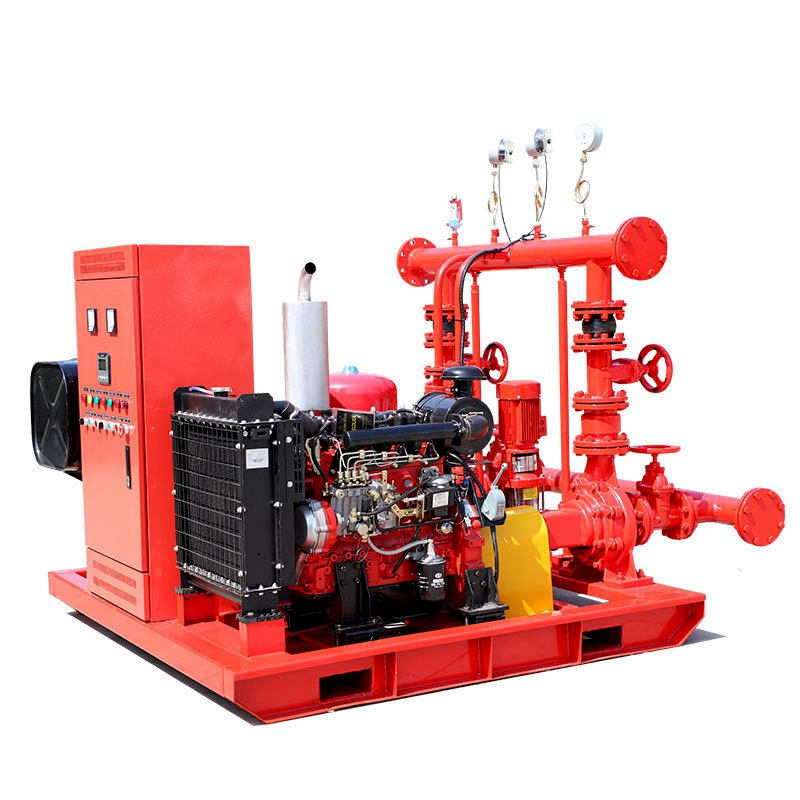

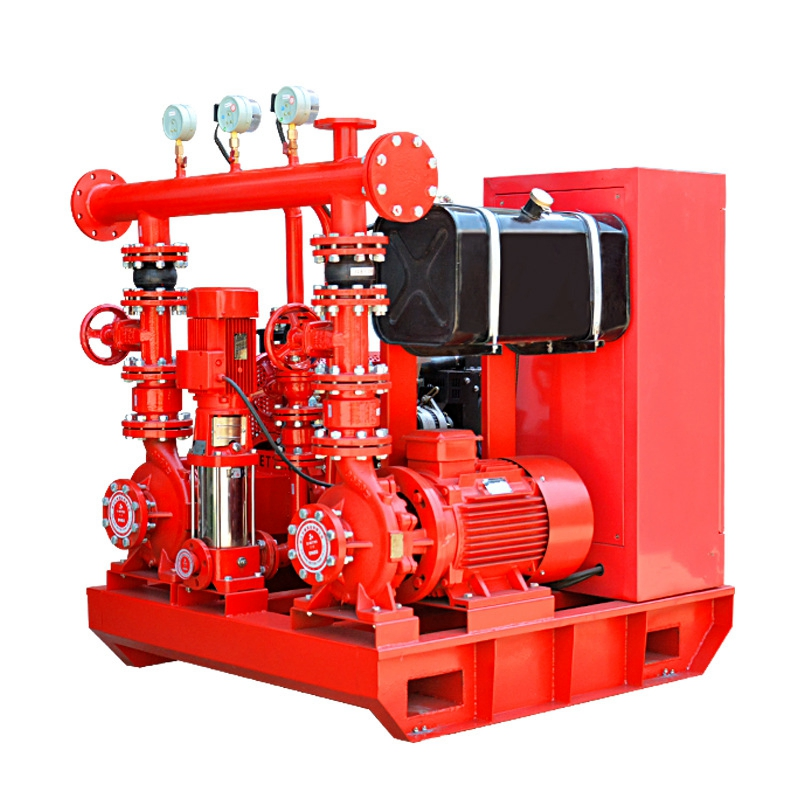

Dual Power EDJ Fire Pump System

⚙️

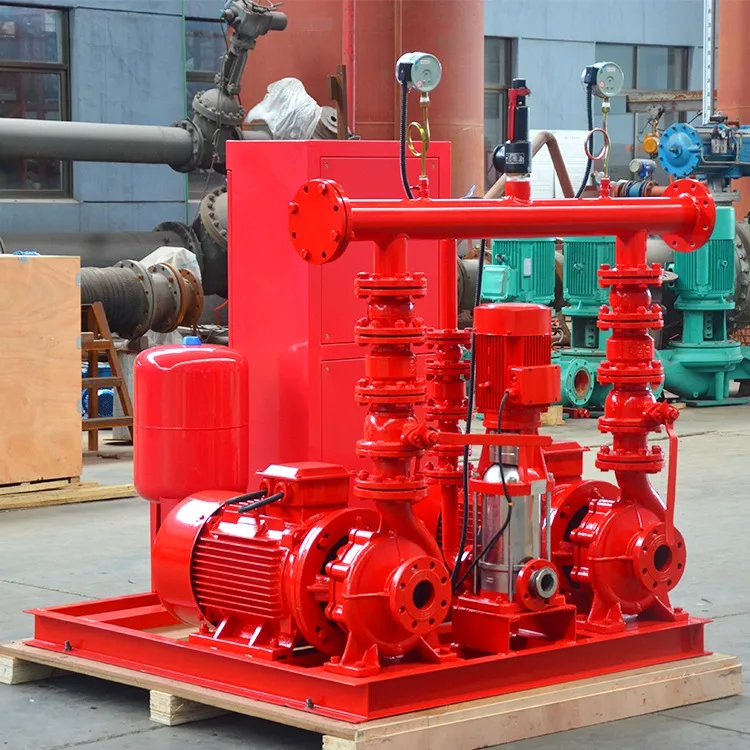

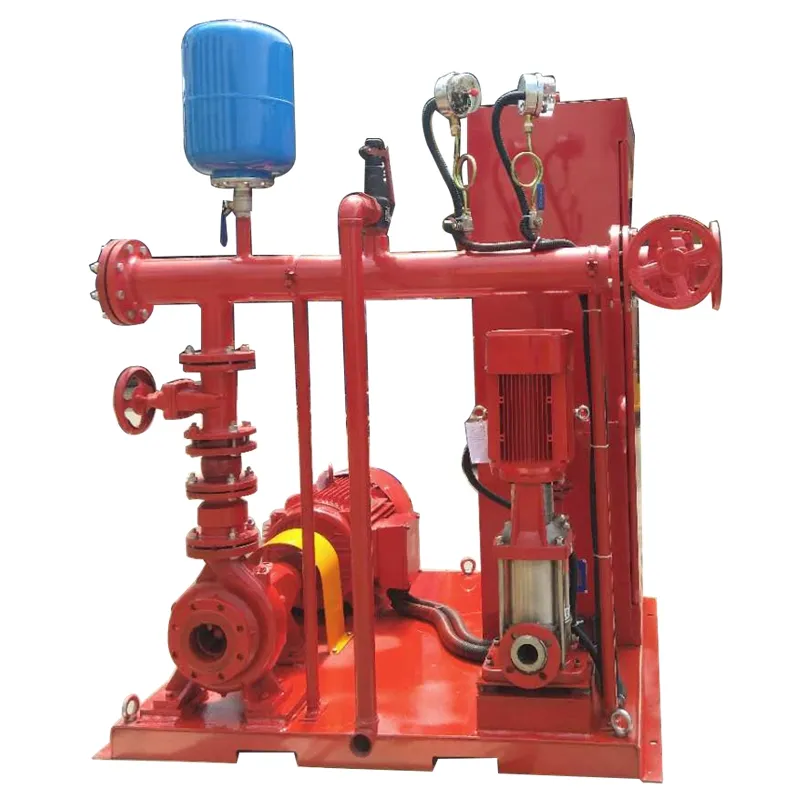

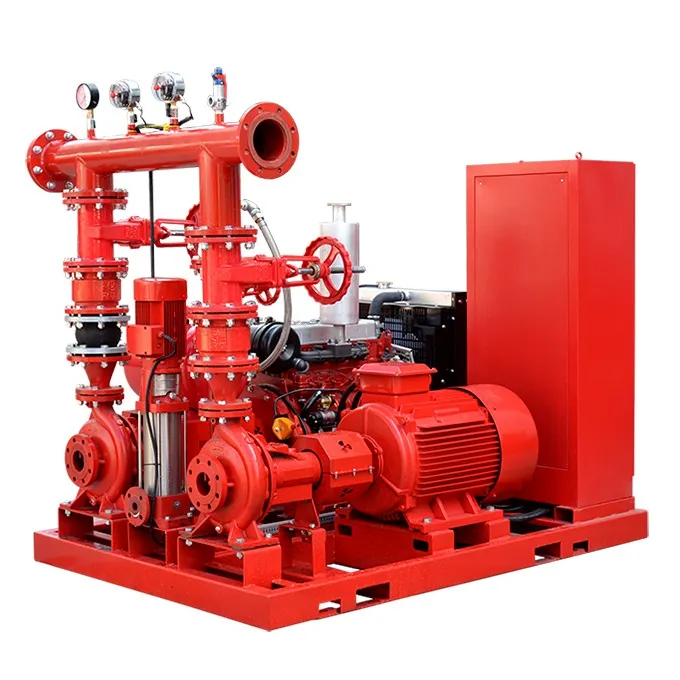

System Components: Our EDJ fire pump system is integrated with a diesel fire pump, electric fire pump, fire jockey pump, pressure tank, and pressure control cabinet.

📊

Performance Range:

Flow range: 100-8000m3/h
Head range: 10-600m
Power range: 10-800kw
Pump diameter: 2-32 inches

🏗️

Applications: Agricultural irrigation (drop/sprinkler), Fire fighting systems, Municipal engineering, wastewater treatment, Dewatering, floods drainage, Mining industry, and Water supply boosters.

Technical Data Sheet

Model	Flow(m3/h)	Head(m)	Speed(r/min)	Power(Kw)	Inlet(mm)	Outlet(mm)
IS50-32-125	12.5	20	2900	2.2	50	32
IS50-32-160	12.5	32	2900	3	50	32
IS50-32-200	12.5	50	2900	5.5	50	32
IS50-32-250	12.5	80	2900	11	50	32
IS65-50-125	25	20	2900	3	65	50
IS65-50-160	25	32	2900	5.5	65	50
IS65-40-200	25	50	2900	7.5	65	40
IS65-40-250	25	80	2900	15	65	40
IS80-65-125	50	20	2900	5.5	80	65
IS80-65-160	50	32	2900	7.5	80	65
IS80-50-200	50	50	2900	15	80	50
IS80-50-250	50	80	2900	22	80	50
IS100-80-125	100	20	2900	11	100	80
IS100-80-160	100	32	2900	15	100	80
IS100-65-200	100	50	2900	22	100	65
IS125-100-250	200	80	2900	75	125	100

Product Gallery

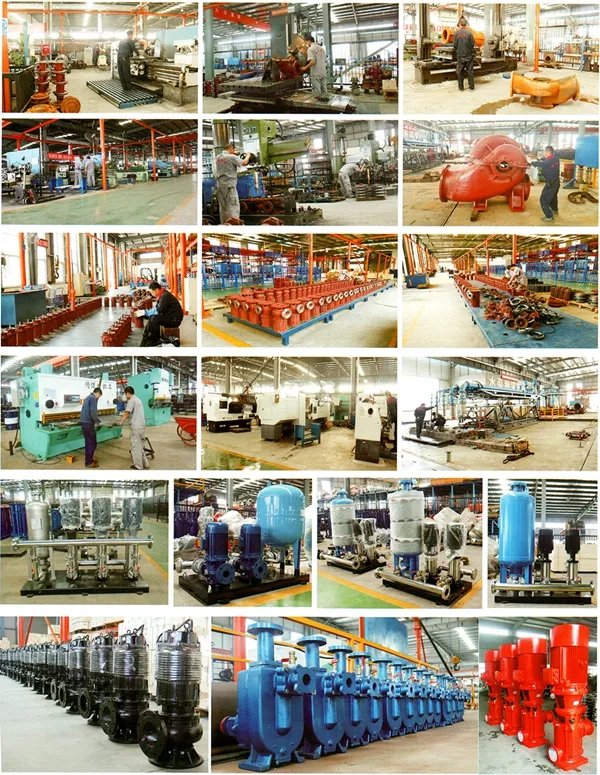

Factory Overview

With more than 20 years of expertise in pump manufacturing, our facility spans over 20,000 square meters of modern production space. We employ a dedicated team of over 100 professional engineers and skilled workers. Our quality control system is ISO9001:2008 certified, and we implement a strict "Double Testing" policy to ensure excellence. We offer a 12-month warranty and support third-party inspections for international trade.

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a professional pump manufacturer and handle our own exports directly.

What is your core business scope?

We manufacture all types of centrifugal pumps, sewage pumps, vacuum pumps, chemical pumps, and complete pump equipment sets.

What information is needed for a detailed inquiry?

Please provide the basic requirements: flow rate, head height, and power requirements.

What are your standard payment terms?

Common terms are T/T with a 30% deposit and the balance paid before shipment. We also accept Western Union and Paypal.

What are your shipment terms and warranty?

We support EXW, FOB, CIF, and CPT via sea, air, or express. We provide a 12-month warranty (excluding wear parts) and promise 24-hour action for technical issues.
