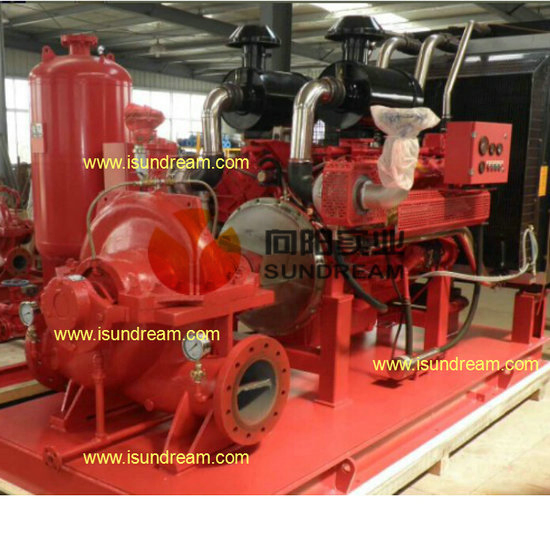

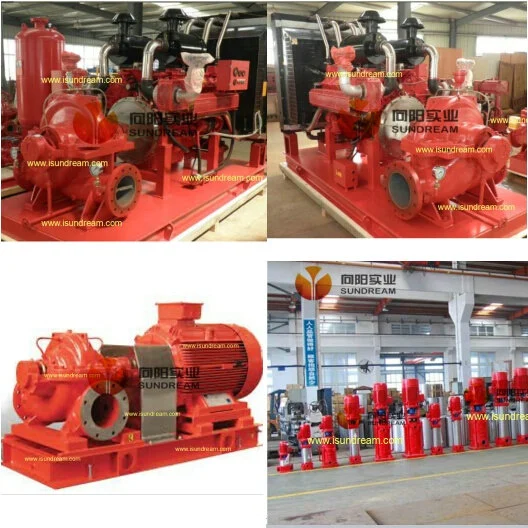

UL/FM Listed Diesel Engine Driven Fire Fighting Centrifugal Water Pump

1 / 5

UL/FM Listed Diesel Engine Driven Fire Fighting Centrifugal Water Pump

Customization:	Available
Max.Head:	>150m
Max.Capacity:	>400 L/min

Send Inquiry

Product Description

Basic Specifications

Model NO.

XBD, TPOW

Driving Type

Motor

Material

Cast Iron, Bronze, SS304, SS316

Structure

Multistage Pump

Power

Electric Motor & Diesel Engine

Application

Fire Fighting System, Water Transfer

Media

Clean Water

Performance

No Leakage

Flow Range

100-11600m3/h

Head

10-200m

Certifications

CE, SGS, ISO9001

HS Code

8413709990

★

Product Description

We are a professional manufacturer of diesel engine-driven fire fighting pump equipment, delivering high and stable quality compliant with NFPA20 standards. Our solutions cater to a diverse range of fire protection requirements.

Key Features: High efficiency, low running noise, excellent anti-cavitation performance, reasonable structure, and long service life. All XBD series fire pumps meet the National GB6245-1998 standards for fire pump performance and test methods.

Technical Parameter Overview
Inlet/Outlet	DN80-DN800
Impeller Diameter	170mm-980mm
Rotary Speed	730RPM-3500RPM
Flow Rates	>11600m3/h
Head	>200m
Voltage	380V/400V/415V/440V/460V/525V etc.
Frequency	50Hz/60HZ
Working Pressure	>2.5Mpa
Drive Mode	Electric Motor and Diesel Engine
Cooling Model	Water cooled & Air cooled
Drive Brand	Cummins, Deutz, Ricardo, Perkins, Weichai, SIEMENS

Usage & Application

Specifically designed for pressurized water fire fighting systems, these pumps are also suitable for:

Factories and mines drainage
Pressurized water for high-rise buildings
Long-distance water supply and heating systems
Boiler feed water and air-conditioning refrigeration systems

Model	Capacity (L/S)	Pressure (Mpa)	Power (KW)	Speed (RPM)
XBD1.6/5-50	5	0.16	1.5	2950
XBD5/5-50	5	0.5	5.5	2950
XBD8.8/10-65	10	0.88	18.5	1480
XBD16/15-80	15	1.6	45	1480
XBD20.4/50-150	50	2.04	160	1480
XBD23.1/75-W200	75	2.31	280	1480

📷

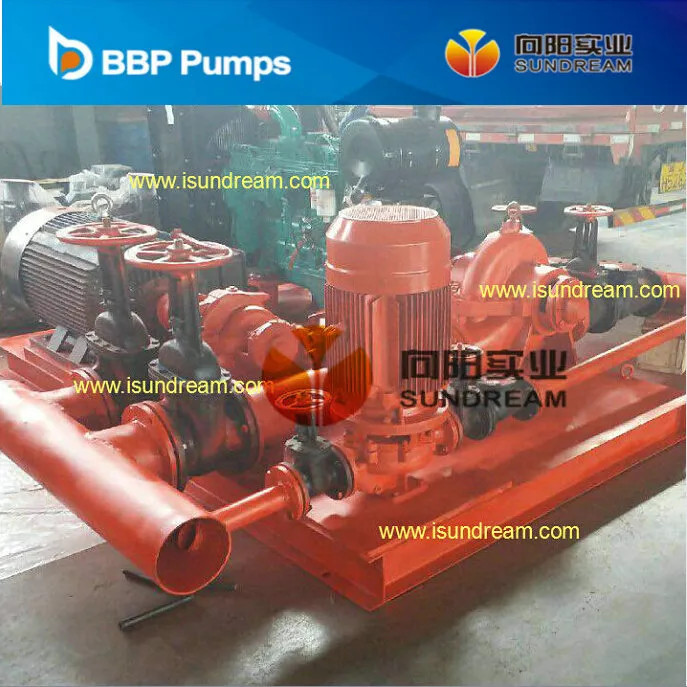

Product Showcase

Frequently Asked Questions

1. What standards do your fire fighting pumps comply with?

Our pumps are manufactured according to the NFPA20 standard and meet the National GB6245-1998 performance requirements and test methods.

2. What are the available driving modes for these pumps?

The fire fighting pumps can be driven by either an electric motor or a diesel engine, depending on your system requirements.

3. Are these pumps resistant to leakage?

Yes, our fire pumps feature a full seal design which ensures no leakage and provides excellent corrosion resistance.

4. What materials are used in the construction of the pumps?

Common materials include cast iron, ductile iron, cast steel, stainless steel (SS304, SS316, SS316L), aluminum, and bronze.

5. Can these pumps be used for applications other than fire protection?

Yes, they are versatile and can be used for factory drainage, high-rise building water pressurization, boiler systems, and air-conditioning refrigeration.

6. What is the maximum flow rate and head capacity?

The system can achieve flow rates exceeding 11,600 m3/h and a head height of over 200 meters.
