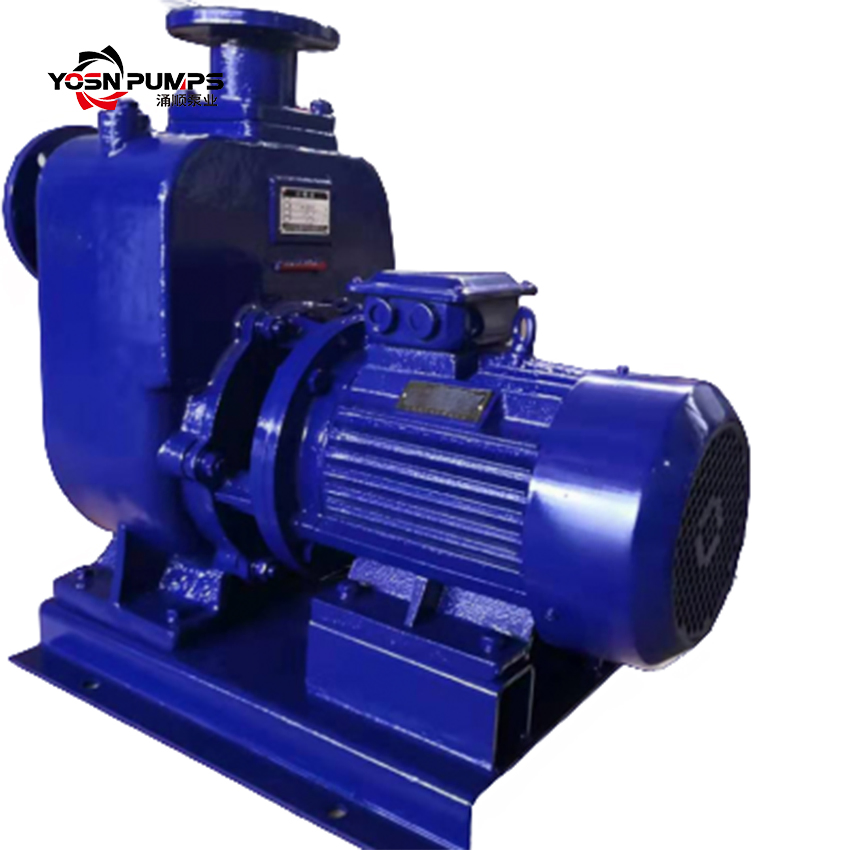

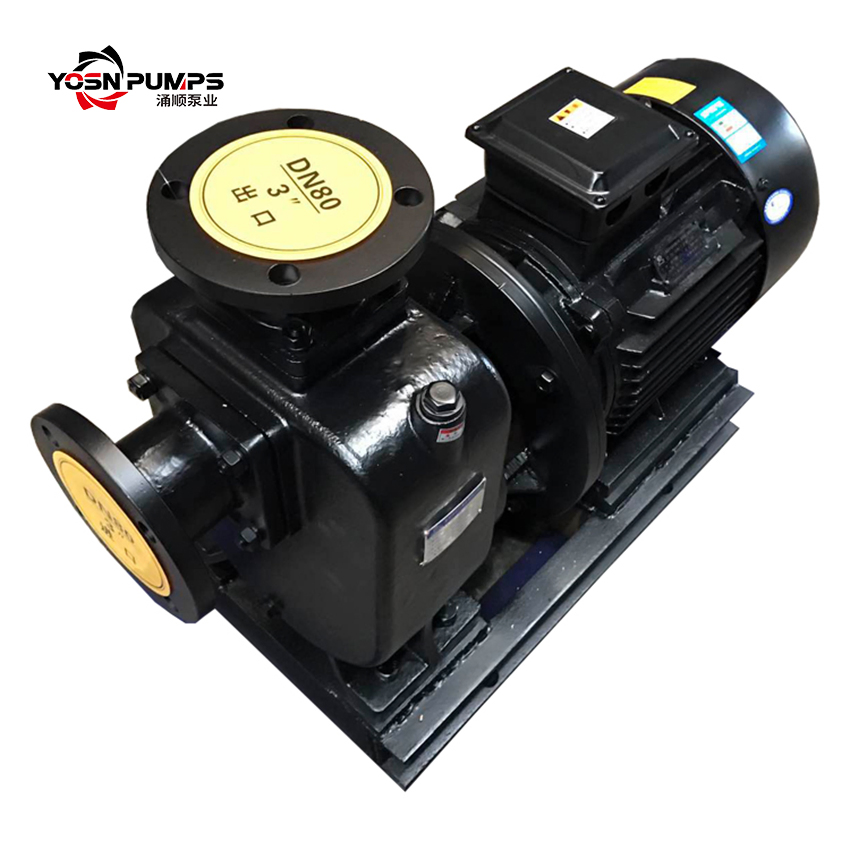

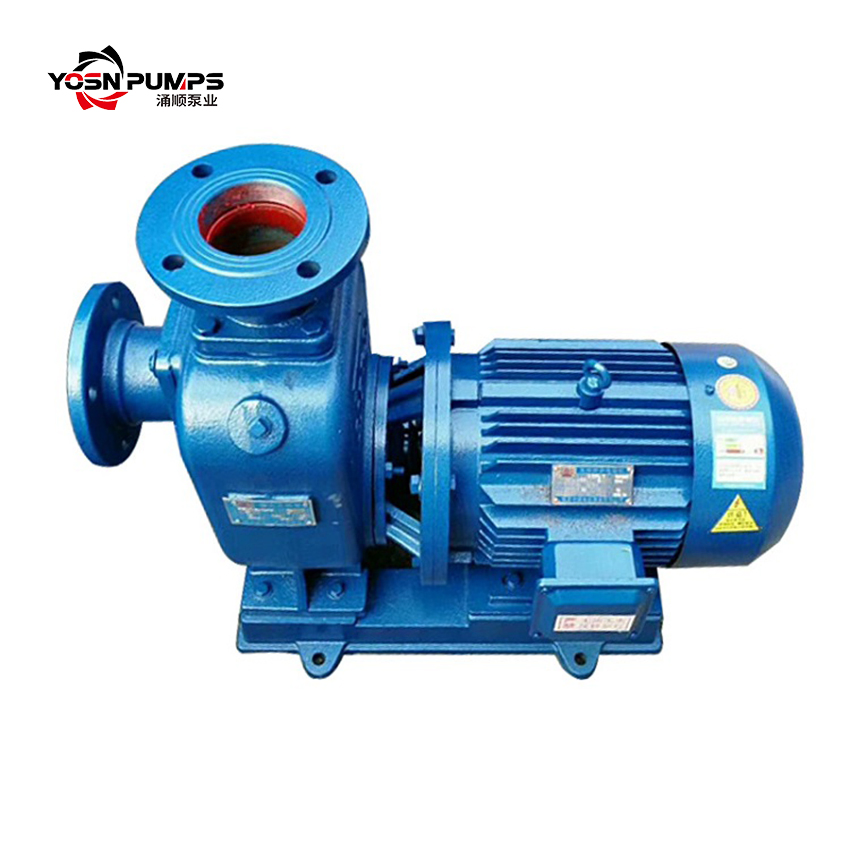

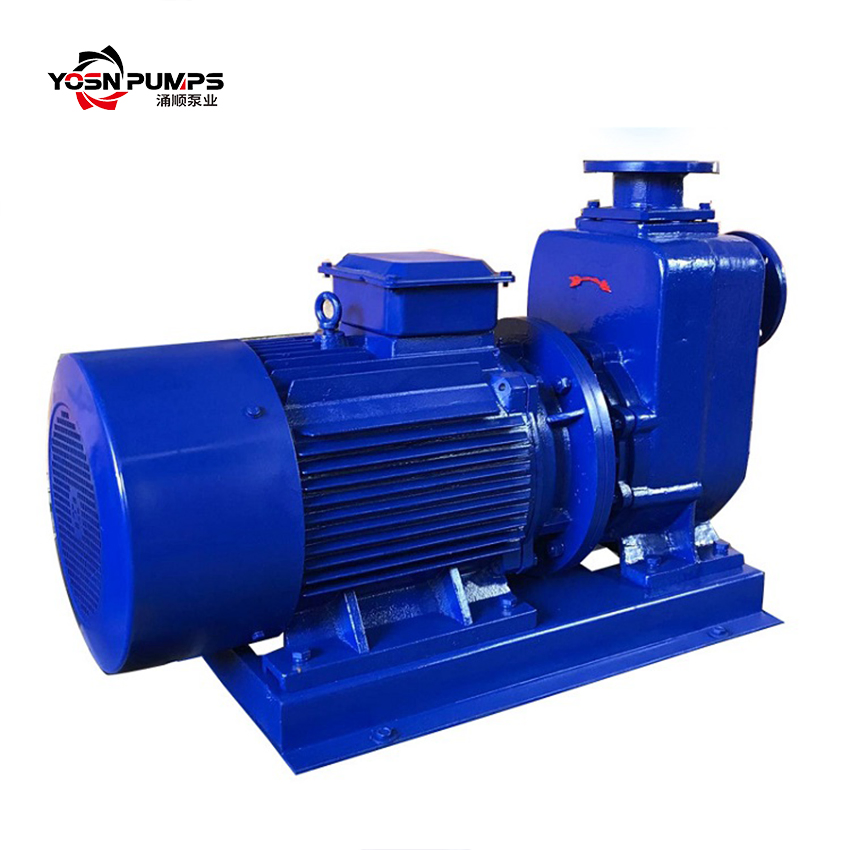

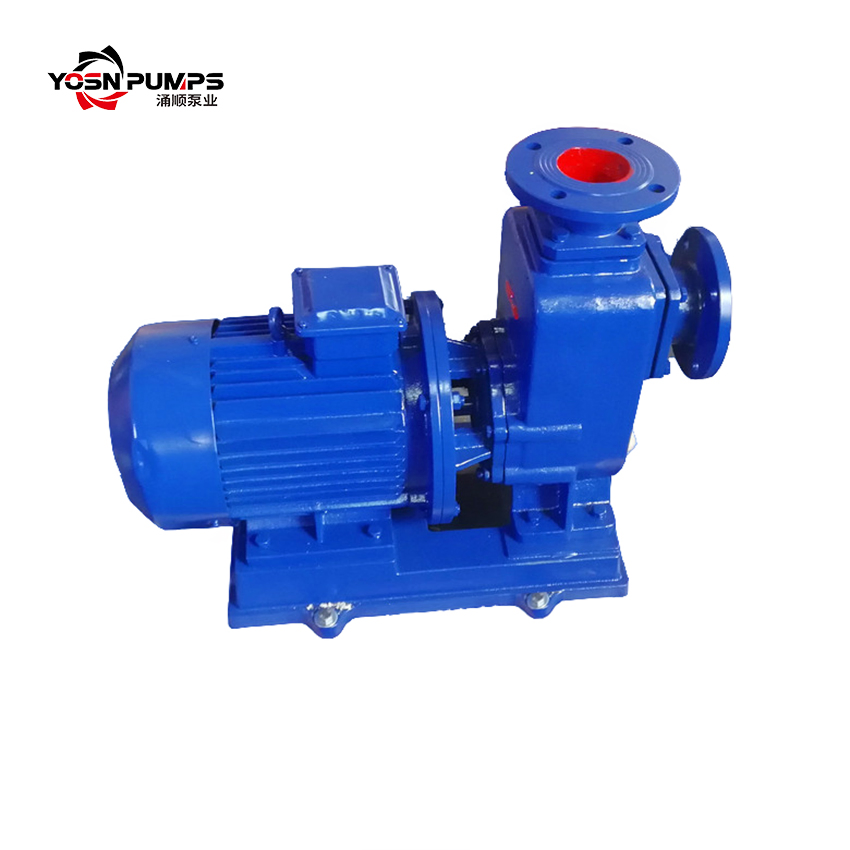

Monoblock Self Priming Centrifugal Pump
ZX series pumps are horizontal single stage single suction self-priming centrifugal pumps. They are widely used in urban environmental protection, construction, fire protection, chemical industry, pharmaceuticals, brewing, electricity, and petroleum for transporting water, seawater, and chemical media.
| Model | Power (kW) | Capacity | Head (m) | Speed (r/min) | Self Priming Height (m) | Inlet/Outlet (mm) | |
|---|---|---|---|---|---|---|---|
| m³/h | L/S | ||||||
| 25ZX | 0.75-1.1 | 3.2 | 0.9 | 20-32 | 2900 | 6.5 | 25/25 |
| 40ZX | 1.1-4 | 6.3-10 | 1.8-2.8 | 20-40 | 2900 | 6.5 | 40-50/32-40 |
| 50ZX | 1.5-11 | 10-20 | 2.8-5.6 | 12-75 | 2900 | 6.5 | 50/50 |
| 80ZX | 3-22 | 35-60 | 9.7-16.7 | 13-70 | 2900 | 6 | 80/80 |
| 100ZX | 11-30 | 70-100 | 19.4-27.8 | 20-75 | 2900 | 6 | 100/100 |
| 200ZX | 55-110 | 280-400 | 77.8-111.1 | 32-65 | 1450 | 5 | 200/200 |
| 300ZX | 90-132 | 500-600 | 138.9-166.7 | 32-55 | 1450 | 5 | 300/300 |
Mining Drainage
Chemical Industry
Petroleum Industry
Papermaking
Medicine
Fire Fighting

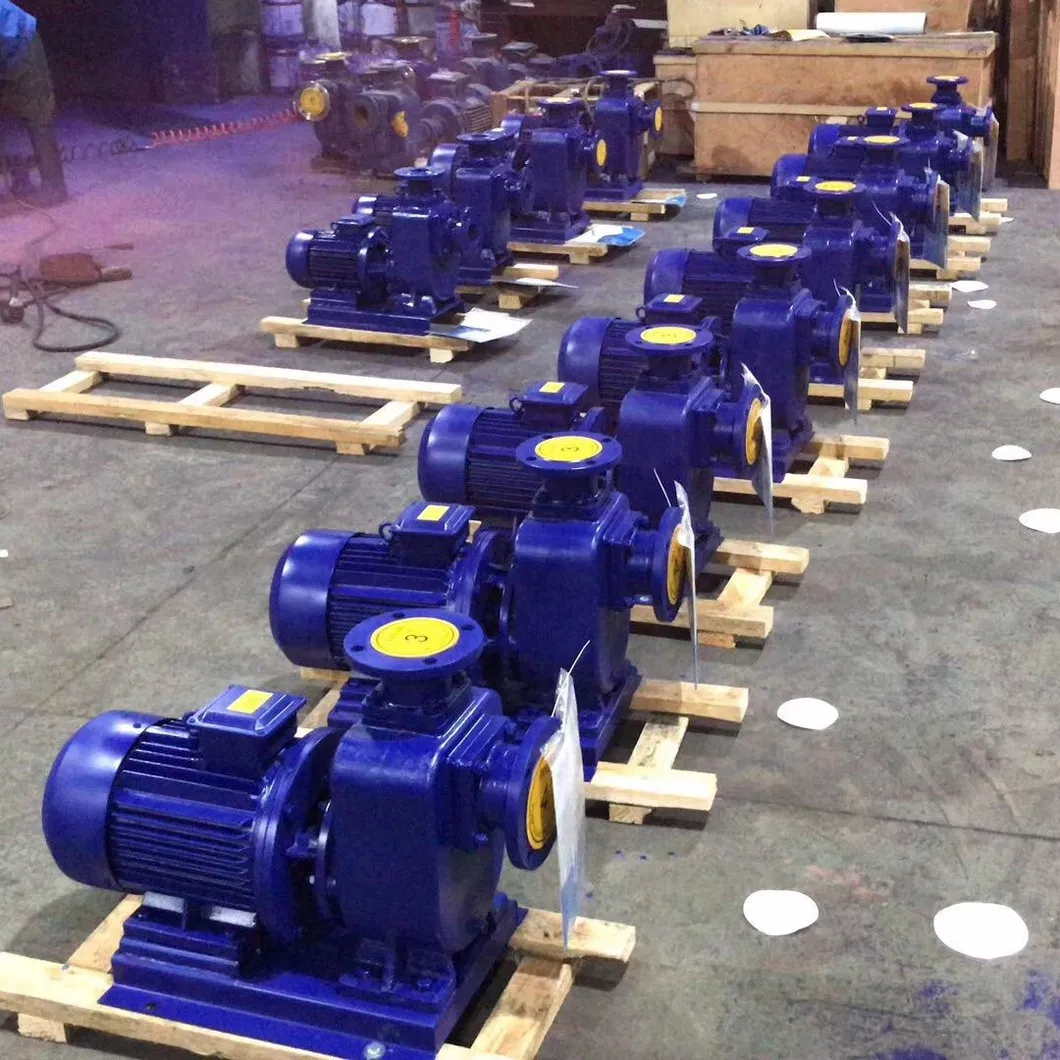

We ensure professional packaging including boxing, nailing, and secure loading. Supporting freight via air, sea, and express methods to ensure efficient delivery.

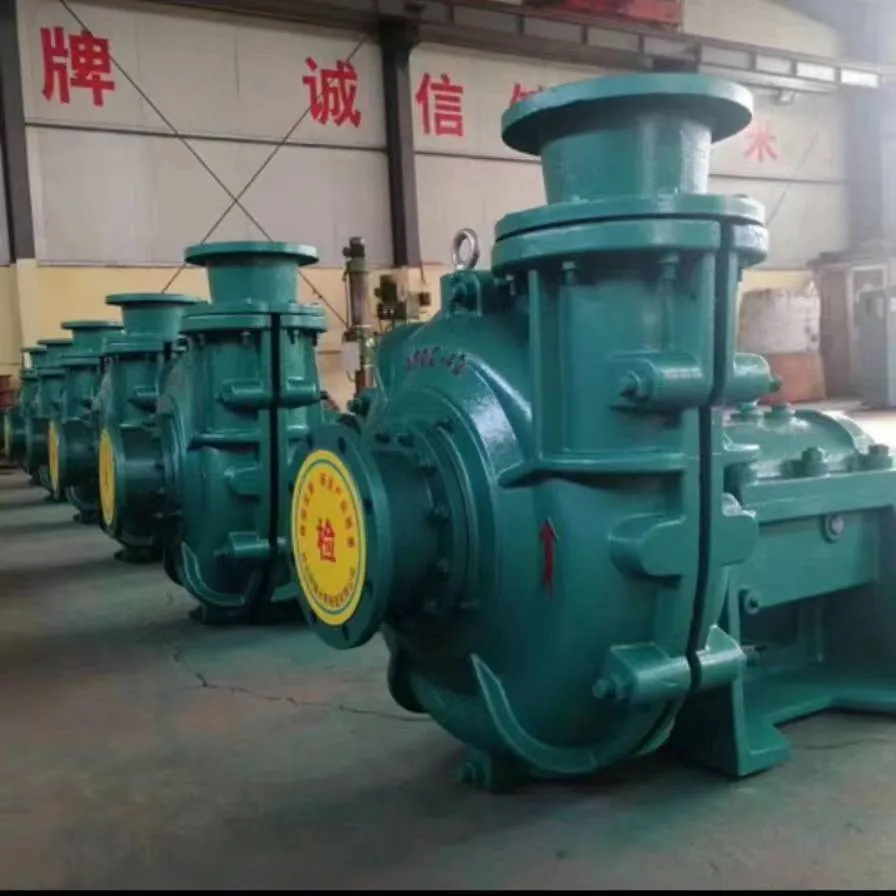

Business Focus: Established in 2016, specialized as a manufacturer and exporter.
Main Product Line: Slurry pumps, clean water pumps, sewage pumps, chemical pumps, multistage pumps, double suction pumps, booster pumps, and diesel-powered units.
Our facility maintains high standards with ISO and CE certifications, complying with international safety and quality requirements.
