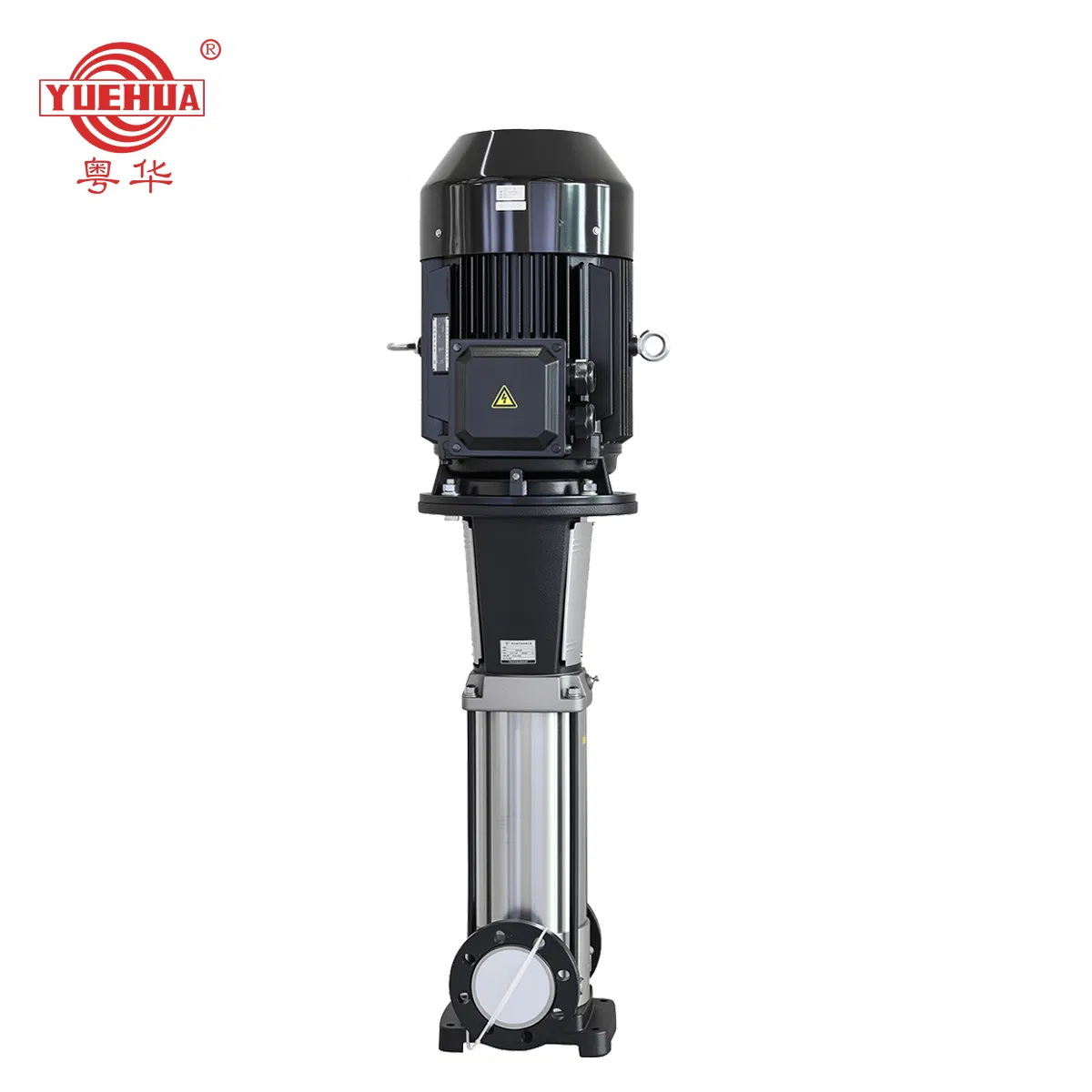

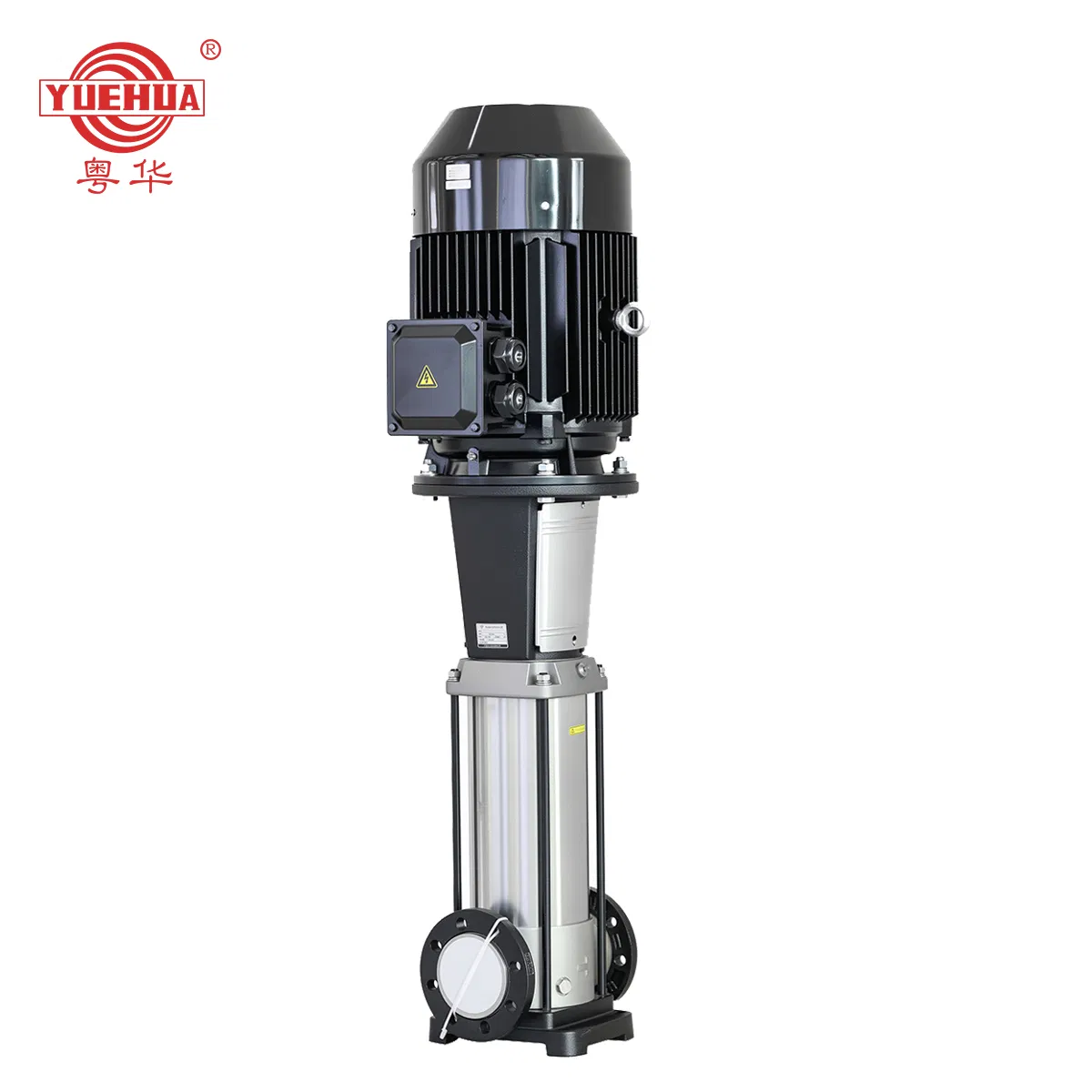

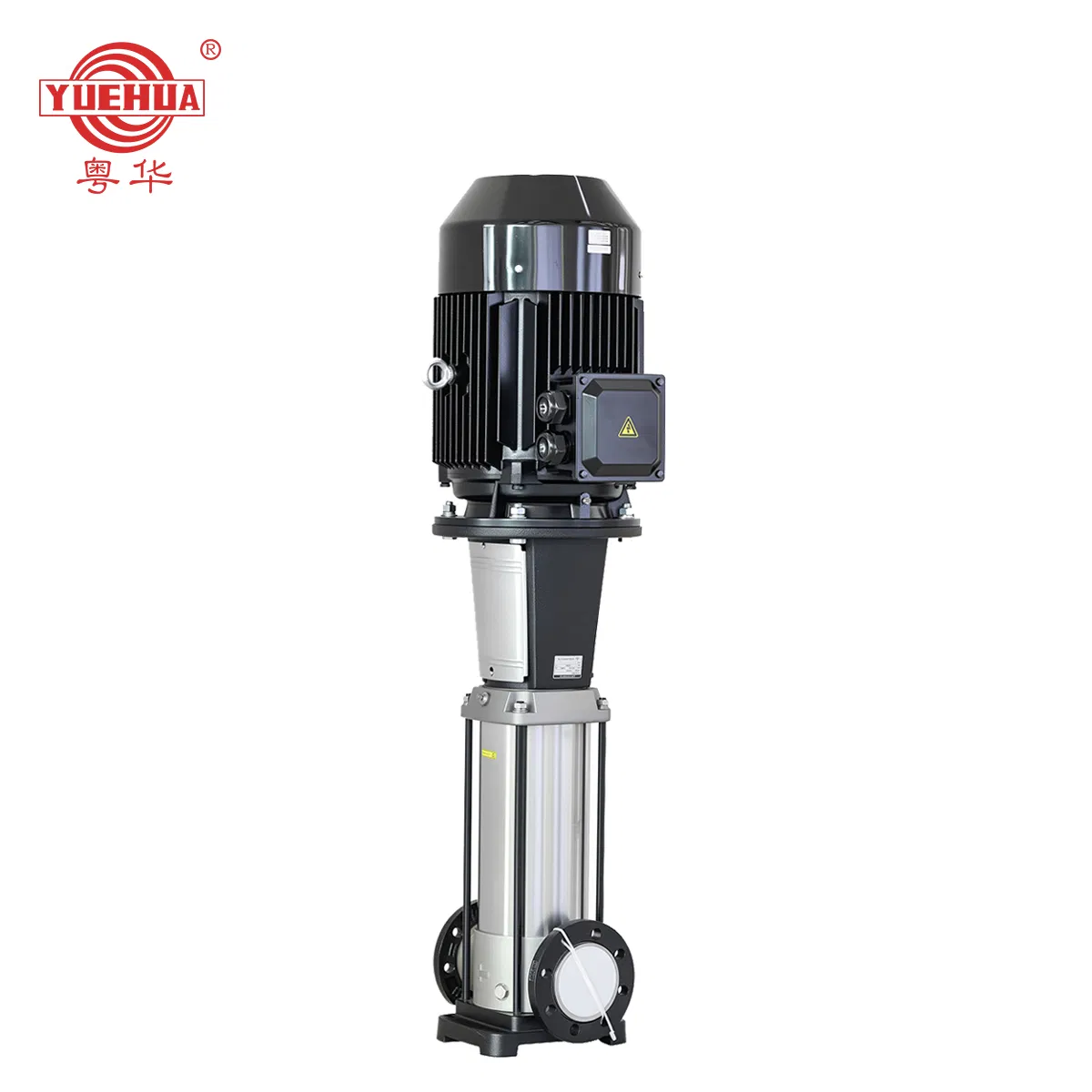

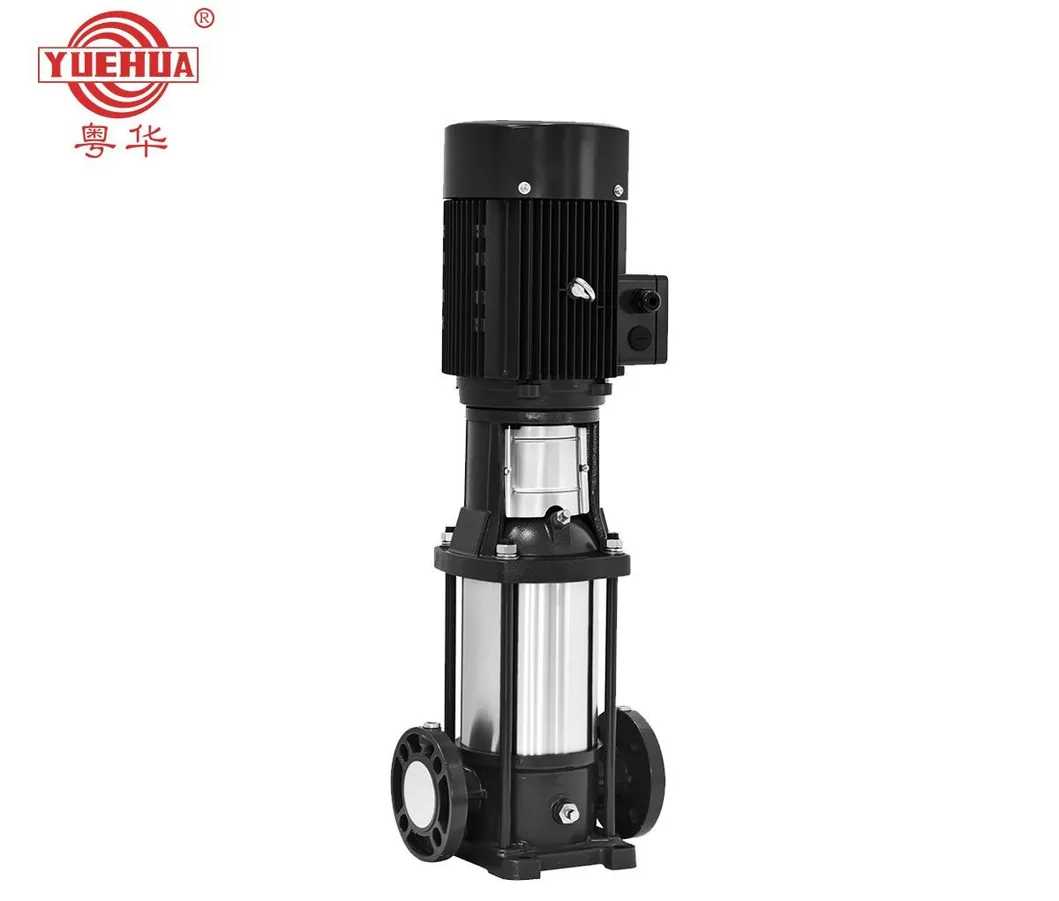

The Vertical Multistage Stainless Steel Pump delivers reliable, high-efficiency performance for demanding industrial, commercial, and building applications. With flows up to 2,500 L/min and heads up to 206 m, its compact vertical design saves installation space. Inline suction and discharge ports simplify piping, while all wetted parts are premium stainless steel for superior corrosion resistance and durability.
| Model | Power | Capacity (m³/h) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| KW | HP | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 23 | |
| DL16-20 | 2.2 | 3.0 | 26 | 26 | 25 | 24 | 22 | 21.5 | 19 | 16.5 | 15 |
| DL16-40 | 4.0 | 5.5 | 54 | 53 | 50 | 49 | 46.5 | 42 | 39 | 34.5 | 32 |
| DL16-140 | 11 | 15 | 190 | 186 | 180 | 172 | 162 | 151 | 138 | 122 | 112 |
| Model | Power | Capacity (m³/h) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| KW | HP | 16 | 20 | 24 | 28 | 32 | 36 | 40 | |
| DL32-10 | 2.2 | 3.0 | 18 | 17 | 15 | 14 | 13 | 11 | 8 |
| DL32-20-2 | 3.0 | 4.0 | 29 | 28 | 26 | 23 | 20 | 16 | 12 |
| DL32-140 | 30 | 40 | 252 | 238 | 224 | 210 | 196 | 170 | 142 |
Our company specializes in stainless steel stamped and welded centrifugal pumps, utilizing hydroforming technology and advanced welding techniques. We hold various national invention patents and international certifications including ISO9001:2015, ISO14001:2015, CE, and DIN standards.
