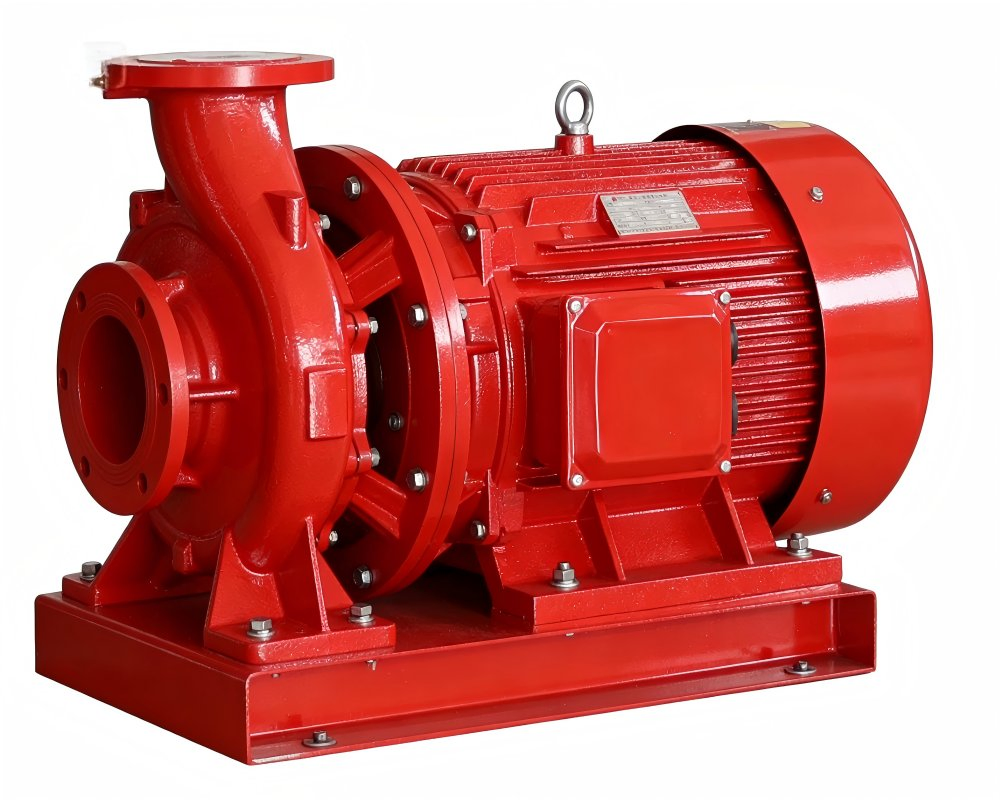

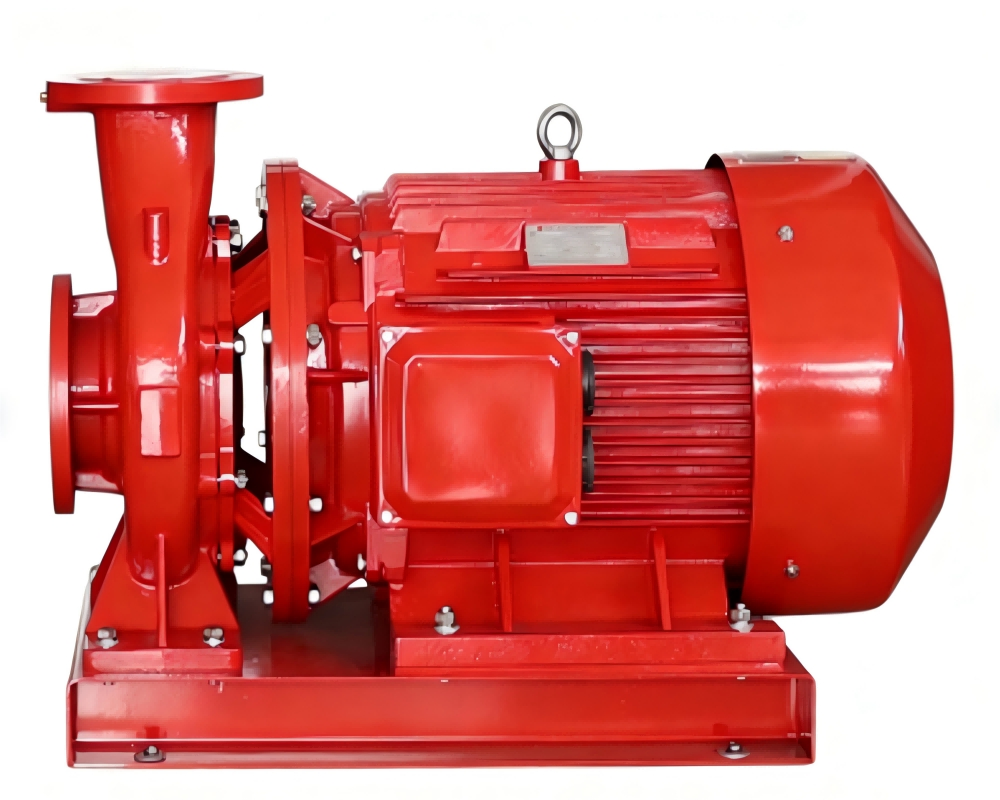

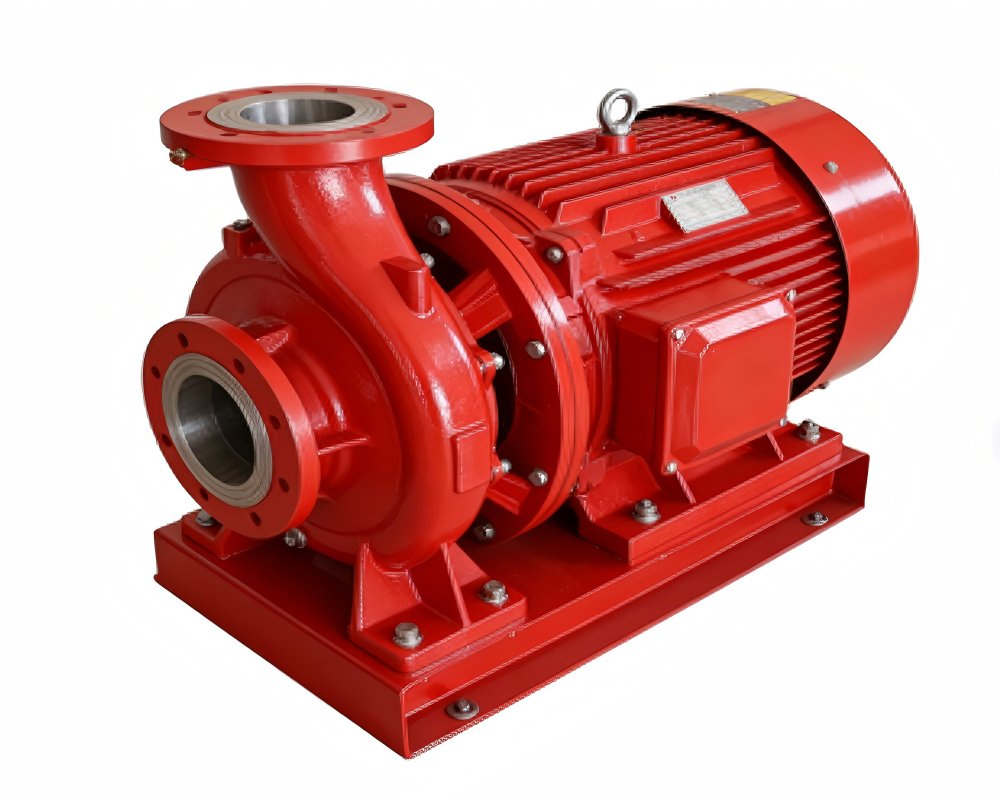

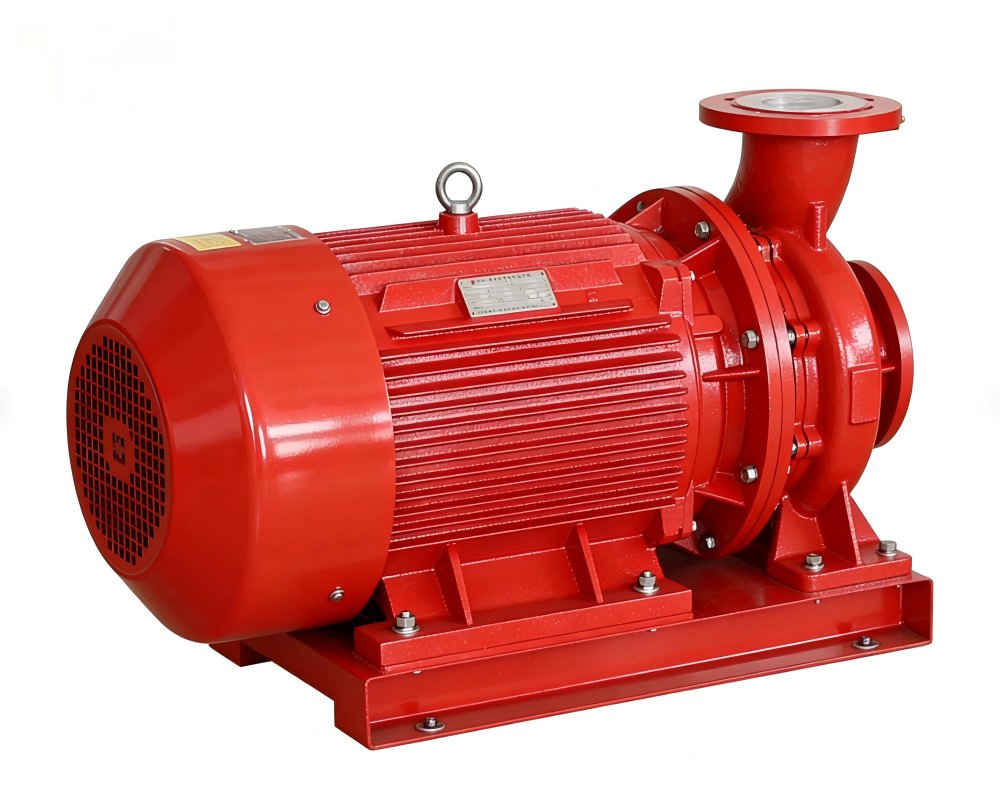

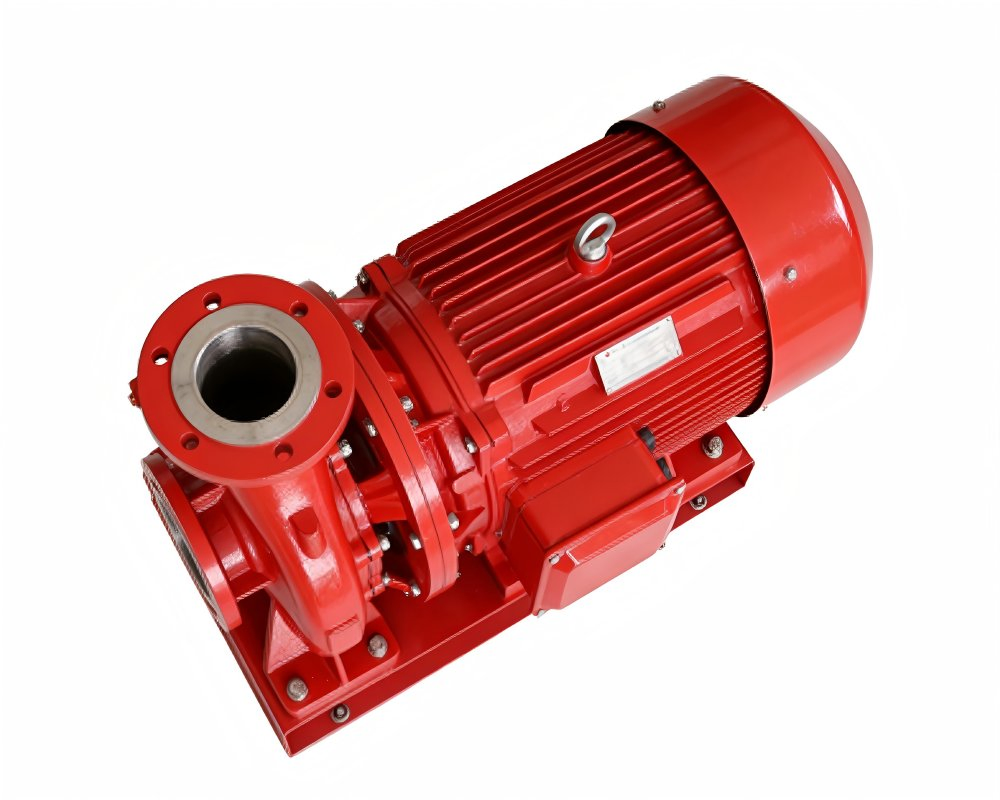

Direct-coupled and compact in structure, the pump features a streamlined design with cleanly arranged reinforcing ribs, offering an aesthetically pleasing appearance. The hydraulic model is optimized using CFD, incorporating three-dimensional design theory, model optimization, and dynamic characteristic analysis methods to maximize pump efficiency and broaden the range of high-efficiency operation.
The molds for flow-passing components are CNC-formed, and castings are produced using resin sand molding, ensuring dimensional accuracy and surface smoothness of the parts. Key structural components are designed with FEM optimization to verify the rationality of the structural design and meet load-bearing requirements. The motor provides IP55 protection and Class F insulation.
❓ Frequently Asked Questions
What is the typical delivery time for orders?
Samples can be sent within 7-10 days. Batch orders are typically shipped within 20 days after receiving the deposit payment.
Can you provide guidance on installation and after-sales issues?
Yes, our after-sales engineers have over 10 years of experience and provide free video guidance to customers for both installation and troubleshooting.
What information is needed for an accurate quote?
To provide an exact quote, we require the pump flow, total head, preferred material (copper or aluminum wire), stator length, voltage, and frequency.
Are the products tested for leakage?
Absolutely. We conduct 100% long-term testing on every pump to ensure there are zero leakage problems before shipment.
Do you accept customized product orders?
Yes, we accept specific customized orders provided you can supply us with your detailed technical requirements.
Can you recommend a pump based on my specific working conditions?
Our technical team has over 15 years of experience and can recommend the most suitable pump model based on the operational data you provide.
