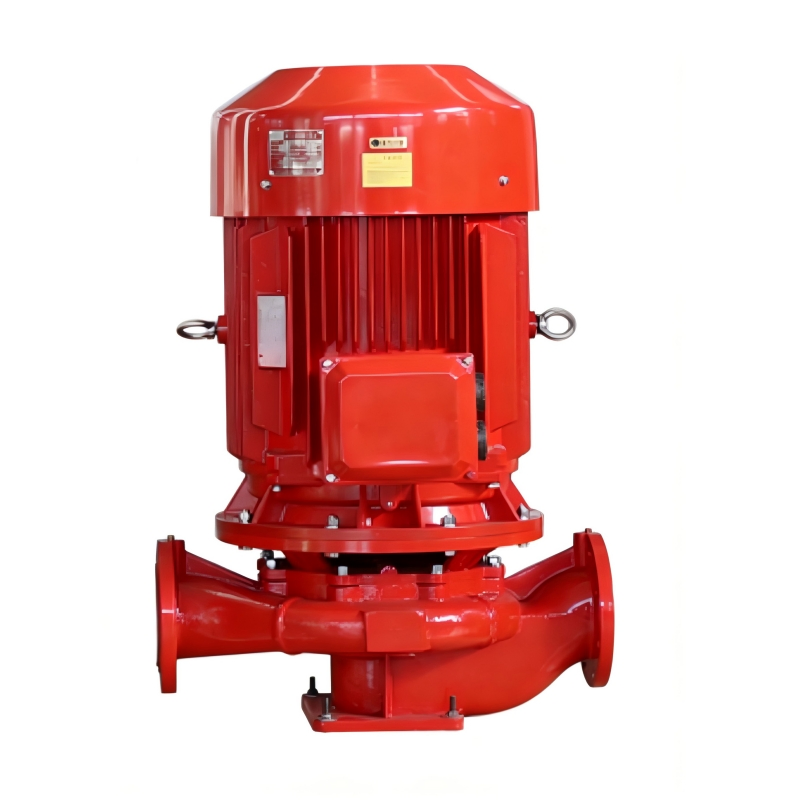

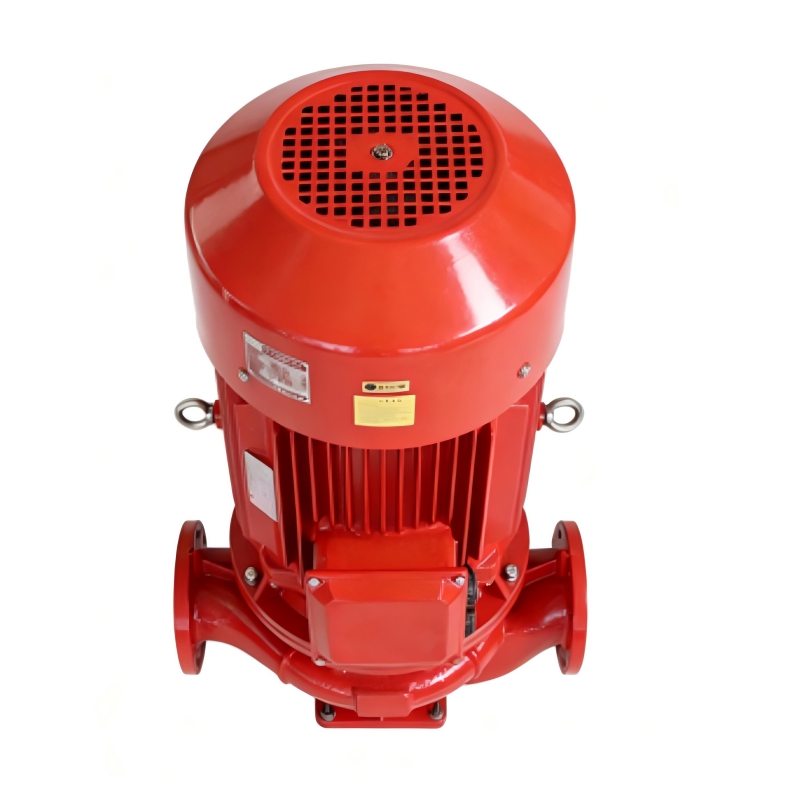

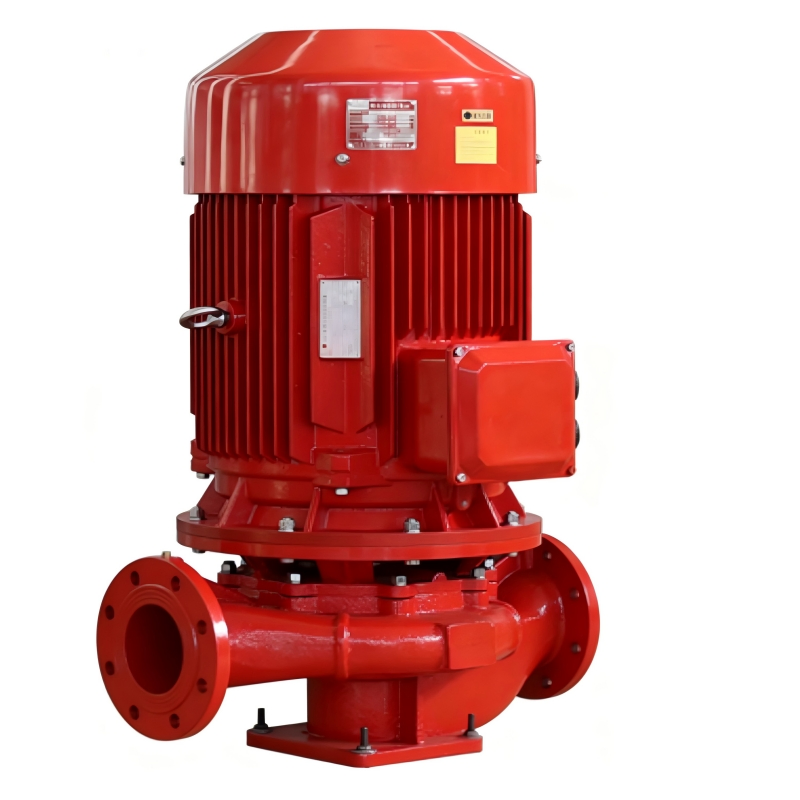

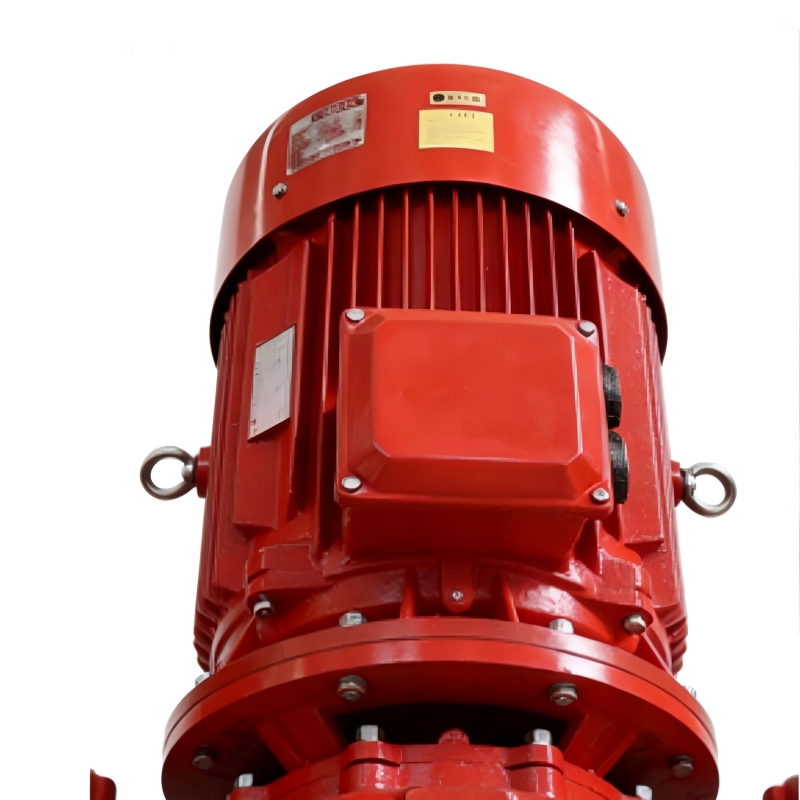

Xbd Series Vertical Fire Pump for Fire Fighting System Centrifugal Pump

Customization: Available
After-sales Service: Video Conversation Guidance
Warranty: 1 Year

Product Description

i

Basic Information

Model NO.
XBD Series
Max.Head
>150m
Max.Capacity
>400 L/min
Driving Type
Motor
Impeller Number
Multistage Pump
Working Pressure
High Pressure Pump
Influent Type
Single Suction Pump
Shaft Position
Vertical Pump
Casing Combined
Verticaljoint Surface
Mounting Height
Suction Centrifugal
Impeller Type
Closed
Usage
Fire Fighting Pump
Frequency
50/60Hz
Speed
2900rpm/3500rpm
Liquid Temp.
<80℃
Voltage
380V
Flow Range
5-200L/S
Origin
China
HS Code
8413709990
Production Capacity
500/Month

Product Description

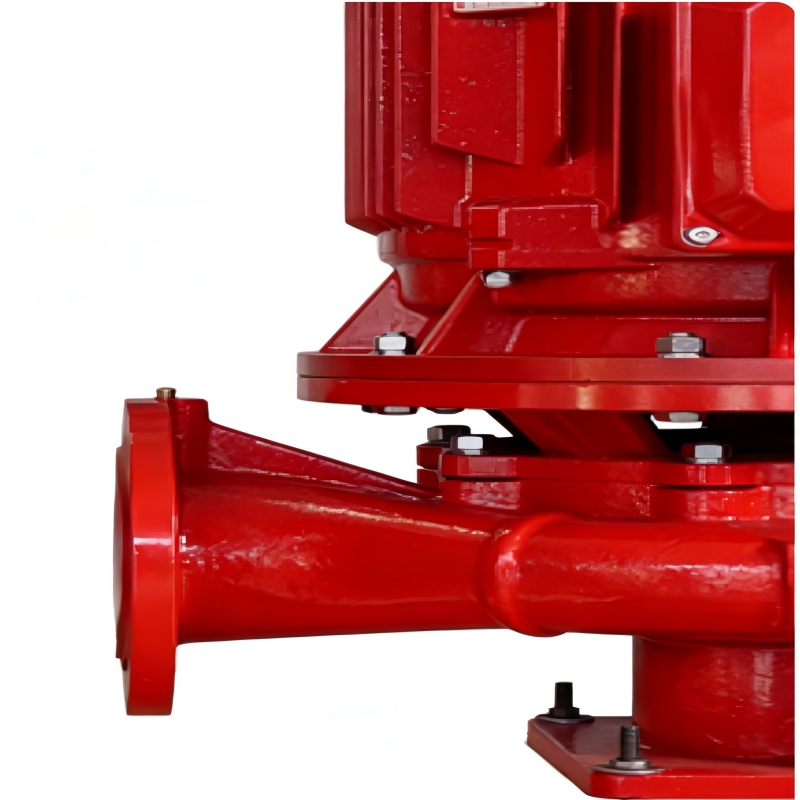

Direct-coupled and compact in structure, the pump features a streamlined design with cleanly arranged reinforcing ribs, offering an aesthetically pleasing appearance. The hydraulic model is optimized using CFD, incorporating three-dimensional design theory, model optimization, and dynamic characteristic analysis methods to maximize pump efficiency and broaden the range of high-efficiency operation. The molds for flow-passing components are CNC-formed, and castings are produced using resin sand molding, ensuring dimensional accuracy and surface smoothness of the parts. Key structural components are designed with FEM optimization to verify the rationality of the structural design and meet load-bearing requirements. The motor provides IP55 protection and Class F insulation.
?

Frequently Asked Questions

What is the lead time for orders?
Samples can be prepared within 7-10 days. Batch orders are typically shipped within 20 days after receipt of the deposit payment.
Do you offer customization or OEM services?
Yes, we accept specific orders and can provide OEM services if the total order quantity reaches 200 pieces.
How do you ensure the pump quality and prevent leakage?
We conduct 100% long-duration testing for every pump to ensure there are no leakage problems before shipment.
What technical information is required for an accurate quote?
Please provide the required pump flow, total head, preferred material (copper or aluminum wire), voltage, and frequency.
Can you provide guidance on installation and after-sales support?
Our professional after-sales engineers have over 10 years of experience and provide free video guidance for installation and troubleshooting.
What are your standard payment terms?
Our standard terms are 50% in advance, with the remaining 50% balance due against the B/L or via T/T.
