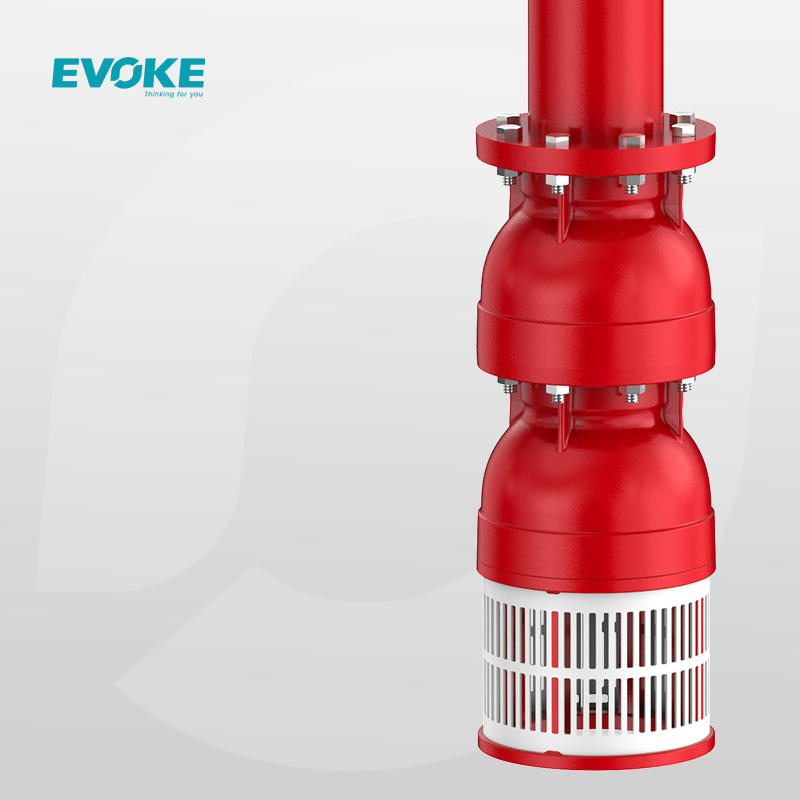

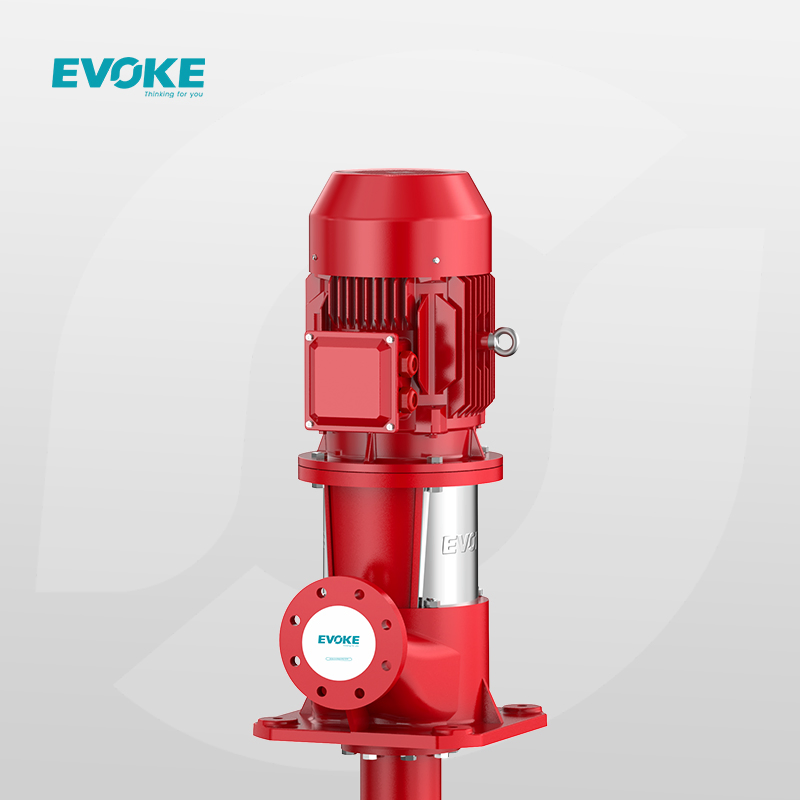

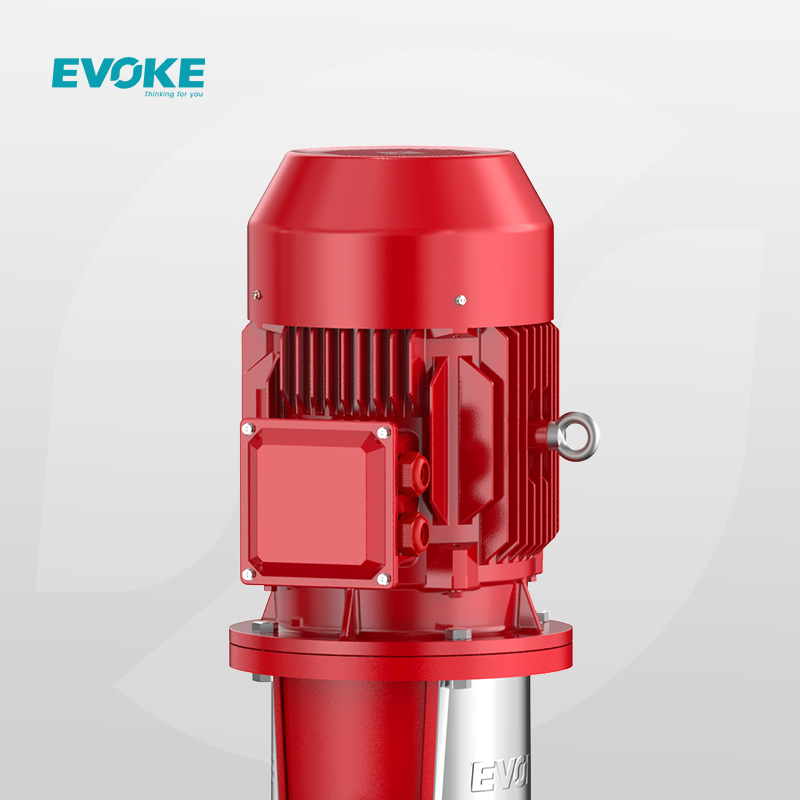

Xbd Vertical Turbine Pump Long Shaft Fire Protection Solutions for Global B2B Buyers

Customization:	Available
After-sales Service:	Warranty Free Accessories (Not Man-Made)
Warranty:	18 Months

Basic Specifications

Model NO.

XBD

Max.Head

>150m

Max.Capacity

>400 L/min

Driving Type

Motor

Material

Stainless Steel

Structure

Multistage Pump

Assembly

Pipeline Pump

Power

Electric

Start Up

Electric Pump

Type

Centrifugal

Application

Fire Fighting

Industry

Fire Fighting Pump

Media

Clean Water

Theory

Centrifugal Pump

Transport Package

Wooden Box

Origin

China

Product Overview

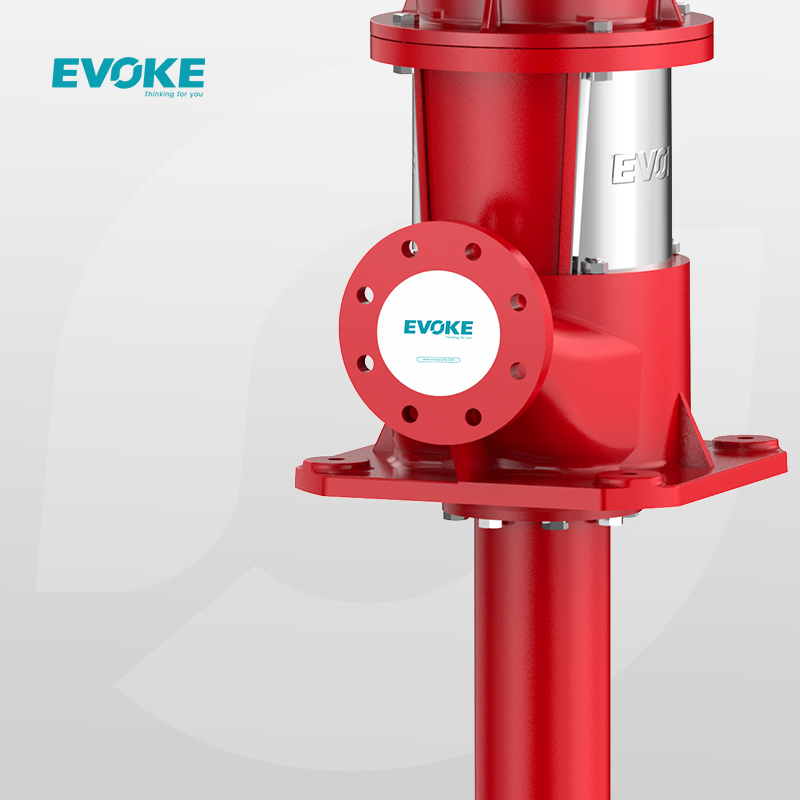

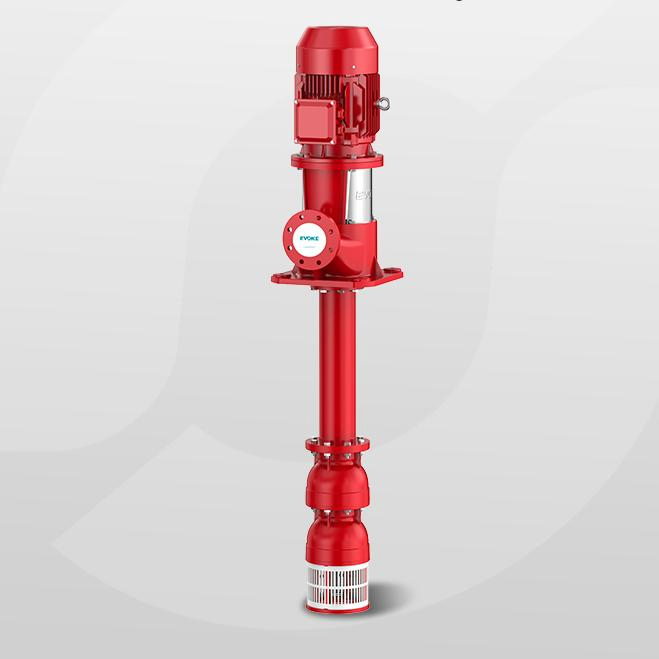

The turbine fire pump consists of multiple centrifugal impellers, guide sleeves, water pipes, transmission shafts, pump seat motors, and other components. The pump seat and motor are located above the water tank, and the power of the motor is transmitted to the impeller shaft through a transmission shaft concentric with the water pipe, thereby generating flow and pressure.

✓

Standard Compliance: Fully meet NFPA20 standard for fire protection.

✓

Easy Maintenance: Coupling connection design ensures convenient maintenance and larger flow capacity.

✓

System Integration: A critical component for professional fire fighting systems.

✓

Performance: Stable operation with low noise levels.

✓

Emergency Use: Ideally suitable for emergency fire water supply scenarios.

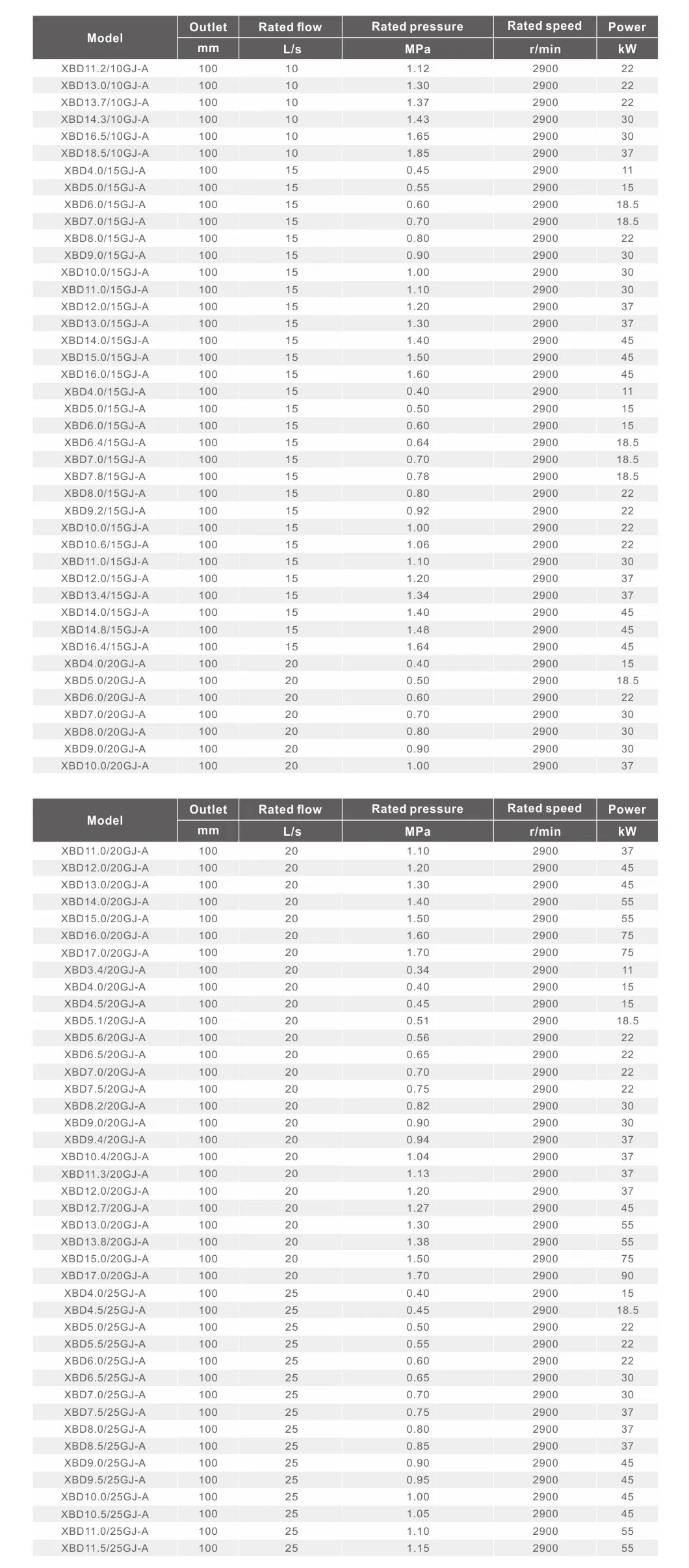

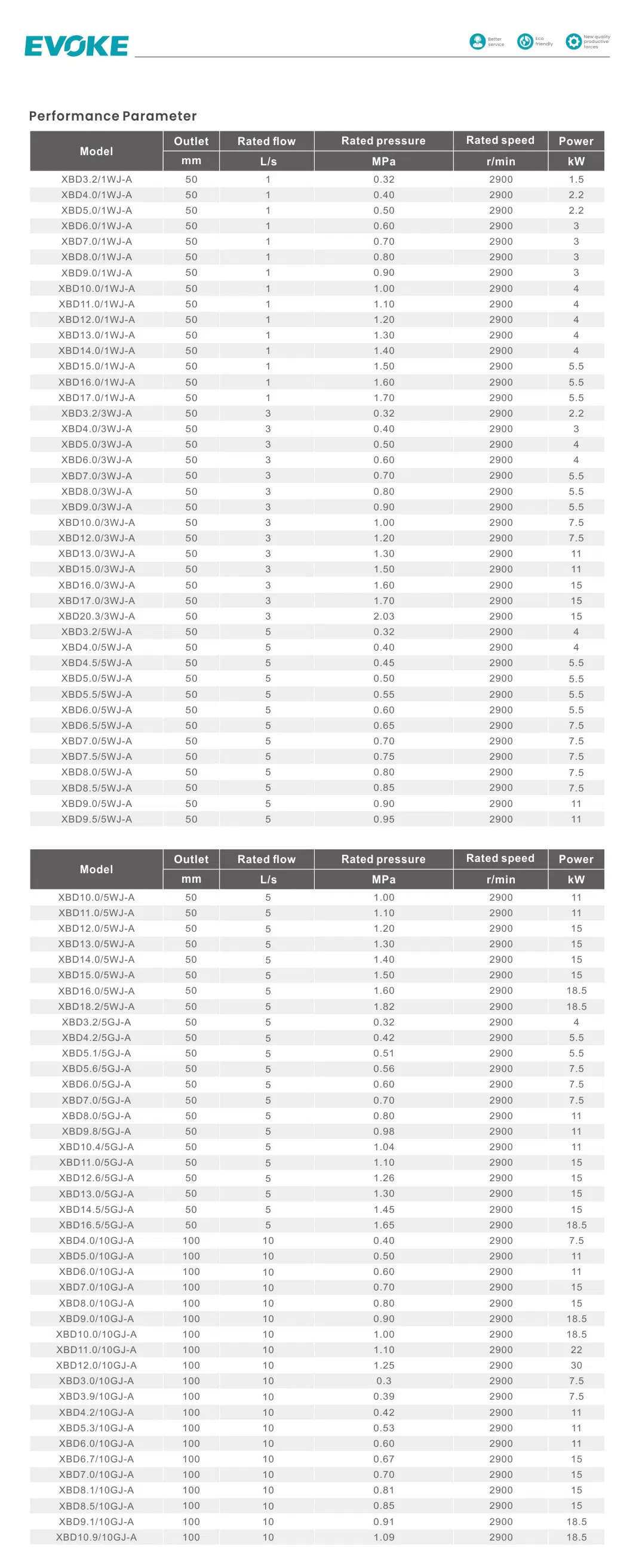

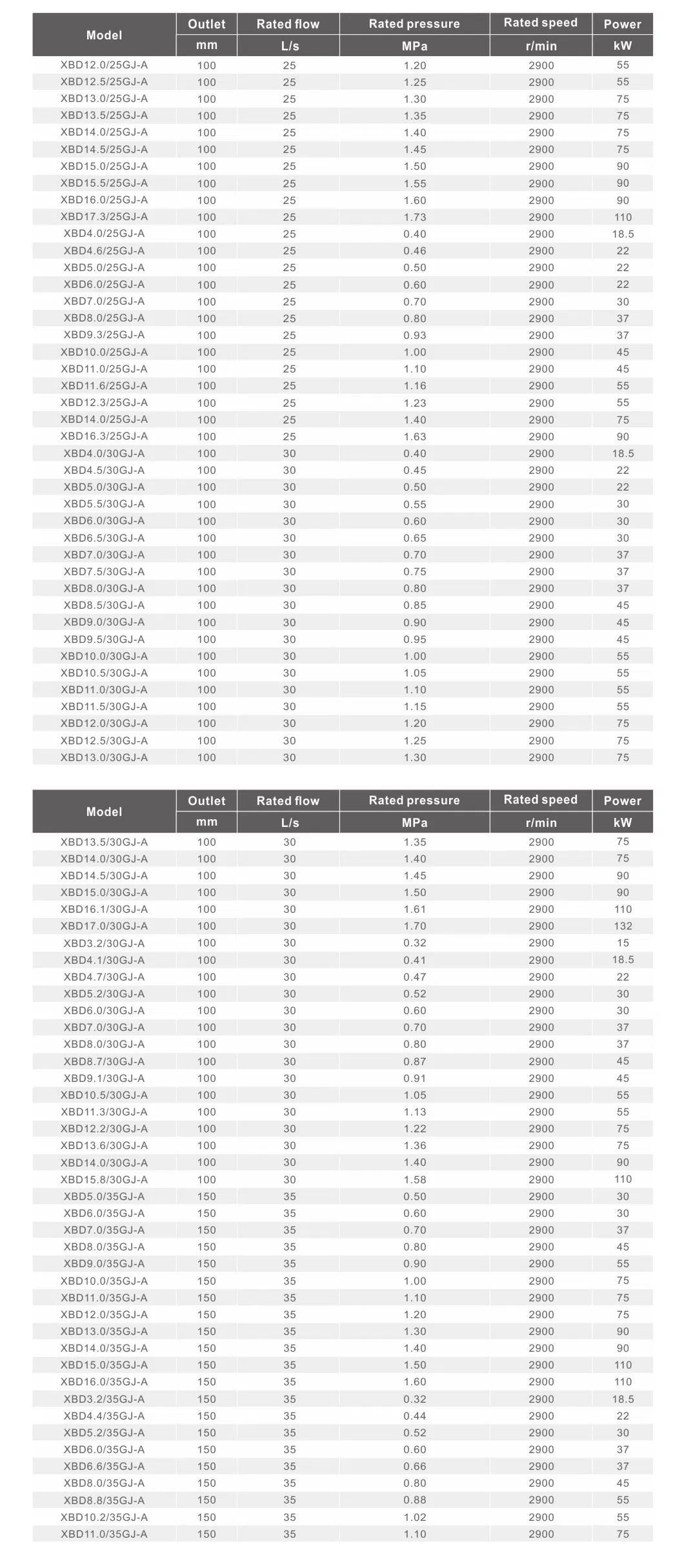

Technical Parameter

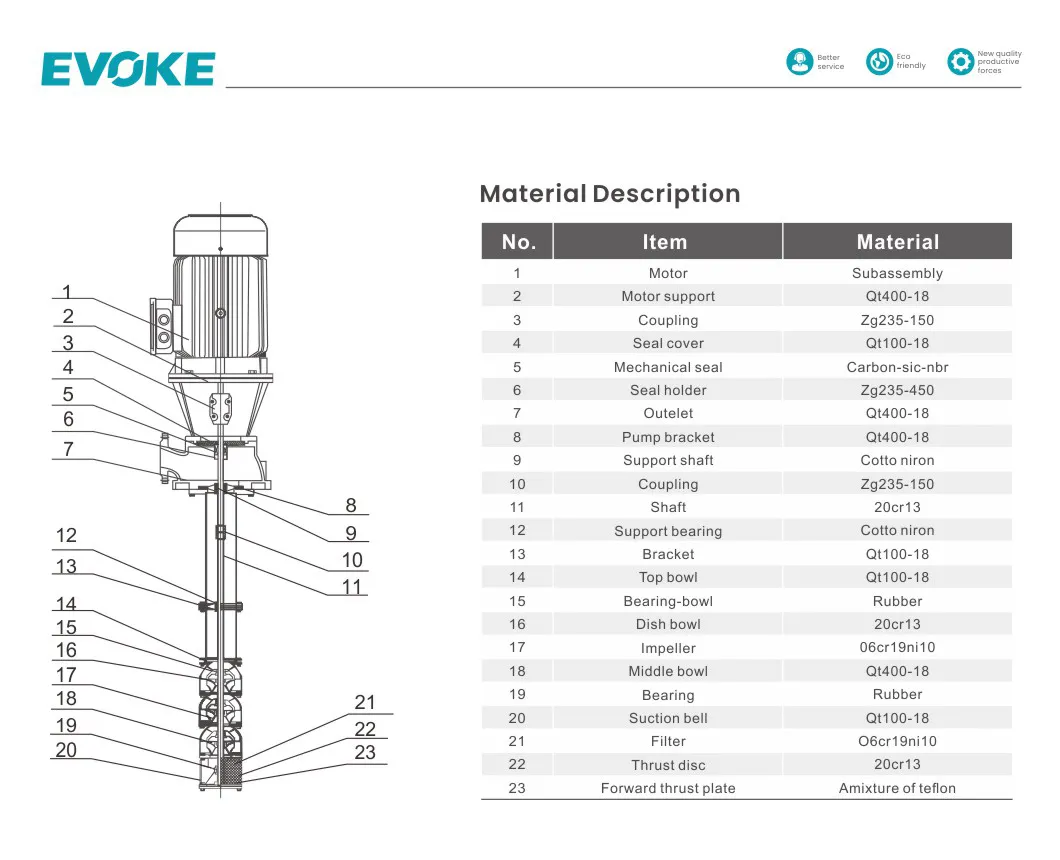

Bill Of Materials

Manufacturing & Quality Control

Frequently Asked Questions

What are the main applications of this turbine fire pump?

It is primarily designed for fire fighting systems, emergency water supply in high-rise buildings, industrial facilities, and municipal fire protection where high pressure and reliability are required.

Does the pump meet international safety standards?

Yes, our vertical turbine fire pumps are designed to meet the NFPA20 standard, ensuring they provide the necessary performance for fire protection services.

What materials are used for the pump construction?

The pump features high-quality materials including stainless steel components and a durable cast iron pump body, ensuring long-term corrosion resistance and structural integrity.

Is the maintenance of the coupling connection difficult?

No, the coupling connection is specifically designed for convenience, allowing for easier maintenance access without needing to dismantle the entire piping system.

Can this pump handle media other than clean water?

This specific series is optimized for clean water. For other media, please consult our technical team to discuss material compatibility and performance adjustments.

What is the typical lead time and capacity?

We have a production capacity of approximately 2000 units per month, ensuring stable supply for both large-scale projects and urgent replacements.
