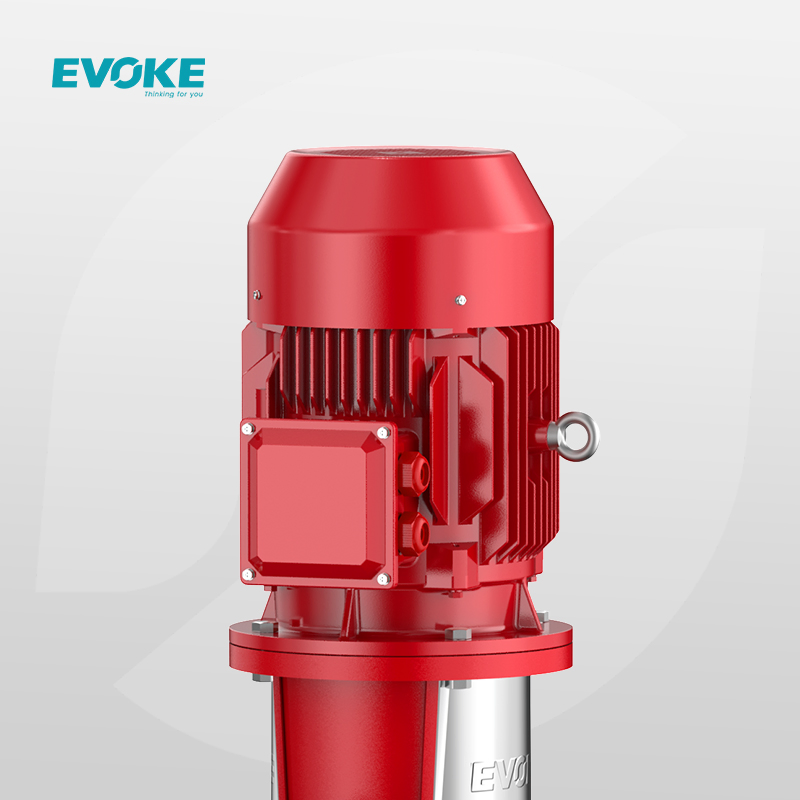

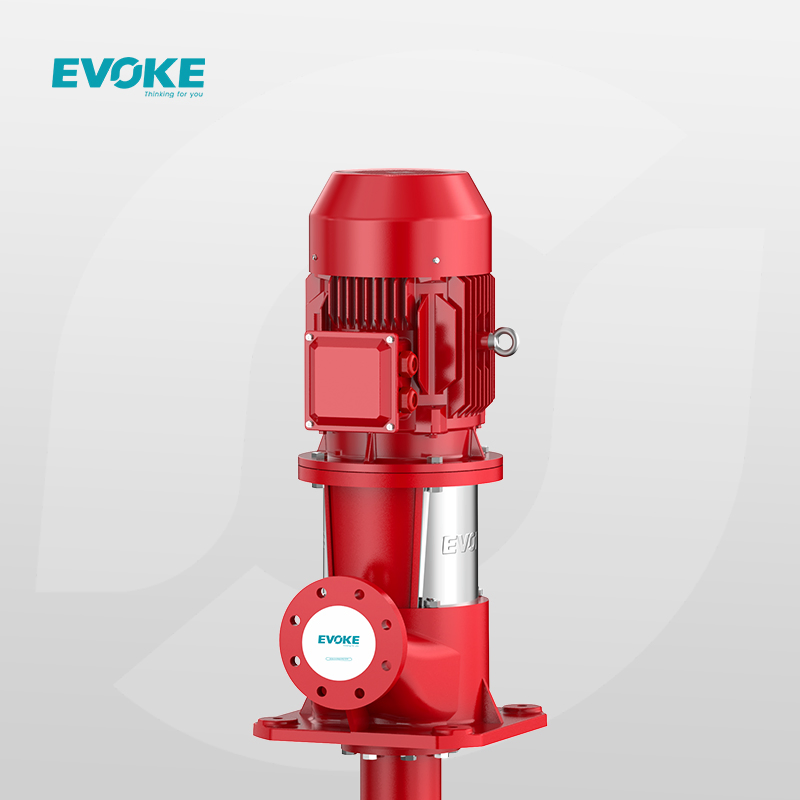

Xbd Fire Protection System Long Shaft Vertical Turbine Pump Evoke

1 / 5

Xbd Fire Protection System Long Shaft Vertical Turbine Pump Evoke

Customization:	Available
After-sales Service:	Warranty Free Accessories (Not Man-Made)
Warranty:	18 Months

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

XBD

Max.Head

>150m

Max.Capacity

>400 L/min

Driving Type

Motor

Material

Stainless Steel

Structure

Multistage Pump

Assembly

Pipeline Pump

Power

Electric

Start Up

Electric Pump

Type

Centrifugal

Application

Fire Fighting

Industry

Fire Fighting Pump

Media

Clean Water

Performance

Centrifugal Pump

Theory

Centrifugal Pump

Transport Package

Wooden Box

Specification

Cast iron pump body with motor

Origin

China

HS Code

841370

Production Capacity

2000/Month

🚀 Product Overview

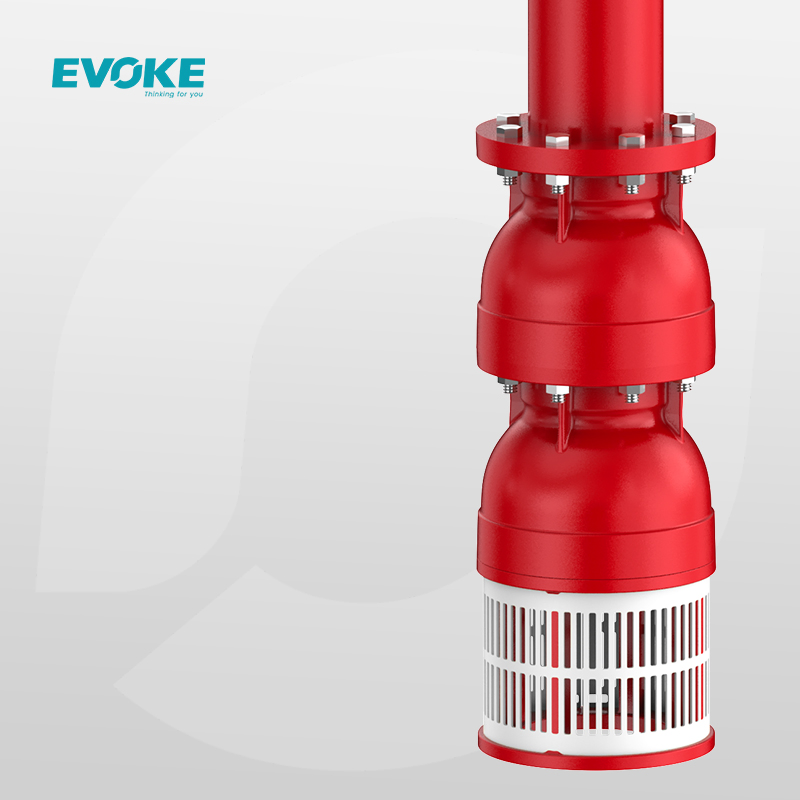

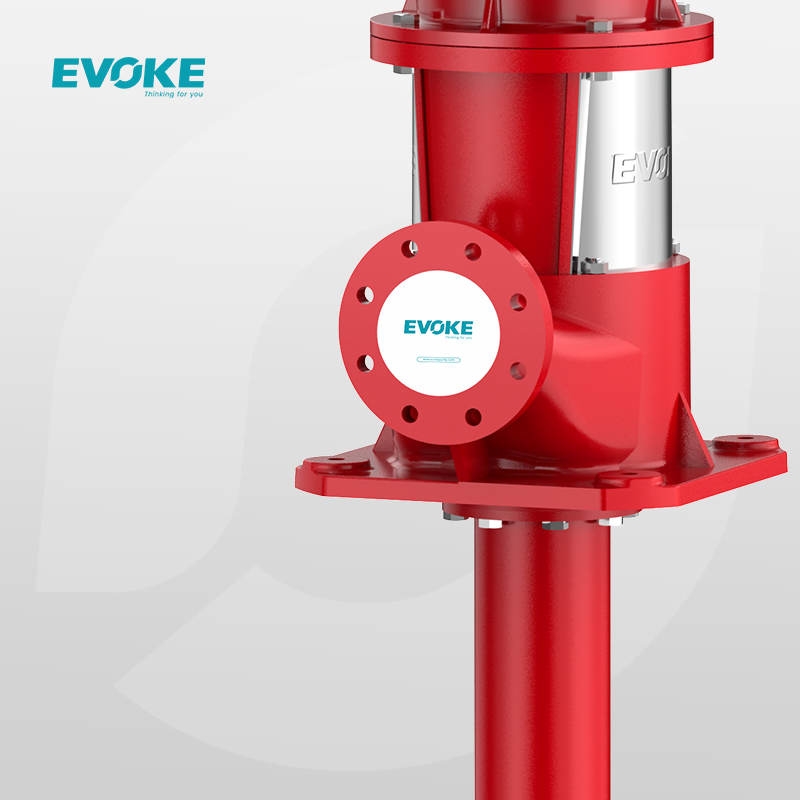

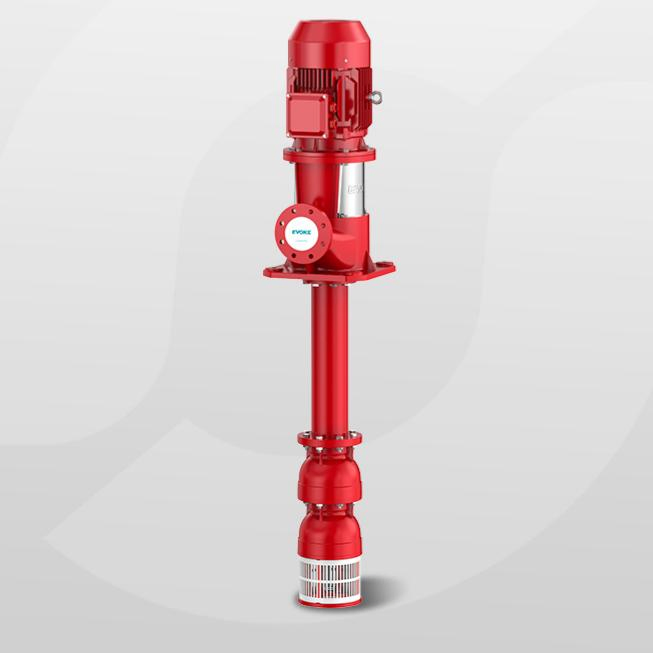

The turbine fire pump consists of multiple centrifugal impellers, guide sleeves, water pipes transmission shafts, pump seat motors, and other components. The pump seat and motor are located above the water tank, and the power of the motor is transmitted to the impeller shaft through a transmission shaft concentric with the water pipe, thereby generating flow and pressure.

Product Feature

Meet NFPA20 standard
Coupling connection, convenient maintenance, larger flow
One of the components of fire fighting system
Stable and low noise
Suitable for emergency fire water supply

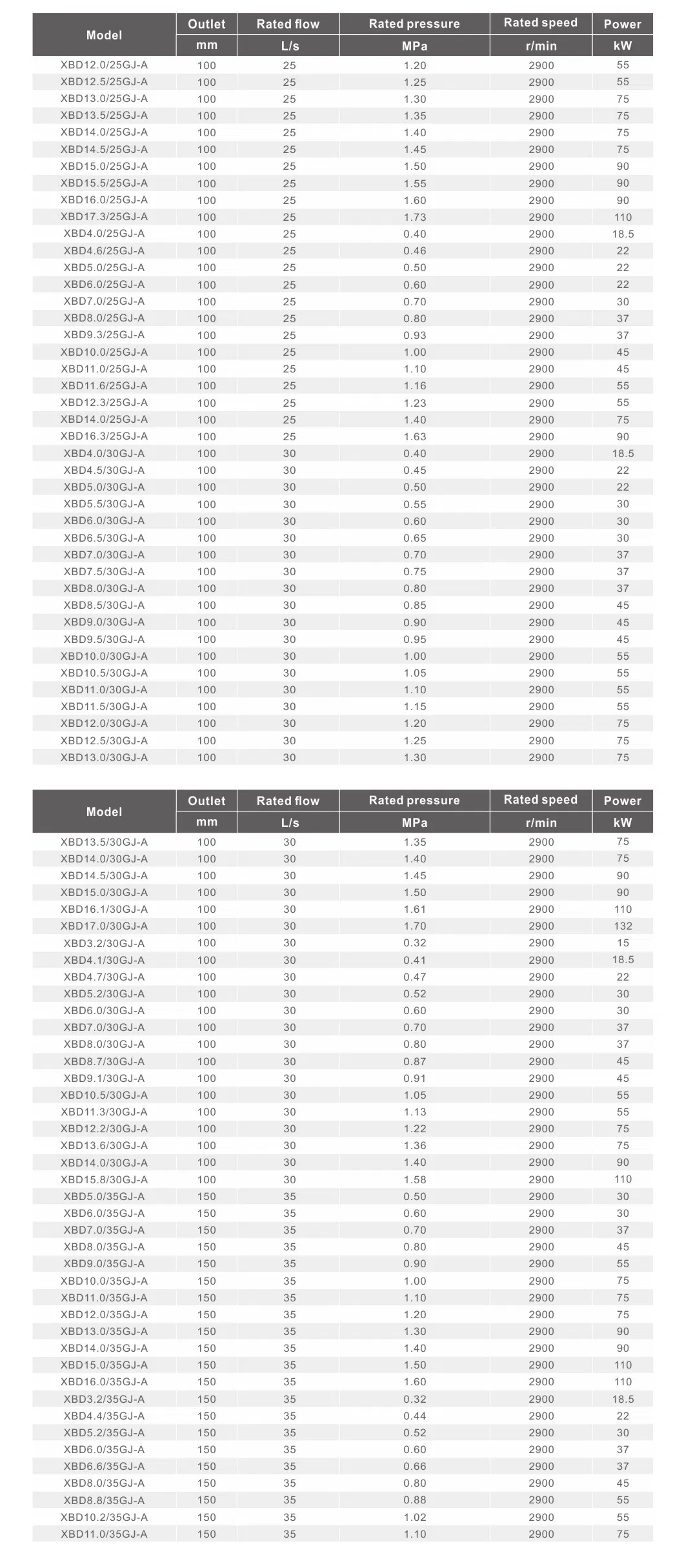

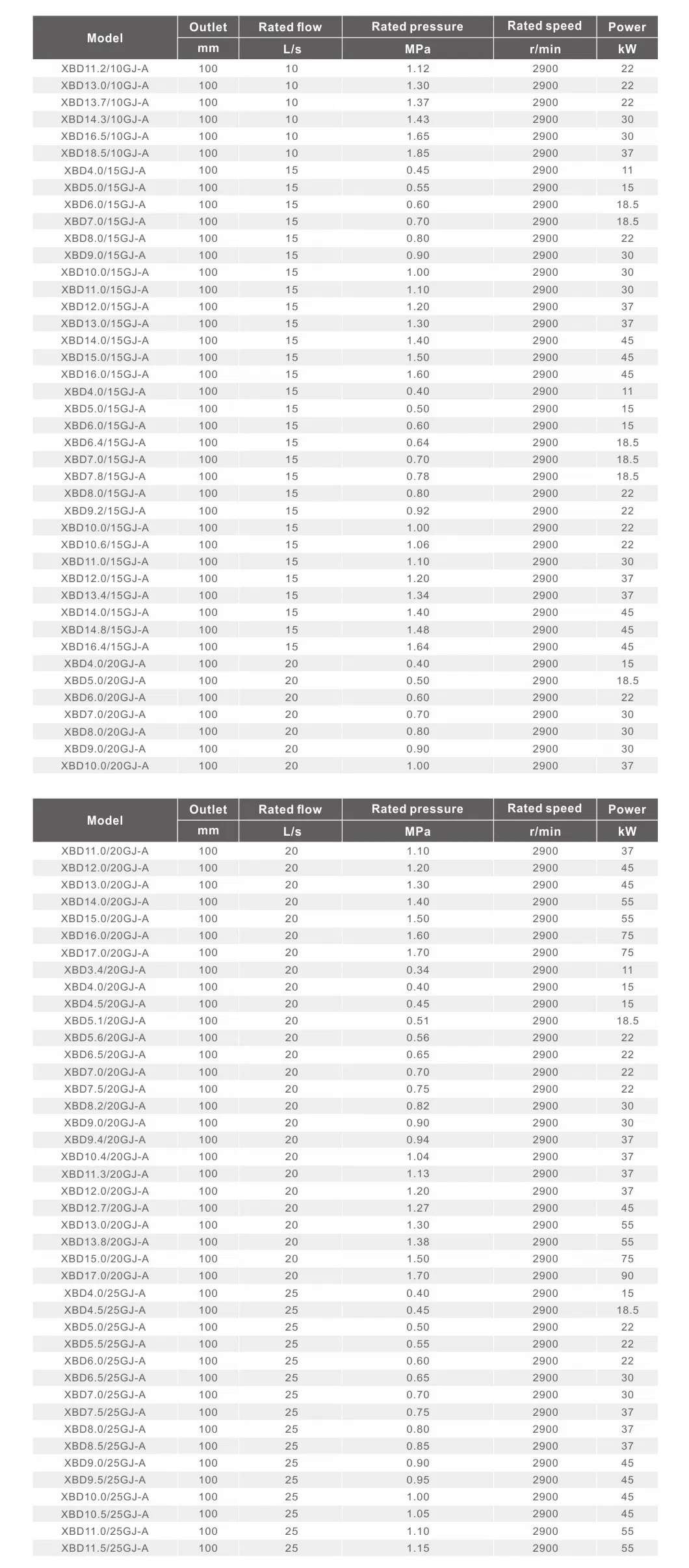

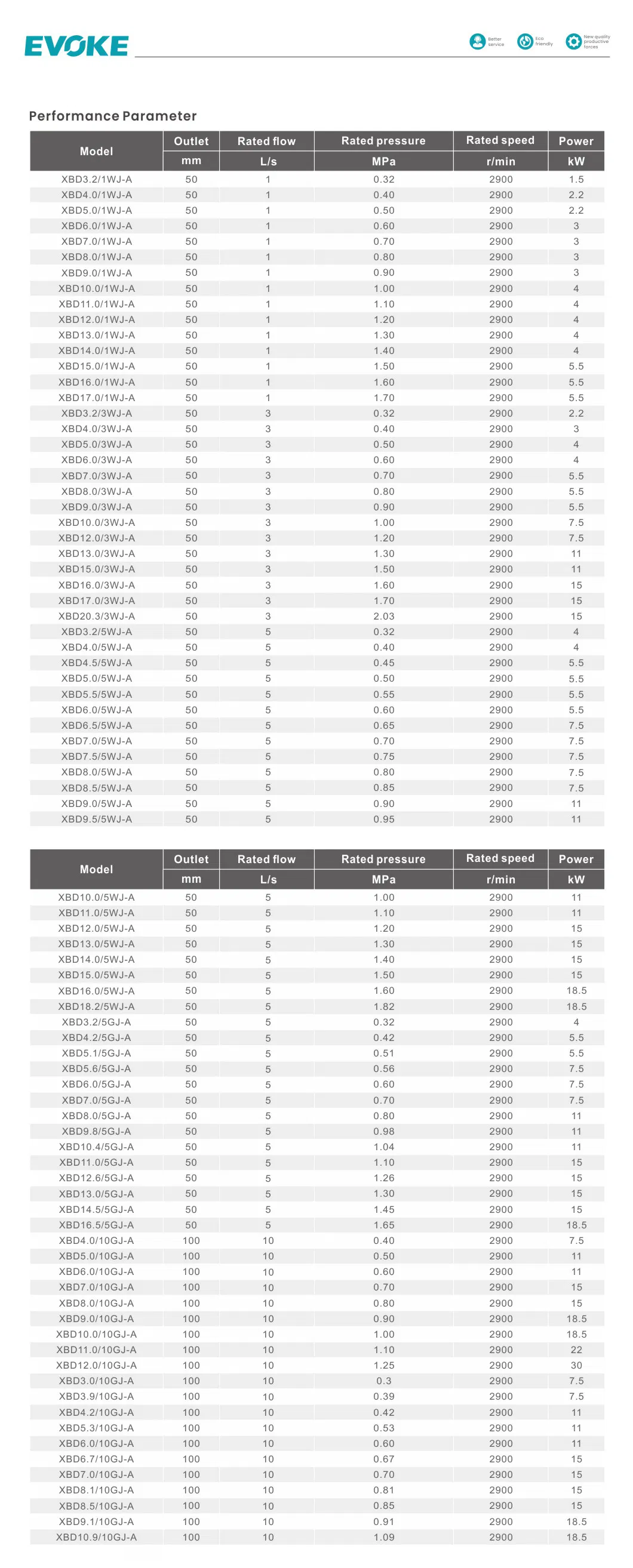

⚙️ Technical Parameter

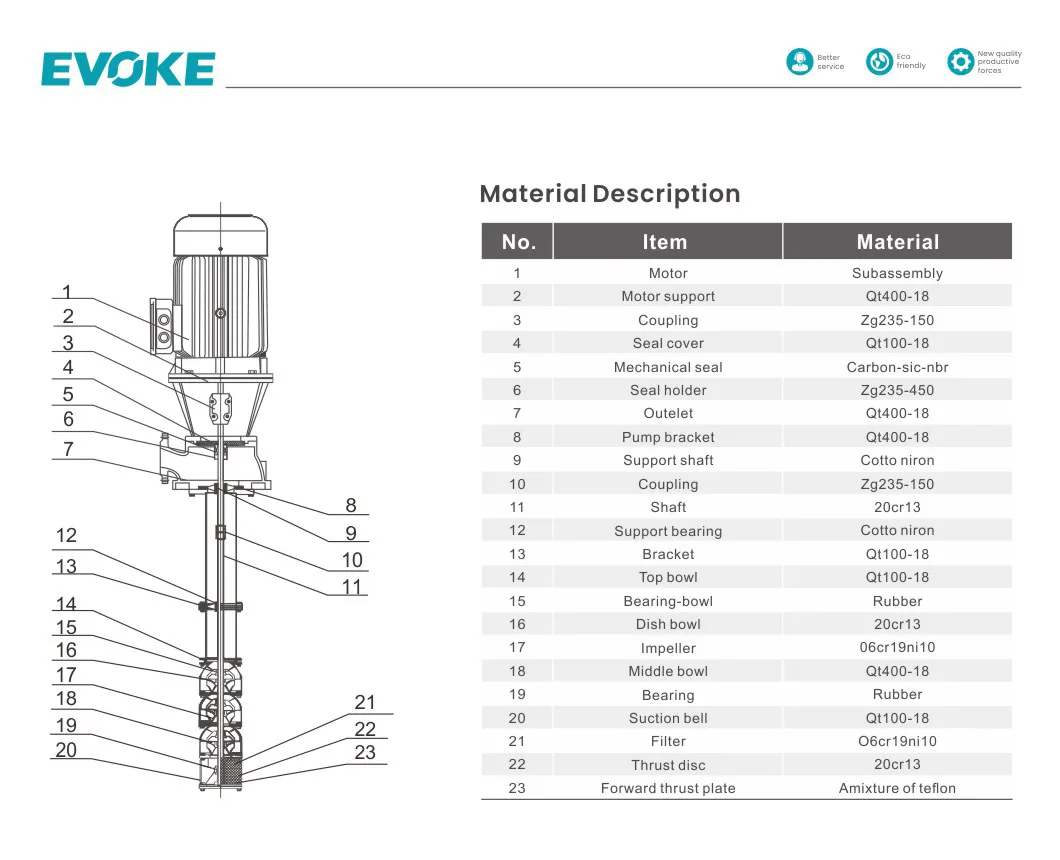

🛠️ Bill Of Materials

🏭 Factory & Production

❓ Frequently Asked Questions

What standard does this fire pump comply with?

The turbine fire pump is designed to meet the NFPA20 standard, ensuring reliability for fire protection systems.

What are the main applications for the XBD series?

It is primarily used for fire fighting systems, emergency fire water supply, and industrial water transport requiring high reliability.

What materials are used in the construction?

The pump features a cast iron body with options for stainless steel components to ensure durability and corrosion resistance.

How is the pump driven?

The system is driven by an electric motor, with power transmitted through a transmission shaft to the impellers located in the water tank.

Is the pump suitable for deep water sources?

Yes, as a long shaft vertical turbine pump, it is specifically designed for applications where the water source is located below the motor and pump seat.

What are the key benefits of this structure?

The multistage centrifugal design provides high head and capacity while maintaining stable performance and low noise levels.
