Xbc - Tpow Diesel Fire Pump Set Split Case Pump

1 / 5

Xbc - Tpow Diesel Fire Pump Set Split Case Pump

Customization:	Available
Max.Head:	>150m
Max.Capacity:	>400 L/min

Send Inquiry

Product Description

Basic Specifications

Model NO.

XBC - TPOW

Driving Type

Diesel

Material

Cast Iron

Structure

Single-stage Pump

Assembly

Fire Pump

Impeller Material

Cast Iron, Stainless Steel

Media

Water

Theory

Centrifugal Pump

Origin

China

Capacity

1000 Sets Per Month

Product Description

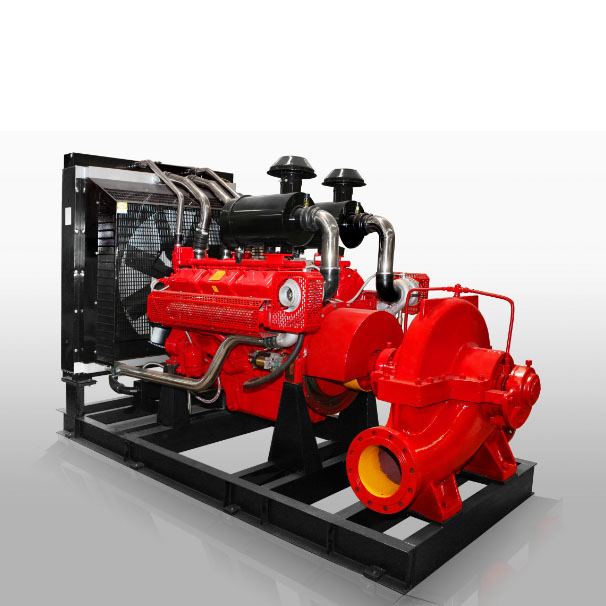

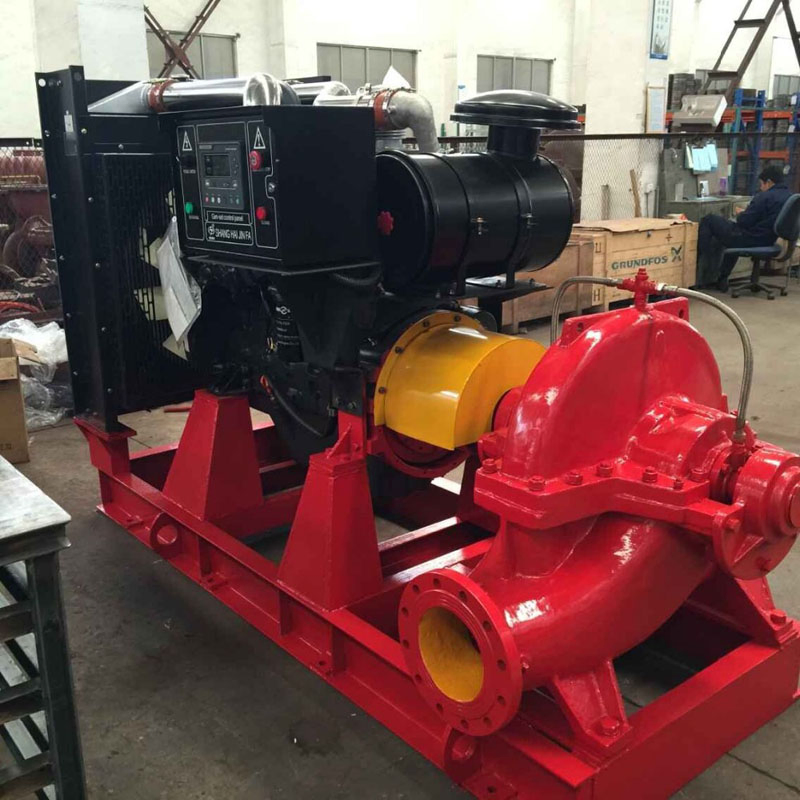

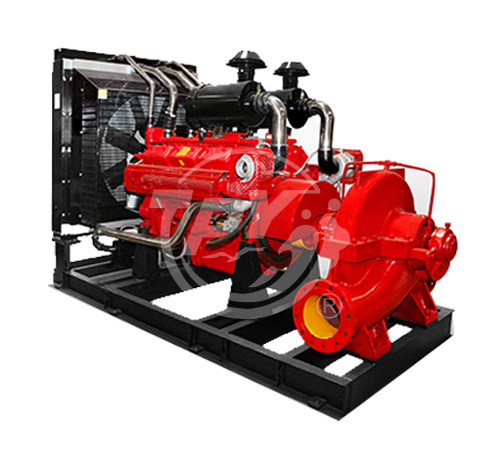

XBC - TPOW Diesel Fire Pump Unit

XBC series diesel engine fire pump unit is developed strictly in accordance with national standard GB6245-2006 requirements. It integrates industrial automation control technology, fluid machinery, and mechanical manufacturing. This multifunctional fire equipment offers extensive utility and high performance, with improved adjustable pressure and flow capabilities. The unit is equipped with a self-developed fully automatic control system utilizing high-quality components.

Key Product Features:

Three starting functions: Manual, Automatic, and Emergency Manual direct start.
Automatic operation upon fire signal if electric pump fails or power is cut.
Delayed automatic shutdown after fire signal disappears.
Battery self-charging voltage regulation for smooth unit starts.
Perfect alarm system for overspeed, low oil pressure, and high water temperature.
Comprehensive display for oil pressure, speed, charging current, and voltage.
Direct coupling structure: Compact design with low vibration and high stability.

Technical Parameters

Flow Rate	10 ~ 2000 L/S
Lift / Head	5 ~ 200 m
Pressure Range	0.2 - 2.5 mpa

Product Gallery

Professional Service

Pre-Sales Service

Inquiry and consulting support
Sample testing support
Factory inspections and viewing

After-Sales Service

Installation and operation training
Engineers available for overseas machinery service
Long-term technical maintenance support

Frequently Asked Questions

What are the different starting modes for the diesel fire pump?

The unit supports three starting modes: manual starting, automatic starting (triggered by fire signals), and emergency manual direct starting for critical situations.

How does the automatic backup system work?

When a fire signal is detected, if the electric fire pump fails or loses power, the diesel fire pump set will automatically start to ensure an uninterrupted water supply for fire fighting.

Can the pump performance be customized?

Yes, the flow rate (10-2000L/S) and lift (5-200m) can be adjusted, and materials like the impeller (cast iron or stainless steel) and painting can be customized according to requirements.

What protection systems are included?

It includes a comprehensive protection system for overspeed, low oil pressure, high cooling water temperature, and low battery voltage, featuring both alarms and automatic shutdowns.

How do I choose the right pump model?

Please provide your detailed requirements including the liquid type, required flow rate, and head. Our engineering team will calculate and select the most suitable model for your needs.

What is included in the after-sales support?

We provide training on how to install and use the machinery. Additionally, engineers are available to service machinery overseas if required.
