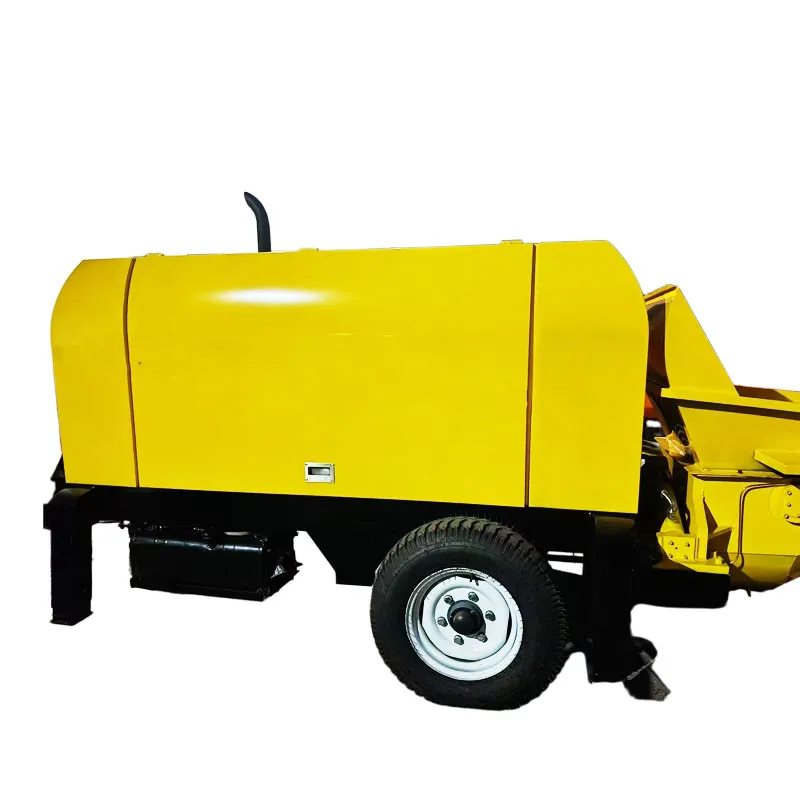

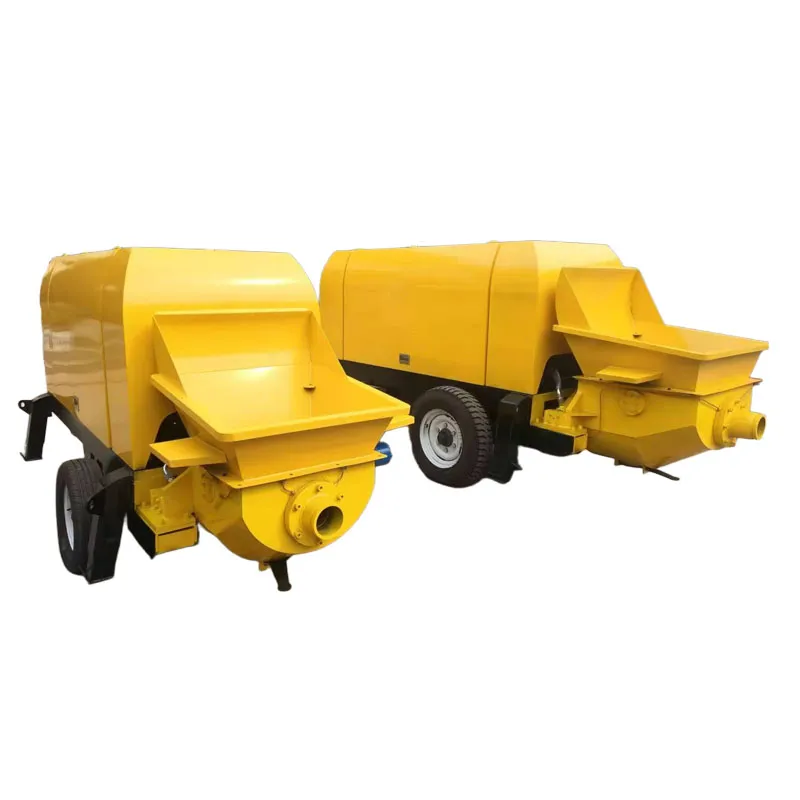

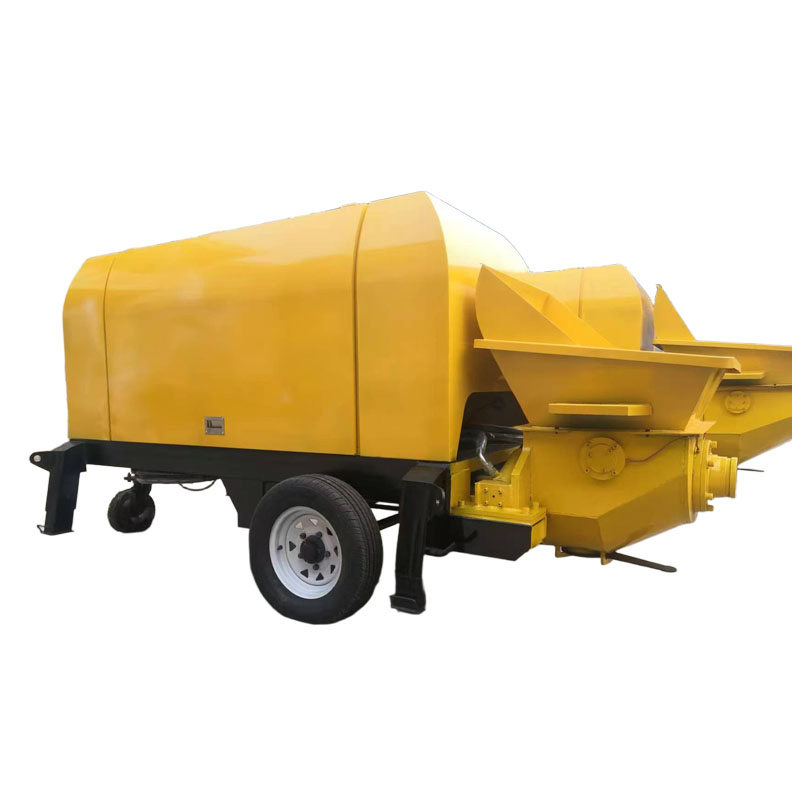

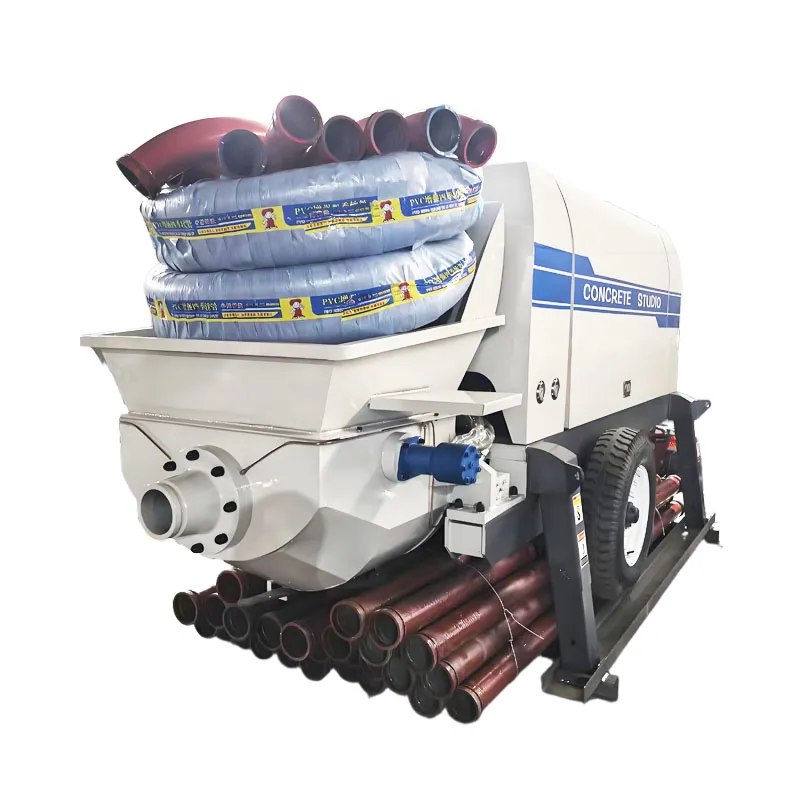

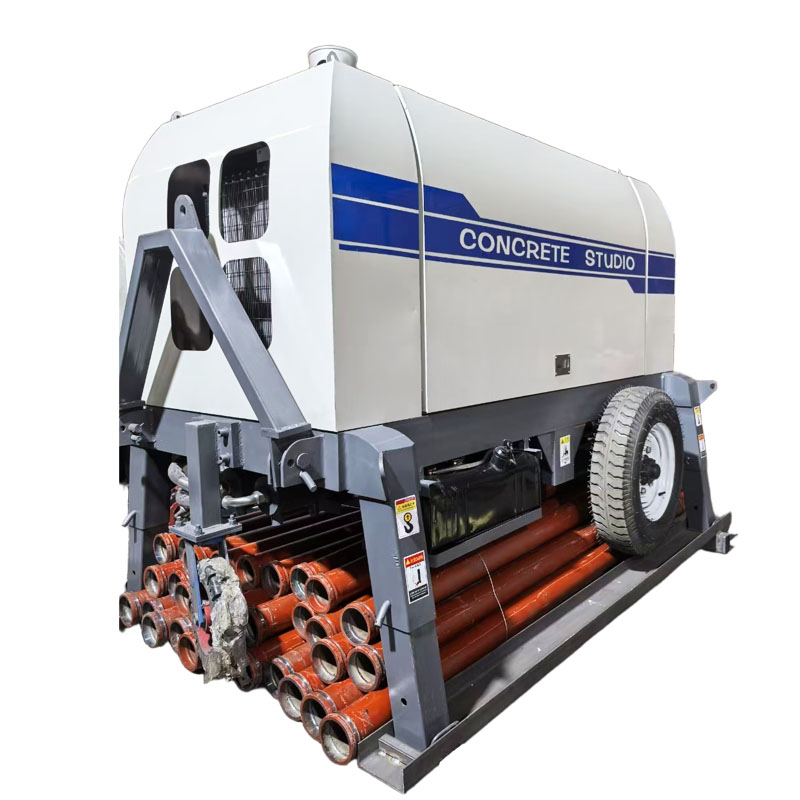

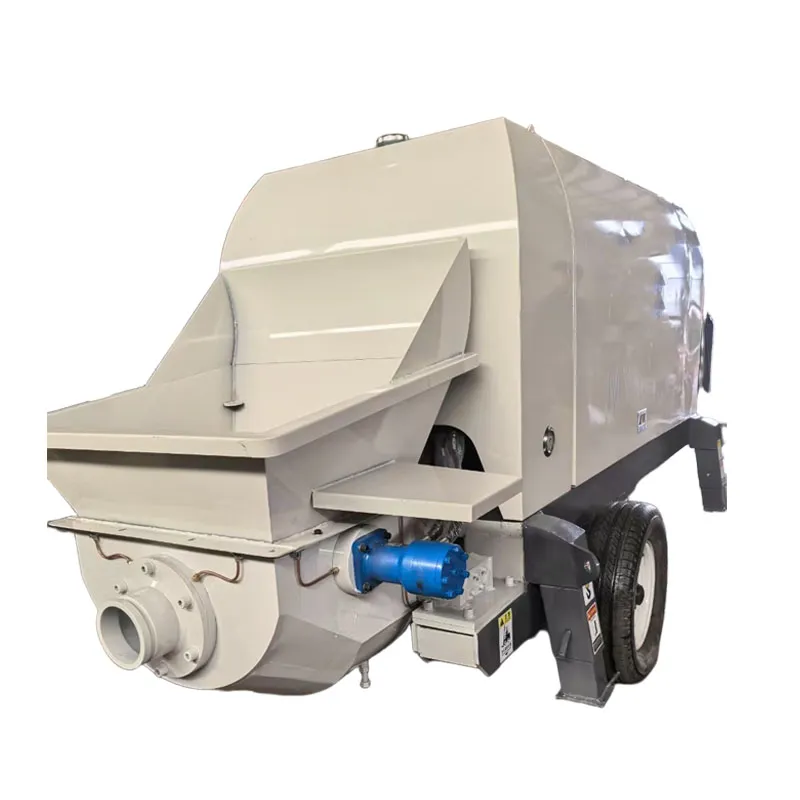

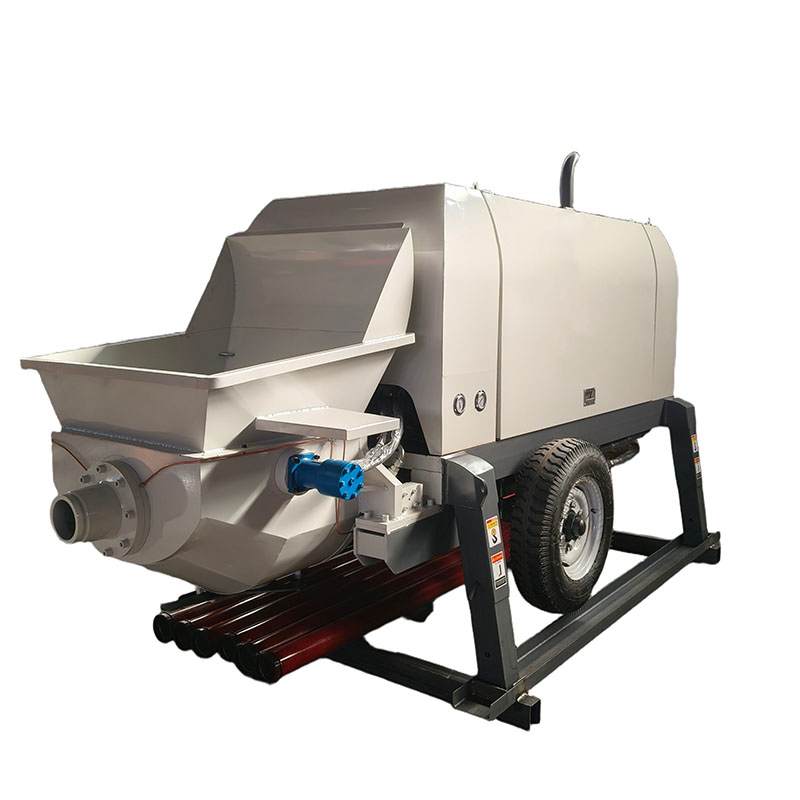

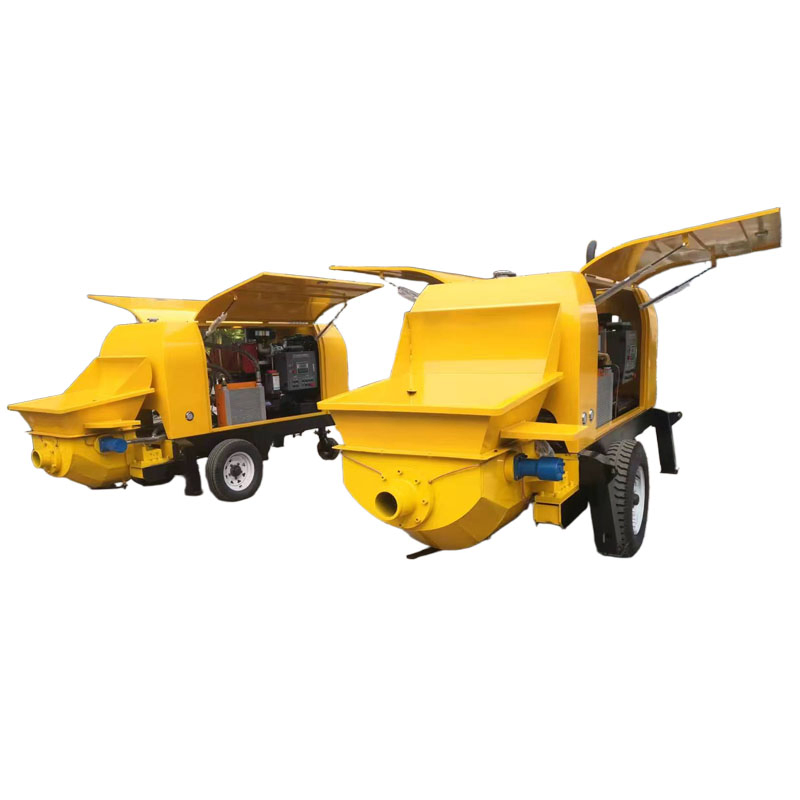

Wholesale small mini portable trailer-mounted 45kW concrete pump for large construction sites.
The advantages of this small concrete pump are evident across various construction needs. In terms of mobility, the inclusion of large-size solid tires coupled with a bottom universal wheel allows for flexible movement, whether navigating short distances on-site or transitioning between different pouring positions.
Space Efficiency: Its compact structure allows it to take up minimal space, making it ideal for narrow areas or smaller projects such as interior decoration and rural housing construction.

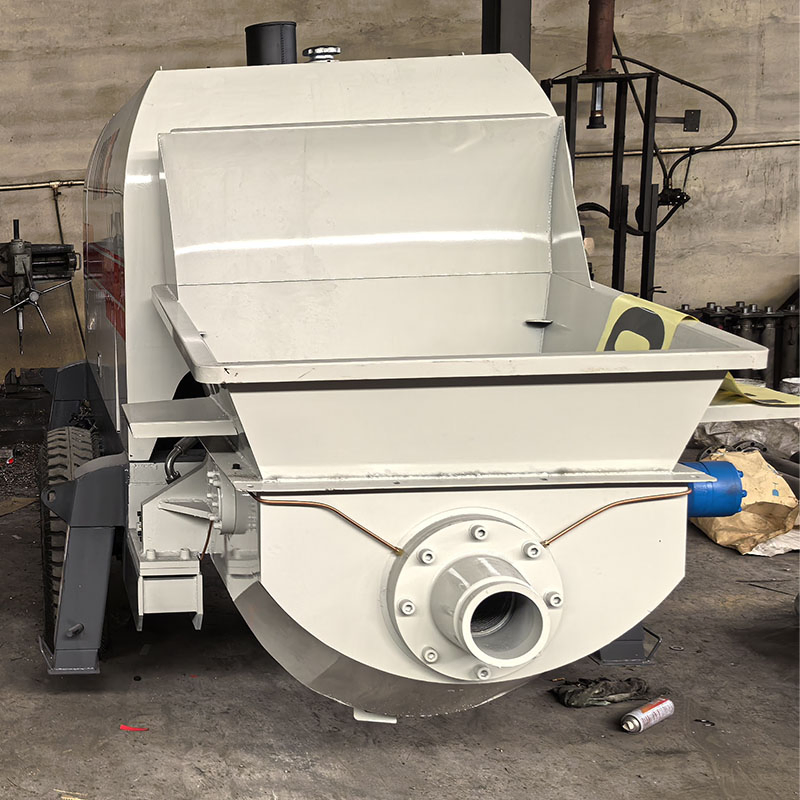

Efficient Loading: The practical hopper design features a large, sloped opening to minimize concrete residue, boost transportation efficiency, and facilitate easier loading processes.
Reliable Performance: Utilizing mature pumping technology and a stable mechanical structure, this equipment ensures continuous operation under standard conditions, reducing construction delays caused by equipment failure.
| Project | Unit/Brand | Data |
|---|---|---|
| Main motor/Diesel engine | kw | 45kw/4108ZD |
| Theoretical workload | m³/H | 20-25 |
| Work pressure | Mpa | 20 |
| Stone diameter | mm | ≤30 |
| Cylinder size | mm | 100*1000mm |
| Cylinder size of the mold | mm | 160*1120mm |
| Main oil pump | Kawasaki | 112 Gear pump |
| Electronic control system | - | DeliX |
| Heat dissipation system | Air-cooled | 1490 |
| Outlet diameter | mm | 125mm |
| Inner diameter of the pipe | mm | 80/100mm |
| Theoretical distance (Small pebble) | m | Altitude: 100-110 / Length: 200 |
| Theoretical distance (Large pebble) | m | Altitude: 50 / Length: 150 |
| Dimensions (L*W*H) | mm | 4000*1700*1650 |
| Weight | kg | 2500 |

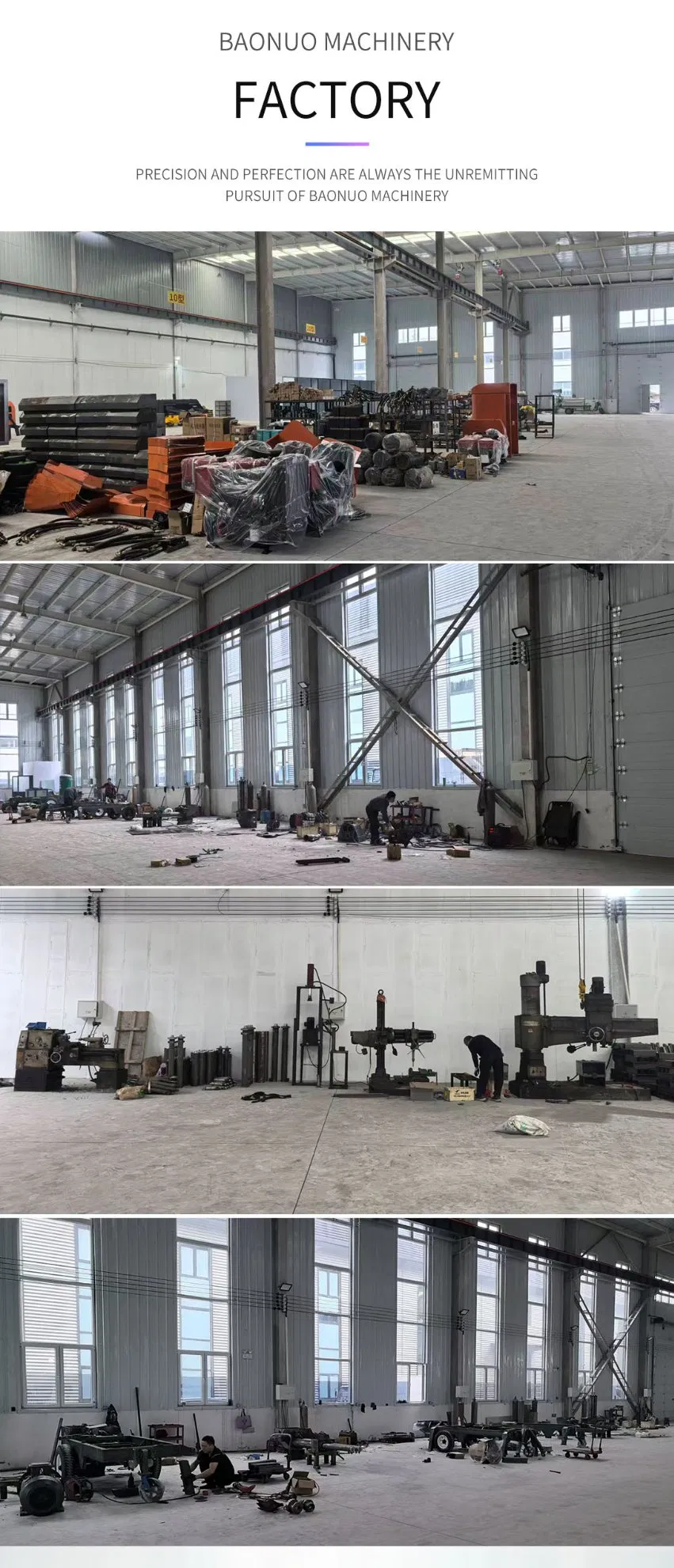

We are a professional concrete equipment manufacturer integrating research and development, production, and sales. Since establishment, we have been committed to the development of concrete pumps, fine stone pumps, and mortar pumps. Our main products include secondary construction column pumps (type 10-90), delivery pumps, and loading machines. Precision and perfection are always our unremitting pursuits.
Adhering to a commitment to integrity, quality, and service, we focus on strength to deliver on promises and innovation to lead development. We aim to promote sustainable operations and create a bright future through long-term partnerships.
