📊 Basic Product Information
Material
Stainless Steel, Cast Iron
Structure
Single-stage Pump
Power
Pneumatic / Electric
Application
Fire Protection
Performance
Explosion-Proof

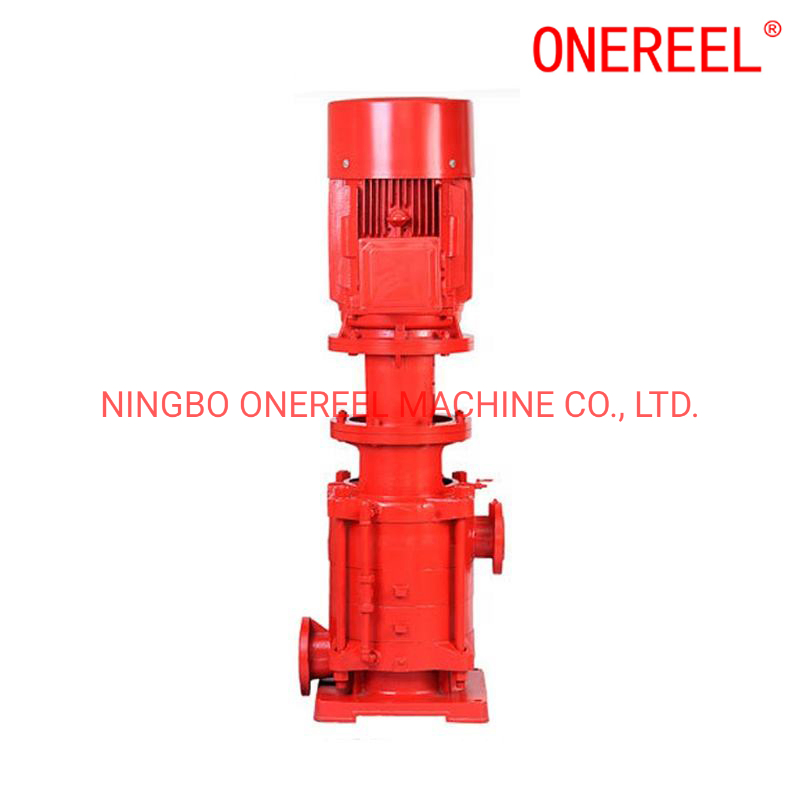

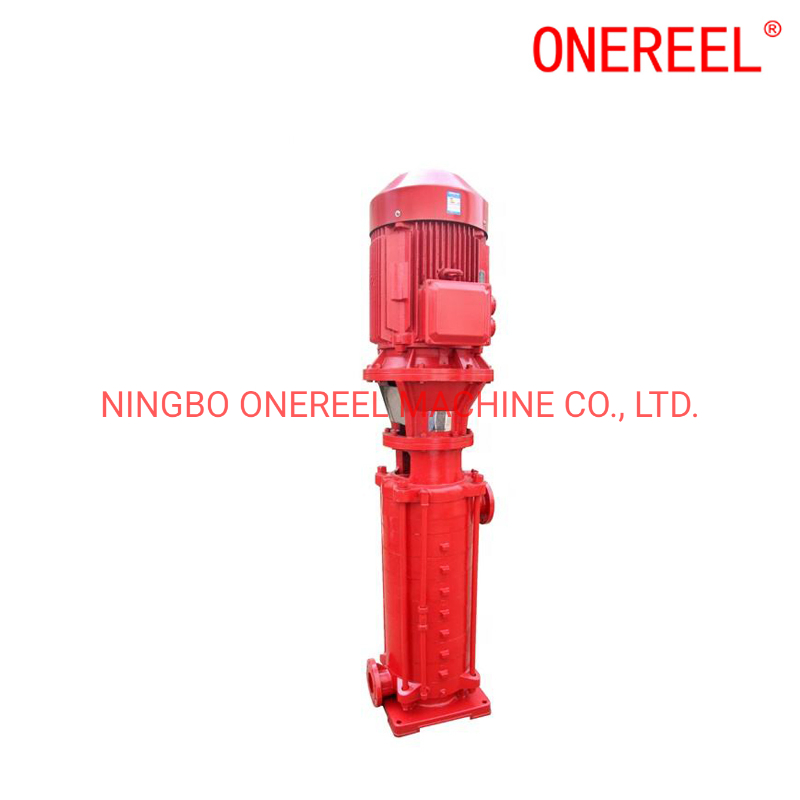

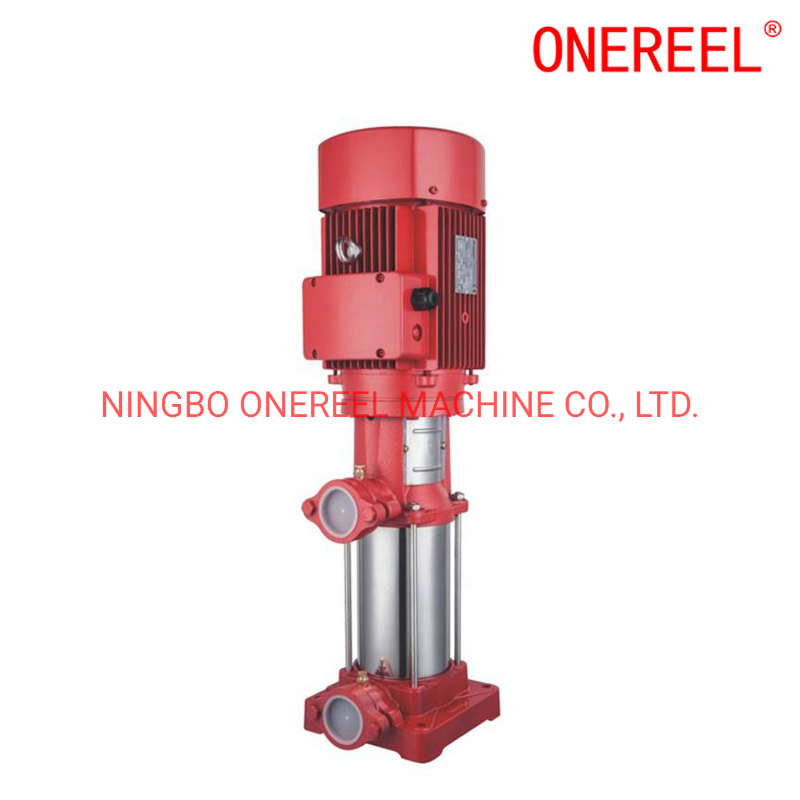

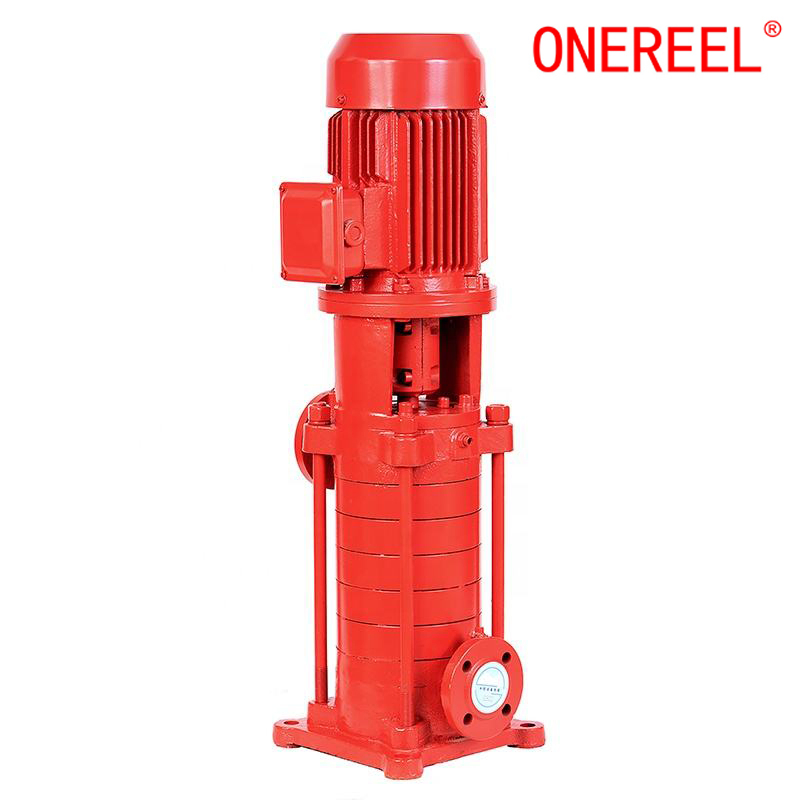

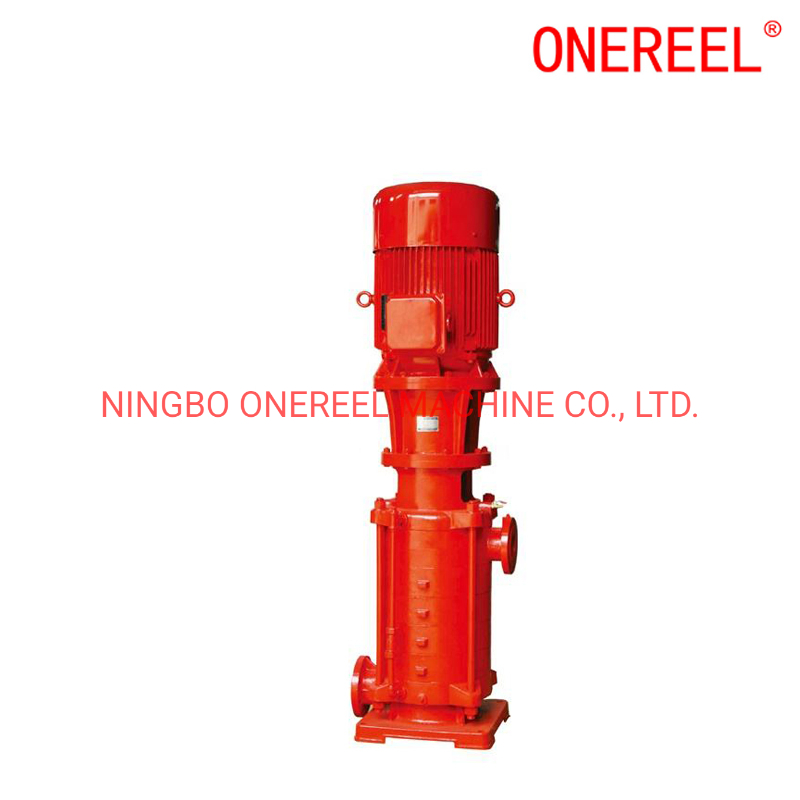

⚙️ Vertical Turbine Fire Pump Overview
Vertical/Horizontal Single Level Fire Pump
The XBD fire pump series represents the latest development in hydraulic performance, conforming strictly to international fire water standards. It features a novel structure designed for high efficiency and reliability in critical fire-fighting applications.
Technical Parameters
| Flow rate | up to 70000 m³/h |
| Head | up to 260 m |
| Speed | max 2900 rpm |
| Temperature | max 85ºC |
| Casing pressure | High pressure |
| Shaft seal | Mechanical / Gland packing seal |
| Material | Cast iron / Ductile iron / Stainless steel |
Structural Characteristics
- Compact Design: Small volume and beautiful appearance. The vertical structure minimizes installation space.
- Easy Installation: Inline configuration with same-caliber inlet and outlet for direct line mounting.
- High Stability: Coaxial machine pump design reduces vibration and noise while extending bearing life.
- Reliable Sealing: Uses carbide and silicon carbide mechanical seals to prevent leakage.
- Low Maintenance: Connection frame design allows motor and transmission component removal without disconnecting pipes.
Application & Usage Conditions
Scope of Application
Suitable for high-rise buildings, industrial warehouses, stations, and municipal fire protection systems. Ideal for fire hydrants, sprinkler systems, and shared water supply in civil or industrial drainage.
Conditions of Use
- Flow range: 5-200 l/s
- Pressure range: 0.2 to 1.35 MPa
- Max system working pressure: 2.5 MPa
- Ambient temperature: max +40 ºC
- Protection Grade: IP44, IP54
📷 Product Showcase
❓ Frequently Asked Questions
Can I get samples of the pump components?
We will advise based on the specific model and material requirements for any sample requests.
What is the typical lead time for samples?
Existing samples typically take 2-3 days. If the item is not in stock, we will provide a specific lead time based on production.
Do you have the capability to develop new pump products?
Yes, we possess strong R&D capabilities for new product development and custom mold creation for specialized requirements.
How are freight charges calculated?
Charges depend on volume and urgency. Smaller items may be sent via couriers like FEDEX, while larger volumes are usually quoted via FOB or CIF for sea transport.
What file formats are needed for custom designs?
Our in-house workshop handles technical development; we can work with standard engineering files for plastic injection and component development.
What kind of service support do you provide?
We provide comprehensive pre-sale, in-sale, and after-sale services, operating on a "Customer First" principle.
