Hot and cold clean, non flammable and explosive, containing no solid particles or fibers of the liquid.
The liquid temperature: -15ºC to +70ºC; hot water type +70ºC to +115ºC.
Flow range 0.4m3/h~240m3/h, head range 103m~305m.

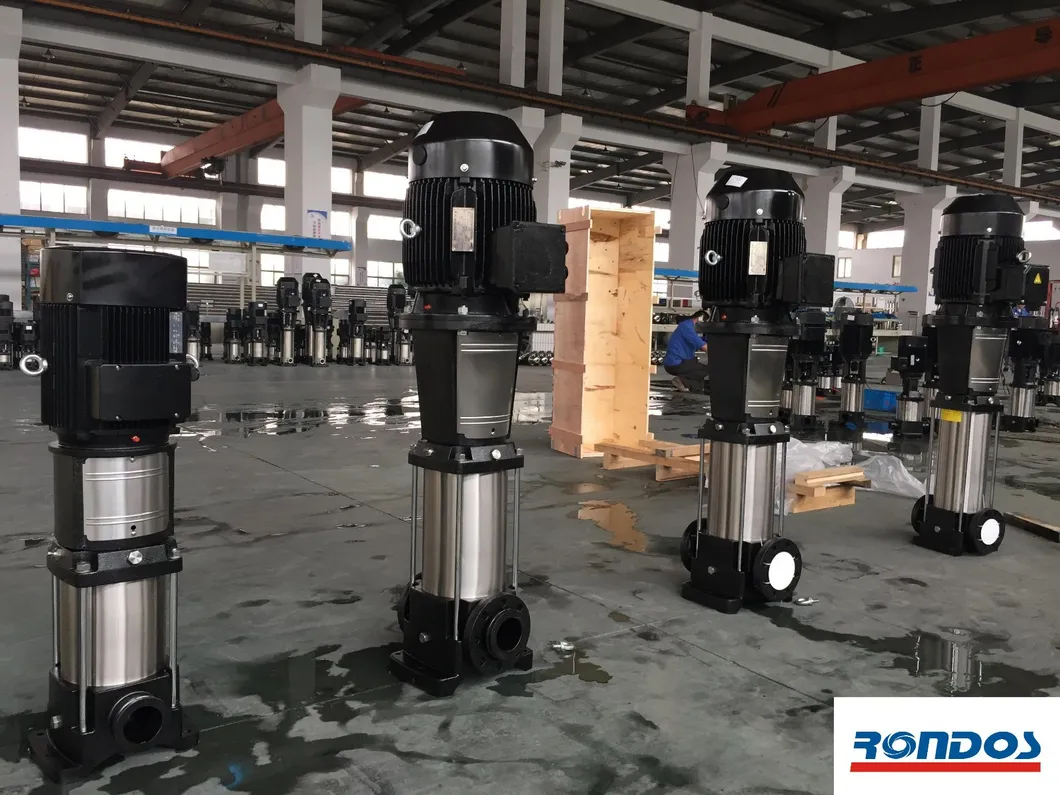

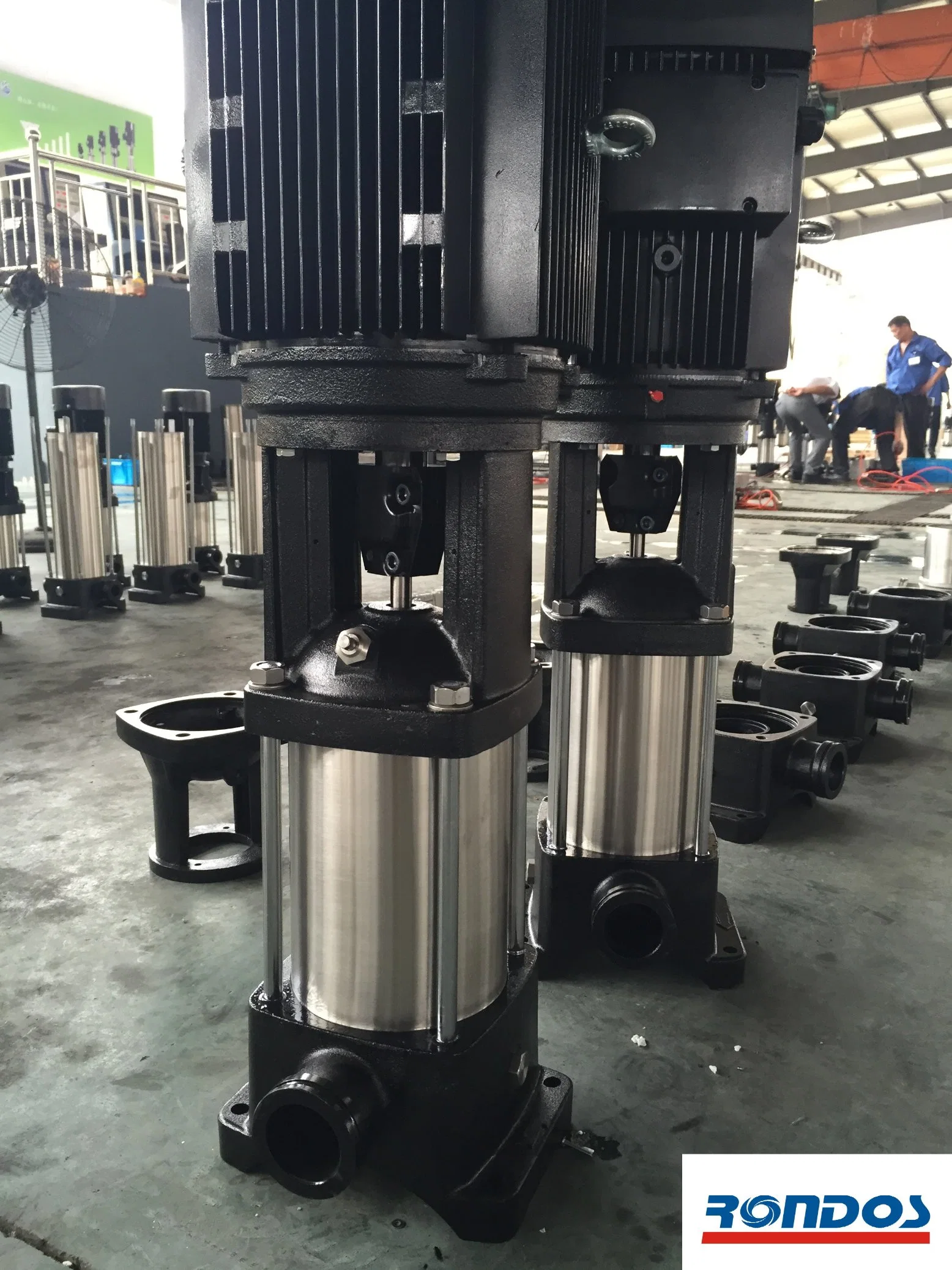

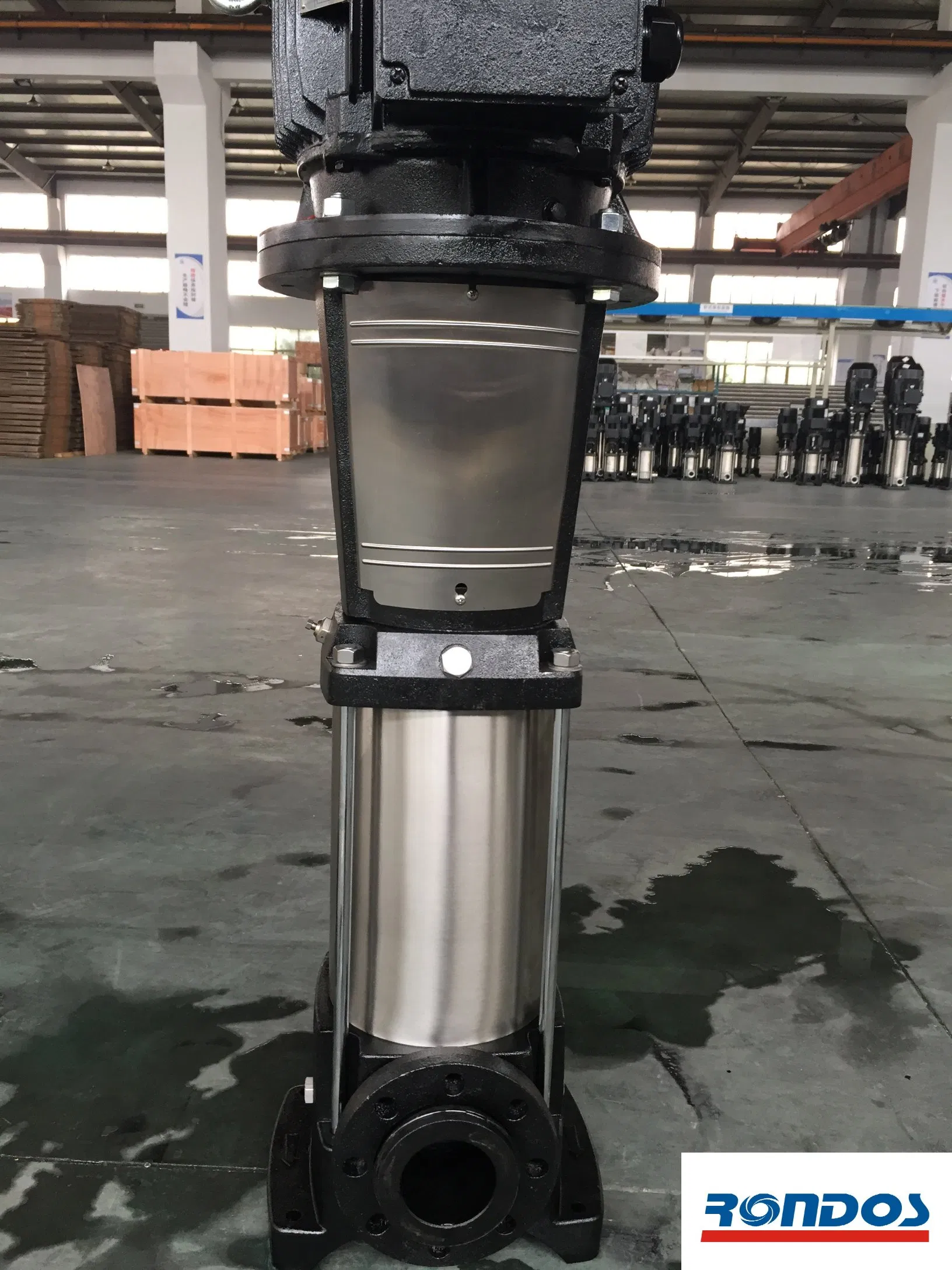

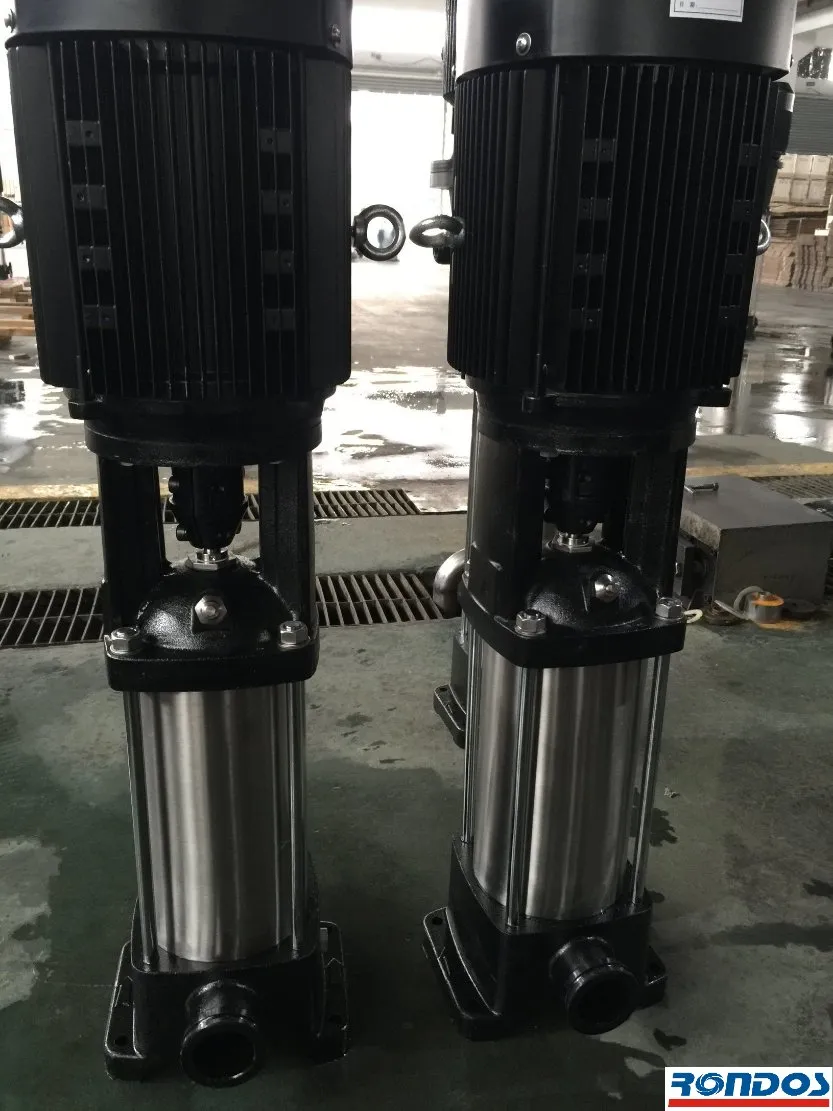

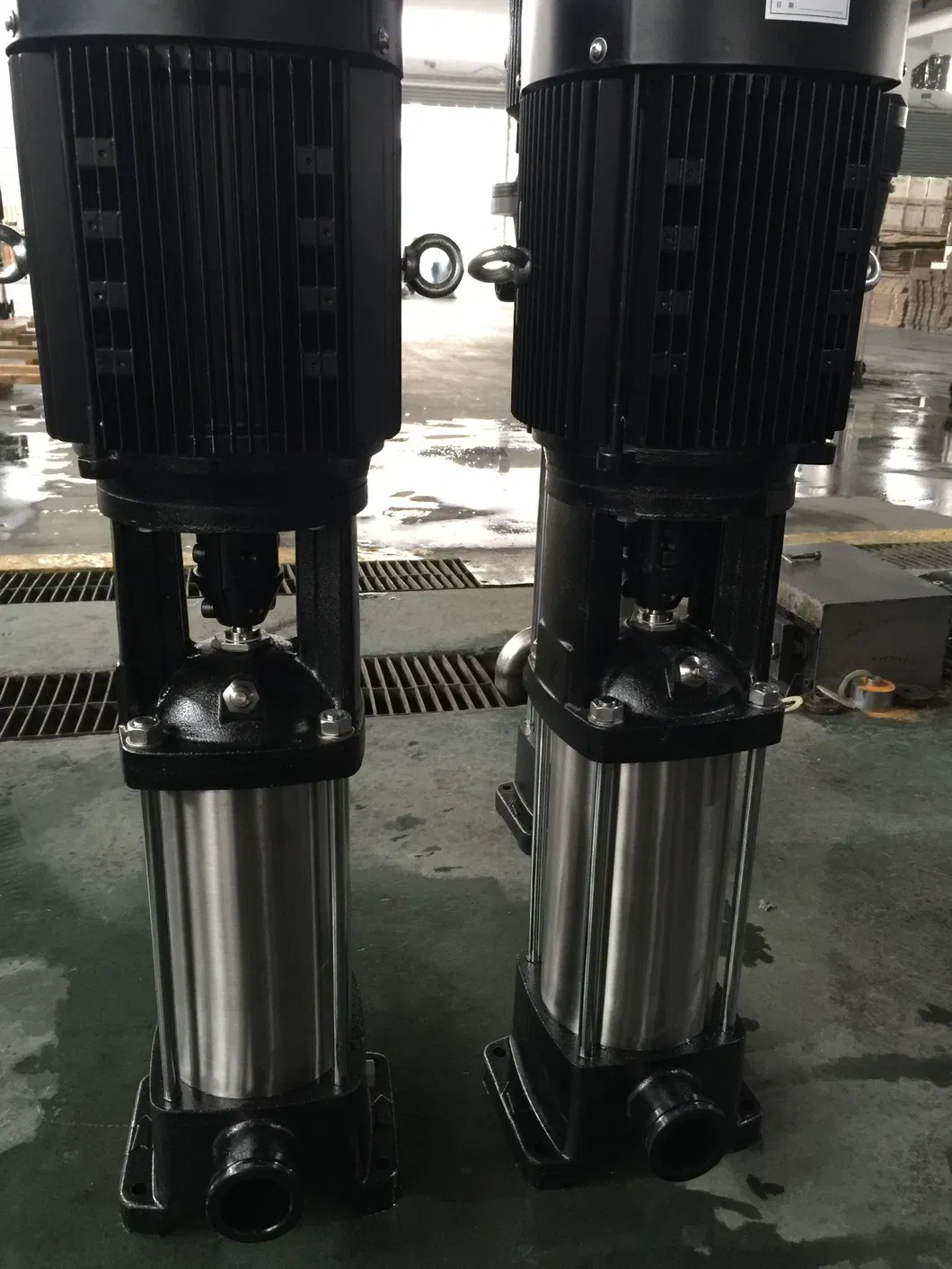

Model range SDL1, 2, 3, 4, 5, 8, 10, 12, 15, 16, 20, 32, 45, 64, 90, 120, 150, 200.
Different material type CI, SS304, SS316L, Duplex all available. SDL is stainless steel type, SDLT is cast iron type.
The environment temperature: +40ºC.
The minimum entrance pressure curve: NPSH +0.5m.
Head of safety margin of 0.5m.
IP55, F class.
Single phase up to 2.2kw.
Standard color is black. Electrophoretic paint.
Cartridge mechanical seal, standard type is graphite/carbide tungsten, viton.
