Vertical Multistage Centrifugal Jockey Fire Pump Price

Customization:	Available
Warranty:	One Year
Max.Head:	164m

Send Inquiry

Product Description

Overview

■Basic Product Information

Model NO.:CDL

Max. Capacity:110m³/H

Driving Type:Motor

Material:Cast Iron

Structure:Multistage Pump

Assembly:Booster Pump

Power:Electric

Media:Clean Water

Theory:Centrifugal Pump

Horsepower:0.5-60HP

Shaft:S.S.304

Seal:Mechanical Seal

■Packaging & Delivery

Package Size:90.00cm * 35.00cm * 33.00cm

Gross Weight:150.000kg

Product Description

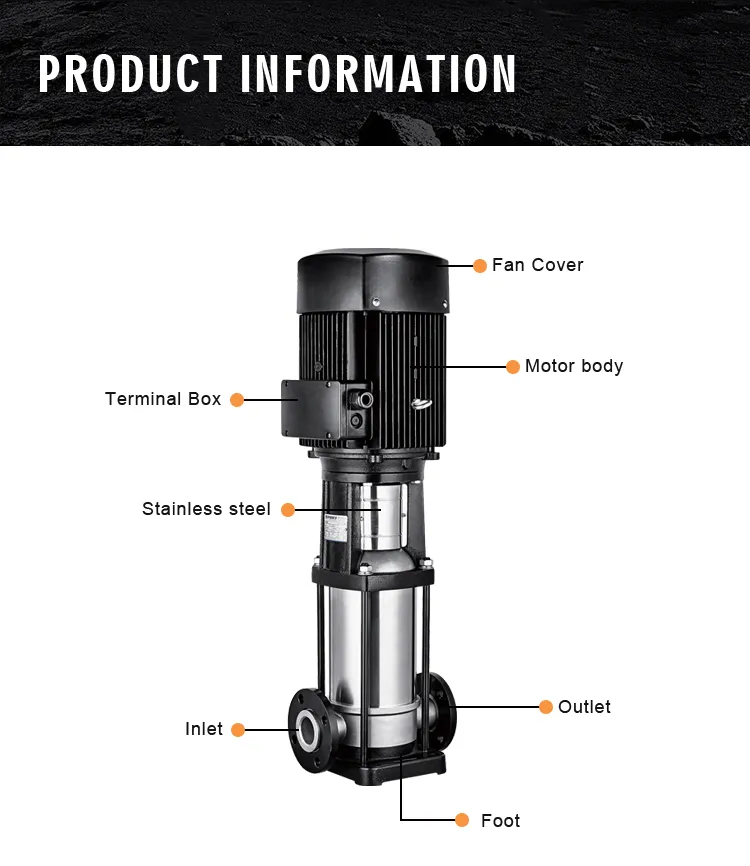

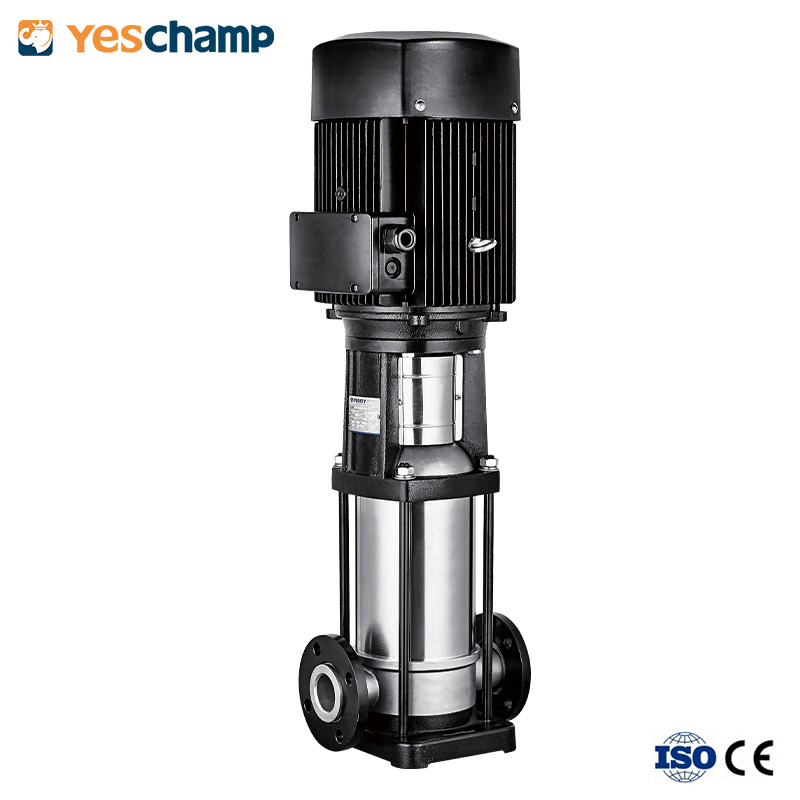

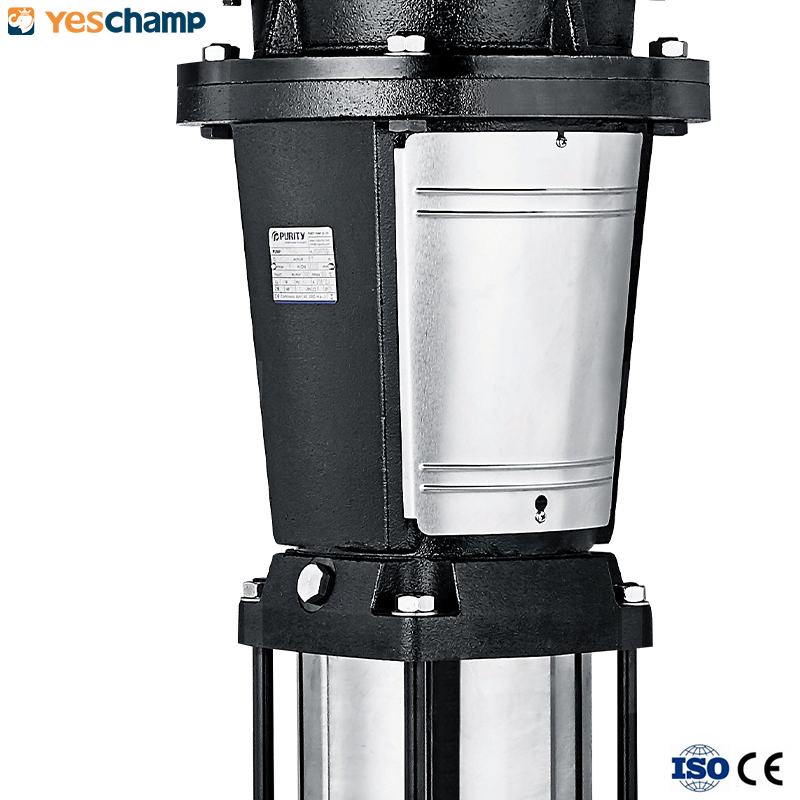

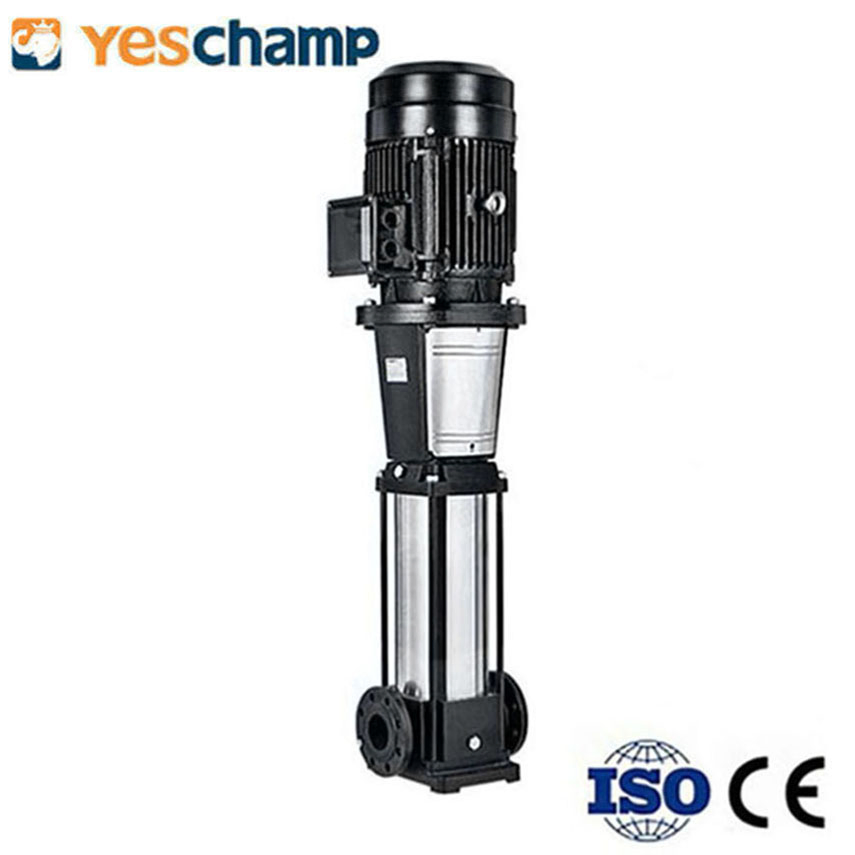

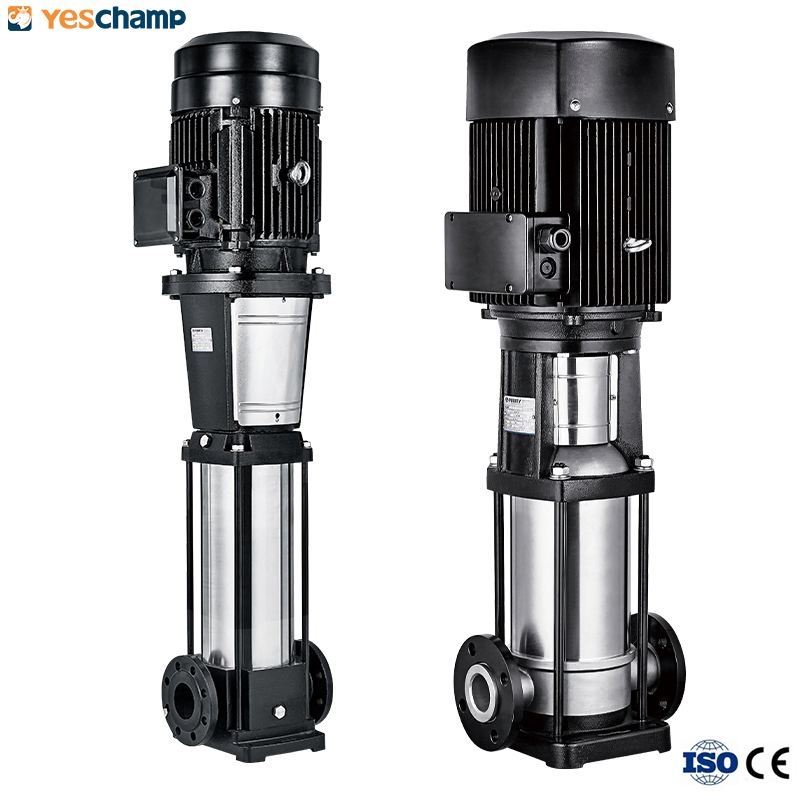

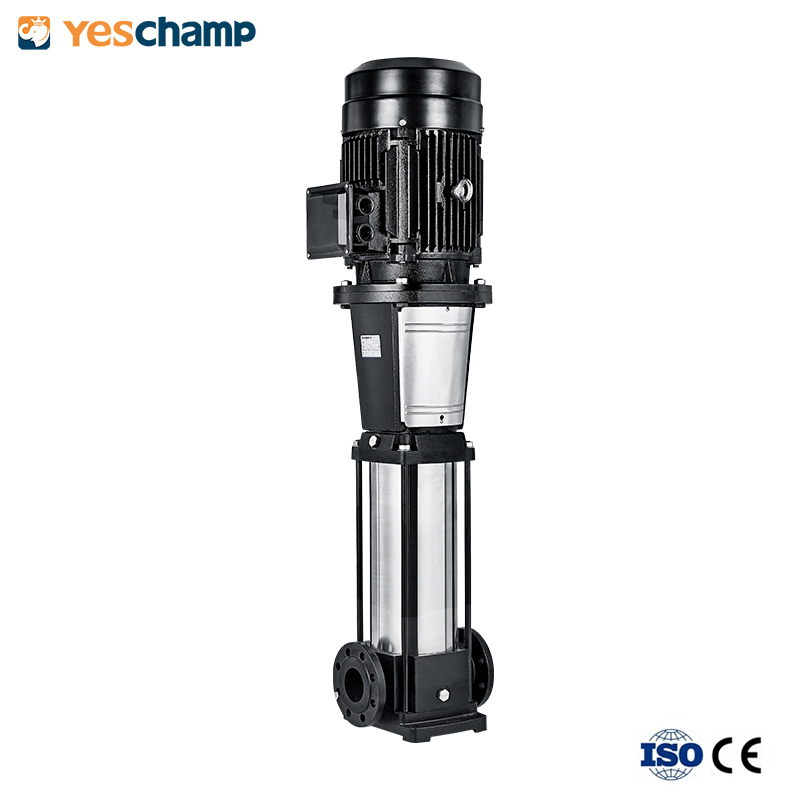

Vertical Multistage Centrifugal Jockey Fire Pump

The CDL / CDLF Vertical multistage stainless steel pump is ideal for conveying non-corrosive or slightly corrosive liquids. The internal impellers, casings, and main components are constructed from stamped stainless steel, offering advantages such as standard components, compact design, and high-head efficiency. Equipped with an intelligent protector, it prevents dry-running, phase loss, and overload.

DN Range (Suction/Discharge)	25-100mm
Flow Capacity Range	0-110m³/h
Head/Pressure Range	0-305m
Power Range	0.37-45kw

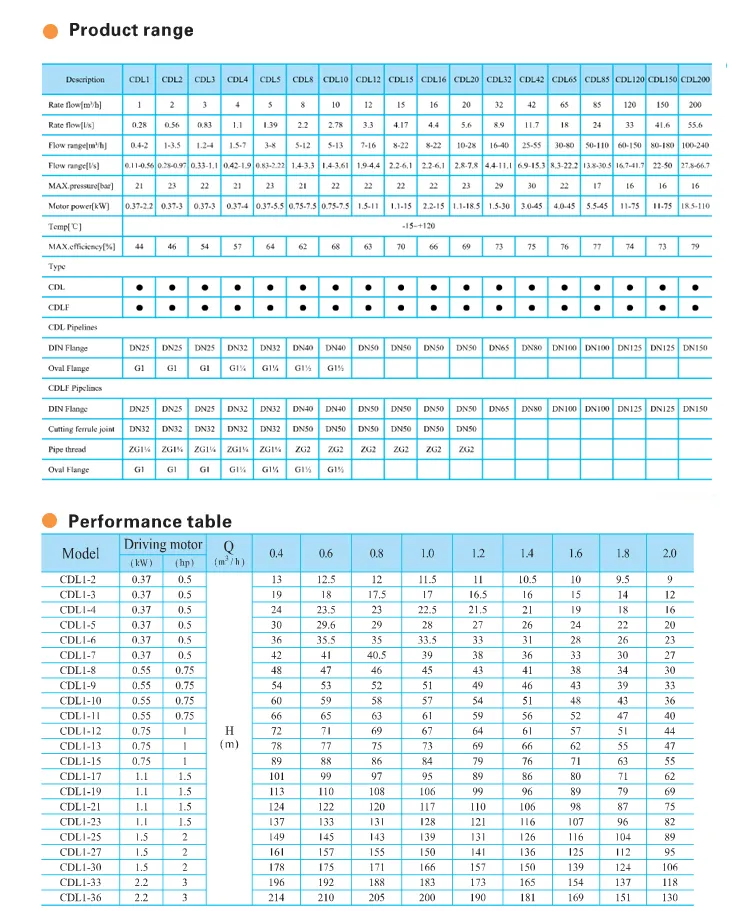

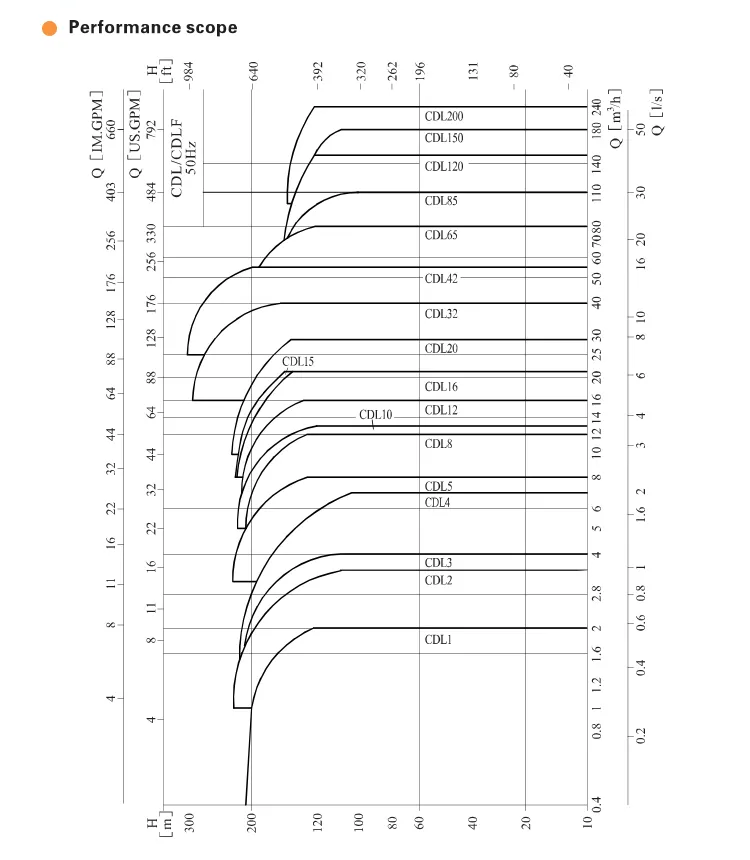

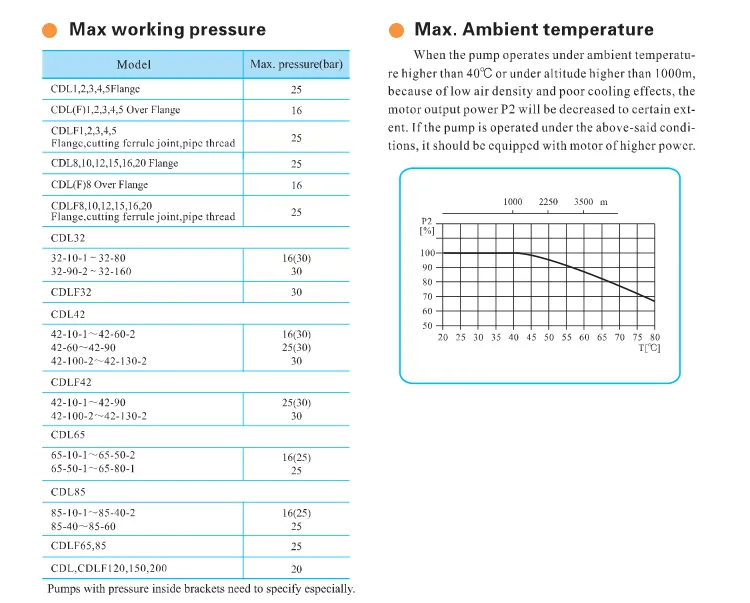

Product Parameters

Applications

Water Supply: Filtration, distribution, and pressure boosting for high-rise buildings and hotels.
Industrial Systems: Washing and cleaning systems, vehicle tunnels, and process water.
Fire Fighting: Dedicated fire pump sets and liquid transfer.
Water Treatment: Reverse osmosis, ultra-filtration, distillation, and demineralizing.
Irrigation: Field, sprinkler, and drip-feed irrigation.
HVAC: Cooling and air-conditioning system circulation.

Hot Sale Products

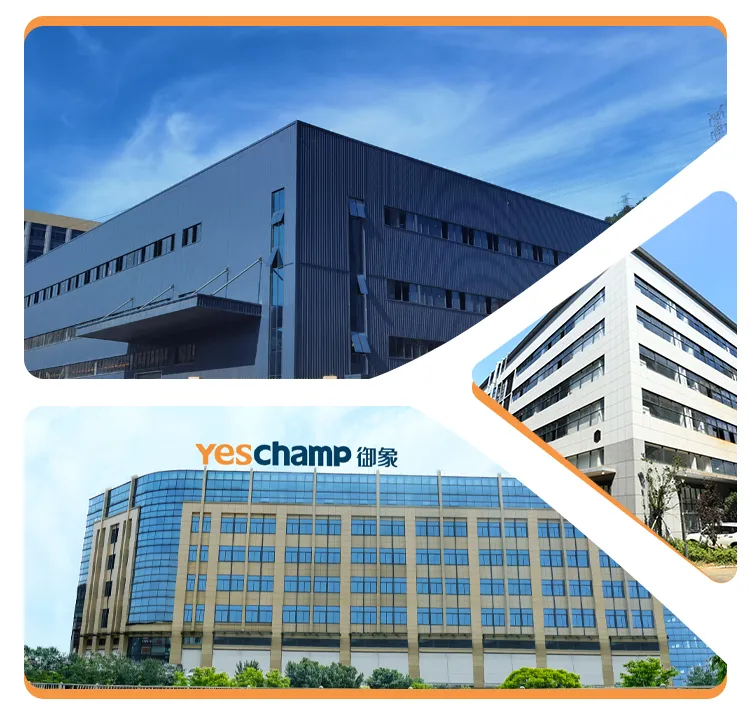

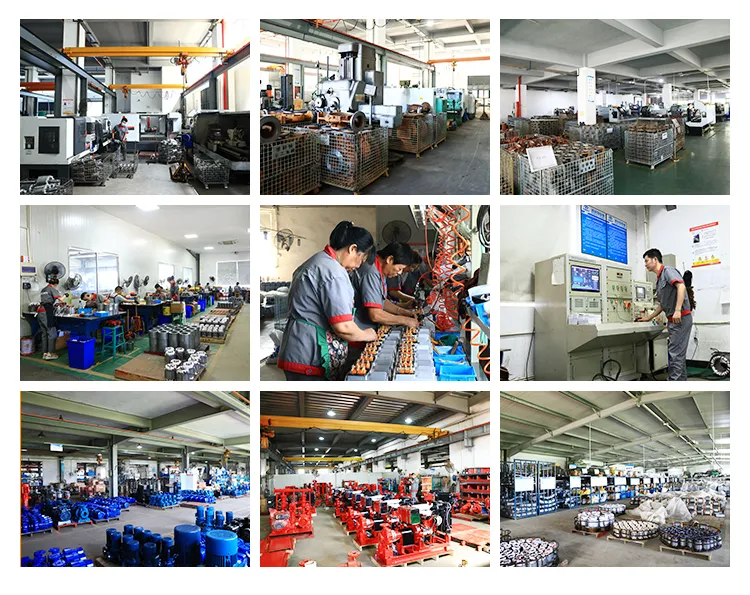

Manufacturer Profile

The manufacturer is a professional supplier of quality pumps and engines exported to more than 60 countries. With over 10 years of experience, the company focuses on centrifugal pumps, fire fighting systems, and industrial water solutions. Supported by a team of over 200 employees and dedicated engineers, they provide integrated services from design to production and inspection. The core mission is to provide efficient, high-quality, and innovative pumping solutions to solve industrial challenges globally.

Frequently Asked Questions

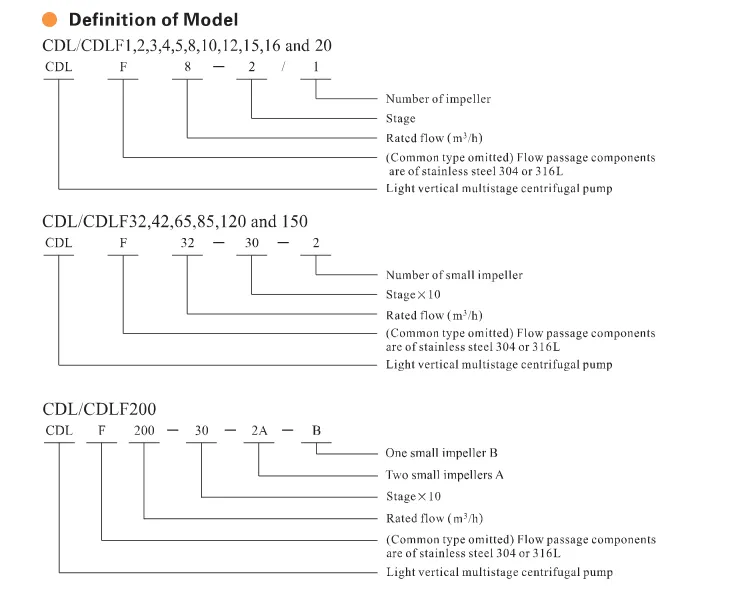

Q1: What is the main difference between CDL and CDLF models? A1: CDL is designed for non-corrosive liquids, while CDLF is constructed to handle slightly corrosive liquids thanks to its stainless steel components.

Q2: Can this pump handle high-temperature water? A2: Yes, the vertical multistage design and mechanical seals are built to handle various temperature ranges suitable for boiler feed and industrial processes.

Q3: Does the pump include safety protections? A3: It can be equipped with an intelligent protector that automatically prevents dry-running, phase failure, and motor overload.

Q4: What materials are used for the impellers? A4: The impellers and main hydraulic components are made of high-quality stainless steel (S.S.304 or S.S.316) for durability and efficiency.

Q5: Is this pump suitable for fire fighting systems? A5: Absolutely. It is commonly used as a jockey pump in fire fighting sets to maintain system pressure.

Q6: How easy is it to install the pump? A6: Due to its non-self-priming vertical structure, the pump is very compact, making it easy to install in tight spaces with minimal maintenance required.
