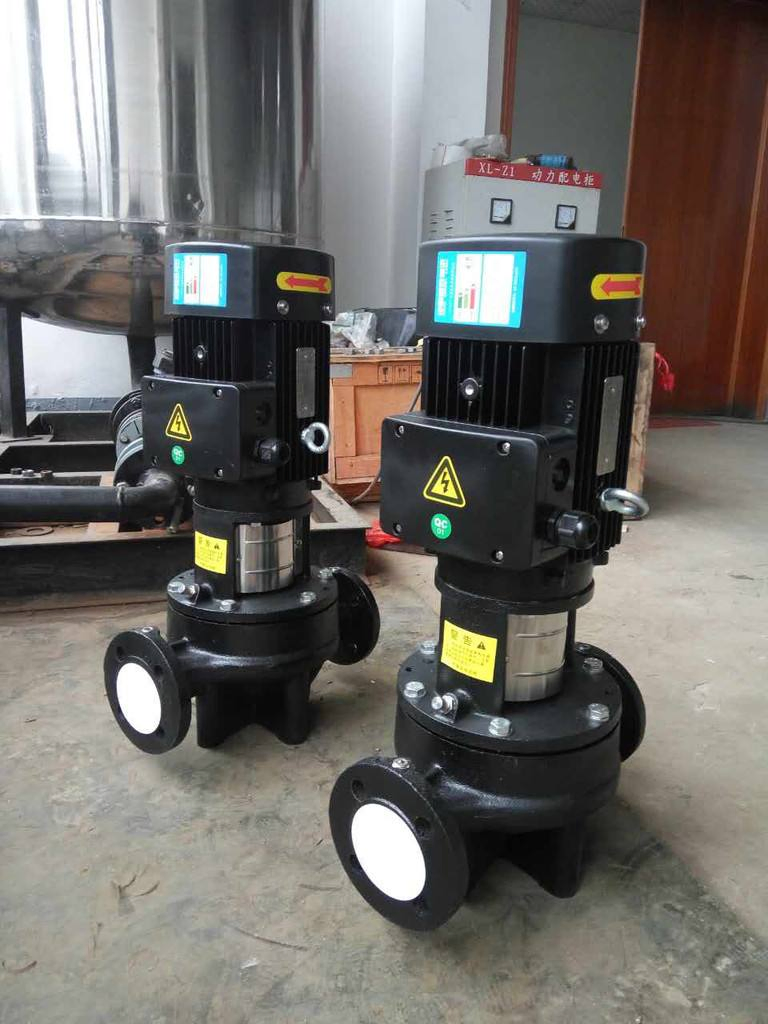

Vertical Inline Pump / Vertical Multistage Pump / Fire Jockey Pump Cdl8

1 / 5

Vertical Inline Pump / Vertical Multistage Pump / Fire Jockey Pump Cdl8

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

CDL8

Driving Type

Motor

Impeller Number

Multistage Pump

Working Pressure

High Pressure Pump

Influent Type

Single Suction Pump

Pump Shaft Position

Vertical Pump

Pump Casing

Verticaljoint Surface Pump

Mounting Height

Suction Centrifugal

Impeller Type

Closed

Usage

Pump, Circulating Pump, Fire Fighting

Material

Cast Iron, Ductile Iron, Cast Steel

Voltage Options

380V/415V/440V/460V/3kv/6kv...

Main Application

Residential & Industrial Fire Fighting

Water Supply

High Building Water Supply

Transport Package

Standard Export Wooden Packing

Specification

DN32

HS Code

8413709990

Production Capacity

3000 Per Year

🚀

Product Overview

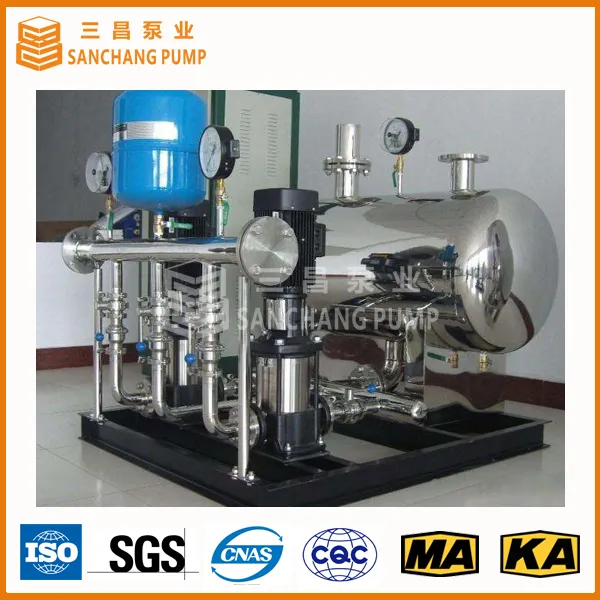

CDL series Vertical Inline Pump / Vertical Multistage Pump / Jockey pump are widely used for water boosting in fire fighting systems and high building water supply systems. It is designed for transferring clear water or other liquids physically and chemically similar to clear water. The liquid temperature generally remains below 120°C.

🛠️

Material Configuration

The vertical multistage centrifugal pump / jockey pumps can be customized with various materials based on the medium:

Recommended Material Configuration (Reference Only)
Item	Clean water	Drink water	Sewage water	Hot water	Sea water
Case & Cover	Gray iron (HT250)	S.S304	Ductile iron (QT500)	Cast Steel	Duplex S.S 2205
Impeller	Gray iron (HT250)	S.S304	Ductile iron (QT500)	2Cr13	Duplex S.S 2205
Wearing ring	Gray iron (HT250)	S.S304	Ductile iron (QT500)	2Cr13	Duplex S.S 2205
Shaft & Sleeve	C.S 45	S.S420	40Cr	40Cr	Duplex S.S 2205
Column Pipe	C.S Q235	C.S Q235	C.S Q235	C.S Q235	Duplex S.S 2205

🔍

Model Nomenclature

Example: 65DL16X5
• 65: Inlet diameter (mm).
• DL: Series Vertical Multistage Pump.
• DLR: Series Vertical Multistage Pump for hot water.
• 16: Single-stage head (m).
• 5: Number of stages (Total head = 16x5 = 80m).

🏗️

Structural Features

The DL series pumps are vertically mounted with the inlet at the upper side and the outlet at the underside in a horizontal direction.

Key Features:

Configurable stages to meet specific head requirements.
Adjustable outlet direction (90, 180, and 270 degrees) to fit installation conditions.
Axial forces balanced via a balancing drum.
Compact design, low noise, and space-saving footprint.
Seal Options: Choice between packing seal or mechanical seal.

❓

Frequently Asked Questions

What are the primary applications for the CDL series pumps?

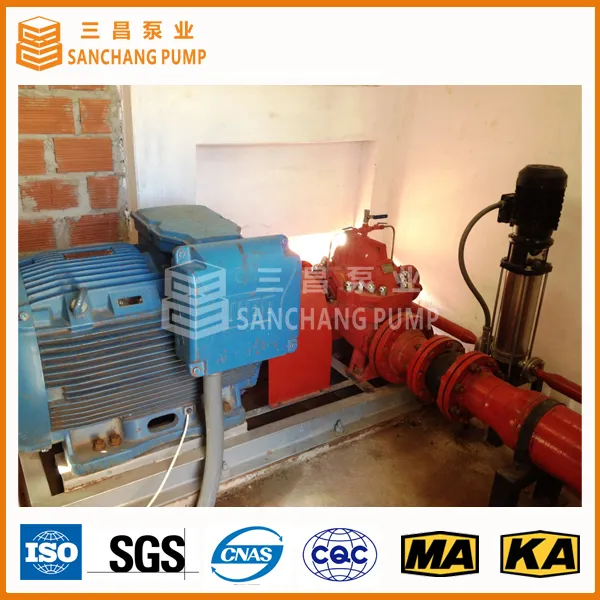

These pumps are primarily used for fire fighting systems (jockey pumps), high-rise building water supply, industrial water circulation, and transferring clear water in power plants or warehouses.

Can the pump handle high-temperature liquids?

Yes, the CDL series can handle liquids with temperatures generally up to 120°C, making them suitable for hot water circulation.

Is it possible to customize the material of the pump components?

Absolutely. While standard models use cast iron, we offer configurations in Stainless Steel (304/420), Ductile Iron, Cast Steel, and Duplex Stainless Steel (2205) for specialized media like seawater or drinking water.

What types of shaft seals are available for these pumps?

Depending on your operational requirements and liquid type, you can choose between a traditional packing seal or a modern mechanical seal.

How does the vertical multistage design benefit the installation?

The vertical inline design is highly space-saving, allowing for a smaller footprint in pump rooms. It also provides low noise operation and a compact structure compared to horizontal pumps.

What is the production capacity for this model?

The current production capacity is approximately 3000 units per year, ensuring steady availability for large-scale projects.
