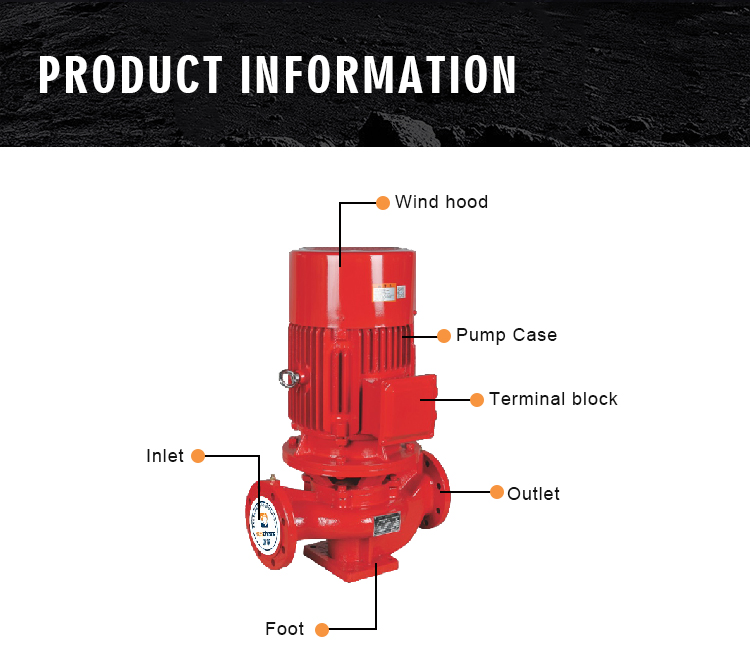

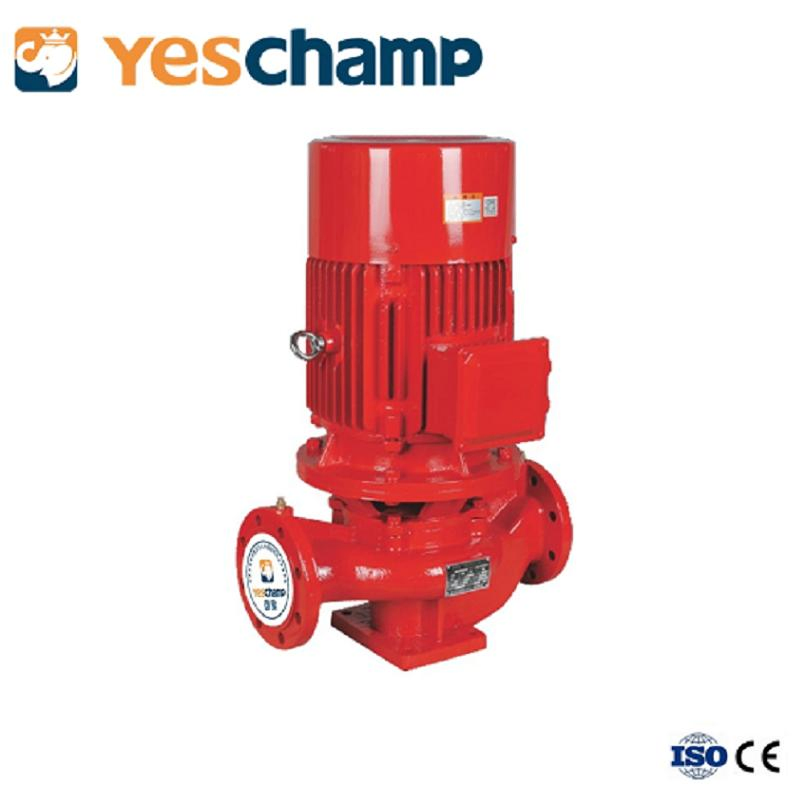

The PGL Single Stage Vertical Pipeline Electric pump is designed for transporting liquids containing no solid grains. Its viscosity is similar to water, making it ideal for light industry, petroleum, chemical processing, metallurgy, electricity, paper-making, marine sea water, and medicine applications.
Space-Saving Design: Compared to horizontal end suction pumps, this inline structure significantly saves floor space and simplifies installation, as it does not require changing the piping direction.
Operating Range: Suitable for urban water supply, high-rise building booster systems, garden irrigation, fire-fighting boosters, and warming systems. It operates efficiently within a temperature range of -20ºC to 120ºC.

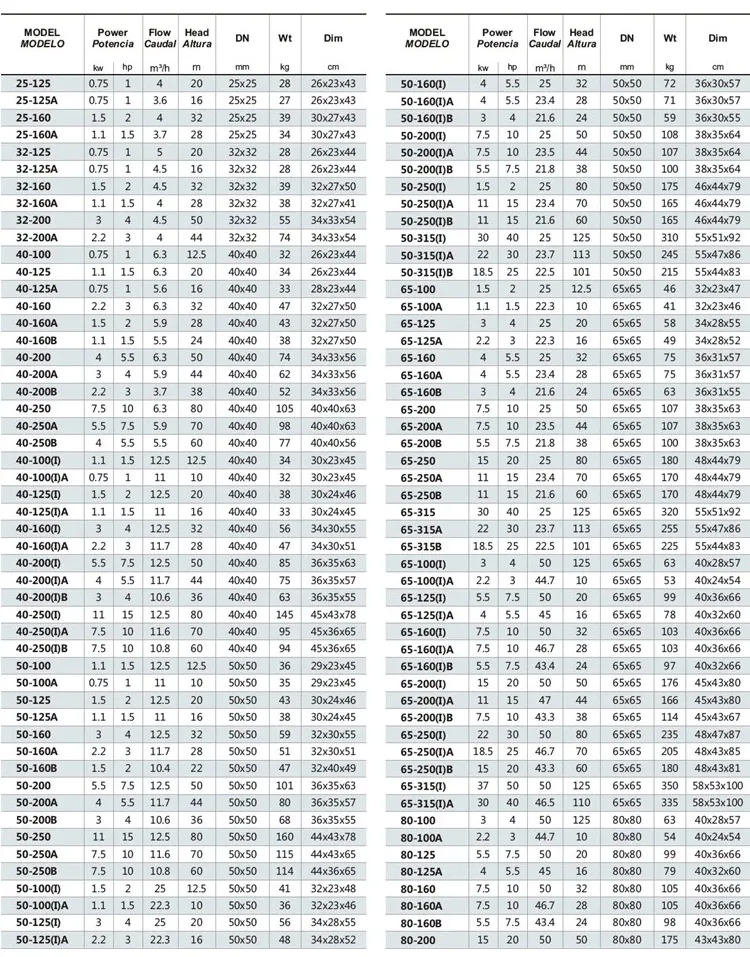

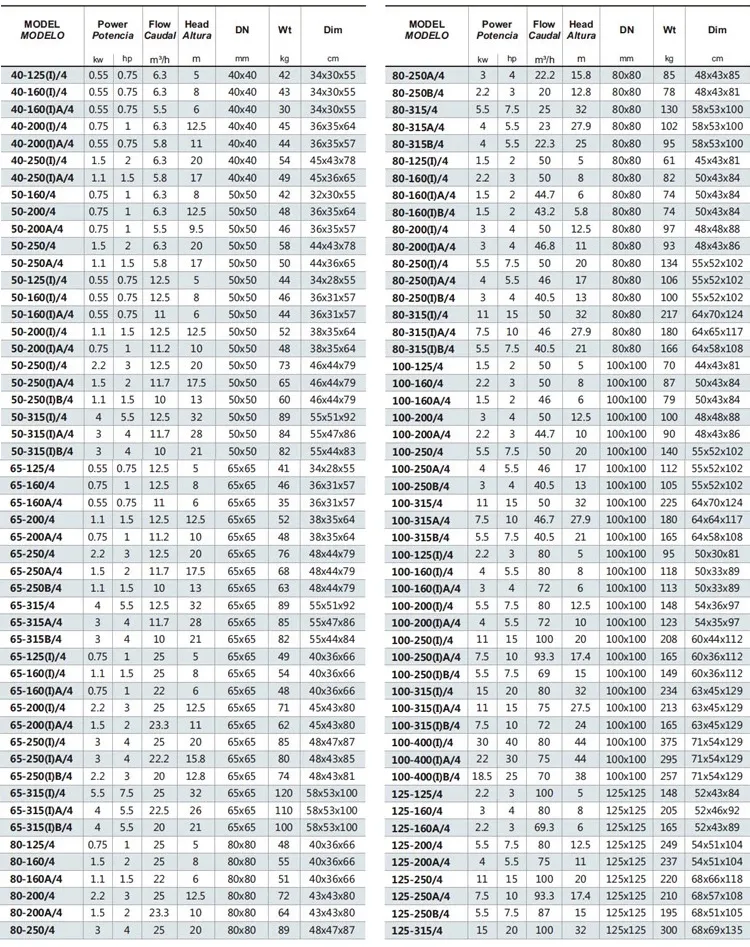

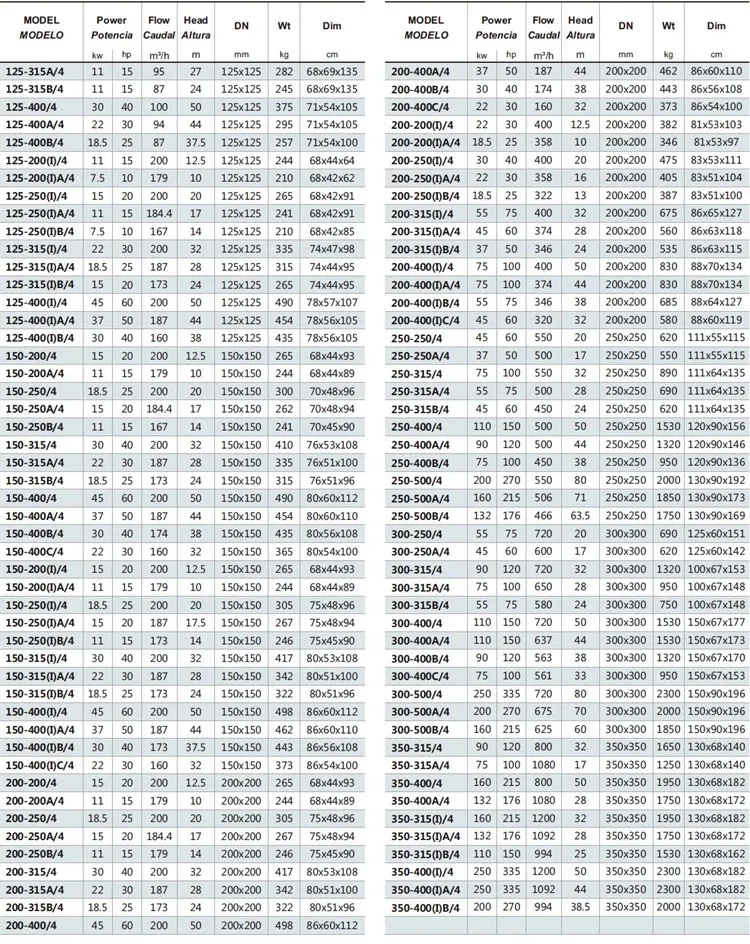

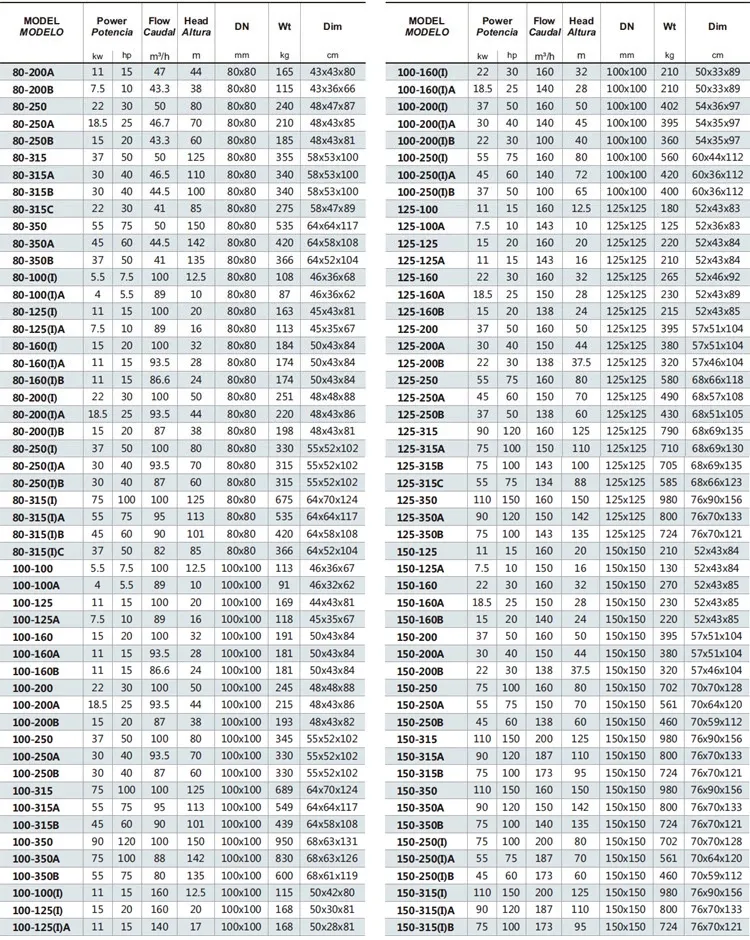

| DN Range of Suction/Discharging Pipe | 25-350 mm (1"-14") |
| Flow Capacity Range | 0-5000 GPM |
| Head/Pressure Range | 1-15 Bar |
| Power Range | 0.75-250Kw |

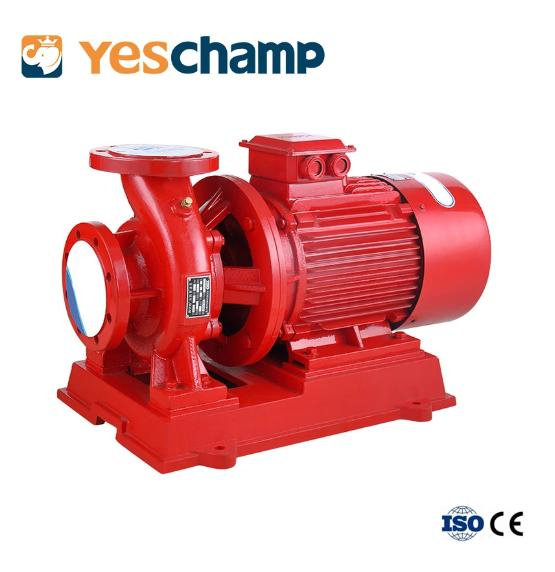

The XBD fire pump is primarily utilized for pressure water supply in fire-fighting systems. It is also highly effective for:

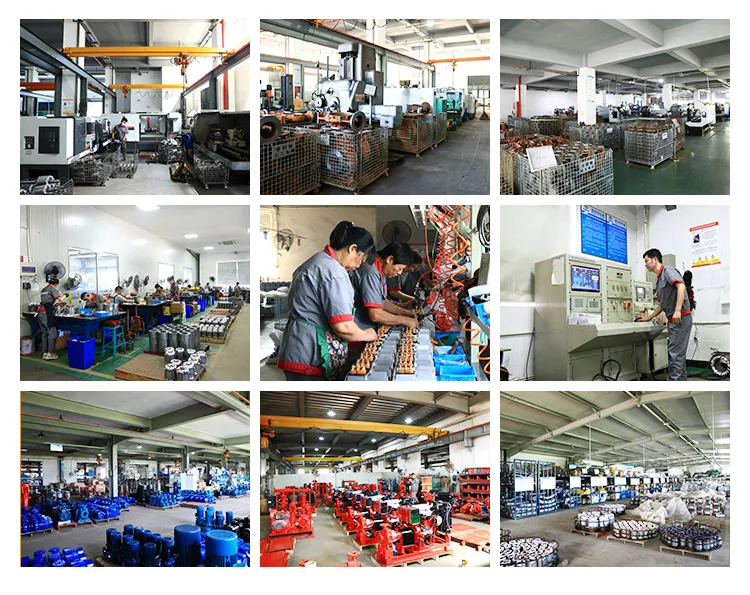

Our production line covers a wide range of centrifugal pumps, fire systems, industrial pumps, and solar-powered solutions. We focus on innovation and quality, ensuring every unit meets strict inspection standards for high-performance operation.
