| Demonstration of Type | Range of Application | Performance Parameter |
|---|---|---|
|

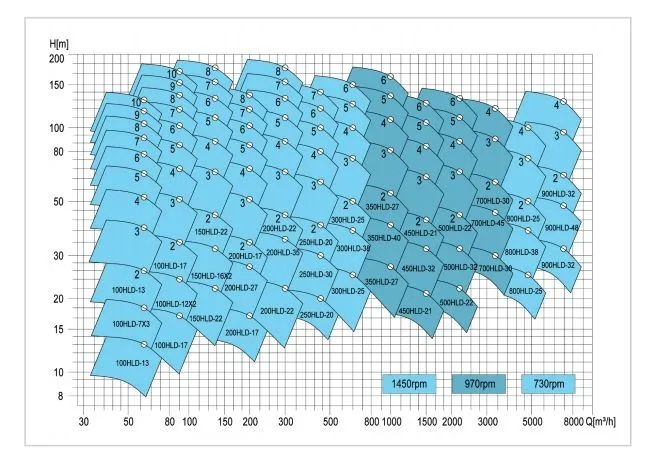

200HLD-82X10 200: nominal diameter of the outlet HLD: Series code 82: Single stage head (m) 10: Series of impeller |
Conveying clean or microparticle media. Suitable for easy vaporizing medium, low temperature medium (ethylene, liquid ammonia, liquefied gas, condensate, hydrohydrocarbons, oil products). Transports liquid oxygen, nitrogen, and argon. |
Flow rate: ~18000m³/h Head: ~150200m Speed: 1450~2950r/min Design pressure: ~ 2.5MPa Operating temperature: -20ºC~80ºC |

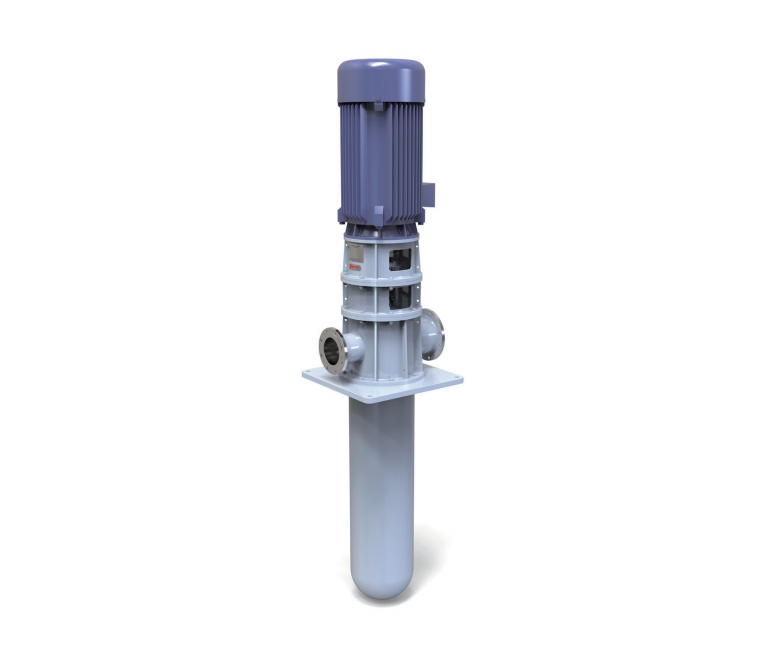

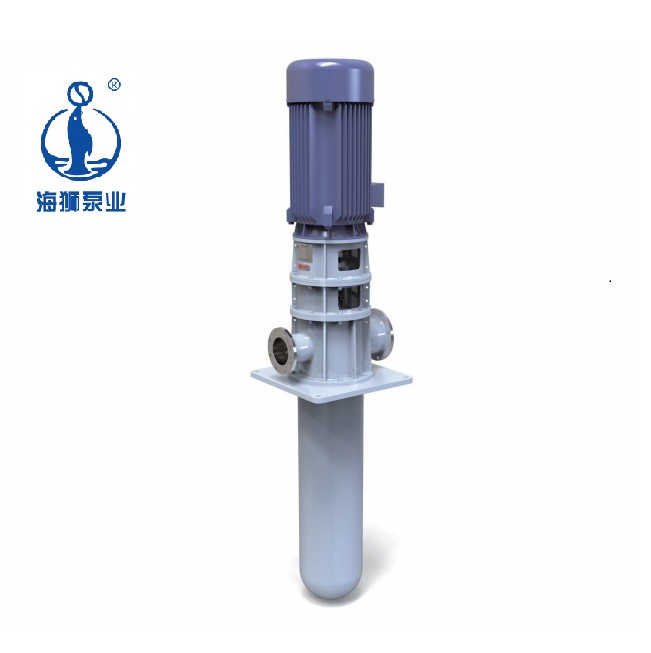

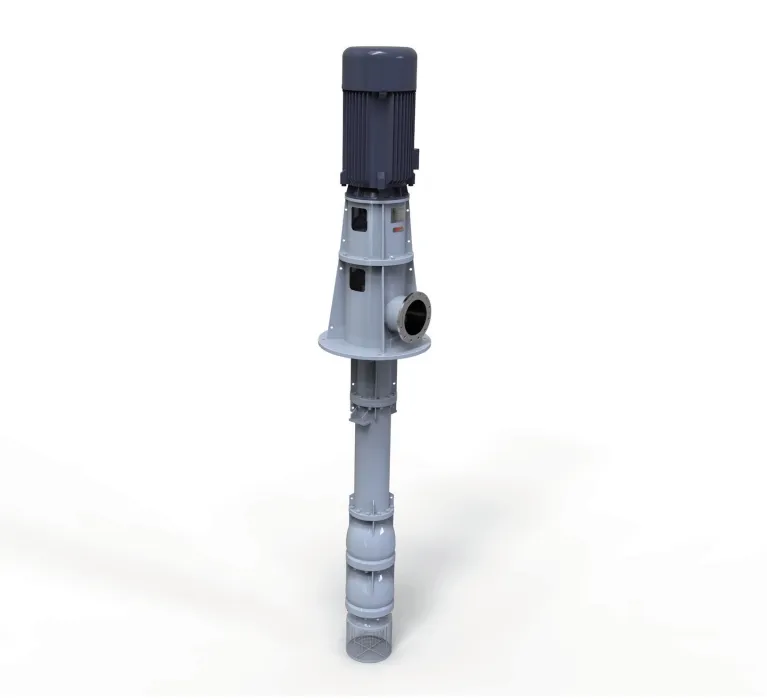

HWUC pump is a vertical multistage, radial split, radial guide vane or space guide vane structure of the double housing pump. Designed and manufactured in accordance with API610 standard requirements.
The impeller is below the pump inlet and base, effectively improving cavitation performance. The vertical structure occupies a small area, improving space utilization.
Hydraulically, the first stage and secondary impellers are designed separately for optimal cavitation performance and efficiency.
Established in 1977, long history of pump making brings us rich experience and professional manufacturing status in China.
Well trained and professional engineers and workers guarantee on-time delivery and professional solutions.

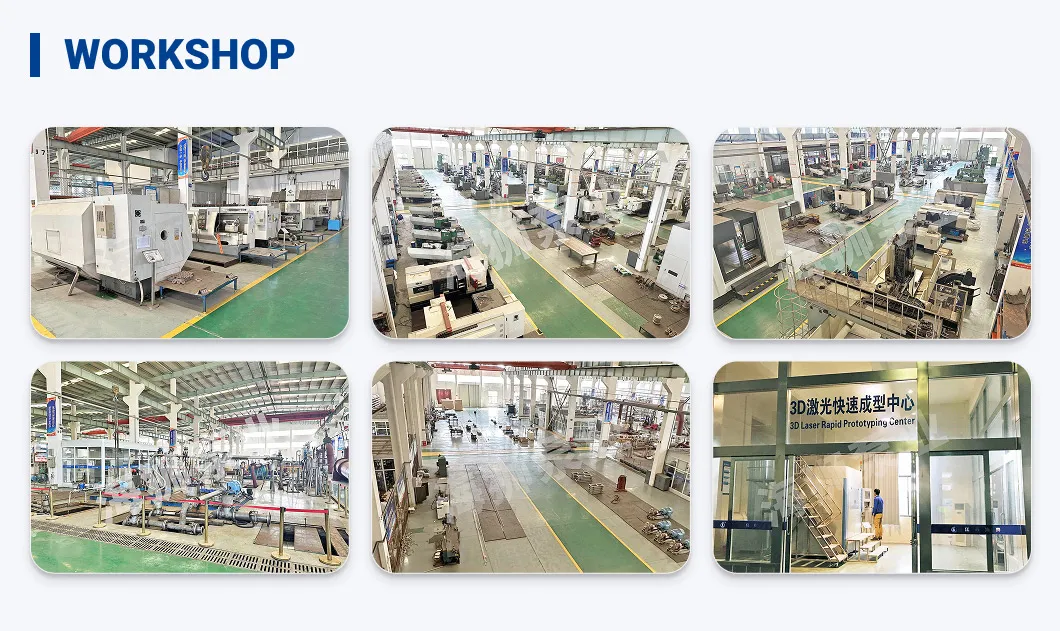

Modernized workshops and facilities enable efficient and strict QA & QC procedures for qualified products.
Gained more than 20 patents, providing strong proof of R&D ability and product quality backup.
