UL/FM Listed Fire Fighting System Control Panel Driven Diesel Jockey Fire Pump with Short Delivery Time

1 / 5

UL/FM Listed Fire Fighting System Control Panel Driven Diesel Jockey Fire Pump with Short Delivery Time

Customization:	Available
After-sales Service:	Engineers Service
Warranty:	12 Months for Pump, 3 Months for Spare Parts

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.

EHF/ESF

Max.Head

>150m

Max.Capacity

2500gpm

Driving Type

Diesel Engine & Electric Motor

Impeller Number

Single-Stage Pump

Working Pressure

High Pressure Pump

Position of Pump Shaft

Horizontal Pump

Voltage

220V/380V/400V/415V/440V

Standard

UL, FM, Nfpa20, CE, ISO

Casing Material

Ductile Iron

Impeller Material

Bronze

Application

Building Fire Fighting, etc

🛡️

Product Description

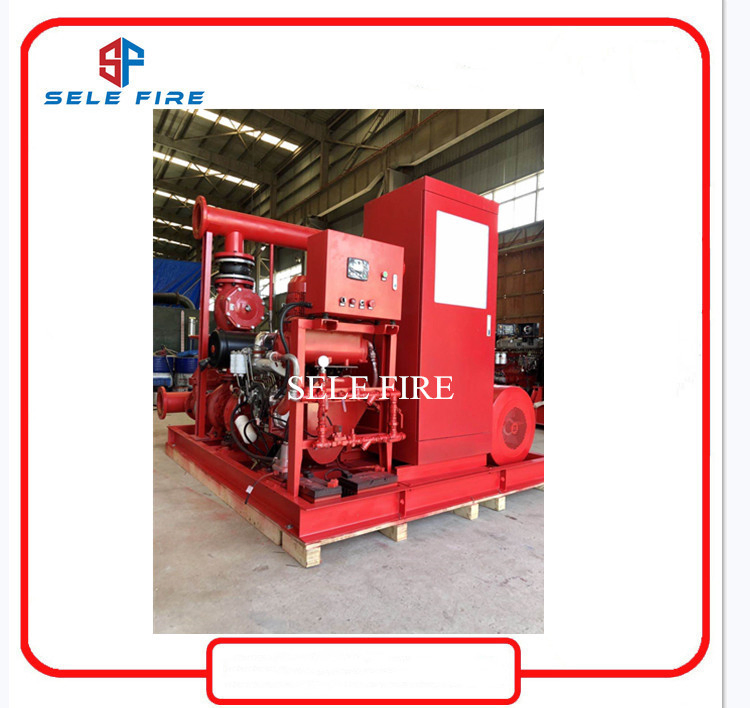

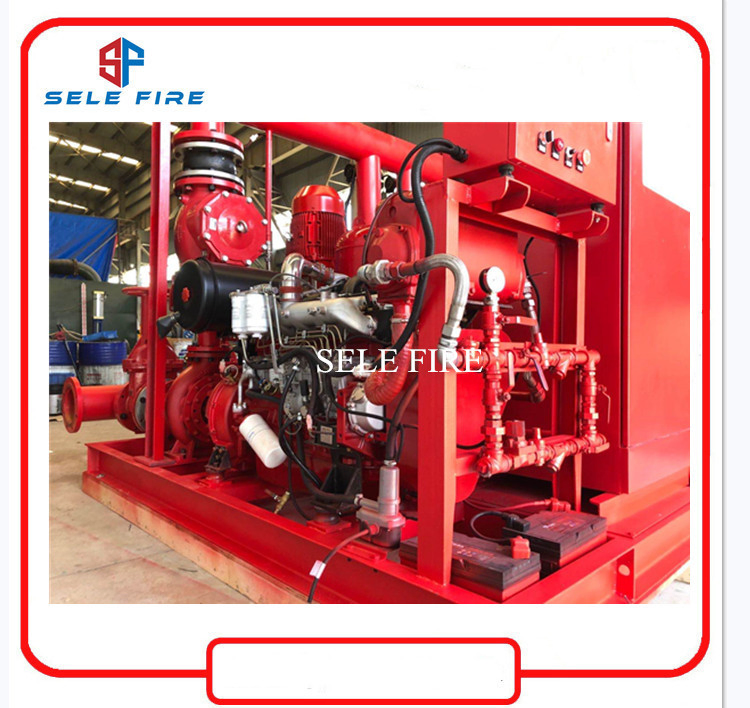

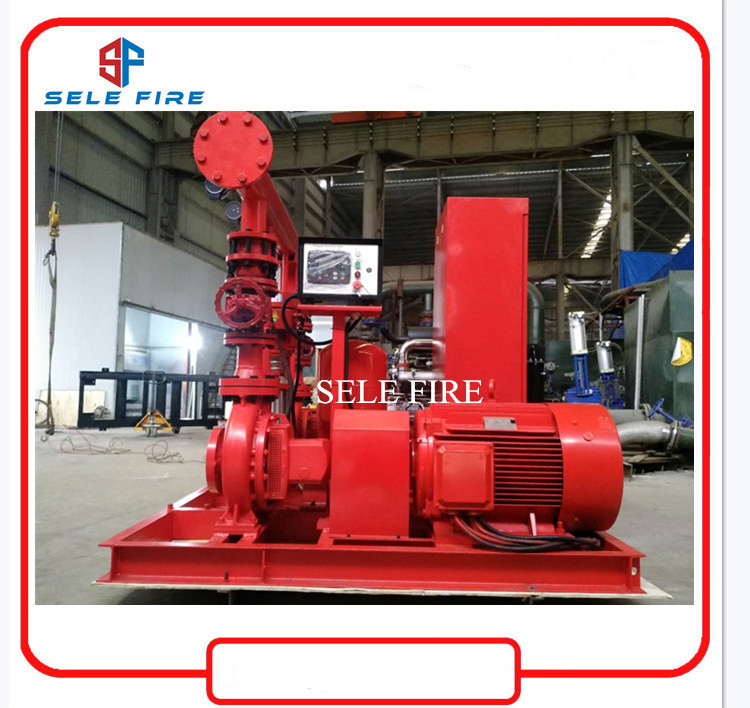

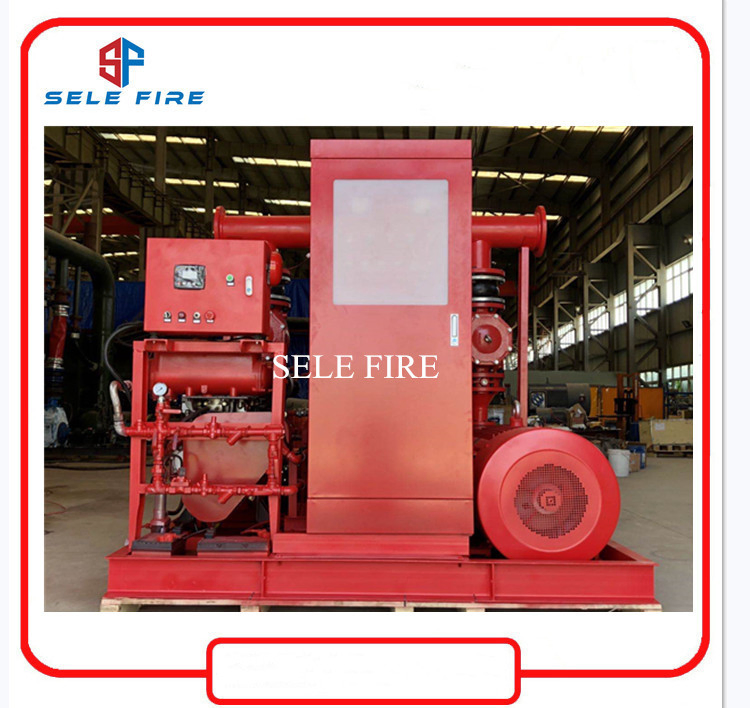

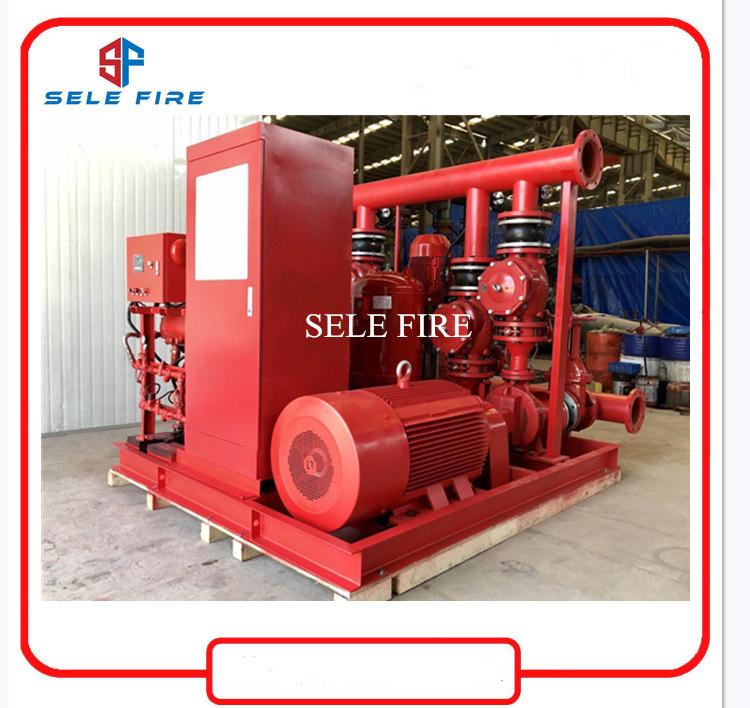

The EDJ series is a packaged fire pump set, generally an automatic fire water supply system. It consists of a main pump (driven by an electrical motor), a standby pump (driven by a diesel engine), and a jockey pump. This model comes equipped with a separate controller, or one that is attached to the skid. The package also contains discharge valves, a common header, and accessories.

⚙️

Working Principle

Generally, the pipeline network's pressure is maintained between low pressure P1 and high pressure P2. When pressure drops below P1, the jockey pump starts automatically until it reaches P2. In the event of high water consumption or system leakage where pressure drops to P3, the electric pump activates. If the mains supply fails or the electric pump malfunctions, and pressure drops to the ultimate level P4, the diesel pump set starts automatically to meet the fire water supply needs. Manual stopping is required after human judgment.

📋

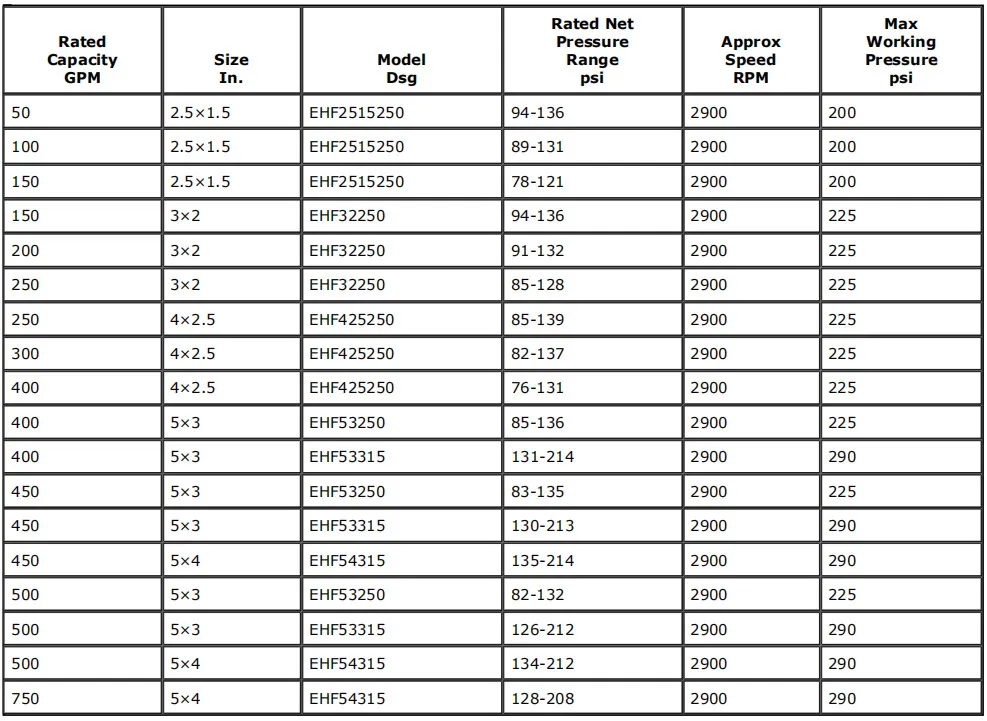

Pump Specifications Choosing

🌍

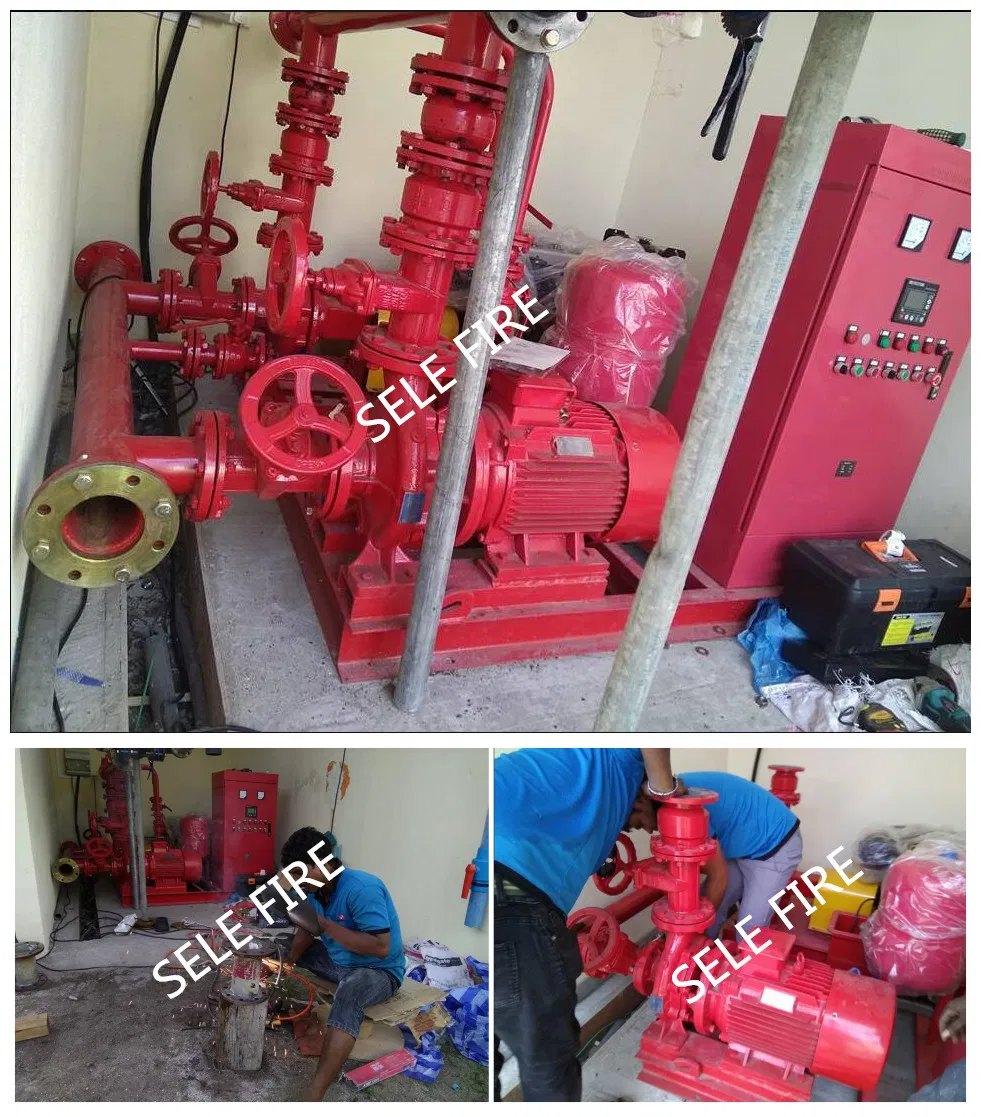

Client Applications

💎

Our Services

Delivery: Guaranteed on-time delivery. Typically 35 working days for diesel engine pumps and 25 working days for bare shaft pumps.
Warranty: 12-month warranty for the pump body and 3-month warranty for main working parts.
Package: Durable plywood cases suitable for ocean transport.
On-sales Service: Transparent production updates including photos and videos of the manufacturing process.
Quality Control: Comprehensive testing before delivery and follow-up on working conditions every three months after installation.

🏭

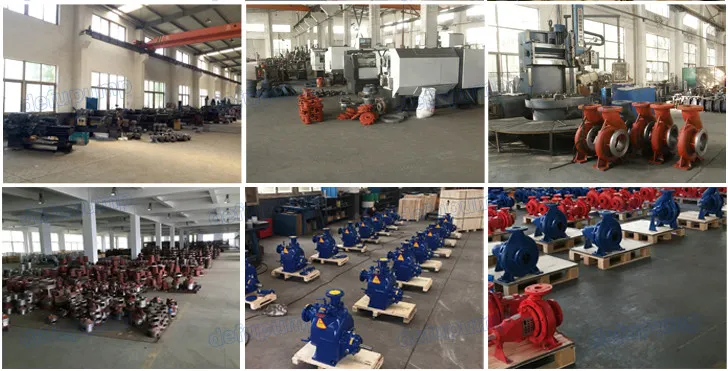

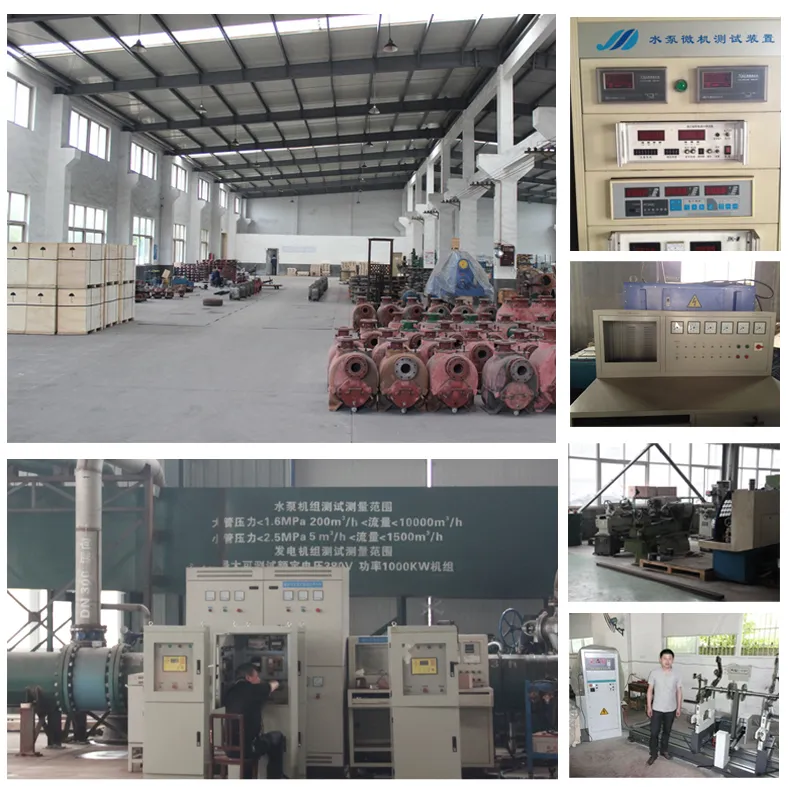

Production Facility

Welcome to visit our factory!

❓

Frequently Asked Questions

1. What are the main components of the EDJ fire pump set? The set includes a main electric motor pump, a standby diesel engine pump, and a jockey pump for pressure maintenance.

2. How does the system handle a power failure? If the electric pump fails or power is lost, the diesel pump set will automatically start once the system pressure drops to the P4 threshold.

3. What is the typical lead time for an order? Diesel engine pumps usually require 35 working days, while bare shaft pumps take approximately 25 working days.

4. What materials are used for the pump construction? The pump casing is made of high-quality Ductile Iron, and the impeller is crafted from durable Bronze for long-lasting performance.

5. Is the equipment compliant with international fire safety standards? Yes, our fire pumps meet UL, FM, Nfpa20, CE, and ISO standards to ensure global safety compliance.

6. How is the product protected during international shipping? We use heavy-duty export plywood cases to provide maximum protection for ocean transport.
