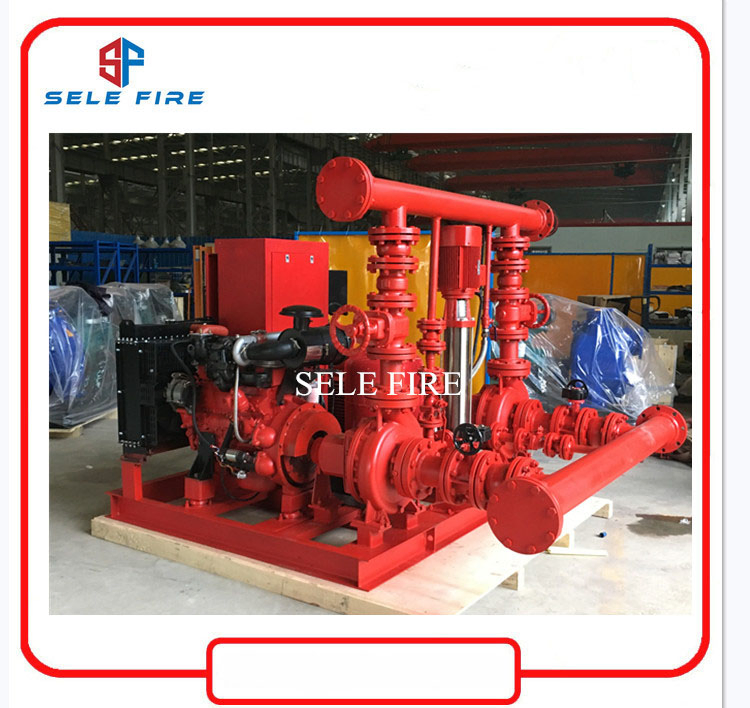

UL/FM Listed Diesel Engine Driven Fire Fighting Centrifugal Water Pump Nfpa20 Approved
UL/FM Listed Diesel Engine Driven Fire Fighting Centrifugal Water Pump Nfpa20 Approved
UL/FM Listed Diesel Engine Driven Fire Fighting Centrifugal Water Pump Nfpa20 Approved
UL/FM Listed Diesel Engine Driven Fire Fighting Centrifugal Water Pump Nfpa20 Approved
UL/FM Listed Diesel Engine Driven Fire Fighting Centrifugal Water Pump Nfpa20 Approved
1 / 5
UL/FM Listed Diesel Engine Driven Fire Fighting Centrifugal Water Pump Nfpa20 Approved
UL/FM Listed Diesel Engine Driven Fire Fighting Centrifugal Water Pump Nfpa20 Approved
UL/FM Listed Diesel Engine Driven Fire Fighting Centrifugal Water Pump Nfpa20 Approved
UL/FM Listed Diesel Engine Driven Fire Fighting Centrifugal Water Pump Nfpa20 Approved
UL/FM Listed Diesel Engine Driven Fire Fighting Centrifugal Water Pump Nfpa20 Approved

UL/FM Listed Diesel Engine Driven Fire Fighting Centrifugal Water Pump Nfpa20 Approved

Customization: Available
Max.Head: 110m-150m
Max.Capacity: >400 L/min
Send Inquiry

Product Description

Technical Specifications

Model NO.EHF/ESF
Driving TypeMotor
Impeller NumberSingle-Stage Pump
Working PressureHigh Pressure Pump
Influent TypeSingle Suction Pump
Pump Shaft PositionHorizontal Pump
Casing CombinedHorizontal End Suction
Impeller TypeClosed
UsageFire Fighting Pumps
Voltage220V/380V/400V/415V/440V
Frequency50Hz/60Hz
StandardUL, FM, Nfpa20, CE, ISO
Casing MaterialDuctile Iron
Seal TypePacking Seal
Impeller MaterialBronze
Speed Range1450 - 3500 rpm

Product Overview

EDJ series is a packaged fire pump set, generally an automatic fire water supply system. It consists of a main pump (driven by an electrical motor), a standby pump (driven by a diesel engine), and a jockey pump. This model comes equipped with a separate controller, or one that is attached to the skid. The package also contains discharge valves, common header, and accessories.

Working Principle

The system maintains pipeline pressure between low pressure P1 and high pressure P2. When pressure drops below P1, the jockey pump starts automatically until it reaches P2. In the event of high water consumption or leaks where pressure drops to P3, the electric pump activates. If power fails or the electric pump cannot maintain demand (dropping to P4), the diesel pump set starts automatically. All main pumps are stopped manually after operational assessment.

Specifications & Applications

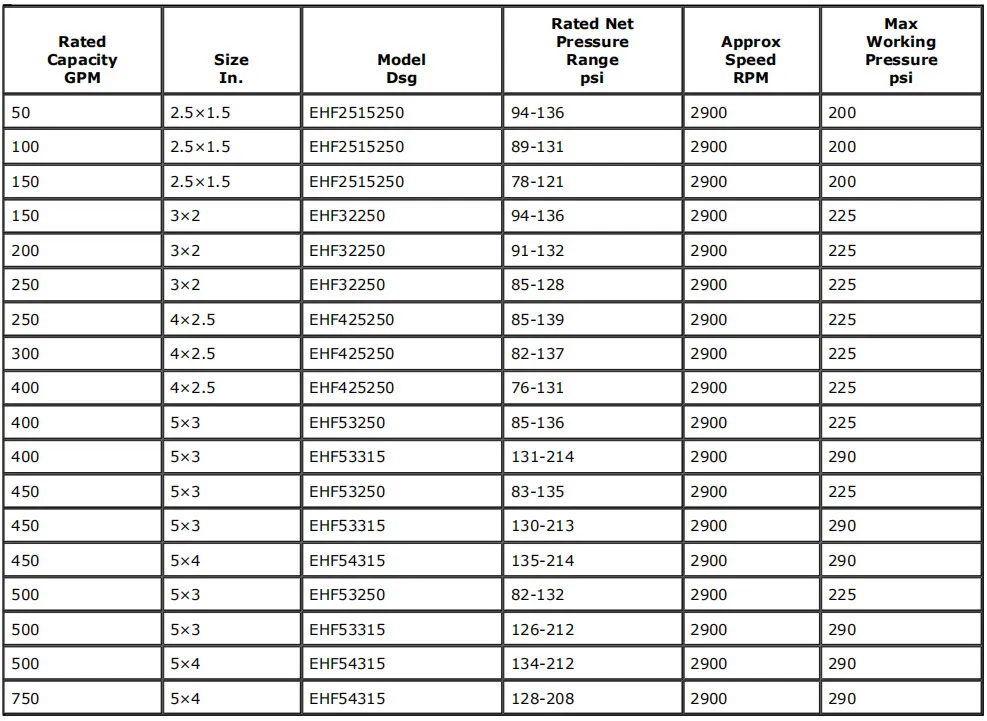

Fire Pump Specifications

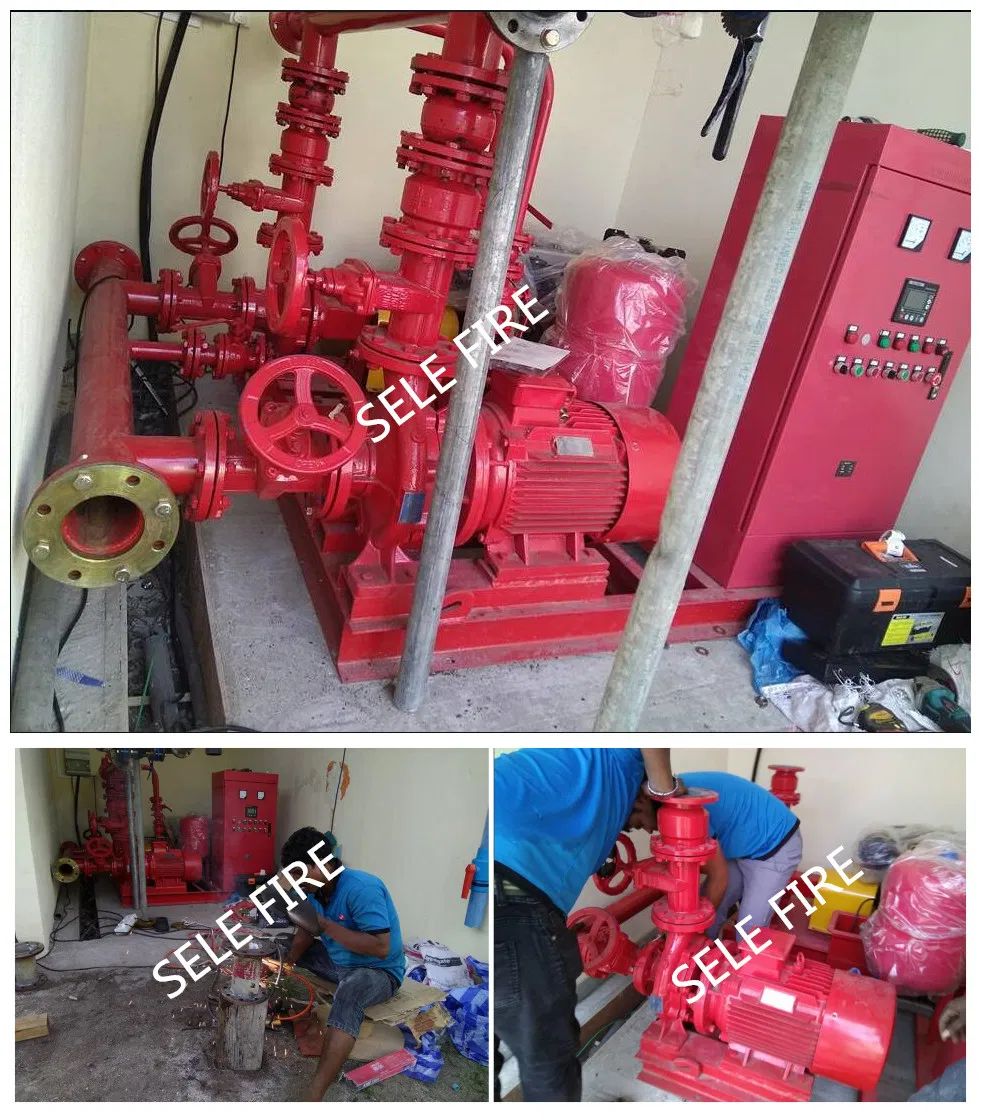

Client Applications

Professional Services

  • On-Time Delivery: 35 working days for diesel engine pumps; 25 working days for bare shaft pumps.
  • Warranty Protection: 12 months for the pump body, 3 months for main working parts.
  • Export Packaging: Durable plywood cases optimized for ocean transport.
  • Transparent Production: Real-time photo and video updates of your production status.
  • Quality Assurance: Comprehensive pre-delivery testing and quarterly follow-ups during use.

Our Facilities

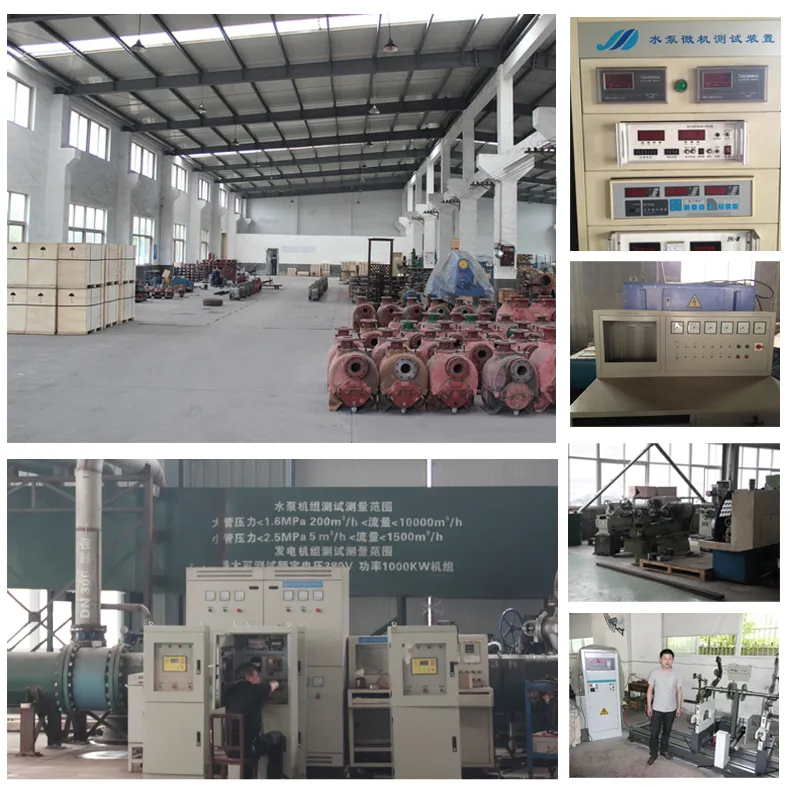

Factory Overview

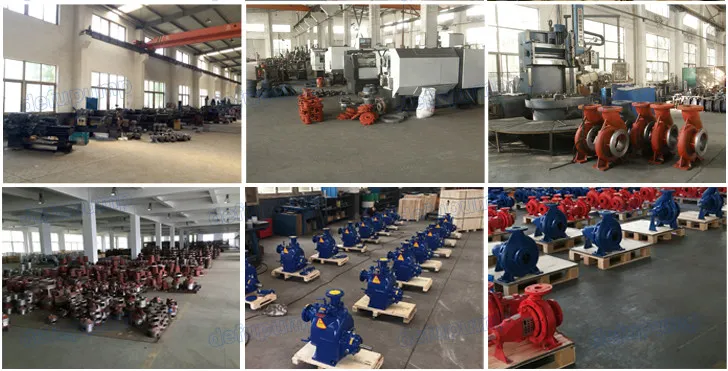

Production Line

Frequently Asked Questions

Q1: What components are included in the EDJ fire pump package?
The EDJ series includes a main electric motor pump, a standby diesel engine pump, and a jockey pump, along with a control system, discharge valves, and a common header.
Q2: How does the system handle a power failure?
In the event of a power outage or electric pump failure, the system detects the pressure drop to a critical level (P4) and automatically triggers the diesel engine pump to ensure uninterrupted fire water supply.
Q3: What international standards do your fire pumps meet?
Our fire pumps are designed and manufactured to comply with UL, FM, NFPA20, CE, and ISO standards, ensuring global safety compliance.
Q4: What is the typical lead time for a custom fire pump set?
Generally, the delivery time is 35 working days for a full diesel engine pump set and 25 working days for bare shaft configurations.
Q5: Can the pump operate with different local power voltages?
Yes, we support multiple voltage configurations including 220V, 380V, 400V, 415V, and 440V at both 50Hz and 60Hz frequencies.
Q6: What materials are used for the main pump components?
The pump casing is made of durable ductile iron, and the impeller is constructed from high-quality bronze for superior corrosion resistance and longevity.

Related Products

Nfpa20 Listed Vertical Turbine Fire Fighting Electric Water Pump

Nfpa20 Listed Vertical Turbine Fire Fighting Electric Water Pump
UL/FM Listed Diesel Engine Driven Fire Fighting Centrifugal Water Pump Nfpa20 Approved

UL/FM Listed Diesel Engine Driven Fire Fighting Centrifugal Water Pump Nfpa20 Approved
Nfpa20 Standard Edj Diesel Engine Driven Fire Pump Price UL/FM

Nfpa20 Standard Edj Diesel Engine Driven Fire Pump Price UL/FM
Xbc/Tpow Horizontal Split Casing Diesel Fire Pump, Double Suction Centrifugal Pump, Nfpa20 Fire Fighting Pump

Xbc/Tpow Horizontal Split Casing Diesel Fire Pump, Double Suction Centrifugal Pump, Nfpa20 Fire Fighting Pump
Split Case Xbc/Tpow Diesel Engine Fire Pump, Nfpa20 Standard Double Suction Centrifugal Pump

Split Case Xbc/Tpow Diesel Engine Fire Pump, Nfpa20 Standard Double Suction Centrifugal Pump
160m3/H Flow 45m Head 37kw Zx Series Cast Iron Water Oil Centrifugal Self-Priming Pump for Fire Protection

160m3/H Flow 45m Head 37kw Zx Series Cast Iron Water Oil Centrifugal Self-Priming Pump for Fire Protection

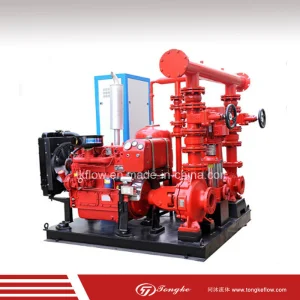

UL/FM Standard Fire Fighting Pumps

UL/FM Standard Fire Fighting Pumps

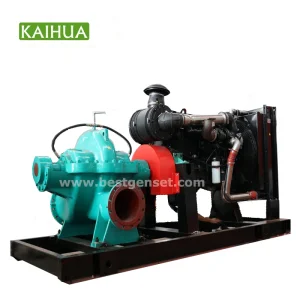

500kVA/400kw Cummins Engine OEM Manufacturer Diesel Fire Fighting Water Pump Set

500kVA/400kw Cummins Engine OEM Manufacturer Diesel Fire Fighting Water Pump Set

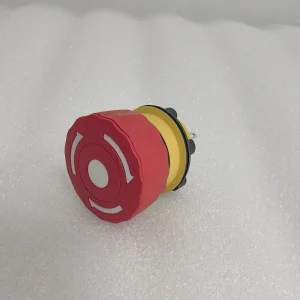

Pump Truck Remote Control Emergency Stop Button
