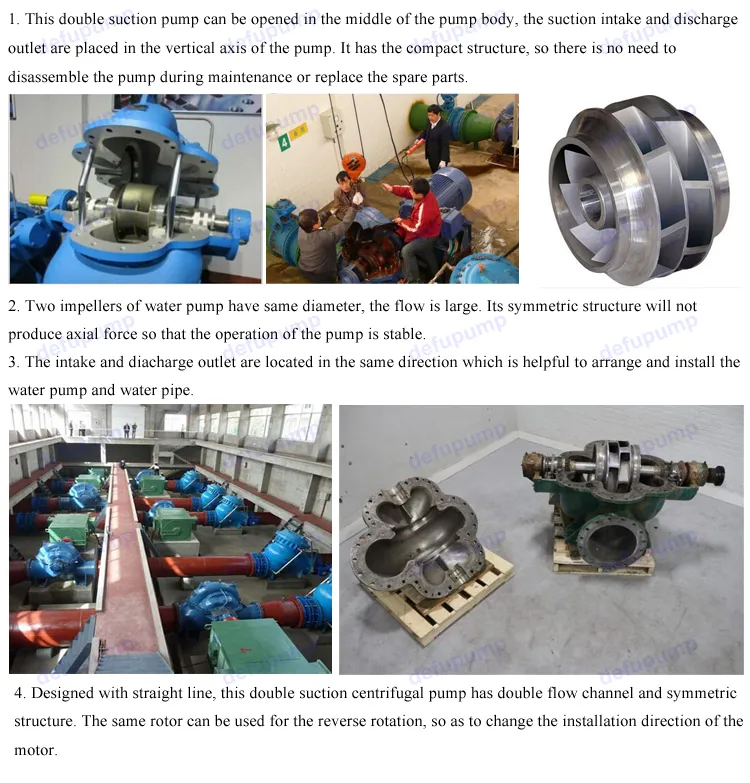

TPOW series double suction centrifugal pump is mainly used for transporting water or liquid which has similar physical and chemical properties to water. It features a large flow capacity due to the dual suction inlets on the impeller. This centrifugal pump is highly applicable for urban flood drainage, power stations, water supply systems, farm irrigation, water plants, pumping stations, air conditioning water circulation, industrial water systems, and fire water supply.
| Pump Model | Capacity | Head (m) | Speed (r/min) | Power (kw) | Eff. (%) | NPSHr (m) | Weight (kg) | ||
|---|---|---|---|---|---|---|---|---|---|
| m3/h | L/S | Shaft | Motor | ||||||
| TPOW80-220 | 66.5 | 18.5 | 12.8 | 1480 | 2.9 | 4 | 81 | 1.7 | 181 |
| TPOW80-220A | 71 | 17 | 10.8 | 1480 | 2.6 | 3 | 80 | 1.7 | 181 |
| TPOW80-220 | 134.5 | 37.4 | 51 | 2950 | 23.1 | 37 | 81 | 3.5 | 181 |
| TPOW80-220B | 113 | 31.4 | 36 | 2950 | 14.2 | 22 | 78.2 | 3.5 | 181 |
Timely delivery as per contract. Usually 35 working days for diesel engine pumps and 25 working days for bare shaft pumps.
12-month warranty for the pump body and 3-month warranty for main working parts.
Comprehensive testing before delivery and performance follow-ups every three months during initial use.
Production updates provided via photos and videos. Spare parts can be dispatched within 1-2 weeks if required.
