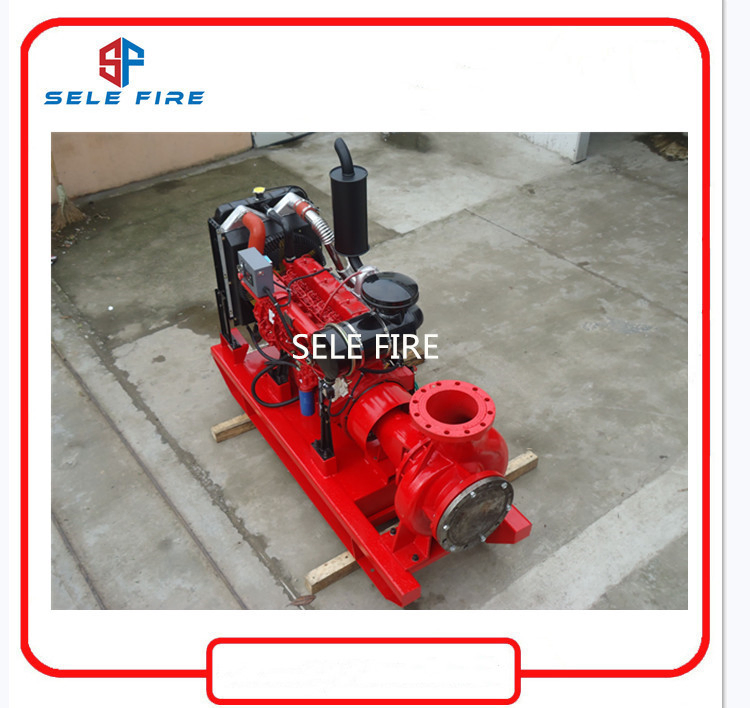

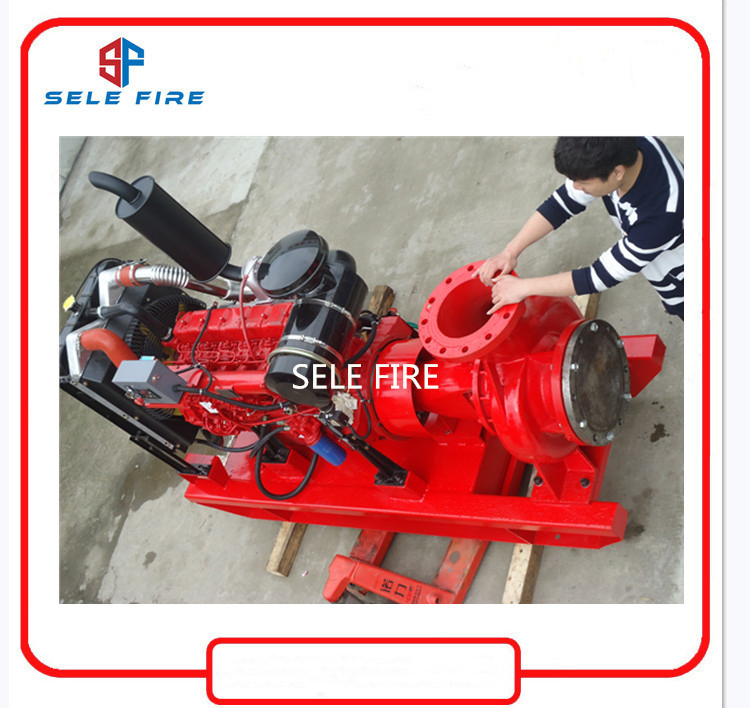

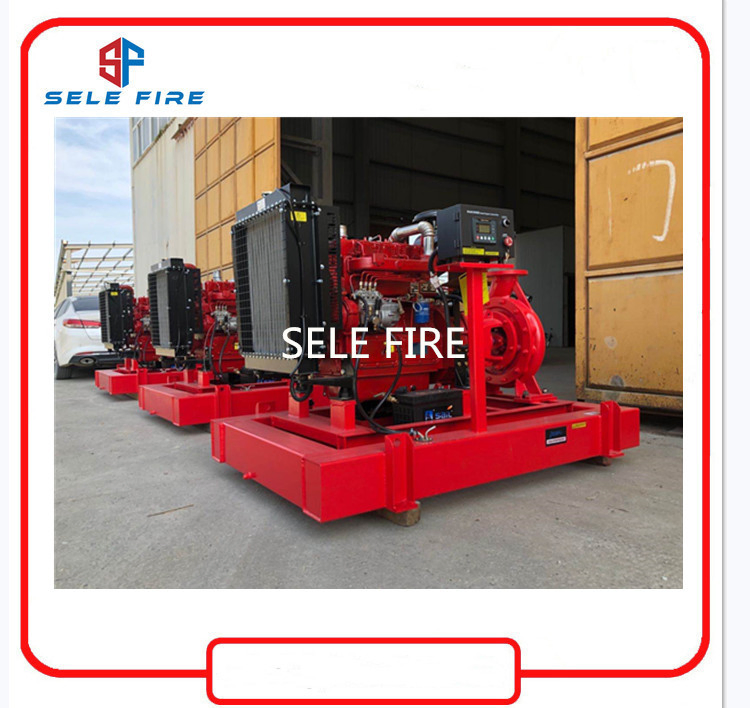

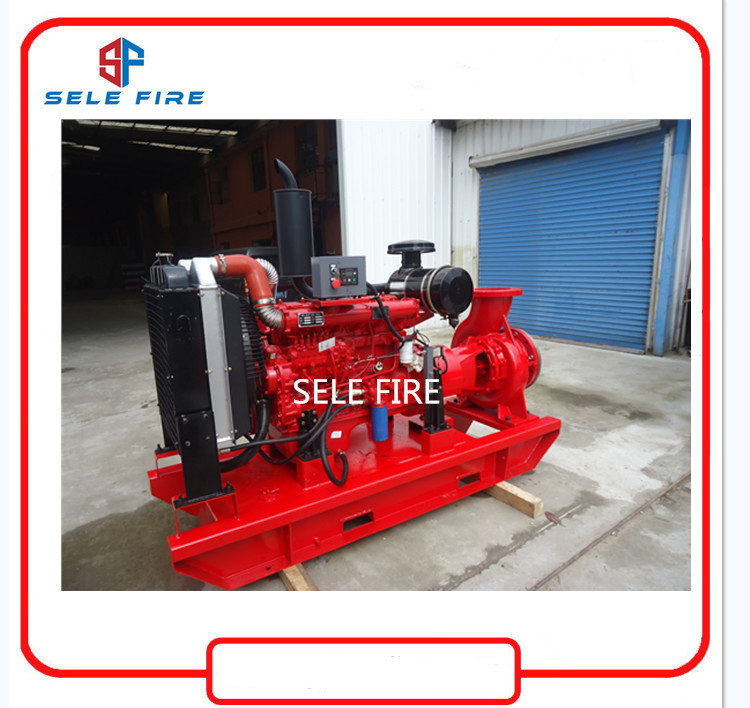

UL/FM Approved Fire Fighting System Diesel Engine Driven Centrifugal End Suction Fire Pump, Nfpa Listed Fire Fighting Equipment Diesel Fire Water Pump UL/FM

Customization: Available
After-sales Service: Engineers Service
Warranty: 12 Months for Pump, 3 Months for Spare Parts

Product Description

🔹 Basic Specifications
Model NO.
DA/EHF
Max. Head
>150m
Max. Capacity
>400 L/min
Driving Type
Diesel Engine & Electric Motor
Impeller Number
Single-Stage Pump
Working Pressure
High Pressure Pump
Position of Shaft
Horizontal Pump
Voltage
220V/380V/400V/415V/440V
Frequency
50Hz/60Hz
Standard
UL, FM, NFPA20, CE, ISO
Casing Material
Cast Iron/Ductile Iron/SS304/SS316
Impeller Material
Cast Iron/SS304/SS316/Bronze
Temperature
-15-120°C
Speed
1450-3500rpm
Origin
China
📋 Product Overview

DA series centrifugal pump is specialized in pumping water, liquid, and chemical substances. With optional rotation speeds of 1450rpm, 1750rpm, 2900rpm, and 3500rpm, this versatile water pump is ideal for water transfer systems, farmland irrigation, fire water supply, urban drainage, and sewage treatment.

Technical Parameters
  • Flow Range: 0-1080m³/h
  • Head Range: 0-150m
  • Power Output: 0.75-315kw
  • Speed Options: 1450rpm, 1750rpm, 2900rpm, 3500rpm
  • Liquid Temperature: -15°C to 120°C
📊 Model Specifications
Model Capacity Head Speed Freq. Power (kW) Eff. (%) Impeller Dia. Diameter (mm)
m³/h L/s Shaft Motor Inlet Outlet
DA40/13 14.5 4.03 6.0 1450 50 0.33 0.55 71 139 65 40
DA40/13 30.0 8.33 23.5 2900 50 2.63 3 73 139 65 40
DA40/13A 13.6 3.77 5.2 1450 50 0.27 0.55 71 130 65 40
DA40/13A 28.0 7.79 20.2 2900 50 2.11 3 73.2 130 65 40
DA40/13B 12.5 3.48 4.3 1450 50 0.21 0.55 69 120 65 40
DA40/13C 11.5 3.19 3.6 1450 50 0.18 0.55 64 110 65 40
DA40/13D 10.4 2.90 3.0 1450 50 0.15 0.55 58 100 65 40

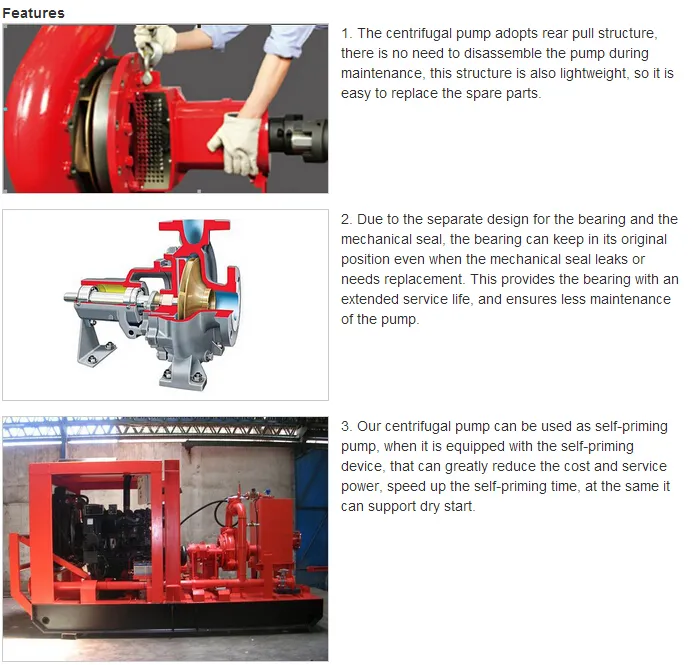

💡 Pump Features & Applications

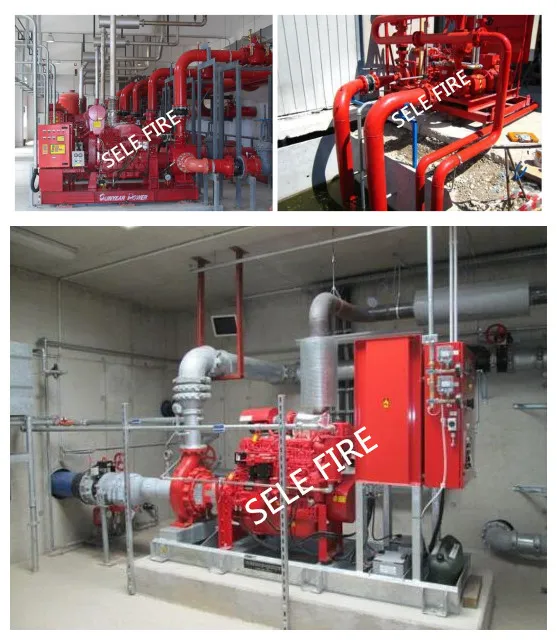

Fire Fighting System Diesel Engine Pump Centrifugal Pump Applications
🛠 Professional Services
⚡ Timely Delivery

35 working days for diesel engine pumps and 25 working days for bare shaft pumps.

🛡 Warranty Support

12-month warranty for the pump body and 3 months for core working components.

📦 Quality Packaging

Durable plywood cases specialized for long-distance ocean transport.

🔍 On-sales Service

Transparent production updates with photos and videos of your specific order.

🏢 Production Facility

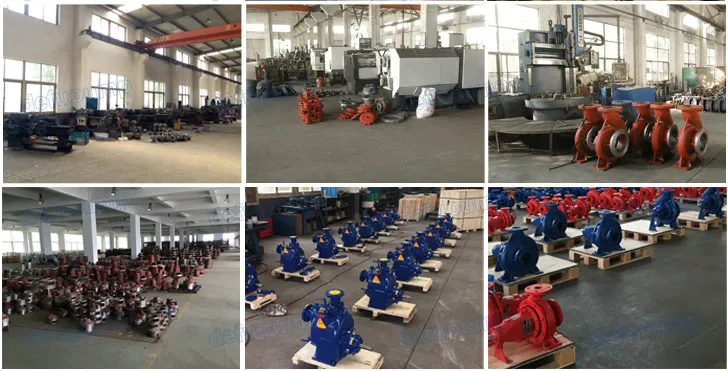

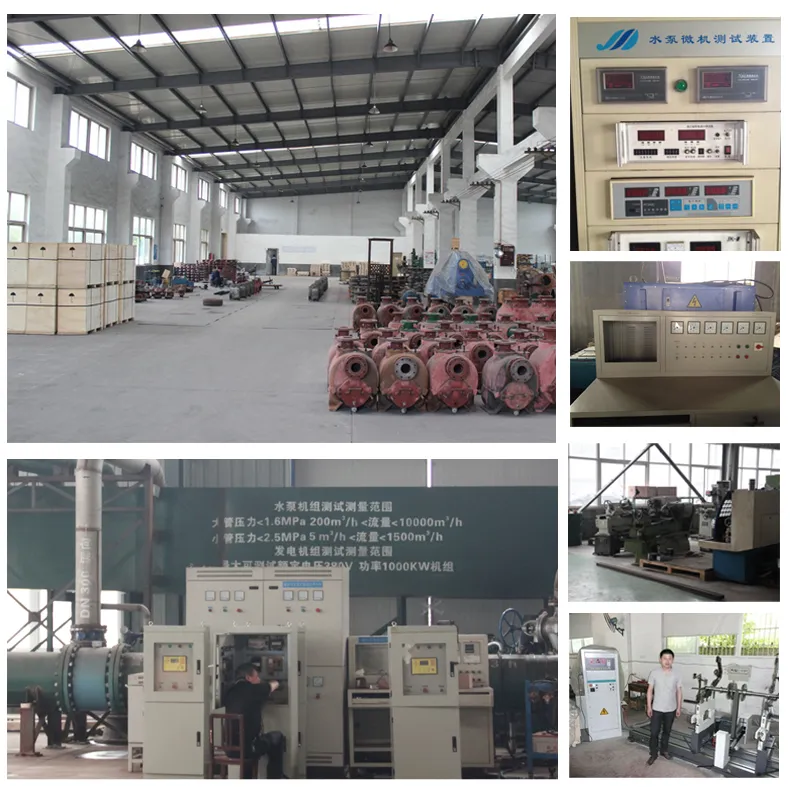

Pump Factory View Manufacturing Workshop

Welcome to visit our factory! All our striving is for your satisfaction.

❓ FAQ
Q1: What certifications do these fire pumps have?
A: Our fire fighting systems are compliant with UL, FM, NFPA20, CE, and ISO standards to ensure global safety compliance.
Q2: Can the pump handle high-temperature liquids?
A: Yes, the pump is designed to operate within a temperature range of -15°C to 120°C.
Q3: What are the primary applications for the DA series?
A: They are widely used in building fire fighting, farmland irrigation, urban drainage, and cooling water circulation systems.
Q4: What materials are used for the pump construction?
A: The casing and impeller can be made from Cast Iron, Ductile Iron, Stainless Steel (SS304/SS316), or Bronze depending on your requirements.
Q5: What is the typical lead time for an order?
A: Diesel engine sets usually take 35 working days, while bare shaft pumps can be delivered in approximately 25 working days.
Q6: How do you ensure product quality before shipping?
A: Every pump undergoes rigorous testing before delivery, and we provide production photos/videos during the manufacturing process.
