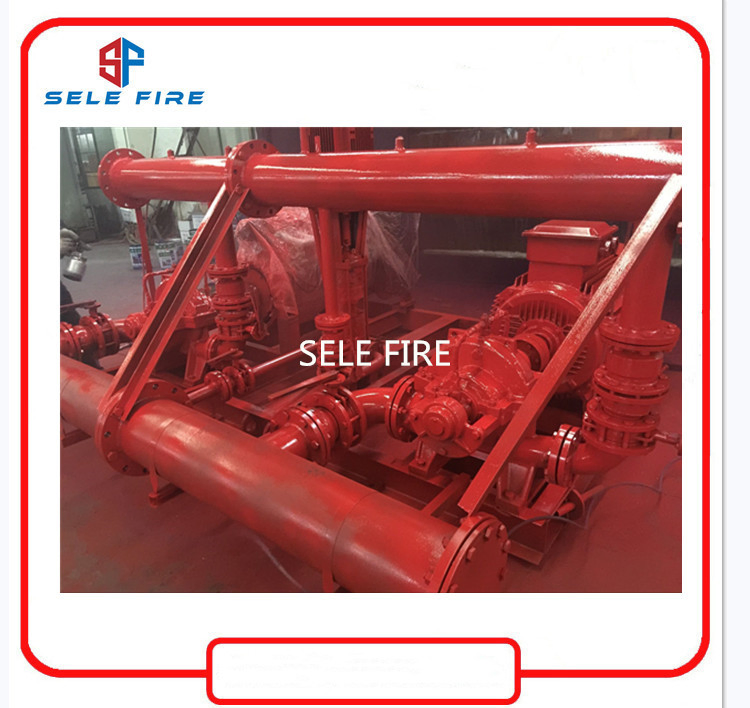

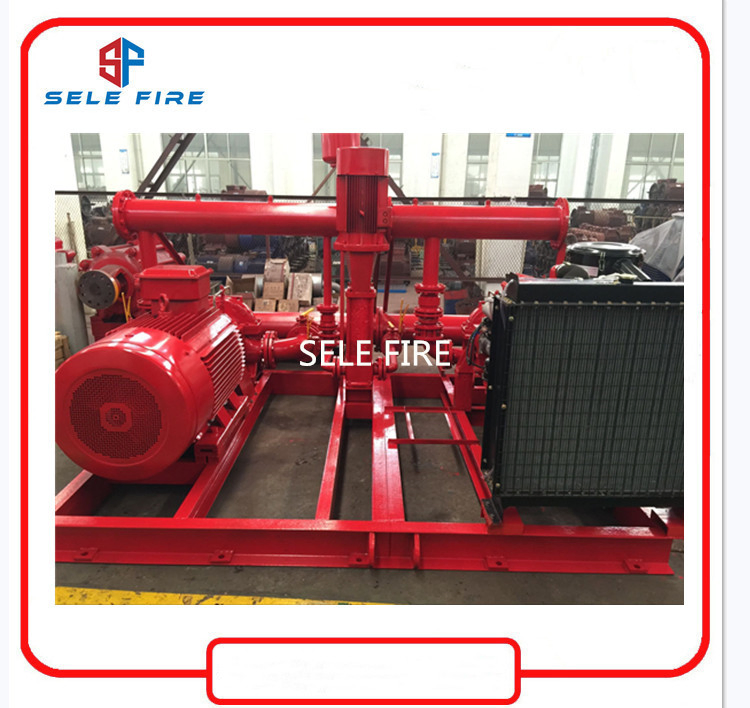

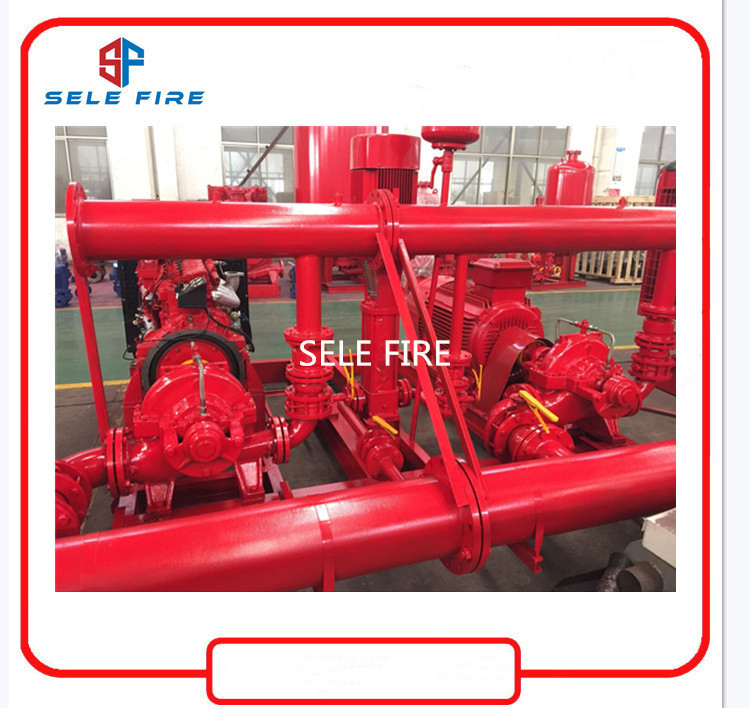

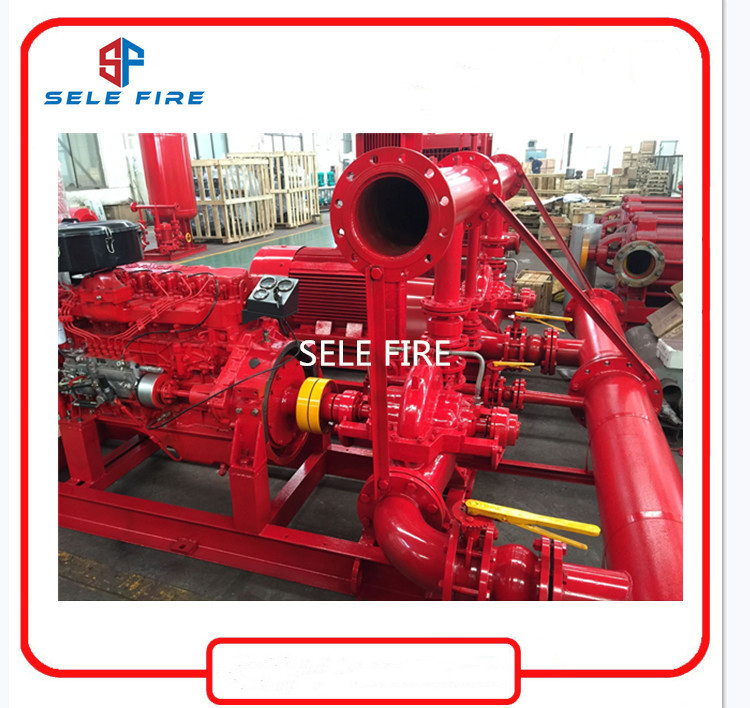

EDJ series is a packaged fire pump set, generally an automatic fire water supply system. It consists of a main pump (driven by an electrical motor), a stand-by pump (driven by a diesel engine), and a jockey pump. This model comes equipped with a separate controller, or one that is attached to the skid. The package also contains discharge valves, a common header, and accessories.
Generally, the pipeline network's pressure is maintained between low pressure P1 and high pressure P2. When pressure drops below P1, the jockey pump starts automatically until pressure reaches P2. In the event of high water consumption or fire, if pressure drops to P3, the electric pump starts. If the main power fails or the electric pump fails, pressure drops to P4, triggering the diesel pump set automatically. All main pumps are stopped manually after the emergency is resolved.
01. Delivery
Timely delivery as per contract. Usually 35 working days for diesel engine pumps and 25 working days for bare shaft pumps.
02. Warranty
12 months for the pump body and 3 months for the main working parts.
03. Package

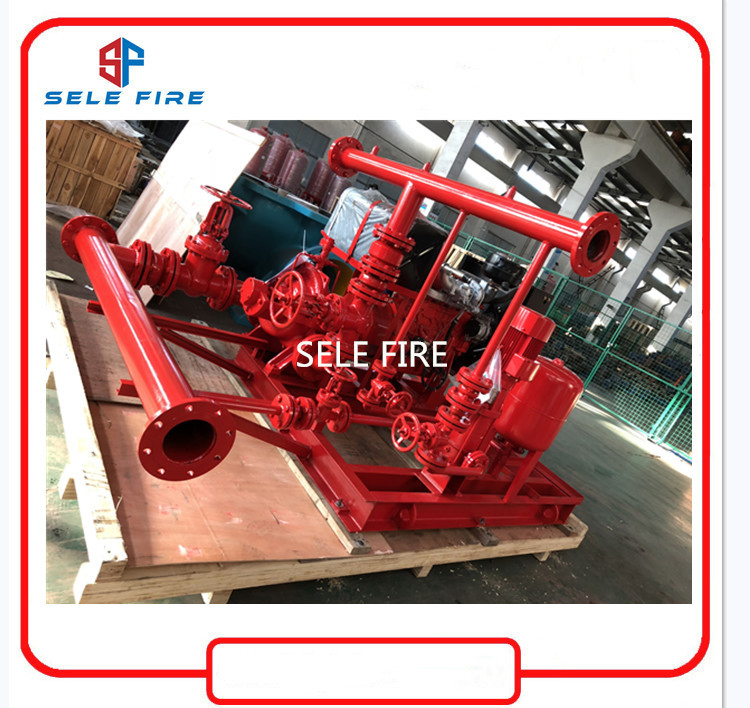

We use durable plywood cases suitable for ocean transport to ensure safety.
04. Quality Control

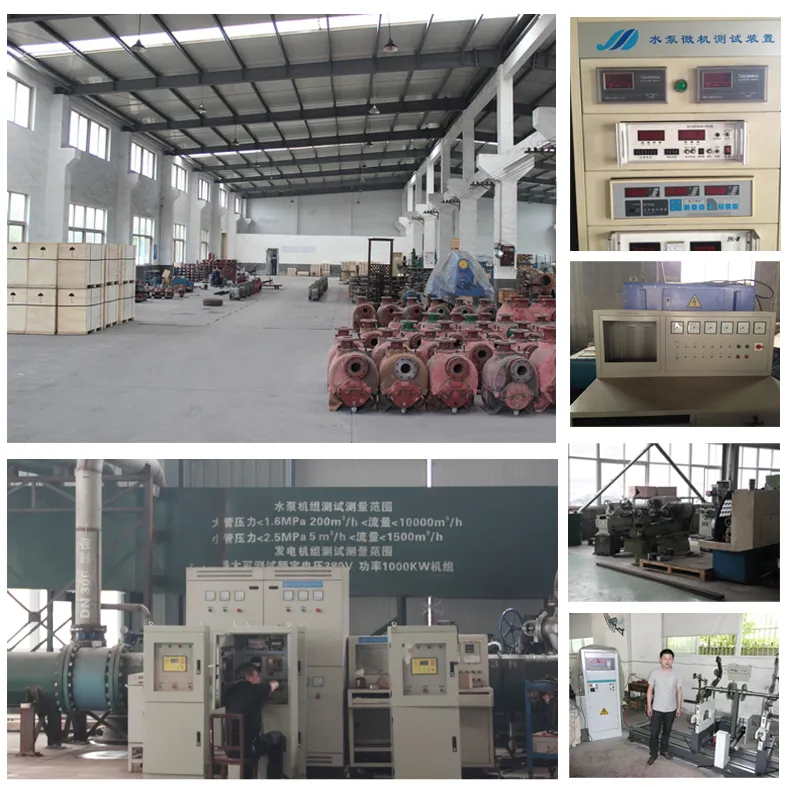

Each pump is tested before delivery. We follow up on working conditions every three months after implementation.
?
Frequently Asked Questions
What components are included in the EDJ fire pump set?
The EDJ set includes a main electric motor pump, a standby diesel engine pump, a jockey pump, a controller, discharge valves, and a common header.
How does the system handle a power failure?
If the main power is off or the electric pump fails, the system detects a pressure drop to the ultimate level (P4) and automatically starts the diesel engine pump.
What standards do these fire pumps comply with?
Our fire pumps are designed to meet international standards including UL, FM, NFPA20, CE, and ISO.
What is the typical lead time for an order?
Generally, diesel engine pumps require about 35 working days, while bare shaft pumps take approximately 25 working days.
How is the equipment protected during shipping?
All pumps are packed in durable plywood cases specifically designed for ocean transport to prevent damage.
Do you provide after-sales support?
Yes, we provide regular follow-ups every three months and can dispatch spare parts within 1 to 2 weeks if required.
