UL/FM Approved China Manufacturer Edj Fire Fighting System Electric Jockey Diesel Fire Pump, UL Listed Fire Pump Package, UL Listed, Nfpa Listed Fire Pump

Customization:	Available
After-sales Service:	Engineers Service
Warranty:	12 Months for Pump, 3 Months for Spare Parts

Send Inquiry

Product Description

📊

Basic Technical Specifications

Model NO.

EHF/ESF

Max. Head

110m-150m

Max. Capacity

>400 L/min

Driving Type

Diesel Engine & Electric Motor

Impeller Number

Single-Stage Pump

Working Pressure

High Pressure Pump

Influent Type

Single Suction Pump

Pump Shaft

Horizontal Pump

Casing Combined

Horizontal End Suction

Usage

Fire Fighting Systems

Voltage

220V/380V/400V/415V/440V

Frequency

50Hz/60Hz

Standard

UL, FM, NFPA20, CE, ISO

Casing Material

Ductile Iron

Impeller Material

Bronze

Speed

1450-3500rpm

🛡️

Product Overview

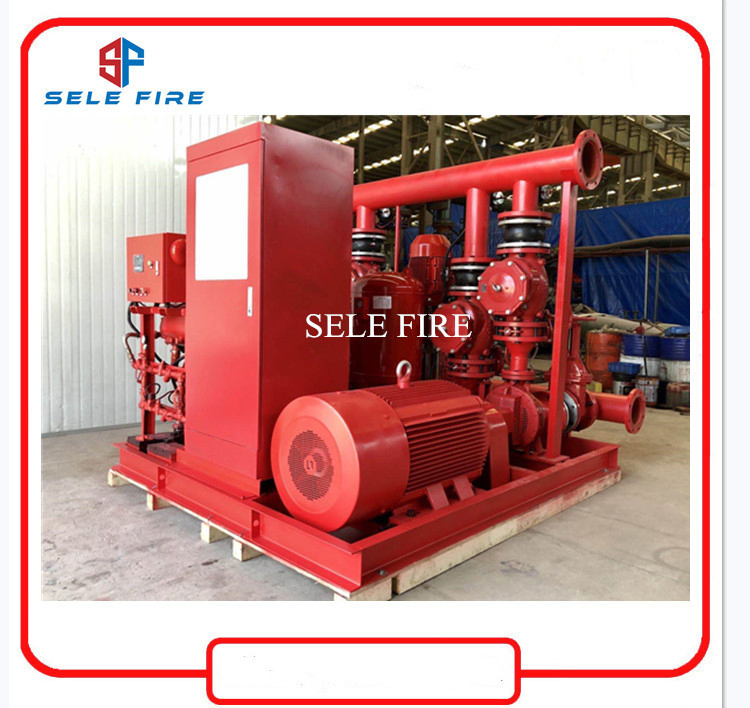

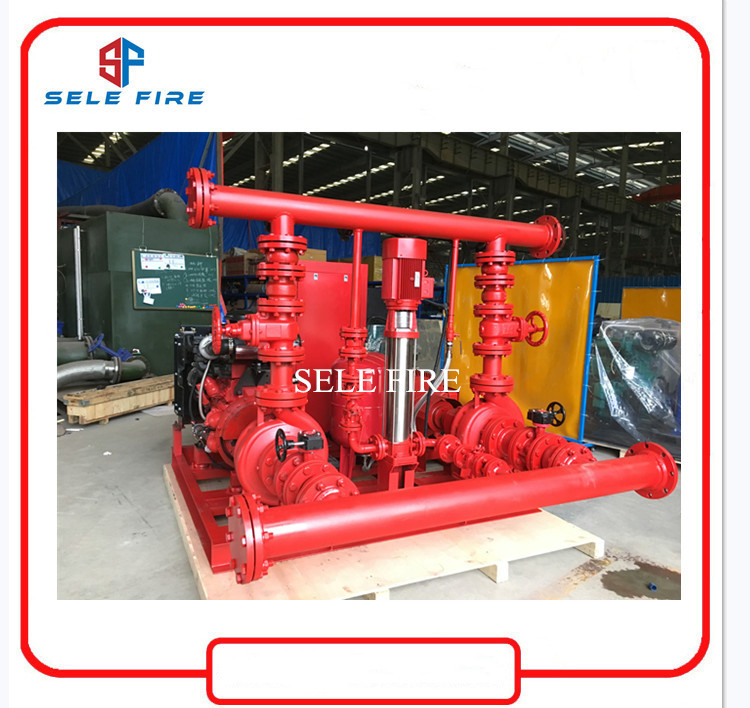

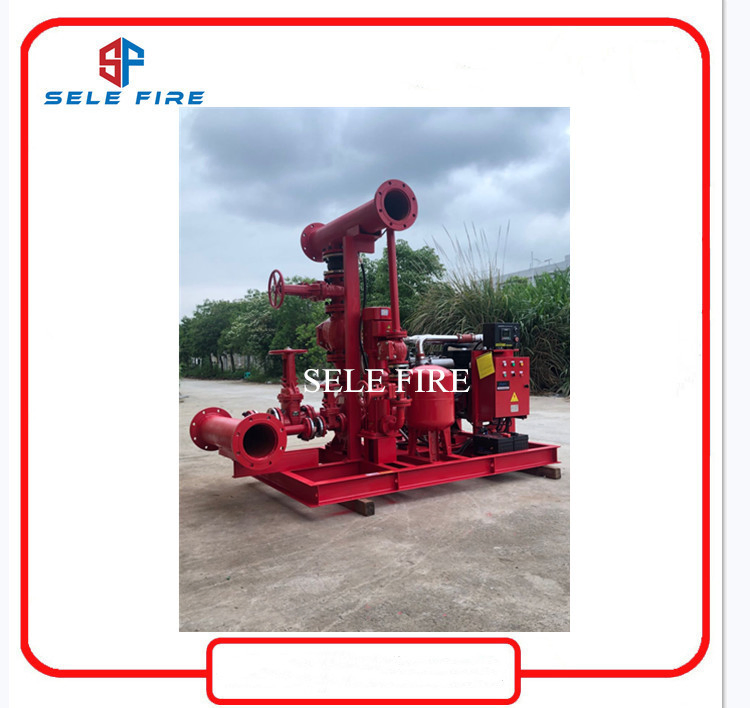

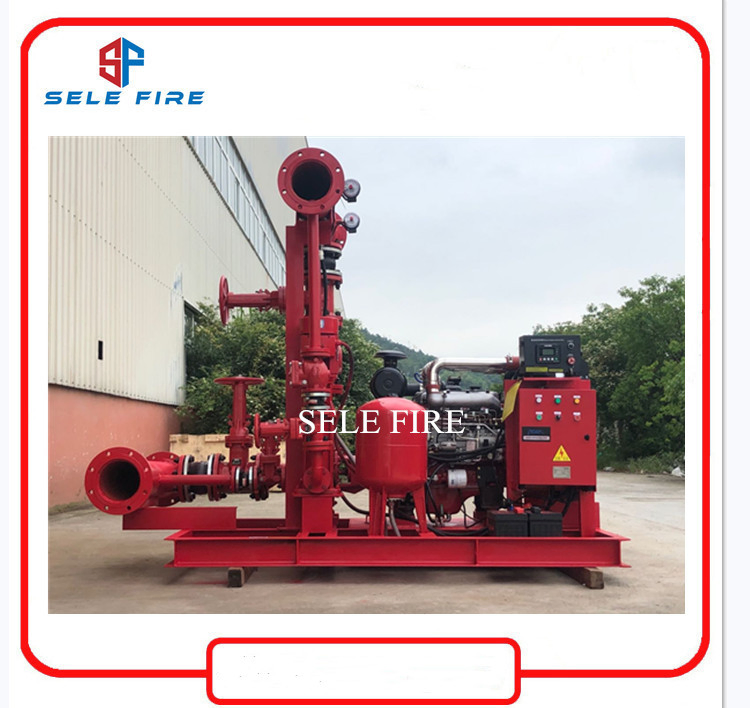

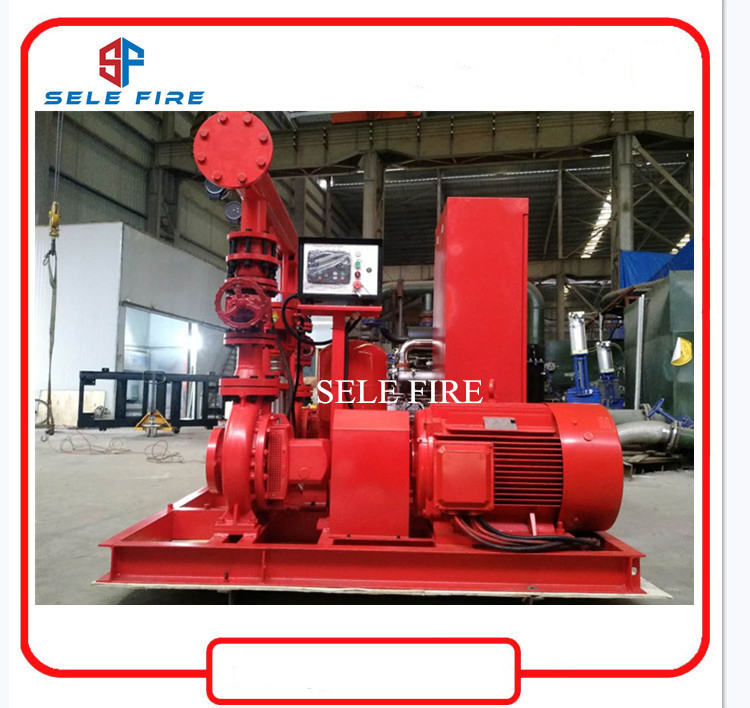

The EDJ series is a professionally packaged fire pump set, designed as an automatic fire water supply system. It integratedly consists of three essential components:

Main Pump: Driven by a high-efficiency electrical motor.
Stand-by Pump: Driven by a reliable diesel engine for emergency backup.
Jockey Pump: To maintain system pressure during non-emergency states.

This model comes equipped with a sophisticated separate controller (or attached to the skid) and includes discharge valves, common header, and all necessary accessories for immediate integration.

⚙️

Working Principle

The pipeline network's pressure is maintained between low pressure P1 and high pressure P2. When pressure drops below P1, the jockey pump starts automatically until it reaches P2. In case of high water consumption or fire emergency where pressure drops to minimum level P3, the electric pump activates. If power fails, the diesel pump triggers at ultimate pressure P4 to ensure uninterrupted fire protection.

📋

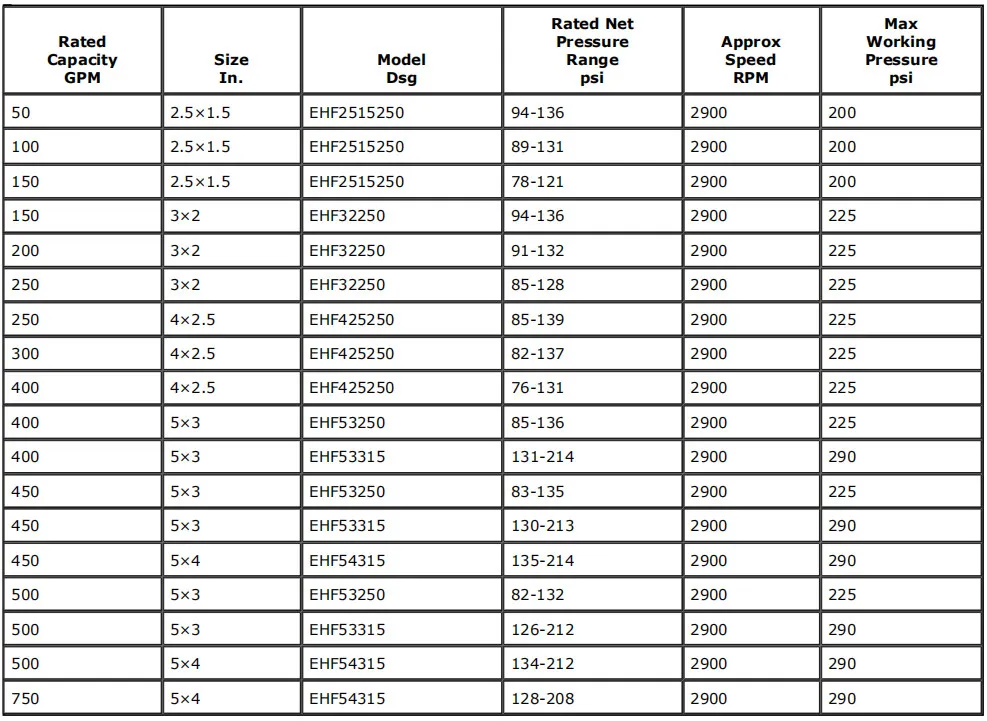

Technical Specifications Table

🏢

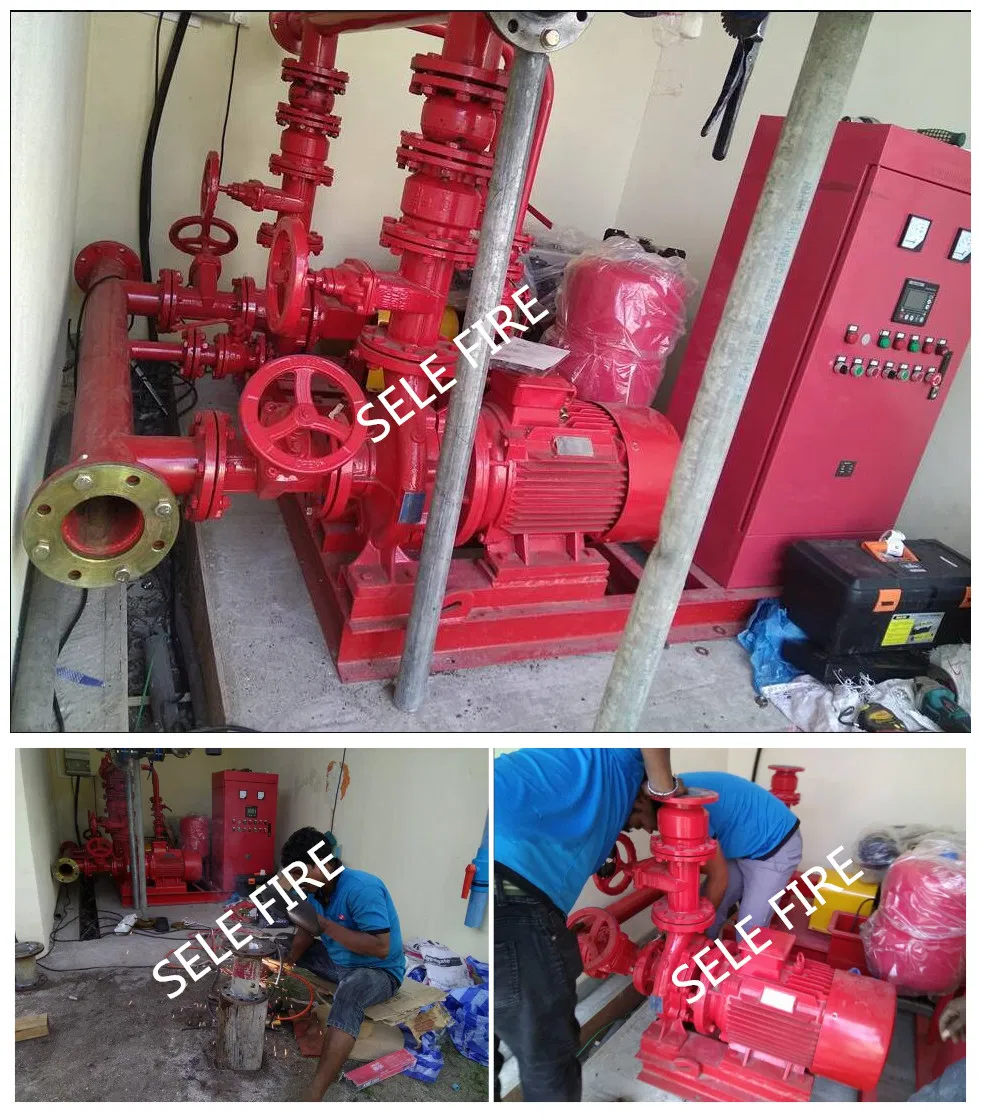

Global Applications

🤝

Our Services & Quality Commitment

🚚 Fast Delivery

Diesel engine pumps: 35 working days. Bare shaft pumps: 25 working days. Timely delivery as per contract.

📜 Reliable Warranty

12-month warranty for the pump body and 3-month coverage for main working components.

📦 Export Packaging

High-durability plywood cases optimized for international ocean transport protection.

🔍 Strict Quality Control

Comprehensive testing before delivery and follow-up monitoring every three months after installation.

🏭

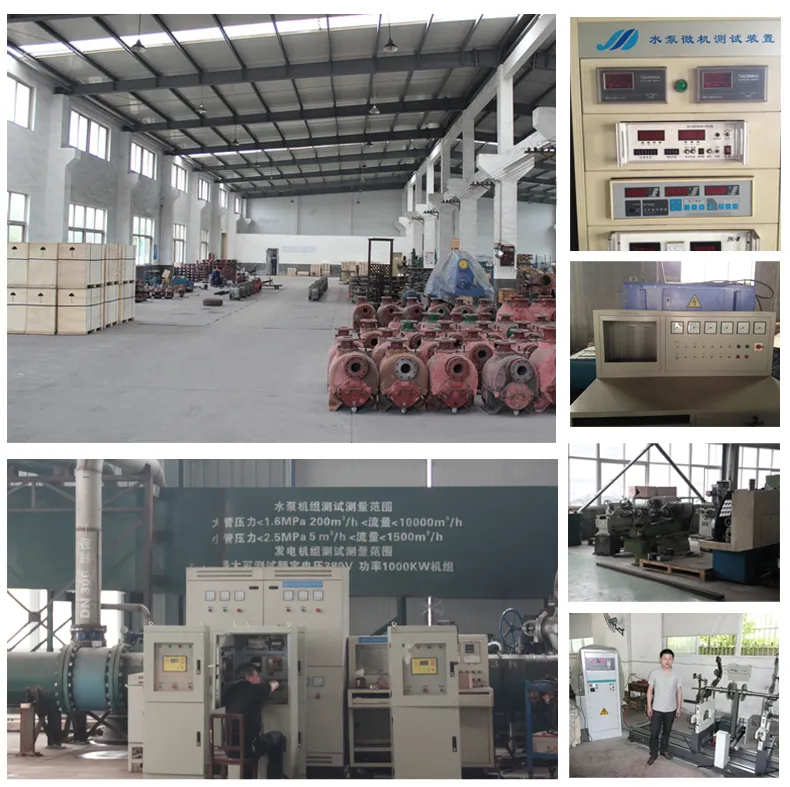

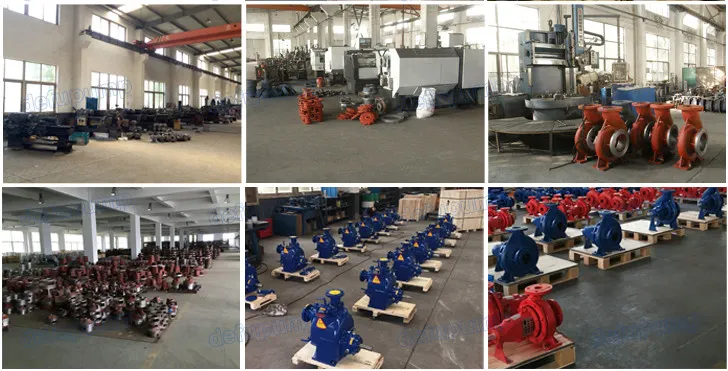

Manufacturing Excellence

Frequently Asked Questions

What components are included in an EDJ fire pump set?

An EDJ set typically includes a main electric motor pump, a standby diesel engine pump, and a jockey pump for pressure maintenance, all mounted on a common base with controllers and valves.

Does this system comply with international fire safety standards?

Yes, our fire pump systems are designed to meet UL, FM, NFPA20, CE, and ISO standards, ensuring maximum reliability for building fire protection.

How does the system handle a power outage?

In the event of a power failure, the system automatically detects the drop in pressure and triggers the diesel engine standby pump to ensure the fire water supply remains active.

What is the typical lead time for a complete diesel fire pump set?

The standard production and delivery time for a diesel engine pump package is approximately 35 to 40 working days.

What materials are used for the pump construction?

The pump casing is made of durable ductile iron, and the impeller is crafted from bronze to prevent corrosion and ensure high-pressure performance.

Is the jockey pump required for the system to work?

The jockey pump is essential for maintaining system pressure and preventing the larger main pumps from starting unnecessarily due to minor leaks in the pipeline.
