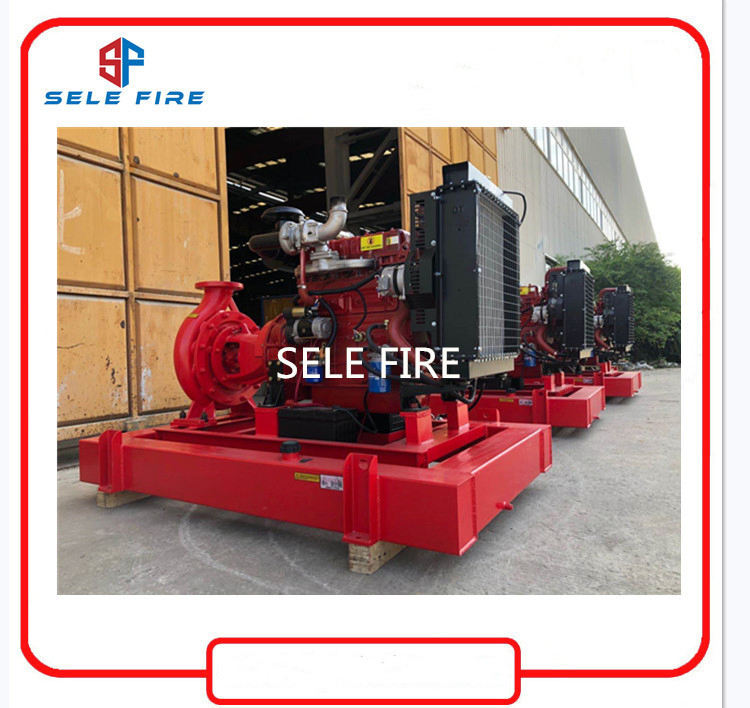

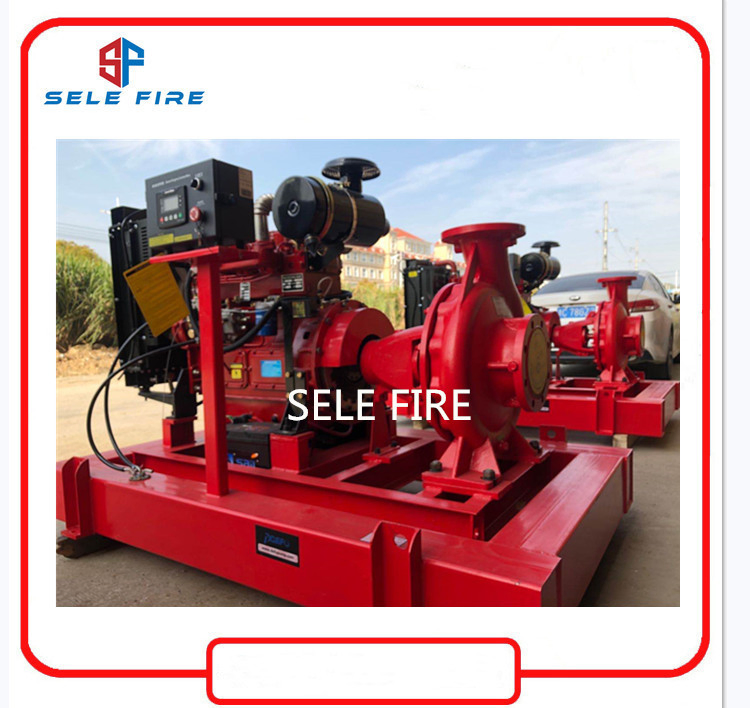

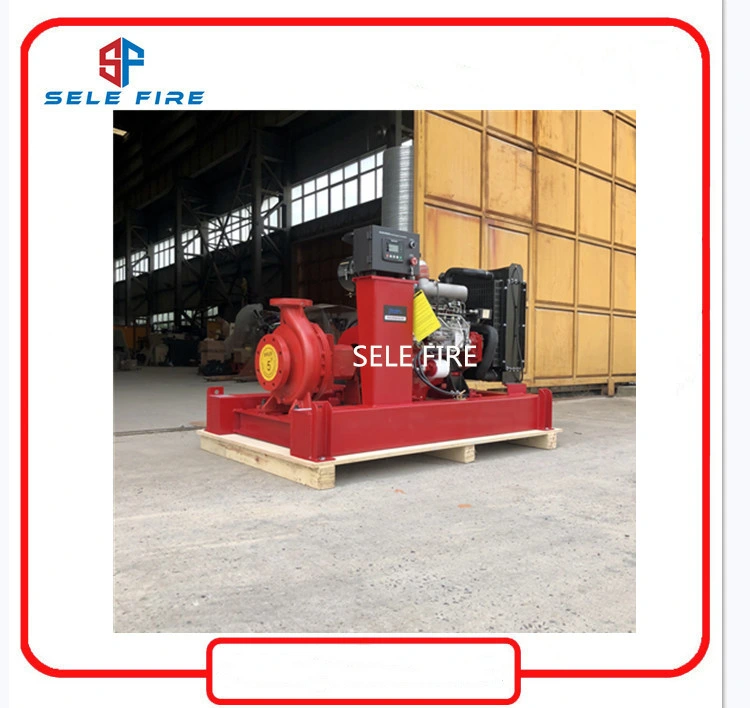

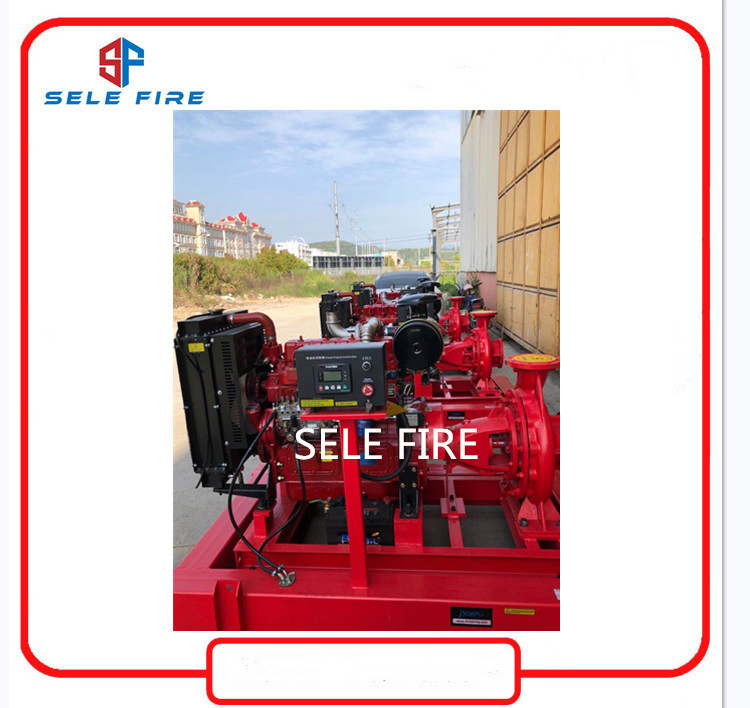

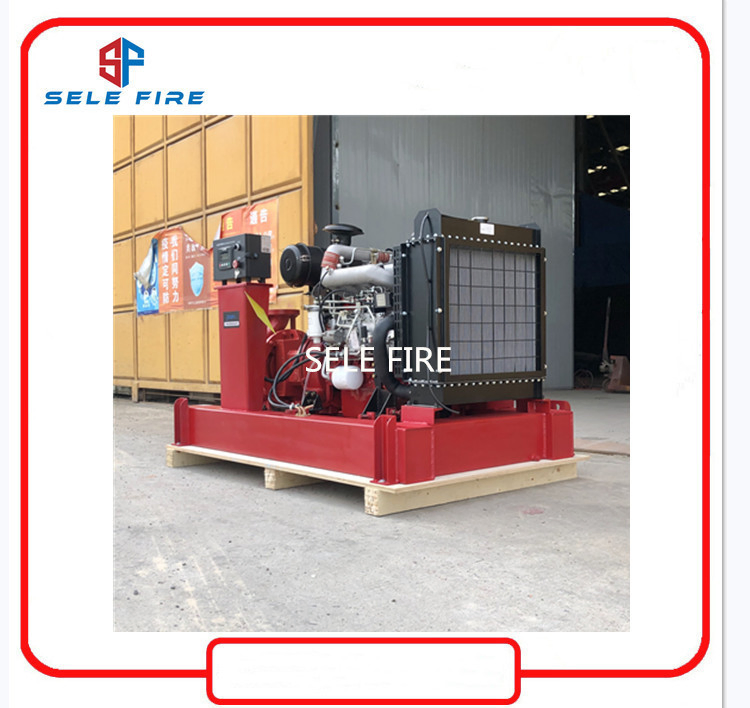

UL Listed Fire Fighting System Diesel Engine Driven Controller Mounted Fire Pump

Customization:	Available
After-sales Service:	Engineers Service
Warranty:	12 Months for Pump, 3 Months for Spare Parts

Send Inquiry

Product Description

Basic Information

Model NO.

DA/EHF

Max. Head

>150m

Max. Capacity

>400 L/min

Driving Type

Diesel Engine & Electric Motor

Impeller Number

Single-Stage Pump

Working Pressure

High Pressure Pump

Influent Type

Single Suction Pump

Position

Horizontal Pump

Casing Combined

Horizontal End Suction

Standard

UL, FM, NFPA20, CE, ISO

Casing Material

Cast Iron/Ductile Iron/SS304/SS316

Voltage

220V/380V/400V/415V/440V

Product Description

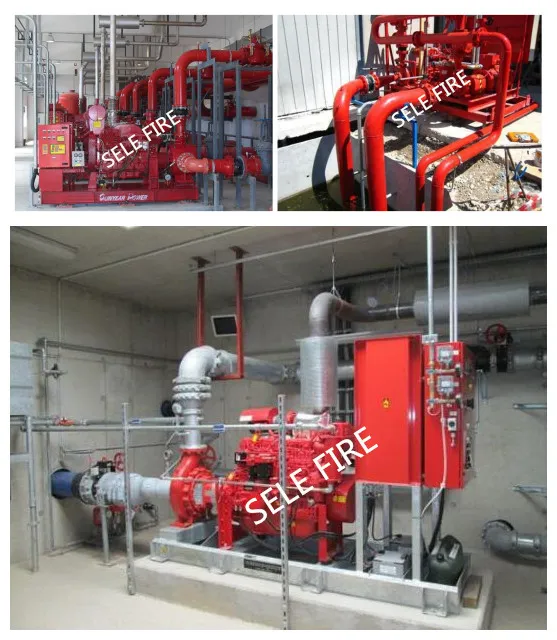

DA series centrifugal pump is specialized in pumping water, liquid, chemical substances, etc. The rotation speed is 1450rpm, 1750rpm, 2900rpm, 3500rpm for optional. This water pump can be widely used in water transfer system, farmland irrigation, fire water supply, urban drainage, cooling water circulation for air conditioner, sewage treatment and other fields.

Technical Parameters

Flow Range: 0-1080m3/h
Head Range: 0-150m
Power Output: 0.75-315kw
Rotary Speed: 1450rpm, 1750rpm, 2900rpm, 3500rpm
Temperature Range: -15°C to 120°C

Models Specifications

Model	Capacity		Head (m)	Speed (r/min)	Freq (Hz)	Power (kW)		Eff (%)	Inlet (mm)	Outlet (mm)
Model	m3/h	L/s	Head (m)	Speed (r/min)	Freq (Hz)	Shaft	Motor	Eff (%)	Inlet (mm)	Outlet (mm)
DA40/13	14.5	4.03	6.0	1450	50	0.33	0.55	71	65	40
	30.0	8.33	23.5	2900	50	2.63	3	73	65	40
	14.5	4.86	8.7	1750	60	0.49	0.75	71	65	40
	36.2	10.05	34.2	3500	60	4.62	7.5	73	65	40
DA40/13A	13.6	3.77	5.2	1450	50	0.27	0.55	71	65	40
DA40/13A	28.0	7.79	20.2	2900	50	2.11	3	73.2	65	40
