| Main Technical Parameter | ||
|---|---|---|

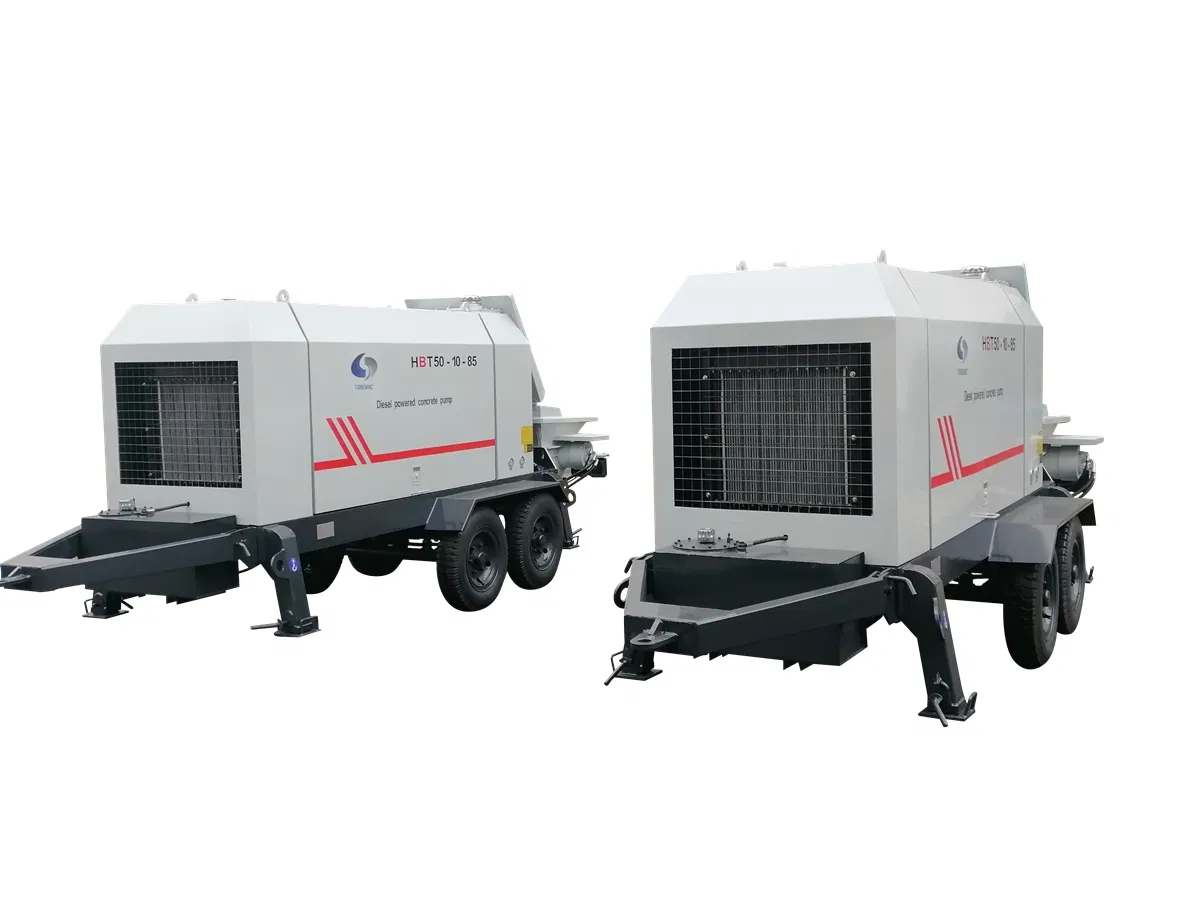

| Model | HBT40R/1010S | |
| Max. Theoretic Delivery Capacity | 40 m³/h | |
| Max. Theoretic Delivery Pressure | 10 MPa | |
| Concrete Cylinder (Bore× Stroke) | 150×1000 mm | |
| Type of Distributing Valve | S Valve | |
| Feeding Hopper Capacity | 400 L | |
| Feeding Height | 1150 mm | |
| Diameter of Discharging Gate | Φ125 mm | |
| Diameter of Delivery Pipe | Φ125 mm | |
| Power | 70 kW | |

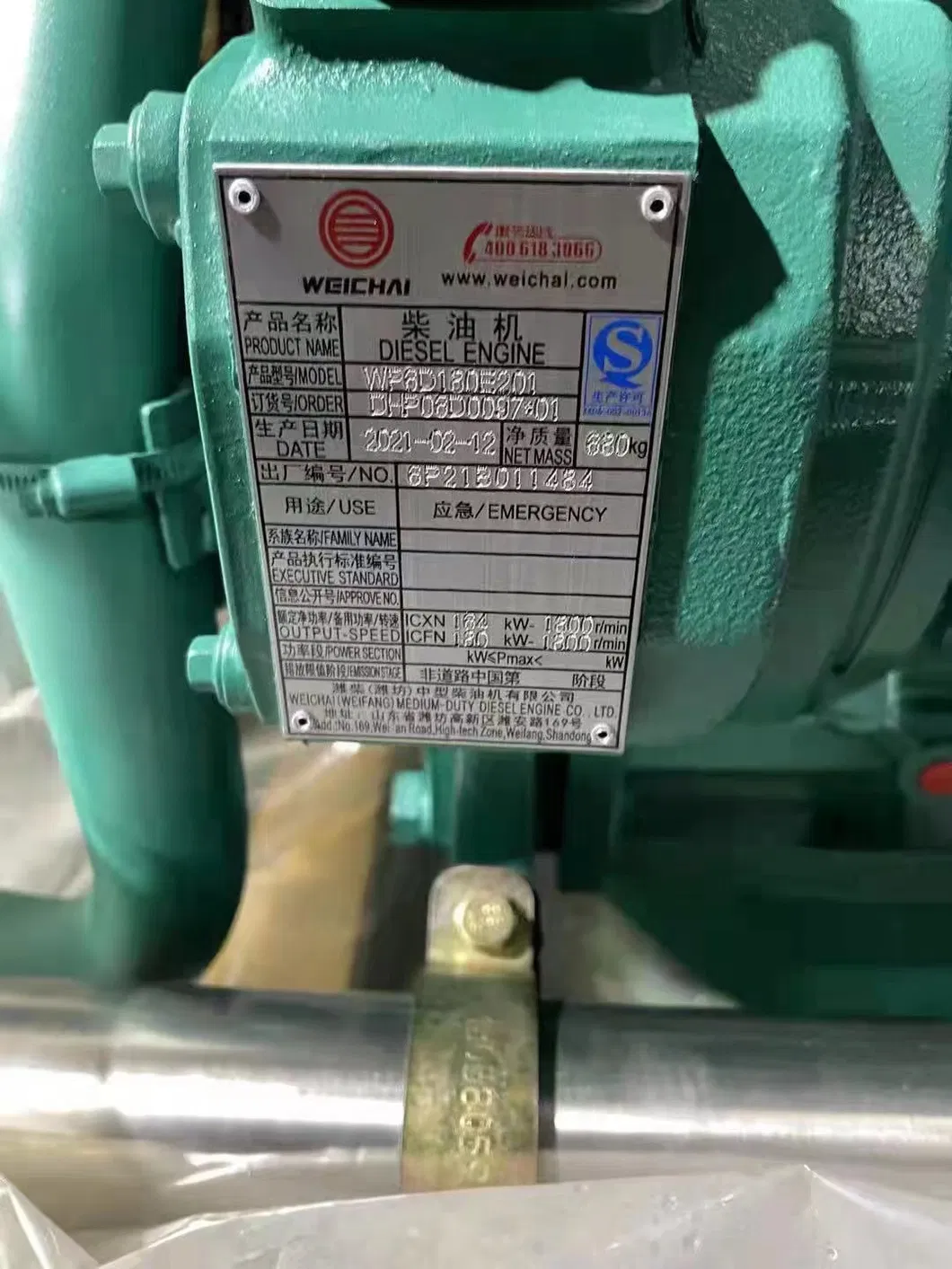

| Power Type | Diesel Engine | |

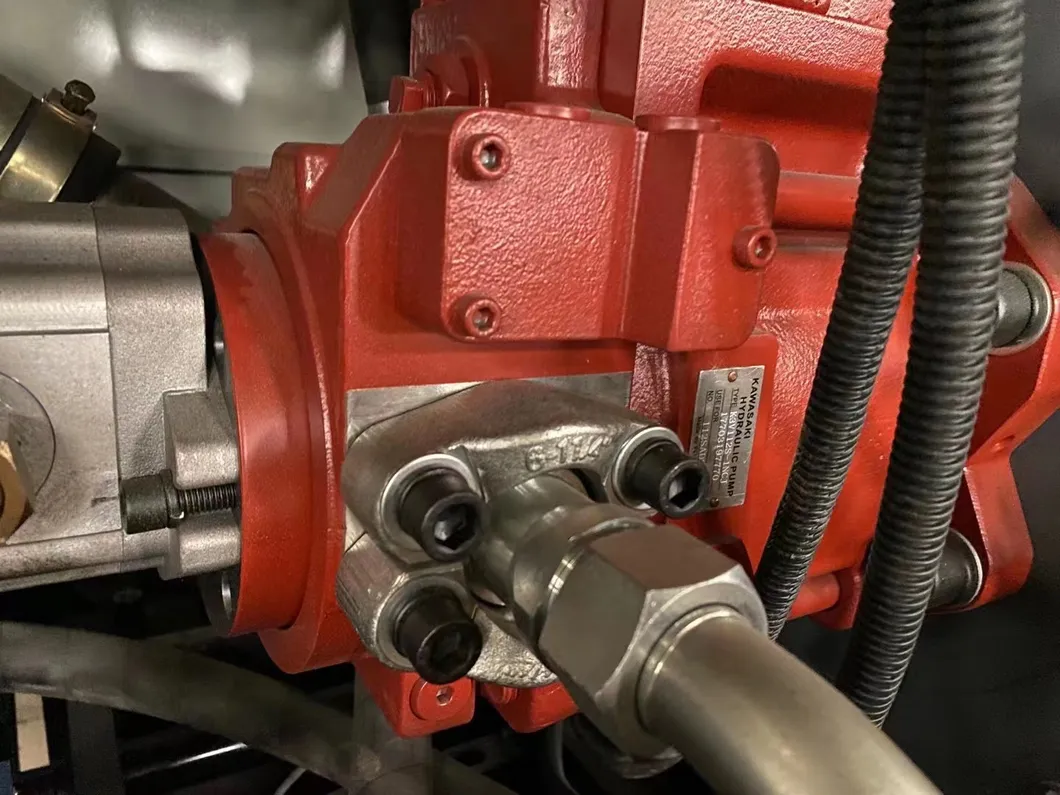

| Brand of Main Oil Pump | Japanese Kawasaki | |
| Main Cylinder (Bore× Stroke) | 110×1000 mm | |
| Capacity of Hydraulic Oil Tank | 500 L | |
| Max. Aggregate Size (Pebble/Gravel) | 40 mm / 30 mm | |
| Rated Delivery Distance | Vertical | 100 m |
| Horizontal | 200 m | |
| Total Weight | 4200 kg | |
| Overall Dimension (L×W×H) | 4500×1900×2000 mm | |
