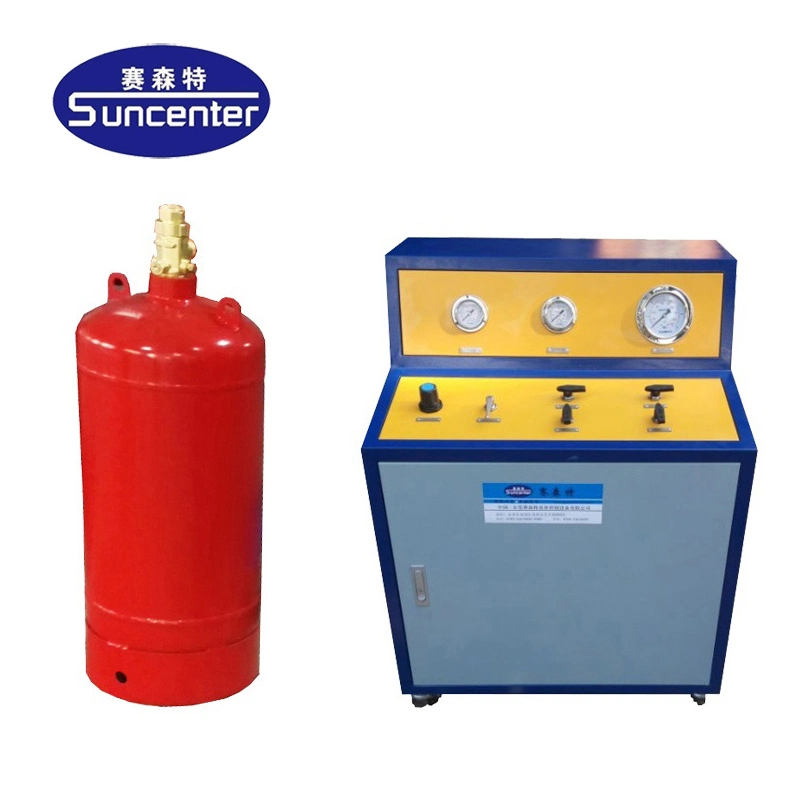

Suncenter Fire Fighting CO2 Extinguisher Cylinder Filling Equipment

1 / 5

Suncenter Fire Fighting CO2 Extinguisher Cylinder Filling Equipment

Customization:	Available
Certification:	CCCF, CE
Application:	Increasing Gas Pressure, Transferring and Filling

Send Inquiry

Product Description

Basic Information

Model NO.

DGS-16A

Fuel

Air Driven

Material

Stainless Steel

Standard

Power

Pneumatic

Max Output Pressure

128bar

Boost Ratio

16:1

Trademark

SUNCENTER

Production Capacity

100 Sets/Month

HS Code

8413501090

Product Description

Fire Fighting CO2 Extinguisher Filling Equipment

Solution A: Filling machine + Vacuum pump + Weighing system

Solution A (DGS-CO2-16A) incorporates sensors, electromagnetic valves, a vacuum pump, and an electronic scale based on the manual control model. It operates in an automatic control mode for enhanced precision and efficiency.

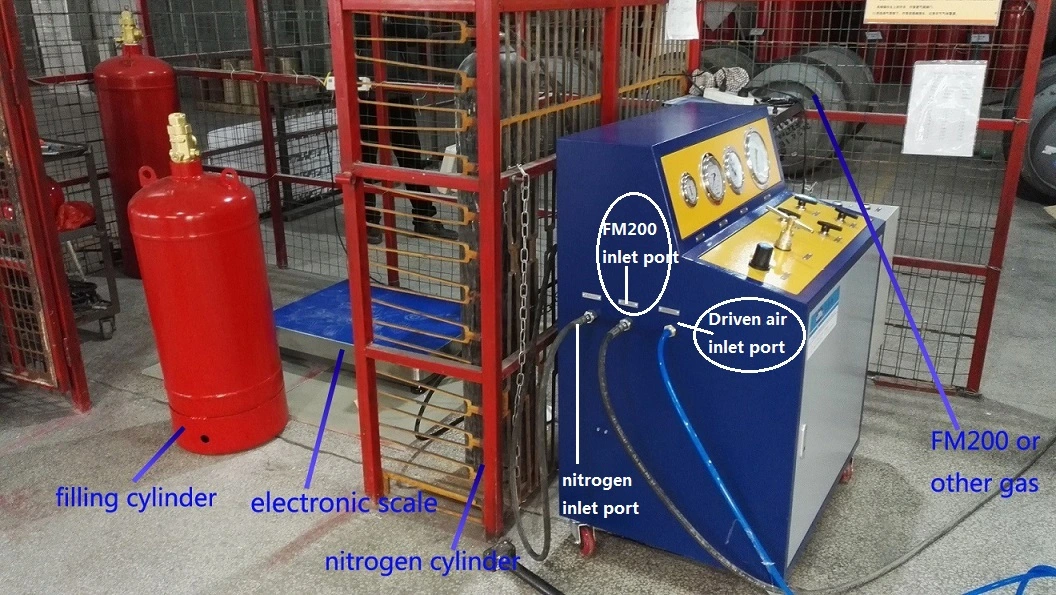

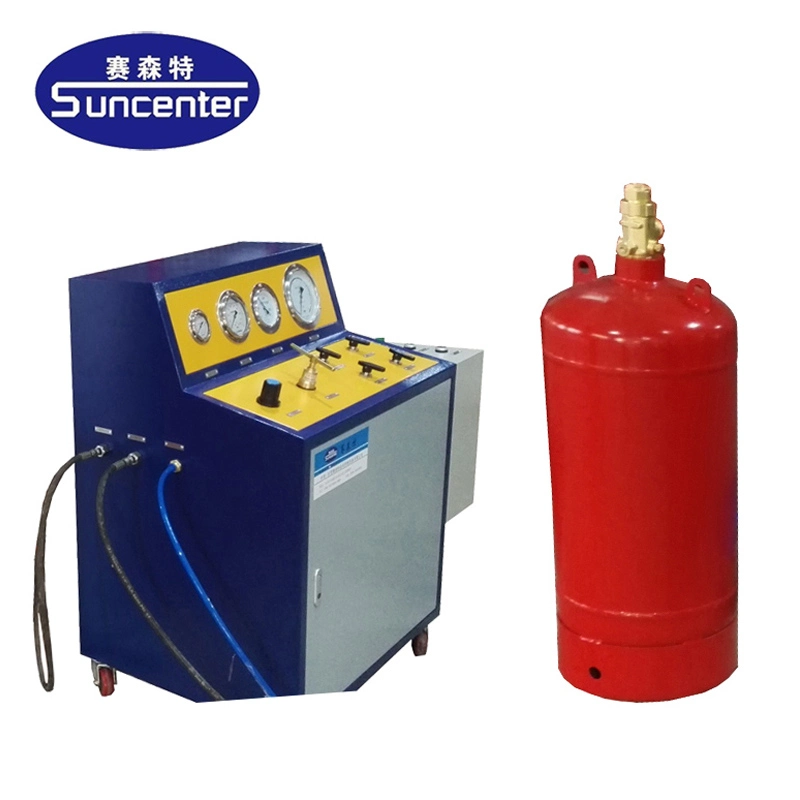

Fire Fighting CO2 Extinguisher Cylinder Filling Equipment

1. Machine Composition

DGS-CO2-16A model filling machine includes: air-driven liquid CO2 gas filling pump, precision pressure gauge, pressure reducing valve, high pressure electromagnetic valve, electric control part, electronic scale, and vacuum pump.

2. Machine Characteristics

This model utilizes compressed air as the power source. Through the air-driven gas booster and filling pump, it drives CO2 filling and conveying. When the transmission weight reaches the pre-set value, the sensor signal triggers the gas electromagnetic valve, automatically stopping the air drive and the pump.

3. Main Parameters

Driving Source

Compressed air (3-8 bar)

Medium

CO2

Max Output Pressure

12.8Mpa

Air Inlet Port

Fast insert 12 per cent

Liquid CO2 Inlet

ZG3/8 internal thread

Gas Outlet Port

ZG3/8 internal thread

4. Operating Procedure

Add lubricating oil to the FR.L Combination (10# or 20# mechanical oil, or antifreeze oil for winter).

Close driving air ball valve, connect to compressed air (max 0.8MPa).

Place empty cylinder, close CO2 and nitrogen switches, start vacuum pump to vacuum.

Once vacuumed, close vacuum switch, open needle valve and air source valve. The pump starts and stops automatically when the set weight is reached.

Close the high-pressure valve and manual ball valve upon completion.

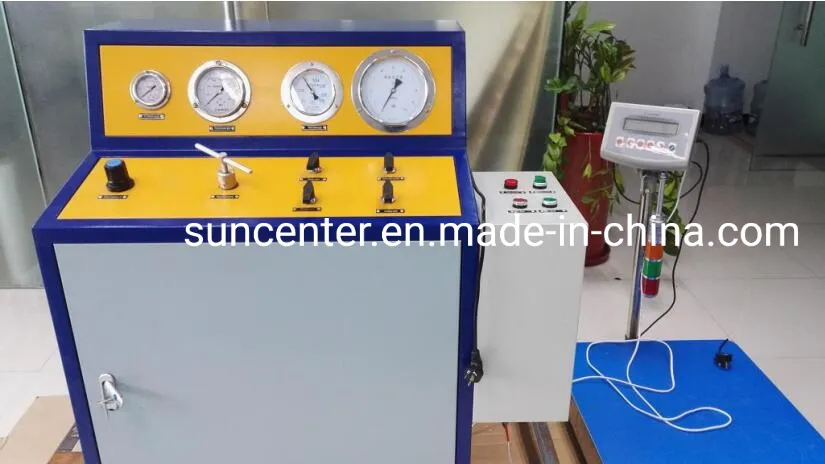

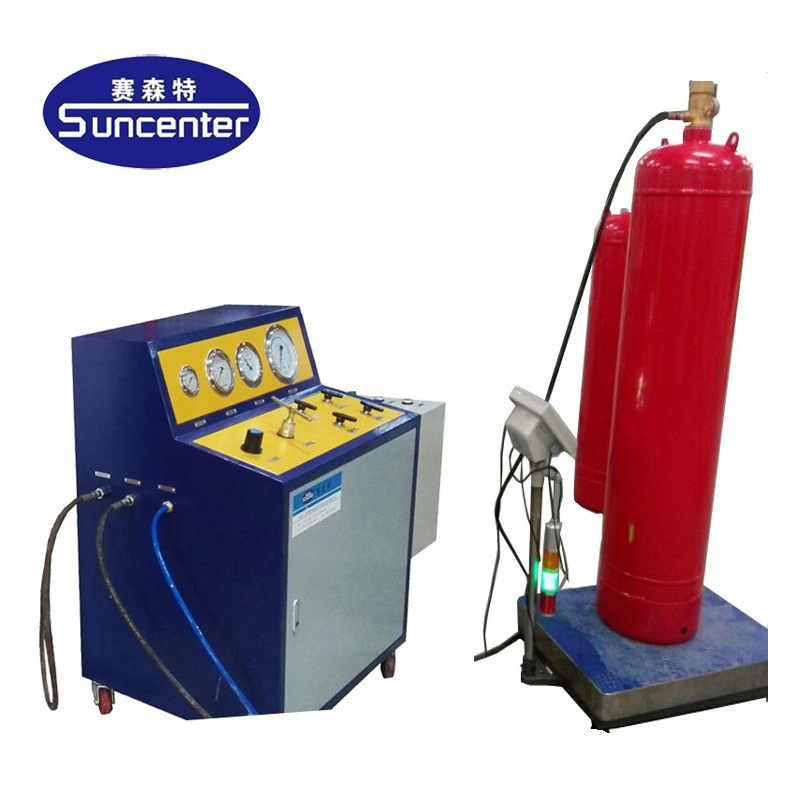

CO2 Extinguisher Cylinder Filling System

Product Application & Service

Applications: Oil Industry, Gas Industry, Chemical Industry, Fire Fighting, Research Institutions, etc.

Our Service: 13 months' free warranty since the purchasing date and free technical support during lifetime.

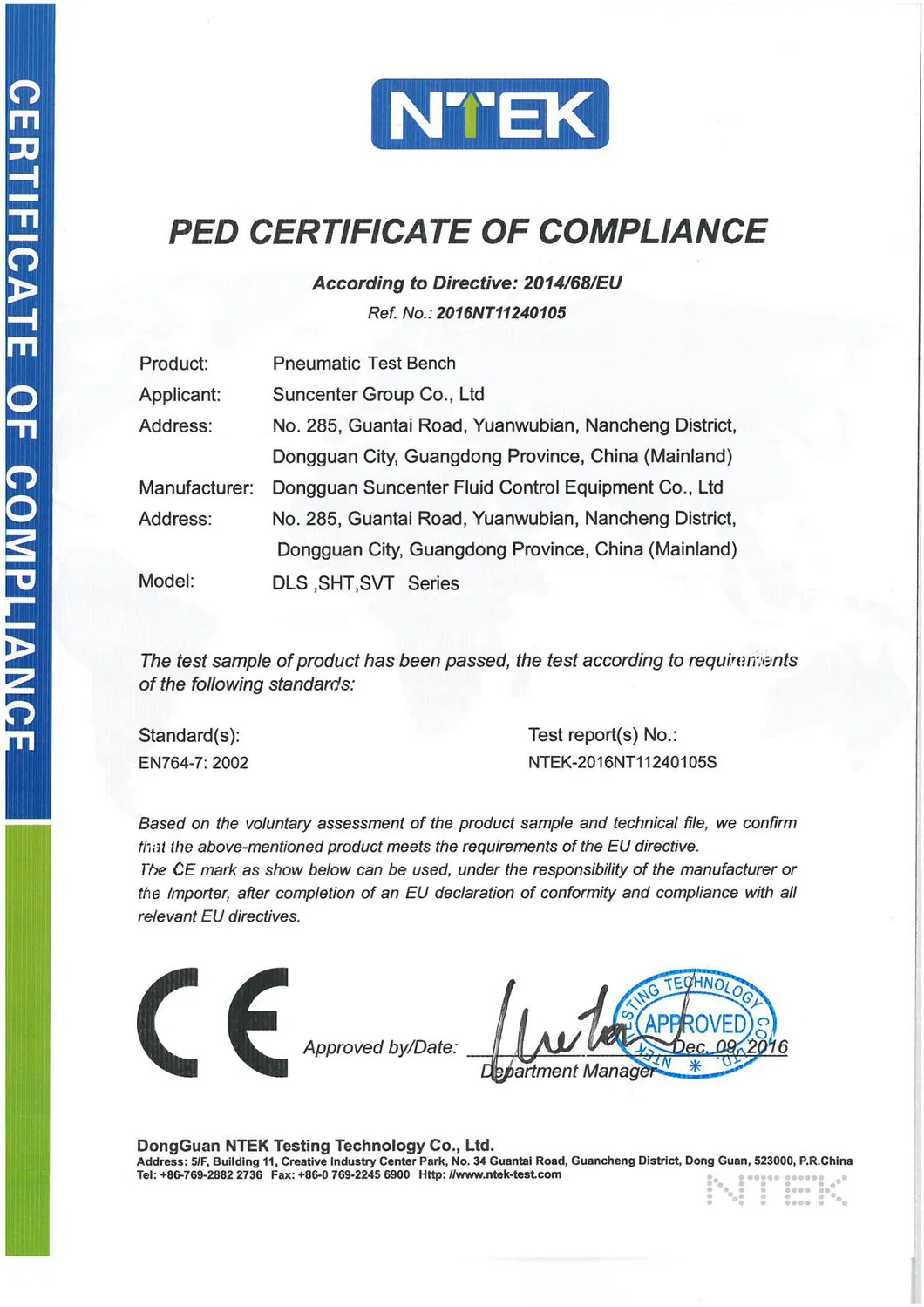

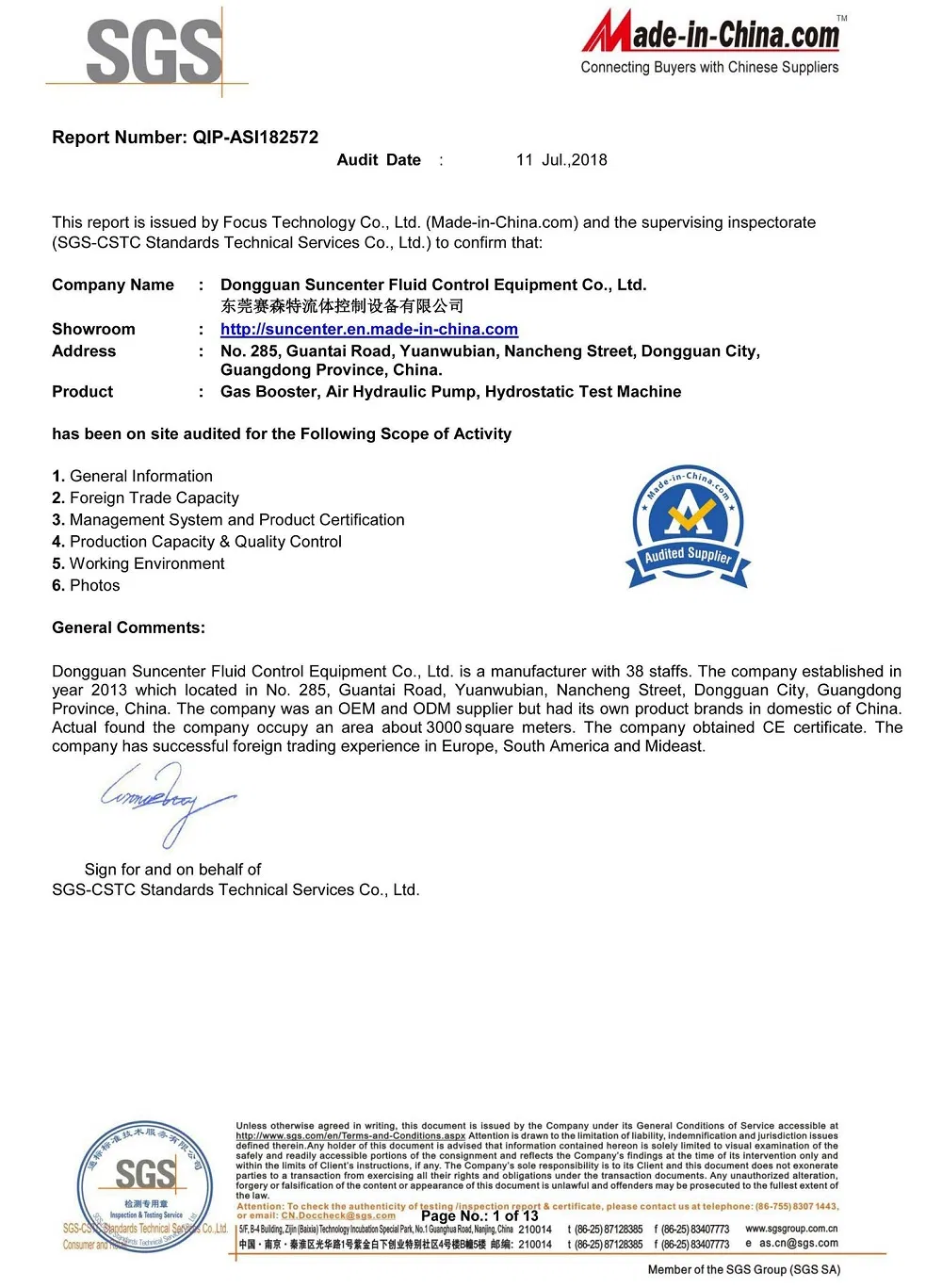

Certifications

Frequently Asked Questions

Q1: What power source is required for the CO2 filling machine? The machine is air-driven and requires a compressed air source from an air compressor with a pressure range of 3-8 bar.

Q2: Does the machine stop automatically when the cylinder is full? Yes, the DGS-CO2-16A model features an automatic control system with an electronic scale. Once the pre-set weight is reached, the sensor stops the pump automatically.

Q3: What is the maximum output pressure this equipment can achieve? The equipment can achieve a maximum output pressure of 12.8Mpa (128 bar) with a boost ratio of 16:1.

Q4: Is a vacuum pump included in the package? Yes, Solution A (DGS-CO2-16A) includes a dedicated vacuum pump to evacuate the cylinders before the filling process begins.

Q5: What kind of maintenance is required for the pump? Regular maintenance includes adding lubricating oil (10# or 20# mechanical oil) to the FR.L combination to ensure smooth operation of the pneumatic components.

Q6: What is the warranty period for this equipment? We provide a 13-month free warranty from the date of purchase, along with lifelong technical support.
