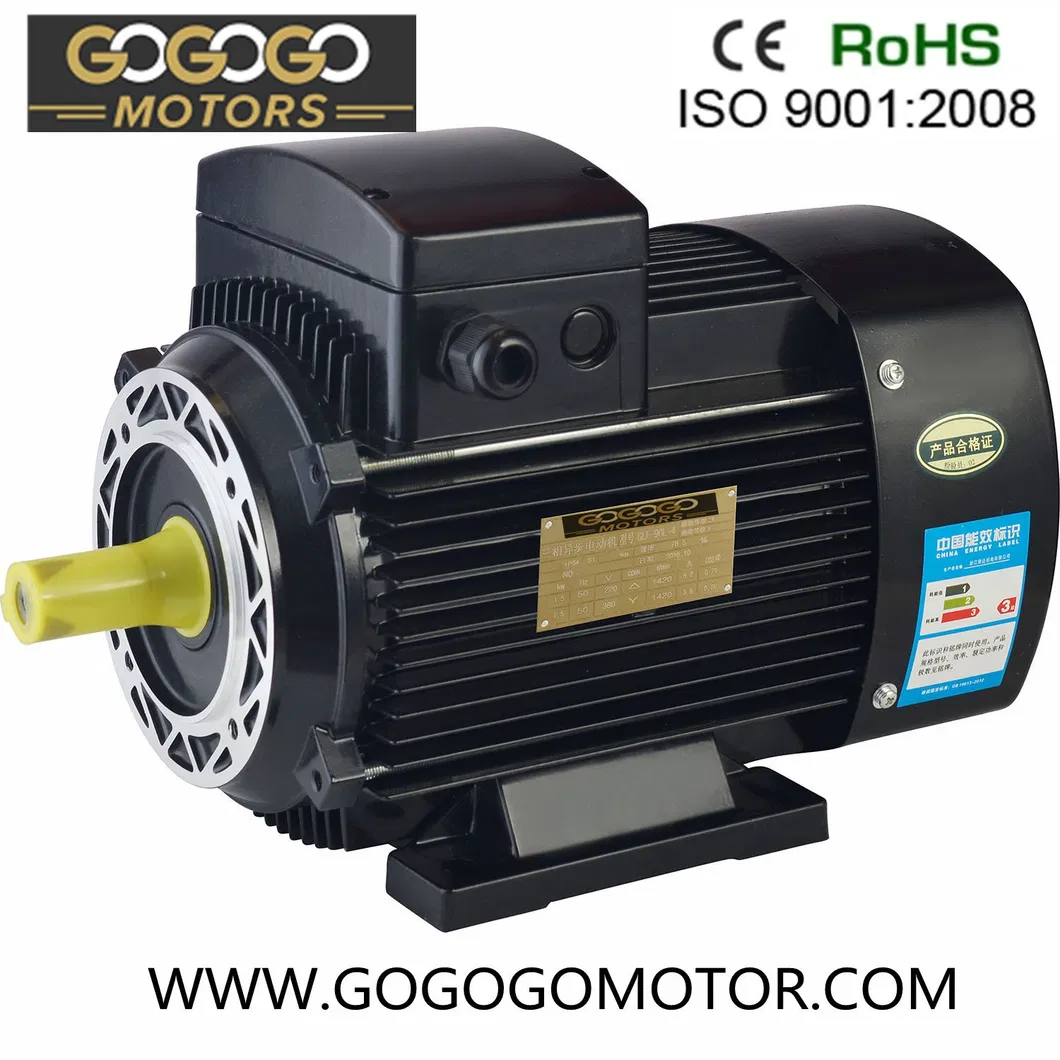

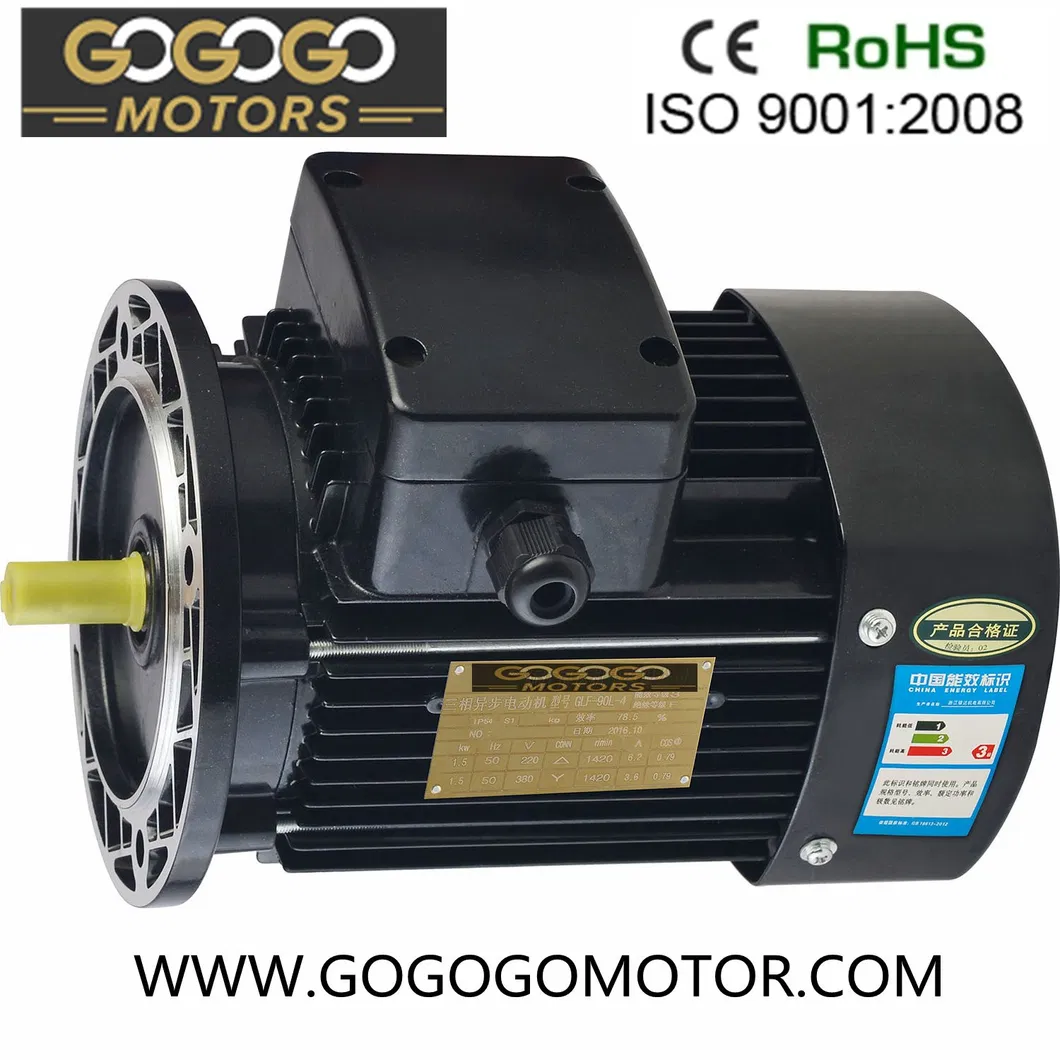

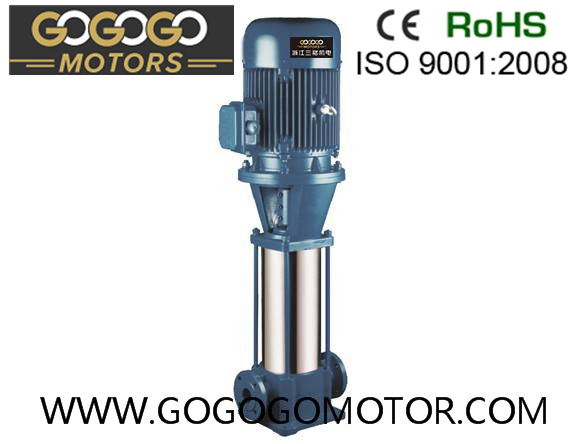

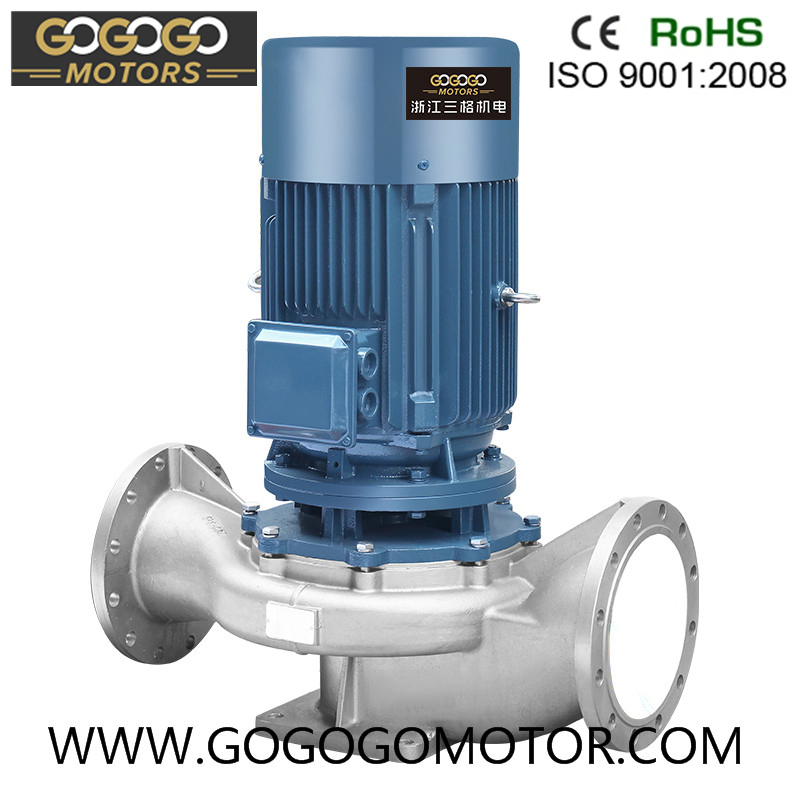

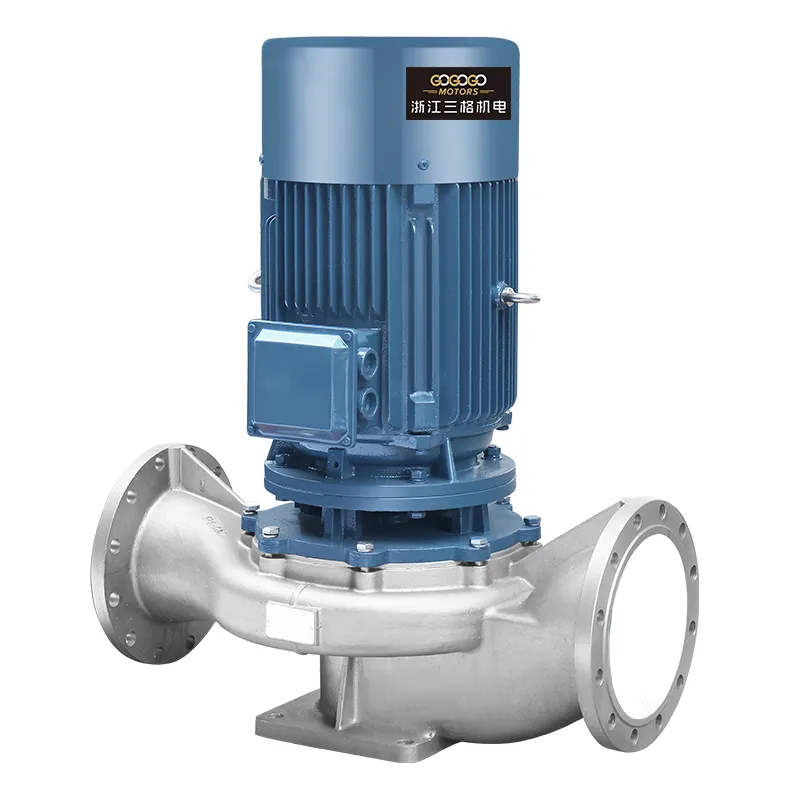

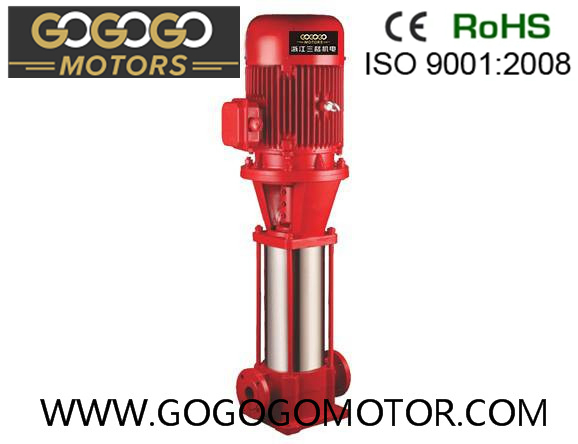

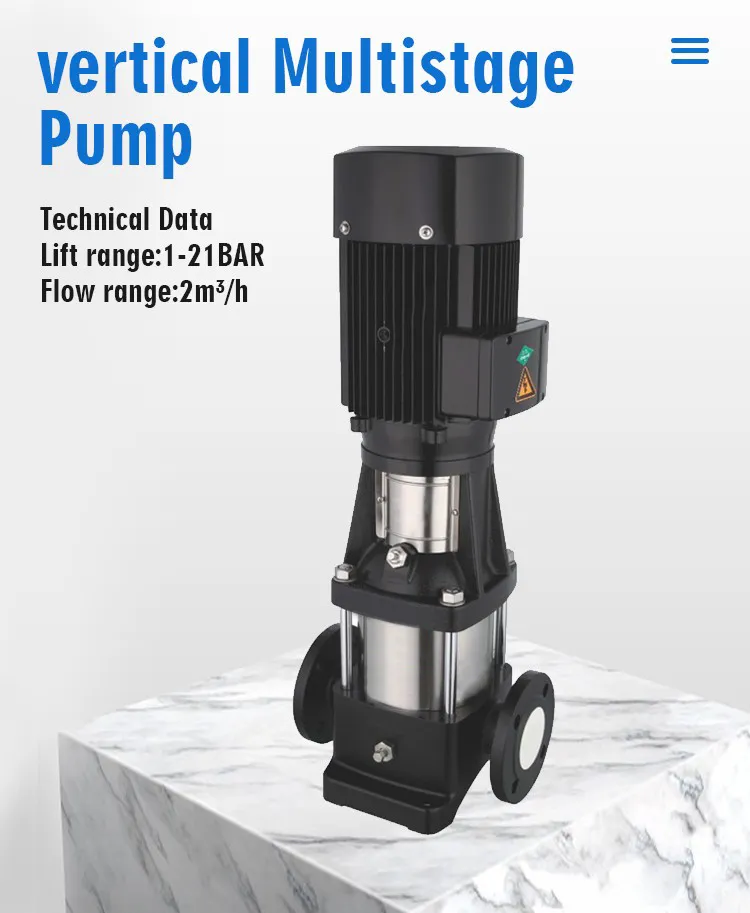

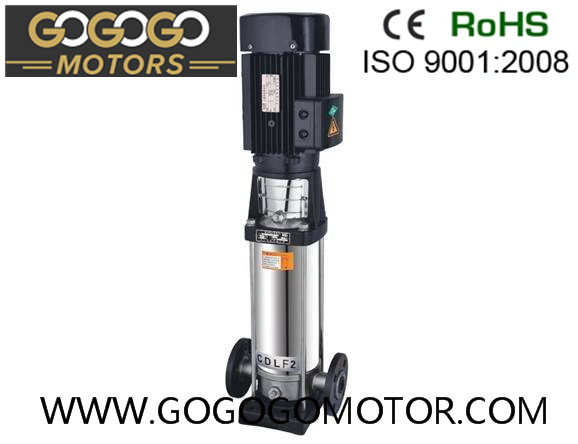

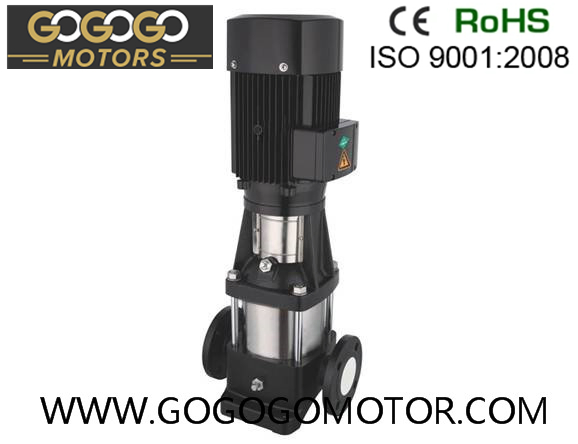

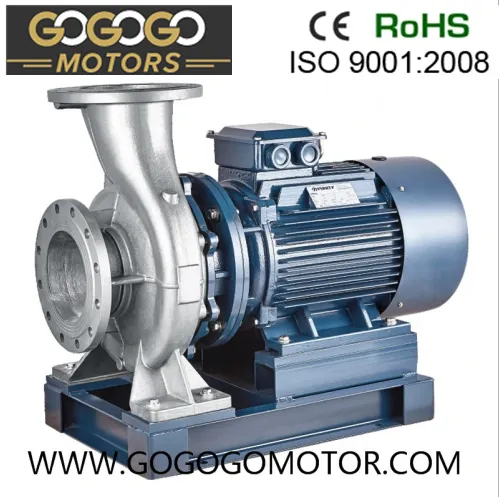

Aluminum Frame Asynchronous Motor designed for GLF/CDL/CDLF/SG/SGR/ZW/BLT/WBS/WBZS Stainless Steel Chemical Water Pumps. This series of high-efficiency three-phase induction motors features high start torque and low noise.
It is suitable for air compressors, chemical pumps, fans, and medical equipment, featuring a novel appearance and advanced technology.
| Motor Model | Power | Speed | Rated Current(A) | Efficiency | Noise | Weight | |||
|---|---|---|---|---|---|---|---|---|---|
| kW | Hp | r/min | 380V | 400V | 415V | 100% | LwdB(A) | Kg | |
| 63-2 | 0.25 | 0.33 | 2820 | 0.85 | 0.8 | 0.7 | 68% | 62 | 10 |
| 71-2 | 0.55 | 0.75 | 2800 | 1.4 | 1.35 | 1.32 | 73% | 64 | 12 |
| 80M1-2 | 0.75 | 1.0 | 2830 | 1.7 | 1.6 | 1.5 | 77.5% | 62 | 16 |
| 90L-2 | 1.5 | 2.0 | 2840 | 3.2 | 3.0 | 2.9 | 84.1% | 67 | 23.5 |
| 100L-2 | 3.0 | 4.0 | 2880 | 6.0 | 5.7 | 5.5 | 86.7% | 74 | 38 |
| 132S2-2 | 7.5 | 10 | 2900 | 14.3 | 13.6 | 13.1 | 89.5% | 79 | 70 |
| 160M2-2 | 15 | 20 | 2930 | 28.0 | 26.7 | 25.7 | 91.3% | 81 | 132 |

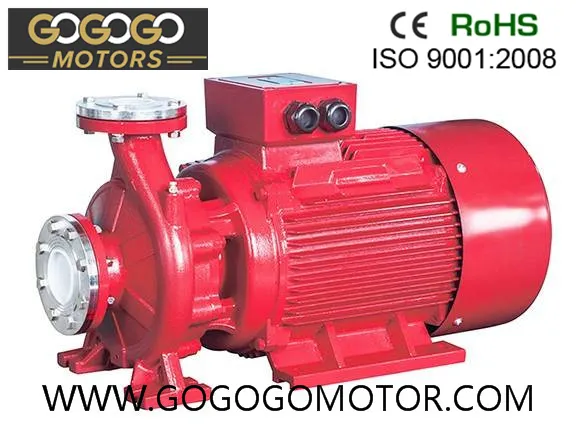

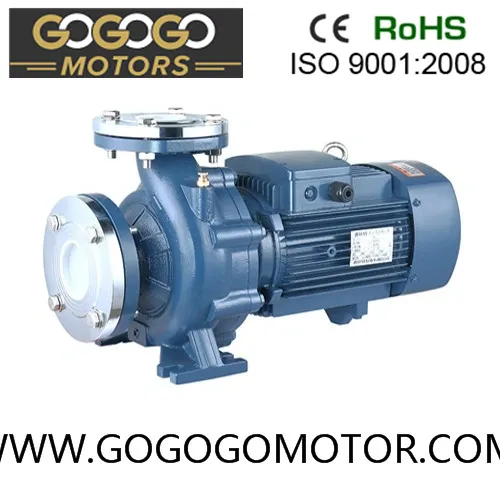

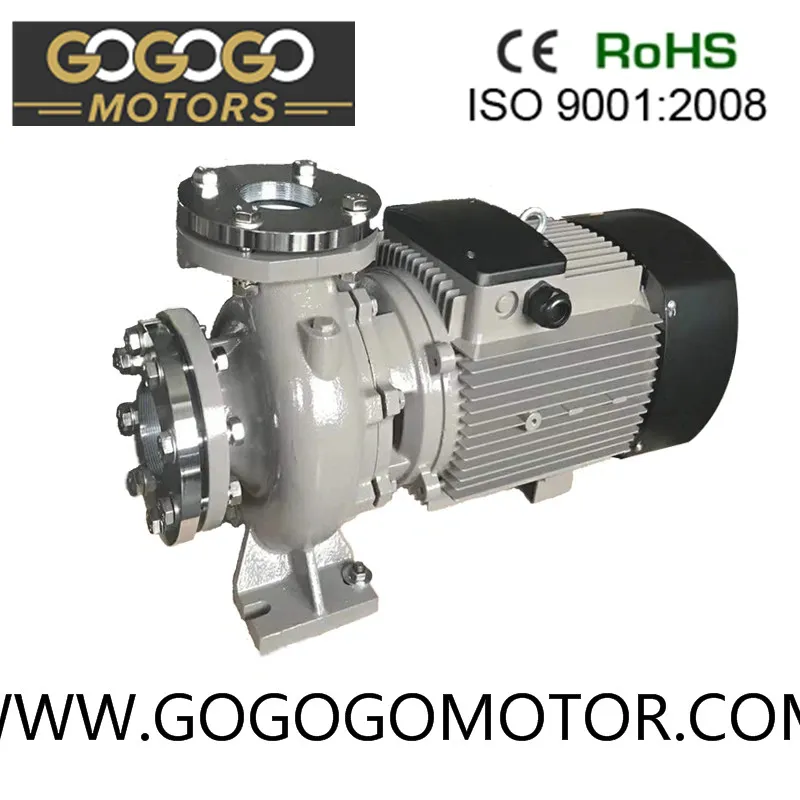

• Water Supply: Plant filtering, conveying, high-rise building supercharging.
• Industrial Pressure: Cleaning systems, high-pressure flushing, fire fighting.
• Industrial Liquid Conveying: Cooling systems, boiler feed water, condensation systems.
• Water Treatment: Ultrafiltration, reverse osmosis, distillation systems, swimming pools.
• Irrigation: Drip irrigation systems.
