Customization: Available
After-sales Service: 12 Months
Warranty: 12 Months
Send Inquiry

Product Description

📋

Basic Information

Model NO.
SG IRG ISG PST
Max. Head
>150m
Max. Capacity
>400 L/min
Driving Type
Motor
Material
Stainless Steel
Structure
Multistage Pump
Power
Electric
Type
Blade Pump
Performance
No Leakage Pump
Theory
Centrifugal Pump
Rated Volt
220V/380V, 380V/660V
Insulation Class
F, H
Protection
IP54 IP55 IP56
Certificate
CCC, CE ISO9001
Transport Package
Carton/Wooden Case/Plywood Case
Production Capacity
200000PCS/Year
⚙️

Product Description

Basic specifications:

Protection Class: IP55. Insulation Grade: F/H. Cooling Way: IC411. Duty: S1, S2, S3. Mount type: B5 flange, B35, B14, B34. Voltage options: 230v/460v, 220v/380v, 400v, 415v, 575v (50hz or 60hz).

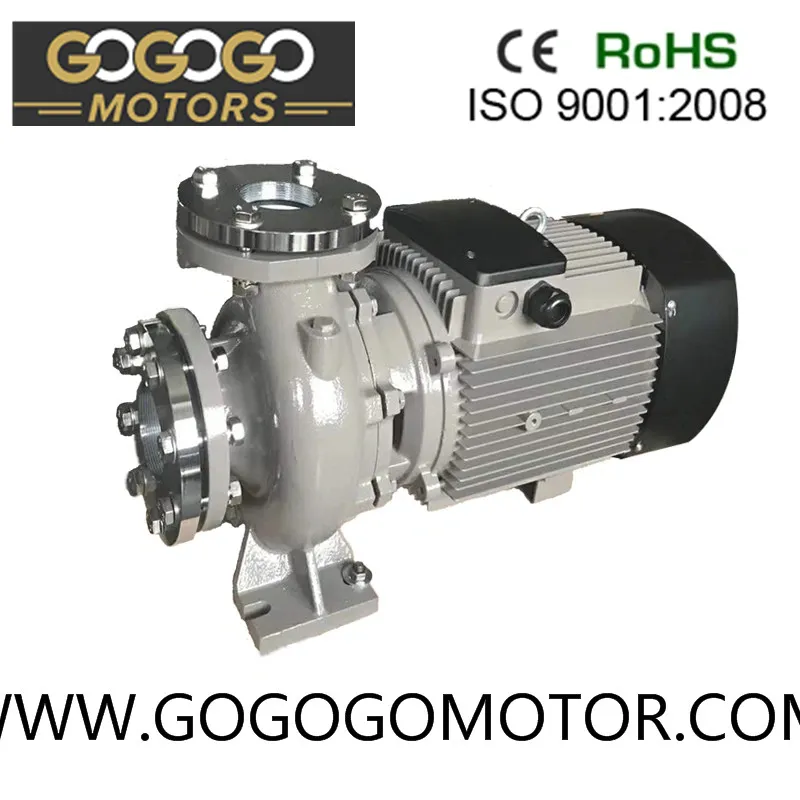

Multistage Centrifugal Pump

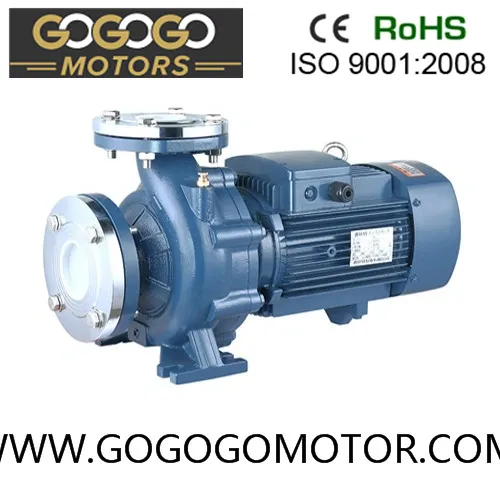

Booster Pump

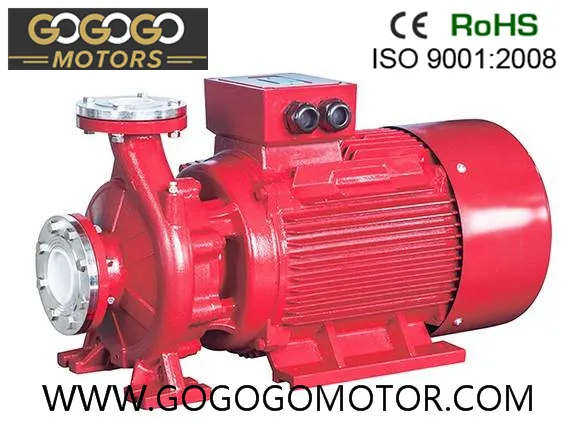

High Pressure Pump
  • 🚀 Water supply: Water plant filtering and conveying, water supply, supercharging for high-rise buildings.
  • 🚀 Supercharged industry: Fluent water systems, cleaning systems, high-pressure flushing, and fire fighting systems.
  • 🚀 Industrial liquid conveying: Cooling air conditioning, boiler feed water, condensing systems, and chemical medium conveying.
  • 🚀 Water treatment: Ultrafiltration, reverse osmosis, distillation systems, and swimming pool treatments.
  • 🚀 Irrigation: Specialized drip irrigation solutions.
Power:0.55kw-75kw Voltage:220V 380V 400V 460V
Frequency:50/60hz Enamelled Wire:Copper Wire (Aluminum available)
Insulation Class:F Mounting Way:B3 Foot
Protection Grade:IP54 Motor Body:Cast iron body

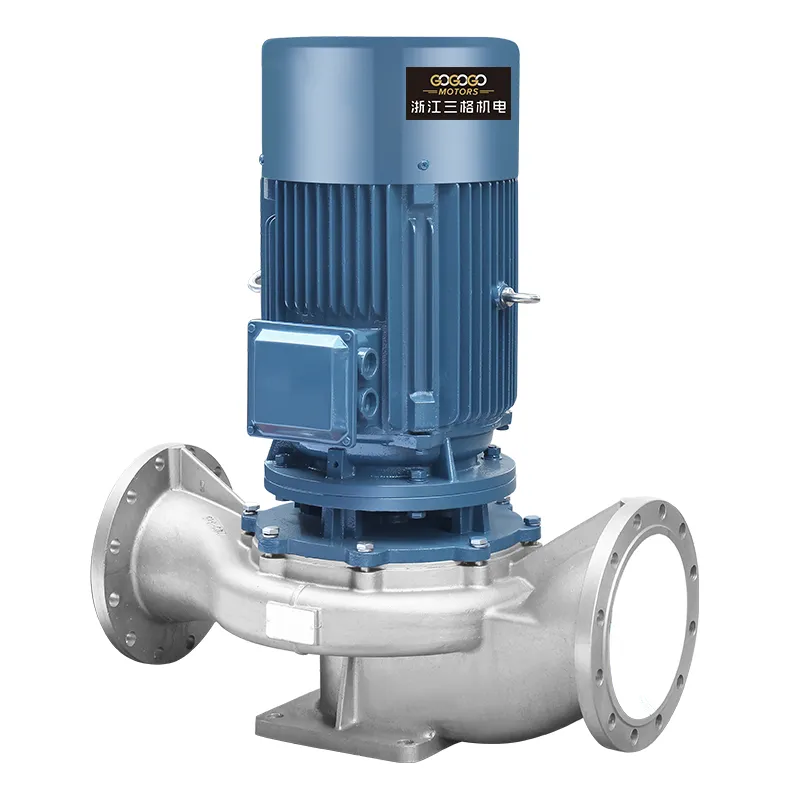

Technical Pump Diagram
Centrifugal Pump Component

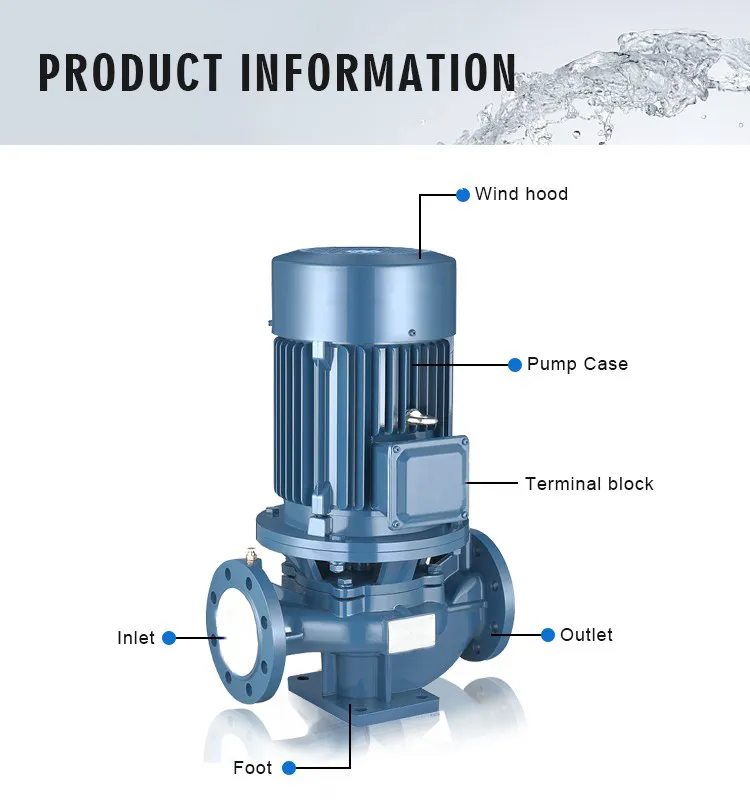

Inline Pump
System Classifications:
I Class: Raw water tank → sand/carbon filter → RO system → UV sterilizer → Supply points.
II Class: Enhanced filtration including double reverse osmosis and precision filtering for high-purity requirements.

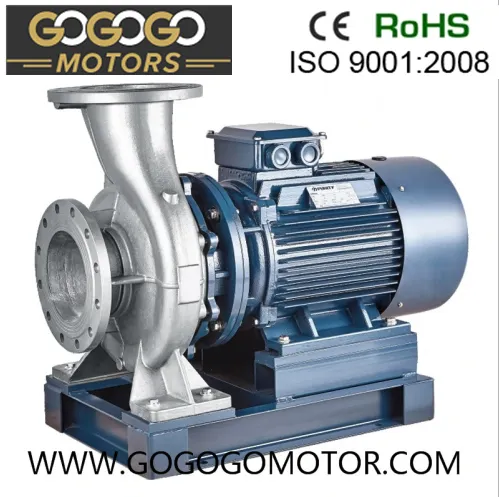

Aluminum Housing Motor

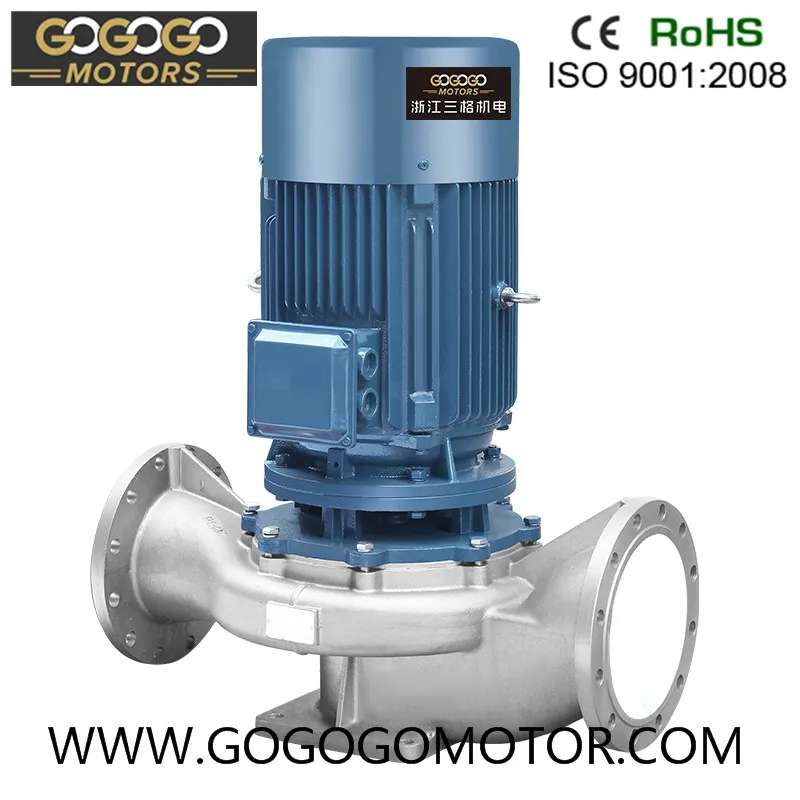

PST Pump
Comprehensive Pipeline Pump System
❓

Frequently Asked Questions

What materials are used in the construction of these pumps?
The pumps are primarily constructed from high-grade Stainless Steel and Cast Iron to ensure durability and resistance against corrosion in various industrial environments.
What are the maximum head and capacity ratings?
These pumps are capable of achieving a maximum head of over 150 meters and a maximum capacity exceeding 400 liters per minute, making them suitable for high-pressure requirements.
What voltage and frequency configurations are supported?
We support multiple configurations including 220V, 380V, 400V, 415V, and 460V at both 50Hz and 60Hz frequencies to meet international electrical standards.
Can these pumps be used for chemical liquid conveying?
Yes, the stainless steel construction and specialized seals allow for the conveying of industrial liquids, including acid and alkaline mediums.
What protection and insulation classes do the motors have?
The motors are designed with Protection Class IP54/IP55/IP56 and Insulation Grade F or H, ensuring safe operation in demanding industrial conditions.
What is the annual production capacity for these models?
Our facility has a robust production capacity of approximately 200,000 pieces per year, ensuring steady supply for large-scale industrial projects.
