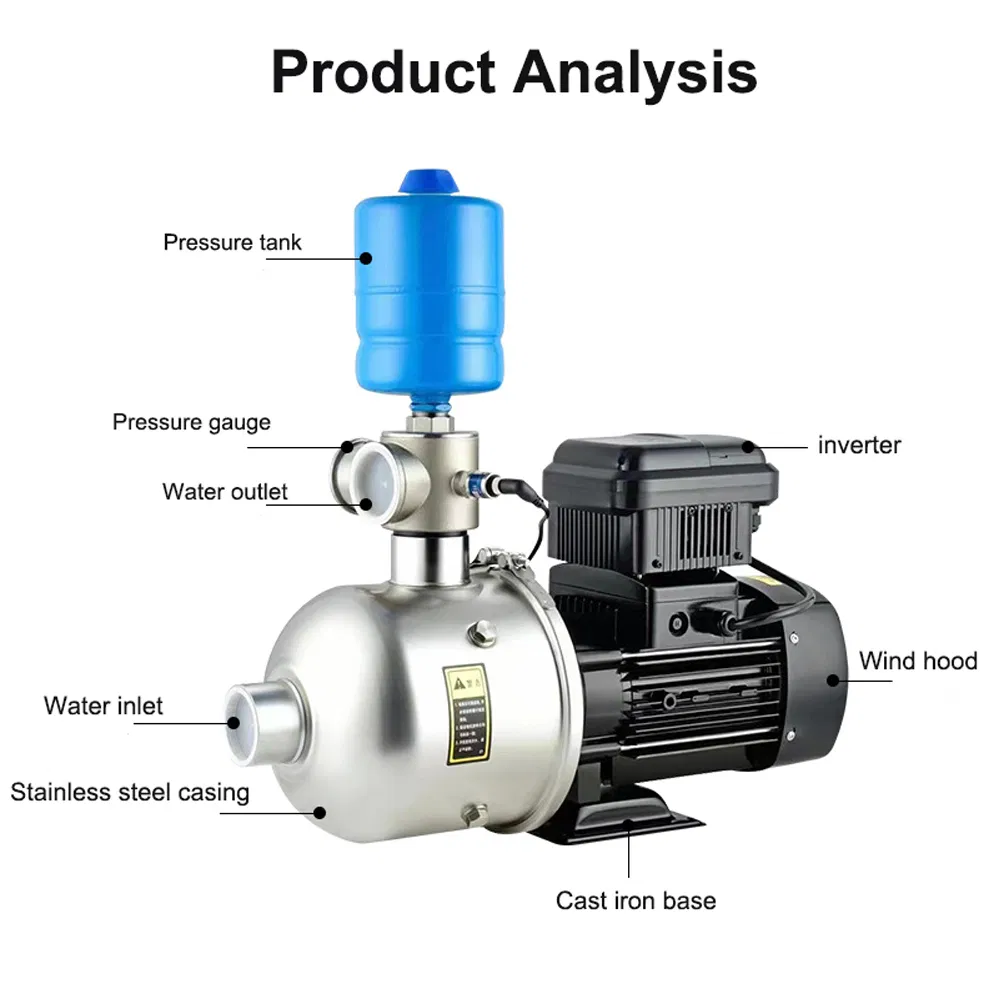

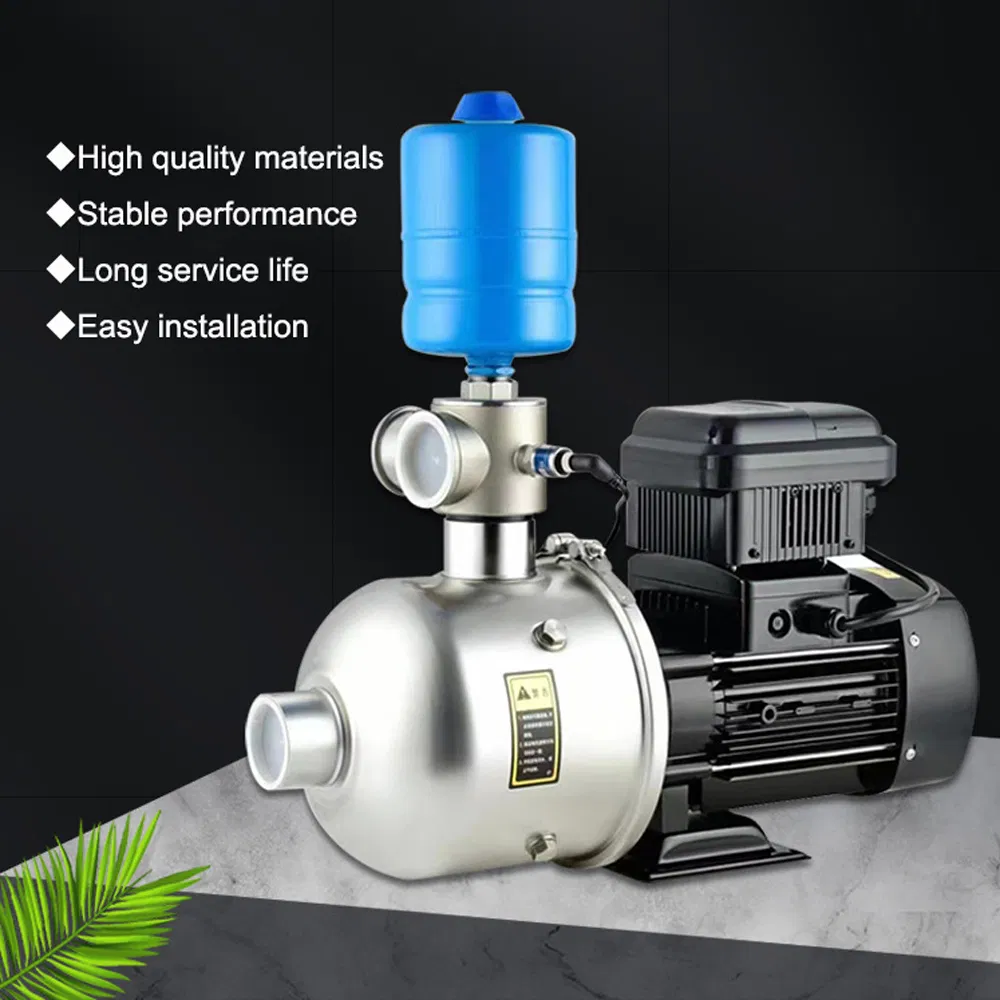

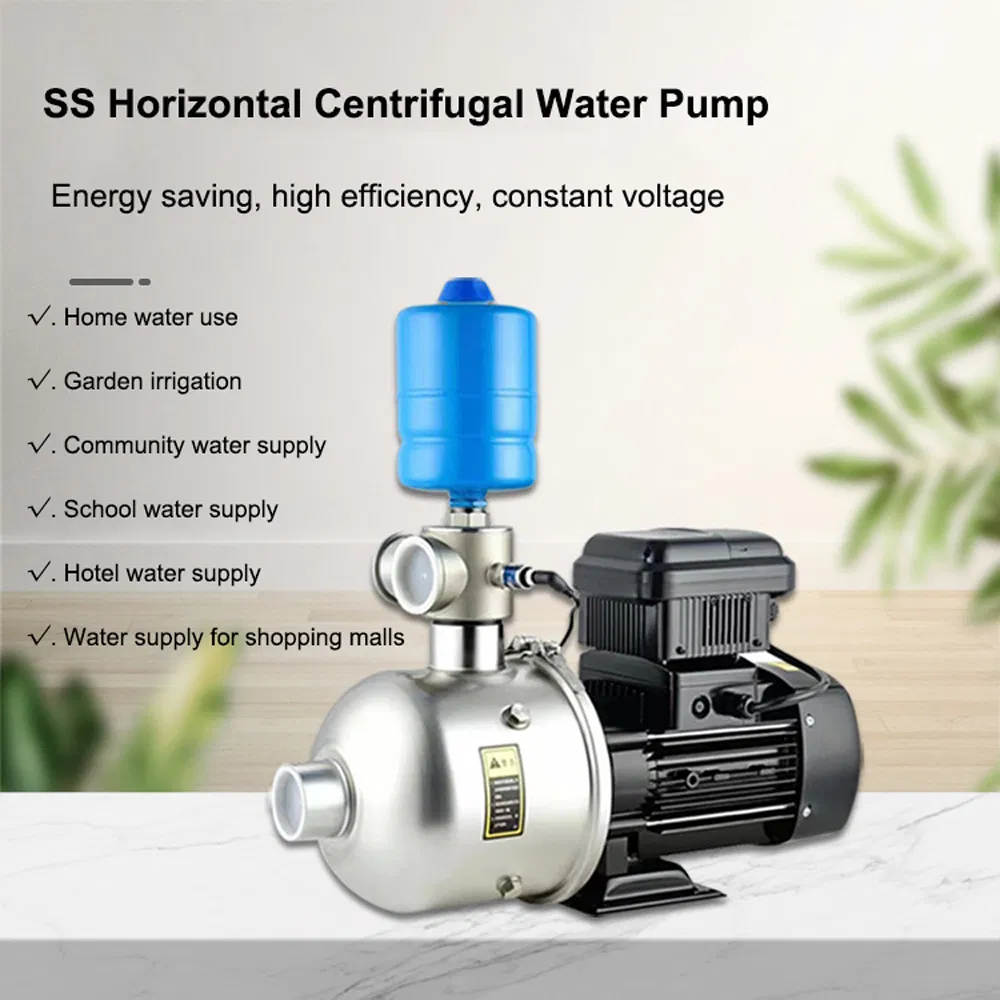

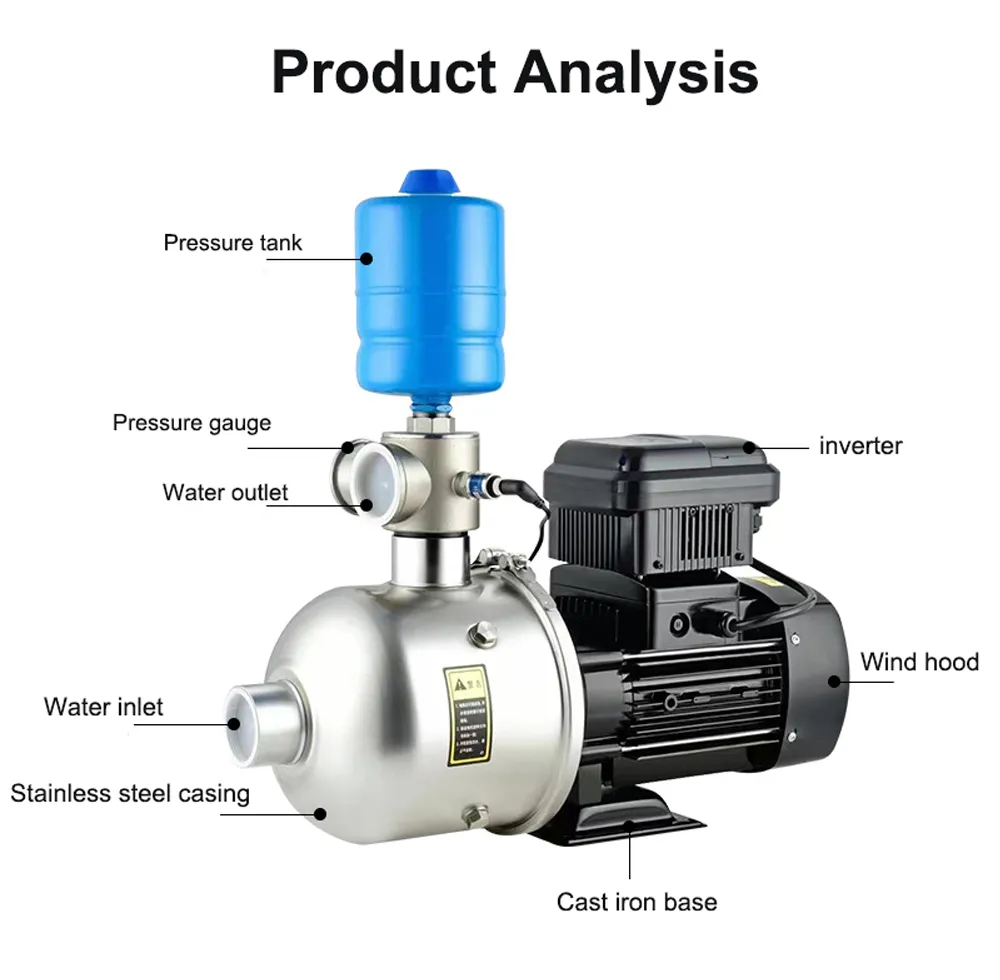

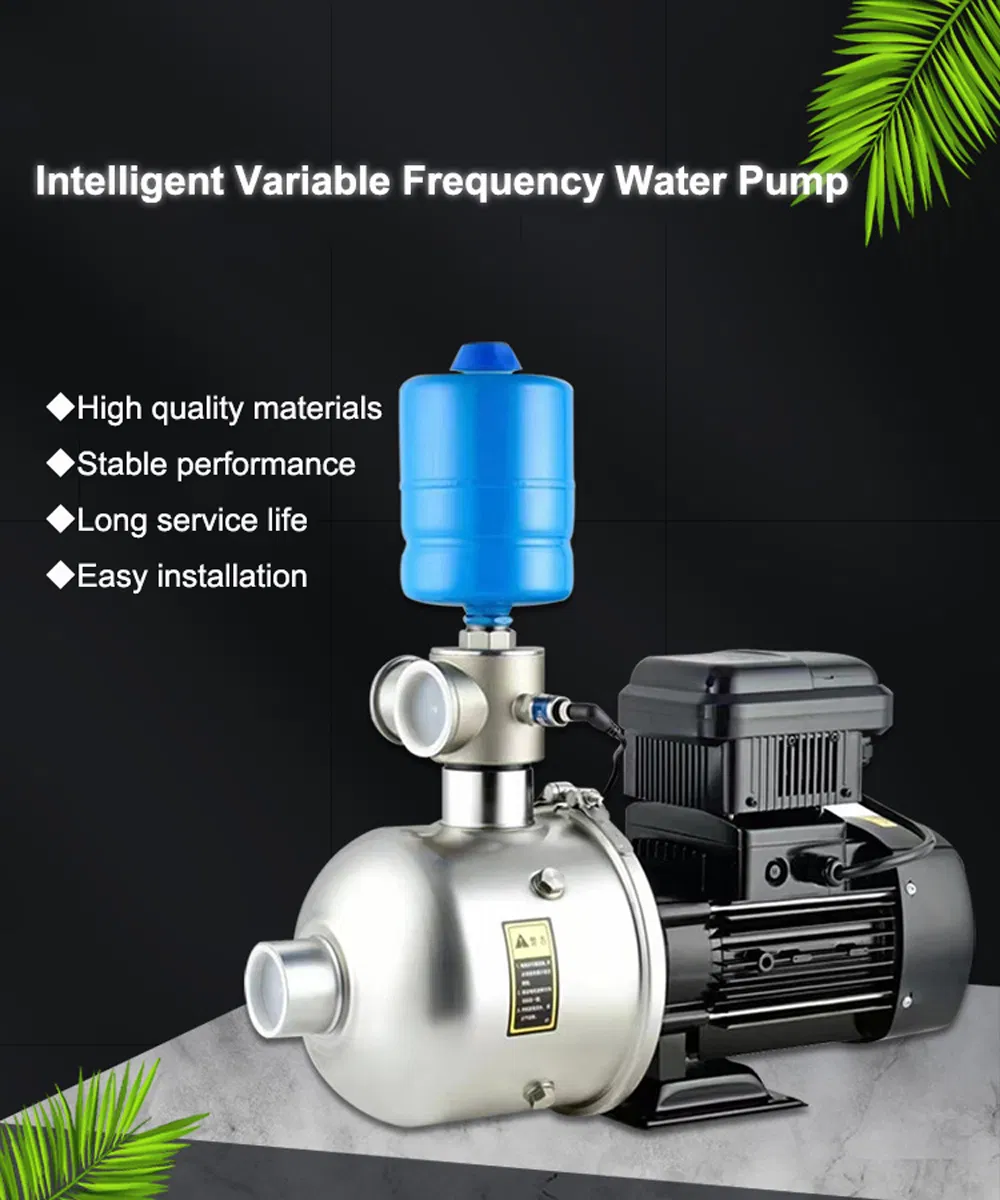

CHL series light horizontal non-self-priming multistage centrifugal pumps adopt axial inlet and radial outlet, attach with long shaft electric motor, including subsection type and cylinder type. All flow passages parts are made of stainless steel.
| Key Product Parameters | |
|---|---|

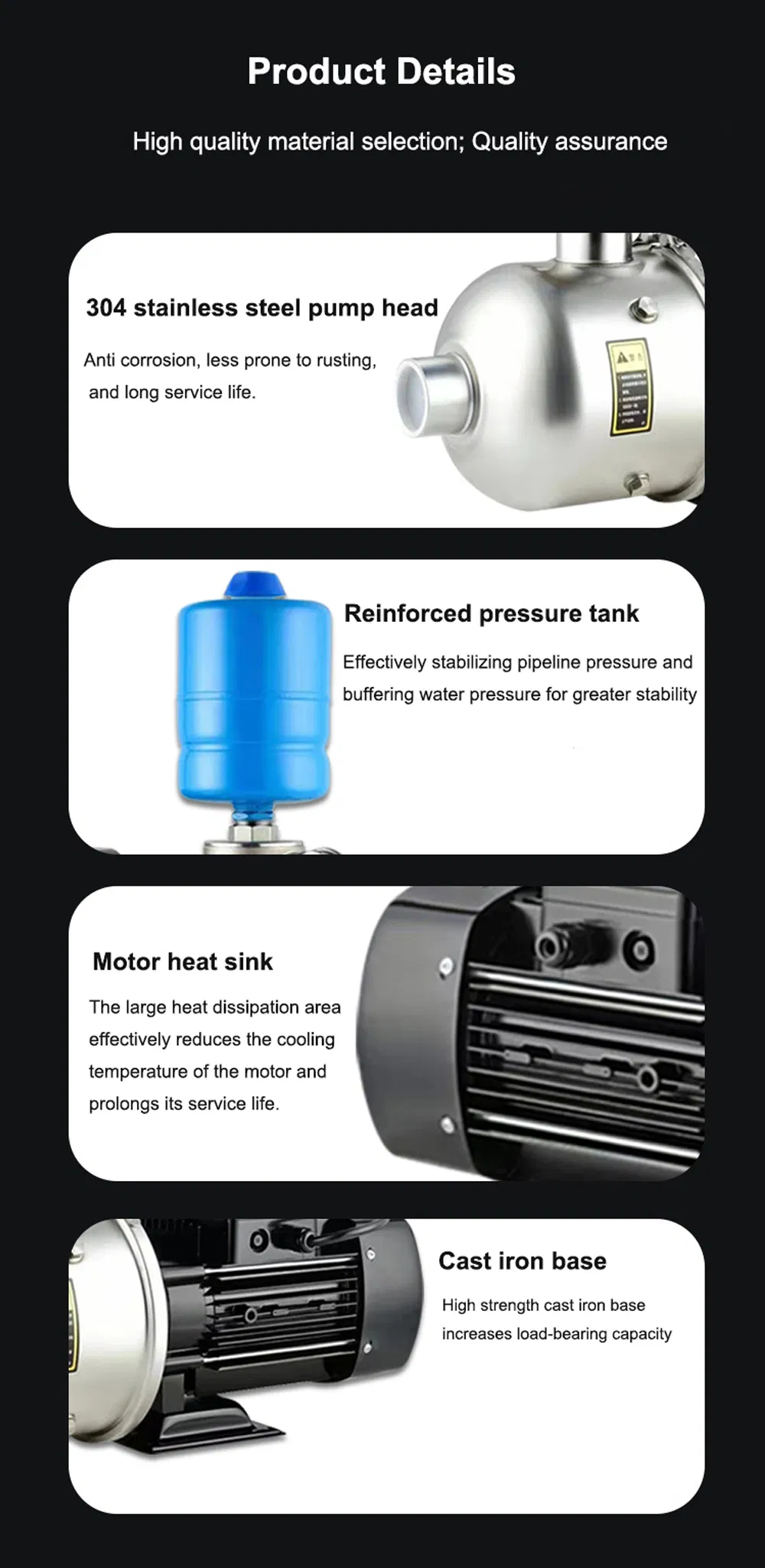

| Material | Stainless steel 304 or 316L |
| Flow Rate | 0.5~28m³/h |
| Delivery Head | 5-60m |
| Liquid Temperature | -15ºC to 110ºC |
| Power Range | 1.1KW - 37KW |
| Speed | 1450/2980 r/min |
| Voltage | 220V, 380V |
| Model | Power (kW) | Flow (m³/h) | Head (m) | Inlet/Outlet | Dimensions (mm) |
|---|---|---|---|---|---|
| CHL(K)2-20 | 0.37 | 2 | 14 | 1"x1" | 400X165X230 |
| CHL(K)2-40 | 0.55 | 2 | 28 | 1"x1" | 400X165X230 |
| CHL(K)4-40 | 0.75 | 4 | 30 | 1 1/4"x1" | 445X165X245 |
| CHL(K)8-20 | 0.75 | 8 | 17 | 2"x2" | 560X230X265 |
| CHL(K)12-30 | 1.8 | 12 | 29.5 | 2"x2" | 580X230X270 |
| CHL(K)20-30 | 4.0 | 20 | 33 | 2"x2" | 650X230X270 |
