| Model NO. | XBC-VTP |
| Max.Head | >150m |
| Max.Capacity | >400 L/min |
| Material | Cast Iron / Stainless Steel |
| Structure | Single-stage Pump / Multistage |
| Power | Electric / Diesel |
| Industry | Fire Fighting |
| Standard | NFPA 20 |
| Certificate | UL Listed / ISO |

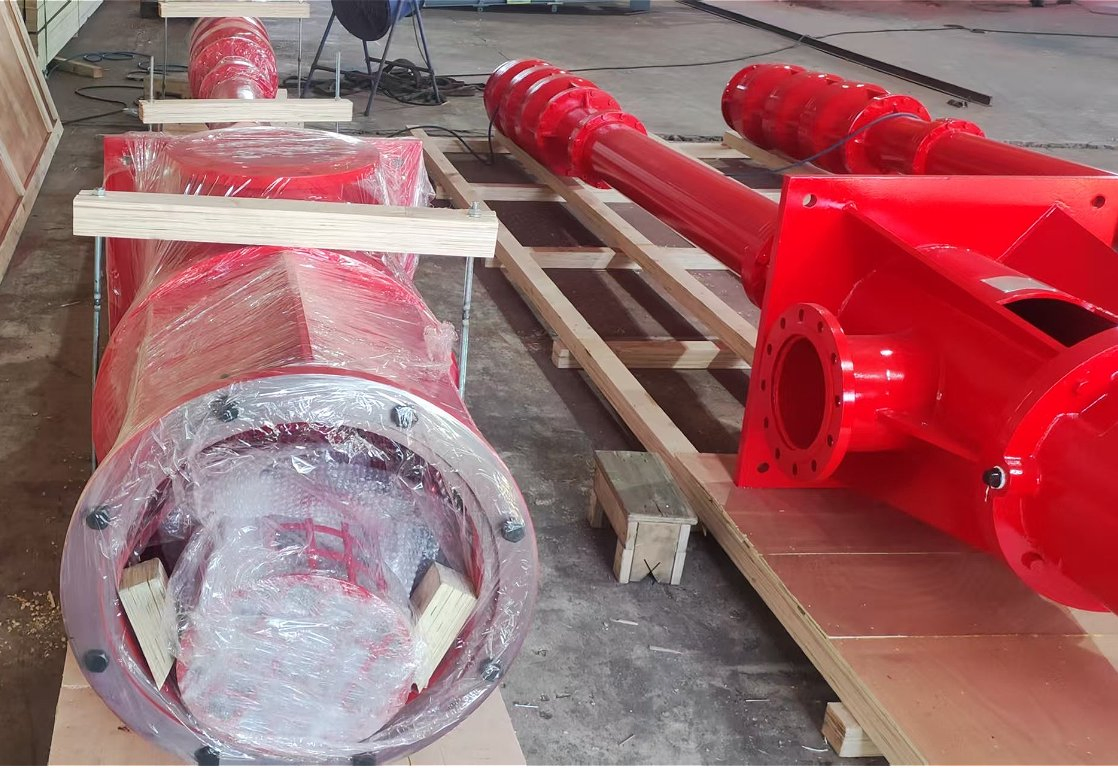

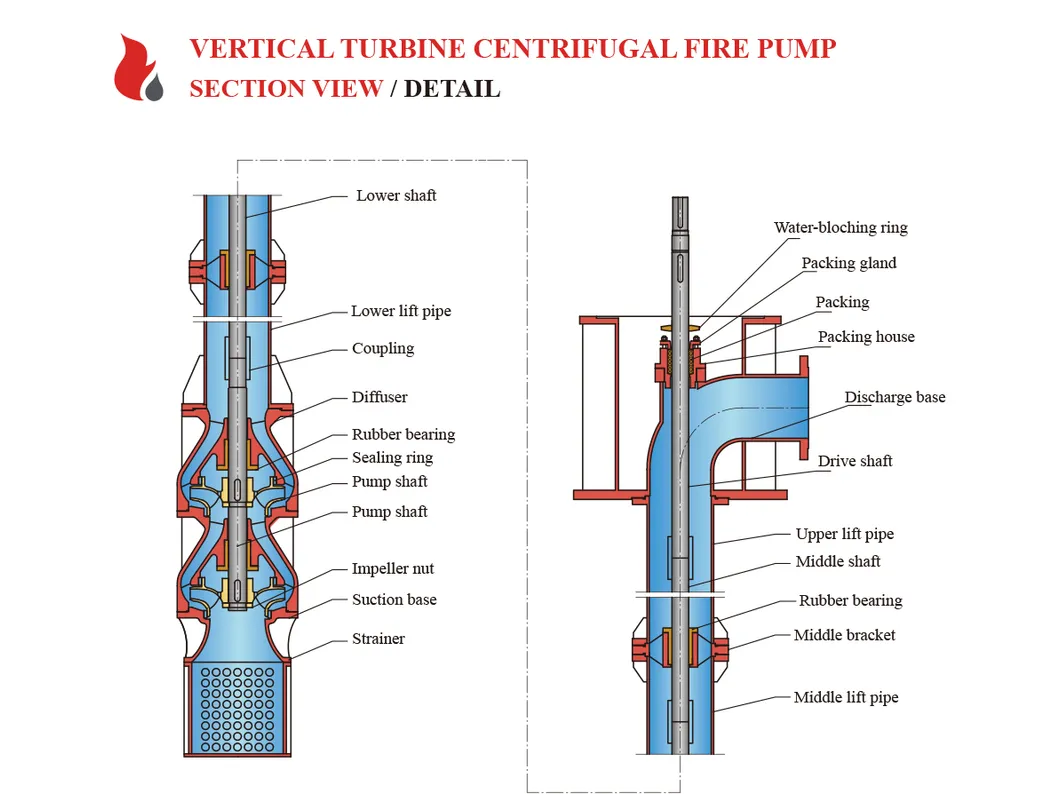

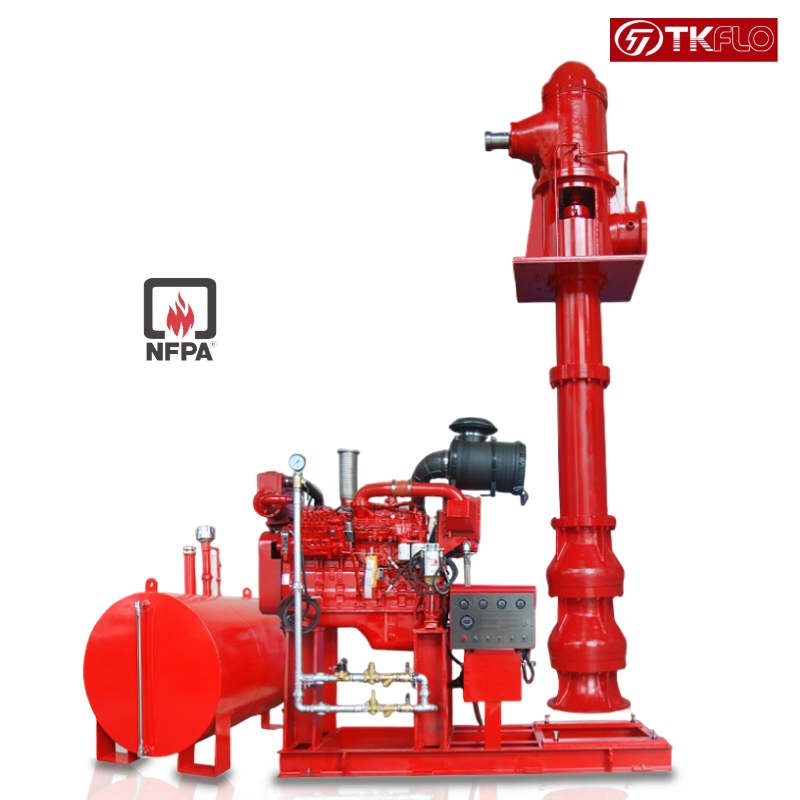

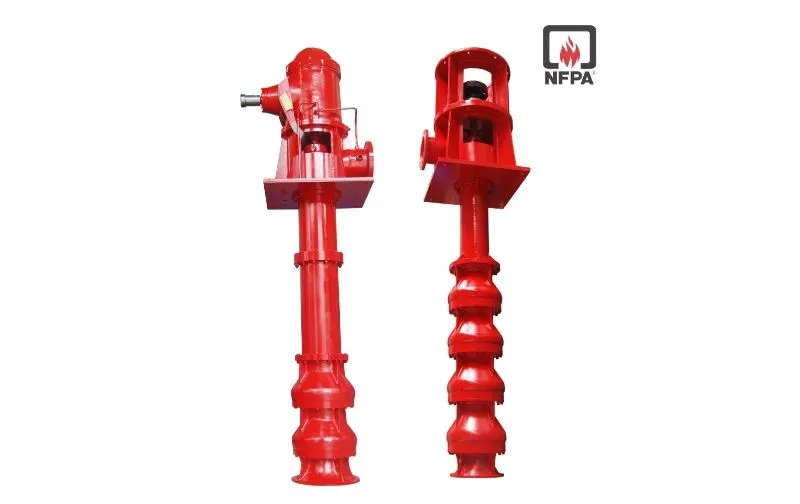

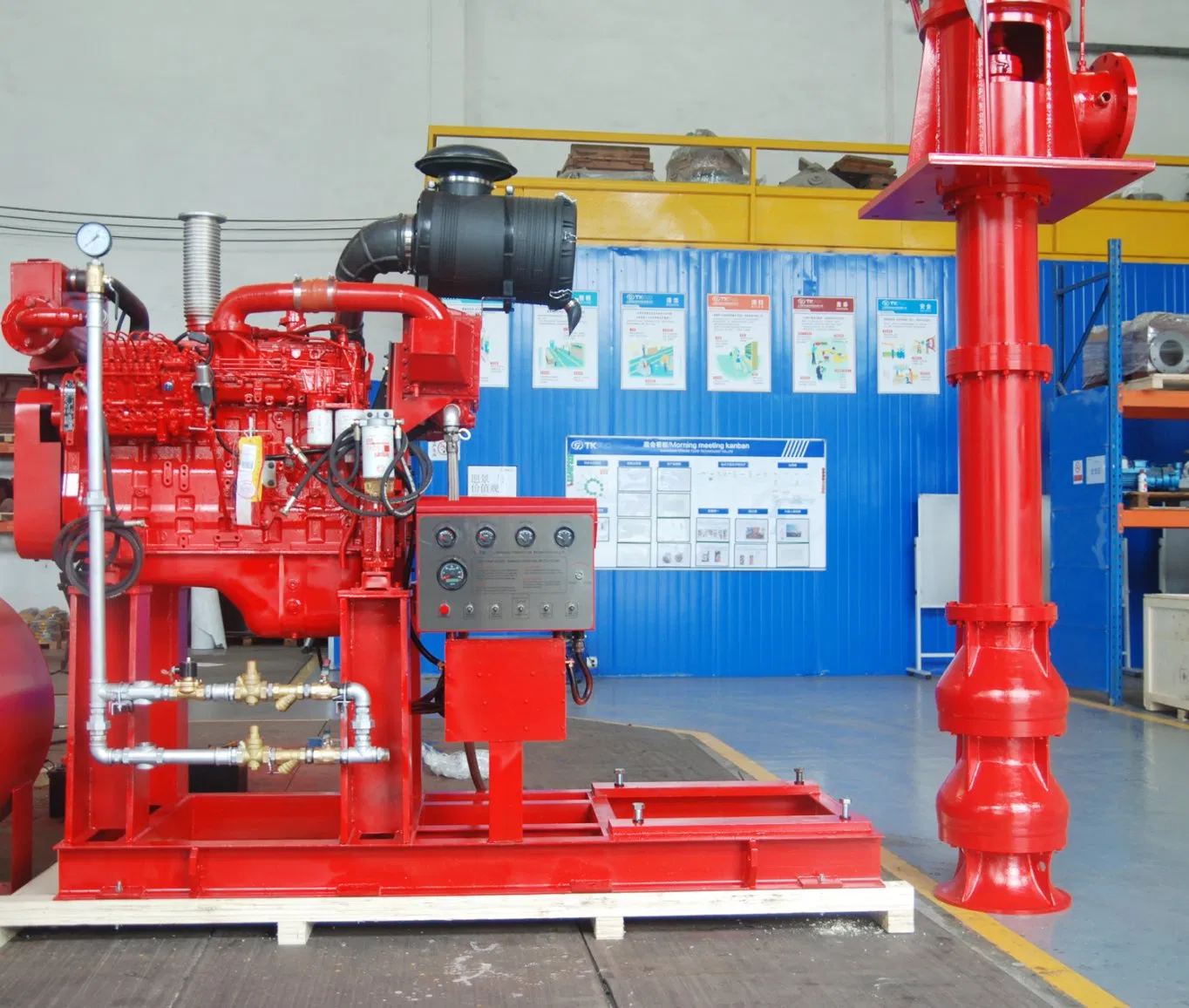

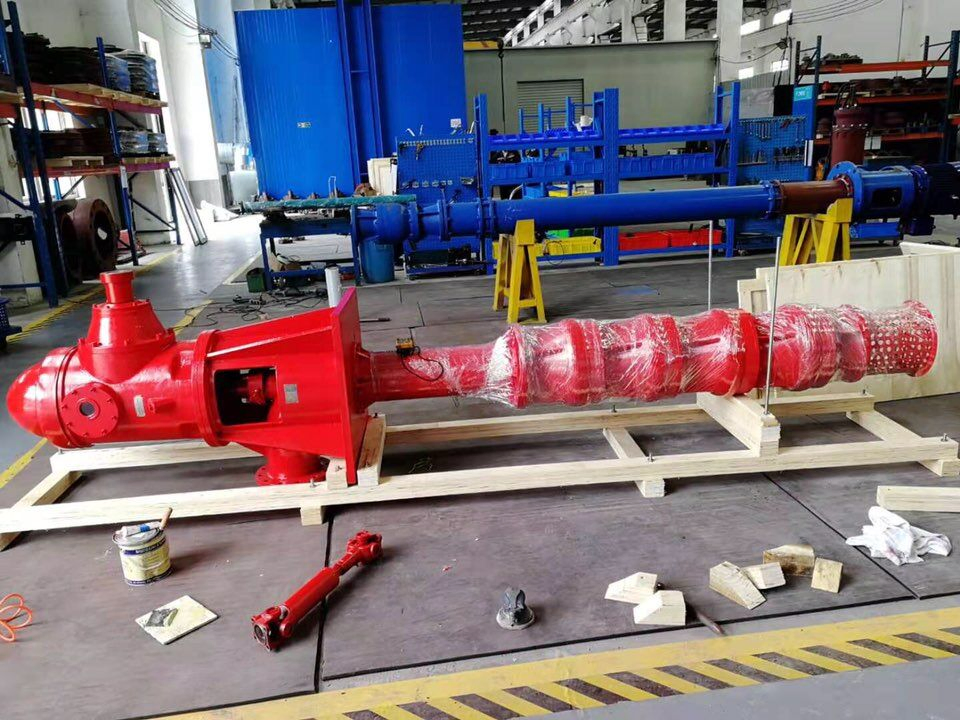

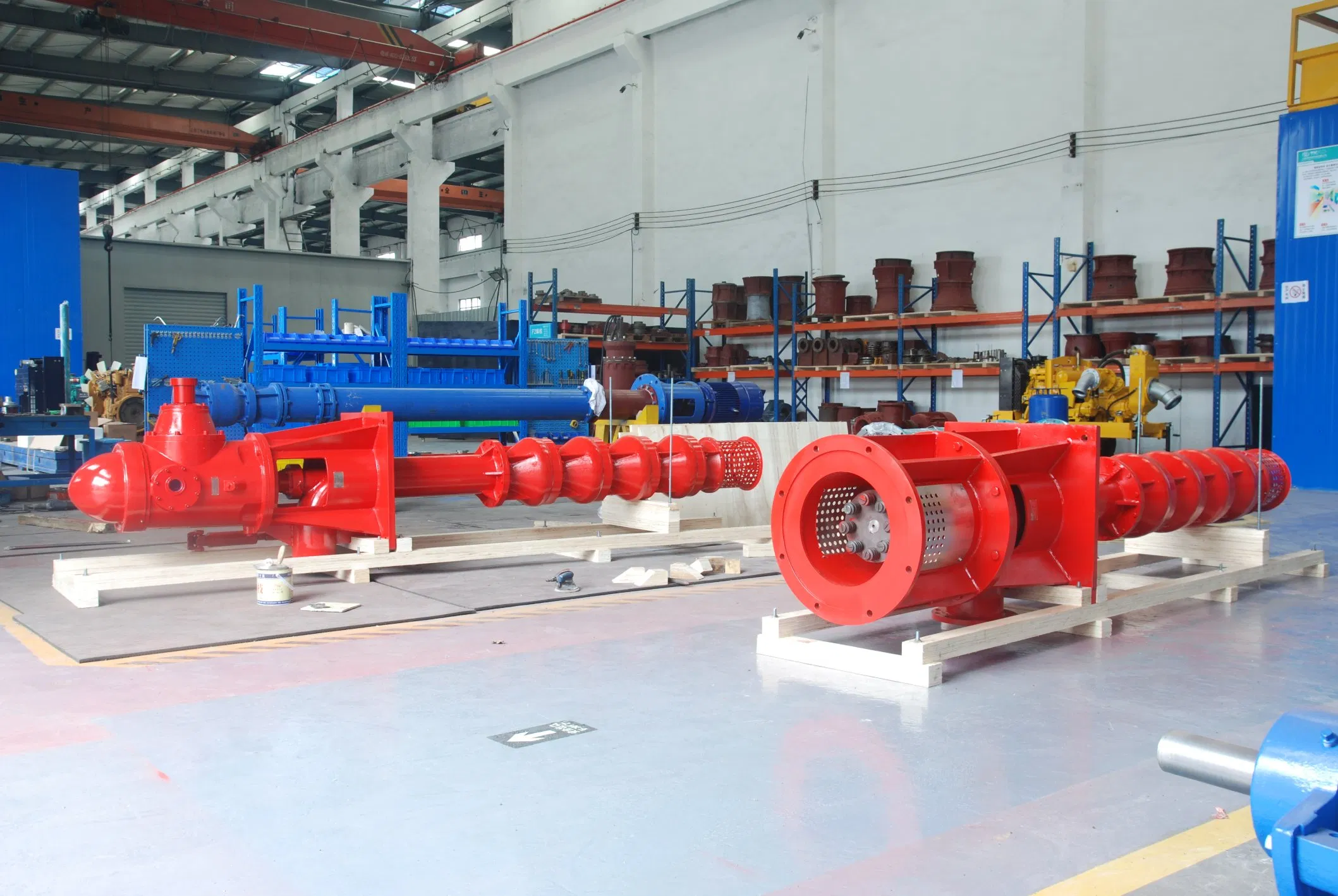

VTP Series vertical turbine long shaft fire fighting pumps are a series of single stage or multistage diffuser pumps, manufactured in accordance with the latest National Standards. The design has been improved with reference to the United States Fire Protection Association standards. It is primarily utilized for fire water supply in petrochemical, natural gas, power plants, textiles, aviation, warehousing, and high-rise building industries.

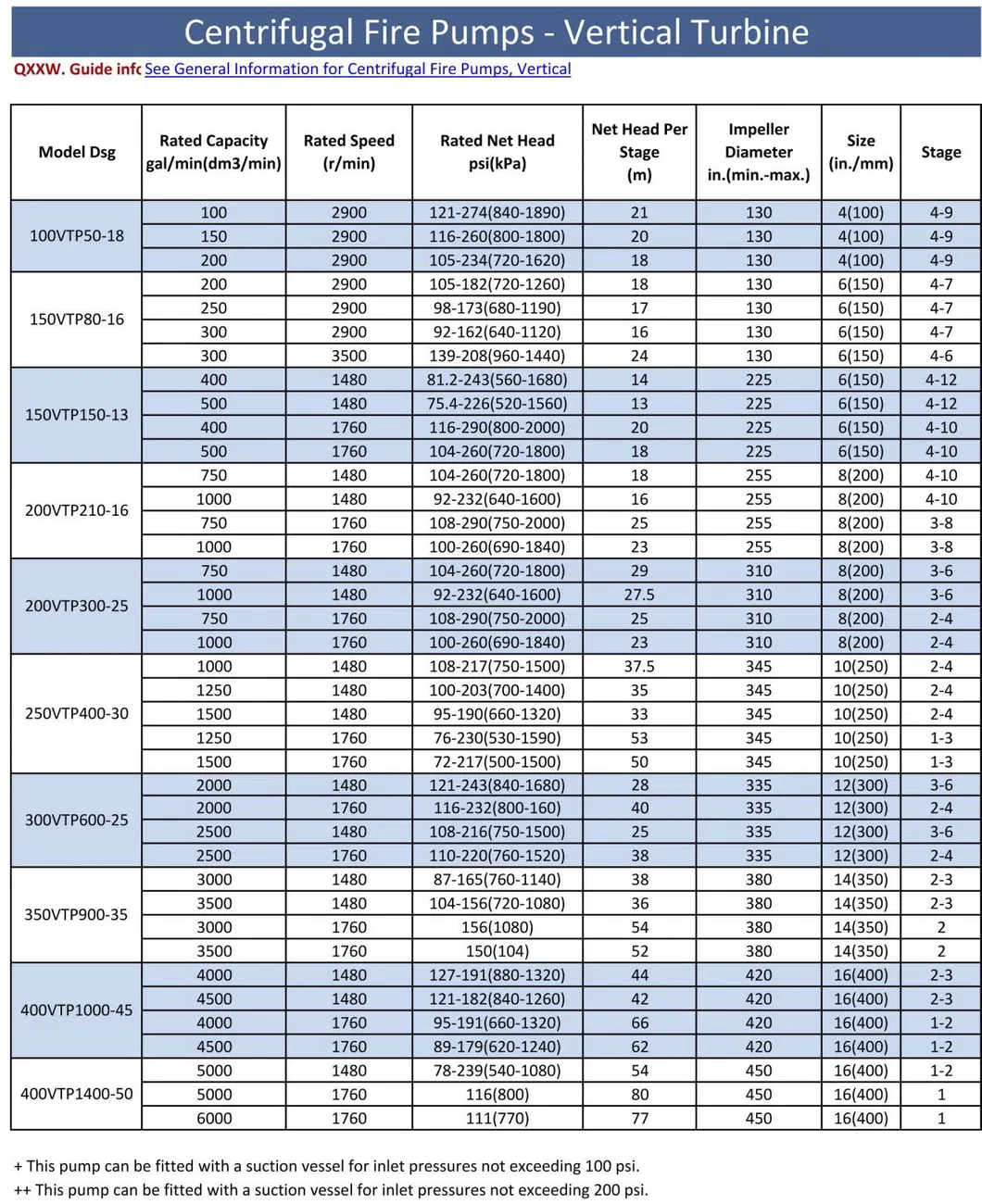

| Parameter | Details |
|---|---|
| Type of Pump | Vertical Turbine fire pumps for buildings, plants, and yards. |

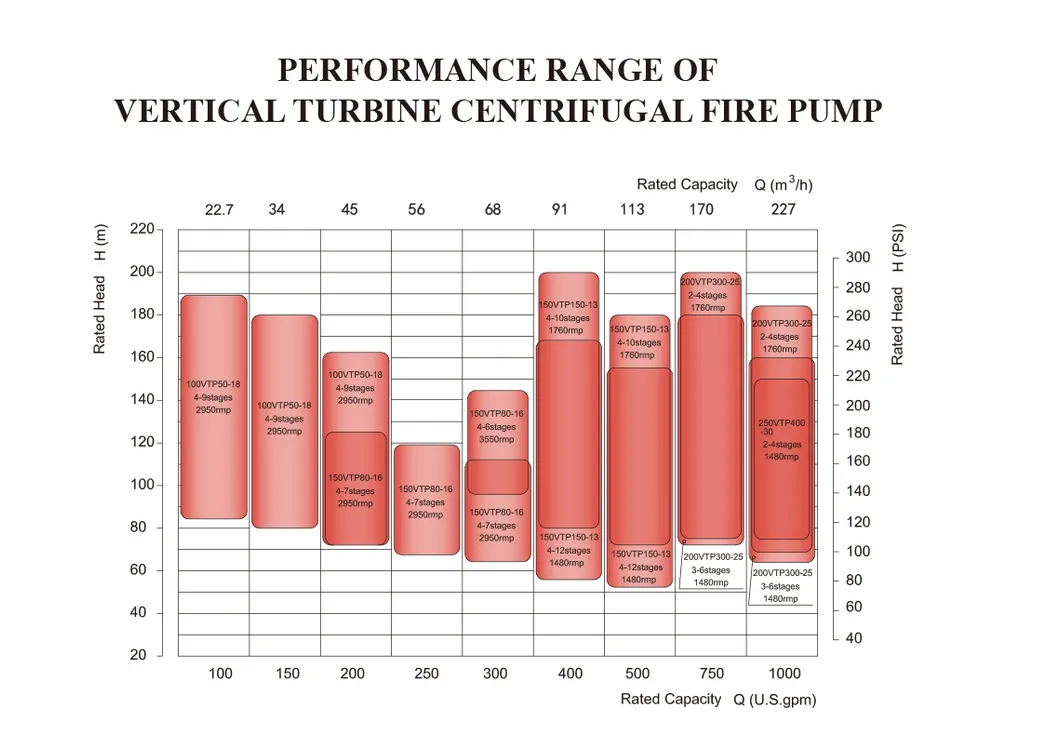

| Capacity | 50-1000 GPM (11.4 to 227 m³/hr) |
| Head | 328-1970 feet (28-259 meters) |
| Pressure | Up to 1300 psi (90 km/cm²) |
| Horse Power | Up to 1225 HP (900 KW) |
| Drivers | Horizontal electric motors, diesel engine. |
| Construction | Cast iron, Stainless steel, bronze fitted. |

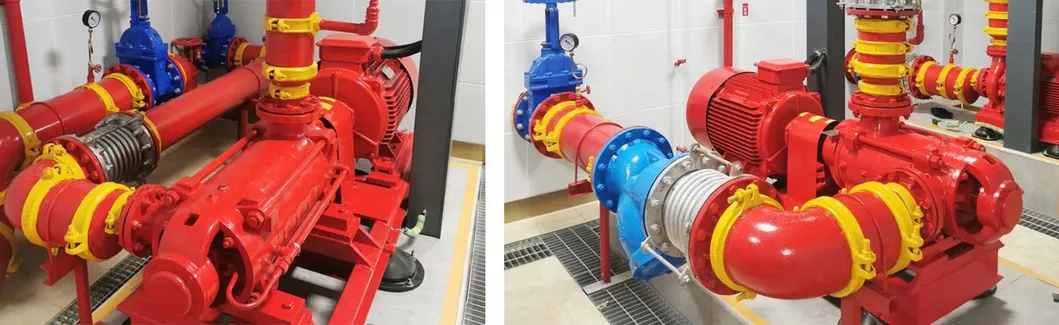

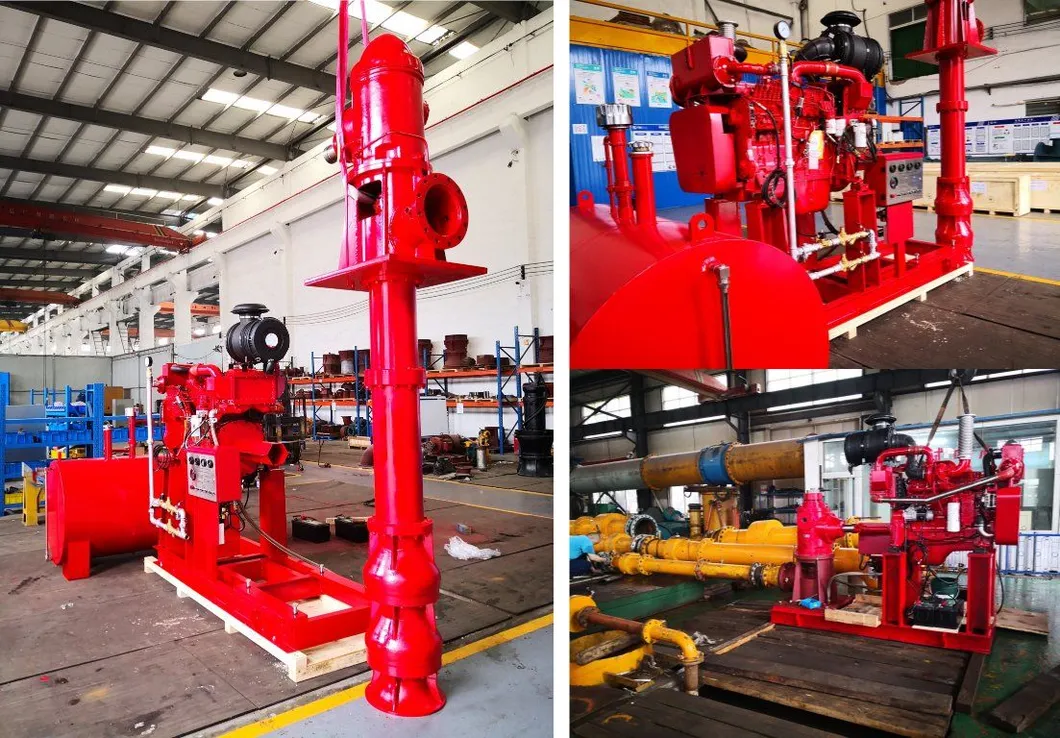

Our Fire Pump installations deliver superior fire protection to facilities worldwide. We offer complete solutions including drives, controls, base plates, and accessories.
These fire pumps are designed for fixed fire extinguishing systems or other firefighting facilities, transporting water or foam solutions. Key application areas include:

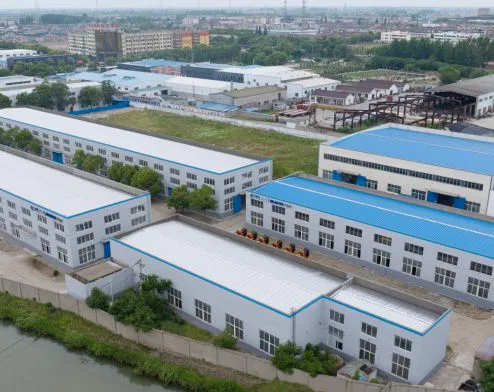

We focus on high-quality, high-performance products. Our facilities passed TUV registered ISO 9001 and products have passed SGS inspections. With modern production bases covering 25,000 square meters, we ensure precision in every pump manufactured.
