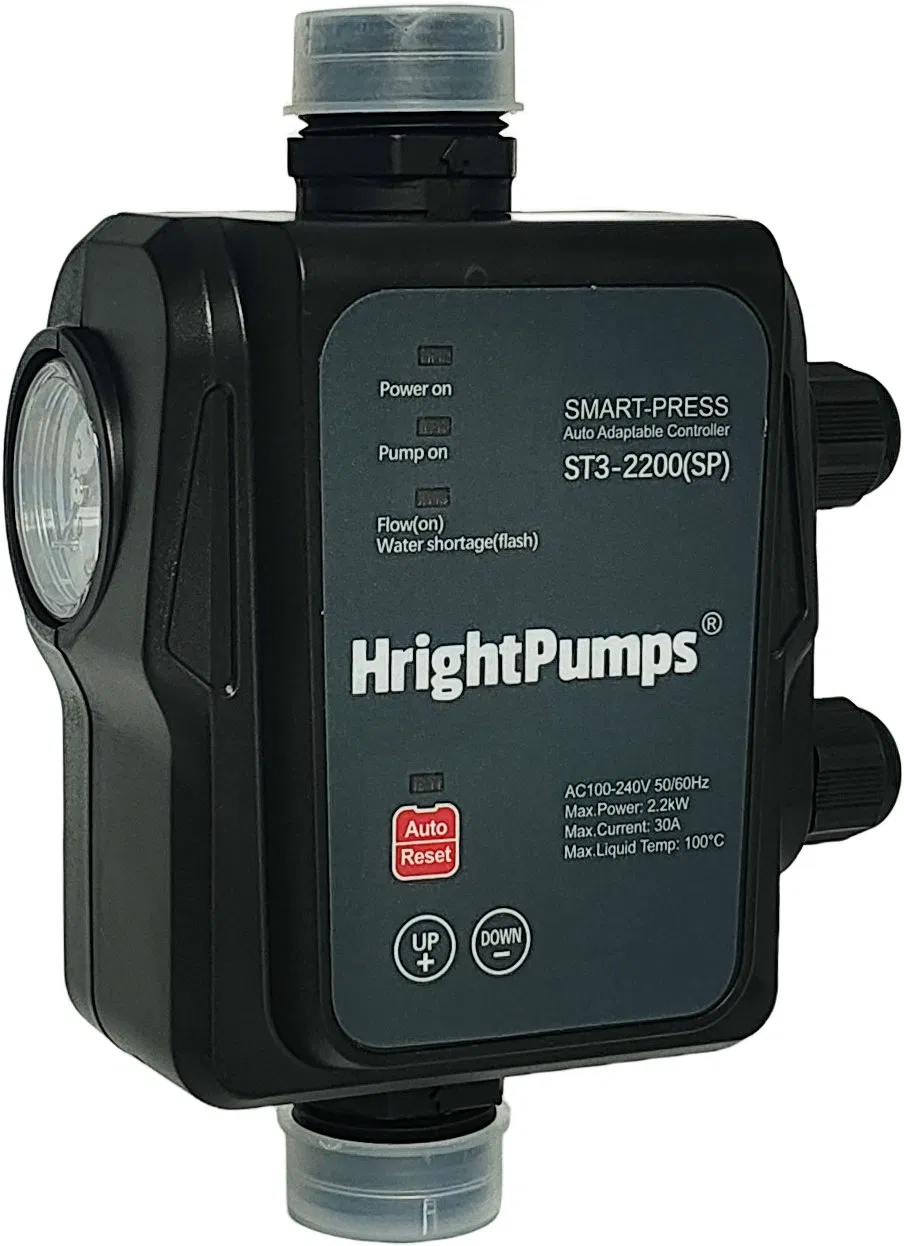

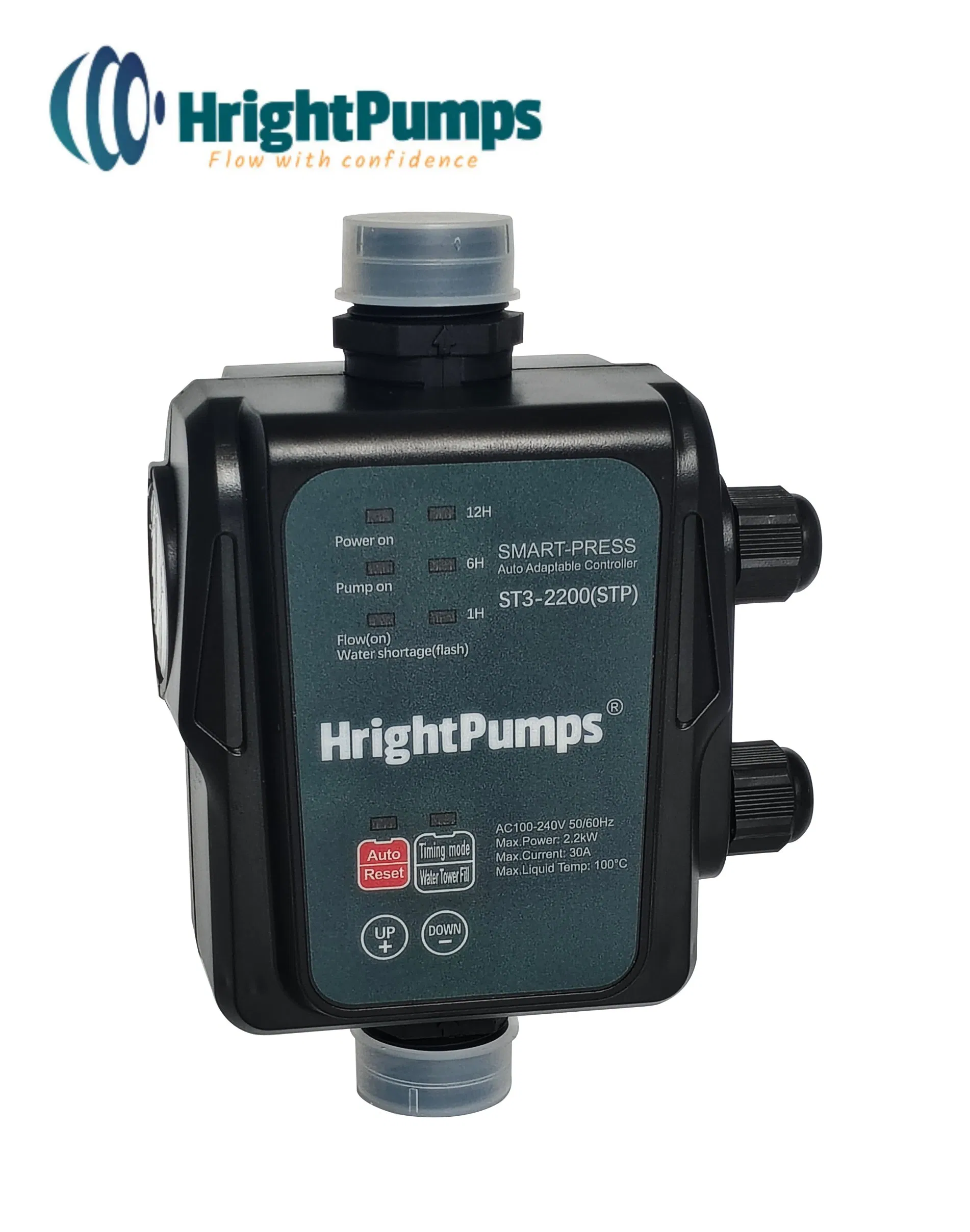

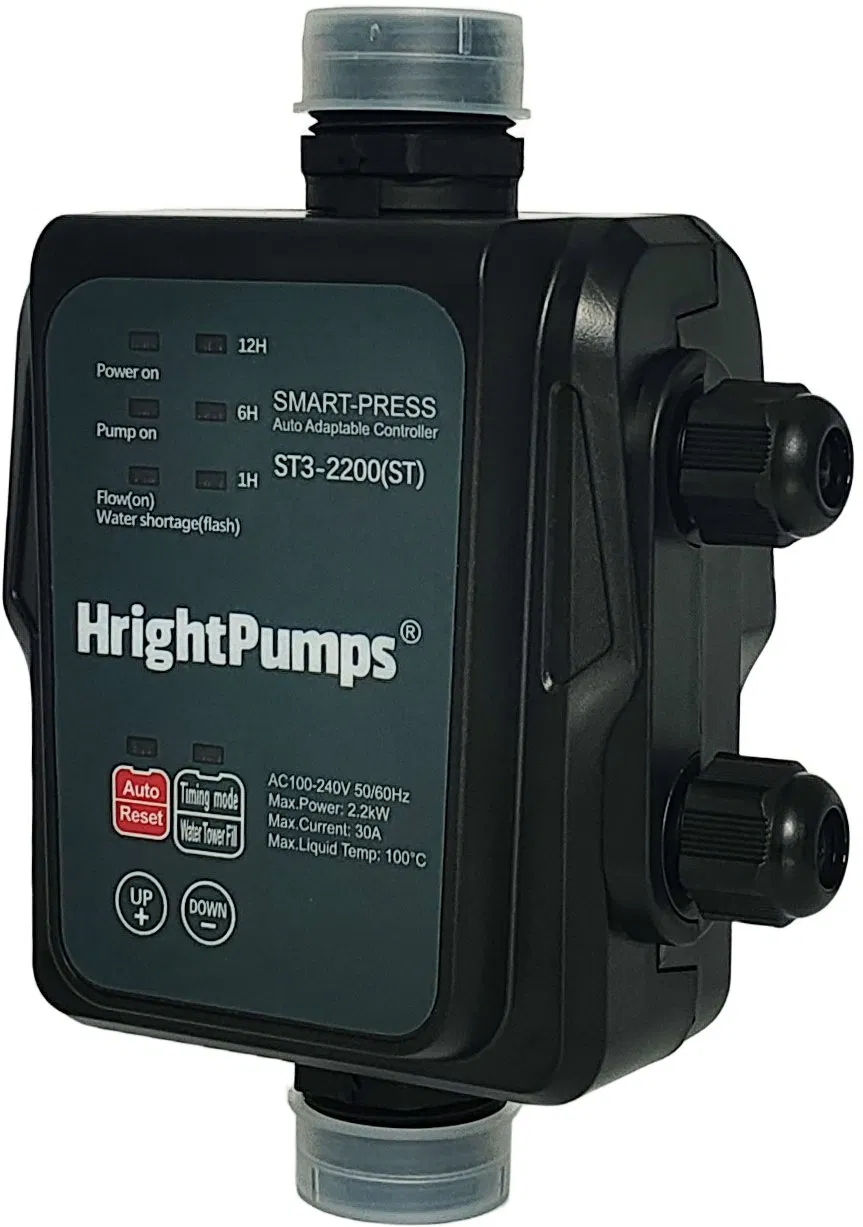

St3-2200 (STP) Smart Controller with Pressure Gauge and Timing Function Auto-Adaptable

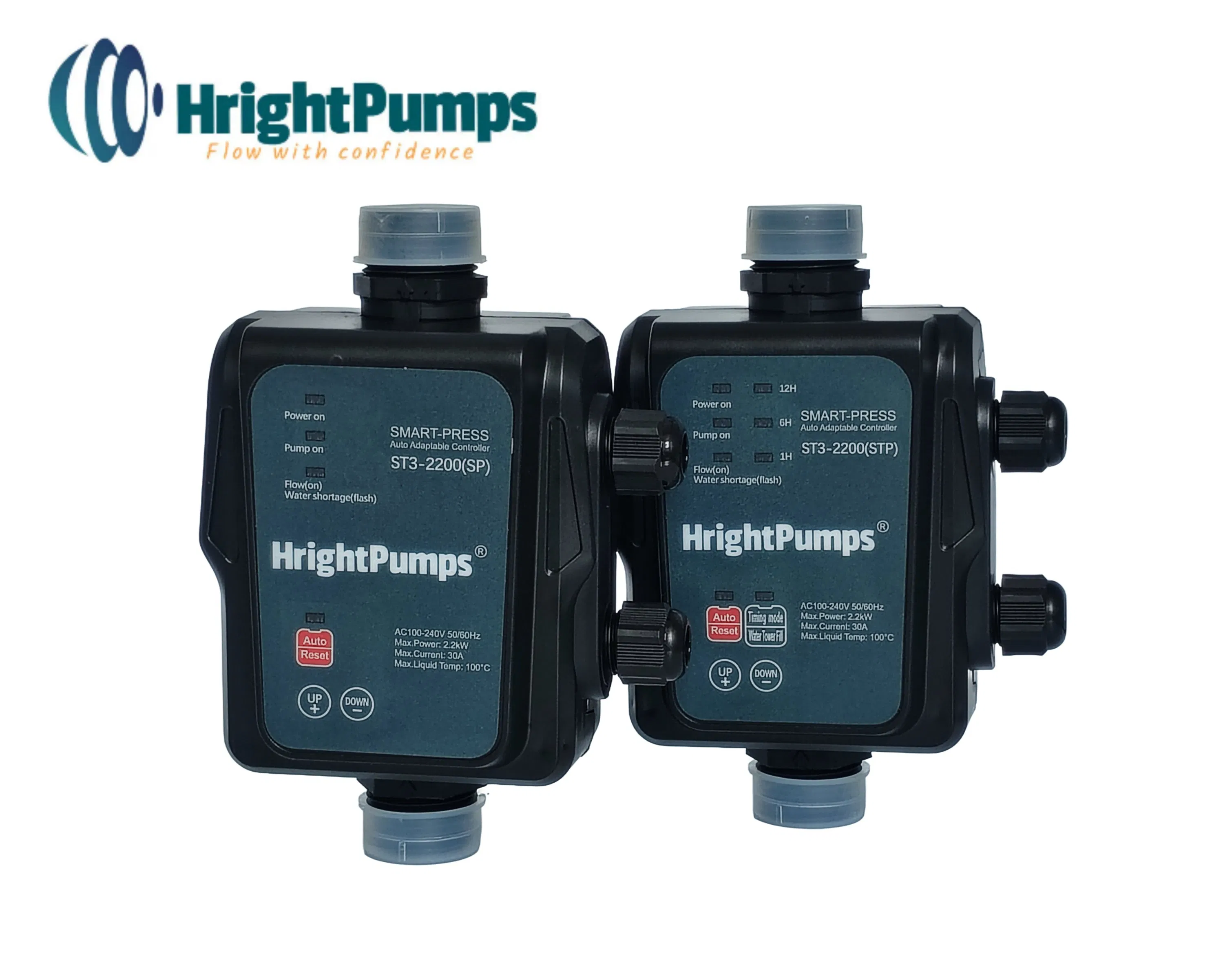

KG3B-2200(SP) is a small pump controller that detects real-time water pressure within the piping system and generates starting pressure automatically without any manual intervention. It combines multi-protective measures such as water shortage protection incoming water detection and anti-cycle protection to protect the pump from common water failures.

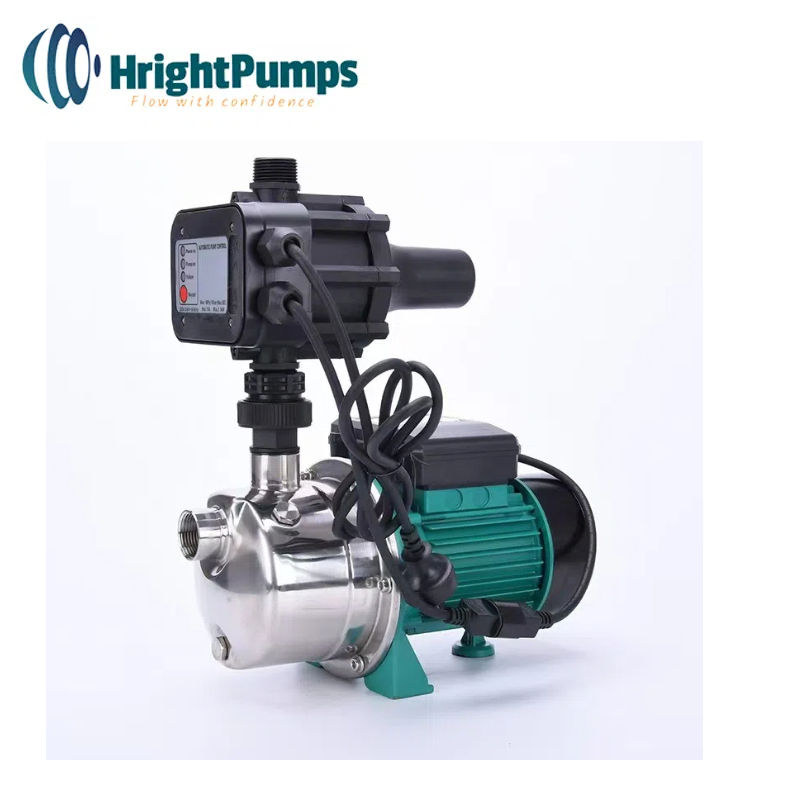

Widely workable with different types of pump, including deep well submersible pump for self-priming, and also automatically senses the max. the pressure of the pump and then set it by a certain percentage of max. pressure as "Starting" No manual setting of starting pressure in Auto Mode.

1. No need for manual intervention.
2. Eliminate the failures caused by manual adjustments.
3. One-click reset to solve most problems.
4. Multi-protection to extend pump life.

1. Auto starts the pump either by pressure lower than Startingpressure or by flow switch open.when starting the pump,it allows 3'20"self-priming time to prime the pump in case.(timing can be modified before ex-works)
2. Stop the pump automatically with the flow switch. Stop the pump in the case of water shortage. It will continuously run 3'20", then stop the pump.
3. Able to adjust the starting pressure easily with the +, and - button, to suit different working circumstances.

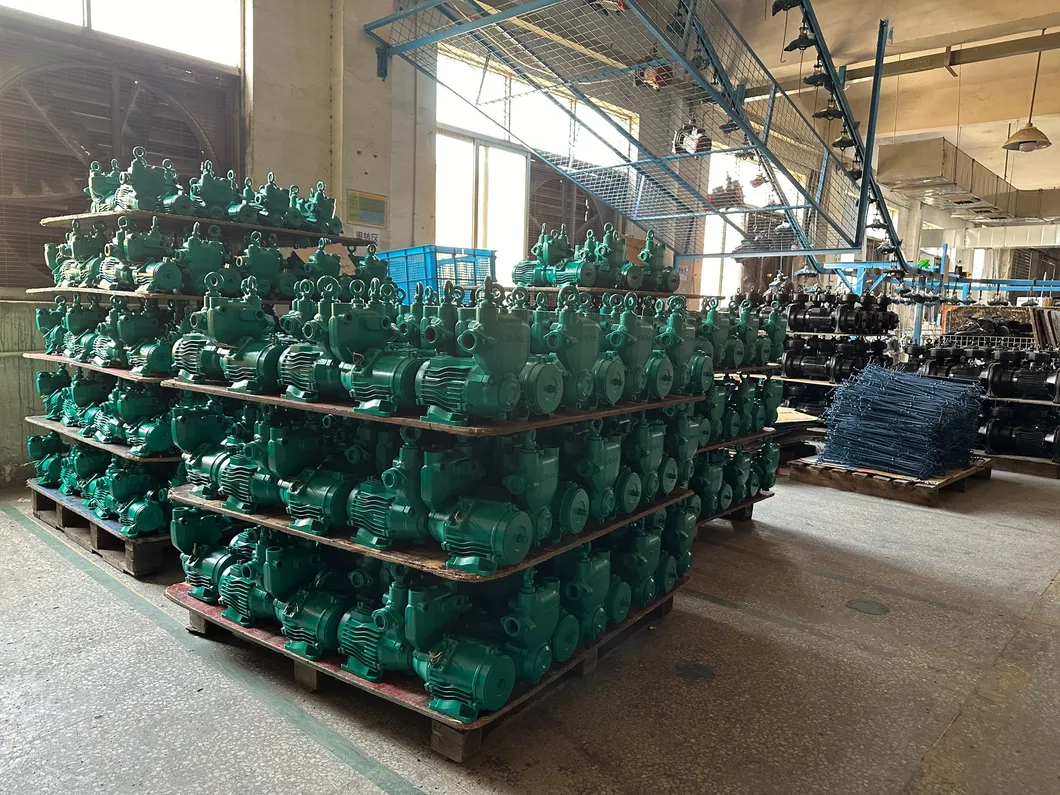

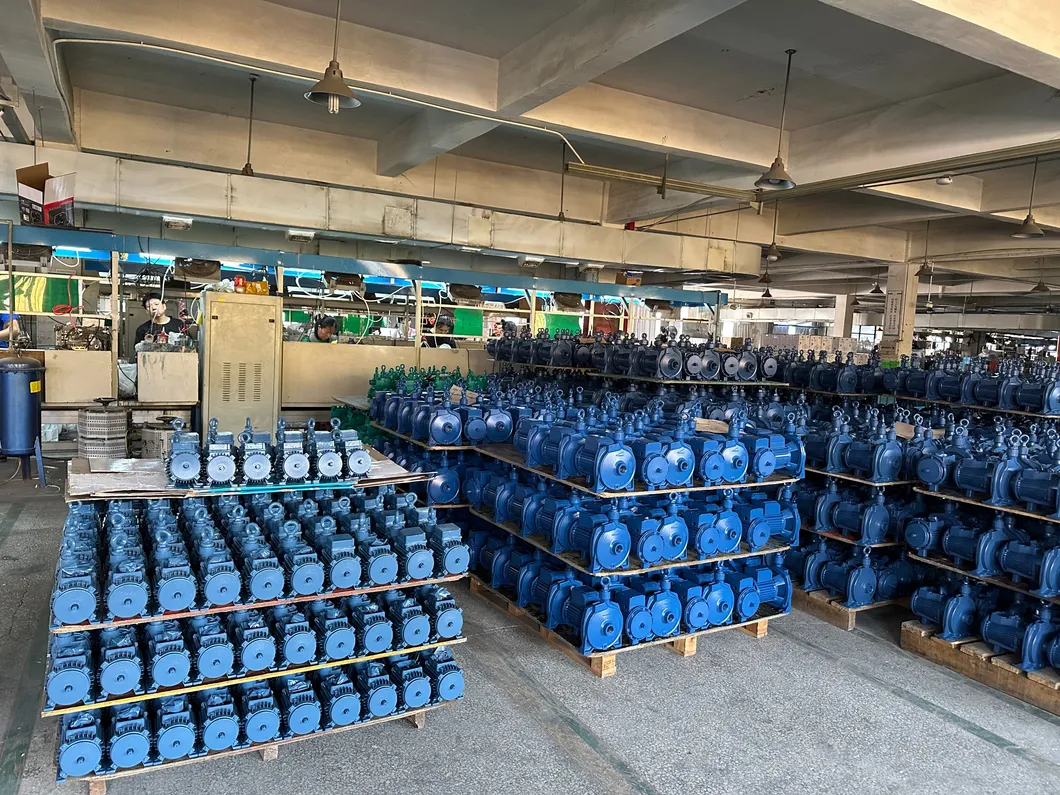

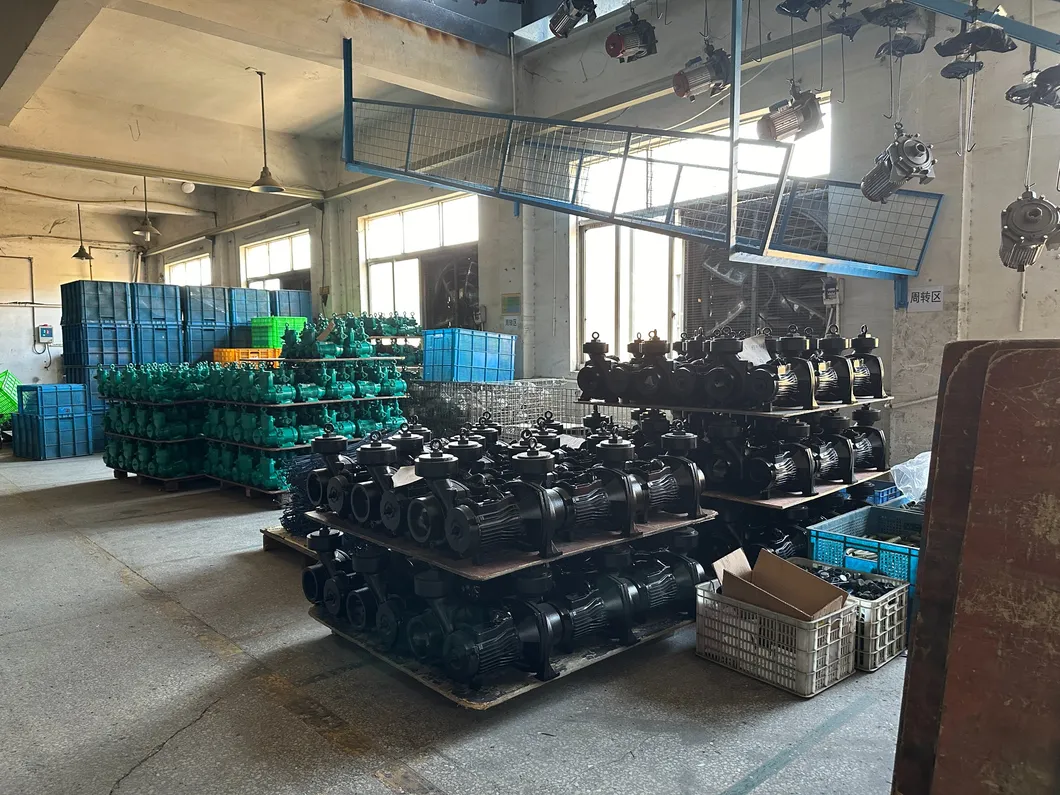

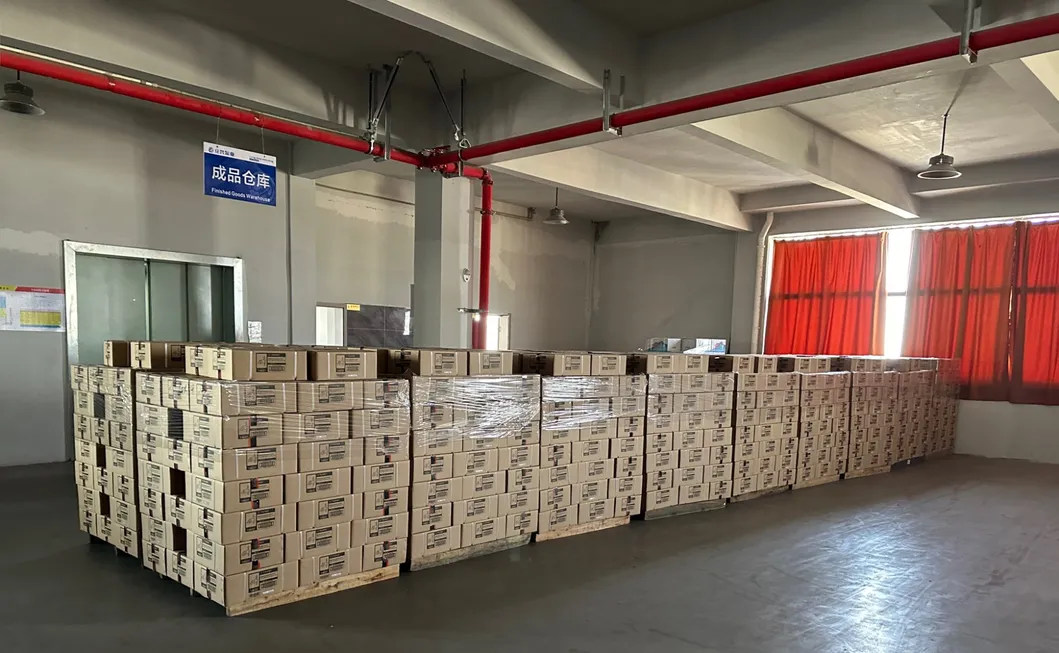

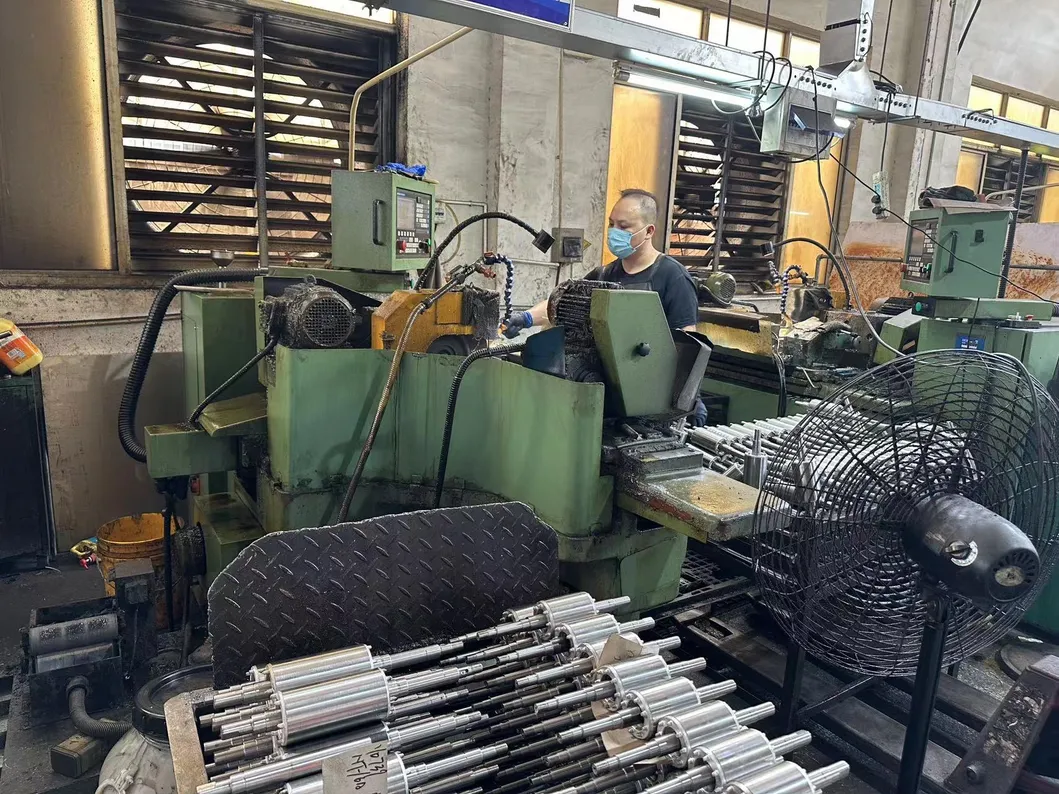

Established in 1999, we were originally a small factory for OEM service. Through years of persistence in strict quality control and pursuit of the spirit of craftsmanship, we've accumulated a reputation in the pump industry and provided a variety of pumps and services for large and medium-sized pump brands around the world.

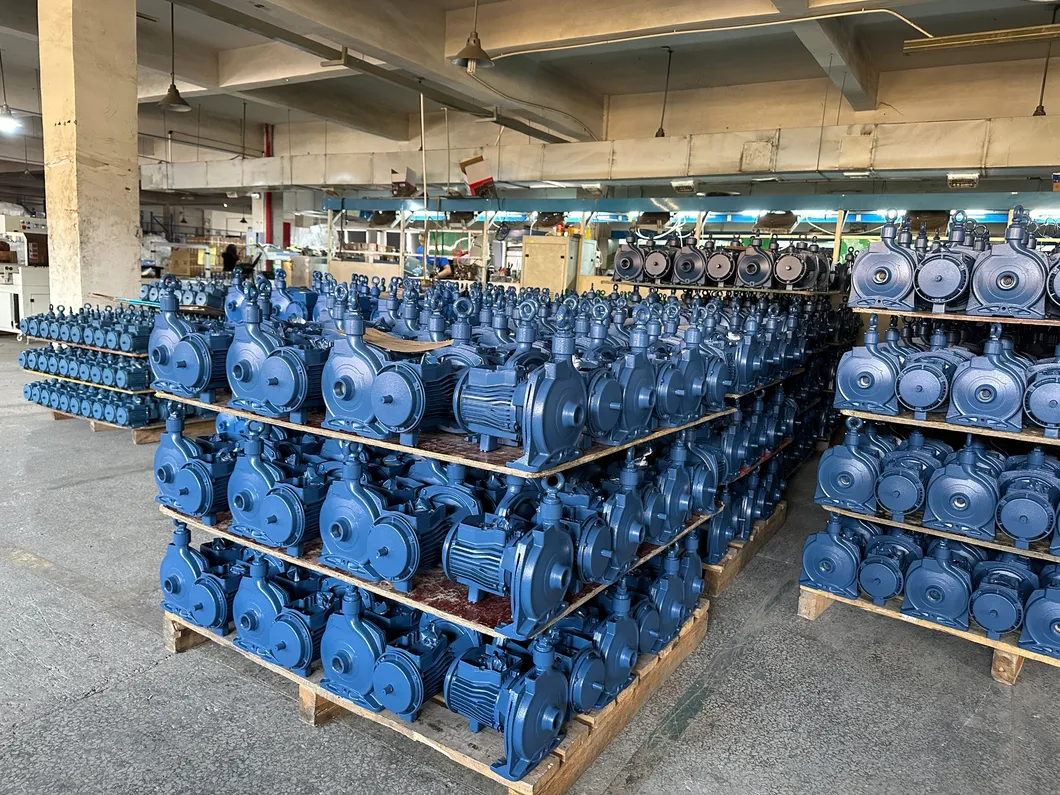

Today, our products include submersible pumps, surface pumps, and circulation pumps, covering a wide range from household, agricultural, and commercial to industrial areas.
