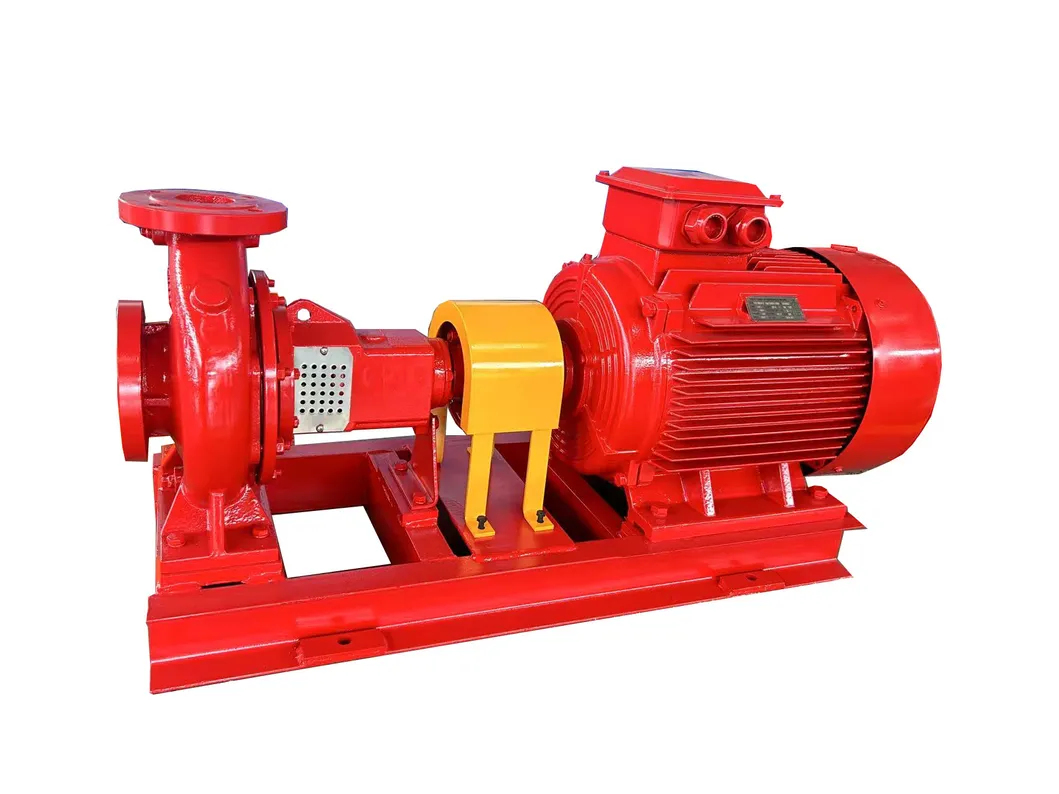

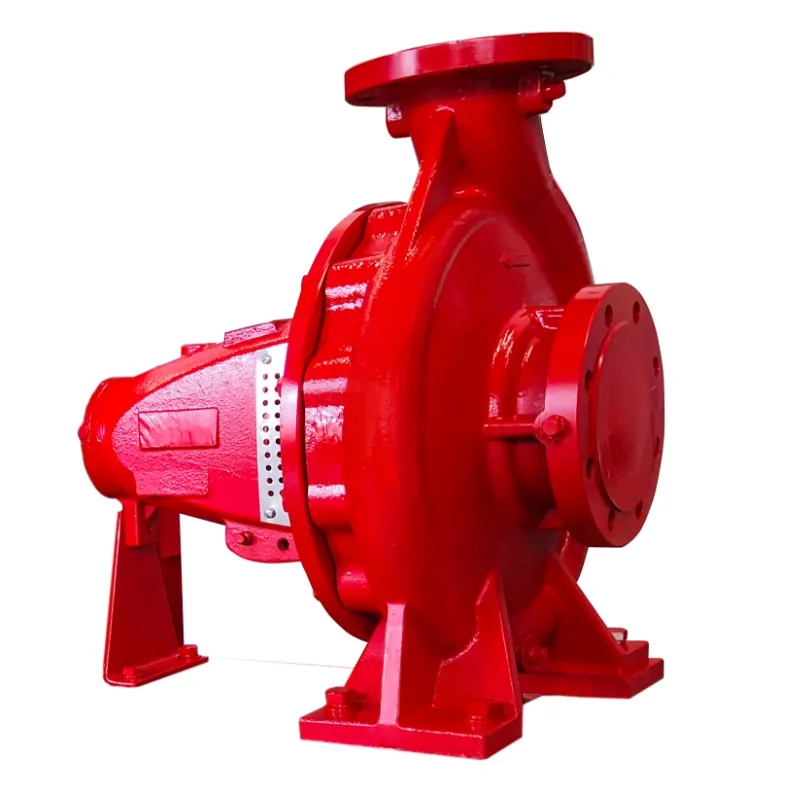

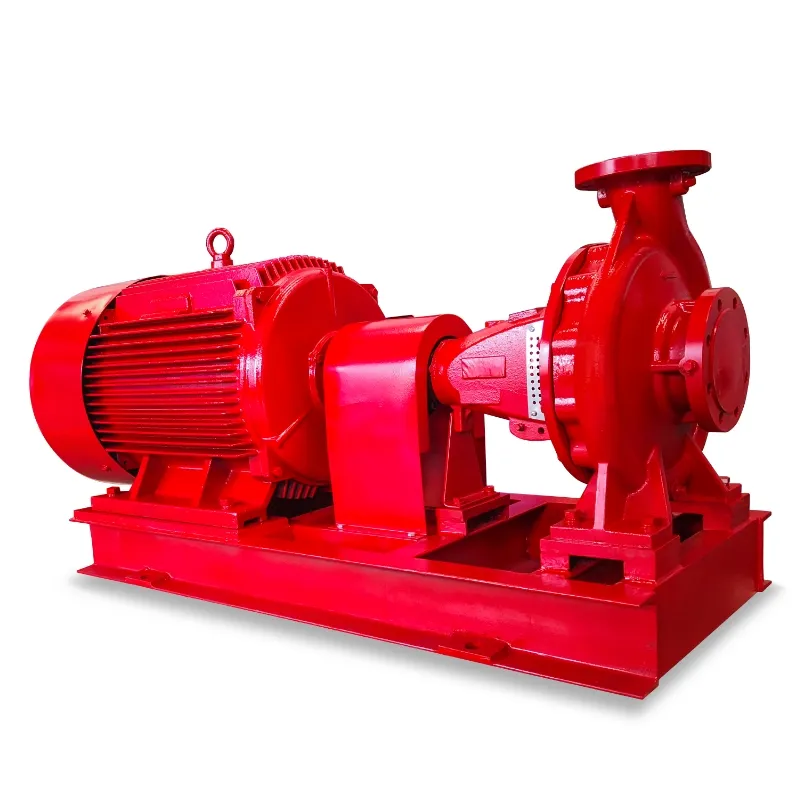

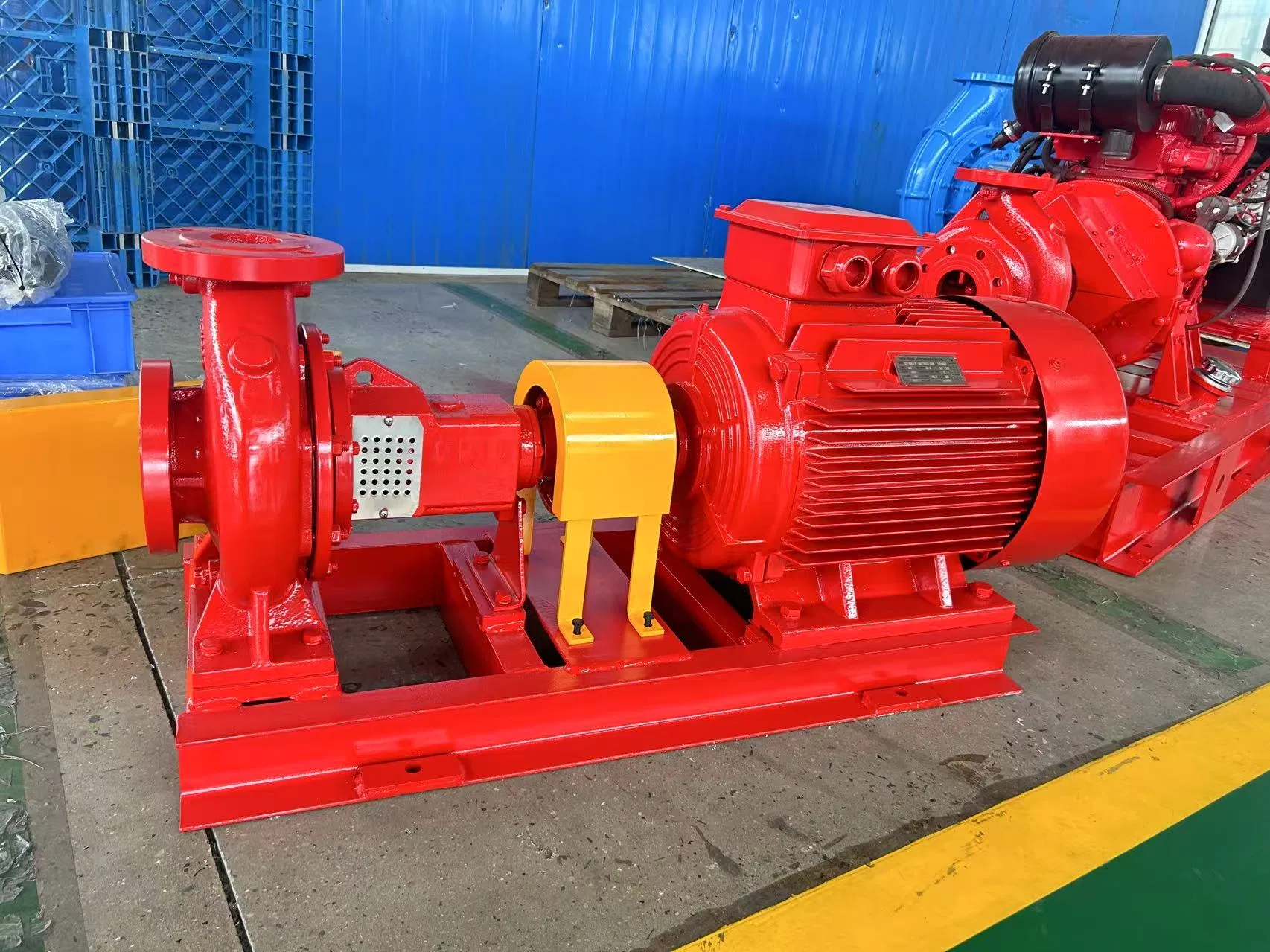

HORIZONTAL END SUCTION CENTRIFUGAL FIRE PUMP
End suction centrifugal pumps are defined by the water's entry pathway. Water enters one side of the impeller, typically from "the end" on horizontal models. Unlike split casing types, the suction pipe and motor are parallel, simplifying orientation in mechanical rooms. Bearing support is provided by the motor or the pump power frame, making these ideal for specific water flow applications.
| Parameter | Specifications |
|---|---|
| Capacity | 50 to 750 GPM (11.4 to 170 m3/hr) |
| Head | 118 to 490 feet (36 to 150 meters) |
| Pressure | Up to 360 psi (25 kg/cm2, 2500 kPa) |
| Horse Power | Up to 180 hp (132 kW) |

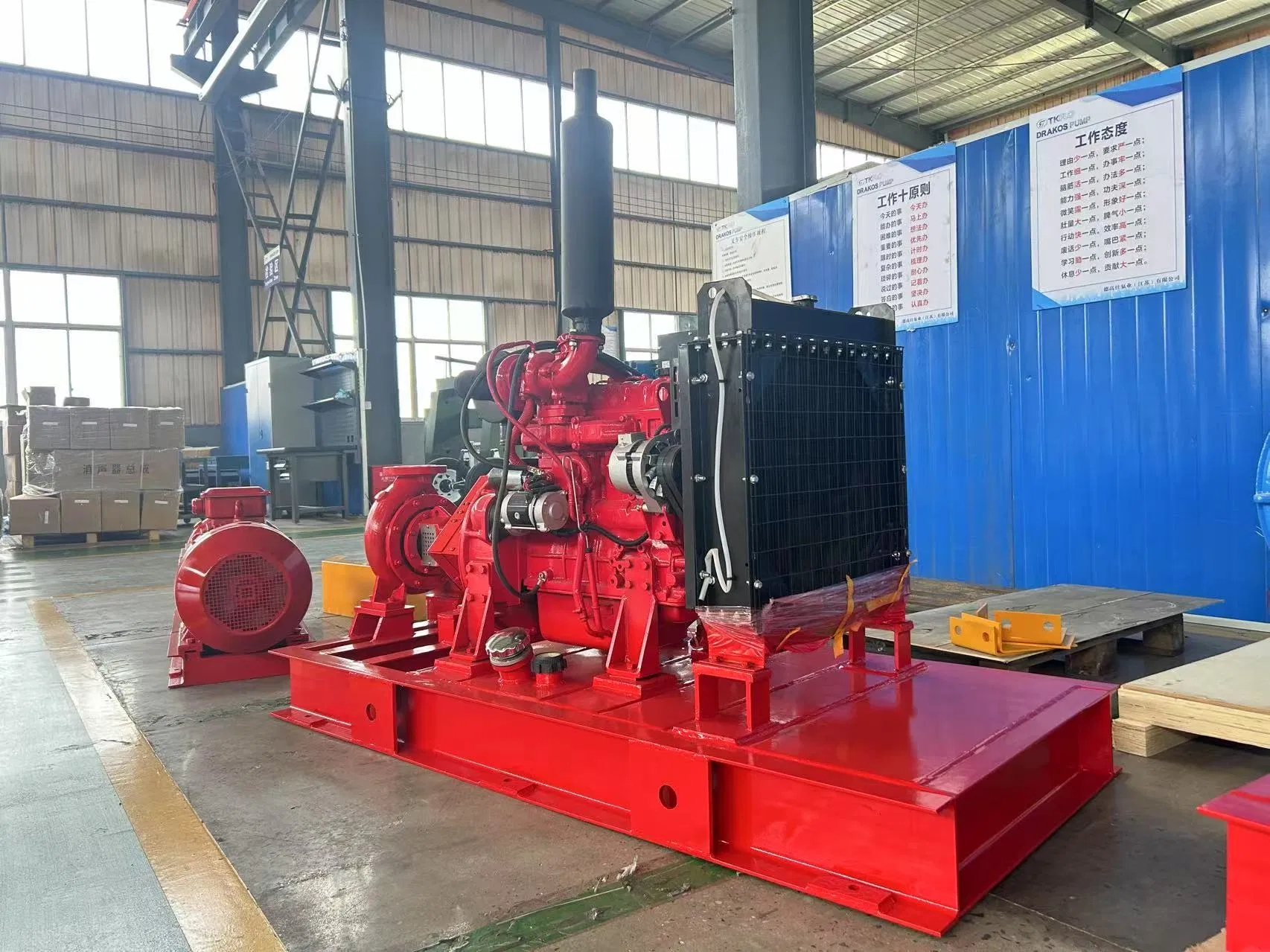

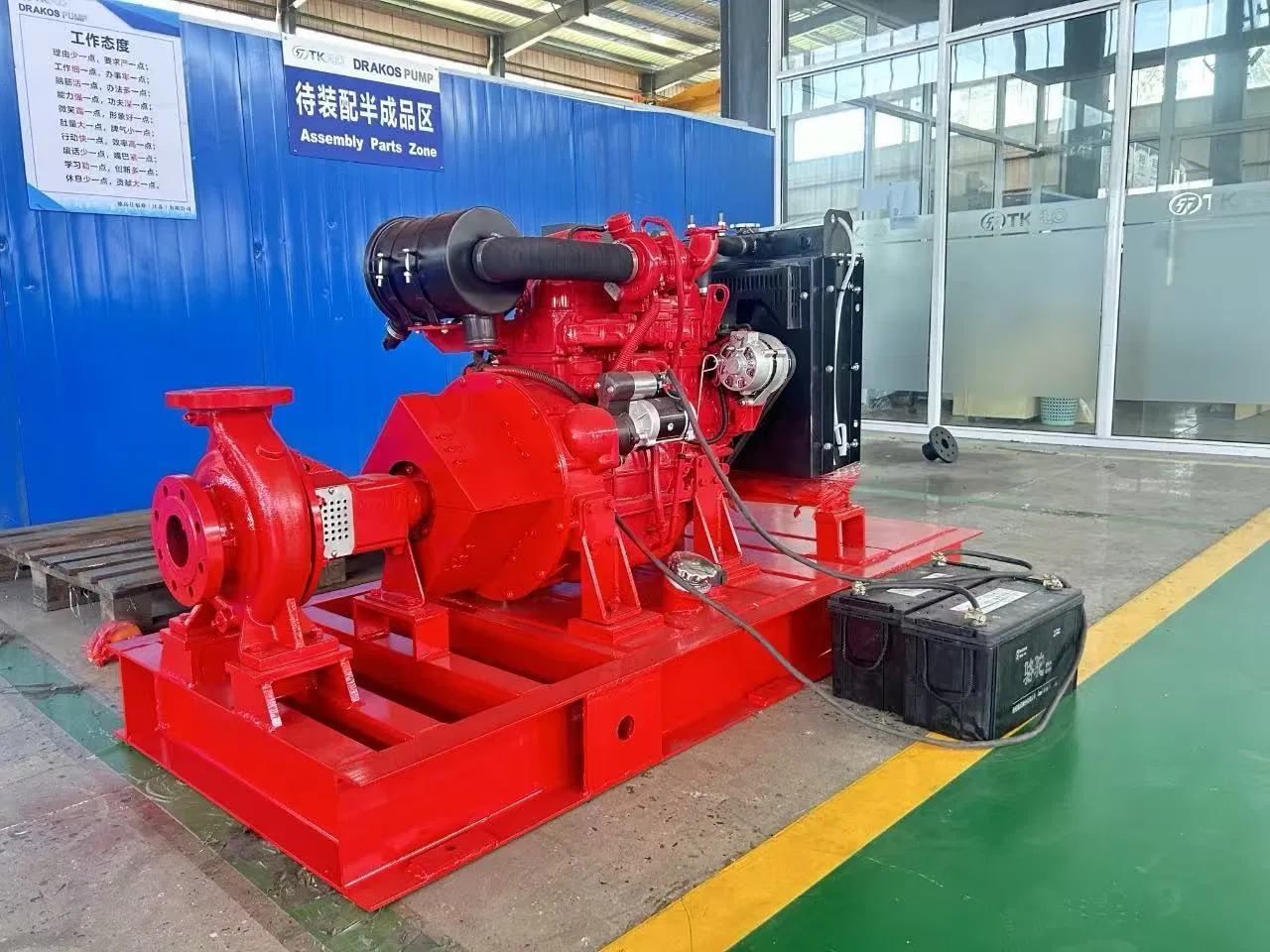

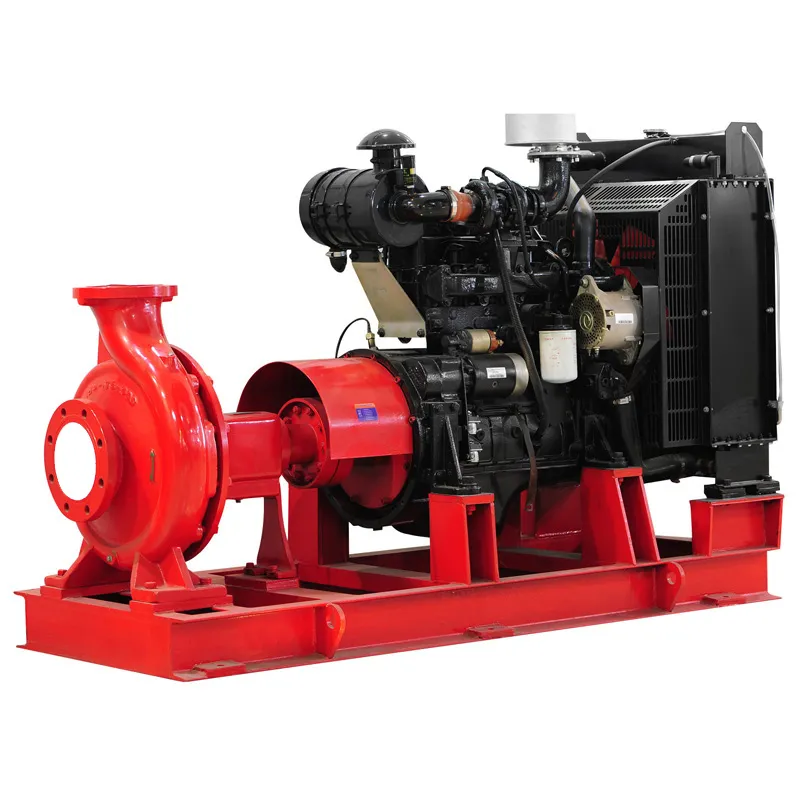

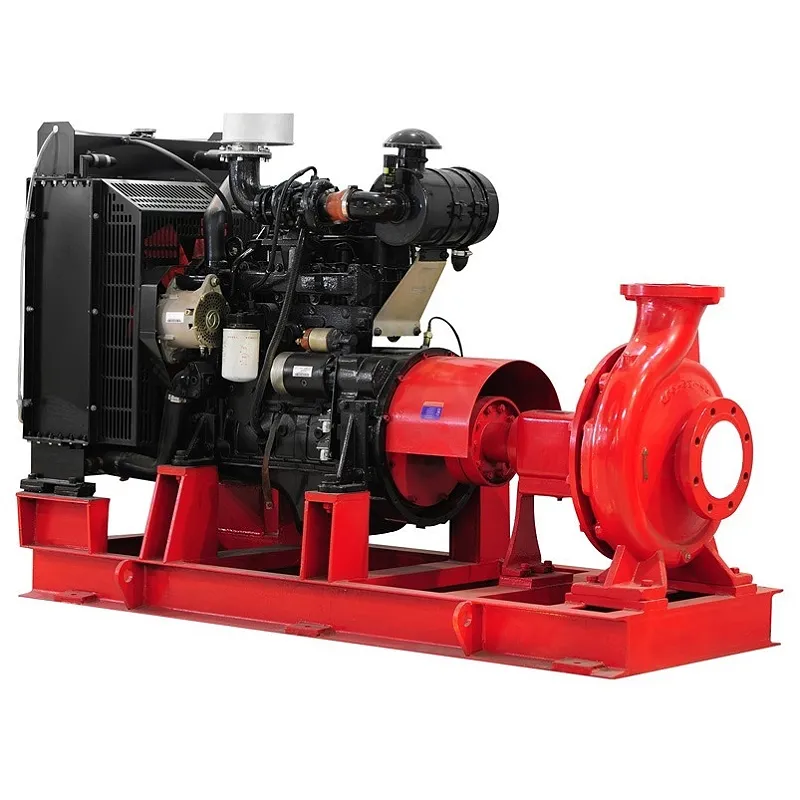

| Drivers | Horizontal electric motors, diesel engines |
| Liquid Type | Water |
| Material | Cast iron, Stainless steel, bronze fitted as standard |

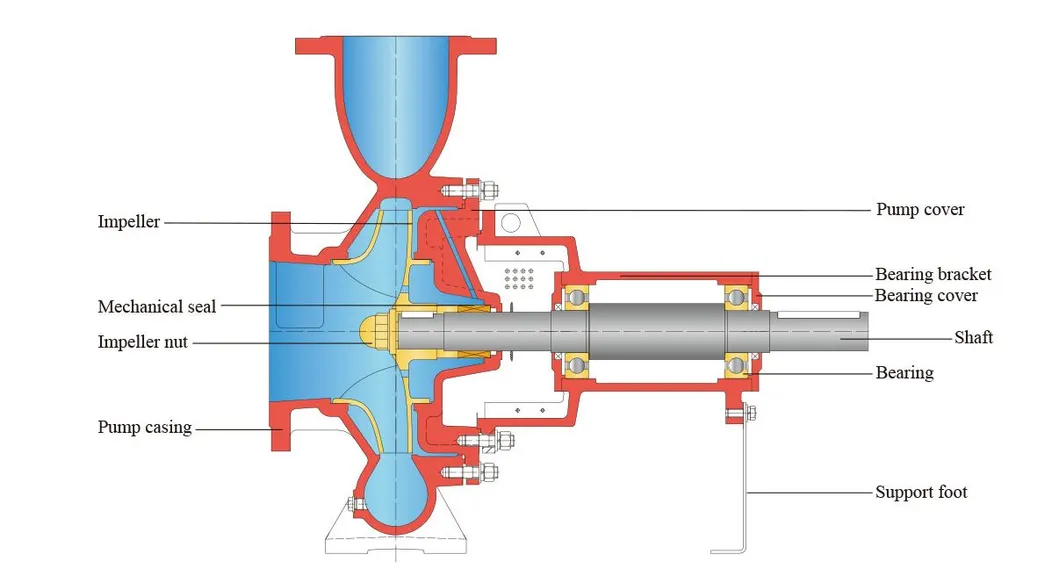

Sectional View:

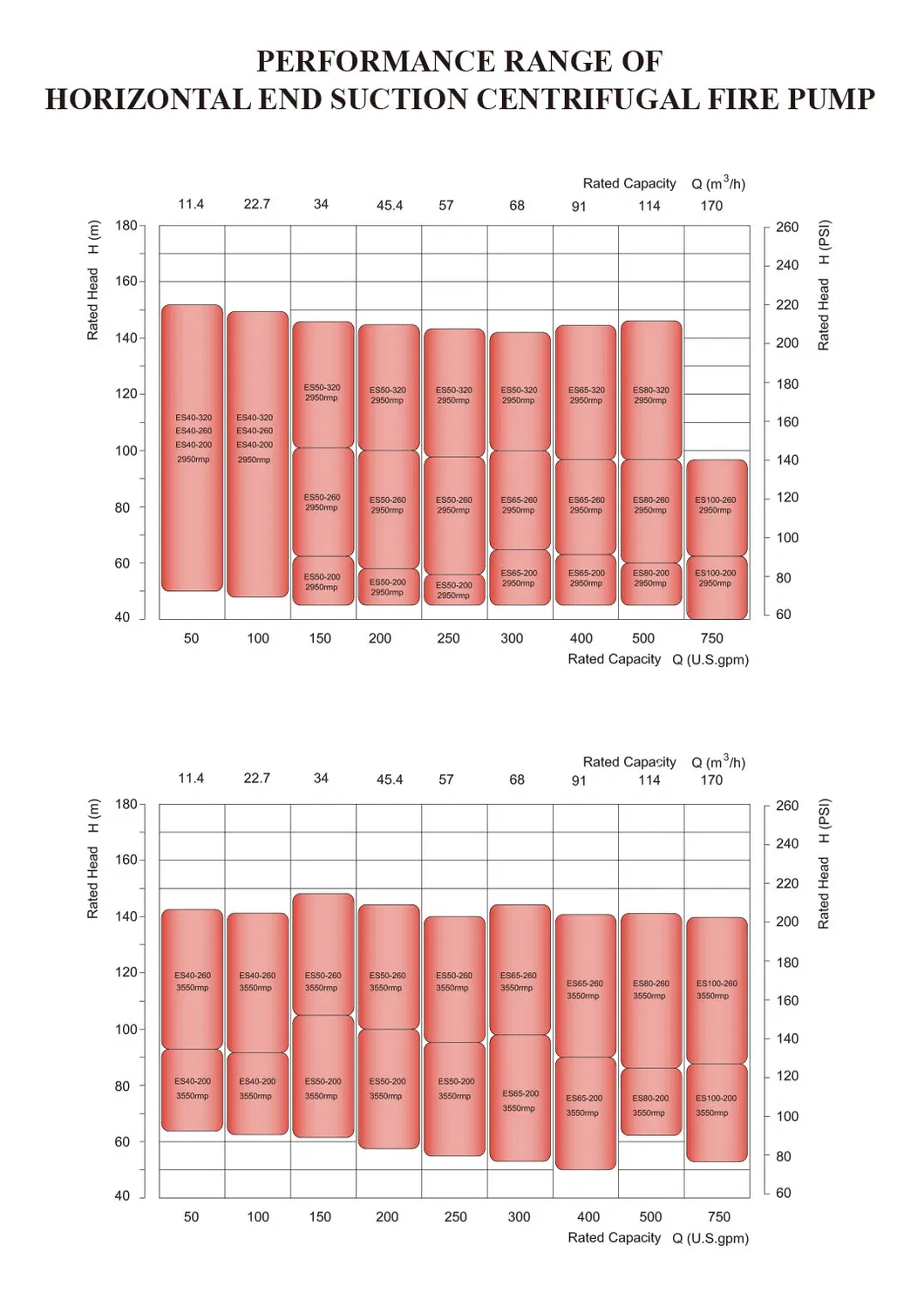

Performance Range Curve:
A jockey pump maintains the pressure in a fire protection system at an artificially high level. This ensures that the operation of even a single sprinkler head causes a detectable pressure drop, triggering the main fire pump.
Our fire pumps deliver superior performance across multiple sectors:
Typical use cases include: General Industry, Building Trade, Power Industry, Fire Protection, Municipal, and Agriculture.
Our manufacturing processes adhere to international standards including ISO 9001:2015, ISO 14001, and ISO 45001. Every unit undergoes rigorous testing to ensure reliability in critical emergencies.
