Small Mortar Spraying Machine Concrete Mixer Construction Machinery Electric Diesel Engine Mobile Portable Trailer Mounted Concrete Pump for Sale

1 / 5

Small Mortar Spraying Machine Concrete Mixer Construction Machinery Electric Diesel Engine Mobile Portable Trailer Mounted Concrete Pump for Sale

Customization:	Available
After-sales Service:	Online
Warranty:	1year

Send Inquiry

Product Description

Basic Specifications

Model NO.

YG-30

Type

Concrete Pump

Shotcrete Type

Wet

Machining Process

Hydraulic

Productivity

35m³/h

Feeding Height

1380mm

Diesel Motor

4105 Model 55HP

Max Outlet Pressure

15/18MPa

Max Throughput

25-30m³

Horizontal Distance

160-200m

Vertical Distance

100m

Pipe Diameter

φ125(100)mm

Package Size

3800x1500x1600mm

Package Weight

2500kg

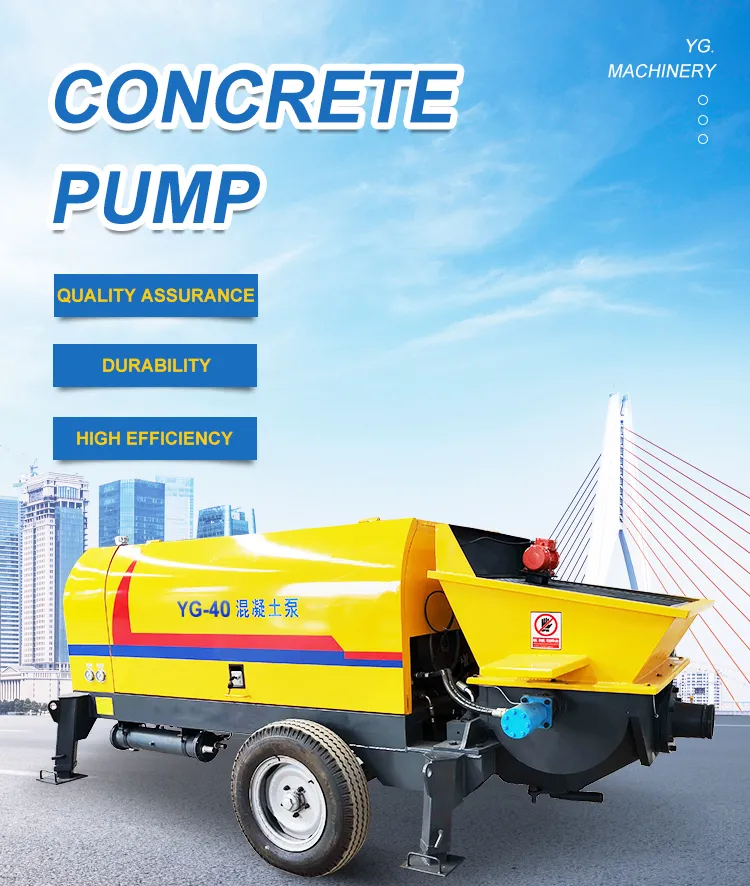

Product Overview

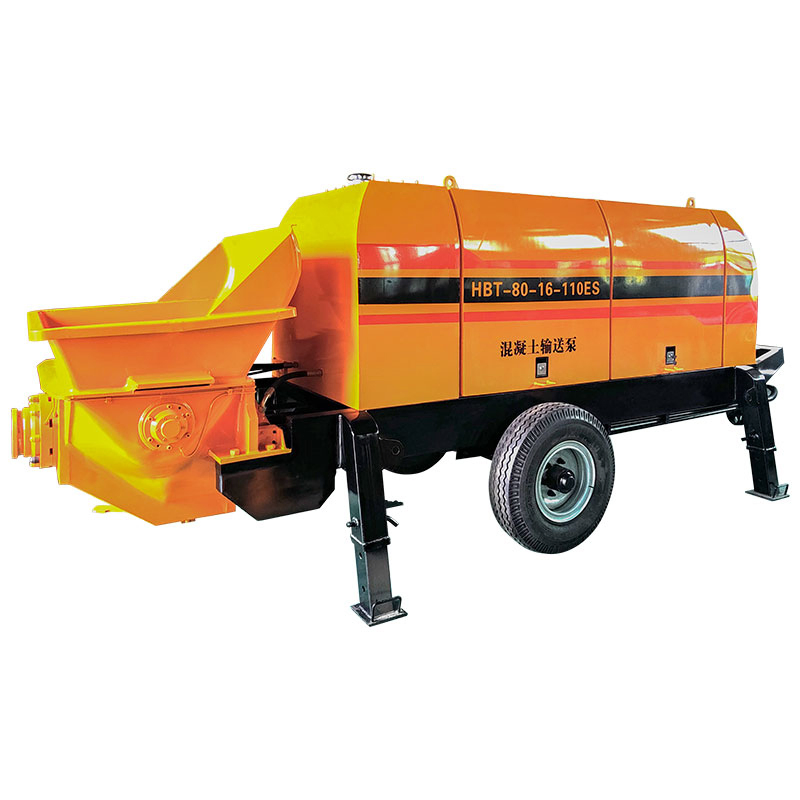

Small Mortar Spraying Machine Concrete Mixer - Mobile Portable Trailer Mounted Concrete Pump

The concrete pump, also known as a secondary structural column pouring pump, is ideal for transporting fine stone concrete in high-rise buildings and pouring structural columns across various floor levels.

Key Features:

01 S-tube type distribution valve designed for small aggregate concrete and mortar.
02 High-efficiency deformation plunger main oil pump providing strong pressure.
03 Independent three-circuit control hydraulic system with highly reliable spectacle plate.
04 Carbide cutting ring for superior wear resistance and extended service life.
05 Double-cylinder piston pumping mechanism ensures continuous and advanced performance.

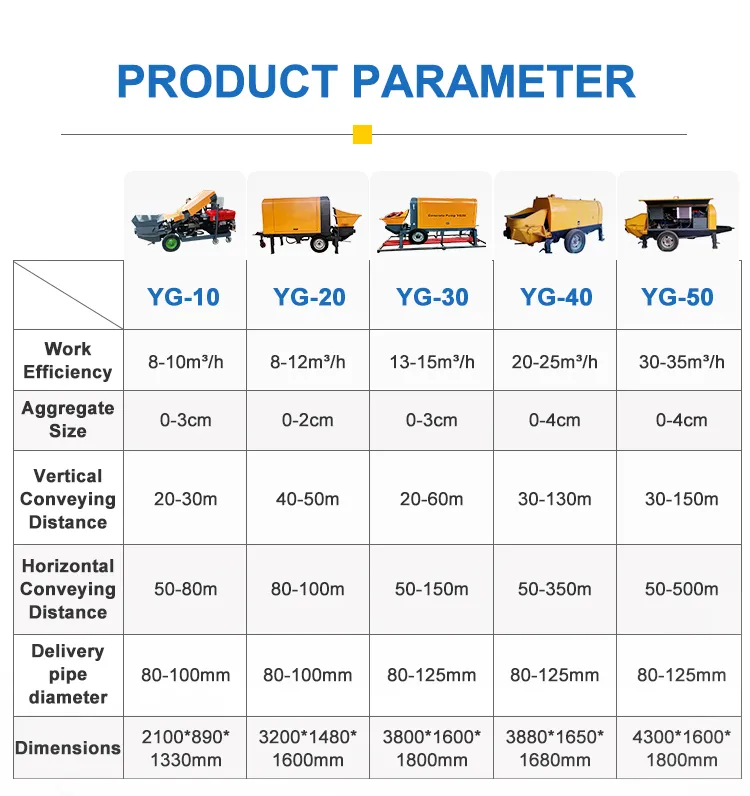

Technical Parameters

Parameter Item	Details
Model	YG-30 Trailer Concrete Pump
Power	4105 model 55HP
Max Outlet Pressure	15/18 mpa
Max Theoretical Throughput	25-30m³/h
Horizontal Conveying Distance	160-200m
Vertical Conveying Distance	100m
Conveying Pipe Diameter	φ125(100)mm
Weight	Approx. 2000kg
Dimensions	3800x1500x1600mm

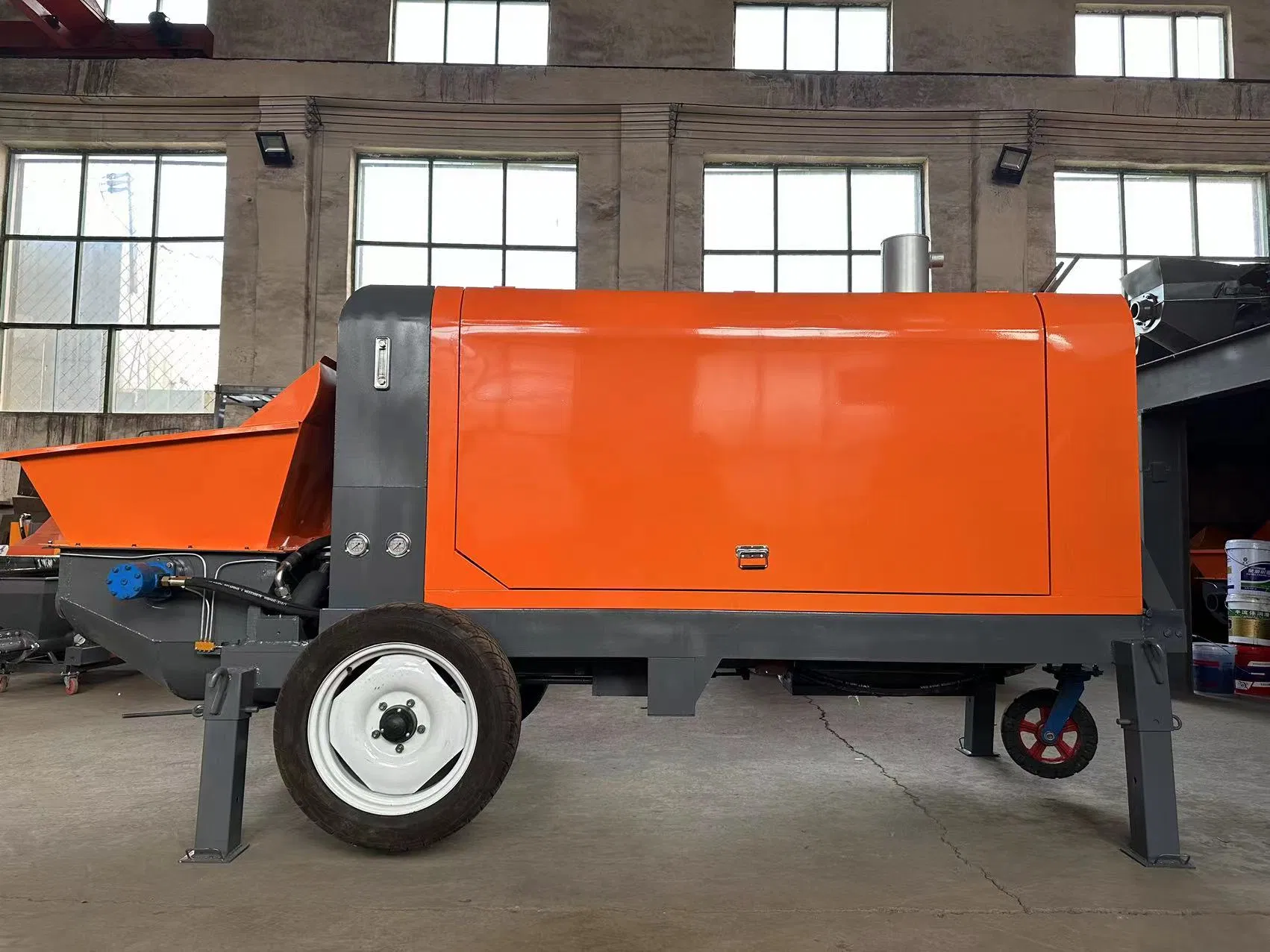

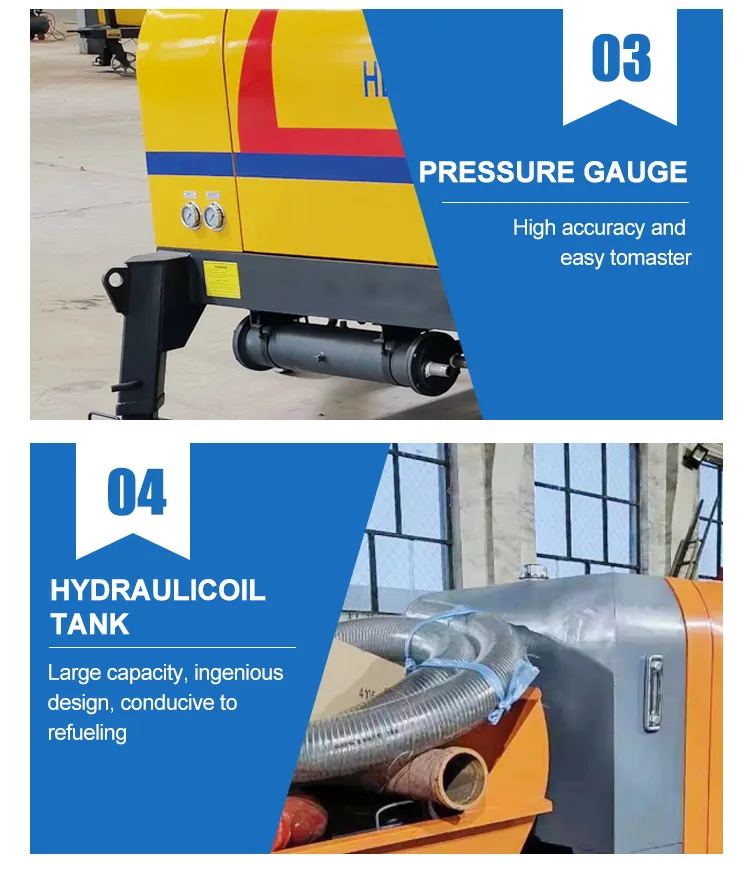

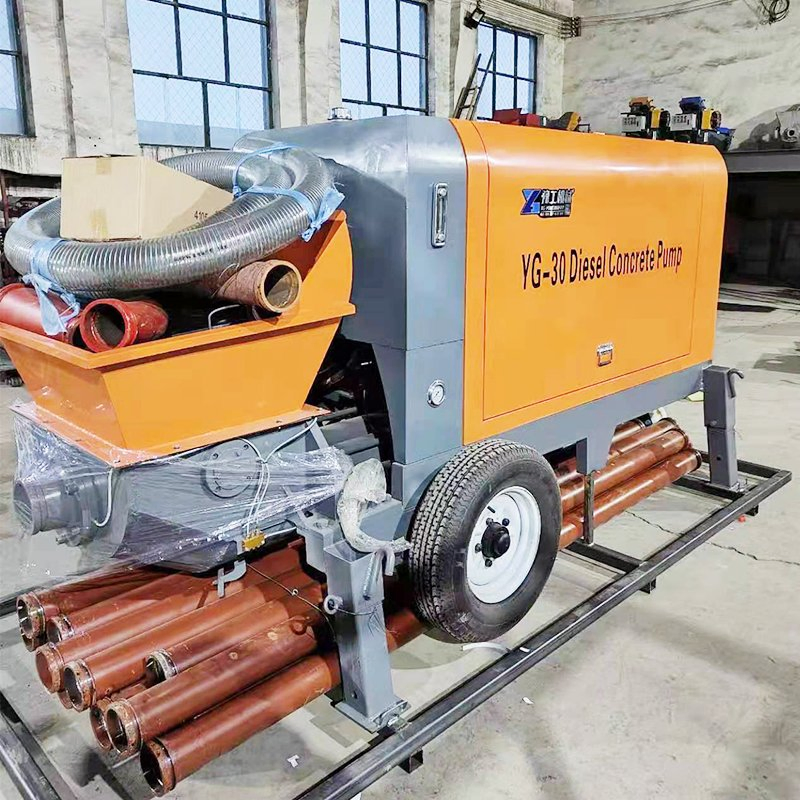

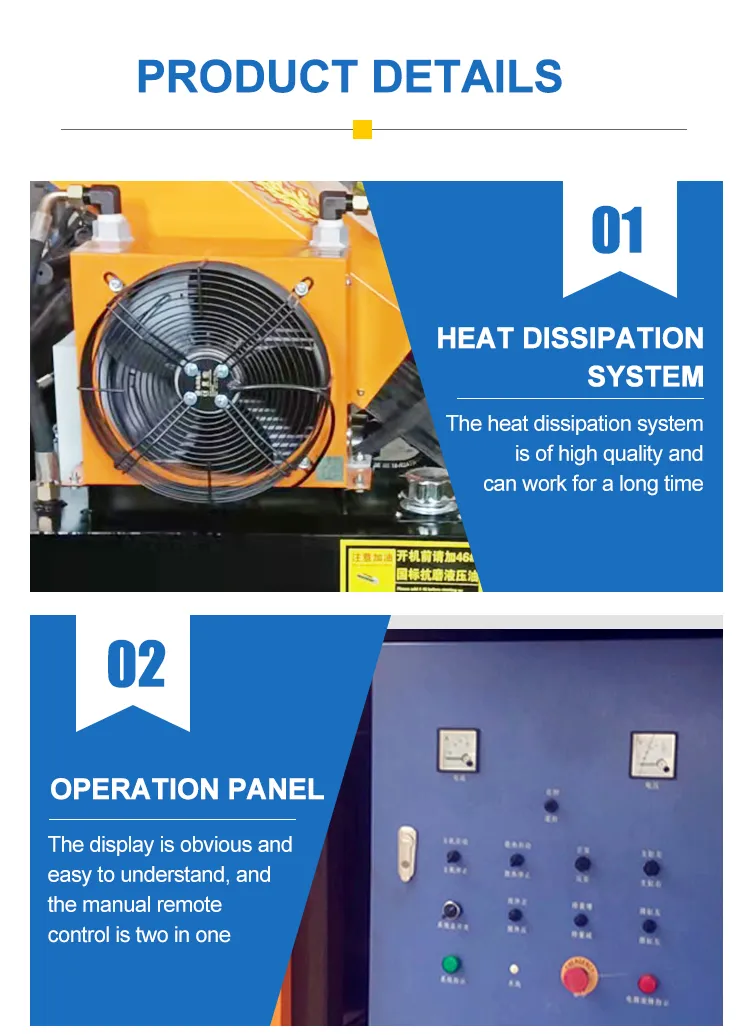

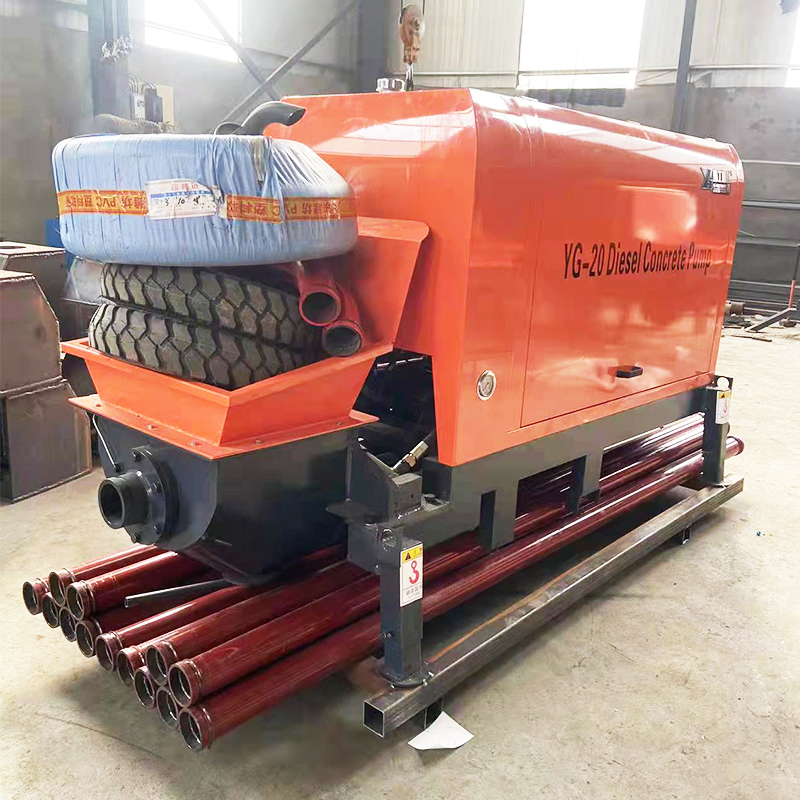

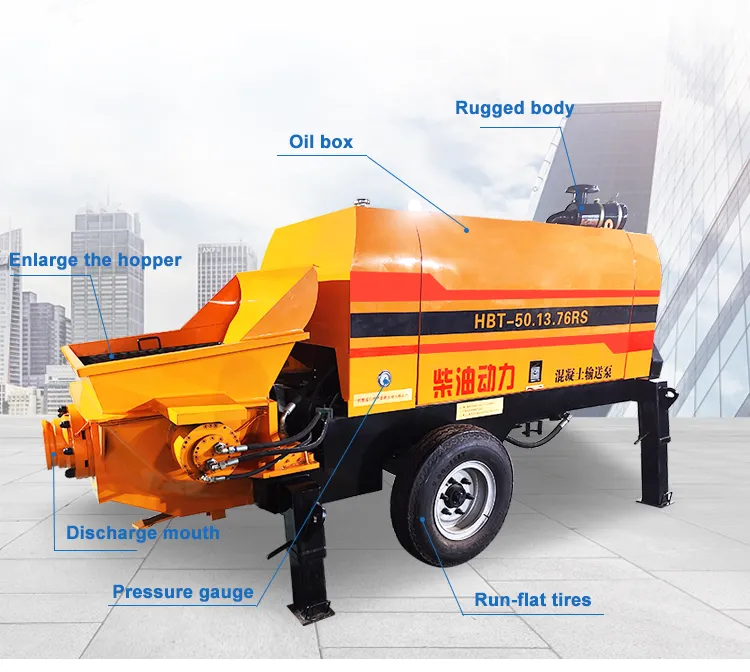

Detailed Photos

Related Model: YG-40-35D

Generator Power	150kw
Pump Power	45kw
Aggregate Size	0.5-40mm
Conveying Capacity	20-30m³/h
Max Pressure	20mpa

Packaging & Shipping

Frequently Asked Questions

1. What is the maximum horizontal and vertical conveying distance?

The YG-30 model can reach a maximum horizontal conveying distance of 160-200 meters and a vertical height of up to 100 meters.

2. What type of engine powers this concrete pump?

This machine is equipped with a powerful 4105 model diesel engine, providing 55HP for reliable performance in construction sites.

3. Is this pump suitable for high-rise building construction?

Yes, it is specifically designed for secondary structural column pouring and transporting fine stone concrete in super high-rise buildings.

4. What is the production capacity of the YG-30 model?

The theoretical throughput for the YG-30 concrete pump is between 25-30 cubic meters per hour.

5. Does the machine come with certification for international use?

Yes, the machine is CE certified, ensuring it meets the required safety and quality standards for international markets.

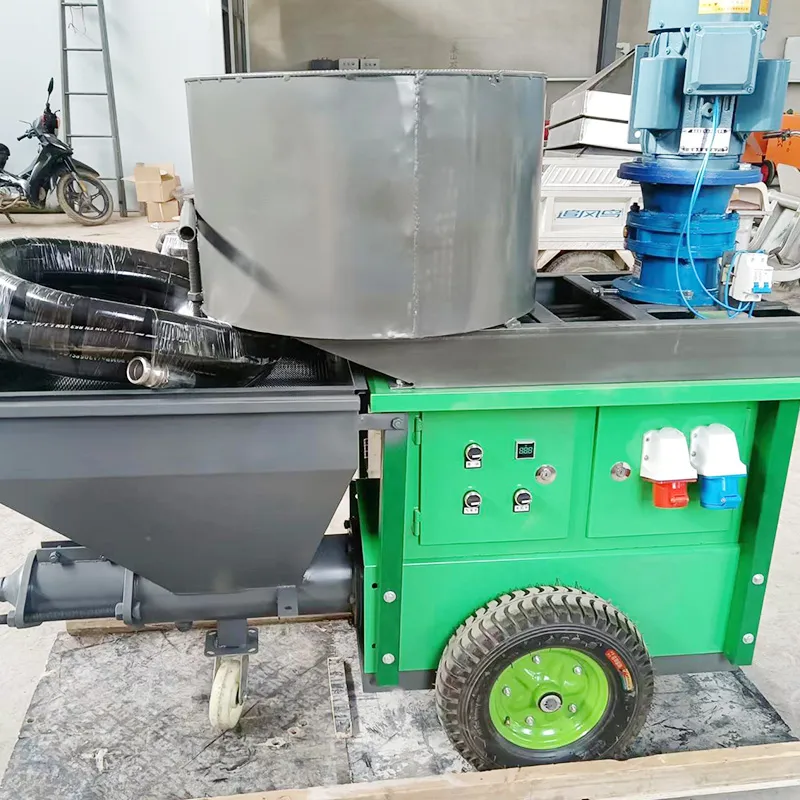

6. What materials can be used with the mortar spraying machine?

It is applicable for various mortar mixtures, typically with a ratio of water:ash:sand around 0.7-1:1:3, and aggregate diameters ≤12mm.
