Small Concrete Pump, 60 Cubic Meters/Hour, Stationary and Mobile Concrete Pumps for Construction / Portable Diesel Concrete Pumps for Sale.

1 / 6

Small Concrete Pump, 60 Cubic Meters/Hour, Stationary and Mobile Concrete Pumps for Construction / Portable Diesel Concrete Pumps for Sale.

Still deciding? Get samples of $ !

Order Sample

Product Description

Overview
Product Description
Specification
Product Details
Construction Cases
Related products
Packaging & Shipping
Company Profile

Basic Info.

Model NO.

HBTS80X13FA

Type

Concrete Pump

Shotcrete Type

Wet

Machining Process

Hydraulic

Structure

S-Tube Type

Productivity

90m²/h

Feeding Height

1350mm

Vibrating Amplitude

0mm

Certification

ISO9001: 2000, CE

Condition

New

Color

Orange

Theoretical Conveying Capacity

30 - 120 M³/H

Export Pressure

8 - 16 MPa

Motor Power

55 - 90kw

Pumping Slump

100 - 230mm

Engine

Weichai-Deutz Diesel Engine

Drive Type

Electric or Diesel Power

Application

Buildings, Bridges, Tunnels, etc.

Accessories

Pipes and Clamping and Cleaning Balls

Hopper Capacity

0.8 - 1.3m³

Distribution Valve Type

S-Tube Valve, Gate Valve

Hydraulic System

Open Type, Closed Type

Delivery Pipe Diameter

125mm,150mm

Maximum Horizontal Conveying Distance

600 Meters

Control Method

Manual, Remote Control, Intelligent

Electrical Component Brands

Siemens

Transport Package

Standard Exporting Package

Specification

480*170*180mm

Trademark

HEBEILITE

Origin

Hebei, China

HS Code

8413400000

Production Capacity

400 Pieces/Month

Packaging & Delivery

Package Size

600.00cm * 300.00cm * 100.00cm

Package Gross Weight

500.000kg

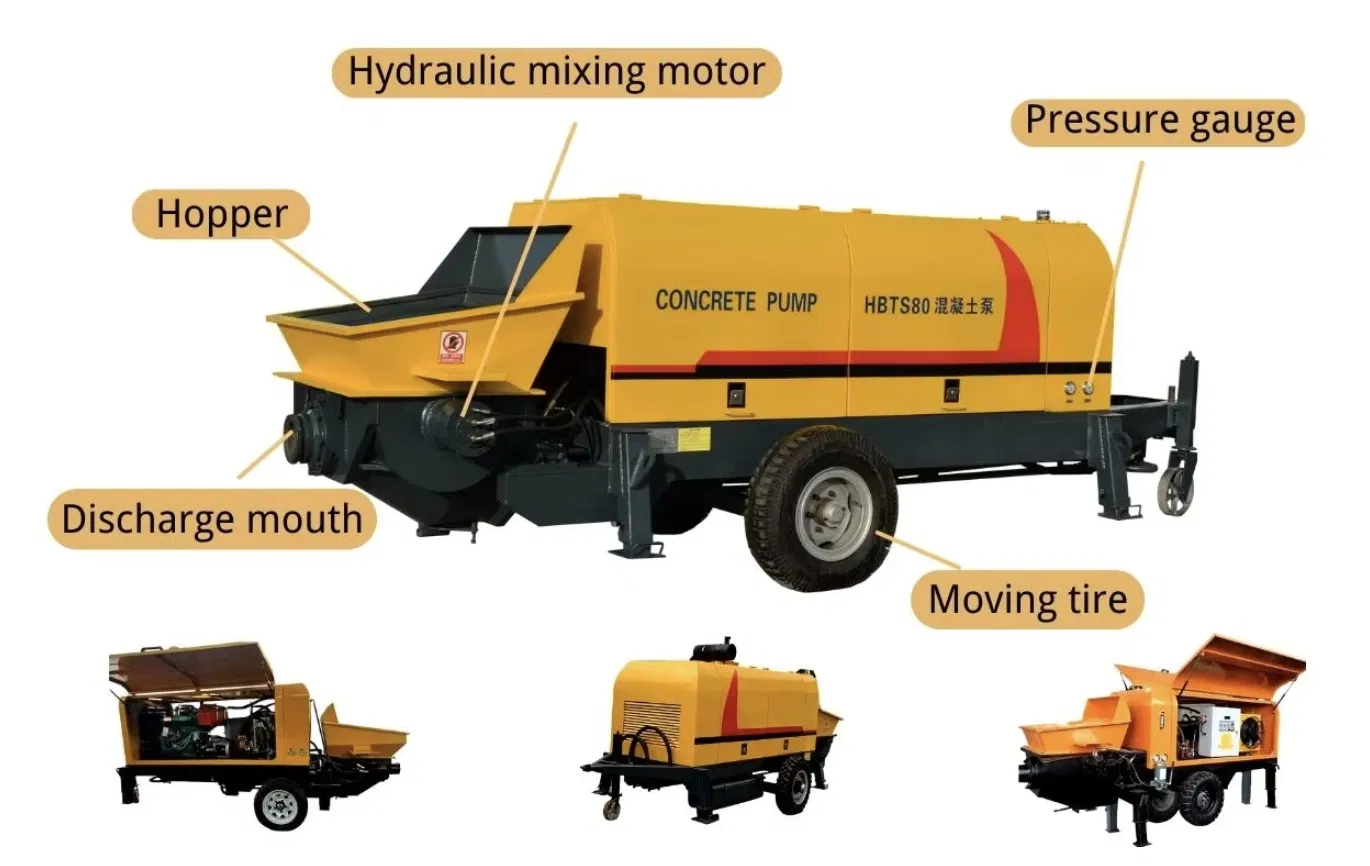

Product Description

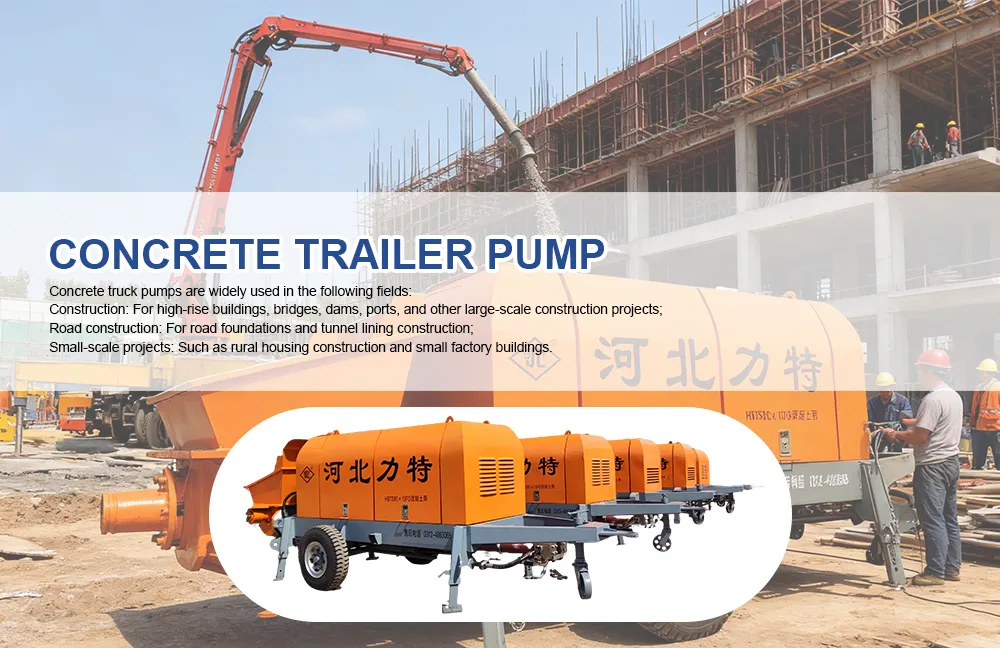

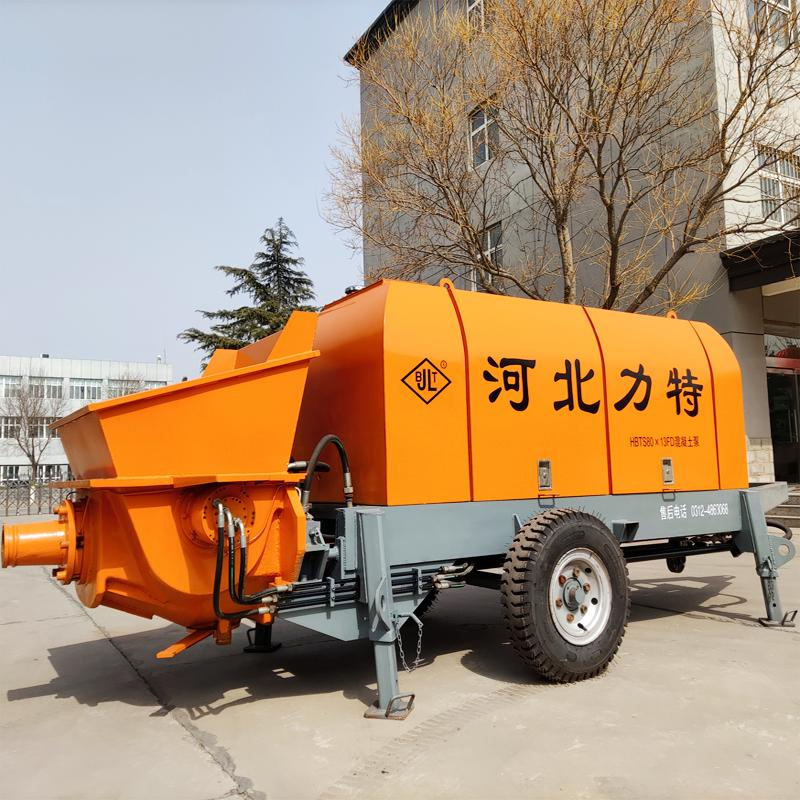

The Litte concrete trailer pump integrates gravel lifting, mixing, and pumping, requiring only one operator to complete the entire operation. Its advantages are significant: substantially reduced labor costs, saving at least 3-4 construction workers; increased work efficiency by 4-6 times, accelerating construction progress.

The equipment is easily and flexibly movable, suitable for relocation across multiple construction sites; equipped with a high-output pressure system, it can meet the needs of high-rise buildings and long-distance concrete transportation. Utilizing an advanced S-valve design, it can flexibly change the conveying direction, making it more suitable for fine aggregate concrete conveying; equipped with suction pumping function, it minimizes pipeline blockage problems and ensures continuous operation.

The electrical system uses PLC intelligent control, providing precise and stable operation; the glass plate and cutting ring are made of high-hardness, wear-resistant alloy materials, extending the service life of vulnerable parts. The equipment also features an automatic centralized lubrication system, significantly improving the durability of rotating parts; the hydraulic cooling uses an advanced air cooling system, eliminating the need for an external water source and making it more convenient to use; the rollers are driven by gear friction, ensuring reliable anti-slip performance; and the electrical control cabinet is equipped with a wireless remote control handle, making operation simple and efficient.

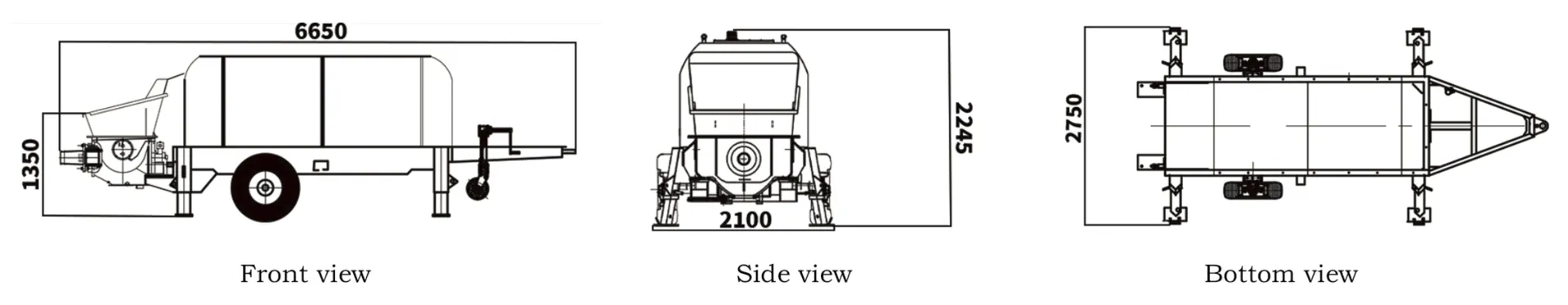

Specification

Product Model	60-type electric	60 type diesel	80-type electric	80 type diesel
Electric motor/diesel engine power	90kw	Type 6105	110kw	Type 6108
Conveying capacity M³/h	45-60	47-62	45-80	47-82
Vertical conveyor height (M)	160-180	170-190	200	210
Horizontal conveying distance (m)	400-500	420-520	600	602
Maximum particle diameter (cm)	5	5	5	5
Delivery pipe diameter (mm)	125	125	125	125
Cylinder diameter (mm)	200-220	200-220	220-230	220-230
discharge port diameter (mm)	180-200	180-200	200	200
main oil pump	140 Rexroth piston pump	140 Rexroth piston pump	224 Rexroth twin piston pump	224 Rexroth twin piston pump
Total weight (kg)	4000	4800	5000	6500
	480170180	480170180	580170180	580170180

Product Details

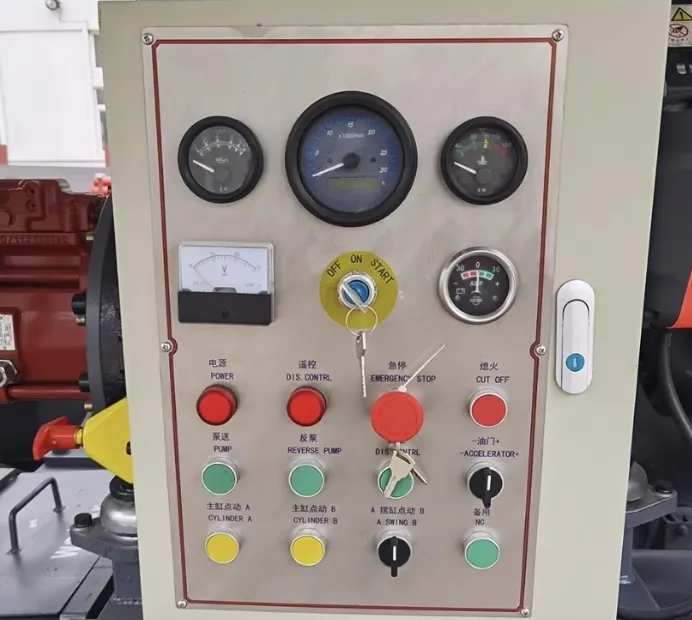

Control Panel: Convenient and clear controls, simple and easy to use.

Weichai-Deutz Engine
China top brand Weichaiengines can provide goodpower performance andgood durability, providing aservice life of up to ten years,reducing the frequency ofengine replacement.

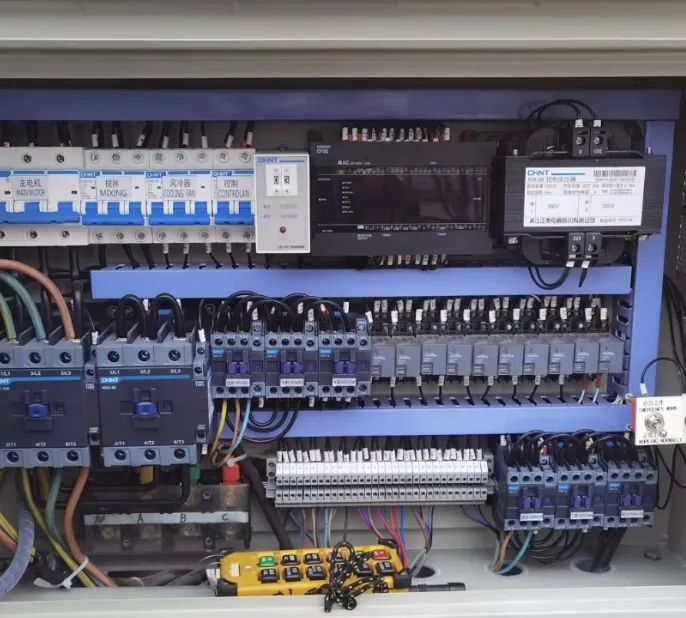

Intelligent Electrical Control System: Utilizing Siemens PLC programmable controllers and intelligent diagnostic technologies, Siemens enables real-time monitoring of operating parameters, ushering in the digital age for concrete pump control.

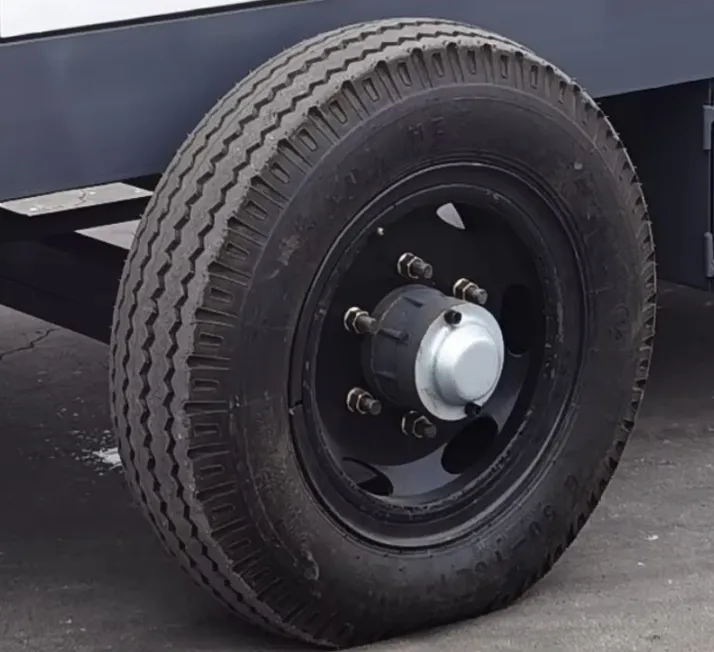

Mobile tires offer a long service life and continuous operation, ensuring normal machine function.

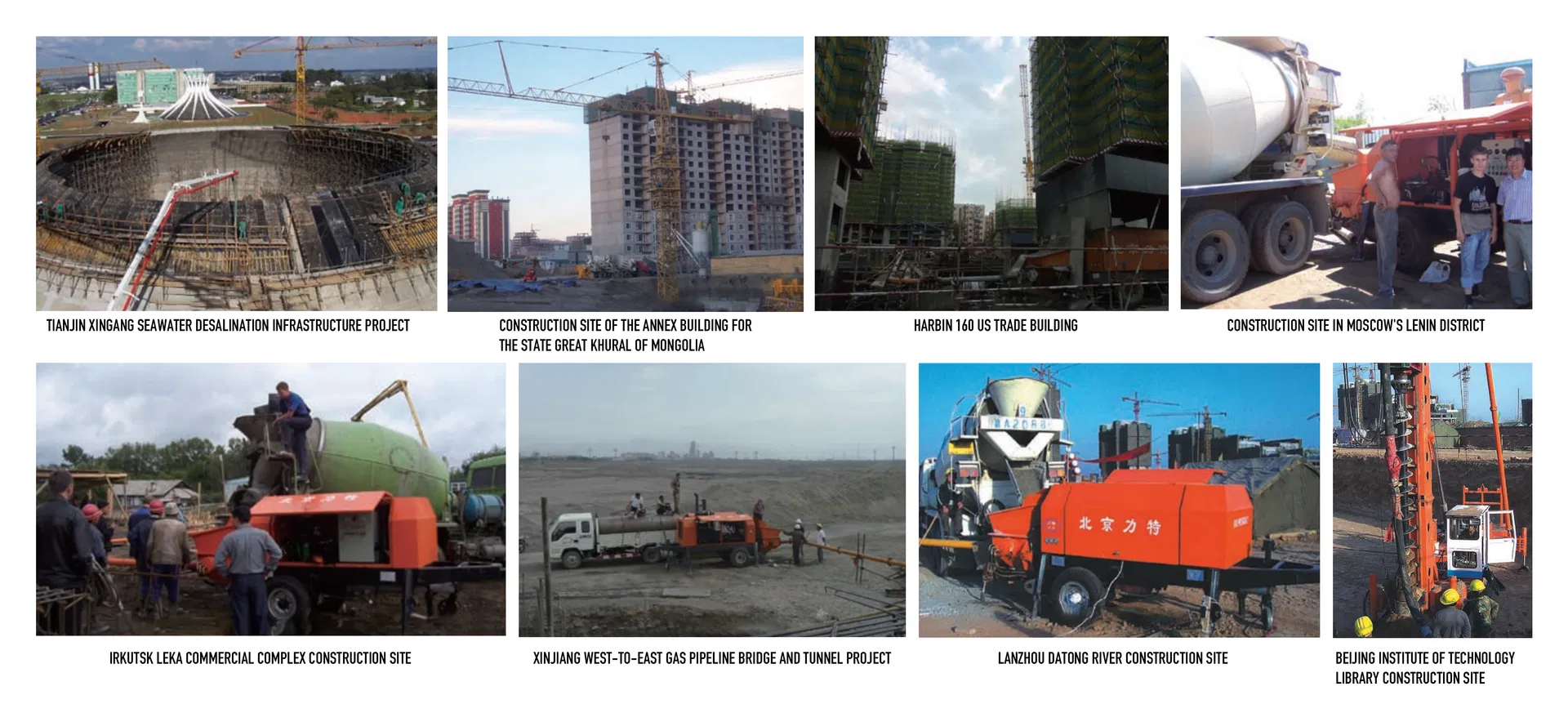

Construction Cases

Whether it's urban landmark buildings, energy infrastructure projects, overseas commercial complexes, or government supporting projects, from high-rise building pouring to long-distance pipeline transportation, from complex on-site operations to construction environments in different regions, it can stably and efficiently complete concrete transportation tasks, supporting concrete transportation operations under various complex conditions with stable and reliable performance.

Related products

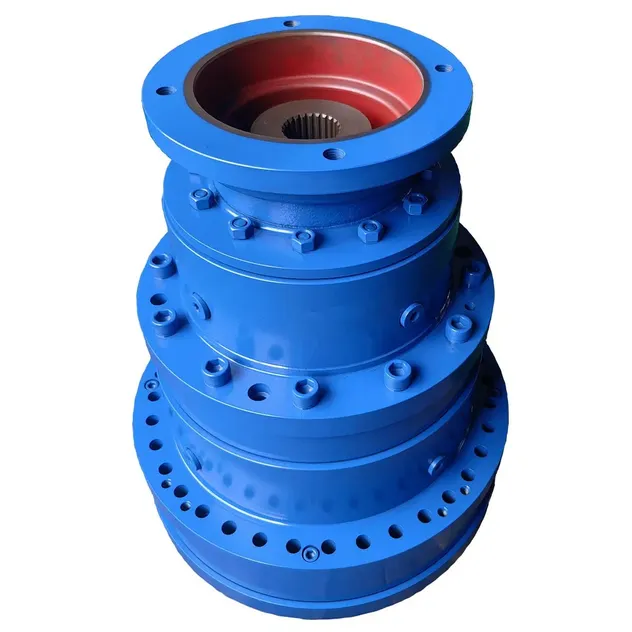

Planetary gear reducer

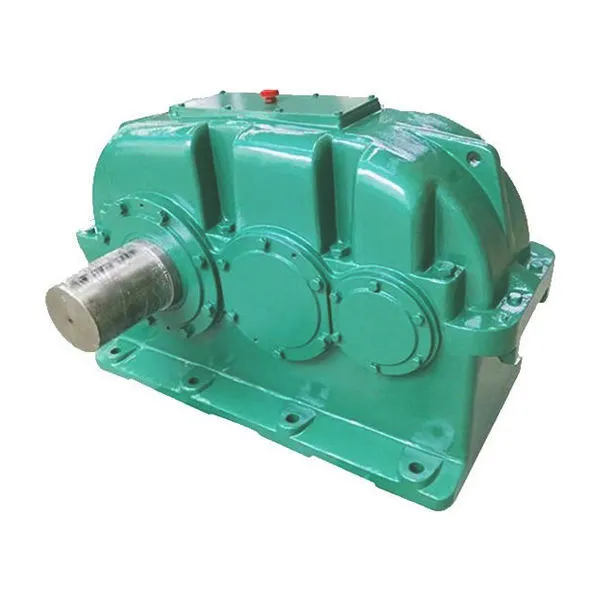

Hardened tooth surface reducer

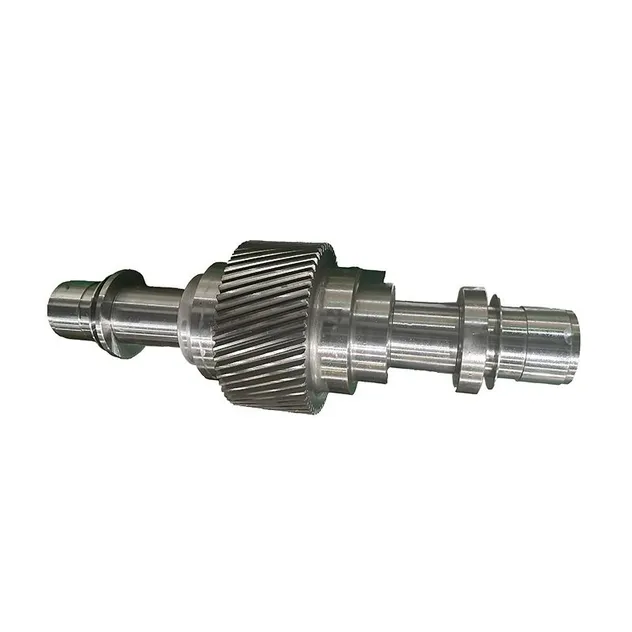

Gear shaft

For more product information
please click on the product image!

Our Advantages

1. Possess over 20 years of experience in mechanical product design and R&D, with deep industry expertise and mature product implementation capabilities;

2. Equipped with over 10 professional quality control engineers, proficient in global mechanical industry market access standards (such as ISO, CE, FDA, etc.), ensuring strict quality control throughout the entire process from raw materials to finished products;

3. Accurately understands technological trends and market demands in the mechanical industry, continuously delivering innovative products that align with industry development;

4. Supports customized mechanical product design (including core components, appearance structure, labeling, etc.), undertakes OEM/ODM orders, offers low minimum order quantities, and provides small-batch trial production services;

5. Possesses large-scale production and supply capabilities, has built an efficient supply chain system, ensures rapid delivery cycles, and provides competitive pricing strategies to reduce customer cooperation costs.

Packaging & Shipping

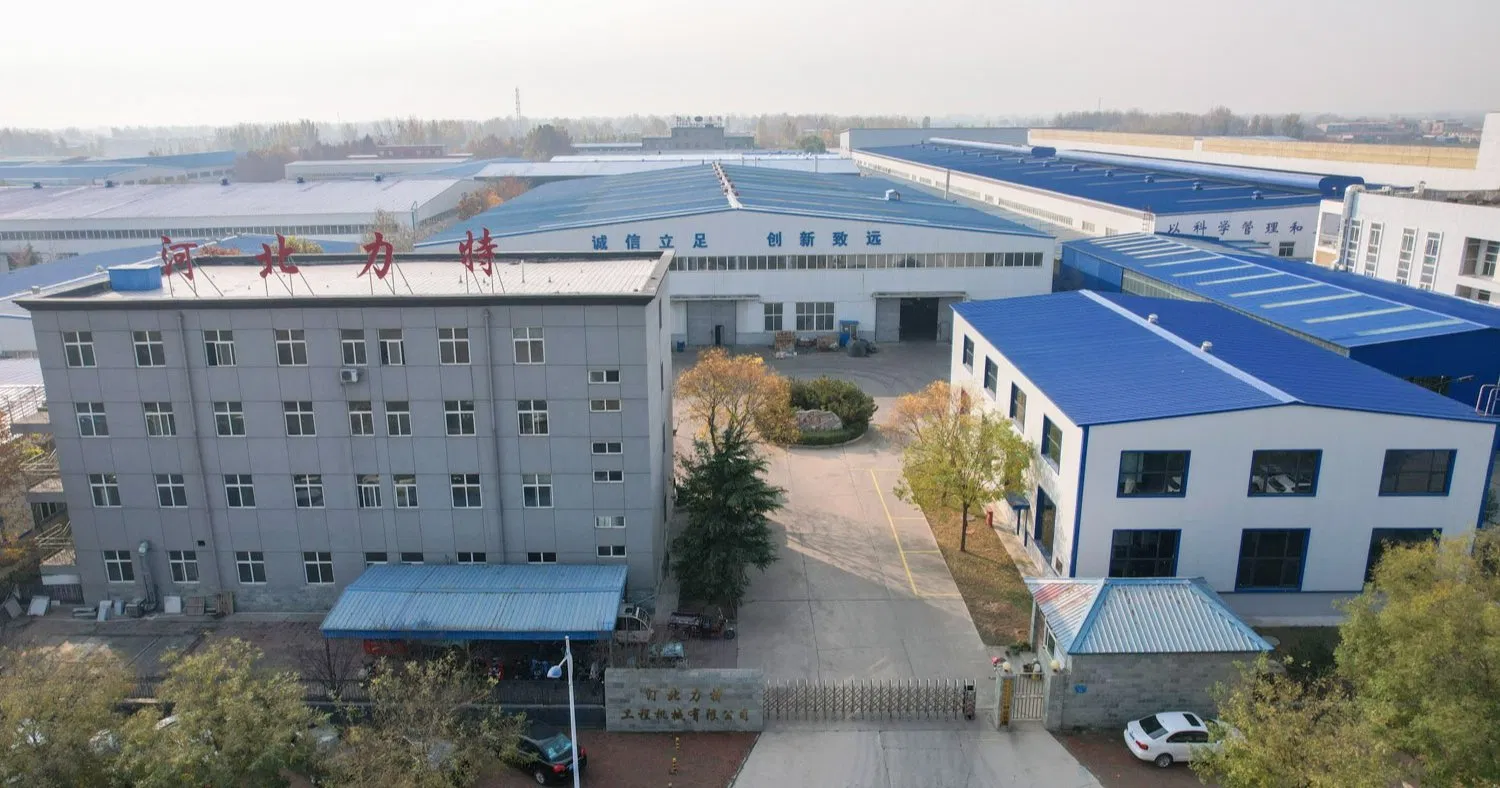

Company Profile

Hebei Lite Engineering Machinery Co., Ltd., established in 2004, was formerly known as Beijing Lite Engineering Co., Ltd., located in Miaoxian Industrial Park, Tongzhou District, Beijing. The company relocated to Tanghe Industrial Park, Baoding City in 2011.

The company covers an area of covers 20,000 square meters, with a factory area of covers 14,000 square meters, and possesses over 100 CNC machine tools. The company currently has over 120 employees, including more than 10 designers, possessing independent design and manufacturing capabilities, providing a strong guarantee for the company to provide users with high-quality products.

The company mainly engages in the research, development, manufacturing, and sales of engineering machinery, piling machinery, mining machinery, and thermal power equipment. Main products include rotary drilling rigs, pile foundation reducers, large three-ring reducers, traction concrete pumps, truck-mounted concrete pumps, and concrete pumps. The company has strong R&D and machinery production capabilities.

The company consistently adheres to technological innovation, cooperating with multiple research institutes to innovatively design products with higher performance ratios for users.

Adhering to the corporate spirit of "striving for excellence" and the business philosophy of "continuous innovation and continuous improvement," the company is committed to realizing the dreams of customers in the urban construction manufacturing and engineering machinery fields, and strives to build itself into a powerful enterprise with unique core competitiveness.

The company promises: comprehensive after-sales service, sincere cooperation with customers, and a brilliant future together.

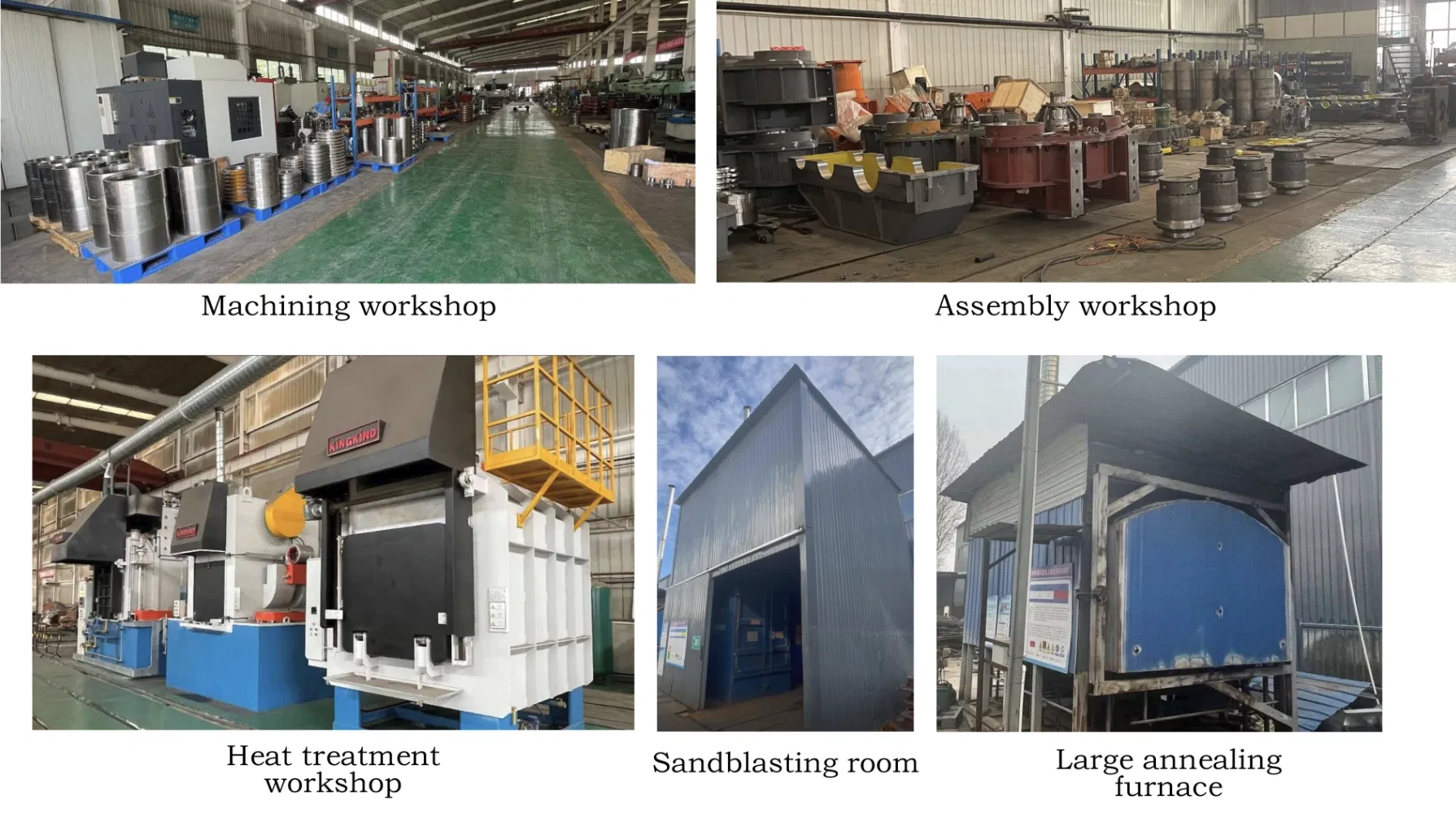

Factory equipment

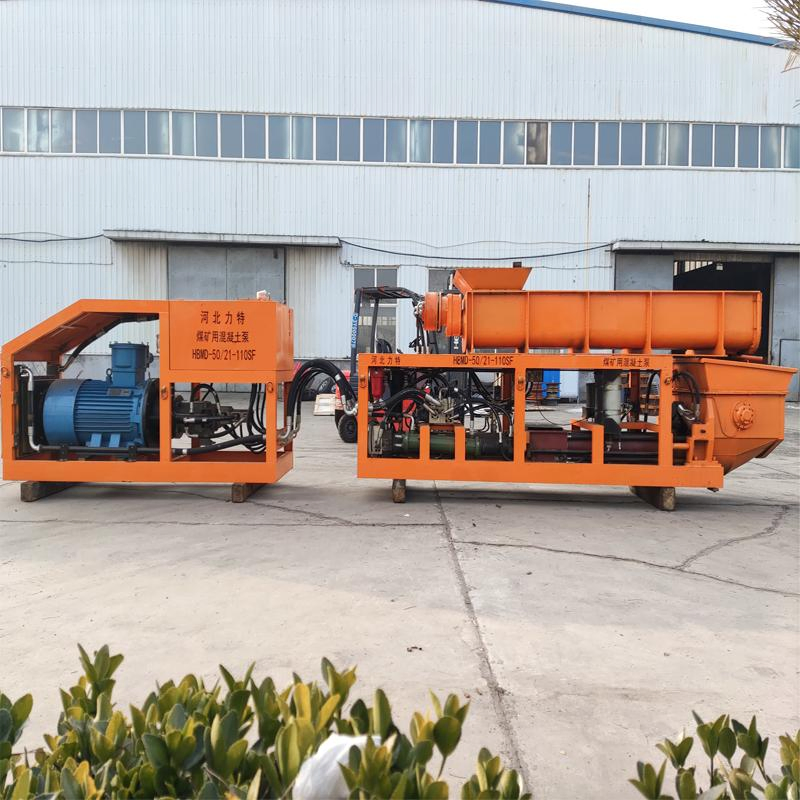

Litte has many years of experience in mining equipment manufacturing and has established in-depth cooperation with the China Coal Research Institute in the field of mining pumps. Our mining pumps feature advanced design concepts, high stability, strong applicability, and easy maintainability, and have been widely recognized in the industry for many years.

Litte possesses over 60 CNC machine tools, covering various processing types including CNC cutting, welding, machining, heat treatment, and surface treatment, forming a complete product production chain from blanking to assembly. We are also equipped with coordinate measuring machines, gear comprehensive testing instruments, material analyzers, and other equipment, and possess various testing methods such as metallographic analysis, material analysis, ultrasonic flaw detection, and magnetic particle flaw detection.

Among them, Litte's planetary gear reducer series adopts German design standards, benchmarking the design concepts of the three major mainstream gear reducers: Rexroth, Brevini, and Bonfiglioli. Utilizing the most advanced processing technology currently available, it is a high-quality planetary gear reducer with advantages such as high load capacity and low noise, perfectly replacing imported gear reducers.

Product Testing

Certificate

FAQ

1.Q: Are you a factory or trading company?
A:We are the company which is the joint of trade and industry. We have our own factory which has been manufacturing
concrete machineries along with spare parts for 34 years offline.
2.Q:What are your main products?
A:Concrete pump truck,concrete pump,concrete line pump,concrete mixer truck,truck-mounted concrete pump,concrete
batching plant,concrete pump spare parts.
3.Q: What type of service we have?
A:We offer products test, purchase service, quality testing and so on.
4.Q:How do I know the condition of the concrete pump truck?
A: We will provide a video of the test machine of the pump truck. Before we ship to you, we will test the machine for
pumping for 8 hours.
5.Q:How can you guarantee quality?
A: Our raw material every node will be inspected strictly.advanced equipment rather than only worker is applied
During the whole producing process to ensure the welding quality. Ensure that each of our customers is satisfied with the pump truck.
6.Q:What can we do if there are problems with the products?
A: Our engineers will analyze the problem for you and find the best solution. If problems happened within the guaranteed time, we can replace the components for you free of charge. We have dealers in some countries, for some technical problems which you can not solve by yourself.
