Product Description

Product Overview

Model NO.

Max.Head

>150m

Max.Capacity

>400 L/min

Driving Type

Motor

Impeller Number

Single-Stage Pump

Working Pressure

High Pressure Pump

Position of Pump Shaft

Horizontal Pump

Certification

CE, ISO

Origin

China

HS Code

841370

Product Description

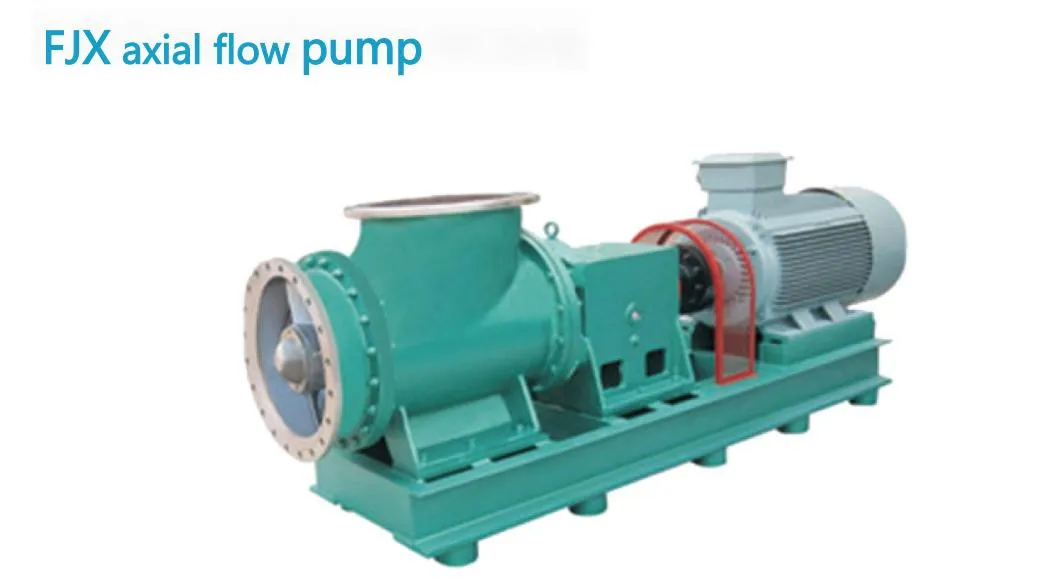

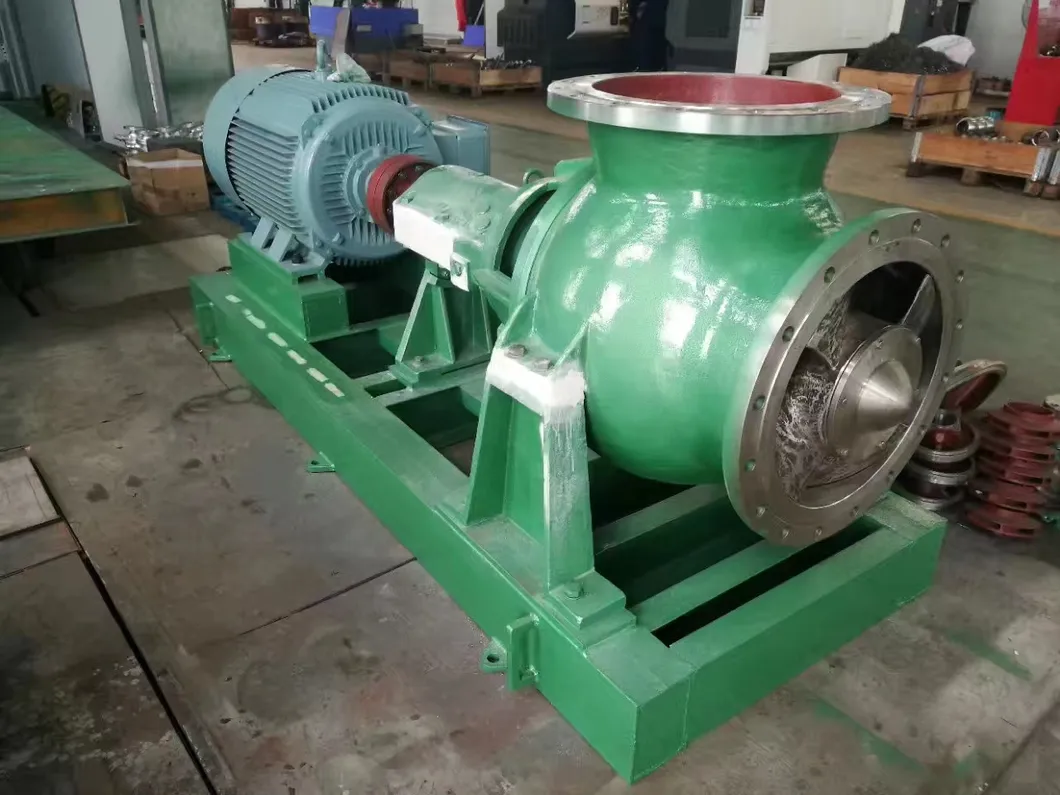

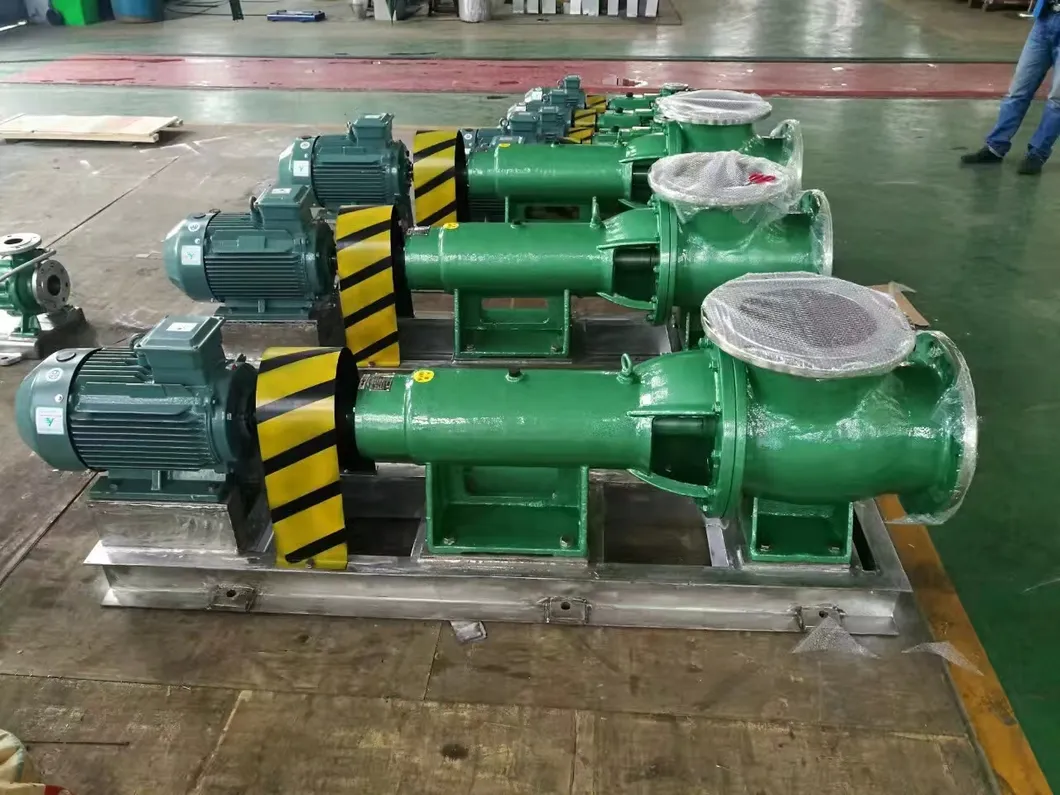

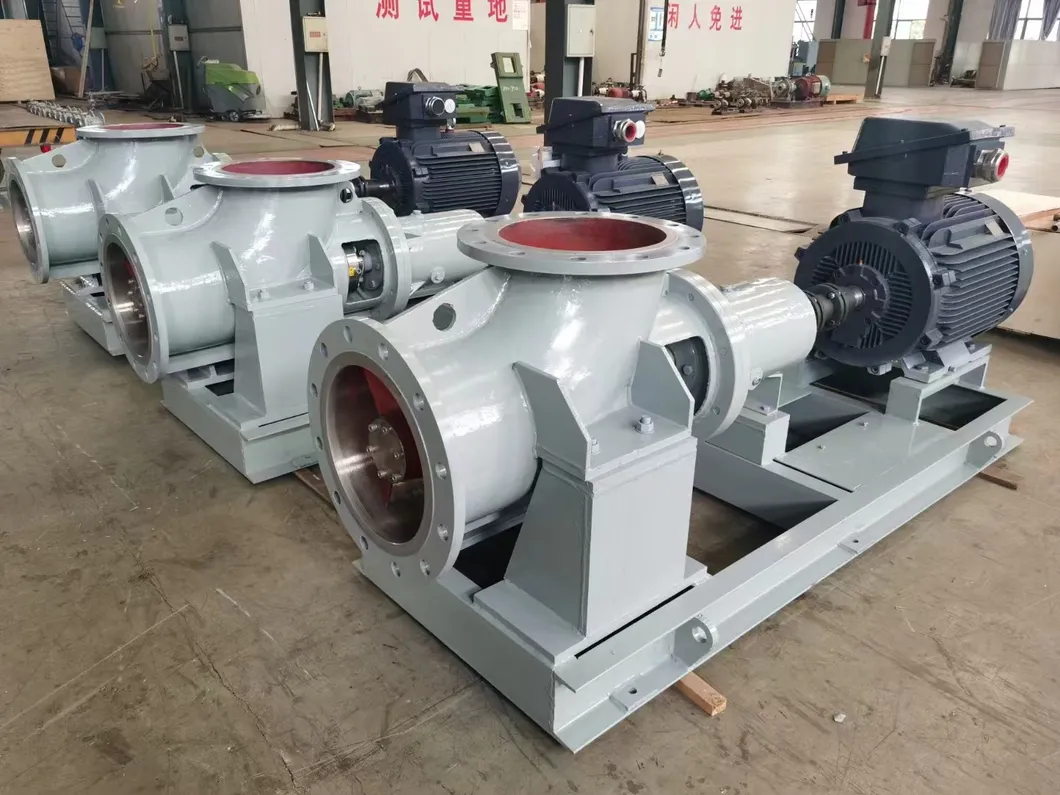

Industrial Application: The FJX evaporation crystallization circulating pump is a large flow low head axial flow pump suitable for evaporation and concentration in industries such as diaphragm caustic soda, phosphate fertilizer, alumina, chlorinated calcium, calcium chloride, sugar, salt, papermaking, wastewater, etc.

Structural Characteristics

Good Anti-Cavitation Performance: Suitable for low liquid level evaporators, reducing investment in evaporation plants and compatible with high fluid resistance heating chambers.
High Efficiency: Wide efficiency zone adjustable via blade installation angle and speed changes for significant energy saving.
Slow Speed Type: Smooth operation with light wear and long service life; minimizes crystal damage.
Advanced Engineering: Center support for thermal neutrality and a rear door structure for fast maintenance without disassembling flanges.
Reliable Sealing: Containerized machine seals (6-12 months lifespan) or liquid blocking packing (3-6 months).

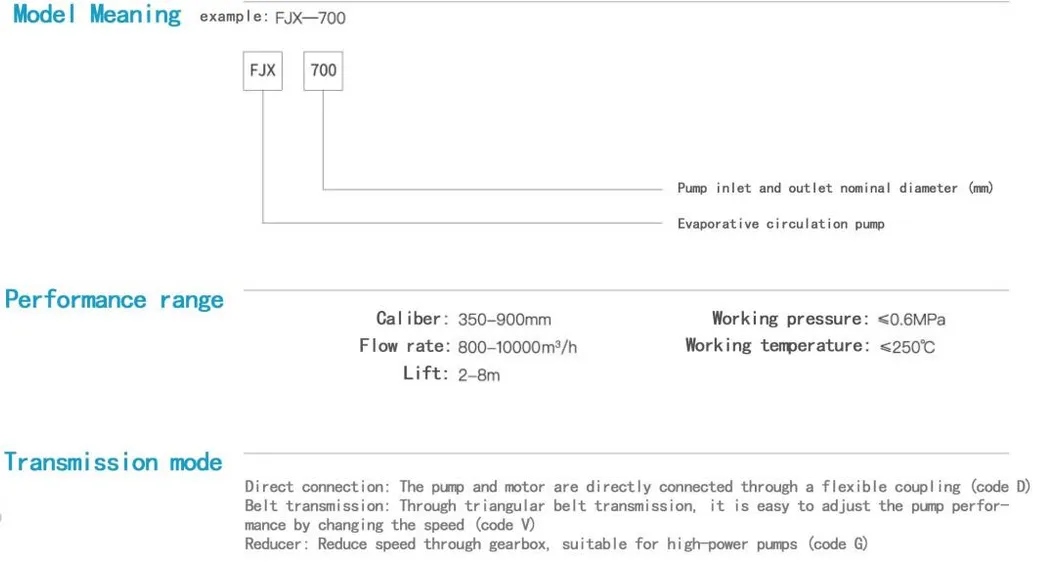

Technical Parameters

Model	Flow (m3/h)	Lift/Head (m)	Speed (r/min)	Power (kw)
FJX250	300-400	2.5-4	1450	18.5-22
FJX300	520-650	2.5-4	960	22-30
FJX400	1200-1800	2.4-5.8	740-1200	22-45
FJX600	2000-3600	2.4-6	580-980	45-132
FJX1000	9000-13000	2.5-4	200-420	160-315

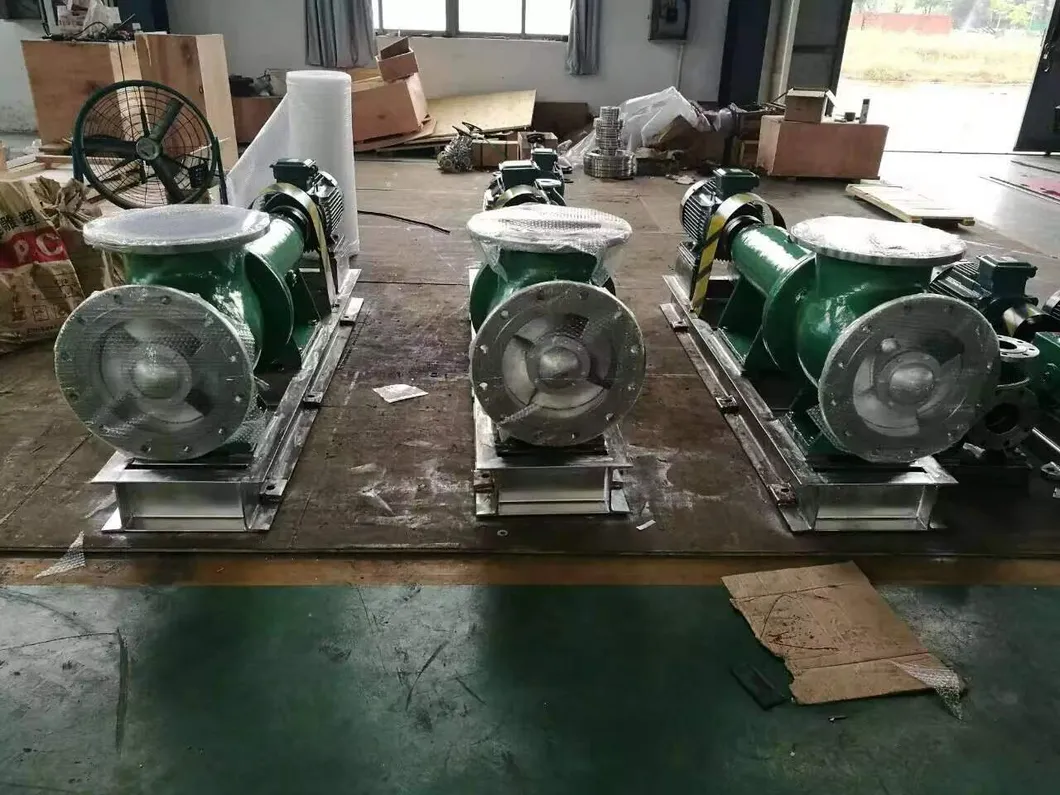

Production & Facilities

Certifications

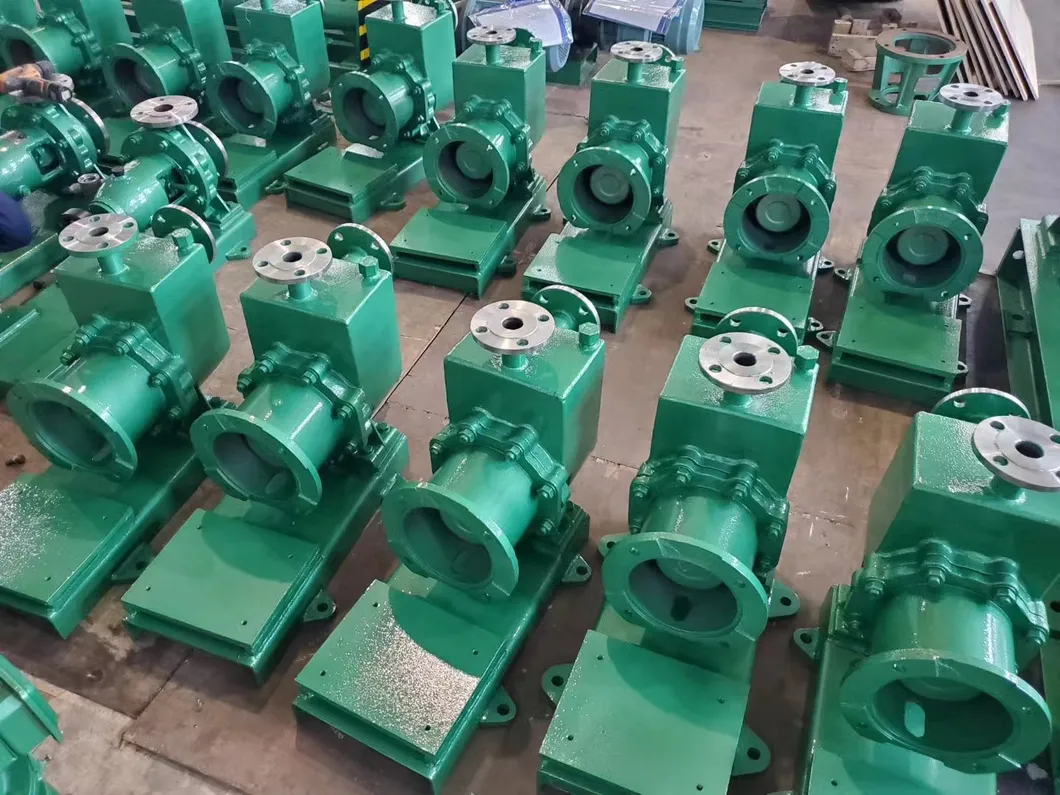

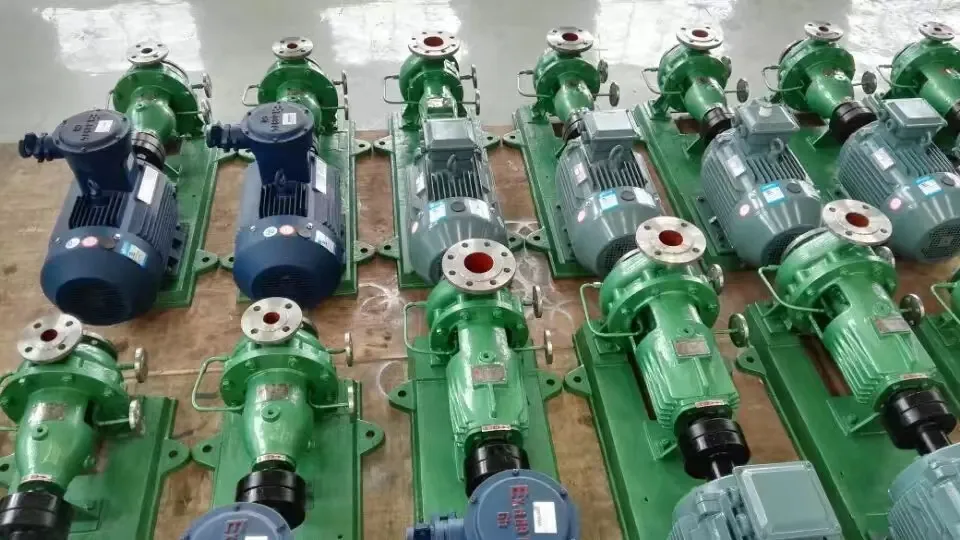

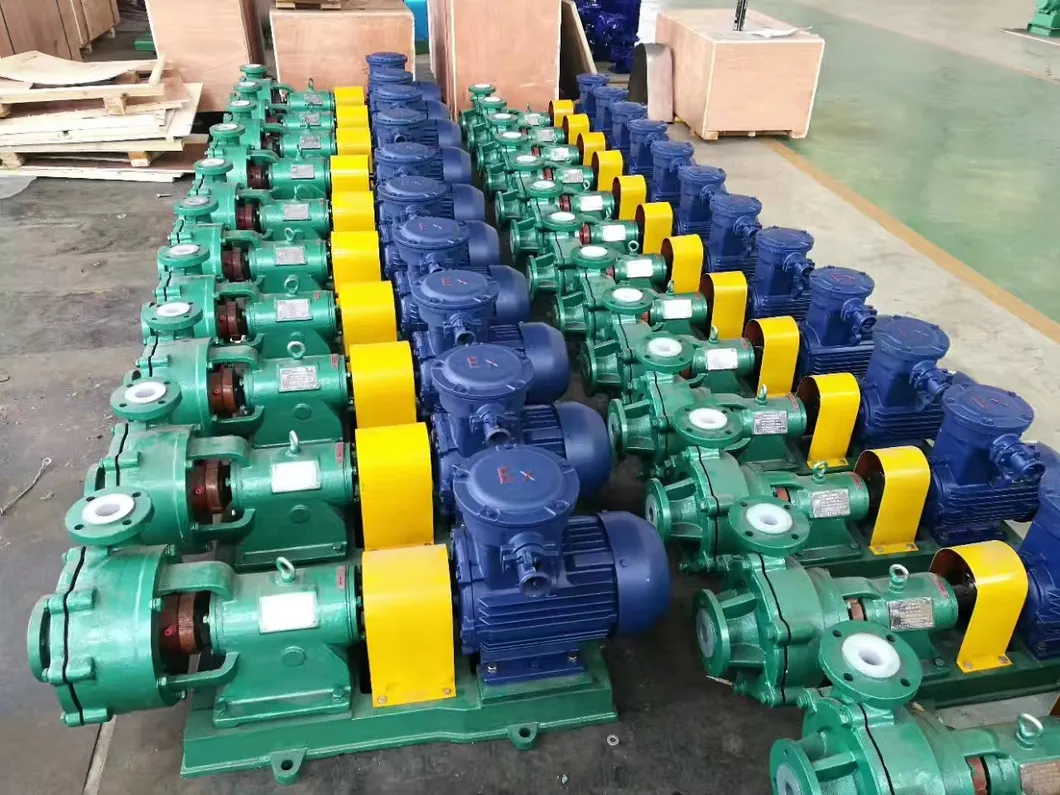

Packaging & Shipping

Frequently Asked Questions

What kind of package do you provide?

We provide standard export plywood packing for all our pump products to ensure safety during transit.

How many days does it take for manufacturing?

The lead time depends on the order quantity and specific pump types. Typically, it ranges from 30 to 120 days.

What payment terms do you accept?

Normally, we require 30% T/T in advance and 70% paid before shipment. We also accept L/C at sight.

What materials are available for the pumps?

We offer various materials including Ni-Hard alloy, 304L, 316L, 904L, CD4MCu, 2507 double-phase steel, Ti, and Monel alloys.

What is your standard warranty period?

We provide a 12-month warranty after commissioning or 18 months after delivery, whichever comes first.

Are these pumps suitable for low liquid level evaporators?

Yes, the FJX series features excellent anti-cavitation performance specifically designed for low liquid level evaporation plants.
