📋 Basic Information
Type
Self-priming Pump With Inner Recirculation
Air Engine Type
Diesel Engine
Theory
Gas-hydraulic Hybrid Type
Transmission
Direct Connection Transmission
Pump Type
Diesel Water Pump / Fire Pump
Transport Package
Wood Case

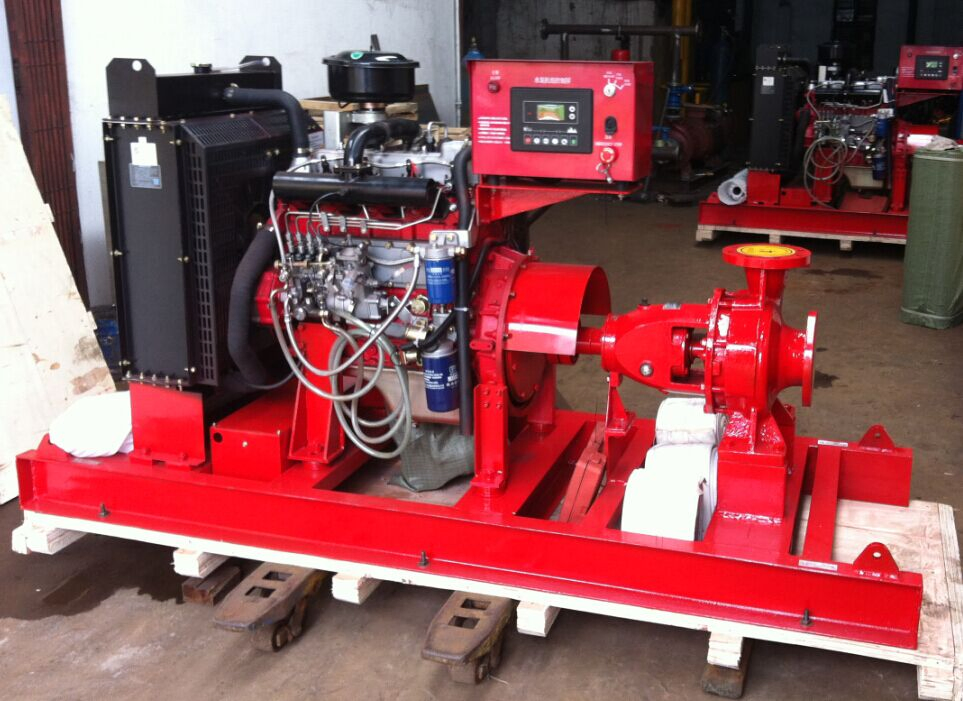

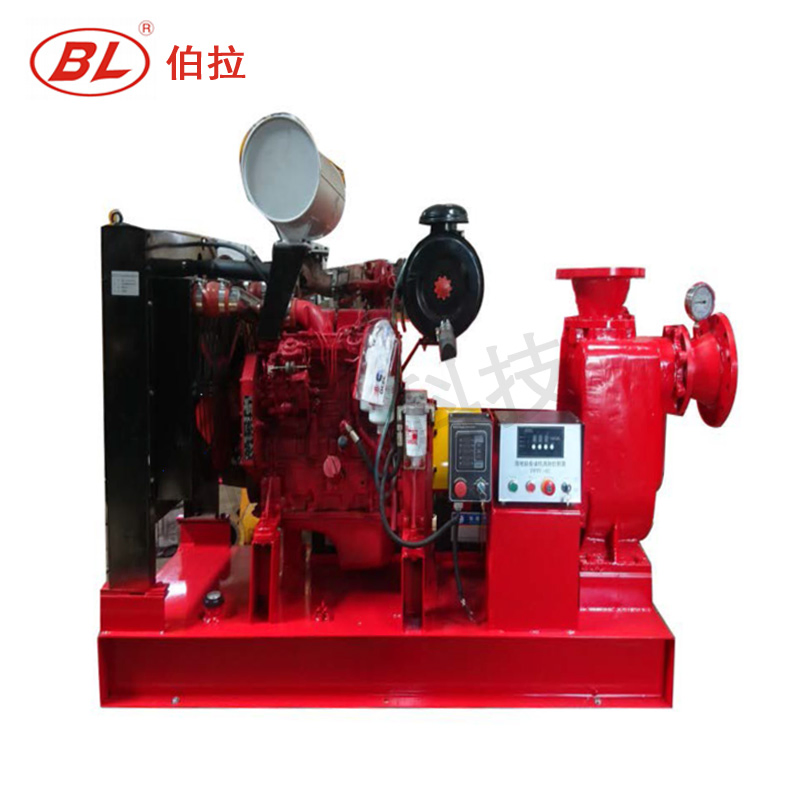

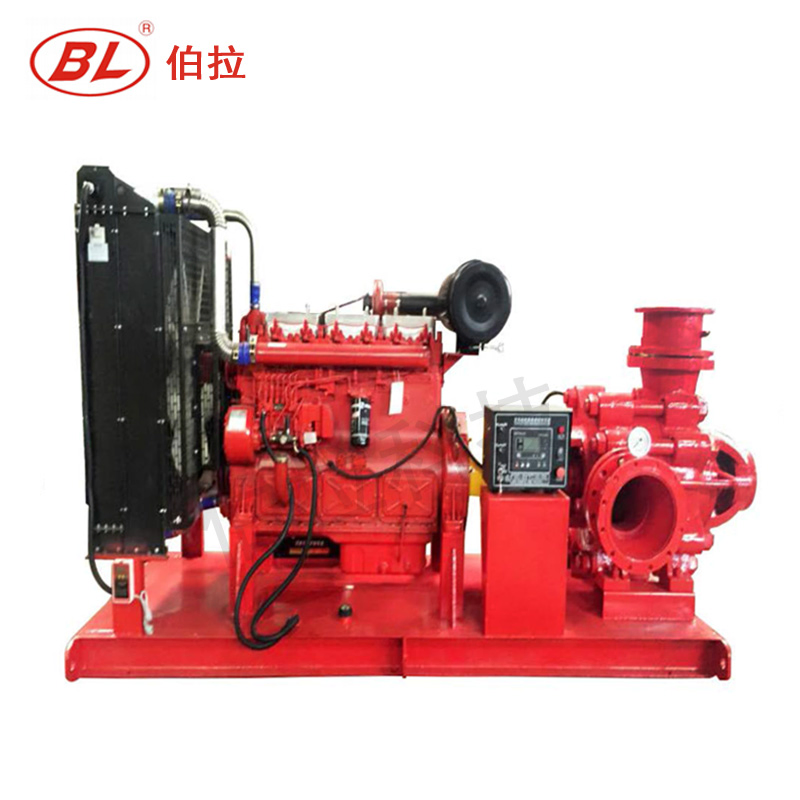

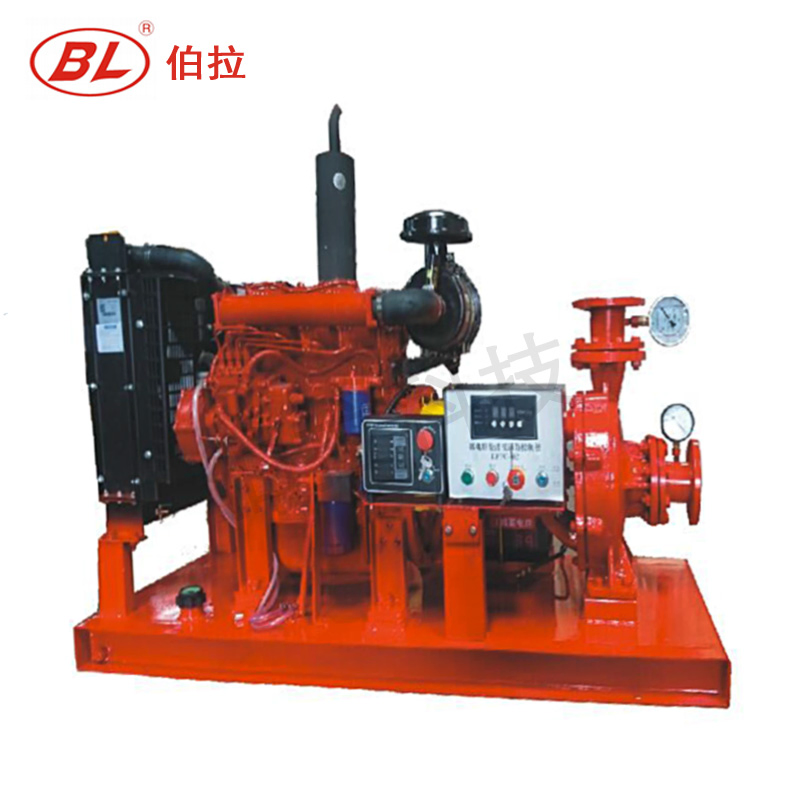

🔥 Skid Mounted Diesel Fire Pump Set
The diesel engine fire pump series includes IS single-stage, S/SOW new single-stage & dual-stage, and TSWA/D series. These systems feature compact structures, are easy to maintain, and offer reliable automatic control, suitable for both domestic and foreign engine applications.
📊 Technical Parameters
Pressure Range
0.2-2.2 MPA
Rotation Speed
1500 - 3000 r/min
🌡️ Work Environment
Ambient Pressure: > 90KPa
Ambient Temp: 5°C - 40°C
Relative Humidity: ≤ 80%
*In abnormal conditions, greater diesel engine power is required to match the pump.
✨ Key Features
Compact structure with professional appearance and low construction cost.
Stable operation with identical inlet and outlet dimensions.
Convenient installation and simple maintenance procedures.
Parallel connection capability with multiple models for various flow rates and heads.
Flexible horizontal or vertical installation to suit different pipeline systems.
🏭 Typical Applications
Booster and fire water supply for high-rise buildings.
Industrial and city drainage systems.
Garden irrigation and water circulation systems.
Metallurgy, Energy, Chemical, and Textile processing.
Petroleum, Food, Pharmacy, and Synthetic fiber industries.
Handling flammable chemical liquids and petroleum products.
🕹️ Automatic Control System
The diesel engine automatic control cabinet provides:
Manual & Automatic Control: Initiates control programs via start signals or manual buttons.
Automatic Monitoring: Tracks start, idle, acceleration, and full-speed phases.
Status Indicators: Real-time monitoring of oil supply, rotation speed, idle delay, emergency stops, and more.
📐 Detailed Specifications Table
| Diesel Engine Pump |
Rate Flow (m3/h) |
Rate Head (m) |
Rated Speed (r/min) |
Pump Type |
| XBC8.0/13.9 | 30-50-60 | 84-80-75 | 2900 | IS80-50-250 |
| XBC7.0/13.0 | 47 | 70 | 2900 | IS80-50-250A |
| XBC6.0/12.2 | 44 | 60 | 2900 | IS80-50-250B |
| XBC8.5/11.7 | 42 | 85 | 2900 | IS80-50-315B |
| XBC11.0/13. | 47 | 110 | 2900 | IS80-50-315A |
| XBC12.5/13.9 | 30-50-60 | 128-125-123 | 2900 | IS80-50-315 |
| XBC5.0/27.8 | 60-100-120 | 54-50-47 | 2900 | IS100-65-200 |
| XBC8.0/27.8 | 60-100-120 | 87-80-75 | 2900 | IS100-65-250 |
| XBC12.5/55.6 | 120-200-240 | 133-125-120 | 2900 | IS125-100-315 |
| XBC5.0/111 | 240-400-460 | 55-50-45 | 1450 | IS200-150-400 |
| XBC6.9/10 | 30-36-42 | 75-69-60 | 1450 | 75TSWA×6 |
| XBC9.3/19.2 | 62-69-80 | 97-93-84 | 1450 | 100TSWA×6 |
| XBC12.0/43 | 119-155-191 | 129-120-109 | 1480 | 150TSWA×4 |
| XBC12.9/77.8 | 190-280-346 | 142-129-115 | 1480 | 200D1-43×2 |
| XBC12.5/351 | 850-1260-1660 | 140-125-100 | 1450 | 350S125 |
❓ Frequently Asked Questions
What are the main applications for the XBC diesel fire pump?
It is primarily used for fire fighting water supply in high-rise buildings, industrial drainage, garden irrigation, and liquid transport in chemical or petroleum industries.
Does the pump support automatic operation?
Yes, it features an automatic control cabinet that monitors engine startup, speed acceleration, and status indicators like oil supply and emergency stops.
What is the rotation speed range of these pumps?
The rated rotation speeds range from 1500 r/min up to 3000 r/min, depending on the specific model and application requirements.
Can this pump handle flammable liquids?
Yes, the pump is designed to handle gasoline, diesel oil, kerosene, and other flammable chemical liquids.
Is the installation flexible for different pipeline layouts?
Absolutely. The unit can be installed both horizontally and vertically to accommodate various pipeline system configurations.
What environmental conditions are required for optimal operation?
It operates best in temperatures between 5°C and 40°C, with relative humidity ≤80% and ambient pressure >90KPa.
