| Type Demonstration | Range of Application | Performance Parameter |
|---|---|---|
|
HD5F300-180X8 HD5F: Series code 300: Flow rate (m3/h) 180: Single stage head (m) 8: Series of impeller |
Transporting petroleum, refined oil, liquefied petroleum gas, light hydrocarbons, boiler water supply. Clean or trace particles, flammable, explosive, toxic media. Hydrogenation feed pumps, high pressure coke removal, high pressure boiler feed. |
Flow rate: ~ 1000m³/h Lift: ~3500m Speed: 2950~3600r/min Pressure: ~40MPa Temp: -80ºC~450ºC |

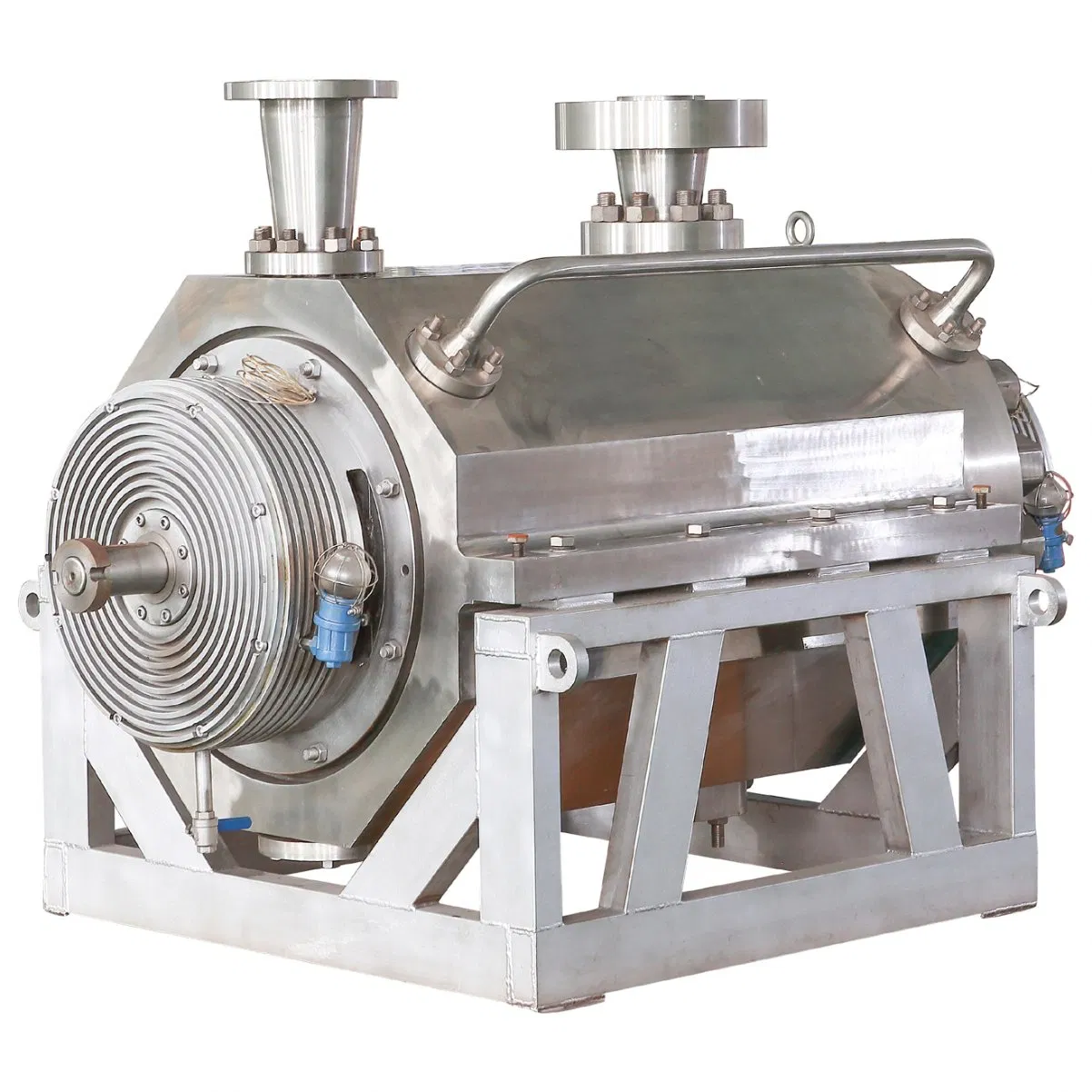

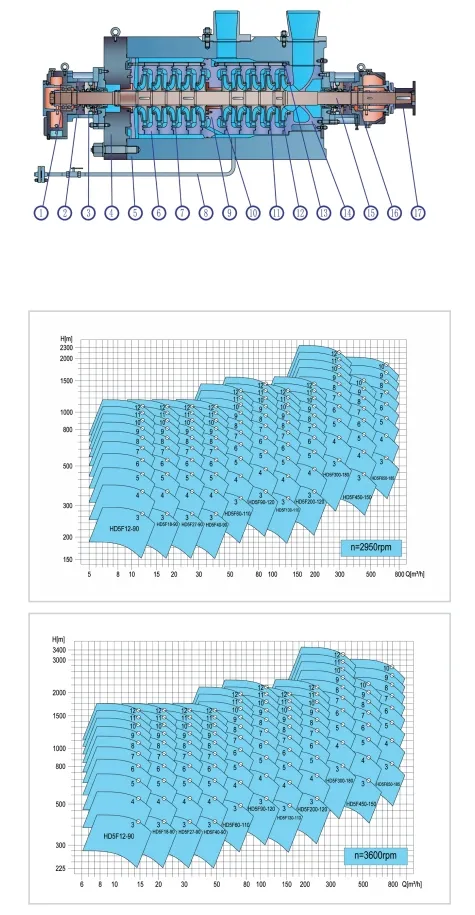

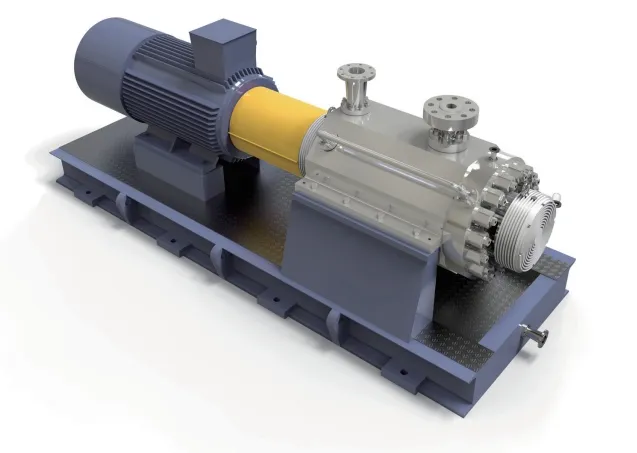

The HD5F series is designed according to API610 standards. It features a double shell, symmetrical impeller arrangement, and horizontal multistage design. The external pressure shell is forged for high bearing capacity and temperature resistance.
The inner core adopts an integral extraction design, allowing maintenance without moving inlet/outlet pipelines. Advanced CFD simulation ensures high efficiency and cavitation performance.
⭐ 5 DECADES: Established in 1977, long history of pump making with rich professional experience.
👥 500+ STAFFS: Well-trained engineers offering professional pump solutions.

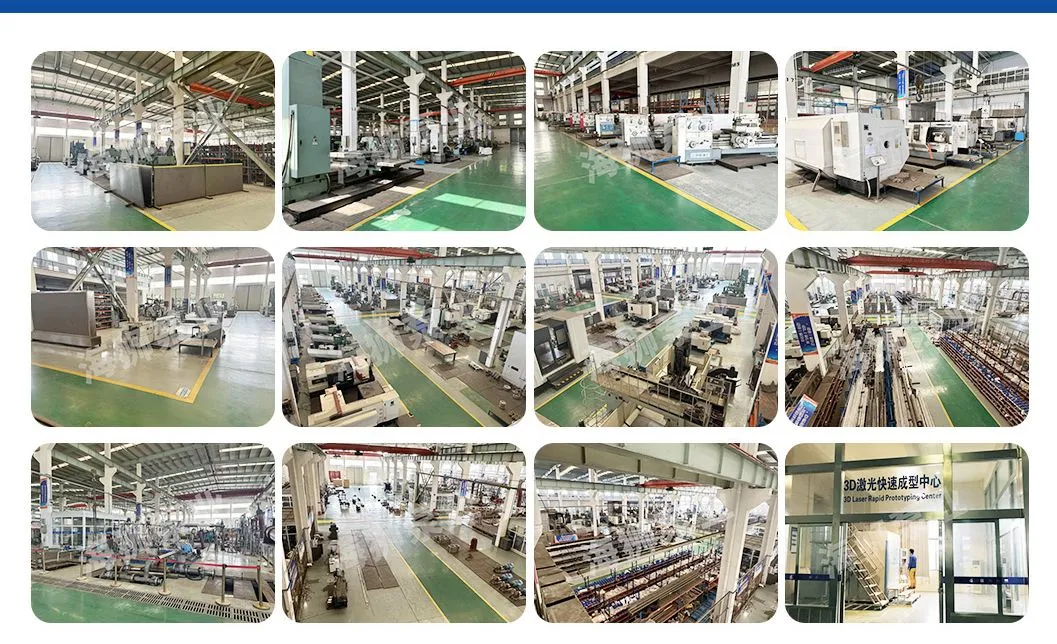

🏢 100,000m² WORKSHOPS: Modernized facilities ensuring strict QA & QC procedures.
💡 20+ PATENTS: Strong R&D capability and backup of product quality.
