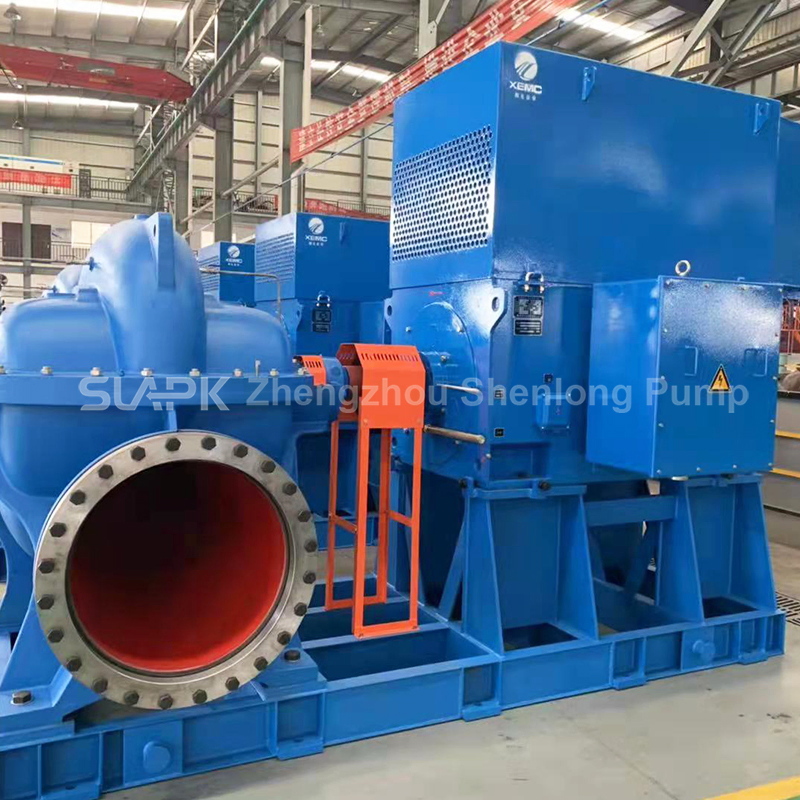

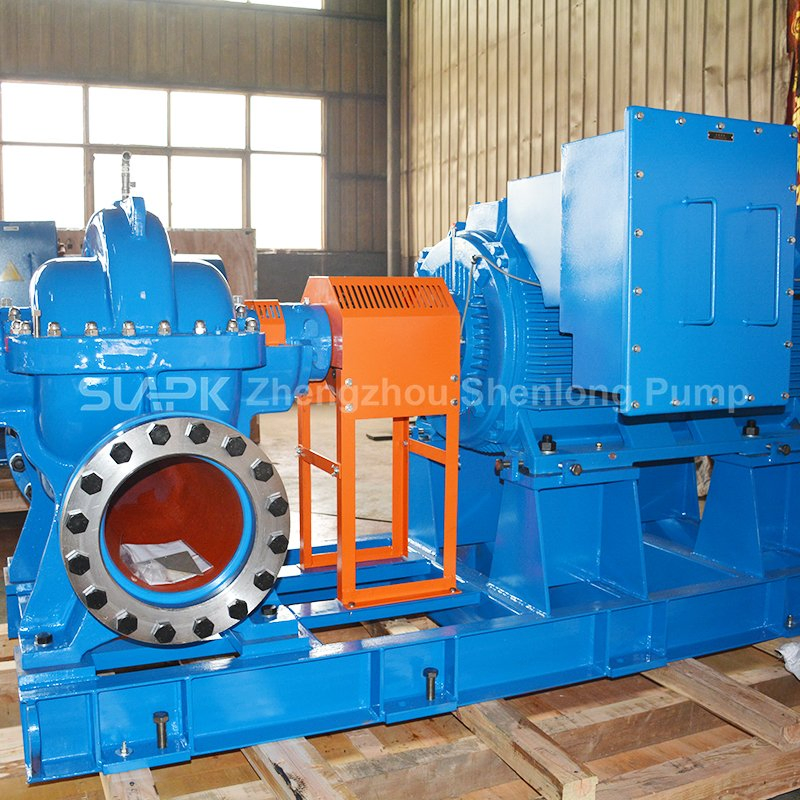

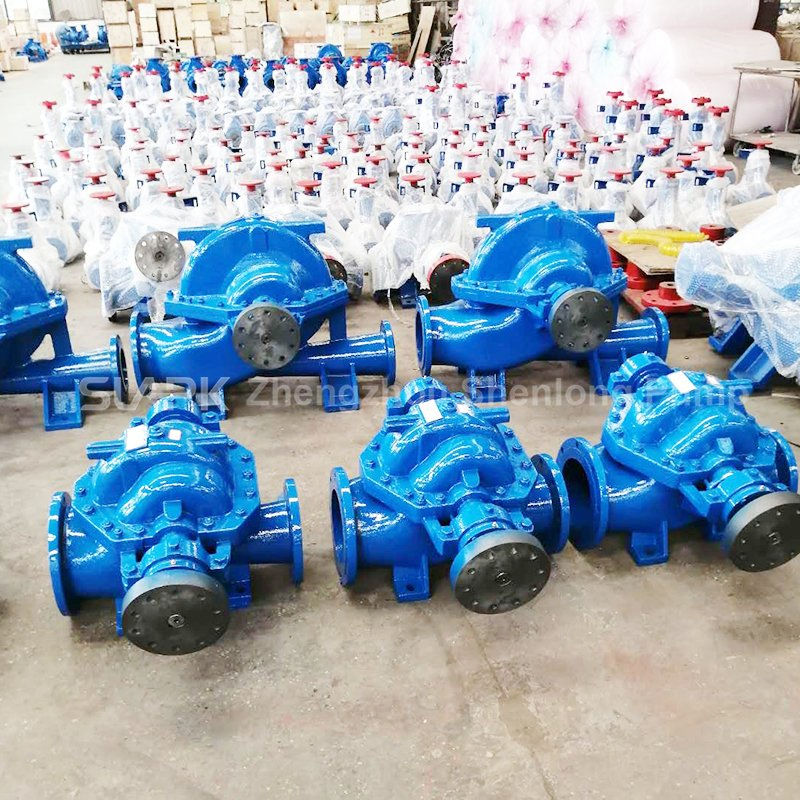

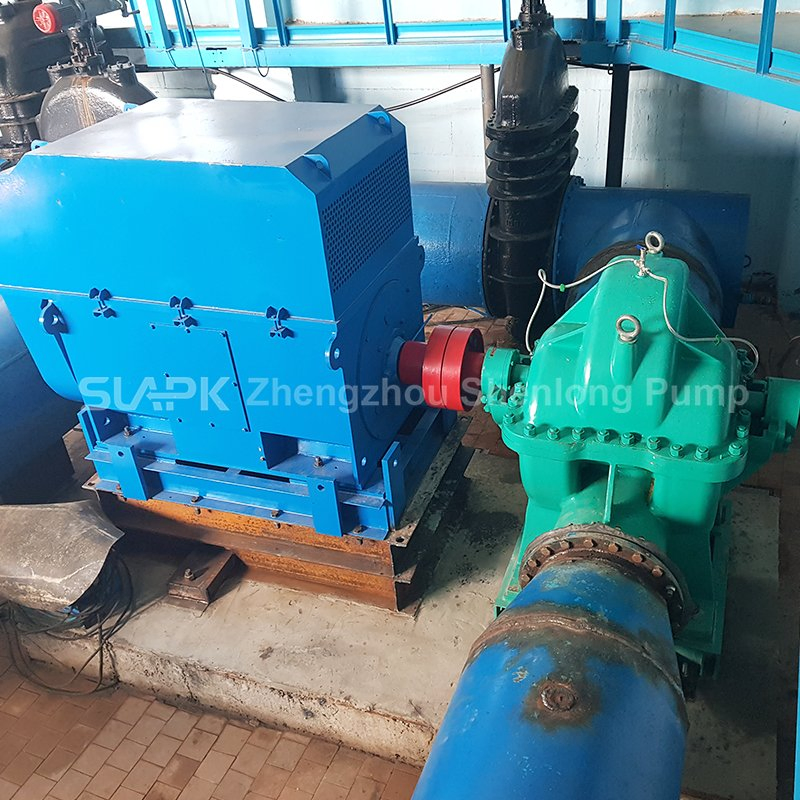

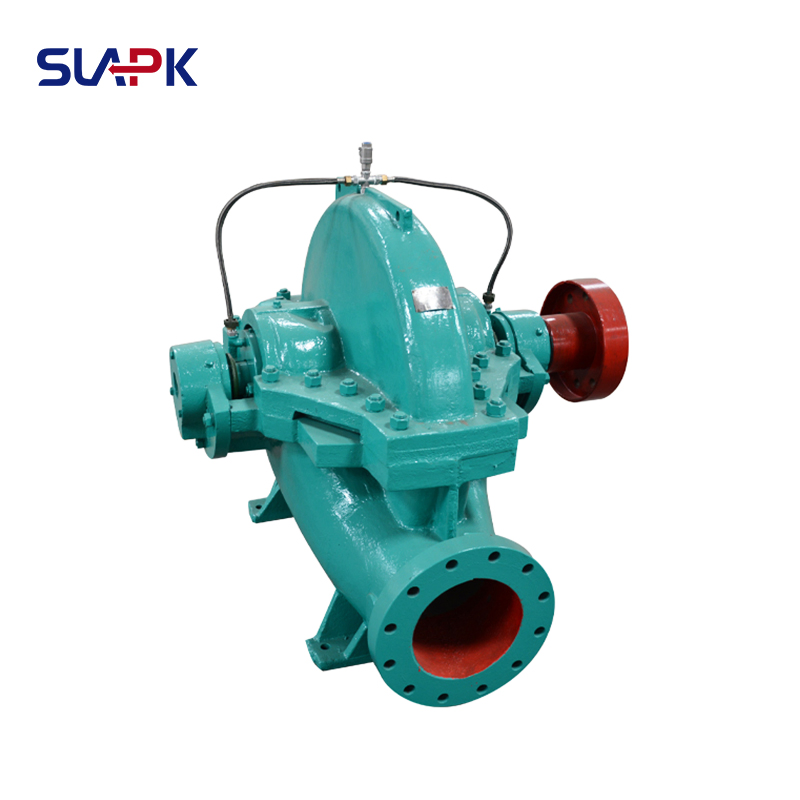

OS Single-Stage Double-Suction Split Case Centrifugal Pump, Fire Protection System

1 / 5

OS Single-Stage Double-Suction Split Case Centrifugal Pump, Fire Protection System

Customization:	Available
Warranty:	12 Months
Max.Head:	5 M-160 M

Send Inquiry

Product Description

📋

Basic Specifications

Max.Capacity:5~27000 M3/H

Driving Type:Motor/Diesel Engine

Material:Cast Iron/Bronze

Structure:Single-stage Pump

Assembly:Centrifugal Pump

Power:Motor/Diesel Engine

Start Up:Motor/Diesel Engine

Type:Centrifugal Pump

Media:Water

Performance:No Leakage Pump

Theory:Centrifugal Pump

ODM OEM:Accept

Install:Horizontal

Outlet Diameter:80~800 mm

Temperature:0~105°c

Transport Package:Standard Wooden Case

⚙️

Product Description

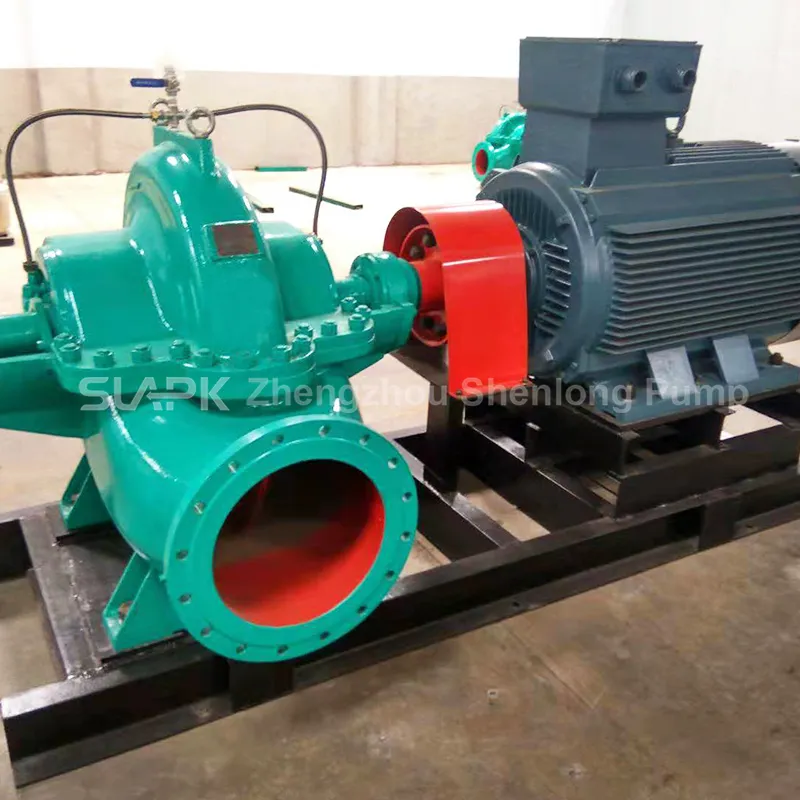

Horizontal split case pump performance parameters:

✔ Capacities: Q 110 to 12500 m3/h
✔ Heads: H 10 to 220m
✔ Pressures: P up to 2.5 MPa
✔ Temperature: 0-105ºC
✔ Outlet diameter: φ80~φ800mm

Available Materials:

➤ Pump casing: casting pig, ductalloy, cast steel
➤ Impeller: bronze, casting pig, silicon brass, stainless steel
➤ Shaft: stainless steel, carbon steel
➤ Seal-ring: bronze, casting pig, silicon brass, stainless steel

🚀

Applications & Key Features

Main Applications:

1. Water supply system
2. District heating system
3. Air-conditioning system
4. Seawater desalination system
5. Firefighting system

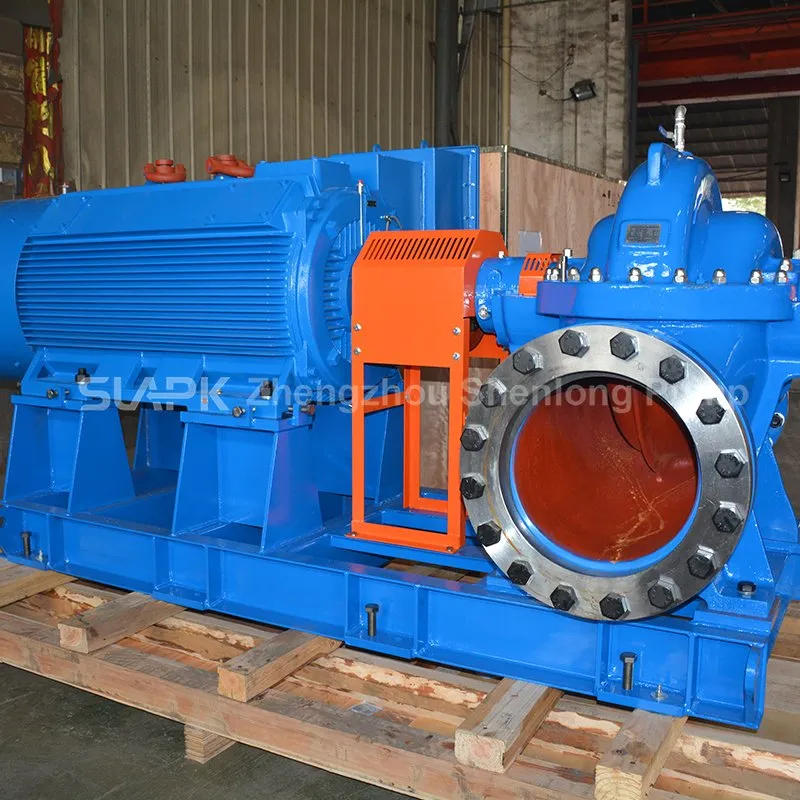

Core Features:

● Axially split casing for easy maintenance
● Double suction impeller for zero axial forces
● Statically and dynamically balanced impellers
● High-efficiency performance and low NPSHr
● Multiple sealing options (Packing or Mechanical)

📊

Split Case Centrifugal Water Pump Models

Model	Flow (m3/h)	Head (m)	Speed (r/min)	NPSHr (m)	Power (kw)
OS80-210	131/164/197	60.5/55/50	2900	4.5	37
OS100-250	219/274/328	69/63/55	2900	7.5	75
OS125-230	426/541/639	68/60/48	2900	7.3	132
OS150-605	323/403/484	62.5/57.5/50	1450	3.1	110
OS200-520	654/817/980	98/91/83	1450	3.5	315
OS300-700	1160/1450/1720	108/99/87	1450	3.8	560
OS600-830	3060/5110/6480	93/76/57	960	7	1400
OS800-970	5100/8500/9650	55.5/44.5/38	725	5	1400

🏭

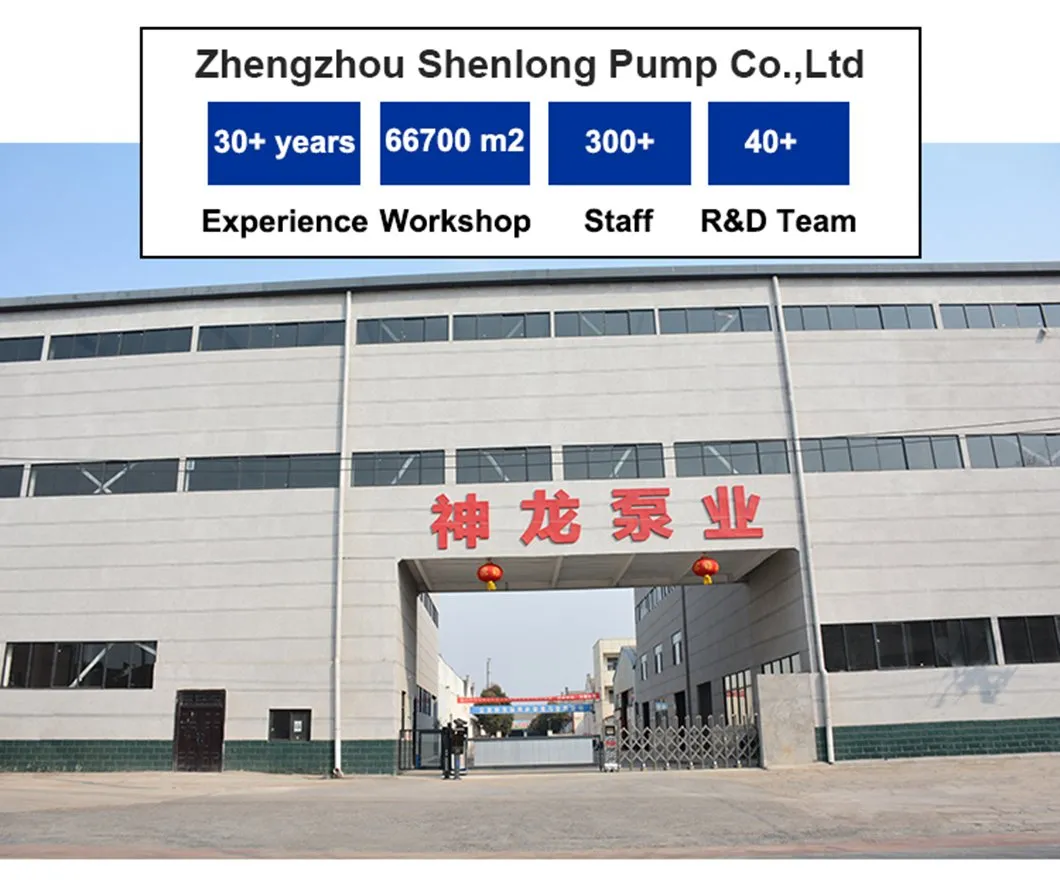

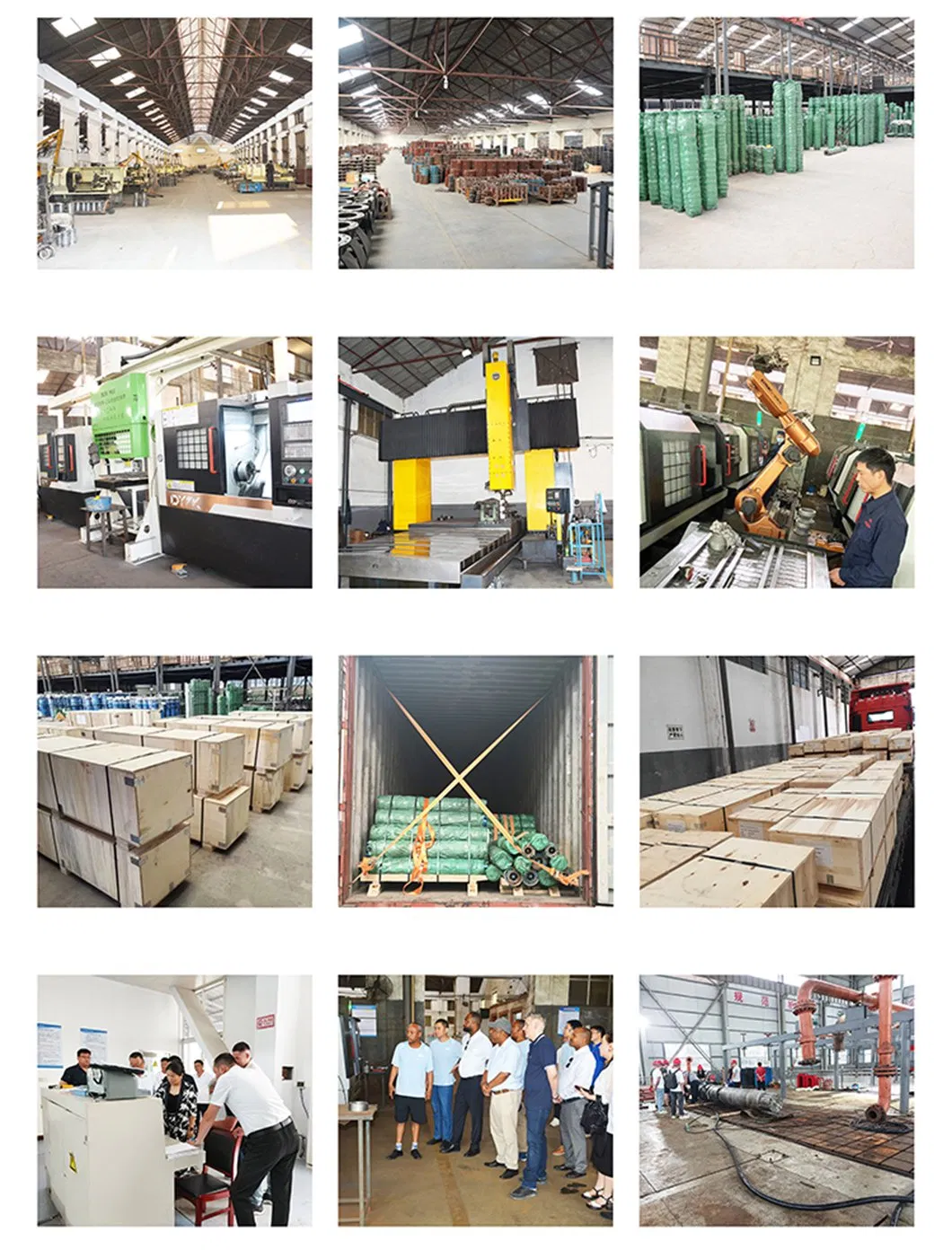

Manufacturing & Quality Control

The pump factory specializes in water submersible pumps and surface centrifugal pumps for sea water, salt water, clean water, sewage, and hot water applications.

📌 Casting Techniques: EPC Process, Precoated sand casting, and Wax precision casting.
📌 Precision Machining: Fully automated stamping lines and CNC machining utilizing 3D/2D technology.
📌 Strict Testing: 36 dedicated QC staff managing rotor dynamic balancing, hydrostatic pressure tests, and motor winding tests.

❓

Frequently Asked Questions

Q1: What is the primary advantage of a split case pump?

The axially split casing allows for easy access to internal components like the impeller and shaft without disturbing the motor or pipework, significantly reducing maintenance time.

Q2: Can these pumps handle high-temperature liquids?

Yes, these pumps are designed to operate efficiently within a temperature range of 0°C to 105°C, making them suitable for district heating and industrial processes.

Q3: What materials are available for corrosive environments?

For corrosive or seawater applications, we offer impellers and casings in bronze, silicon brass, and various grades of stainless steel.

Q4: Are the pumps suitable for fire protection systems?

Absolutely. Their high reliability, large capacity, and stable performance make them an ideal choice for large-scale firefighting and district water supply systems.

Q5: Do you support customized OEM/ODM requirements?

Yes, we accept OEM and ODM orders. We can manufacture pumps according to your specific technical specifications and material requirements.

Q6: How is the quality of the pump balance ensured?

Every impeller undergoes both static and dynamic balancing tests. Additionally, the double suction design naturally balances axial forces to ensure smooth, vibration-free operation.
