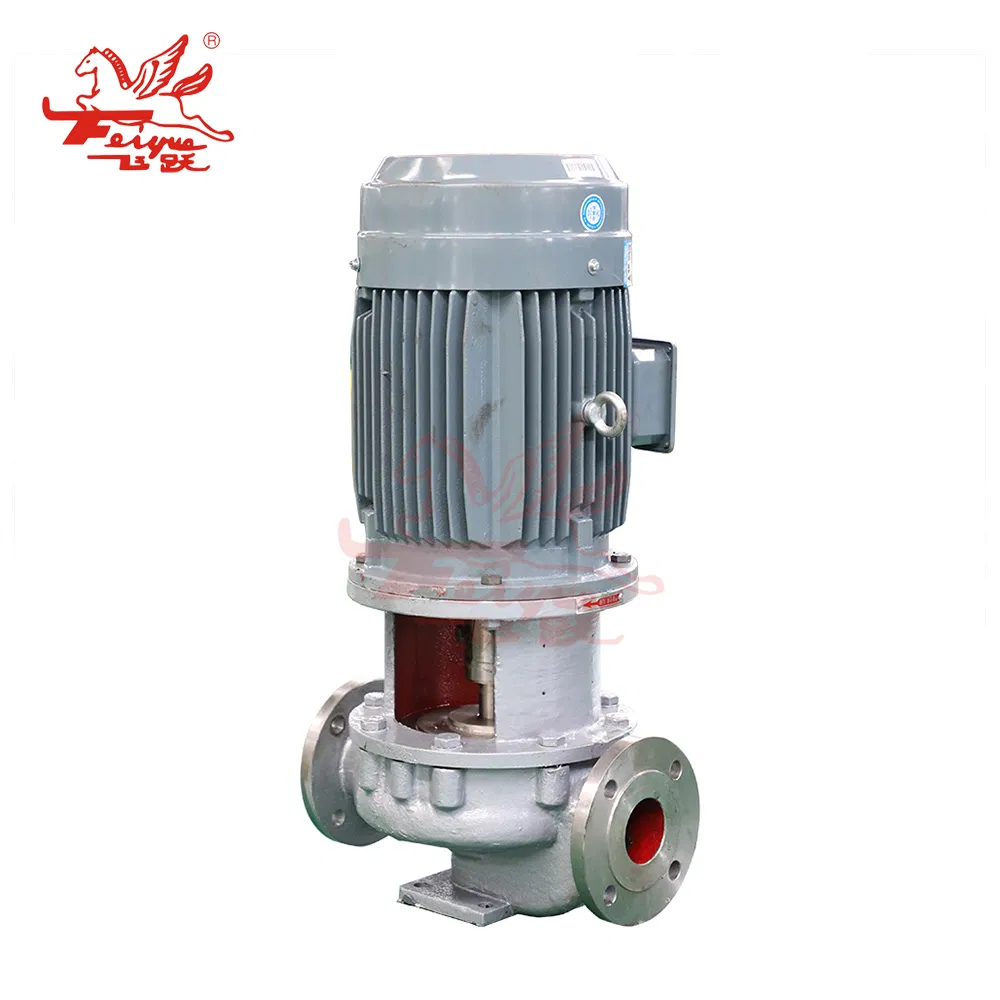

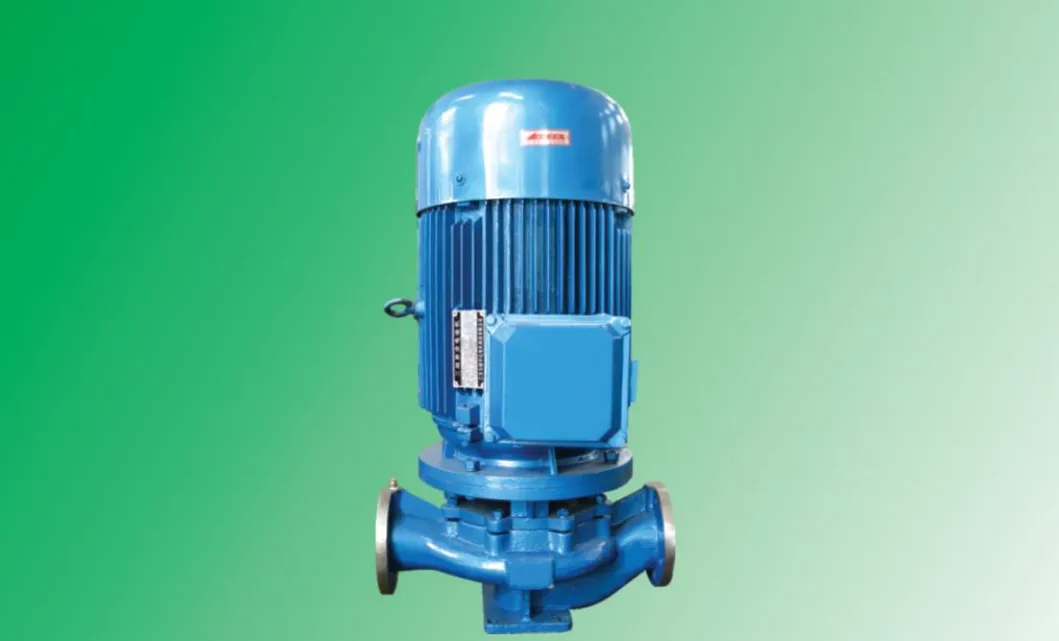

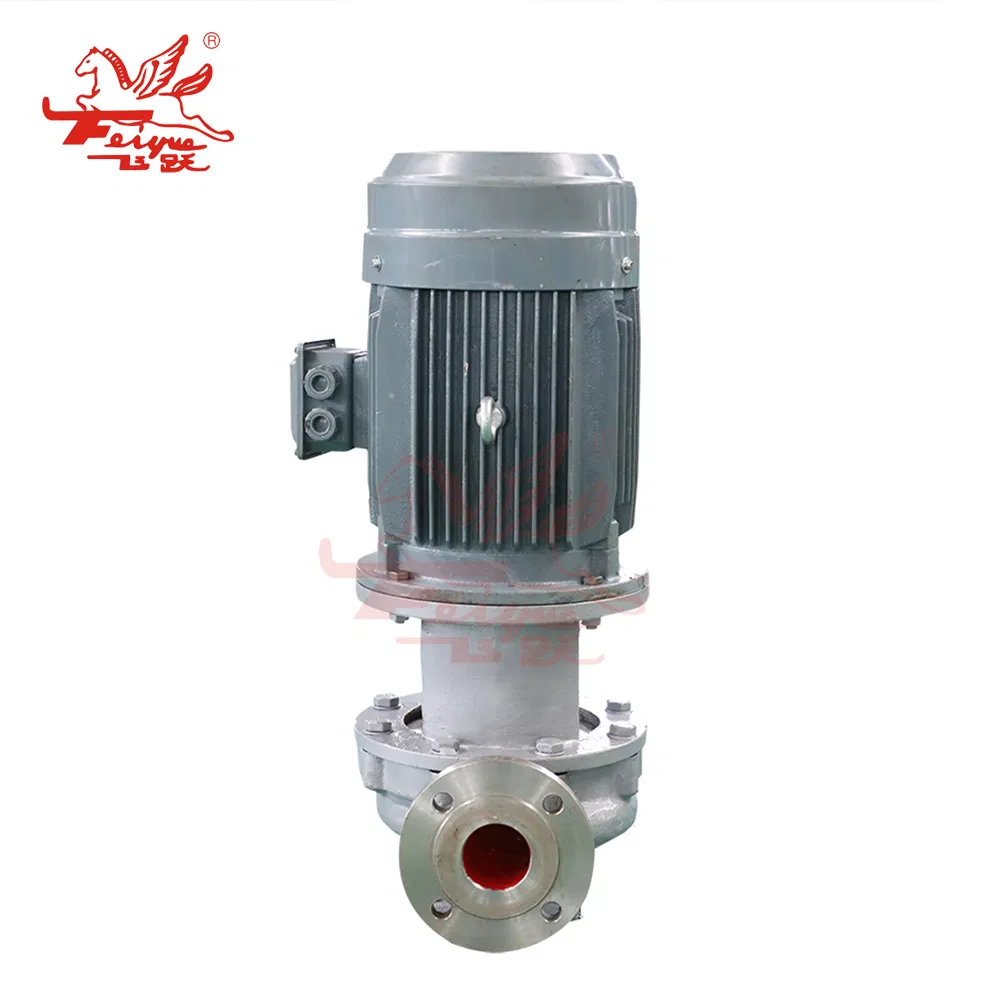

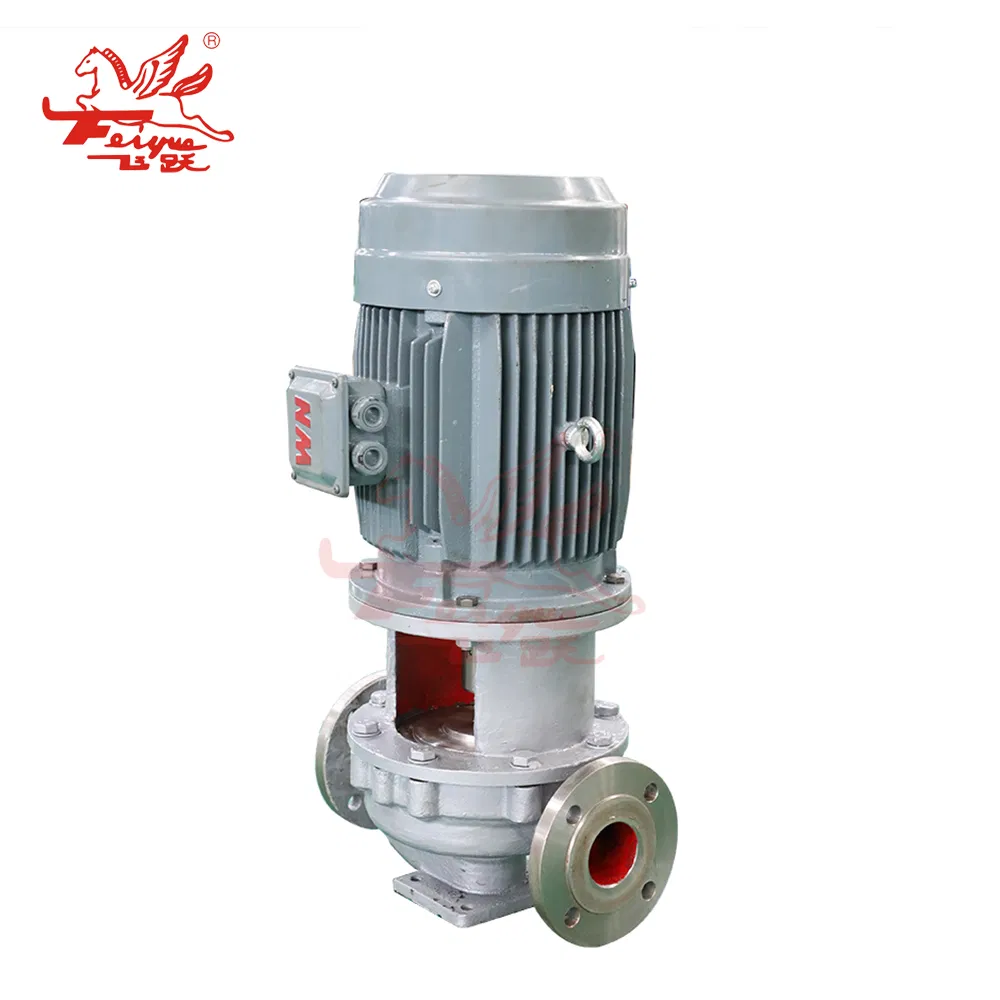

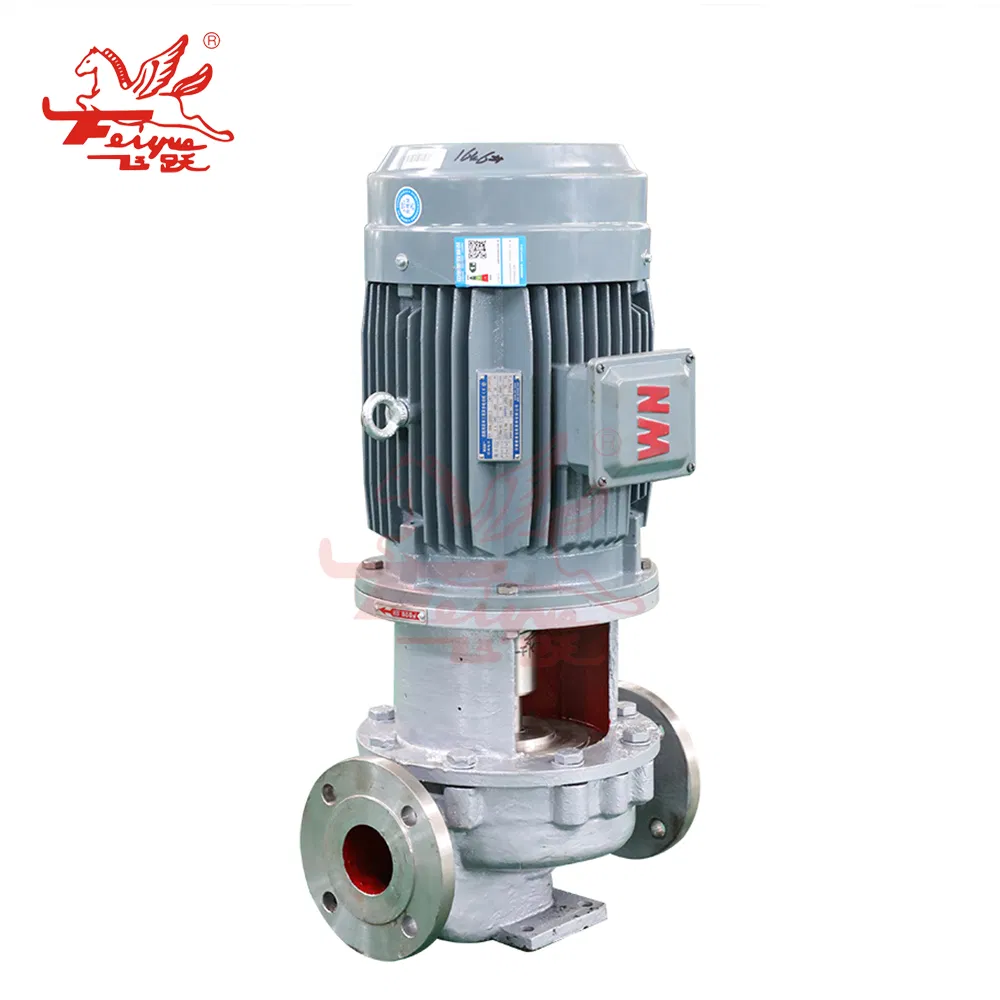

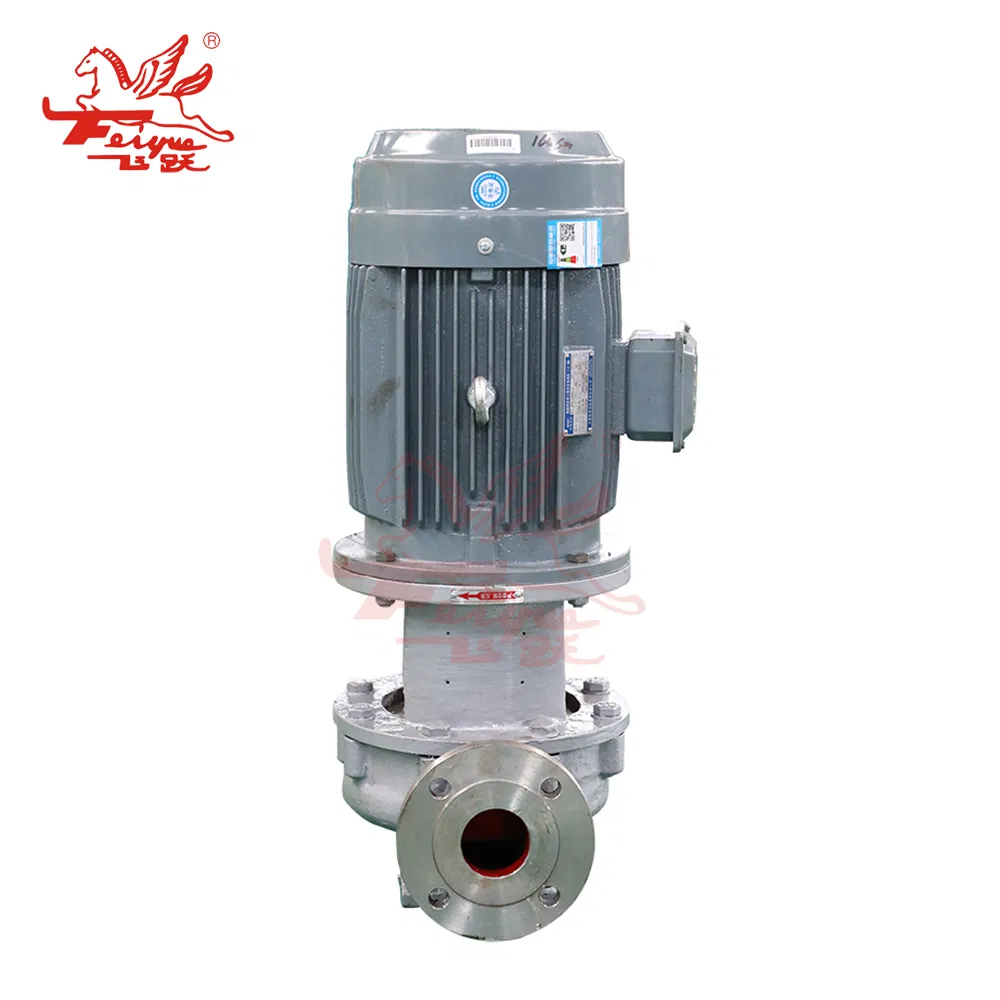

SG Cast Iron Close Coupled Vertical Inline Pump

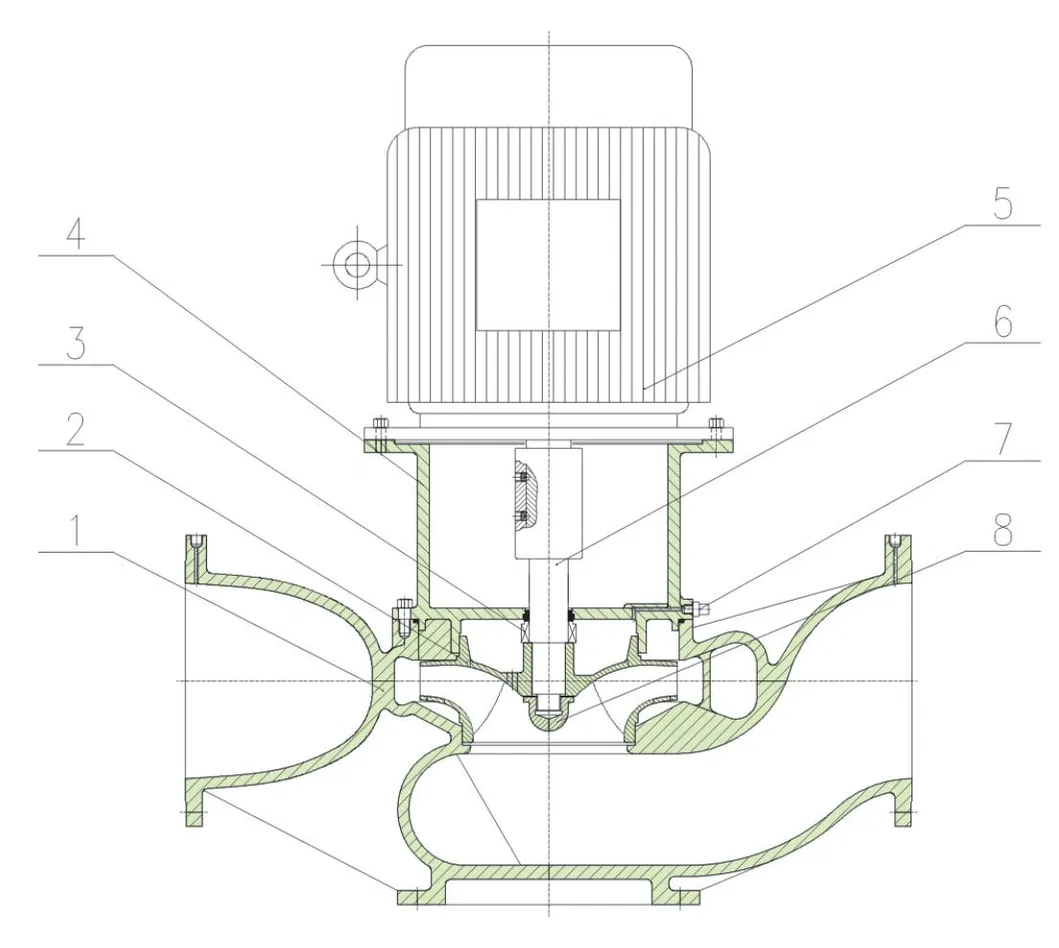

The SG series pipeline pump is designed for pressure boosting in high-rise buildings and pipeline systems where pressure is low. It features an advanced mechanical seal and vertical structure, ensuring minimal leakage and high efficiency. Its compact design reduces physical volume and weight, making it an ideal replacement for traditional horizontal centrifugal pumps.

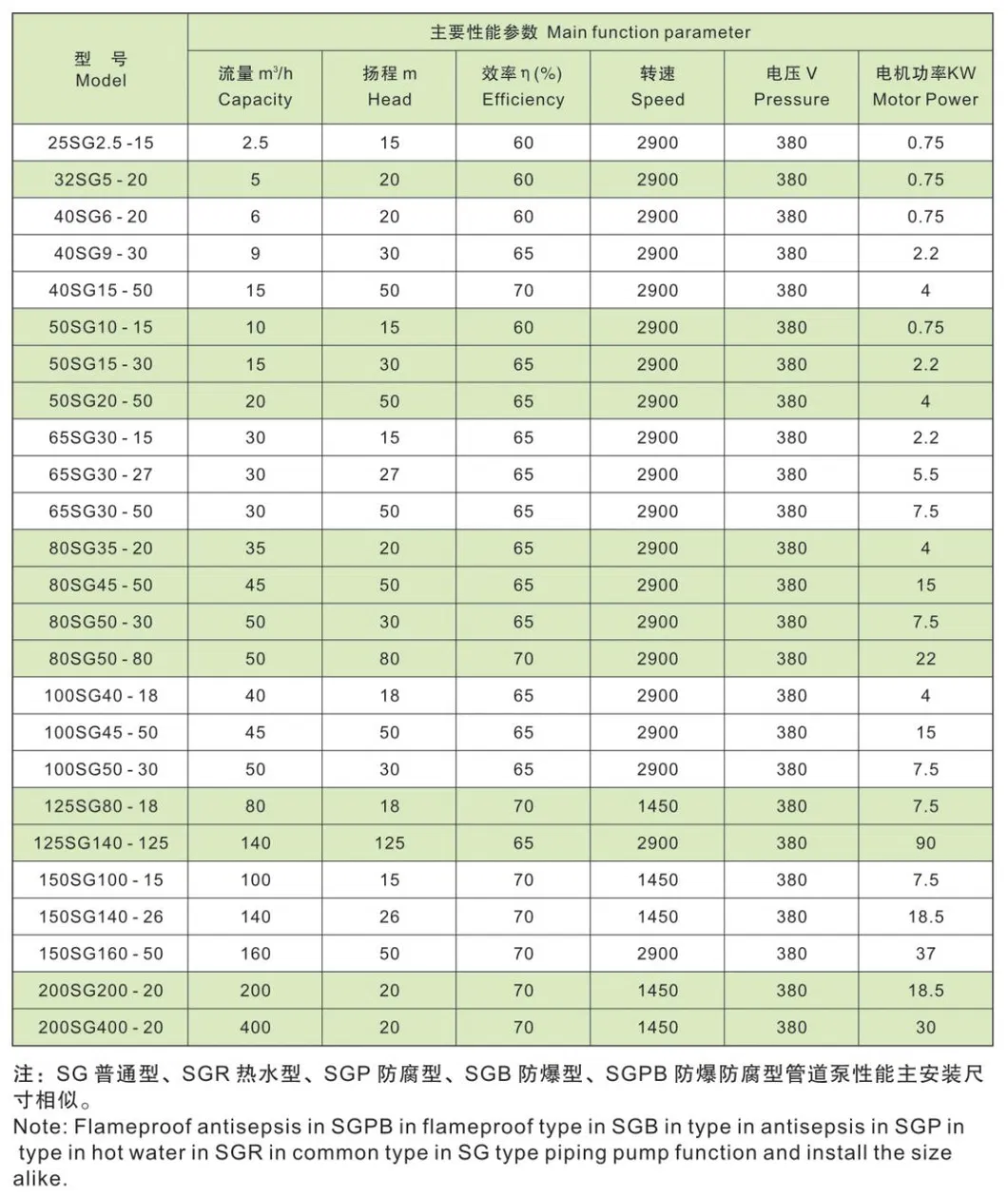

Main Applications & Classifications

• Common Type (SG): Ideal for high-rise water supply, park irrigation, cooling towers, and bathroom cold/warm water circulation (Below 80°C).
• Hot Water Type (SGR): Applicable for heating systems, boilers, and hot water circulation (Below 140°C).
• Anti-Corrosive Type (SGP): Stainless steel construction for food, medicine, and chemical engineering processes (Below 100°C).
• Flameproof Type (SGB): Designed for petroleum and chemical liquids that are volatile or explosive (Below 80°C).
• Antisepsis Flameproof (SGPB): Combined features for corrosive and explosive liquid transport (Below 140°C).
