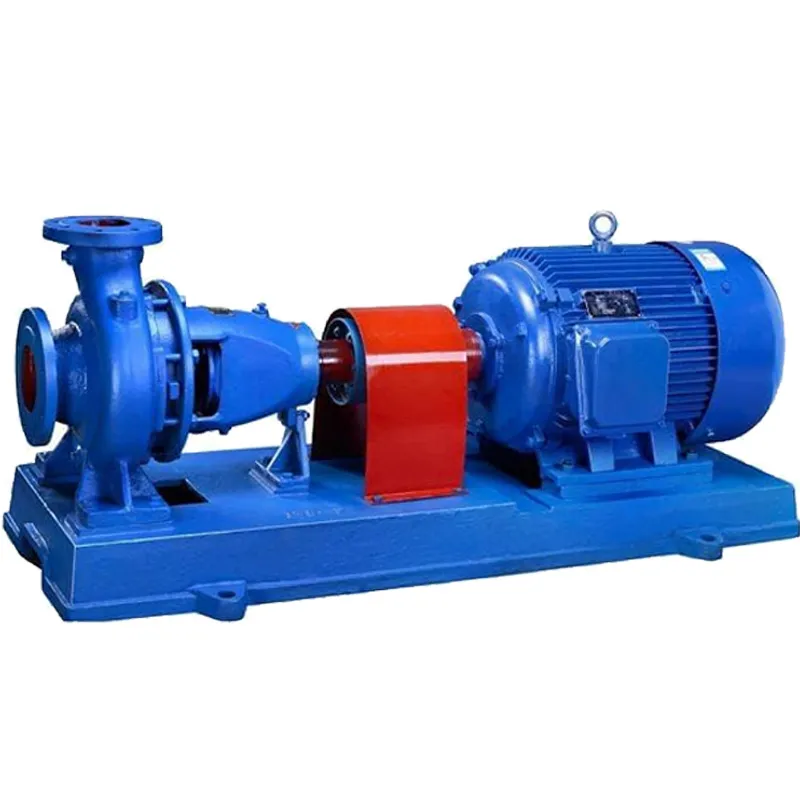

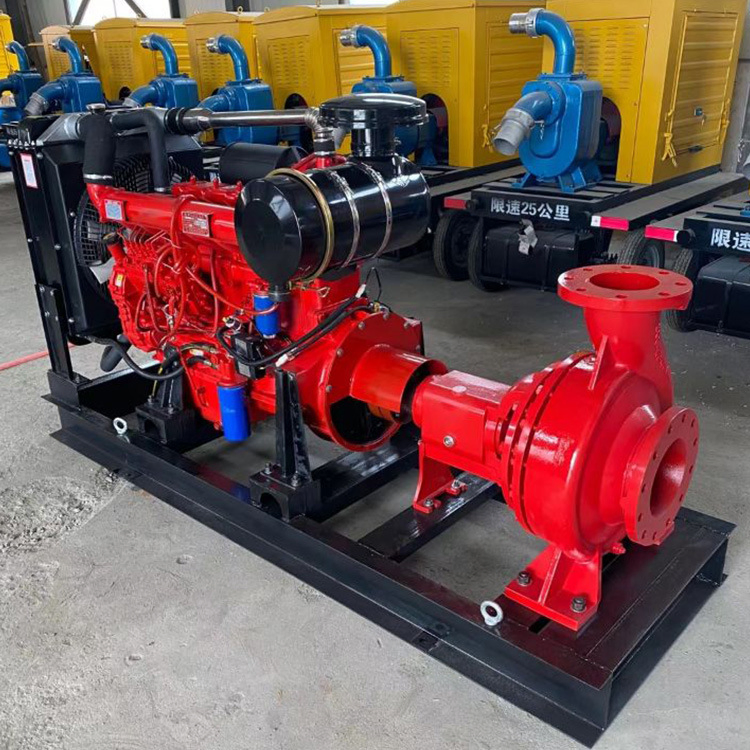

Horizontal End Suction Centrifugal Clean Water Pump
IS series pumps are horizontal single stage single suction (axial suction) centrifugal water pumps. They are widely used in industrial and urban water supply and drainage, as well as agricultural irrigation for transporting clean water and liquids with physical and chemical properties similar to clean water.
Key Advantages:

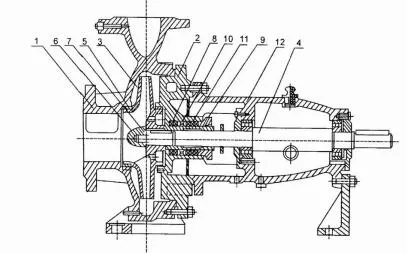

Pump Construction Components:
| Model | Motor Power (kw) | Capacity | Head (m) | Speed (r/min) | Efficiency (%) | NPSH (m) | Dia. (mm) | ||
|---|---|---|---|---|---|---|---|---|---|
| m³/h | L/S | Inlet | Outlet | ||||||
| IS50 | 0.55-11 | 5.4-15 | 1.5-4.17 | 4-82 | 1450/2900 | 28.5-60 | 2-2.5 | 50 | 32 |
| IS65 | 0.55-30 | 10.8-30 | 3-8.33 | 4-127 | 1450/2900 | 28-69 | 2-3 | 65 | 50/40 |
| IS80 | 0.55-37 | 21.7-60 | 6.03-16.67 | 4-125 | 1450/2900 | 41-75 | 2.5-3.5 | 80 | 65/50 |
| IS100 | 1.1-75 | 42.9-120 | 11.92-33.33 | 4-133 | 1450/2900 | 55-78 | 2-5 | 100 | 80/65 |
| IS125 | 3-110 | 60-240 | 16.67-66.67 | 8-132.5 | 1450/2900 | 53-81 | 2.2-5.6 | 125 | 100 |
| IS150 | 11-45 | 120-240 | 33.33-66.67 | 15-53 | 1450 | 62-81 | 2-3.5 | 150 | 125 |
| IS200 | 22-90 | 240-460 | 66.67-127.78 | 15-55 | 1450 | 70-83 | 3-4.9 | 200 | 150 |

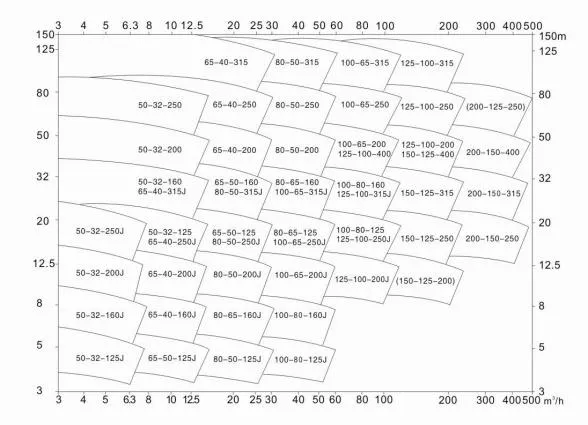

Performance Chart:
Mining water supply
Electric station
Fire fighting
Farmland irrigation
Industrial water supply
Urban water supply
Comprehensive process: Product packaging, boxing, nailing, loading, and port transportation. We support freight, air, sea, and express methods to ensure the best delivery service for our clients.
| 2006/42/EC Certificate No: M.2023.206.C82652 |
ISO9001 Certificate No: 626018Q12046R6S |
Credit Level Certificate Certificate No: ZXXY-ZXDJ20158 |
