Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Transfer Pump for Construction Projects

Customization: Available
Warranty: 1 Year
Type: Concrete Pump

Product Description

Basic Information Overview
Model NO.:20
Shotcrete Type:Wet
Structure:Hydraulic Cylinder
Productivity:15m³/H
Feeding Height:800mm
Certification:ISO9001: 2000, CE
Condition:New
Maximum Pressure:18MPa
Discharge Port:100mm
Overall Size:3300*1400*1400
Package:Wooden Box
HS Code:8413400000
Product Description

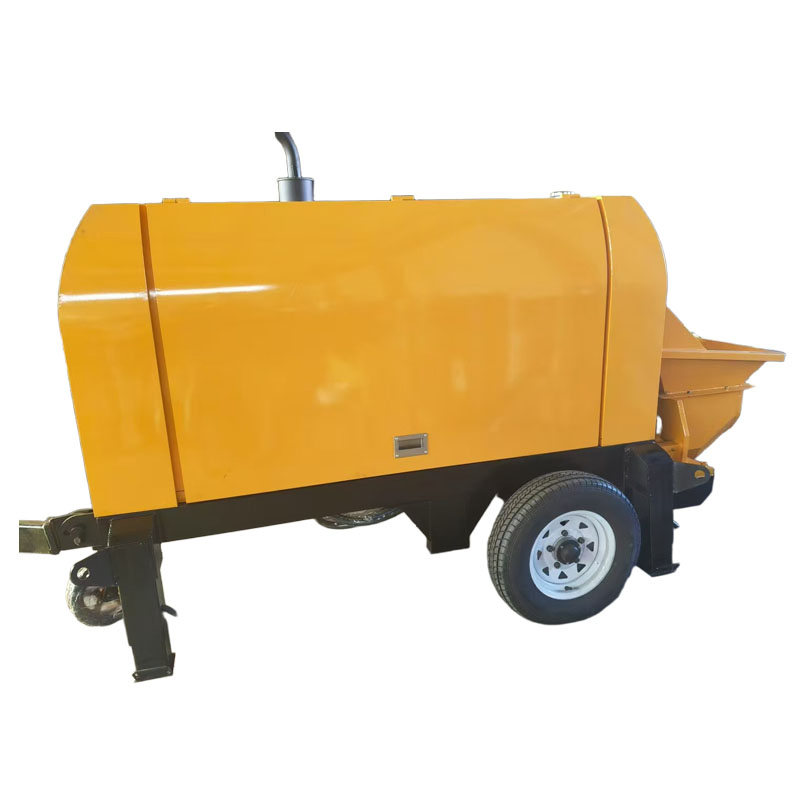

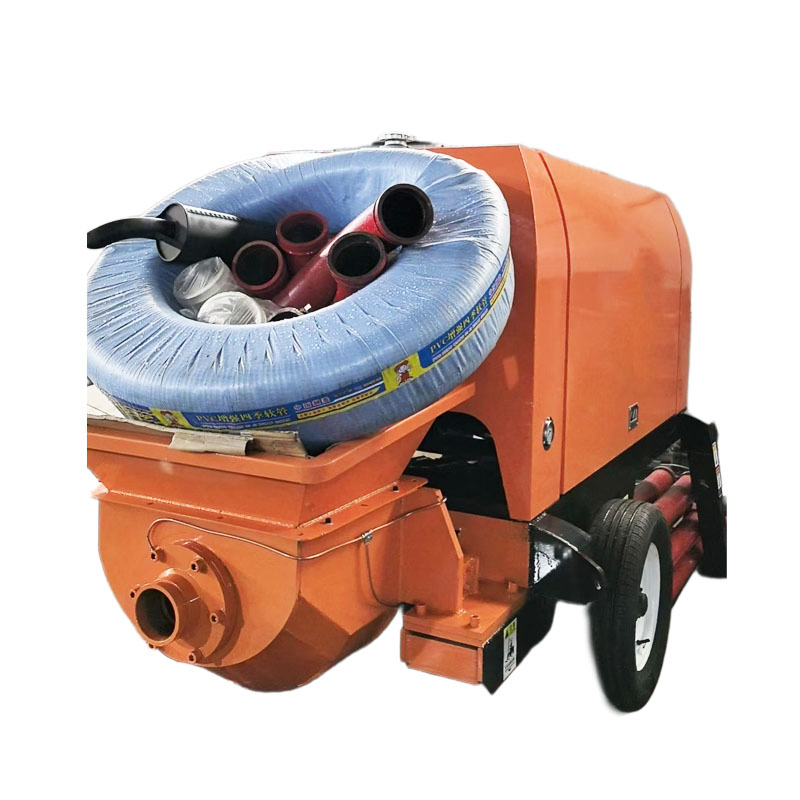

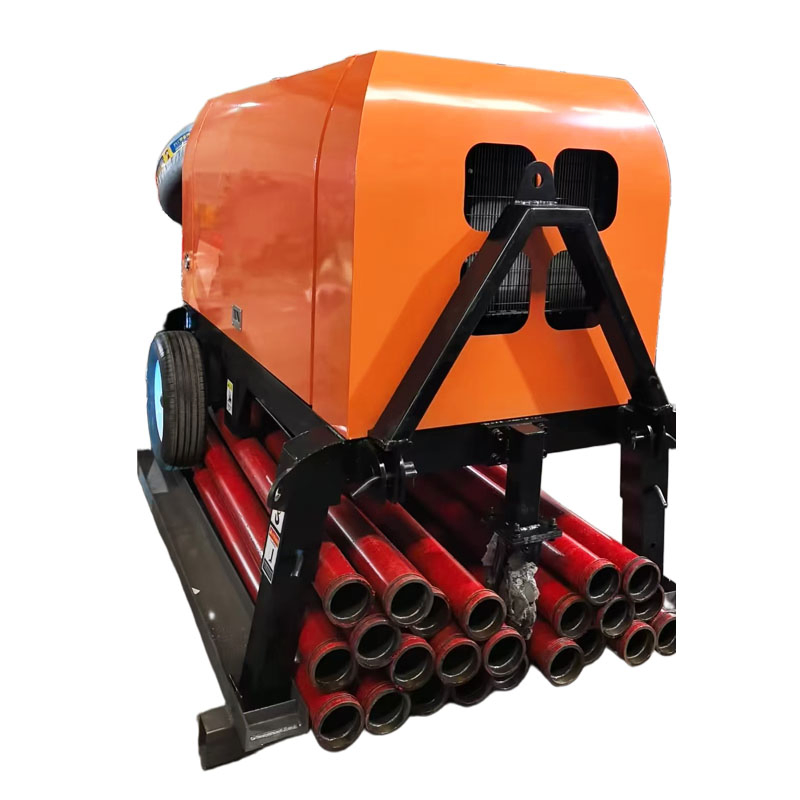

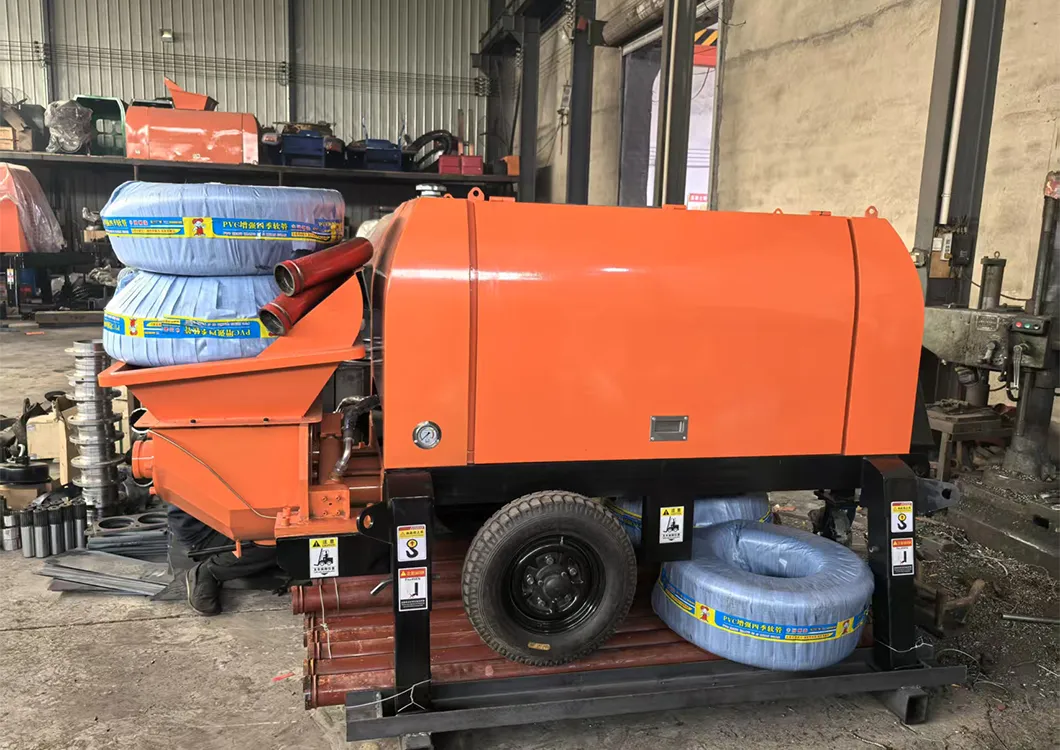

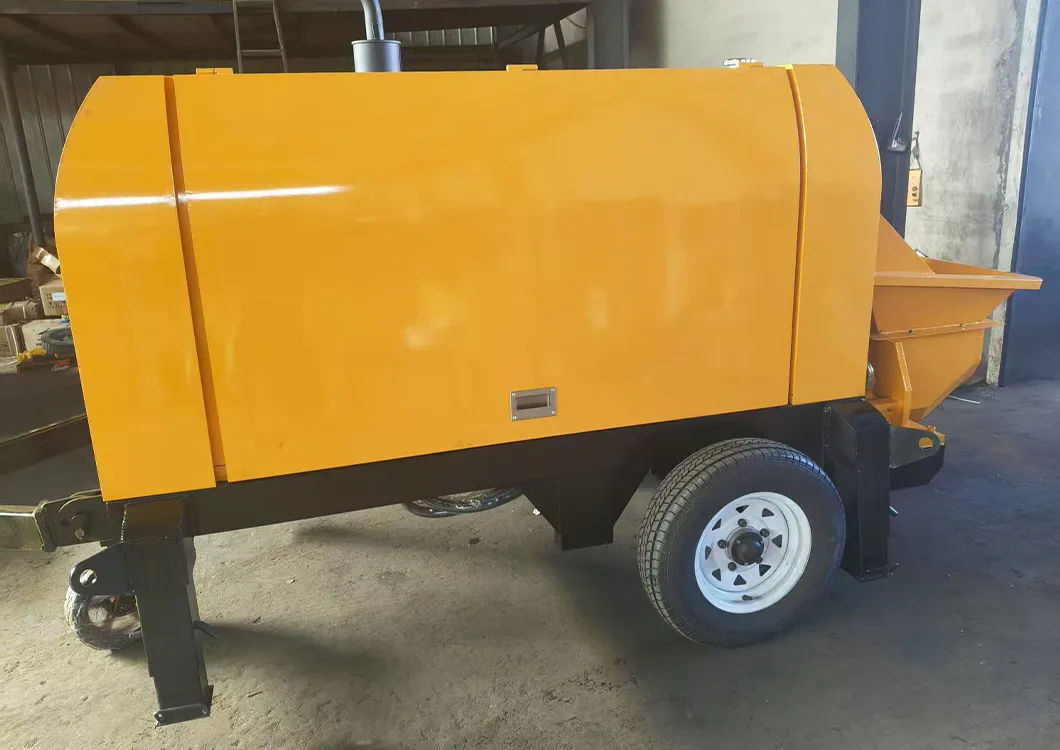

Mini Concrete Transfer Pump

Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Transfer Pump is designed for high efficiency in construction projects. Its advantages include superior mobility with large-size solid tires and universal wheels, making short-distance movement and pouring position conversion extremely flexible. The integrated control panel and open-shell design ensure easy operation and maintenance. Its compact size allows for use in narrow spaces like interior decoration and rural housing projects.

Feature 1
🚚
Equipped with tires and universal wheels, easy to move, can quickly reach the construction point; Compact structure for narrow space work.
⚙️
Inclined large open hopper, easy to load concrete and reduce residue, improving transport efficiency for smooth construction.
Feature 2
Feature 3
🛡️
Utilizing mature pumping technology and stable mechanical structures, it ensures continuous operation and reduces project delays.
Technical Parameters
Project Unit/Brand Data

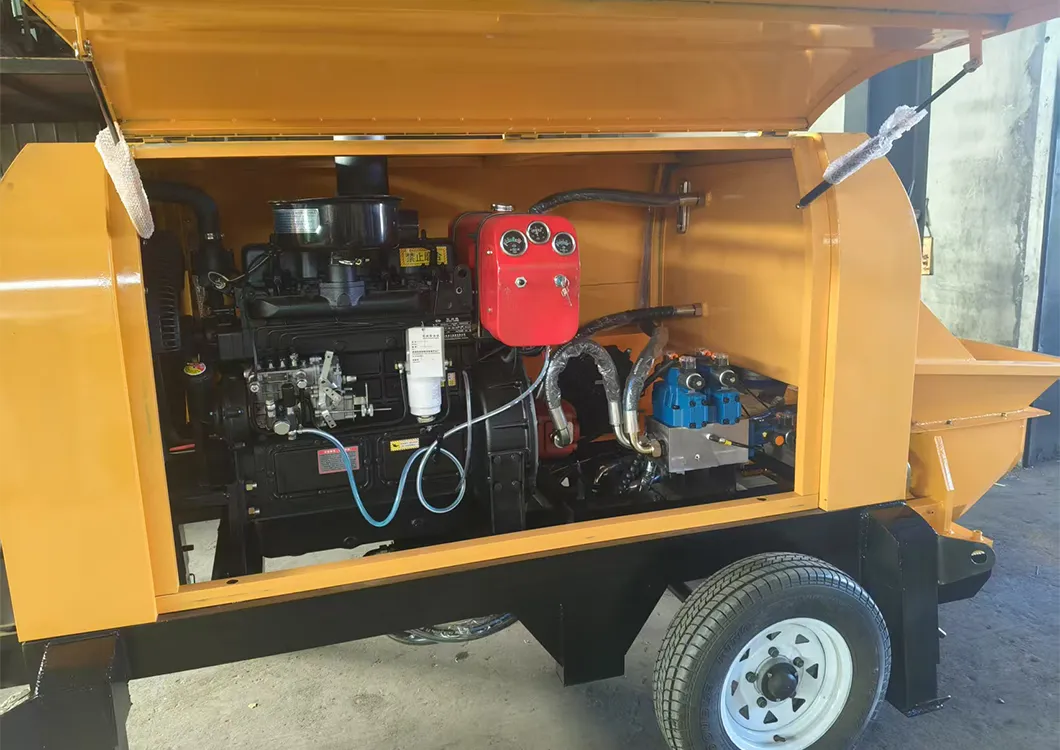

Main motor/Diesel enginekw22kw/4102
Theoretical workloadm³/H8-10
Work pressureMpa18
Stone diametermm≤20
Cylinder sizemm80*550mm
Main oil pumpBrand63 Gear pump
Electronic control system-DeliX
Heat dissipation system-Air-cooled
Outlet diametermm100mm
Weightkg1200

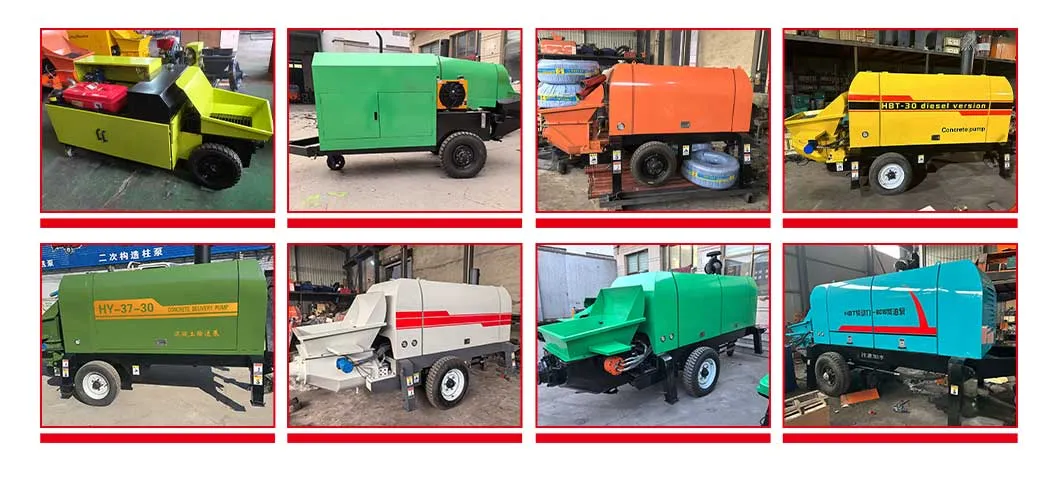

Main Product Gallery
Main Products
Company Profile

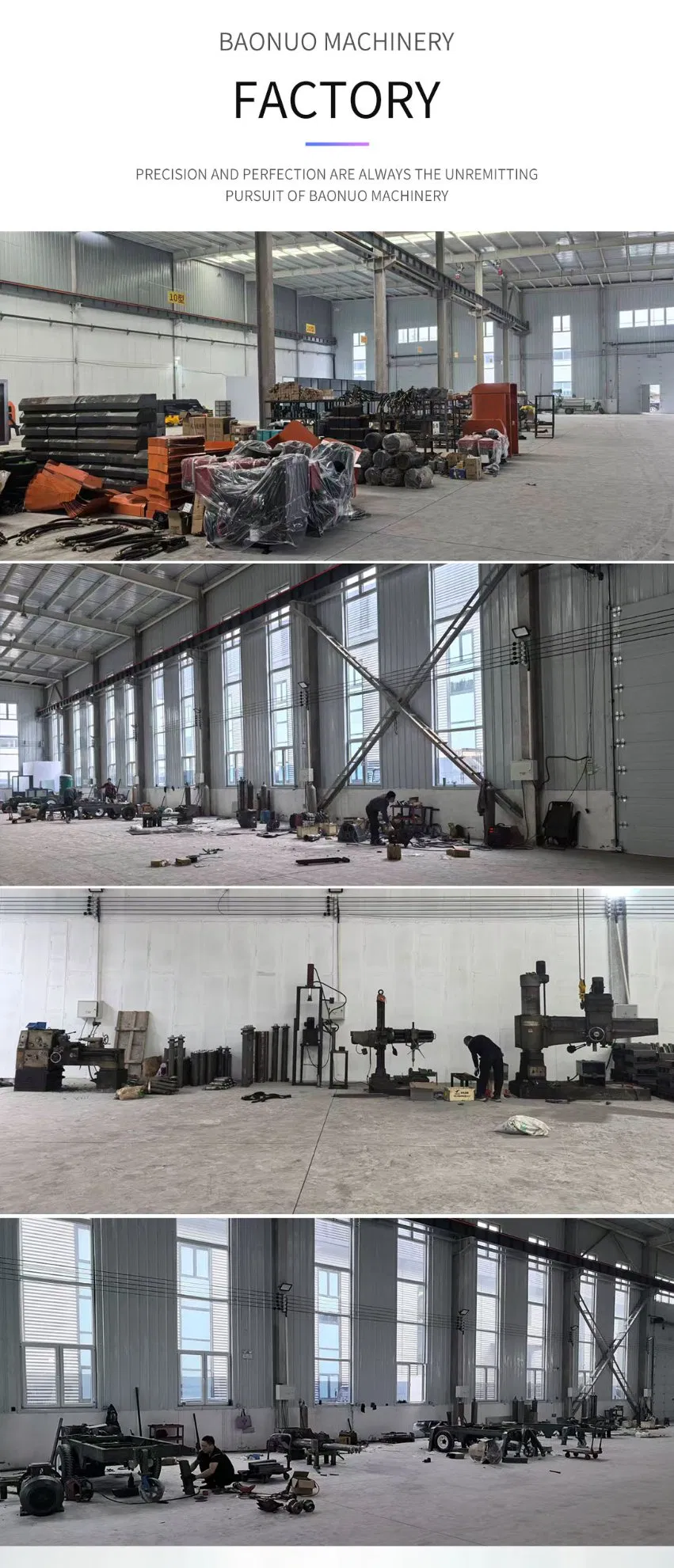

Factory

The company is a professional concrete equipment manufacturer integrating research, development, production, and sales. We are committed to high-quality concrete pumps, fine stone pumps, and mortar pumps. Our cultural concept focuses on "using strength to deliver on promises and innovation to lead development."

Production Line
Our Certificates
Certificates
Packaging & Shipping
Shipping
Frequently Asked Questions
1. What is the maximum productivity of this mini concrete pump?
The pump has a theoretical productivity of 15m³/H, making it ideal for small to medium construction projects.
2. Is it suitable for narrow construction sites?
Yes, its compact structure (3300*1400*1400mm) and universal wheels allow it to operate effectively in tight spaces like interior decoration sites.
3. What kind of power source does the pump use?
It can be equipped with either a 22kw electric motor or a 4102 diesel engine, depending on your project requirements.
4. What is the maximum stone diameter the pump can handle?
The equipment is designed to handle concrete with a stone diameter of ≤20mm.
5. What is the maximum transmission distance?
For small pebbles, it can reach an altitude of 30-40 meters and a horizontal length of 80-100 meters.
6. How is the product packaged for international shipping?
The pump is securely packed in a robust wooden box to ensure safety during transport and handling.
