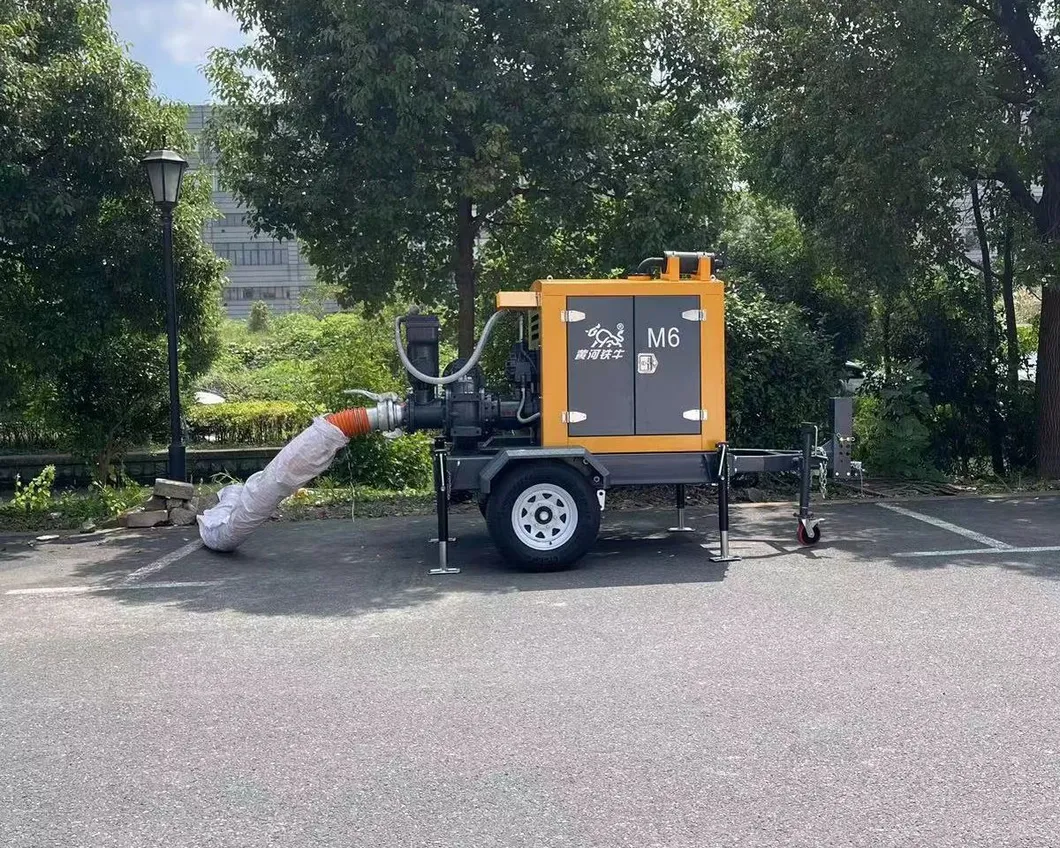

Portable Flood Prevention and Drainage Diesel Engine Self Suction Pump, Horizontal Large Displacement Drainage Pump
Portable Flood Prevention and Drainage Diesel Engine Self Suction Pump, Horizontal Large Displacement Drainage Pump
Portable Flood Prevention and Drainage Diesel Engine Self Suction Pump, Horizontal Large Displacement Drainage Pump
Portable Flood Prevention and Drainage Diesel Engine Self Suction Pump, Horizontal Large Displacement Drainage Pump
Portable Flood Prevention and Drainage Diesel Engine Self Suction Pump, Horizontal Large Displacement Drainage Pump
1 / 5
Portable Flood Prevention and Drainage Diesel Engine Self Suction Pump, Horizontal Large Displacement Drainage Pump
Portable Flood Prevention and Drainage Diesel Engine Self Suction Pump, Horizontal Large Displacement Drainage Pump
Portable Flood Prevention and Drainage Diesel Engine Self Suction Pump, Horizontal Large Displacement Drainage Pump
Portable Flood Prevention and Drainage Diesel Engine Self Suction Pump, Horizontal Large Displacement Drainage Pump
Portable Flood Prevention and Drainage Diesel Engine Self Suction Pump, Horizontal Large Displacement Drainage Pump

Portable Flood Prevention and Drainage Diesel Engine Self Suction Pump, Horizontal Large Displacement Drainage Pump

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.M6
Max. Head10-30m
Max. Capacity>400 L/min
Driving TypeDiesel Engine
MaterialCast Iron
StructureSingle-stage Pump
Max Suction Lift9m
PrimingDry Priming, Vacuum Assisted
Speed1500-2900rpm
TheoryCentrifugal Pump
ApplicationSewage & Slurry Pump
Package Size160.0x100.0x110.0cm
★

Product Description

Vacuum Self-Priming Pump: A high-performance machine designed for pumping high-energy liquids. This newly developed pump series features a compact diameter but delivers high flow rates, significant head pressure, and powerful suction capabilities. Designed for versatility, it excels in farmland irrigation, urban drainage, and emergency flood discharge.

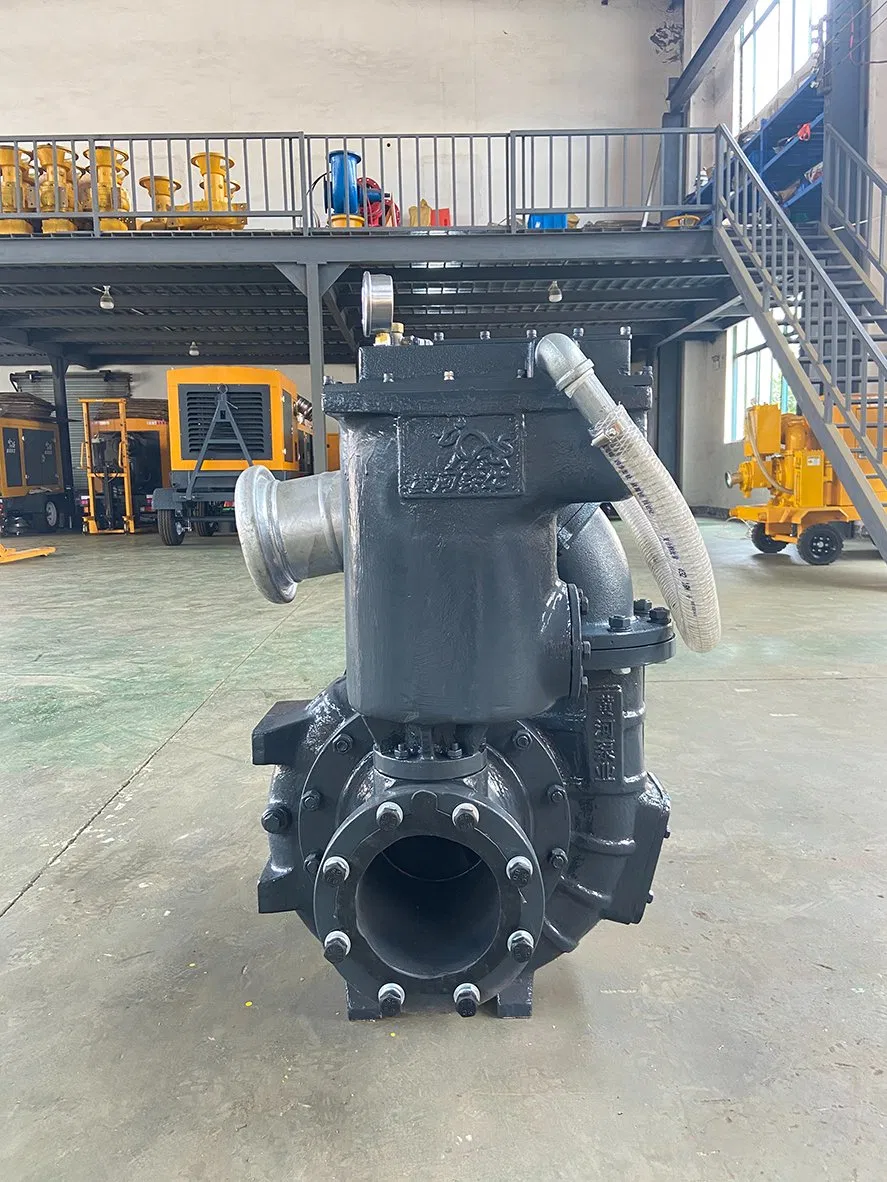

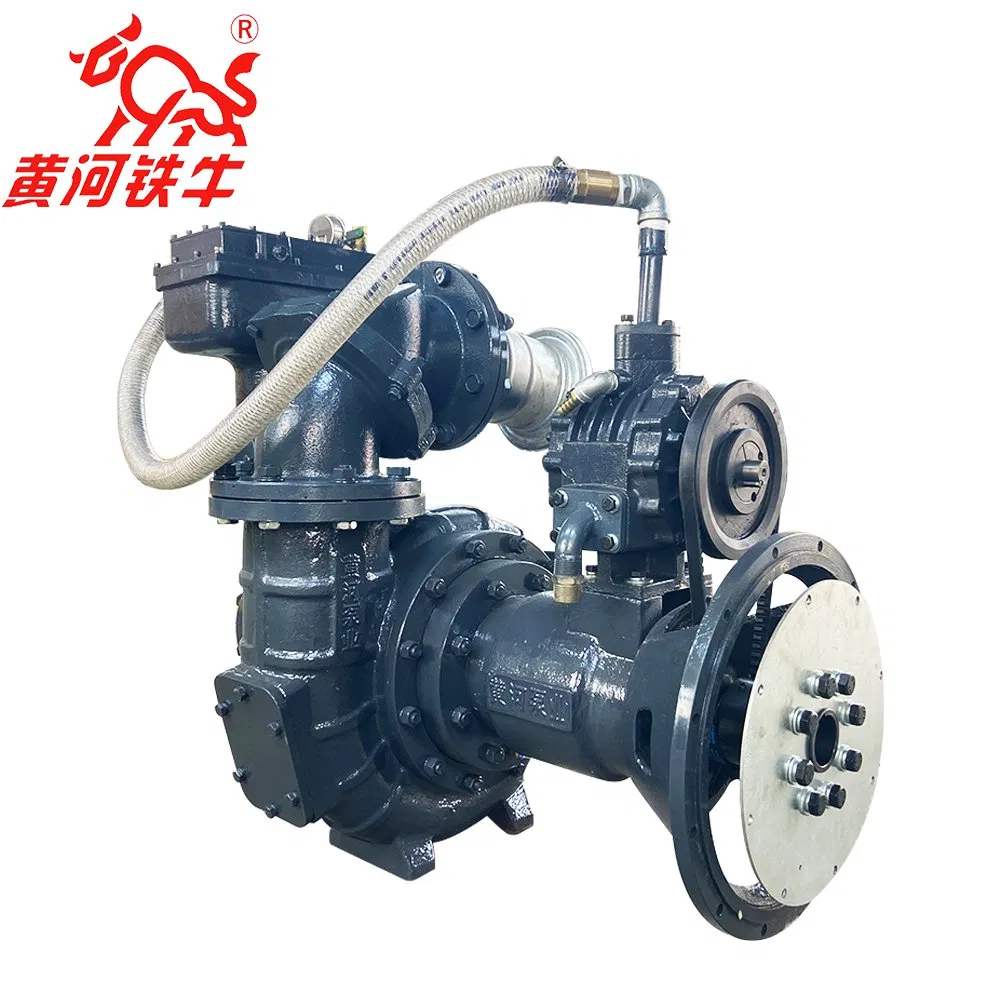

Diesel Engine Self Suction Pump

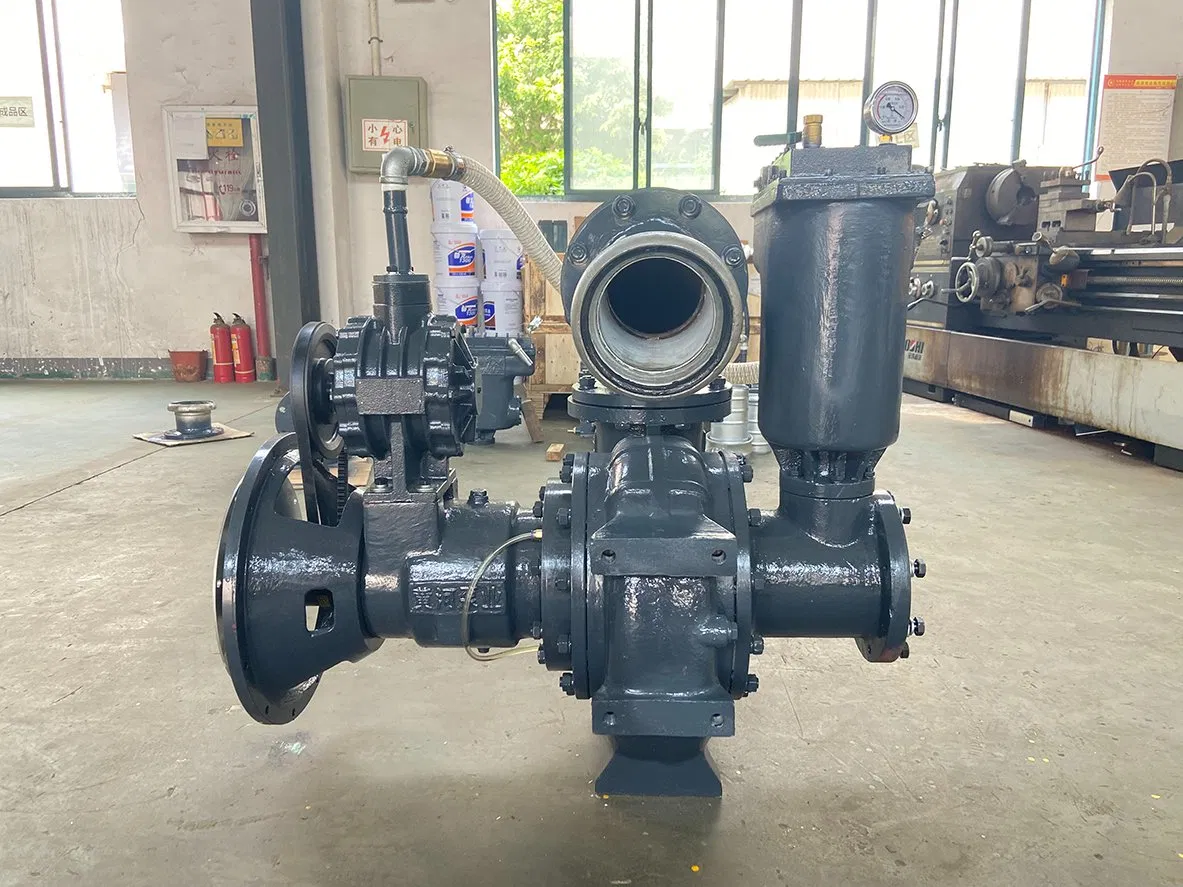

Drainage Pump Side View
✔

Operation Guide

Method of Application:
1. Connect the suction pipe securely.
2. Connect the delivery hose.
3. Switch on the power to connect the battery.
4. Press the green start button on the controller panel.
5. Wait as the machine initiates automatic operation.
Points for Attention:
  • ● Smear the sealing O-ring with butter before use to prevent breakage.
  • ● Ensure every joint is sealed perfectly before starting the engine.
  • ● Verify fuel, oil, and coolant levels are sufficient.
  • ● Check all power circuit connections.
📊

Product Specifications

Model Flow (m³/h) Lift (m) Suction Height (m) Speed (RPM) Power (kw)
M6-20160209290015
M6-32160329290022
M6-20200209145018.5
M6-32200329145030
M6-50200509145045
M6-44187449145037
M6-80200809145090
M6-15016015092900110
M6-18020018092900250
✚

Our Advantages

◈
Stable performance and highly reliable for industrial use.
◈
Fast self-priming with high suction lift aided by a vacuum assist system.
◈
Equipped with a durable sealing system and specialized mechanical seals.
◈
One-click quick start for effortless operation.
◈
Compact structure with an aesthetically pleasing design.
📷

Factory & Testing Displays

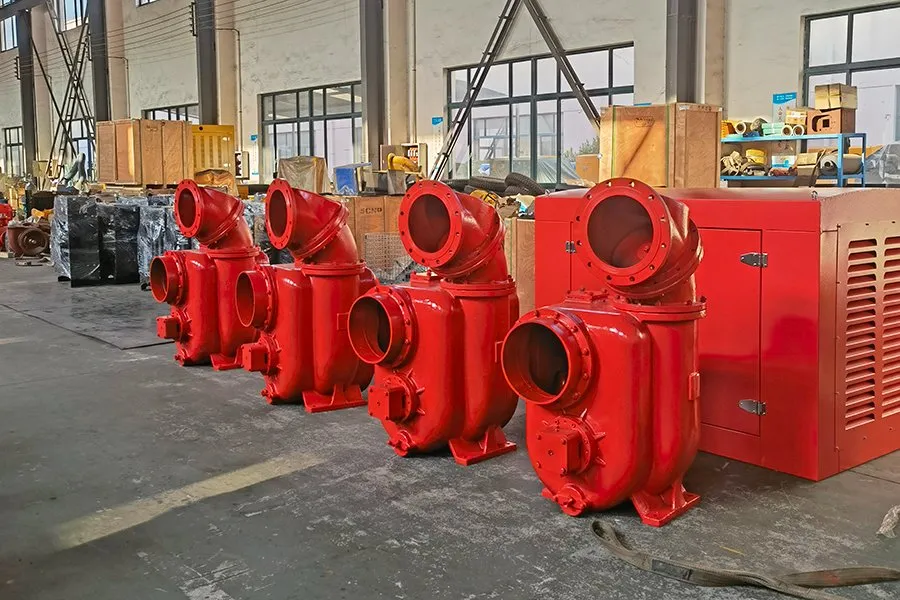

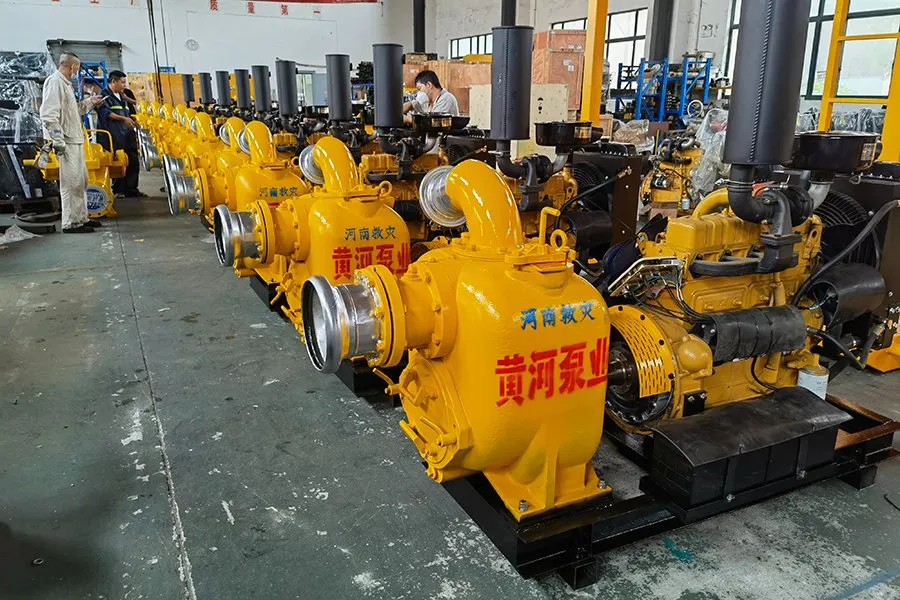

Factory photo 1

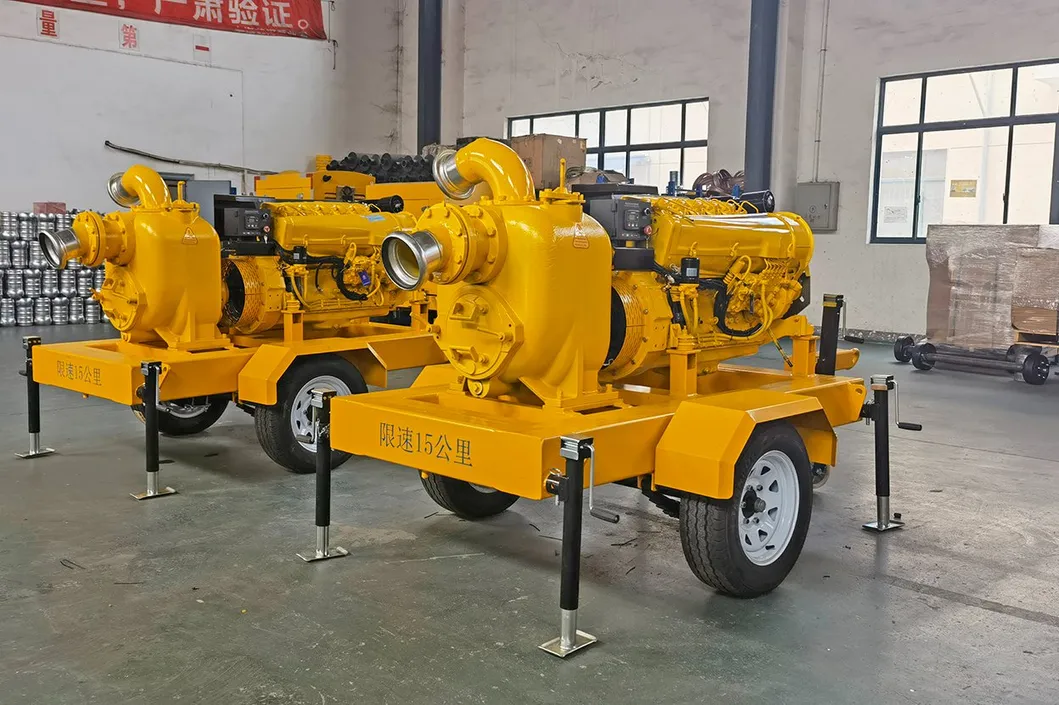

Factory photo 2

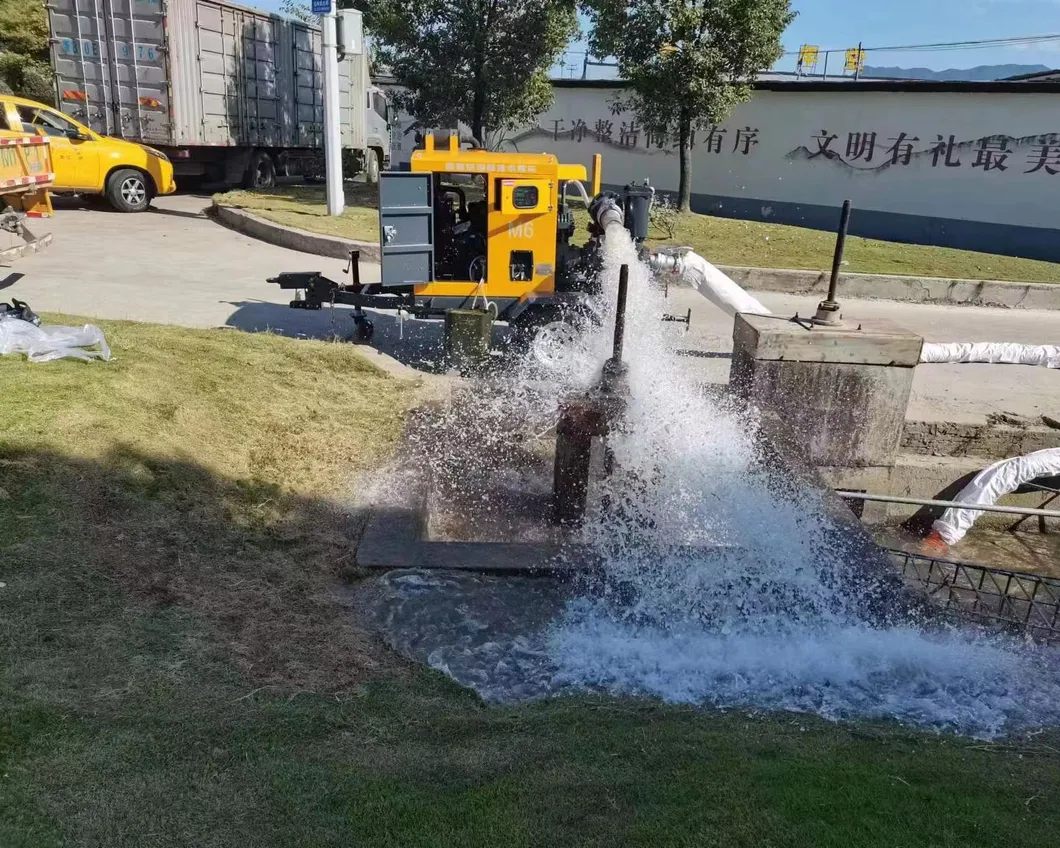

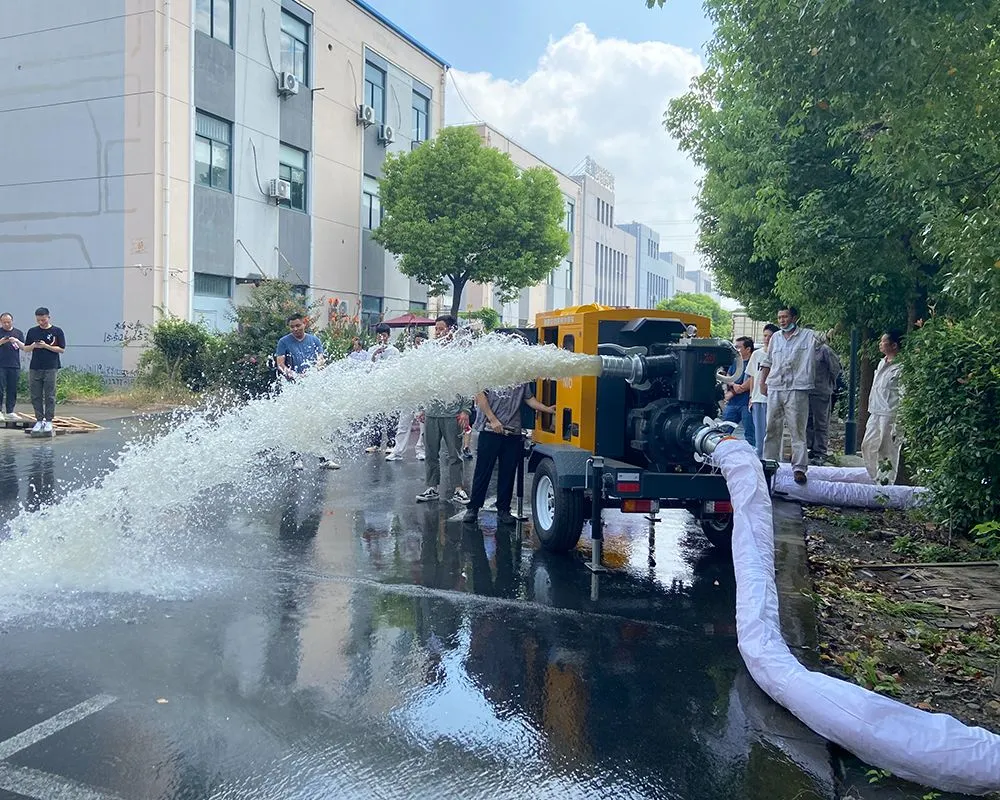

Testing 1
Testing 2
Testing 3
Certifications Display
?

Frequently Asked Questions

Are you a manufacturer or a trading company?
We are an experienced manufacturer focusing on diesel engine pump manufacturing and research.
Can you manufacture pumps according to customer requirements?
Yes, we offer OEM and ODM manufacturing services and can place your logo on the machines.
How can I place an order online?
You can send us an email or message via messaging apps. After confirming the technical details, we will proceed with the order.
What is the typical delivery time?
The delivery time is usually 10-15 working days after payment confirmation.
What applications are these pumps best for?
These pumps are ideal for farmland irrigation, urban drainage, sewage management, and flood prevention.
What is the maximum suction lift for the M6 model?
The M6 series features a high suction lift of up to 9 meters with vacuum assist.
