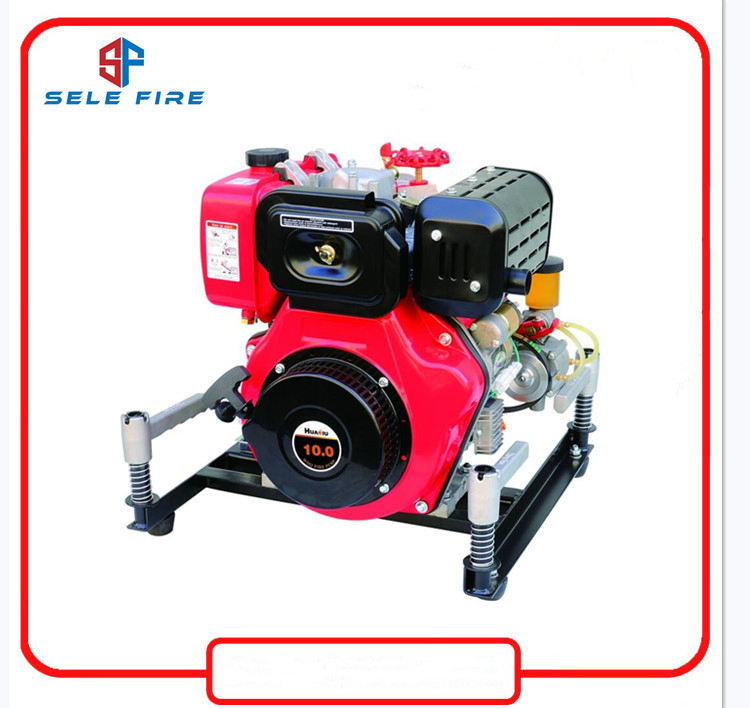

Portable 11HP Self Priming Diesel Booster Centrifugal Pump for Fire Fighting
Portable 11HP Self Priming Diesel Booster Centrifugal Pump for Fire Fighting
Portable 11HP Self Priming Diesel Booster Centrifugal Pump for Fire Fighting
Portable 11HP Self Priming Diesel Booster Centrifugal Pump for Fire Fighting
Portable 11HP Self Priming Diesel Booster Centrifugal Pump for Fire Fighting
1 / 5
Portable 11HP Self Priming Diesel Booster Centrifugal Pump for Fire Fighting
Portable 11HP Self Priming Diesel Booster Centrifugal Pump for Fire Fighting
Portable 11HP Self Priming Diesel Booster Centrifugal Pump for Fire Fighting
Portable 11HP Self Priming Diesel Booster Centrifugal Pump for Fire Fighting
Portable 11HP Self Priming Diesel Booster Centrifugal Pump for Fire Fighting

Portable 11HP Self Priming Diesel Booster Centrifugal Pump for Fire Fighting

Customization: Available
After-sales Service: Engineers Service
Warranty: 12 Months for Pump, 3 Months for Spare Parts
Send Inquiry

Product Description

i

Basic Information

Model NO.
BJ-9B
Max. Head
80-110m
Max. Capacity
>400 L/min
Driving Type
Diesel or Gasoline Engine
Impeller
Single-Stage / Semi-Open
Working Pressure
High Pressure Pump
Starting Way
Hand / Electric Starting
Standard
CE, ISO
Application
Building Fire Fighting, etc
Origin
China
1

Product Overview

The BJ-9B Series pump is powered by a high-performance HR186FA diesel engine. This single-level centrifugal pump features a compact structure, convenient starting, fast water priming, and low fuel consumption. Its lightweight and reliable design makes it exceptionally suitable for navigating narrow roads and challenging environments.
It serves as ideal equipment for fire extinguishing tasks carried out by professional fire brigades, forest fire services, towns, rural areas, and the mining industry.
2

Technical Parameters

Appearance dimension565*580*560mm
Device weight≤75kg
Rated capacity480L/min
Pump head45m
Out pressure0.4Mpa
Inlet / Outlet sizeφ65mm / φ65mm
Dia. of nozzleφ19mm
Maximum suction depth7m
Pump priming time≤20s
Model of engine11HP, HR186FA
Pump bodySingle stage
3

Visual Showcase

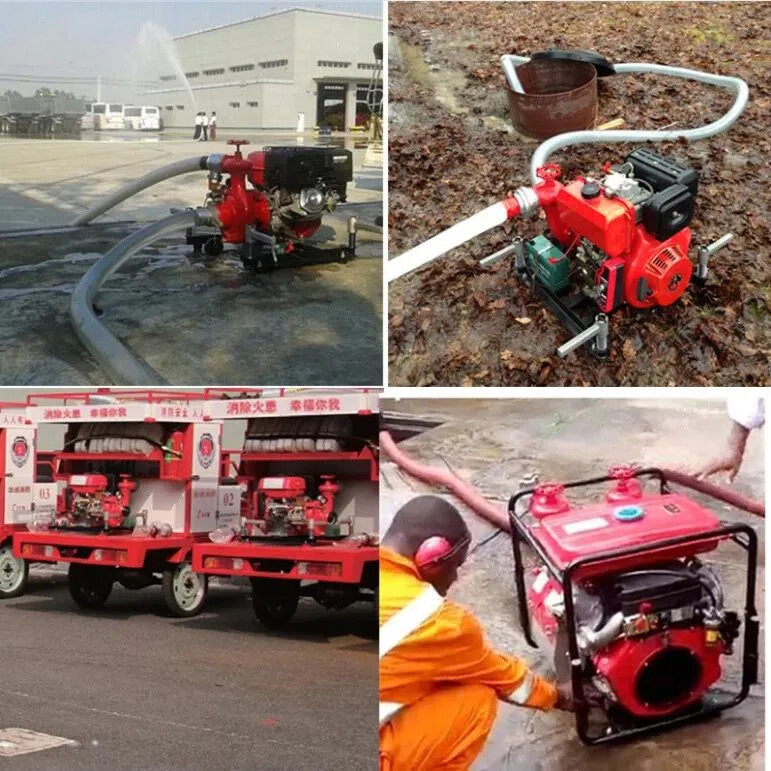

Portable Fire Pump Application
Fire Pump Shipping Package
4

Our Professional Services

Timely Delivery: Standard delivery within 15 working days for diesel and gasoline pump units.
Comprehensive Warranty: 12-month warranty for the pump body and 3 months for core working parts.
Secure Packaging: All units are packed in durable plywood cases, optimized for long-distance ocean transport.
Transparent Monitoring: We provide production updates via photos and videos to keep you informed of your order status.
Quality Assurance: Every pump undergoes rigorous testing before delivery, with follow-up support every three months post-deployment.
5

Manufacturing Excellence

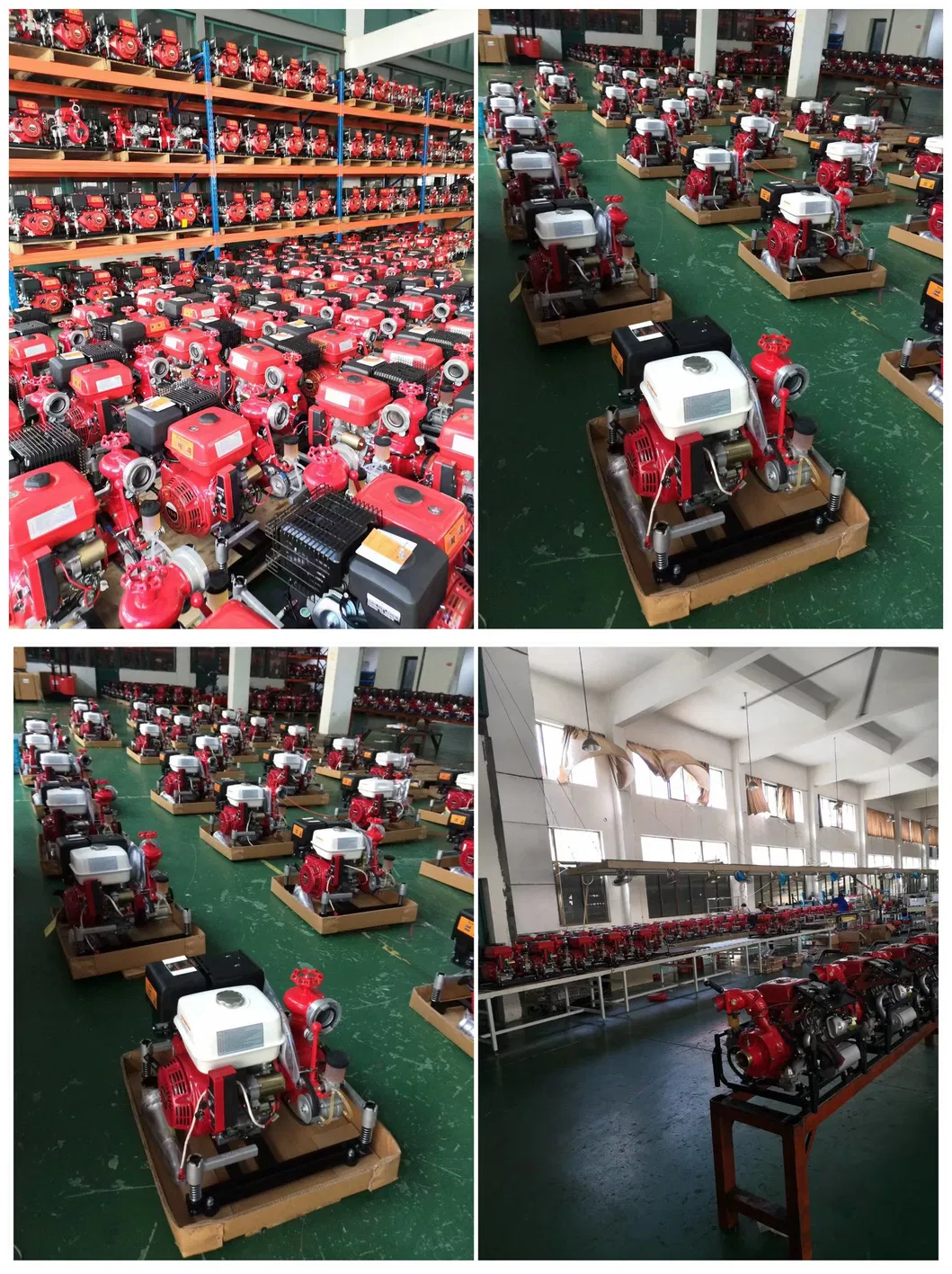

Fire Pump Manufacturing Factory
?

Frequently Asked Questions

What type of engine powers the BJ-9B pump?
The BJ-9B series is powered by a high-efficiency 11HP HR186FA diesel engine, designed for reliability and low fuel consumption.
How portable is this fire pump for narrow access?
With a device weight of ≤75kg and compact dimensions (565*580*560mm), it is specifically designed for narrow roads and remote fire-fighting tasks.
What are the starting options available?
The pump supports dual starting methods: Recoil (hand start) and Electric start for maximum convenience in various conditions.
What is the standard delivery timeframe for an order?
Typically, production and delivery are completed within 15 working days following the contract agreement.
What kind of warranty is provided?
We provide a 12-month warranty for the pump body and a 3-month warranty for the main working components.
Is the pump suitable for sea transport?
Yes, we use export-standard plywood cases that are highly durable and specifically designed for ocean transport protection.
