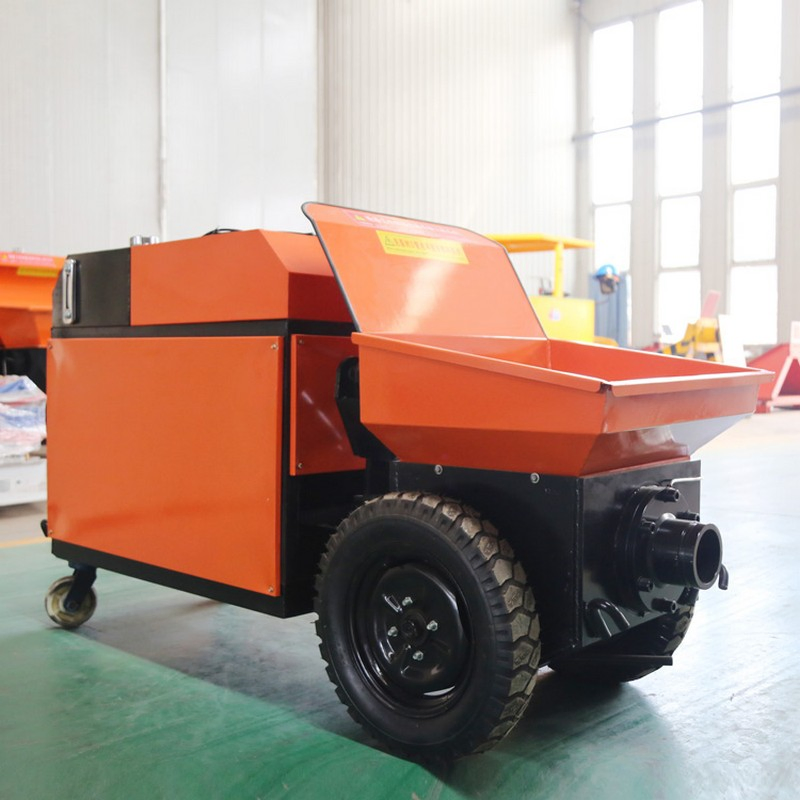

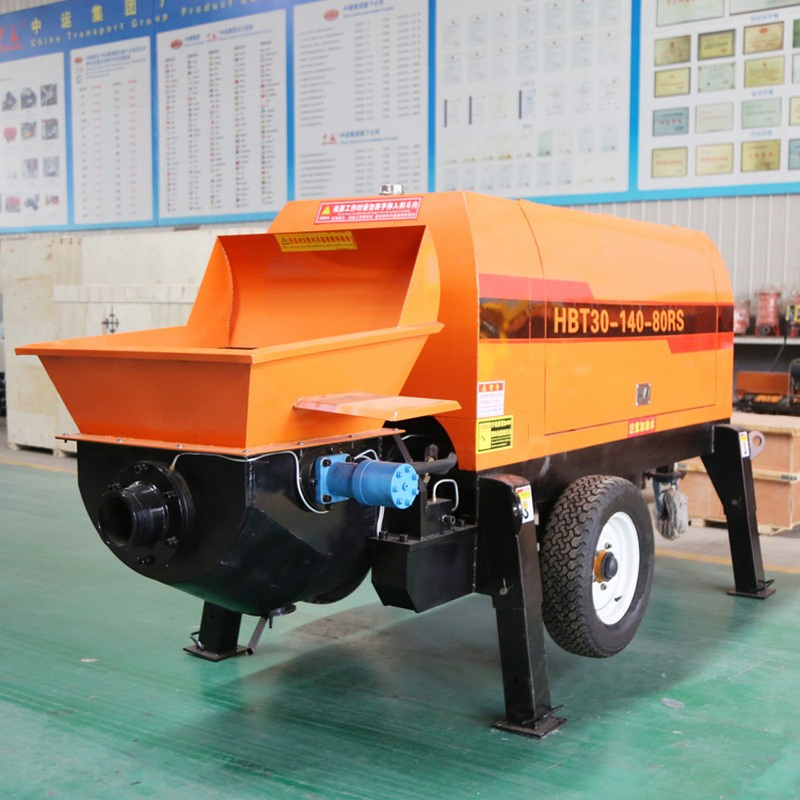

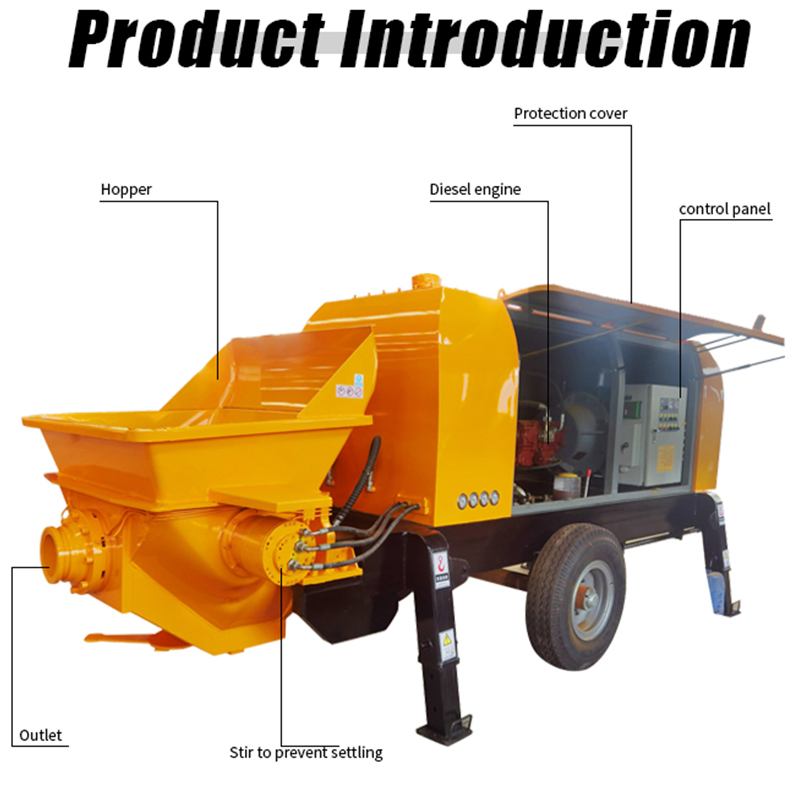

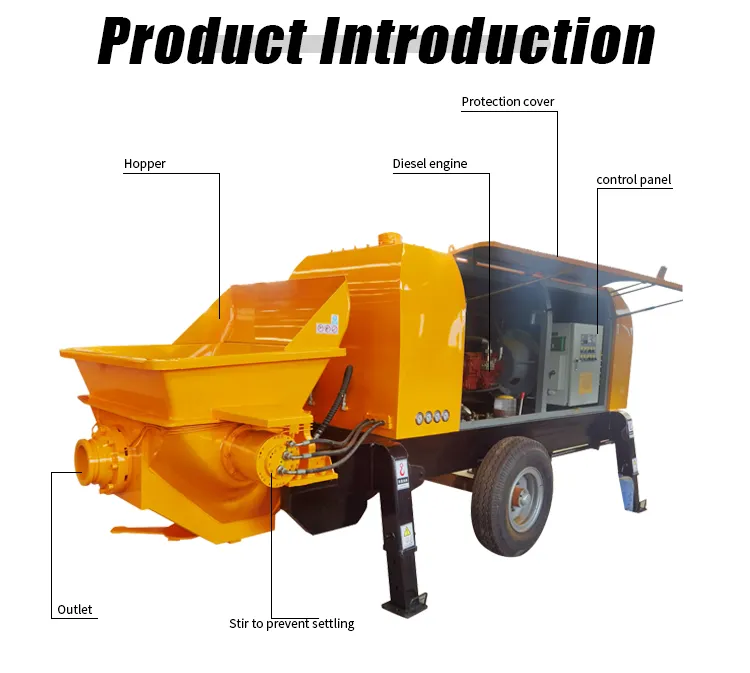

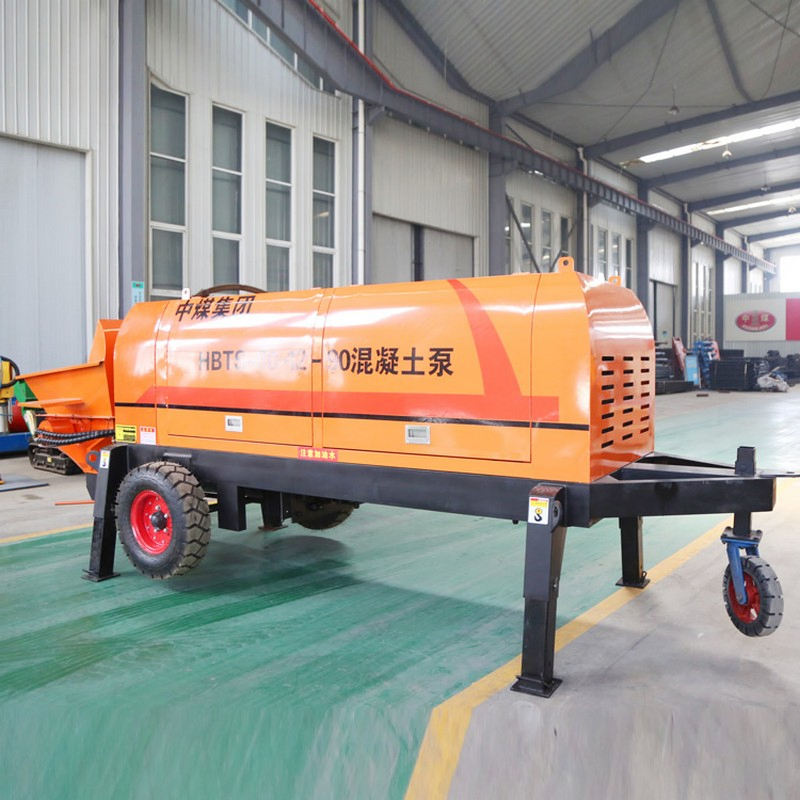

Introduction of Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine
The construction site fine stone mortar pump is applied in high-rise building ash mortar and fine stone concrete transportation, secondary structure column grouting, reservoir, hydropower station, port, dock, various pressure grouting, foundation treatment, weak foundation, reinforcement grouting, tunnel Backfill grouting anchor support in subway and mine construction.
This product adopts hydraulic feeding, and the double-cylinder reciprocating operation of vibrating net filter can completely transport various mortars, fine stone concrete, etc. in building application. This product has large displacement, high pressure, labor saving, flexible movement features, and is an ideal mortar conveying equipment. The pump is widely used in indoor construction of urban construction projects, anchorage grouting, consolidation grouting and backfill grouting works for underground tunnels.
| Project | Unit | HBTS25 | HBTS40 | HBTS60 | HBTS80 |
|---|---|---|---|---|---|
| Maximum theoretical delivery | m³/h | 23 | 40 | 60 | 80 |
| Maximum outlet pressure | Mpa | 8 | 13 | 13 | 13-16 |
| Max theoretical distance | m | 100/300 | 200/800 | 240/1100 | 240/1100 |
| Motor Power | kw | 30 | 55 | 90 | 90-110 |
| Feeding height | mm | 1200 | 1200 | 1350 | 1350 |
| Max particle size | mm | ≤50 | ≤40 | ≤40 | ≤40 |
| Concrete slump | cm | 15-23 | 15-23 | 15-23 | 15-23 |
| Duct inner diameter | mm | Φ125 | Φ125 | Φ125 | Φ125 |
| Host weight | Kg | 1900 | 3400 | 5000 | 5600 |
| Dimensions (L×W×H) | mm | 3300×1600×1800 | 4300×1600×1800 | 5500×1800×2000 | 5800×1800×2000 |
