Overload Protection Stable Pressure Edj 200/9-40-38-4 Fire Pump Set

1 / 5

Overload Protection Stable Pressure Edj 200/9-40-38-4 Fire Pump Set

Customization:	Available
After-sales Service:	Technical Guidance
Warranty:	One-Year Warranty

Send Inquiry

Product Description

Basic Information

Model NO.EDJ 200/9-40-38-4

Driving TypeMotor

Max.HeadVaries by Model

Max.CapacityVaries by Model

Impeller NumberSingle-Stage Pump

Working PressureMiddle Pressure Pump

Position of Pump ShaftVertical Pump

UsagePump

Customized SupportOEM, ODM

Primary FunctionReady-to-Install Solution

Packaging & Delivery

Package Size1200.00cm * 1100.00cm * 1560.00cm

Gross Weight130.000kg

Lead Time15 days (1-10 Pcs) / Negotiable (>10 Pcs)

Product Description

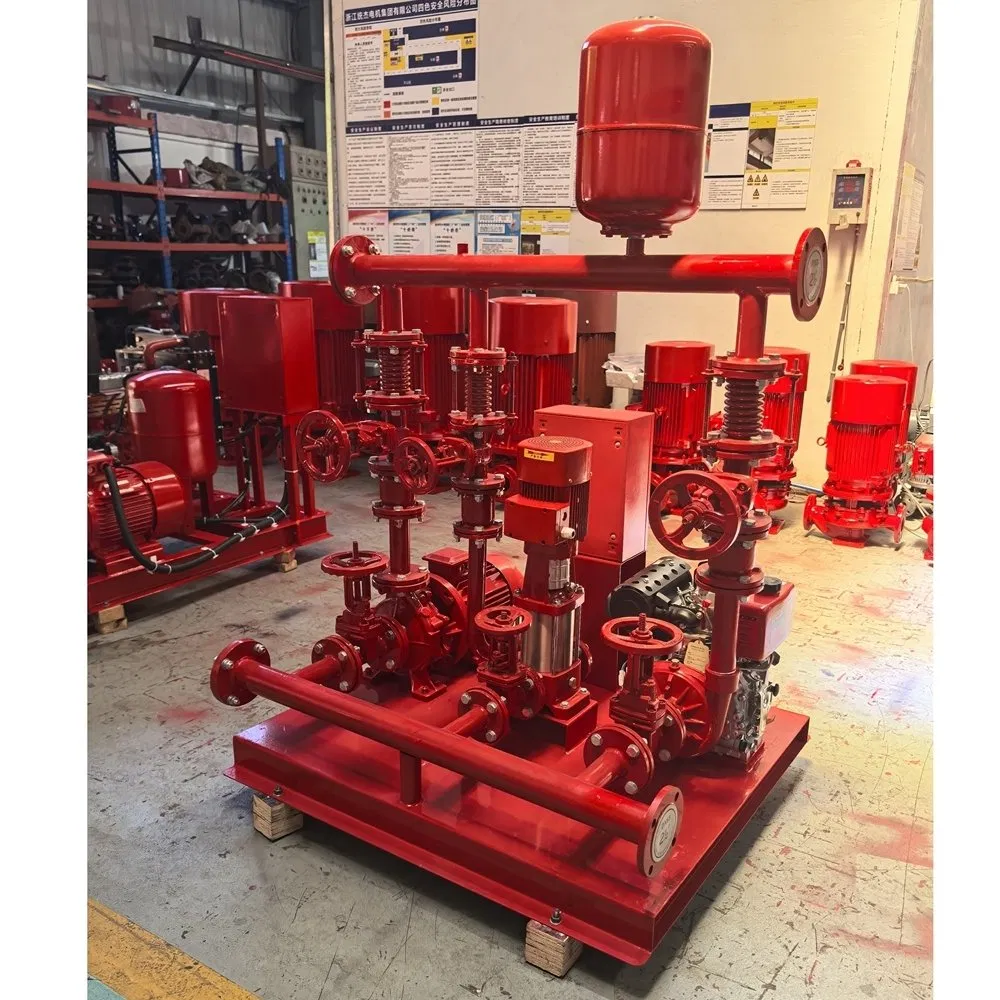

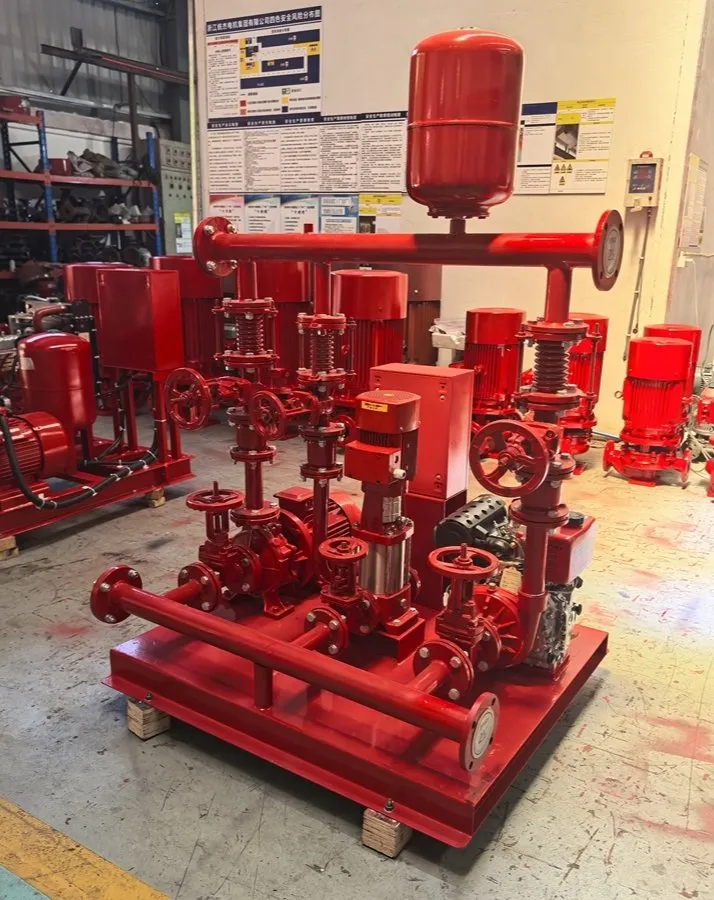

CENTRIFUGAL PUMP SET

Our centrifugal pump sets are engineered as complete, ready-to-install pumping systems that combine high-performance centrifugal pumps with electric motors, control panels, and mounting assemblies on a single skid.

These industrial pump sets deliver reliable, efficient fluid handling for demanding commercial and industrial applications.

REDUCED INSTALLATION COSTS

Pre-mounted components on common base frames eliminate field alignment, coupling installation, and electrical panel mounting.

COMPACT SKID DESIGN

Space-efficient layout maximizes performance while minimizing footprint, ideal for equipment rooms and basements.

SUPERIOR QUALITY

Complete system testing at the factory ensures all components work together perfectly with certified curves.

Product Parameters

Model Pump Set	GPM (Q)	Bar (H)	Electric Fire Pump	Electric Fire Pump Option	Diesel Engine Fire Pump	Electric Jockey Pump
EDJ 50/6-5.5-8.6-2	50	6	ISW 32-200/40 5.5HP	XA 32-250/55 7.5HP	DISW32-250/55 8.6HP	CDL1-15 1HP
EDJ 50/9-10-27-3	50	9	ISW 40-210/75 10HP	XA 32-250/150 20HP	DISW 32-250/150 27HP	CDL1-17 1.5HP
EDJ 100/8-15-27-3	100	8	ISW 40-200/110 15HP	XA 32-250/150 20HP	DISW 32-250/150 27HP	CDL2-3 2HP
EDJ 150/7-15-12-3	150	7	ISW 40-250/110 15HP	XA 40-250/110 15HP	DISW40-250/110 12HP	CDL4-10 3HP
EDJ 200/9-40-38-4	200	9	-	XA 50-250/300 40HP	DISW 50-250/300 38HP	CDL4-12 3HP
EDJ 300/10-50-58-5.5	300	10	-	XA 50-315/370 50HP	DISW 50-315/370 58HP	CDL8-12 5.5HP
EDJ 500/11-75-75-7.5	500	11	ISW 65-315/550 75HP	XA 65-315/550 75HP	DISW 65-315/550 75HP	CDL12-12 10HP

Detailed Photos & Features

SIMPLIFIED MAINTENANCE

Strategically positioned components allow easy access for routine maintenance with clear service points.

REDUCED INVENTORY

Standardized components reduce the variety of spare parts needed, simplifying management.

FAST COMMISSIONING

Standardized designs enable faster manufacturing and pre-commissioning reduces startup time.

Frequently Asked Questions

Q1: Are you a factory or a trader?

A: We are a manufacturer integrating industry and trade. We welcome customers to visit our manufacturing facilities.

Q2: Can I customize the logo and color of the product?

A: Yes, we support on-demand customization, including logo, color, and appearance size to meet your specific project requirements.

Q3: What payment methods do you support?

A: We support multiple payment methods including T/T, Western Union, PayPal, and cash. Specific terms can be negotiated during the order process.

Q4: How do you handle transportation and delivery?

A: We choose the most appropriate mode of transportation (sea, air, or land) based on the goods' condition and your specific requirements.

Q5: How can I get an accurate quotation for my project?

A: Please send your specific demand information and product requirements. We will customize a solution and provide a detailed price list accordingly.

Q6: What makes these pump sets "ready-to-install"?

A: Our sets combine the pump, motor, and control panel on a single skid frame, factory-tested and aligned, requiring only connection to your piping and power source on-site.
