Impeller Number
Single-Stage Pump
Working Pressure
High Pressure Pump
Influent Type
Double-Suction Pump
Pump Shaft Position
Horizontal Pump
Pump Casing
Horizontal Split Pumps
Usage
Industrial Water Pump
Pump Casing Material
Cast Iron or Stainless Steel
Shaft Material
20cr13 or Stainless Steel
Package Size
450.00cm * 150.00cm * 180.00cm
TPOW series double suction centrifugal pump is mainly used for transporting water or liquid which has similar physical and chemical properties to water. It has a large flow capacity due to the two suction inlets on the impeller.
Applications: Urban flood drainage, power stations, water supply systems, farm irrigation, water plants, pumping stations, air conditioner water circulation, heating water circulation, industrial water supply systems, and fire water supply.
Technical Parameters
Rotary Speed
1450 / 1750 / 2900 / 3500 rpm
Temperature
-15°C to 150°C
Partial Models Specifications
| Pump Model |
Capacity |
Head (m) |
Speed (r/min) |
Power (kw) |
Efficiency (%) |
NPSHr (m) |
Net Weight (kg) |
| m³/h |
L/S |
Shaft |
Motor |
| TPOW80-220 | 66.5 | 18.5 | 12.8 | 1480 | 2.9 | 4 | 81 | 1.7 | 181 |
| TPOW80-220A | 71 | 17 | 10.8 | 1480 | 2.6 | 3 | 80 | 1.7 | 181 |
| TPOW80-220B | 55 | 15.5 | 9 | 1480 | 1.7 | 3 | 78 | 1.7 | 181 |
| TPOW80-220 | 134.5 | 37.4 | 51 | 2950 | 23.1 | 37 | 81 | 3.5 | 181 |
| TPOW80-220A | 124.2 | 34.5 | 43.5 | 2950 | 18.4 | 30 | 80 | 3.5 | 181 |

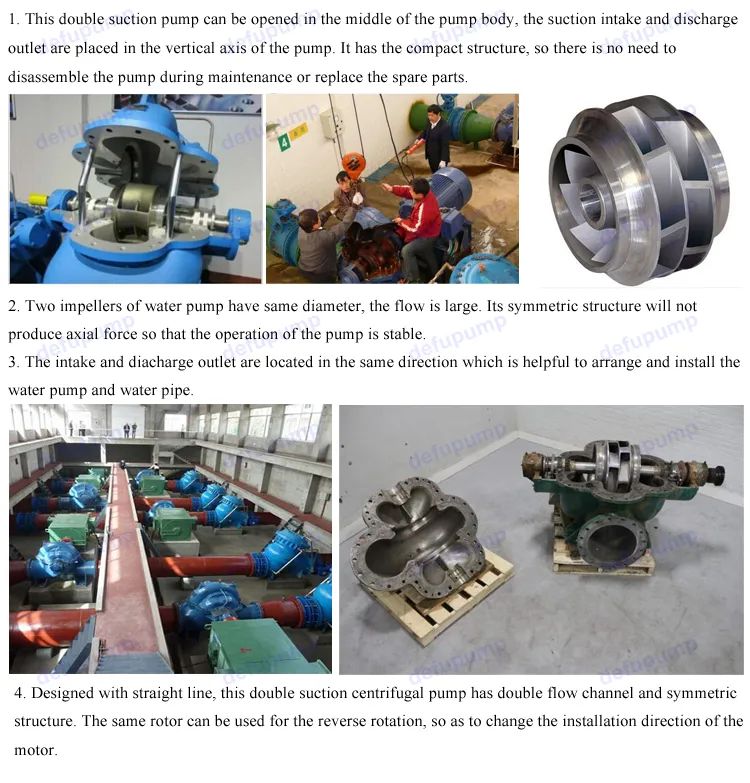

Pump Features & Applications
Our Services
1. DeliveryDelivery time is punctual. Usually 25 working days for diesel engine pumps and 15 working days for bare shaft pumps.
2. Warranty12 months for the pump body and 3 months for the main working parts.
3. Quality ControlWe test every pump before delivery and follow up on working conditions every three months after installation.
4. PackagingDurable export plywood cases suitable for long-distance ocean transport.
Our Factory
Frequently Asked Questions
Q1: What materials are available for the TPOW pump casing?
A: The pump casing can be manufactured using high-quality Cast Iron or Stainless Steel, depending on your specific liquid transport requirements.
Q2: What is the typical lead time for an order?
A: For diesel engine pump sets, the delivery time is approximately 25 working days. Bare shaft pumps can usually be delivered within 15 working days.
Q3: How do you ensure the quality of the pumps before shipping?
A: Every pump undergoes rigorous testing before delivery. We also provide on-sales service with photos and videos of the production situation.
Q4: What are the main applications of double suction centrifugal pumps?
A: They are widely used for urban flood drainage, power stations, industrial water supply, farm irrigation, and fire-fighting systems due to their high capacity.
Q5: What kind of packaging is used for international shipping?
A: We use robust, export-standard plywood cases that are specifically designed to be durable for long-term ocean transportation.
Q6: What is the standard warranty period?
A: We offer a 12-month warranty for the pump body and a 3-month warranty for the main working components.
