!Basic Information
Model NO.:PEJ
Max.Head:>150m
Max.Capacity:>400 L/min
Driving Type:Motor
Impeller Number:Single-Stage Pump
Working Pressure:High Pressure Pump
Material:Cast Iron
Power:Electric
Type:Fire Fighting System
Voltage:380V
✓Product Description

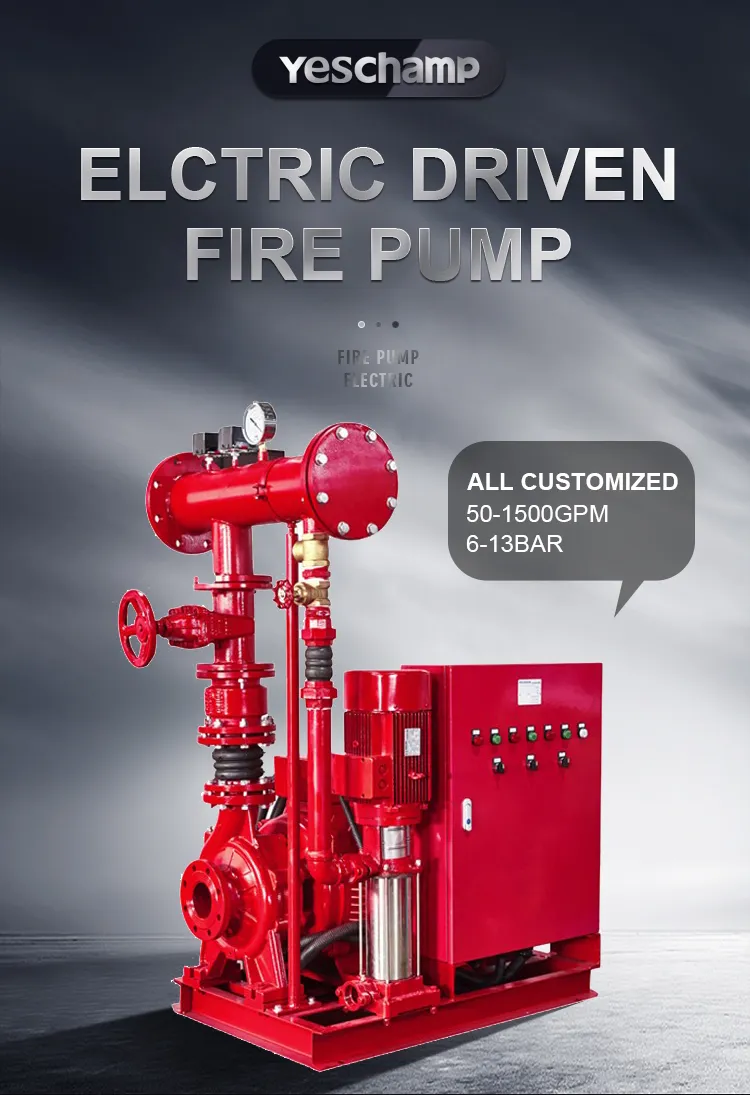

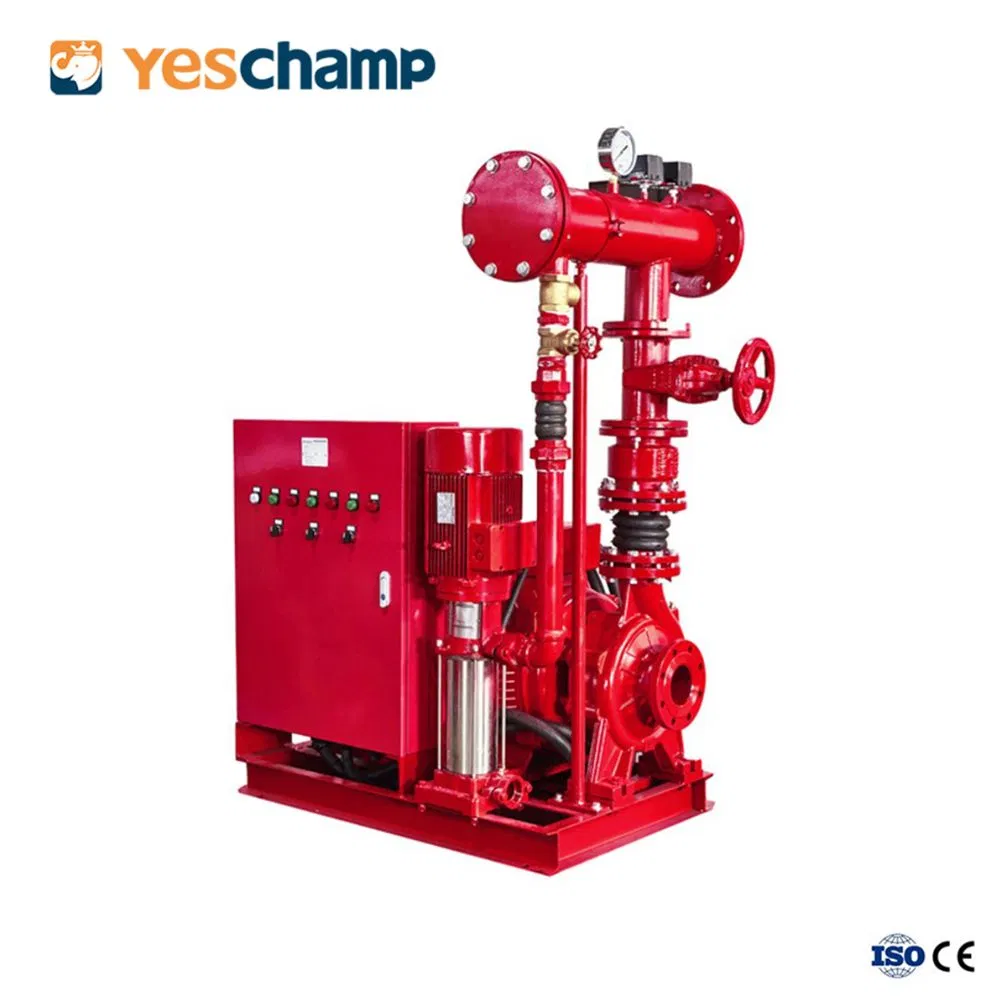

NFPA20 Standard Skid Mounted Fire Pump Set

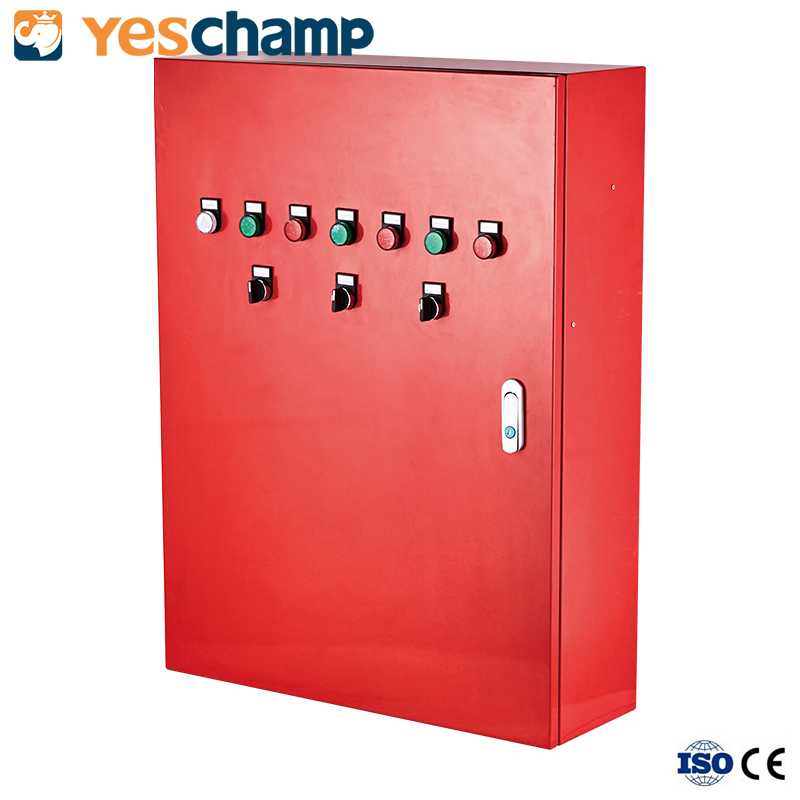

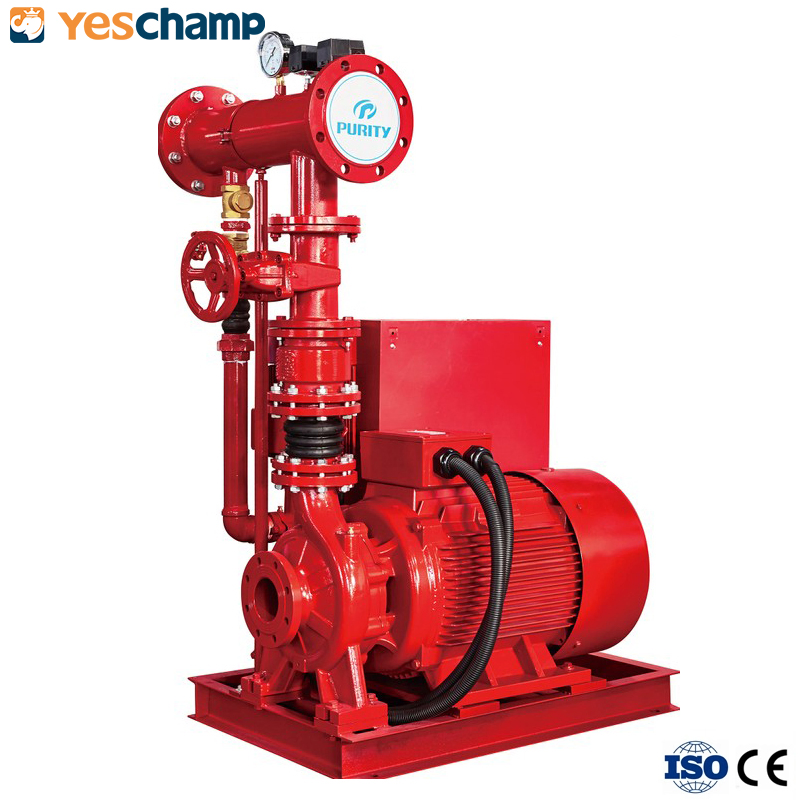

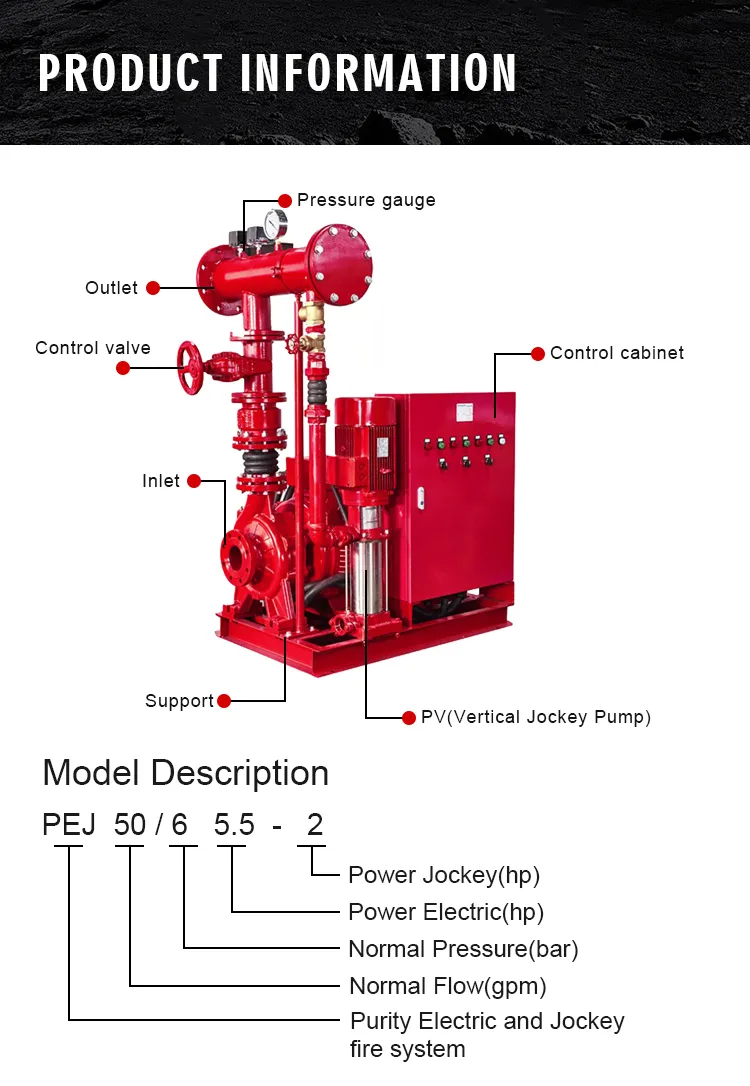

PEJ Fire pump set consists of one main pump coupled to an electric motor, one jockey pump and pressure vessel, a controller for manual or automatic operation of the system, and standard accessories mounted on the base frame. This fire pump set can be used for fire hose and fire hose reel systems, fire sprinkler systems, fire water monitor systems, fire alarm systems, and fire hydrant systems.

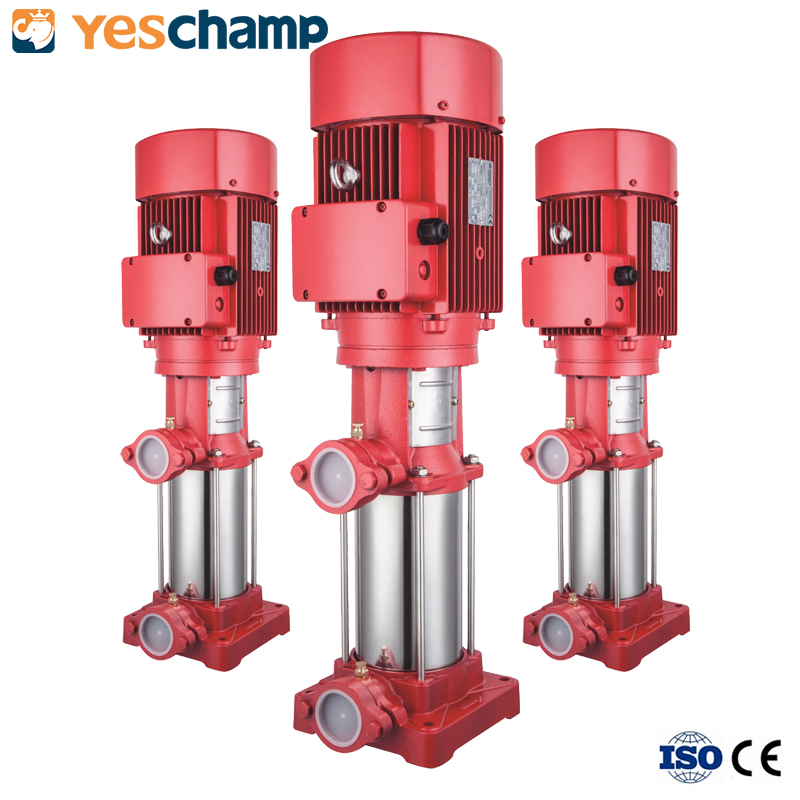

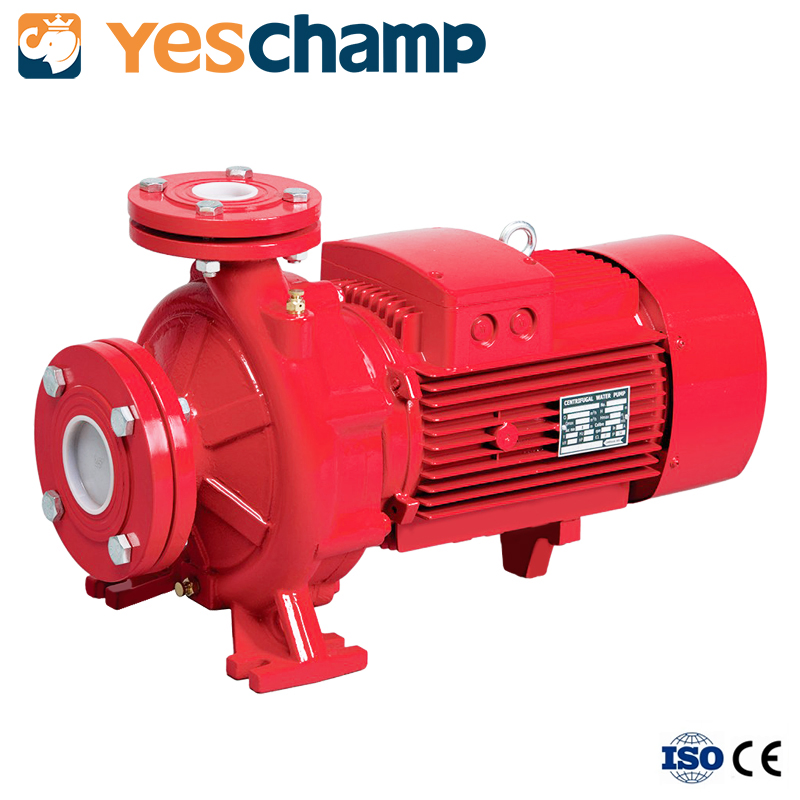

Electric pumps can use end-suction pumps, multi-stage pumps, and double-suction split case pumps. The material is usually cast iron or stainless steel. The EJ series fire pump set is mainly installed in a fire truck, fire extinguishing system, or other fire control facilities.

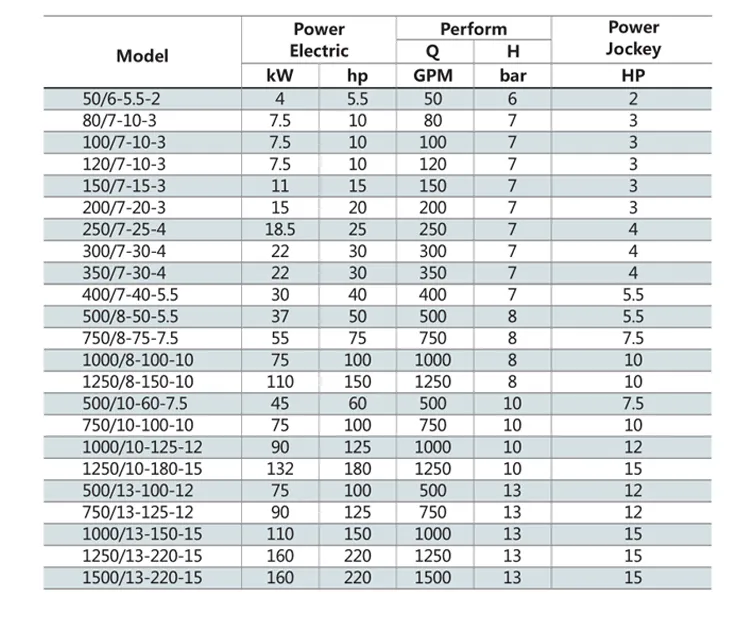

| DN Range of Suction Pipe | 50-400 mm (2"-16") |
| DN Range of Discharge Pipe | 32-350 mm (1.5"-14") |
| Flow Capacity Range | 50-5000 GPM |
| Head/Pressure Range | 4-14 Bar |
| Power Range | 4-325 Kw |
★Application & Visuals
This pump set refers to the electric pump combinations, the control cabinet, control instrumentation, and related accessories. Using a pre-programmed way to the fire control network continued water supply of fire water supply equipment.
iTechnical Background
Professional manufacturer and supplier of quality pumps and engines exported to more than 60 countries. Main products include centrifugal pumps, fire pumps and systems, industrial pumps, domestic pumps, sewage pumps, solar pumps, irrigation pumps, motors, and engines.

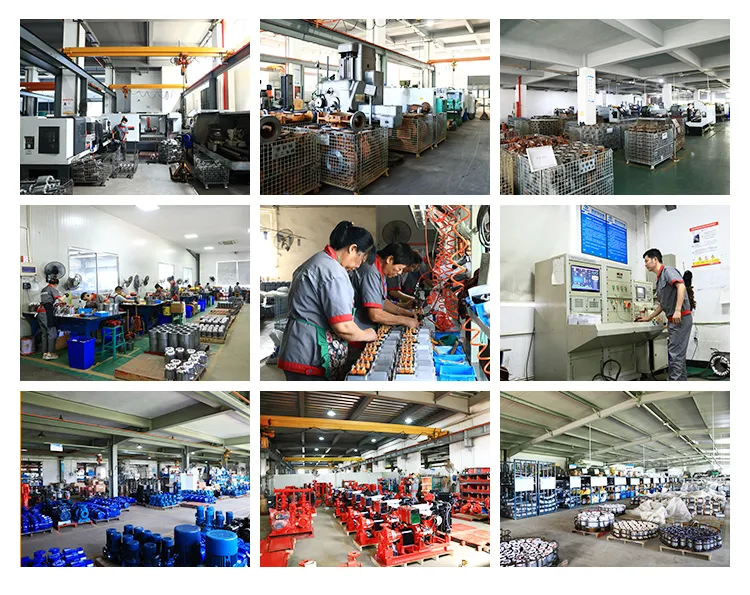

With over 10 years of pump and motor production experience, the technical team consists of engineers and technicians providing one-stop service from design to inspection. The quality control process is strict, utilizing the latest technology to ensure equipment efficiency and reliability.
Frequently Asked Questions
Q: What are the main components of the PEJ fire pump set?
A: The set includes one main electric motor pump, one jockey pump, a pressure vessel, a system controller, and standard accessories mounted on a base frame.
Q: What standards do these fire pumps meet?
A: These pump sets are designed according to NFPA20 standards for skid-mounted fire protection systems.
Q: What materials are used for the pump construction?
A: The pump casing is typically made of cast iron, while impellers can be cast iron, stainless steel, or brass. The shaft is made of high-quality stainless steel.
Q: Can this system be used for automatic operation?
A: Yes, the included controller allows for both manual and fully automatic operation of the fire fighting system.
Q: What is the flow capacity range of this fire pump set?
A: The flow capacity ranges from 50 to 5000 GPM (Gallons Per Minute).
Q: Where are these pump sets typically installed?
A: They are installed in fire trucks, fire extinguishing systems, buildings for sprinkler systems, and other fire control facilities.
