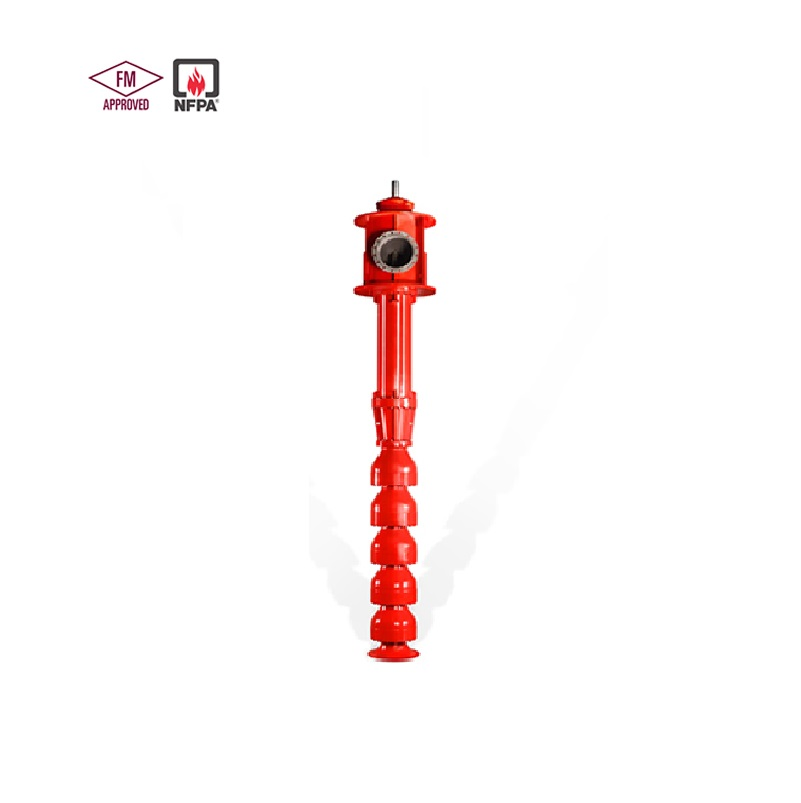

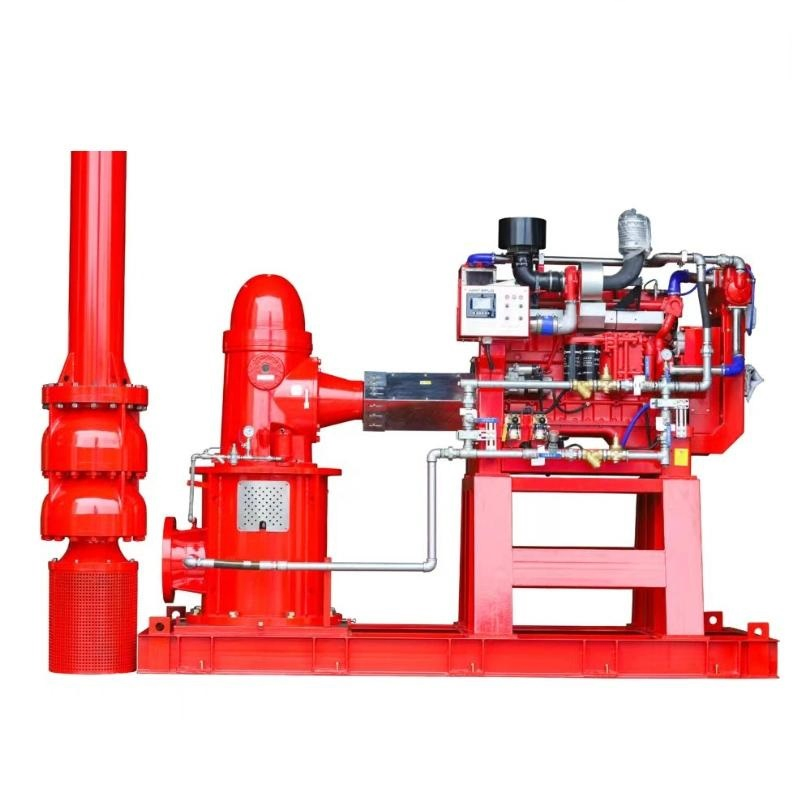

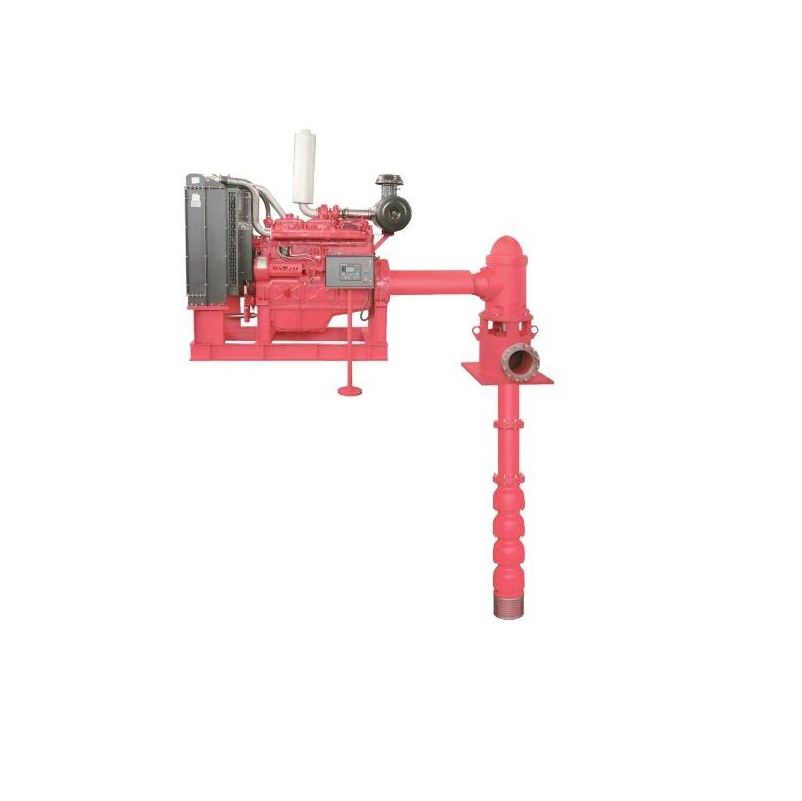

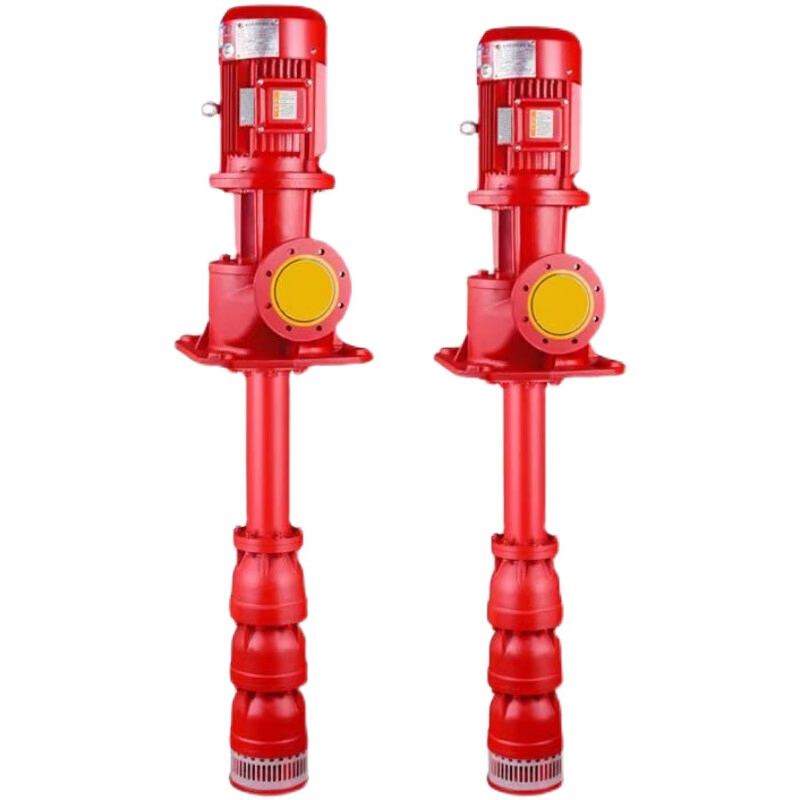

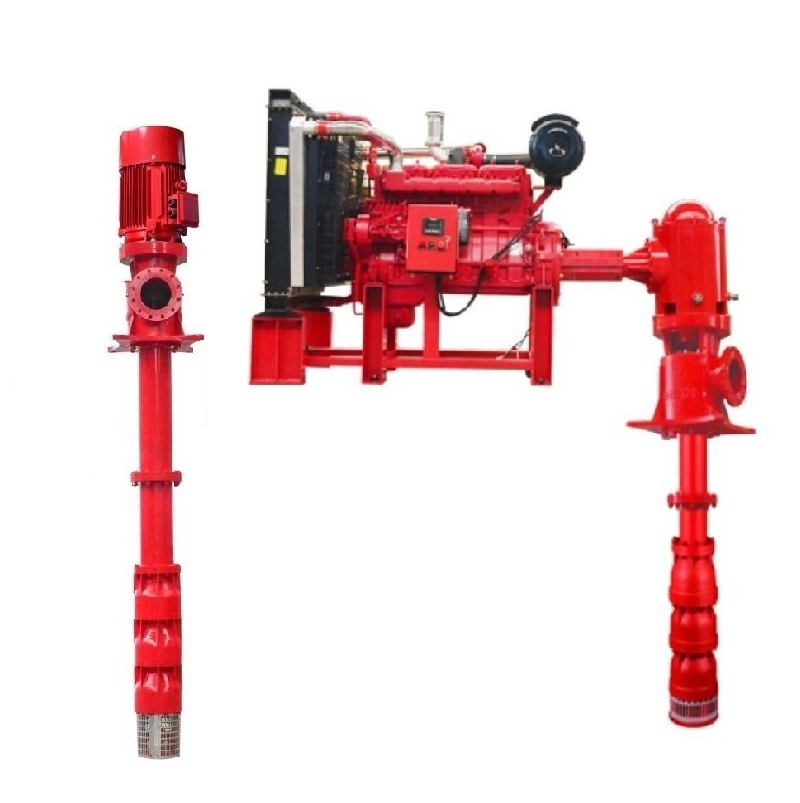

Nfpa20 Engine Driven Diesel Vertical Turbine Fire Fighting Pump

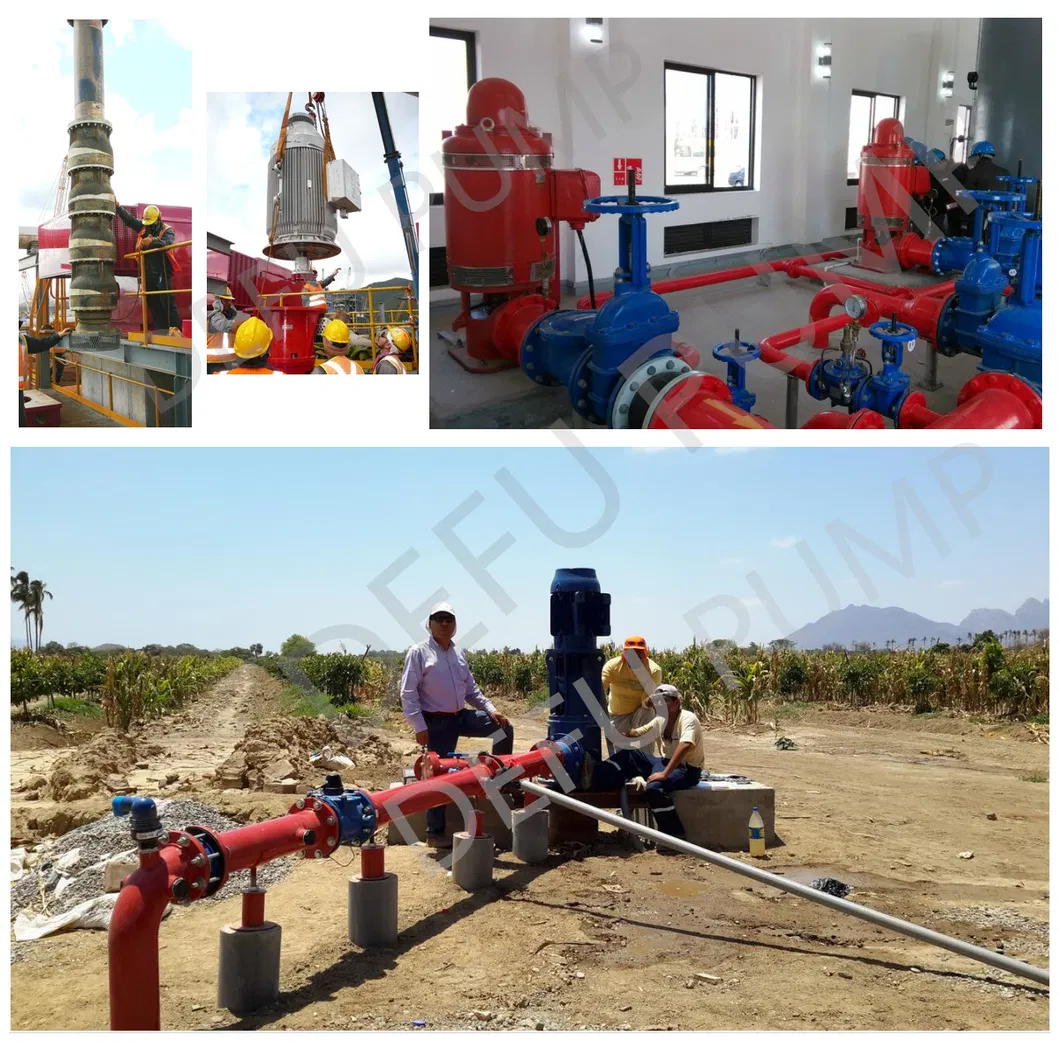

LP/LC Type XBC/XBD vertical long shaft fire fighting pumps are a series of single stage or multistage diffuser pumps. These products are widely utilized in critical firefighting units such as substations, oil depots, PRO-piers, and oil drilling platforms, especially where space is limited and reliable water supply is essential.

Developed using advanced domestic and international hydraulic models and construction theories, these pumps efficiently transfer clear water or sea water with temperatures below 55°C.

• Capacity: Up to 400L/s
• Lift Head: Up to 172m
• Rotary Speed: 590r/min up to 3600r/min
• Drive Power: Up to 2000kw

• New type vertical submerged centrifugal chemical pump conforms to JB/T8096-1998 standards.
• Double bearing supporting design improves operational reliability and stability.
• Optimized hydraulic model better adapts to various industrial applications.
• Flexible immersed depths; suction pipes can be added for depths exceeding 1.5m.
• Low linear speed design for heavy slurry to extend the service life of the pump.
• High-quality anti-abrasive materials available for diverse and harsh environments.
