📊 Product Overview
The main principle is to measure smoke density in a particular space, cable or material produced under specific conditions of combustion or radiation. The smoke will cause the beam attenuate when passes through the smoke, the light transmittance be use to calculate ratio of the optical density and smoke density.

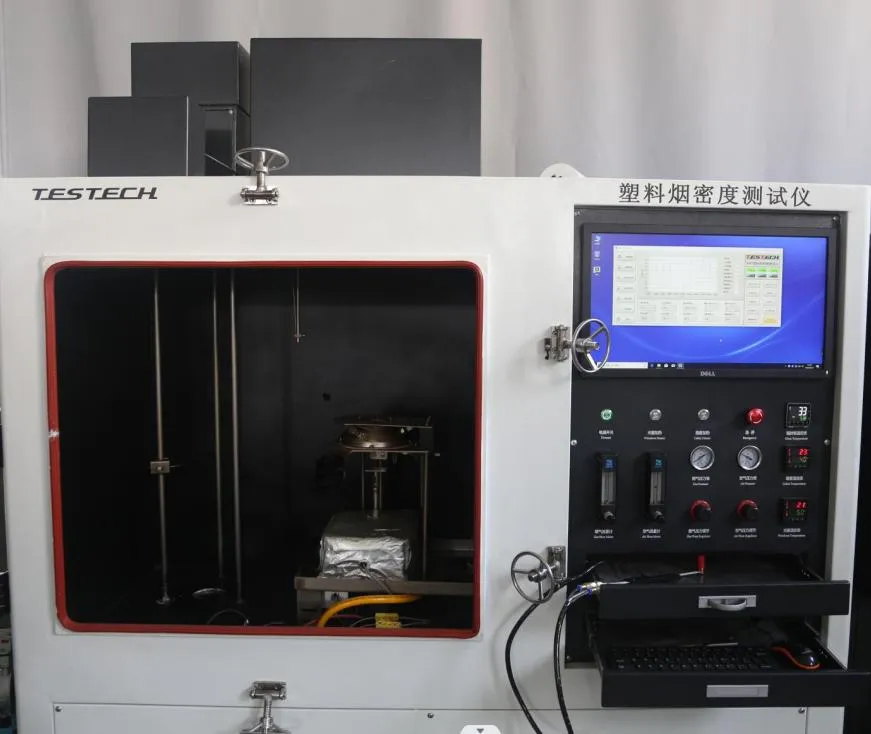

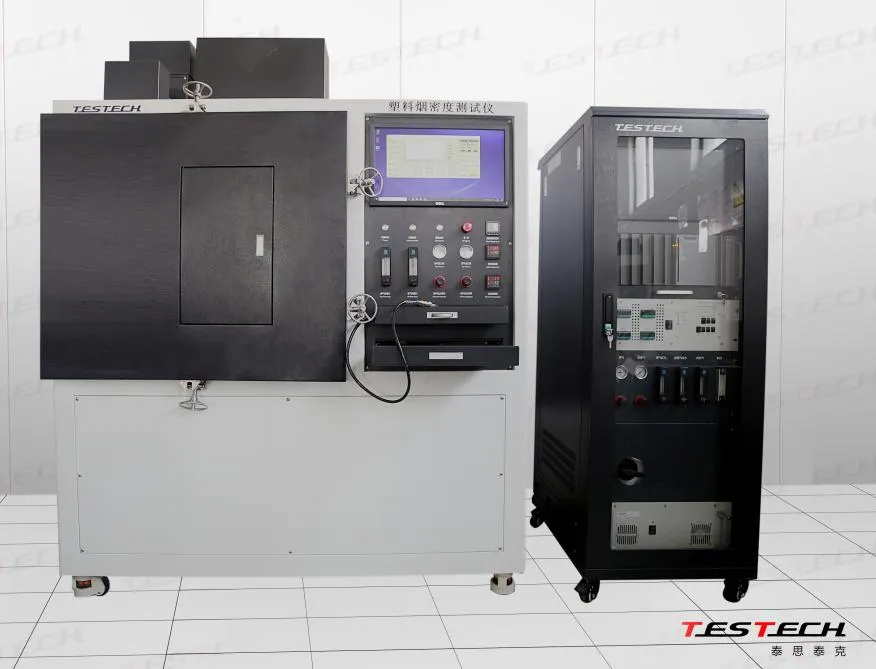

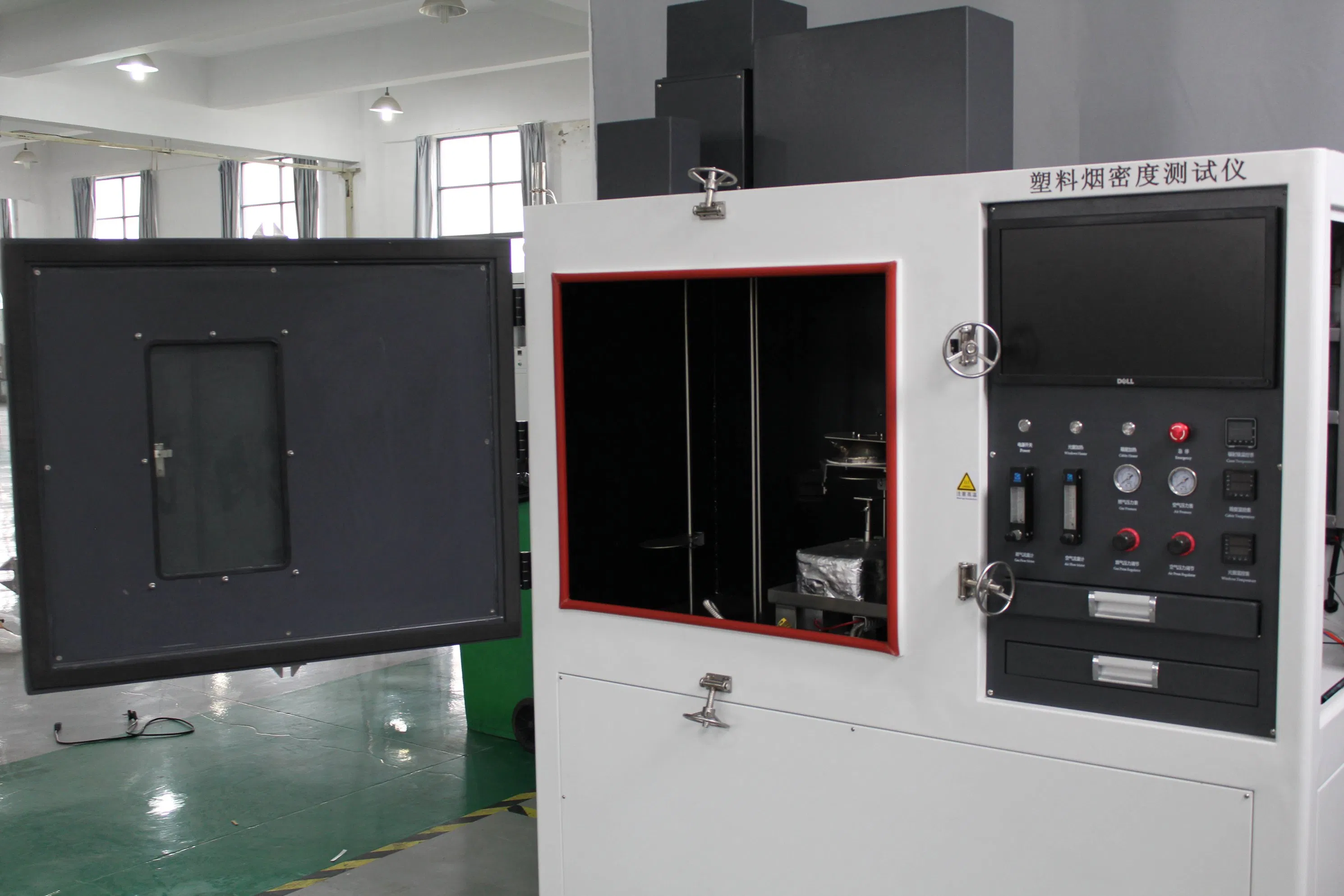

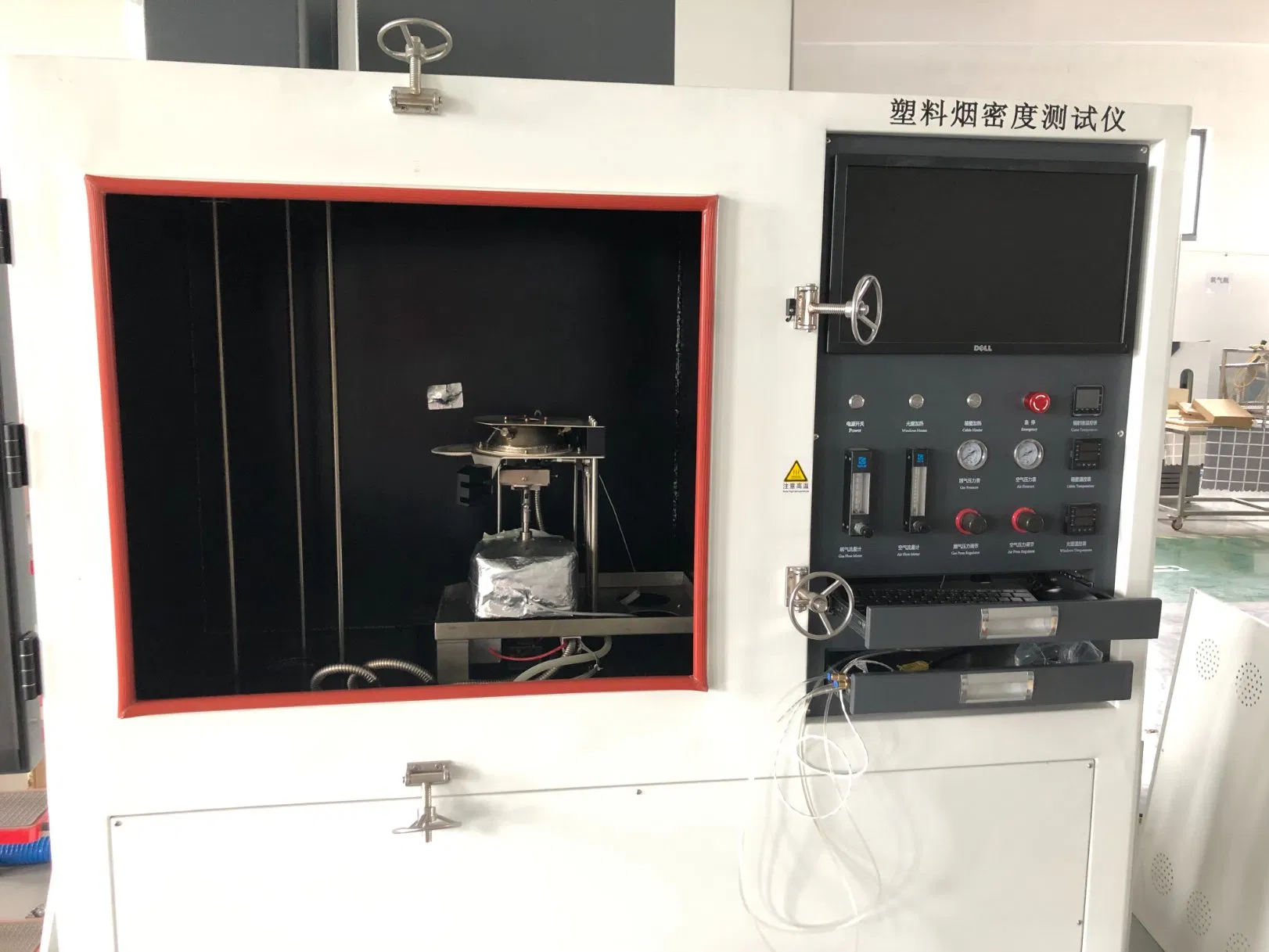

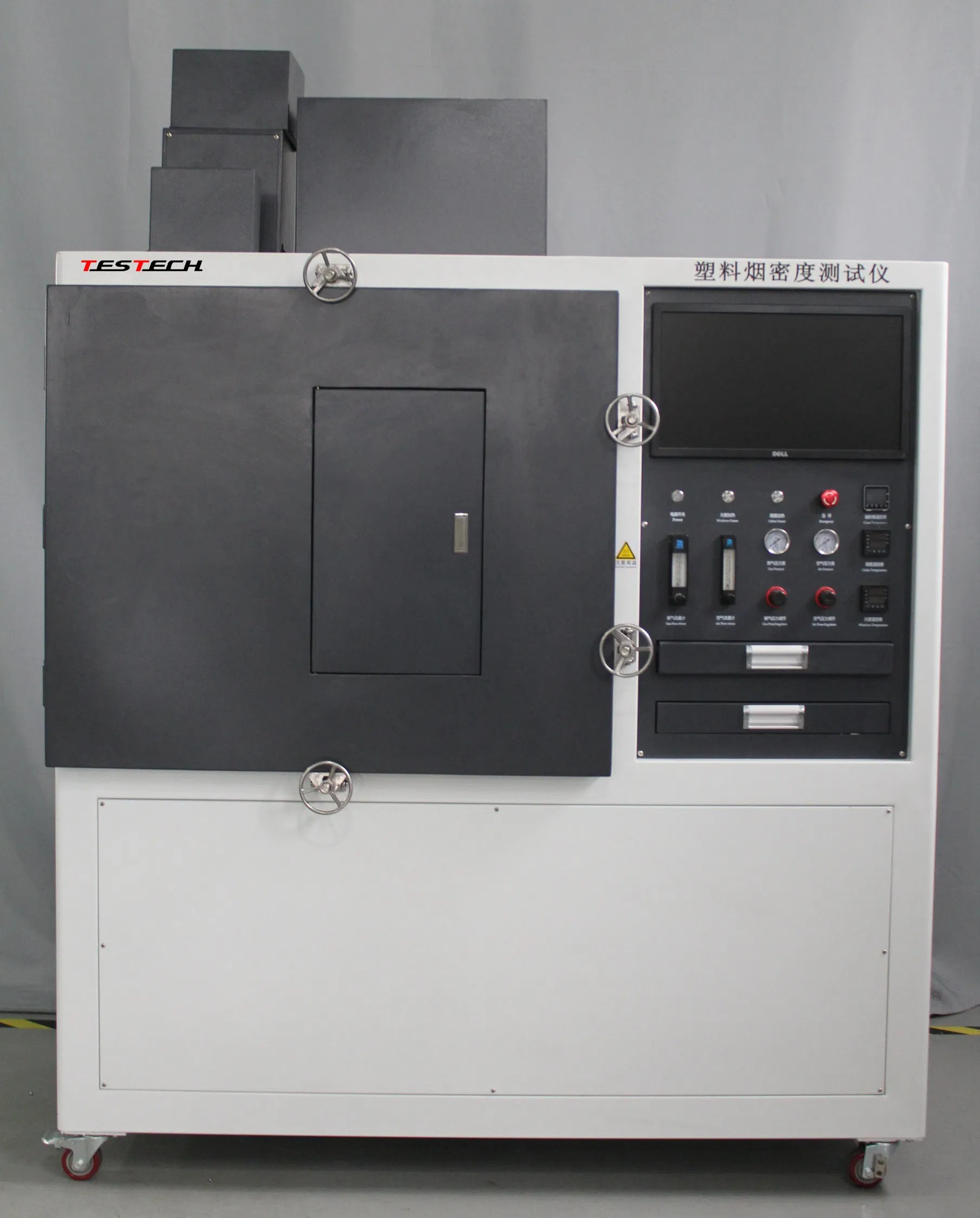

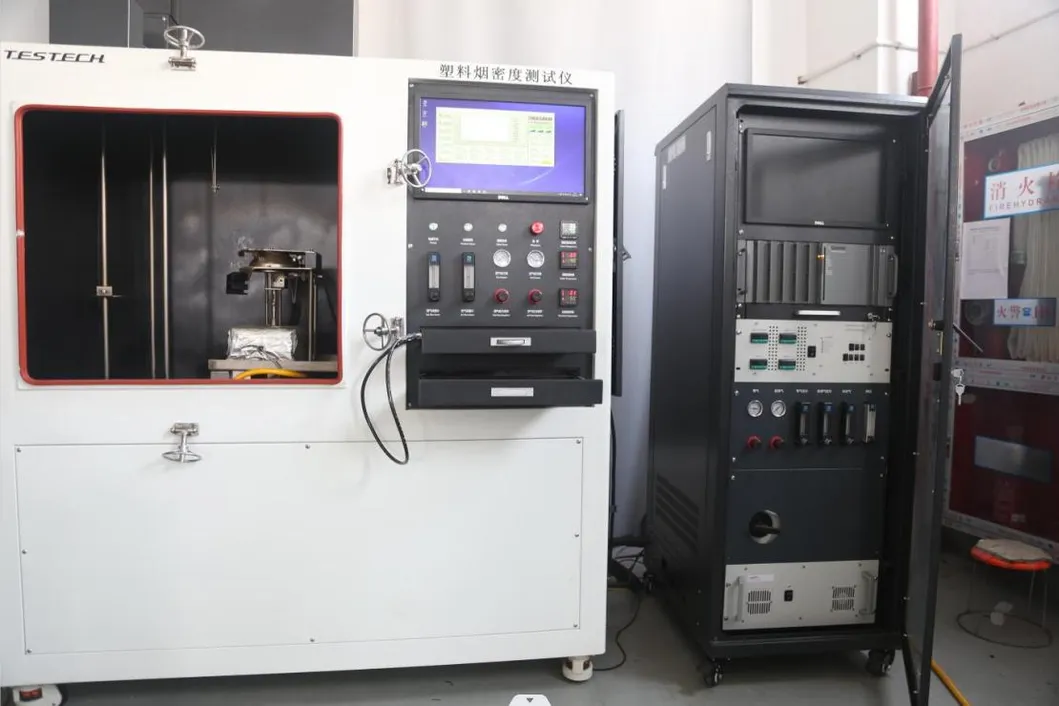

This machine is designed according to ISO 5659. It features a conical radiant furnace with heat flux up to 50 kW/m² and a laterally positioned sample. It can also test the sample mass loss rate.
❓ Frequently Asked Questions
What is the primary function of the ISO 5659-2 test chamber?
It is designed to measure the optical density of smoke generated from materials (like plastics or cables) when they are exposed to specific levels of radiant heat or combustion.
What are the power and voltage requirements for the equipment?
The system operates on 220V voltage with a total power consumption of 4KW.
How accurate is the smoke density measurement system?
The system uses a high-sensitivity photomultiplier tube and achromatic lens, achieving a light transmission rate accuracy of 0.001%.
Can this machine perform toxicity testing?
Yes, the test box includes a specialized gas measurement port dedicated to conducting gas toxicity tests.

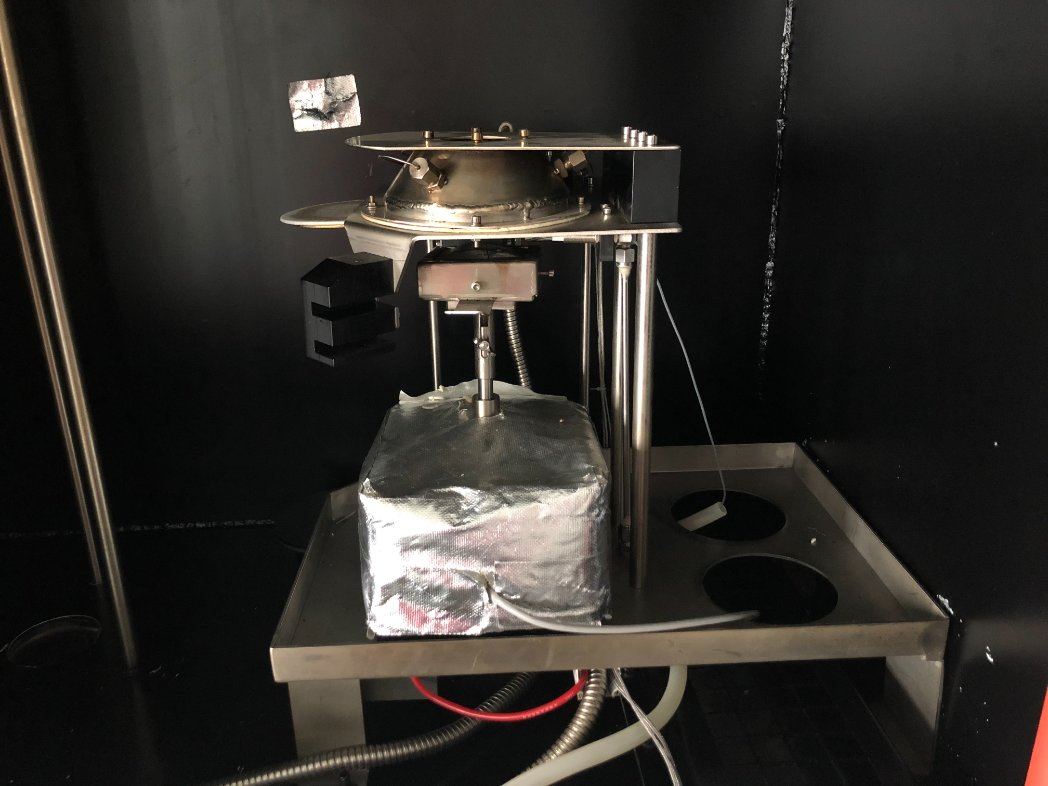

What are the capabilities of the heating cone?
The 2600W heating cone provides an irradiance range of 10KW/m² to 50KW/m² and maintains temperature stability within ± 2 ºC.
Is the testing process automated?

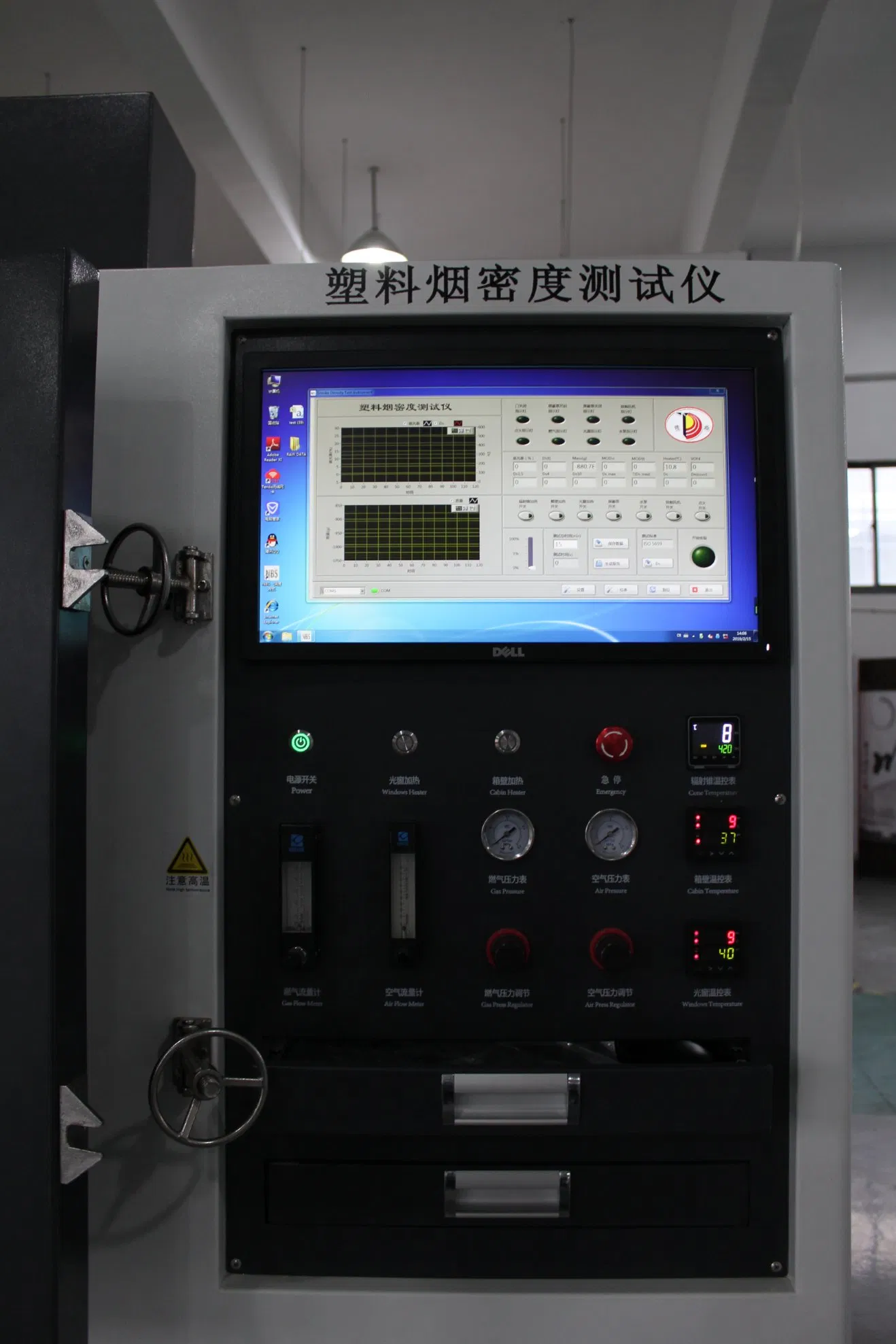

Yes, the system features automatic signal acquisition and test completion, with results managed through a dedicated computer system.
