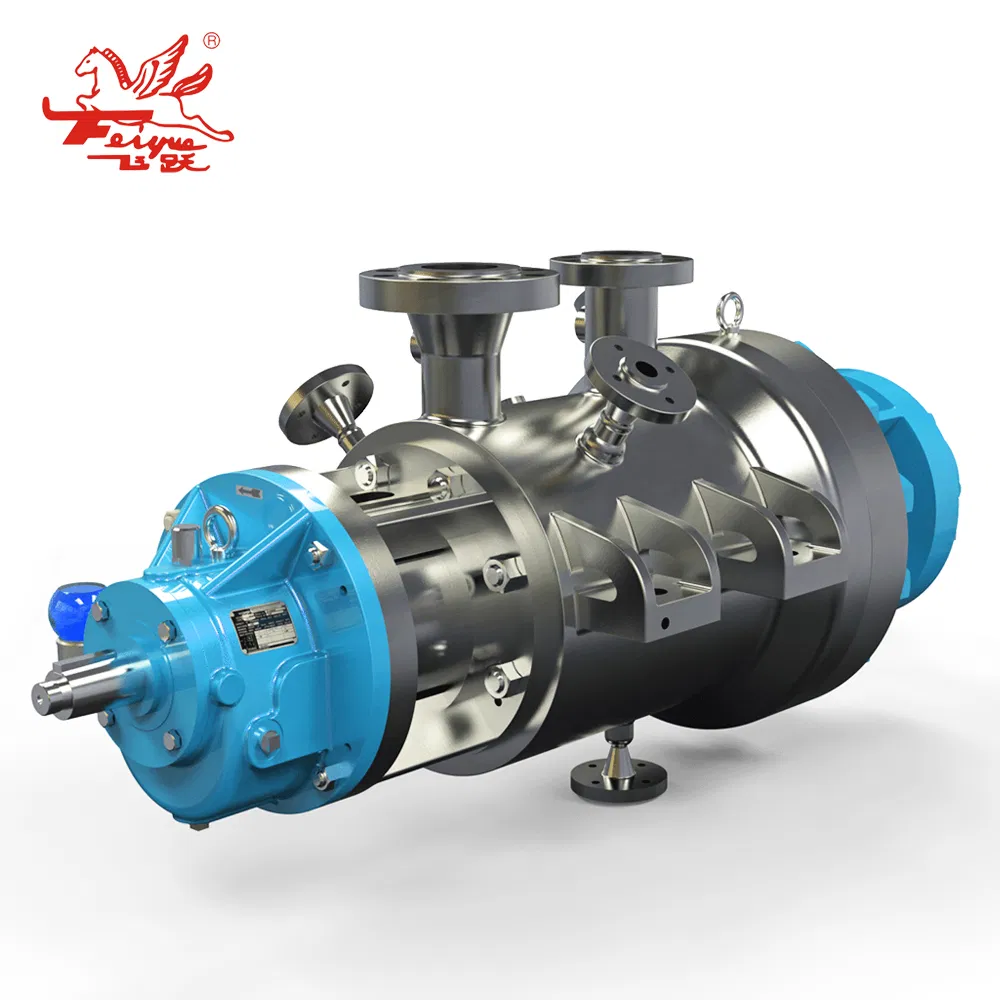

Multistage API610 Centrifugal Pump for Water Supply and Fire Protection
Multistage API610 Centrifugal Pump for Water Supply and Fire Protection
Multistage API610 Centrifugal Pump for Water Supply and Fire Protection
Multistage API610 Centrifugal Pump for Water Supply and Fire Protection
1 / 4
Multistage API610 Centrifugal Pump for Water Supply and Fire Protection
Multistage API610 Centrifugal Pump for Water Supply and Fire Protection
Multistage API610 Centrifugal Pump for Water Supply and Fire Protection
Multistage API610 Centrifugal Pump for Water Supply and Fire Protection

Multistage API610 Centrifugal Pump for Water Supply and Fire Protection

Max.Head: >150m
Max.Capacity: >400 L/min
Driving Type: Motor
Send Inquiry

Product Description

🟣 Basic Information
Model NO.
BB5(FHB)
Impeller Number
Multistage Pump
Working Pressure
High Pressure Pump
Influent Type
Single Suction Pump
Shaft Position
Horizontal Pump
Pump Casing
Horizontal Split Pumps
Impeller Type
Closed
Capacity
50~800m3/H
Head
~2600m
Temperature
-80~450 degree
Standard
API610
Rotation Speed
2980
⚙️ Product Description

API 610 Series Bb5 (FHB) Multistage High-Temperature High-Pressure Centrifugal Pump is engineered for the most demanding environments in the Oil and Gas Chemical Industry, as well as Water Supply and Fire Protection systems.

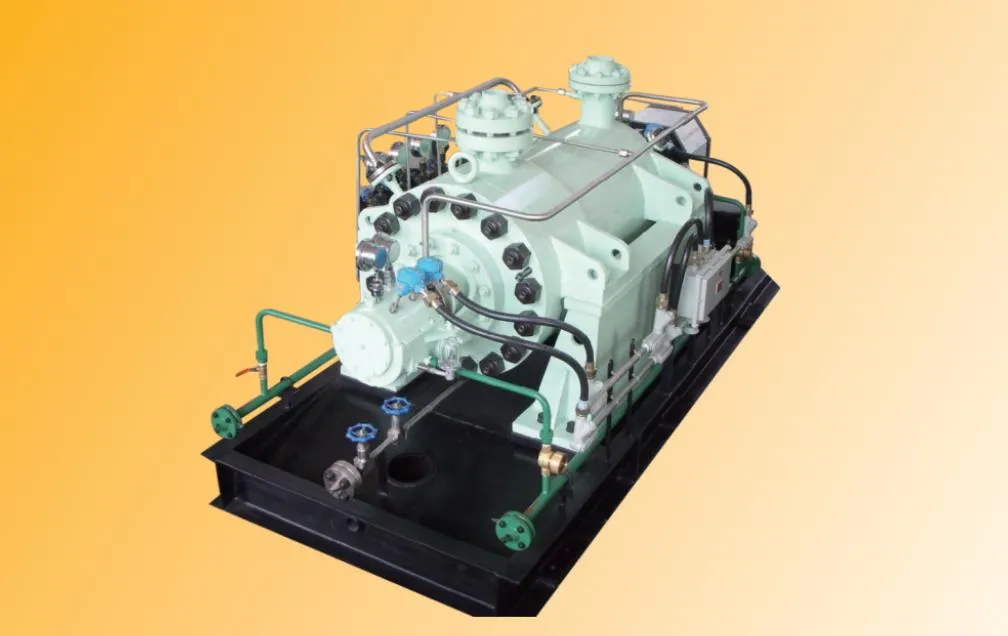

API610 Centrifugal Pump

Technical Highlights:

  • Design Standard: Fully conforms to API610 standards.
  • Flow Range: 50~800m³/h
  • Lift Range: Up to 2600m
  • Application Temp: -80~+450ºC

This series of pump is vertical/horizontal single suction multi-stage sectional type. It offers advantages such as high efficiency, wide performance range, stable operation, low noise, and convenient maintenance.

📊 Structure Chart & Components

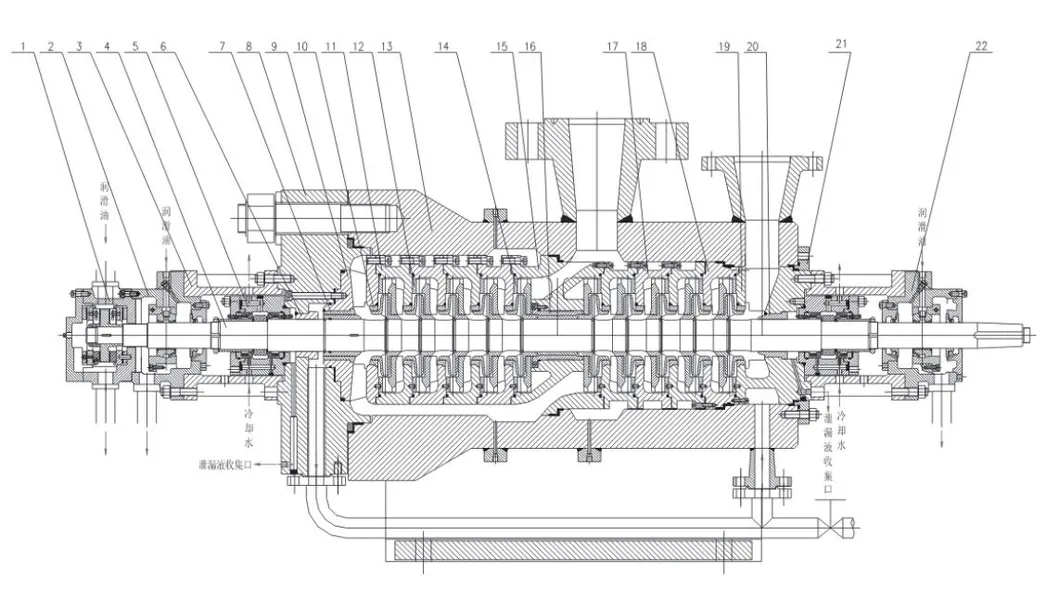

Structure Chart
1 Thrust bearing parts 2 Drive side sliding bearing 3 Bearing support
4 Rotor parts 5 Mechanical seal parts 6 Throttling set I
7 Throttling set II 8 Pump beast 9 Secondary guide plate
10 Mouth ring 11 High pressure middle 12 Guide vane
13 Shell 14 End level guide vane 15 Transition pipe
📋 Performance Parameters

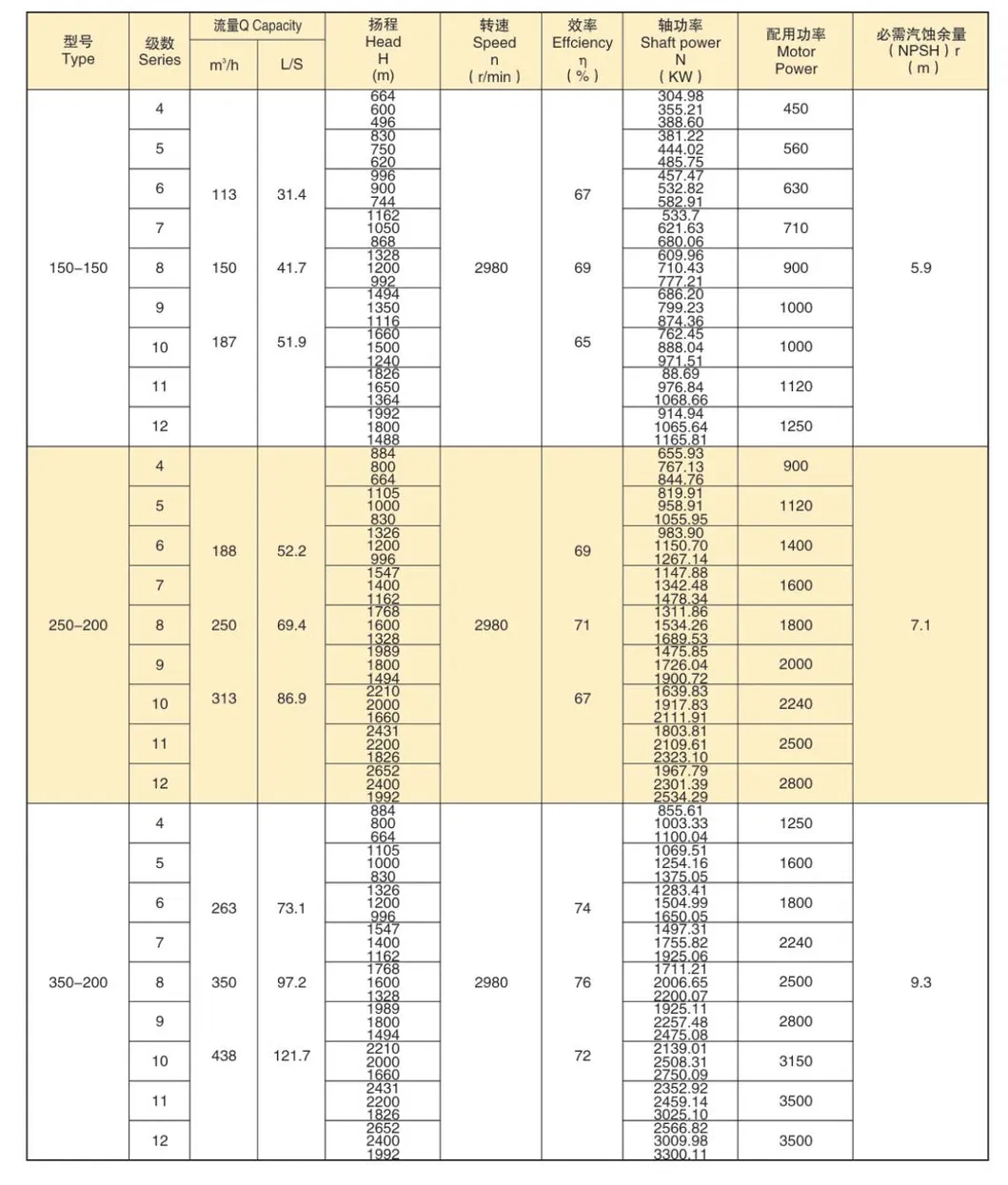

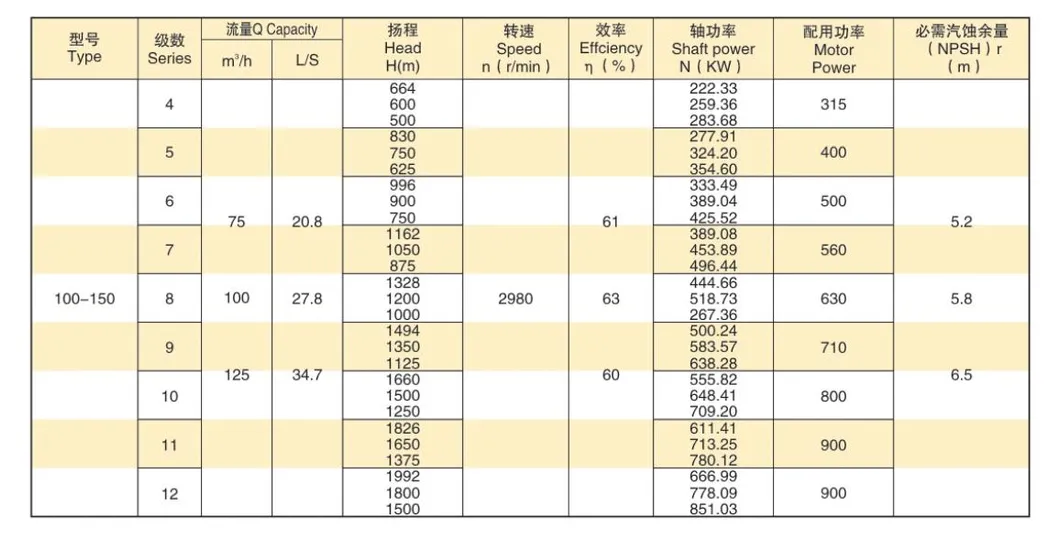

Performance Table 1 Performance Table 2
🏭 Production & Facilities
Production Facility
Quality Control
❓ Frequently Asked Questions
Q1: What are the primary applications for the BB5 series pump?
The BB5 series is primarily used in oil refineries, petrochemical engineering, coal chemical industries, power plants, and environmental protection projects for handling corrosive or high-temperature mediums.
Q2: What temperature range can this pump handle?
This pump is designed to operate in extreme conditions, with an application temperature range from -80ºC to +450ºC.
Q3: Does the pump meet international standards?
Yes, the pump is designed and manufactured in full accordance with the API610 standard for centrifugal pumps used in petroleum, petrochemical, and natural gas industries.
Q4: What materials are available for the pump construction?
Materials are optional based on the medium, including HT200, QT600, JM3, 28# alloy, and various stainless steels like 304, 304L, 316L, 317L, 904L, and CD4.
Q5: Can this pump handle liquids containing particles?
Yes, it can transport medium containing particles with a diameter less than 1/4 of the impeller passageway, provided the correct materials and cooling systems are selected.
Q6: What are the key performance benefits of the BB5 design?
Key benefits include high efficiency, a wide performance range, extremely stable high-pressure operation, low noise levels, and a long service life with easy maintenance access.
