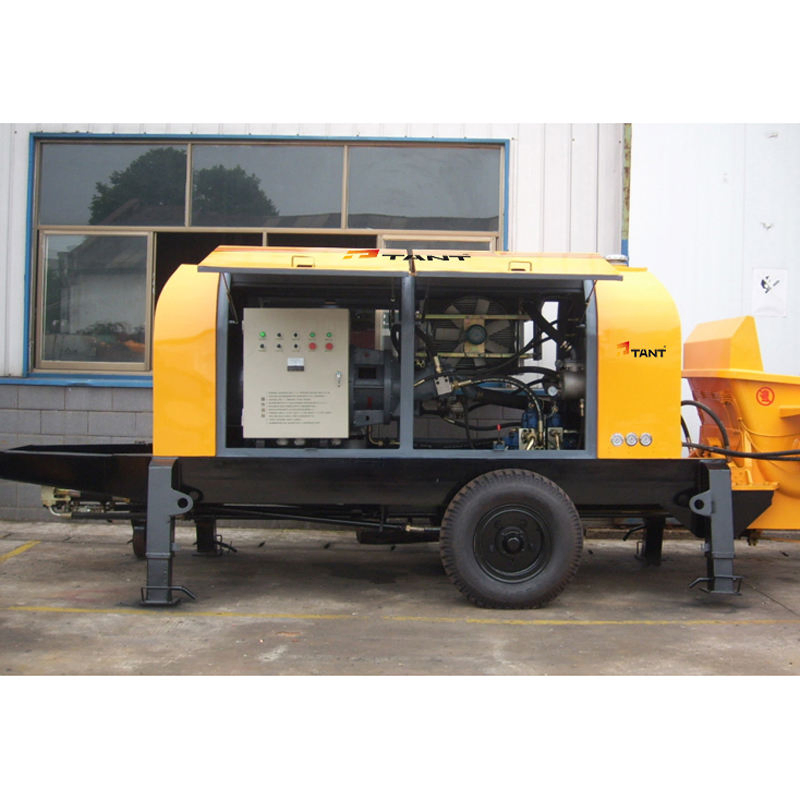

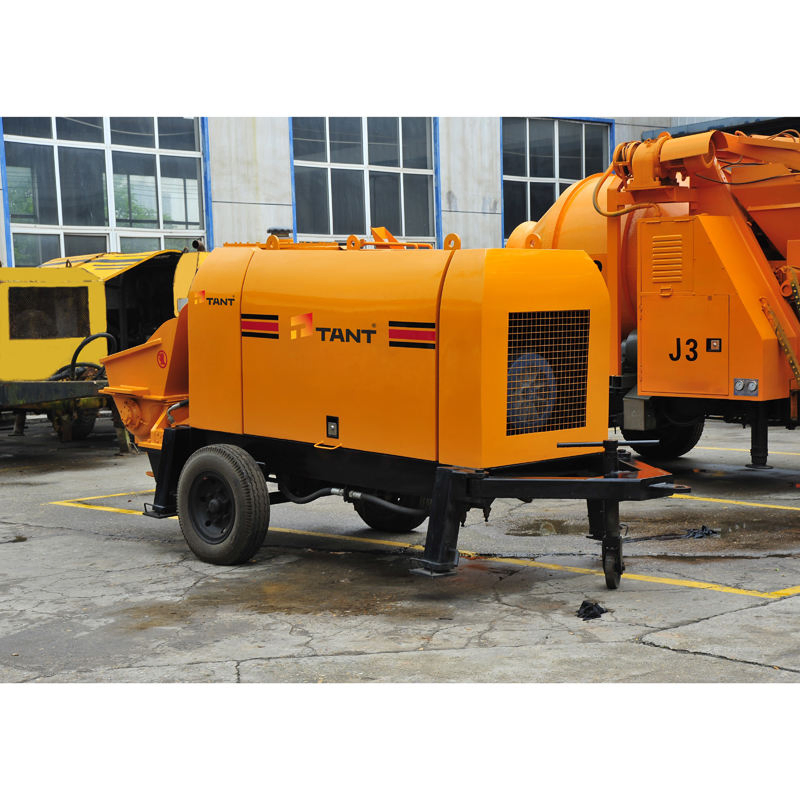

Mobile Hydraulic Trailer Mounted Concrete Pump Machine Diesel Engine Concrete Stationary Pumps for Sale

1 / 5

Mobile Hydraulic Trailer Mounted Concrete Pump Machine Diesel Engine Concrete Stationary Pumps for Sale

Customization:	Available
Warranty:	1 Year
Type:	Concrete Pump

Send Inquiry

Product Description

Basic Specifications

Shotcrete Type

Wet

Machining Process

Hydraulic

Structure

Cylinder Type

Productivity

50m³/h

Certification

Condition

New

Hydraulic Tank

580 L

Max. Vertical Distance

300 M

Max. Horizontal Distance

1500 M

Hopper Capacity

600 L

Power Type

Diesel

Distribution Valve

S Tube Valve

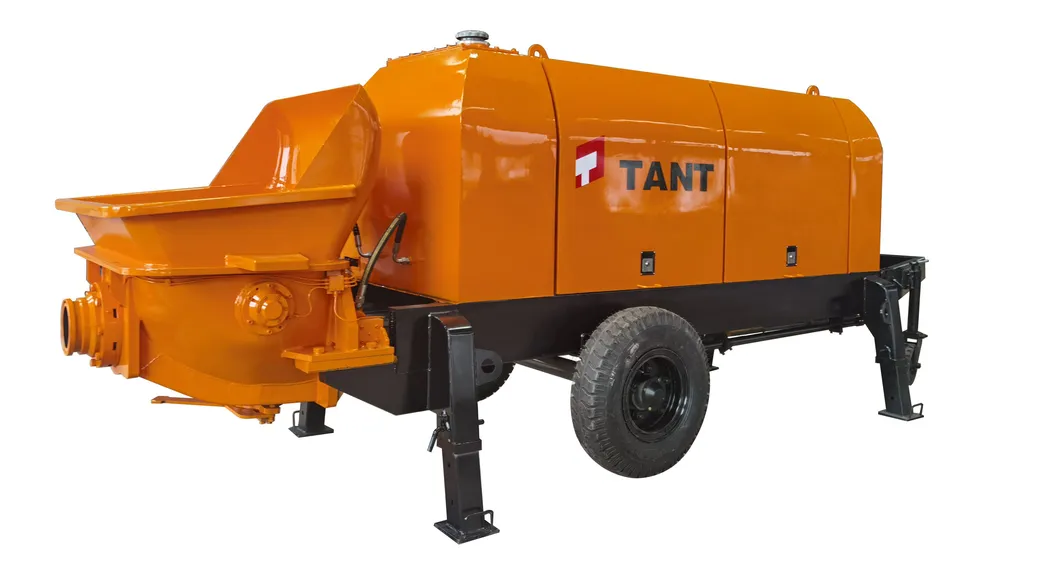

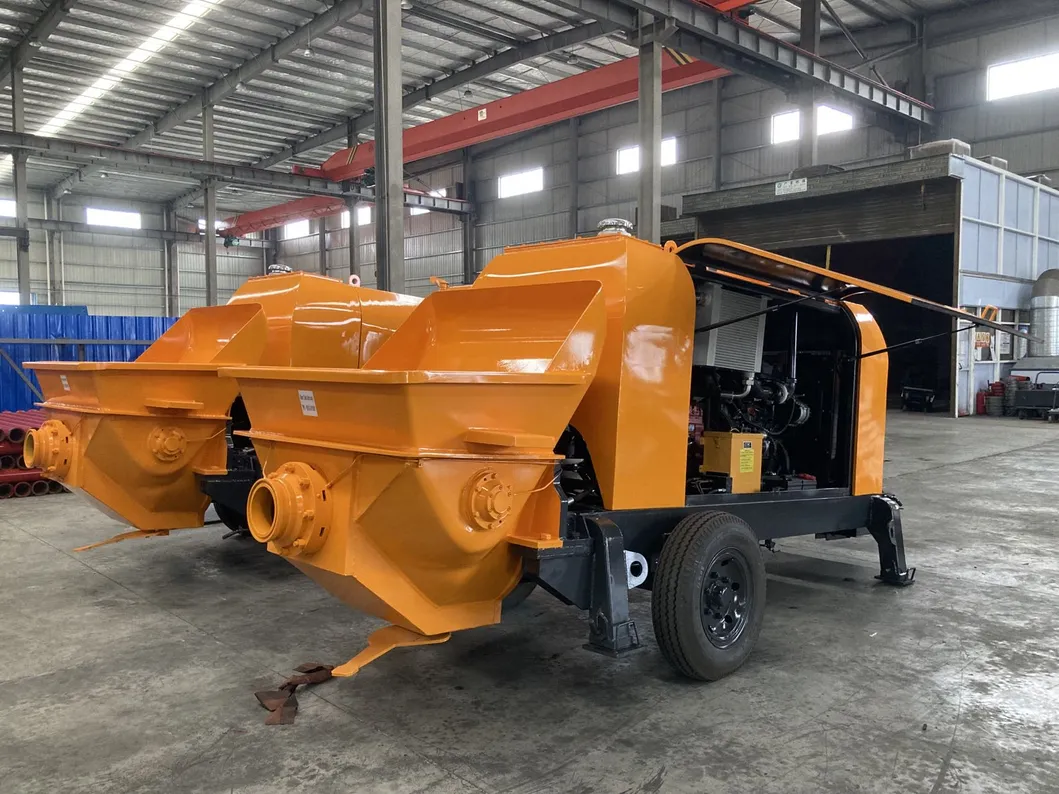

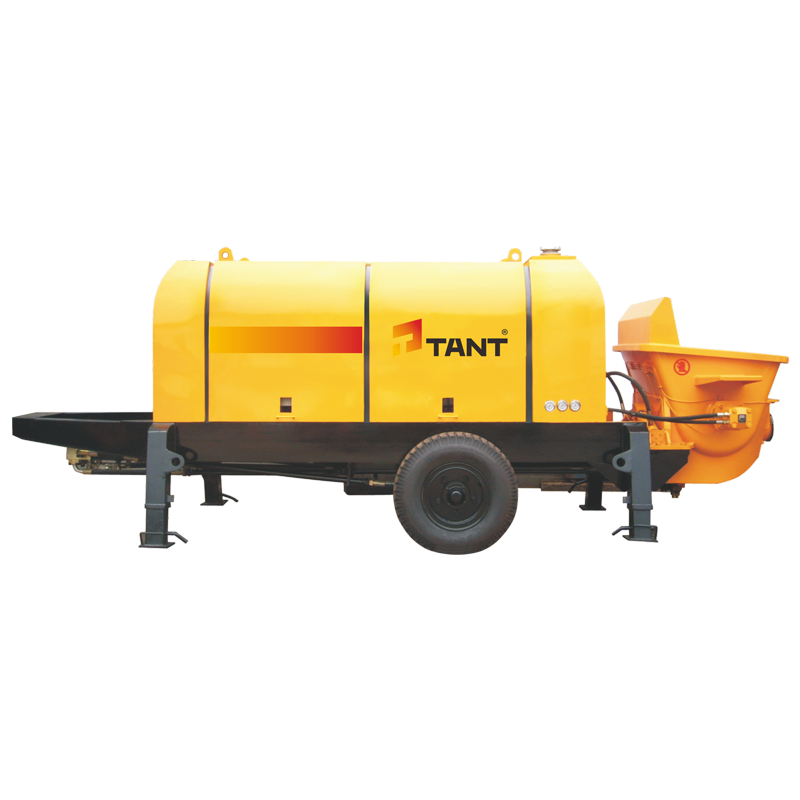

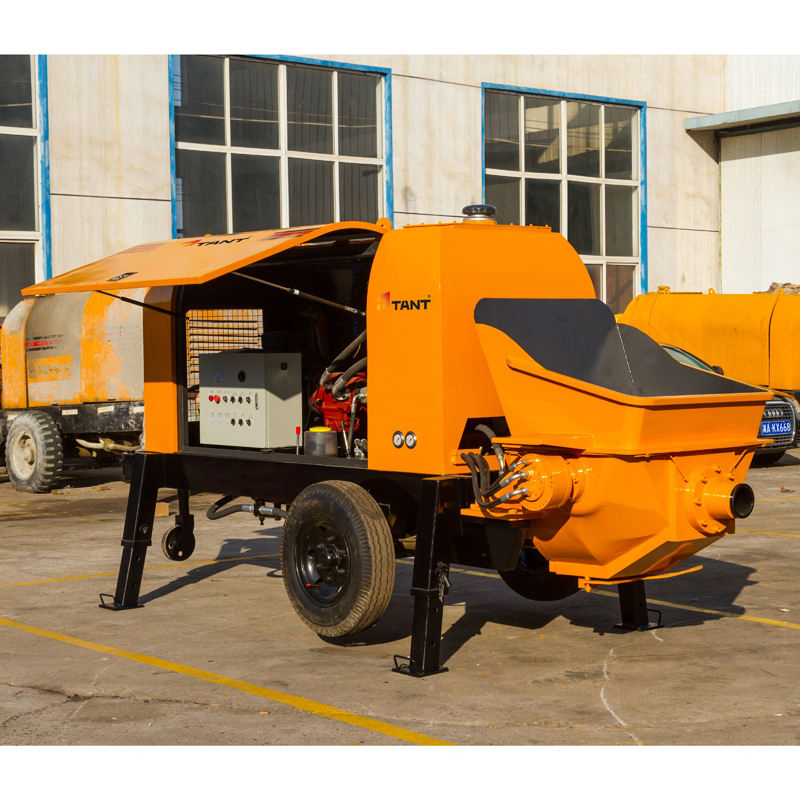

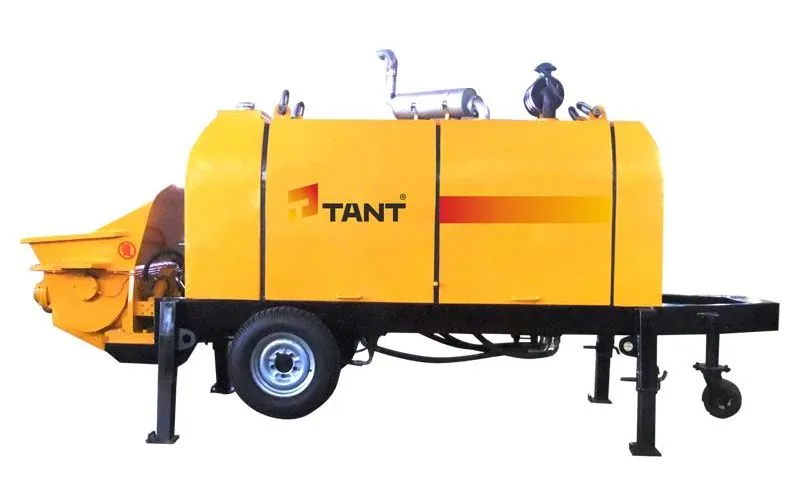

Trailer Mounted Concrete Pump

🏗️ Expert Manufacturing

20+ Years Production & Export Experience

⚙️ Global Components

Parts from Germany, Italy, Japan, and France

⚡ Versatile Power

Available in Electric and Diesel Engine series

💎 High Capacity

Pumping capacity range: 20 to 90 m³/h

Electric Motor Series Parameters

Parameter	Unit	HBTS30.06.45E	HBTS50.10.75E	HBTS60.13.90E	HBTS80.16.110E	HBTS90.18.132E
Max. Theor. Output	m³/h	30	50	60	80	90
Pumping Pressure	Mpa	6	10	13	16	18
Concrete Cylinder Size	mm	160x1000	200x1400	200x1600	200x1800	200x1800
Distance (V/H)	m	30/100	80/350	100/700	140/800	180/1200
Motor Power	kw	45	75	90	110	132
Total Weight	kg	2600	4800	6480	6480	6480

Diesel Engine Series Parameters

Parameter	Unit	HBTS30.06.52R	HBTS40.08.72R	HBTS50.10.85R	HBTS80.16.176R	HBTS90.18.186R
Max. Theor. Output	m³/h	30	40	50	80	90
Pumping Pressure	Mpa	6	8	10	16	18
Engine Power	kw	52	72	85	176	186
Distance (V/H)	m	35/150	50/200	60/260	150/800	180/1200
Hopper Capacity	L	350	700	700	700	700

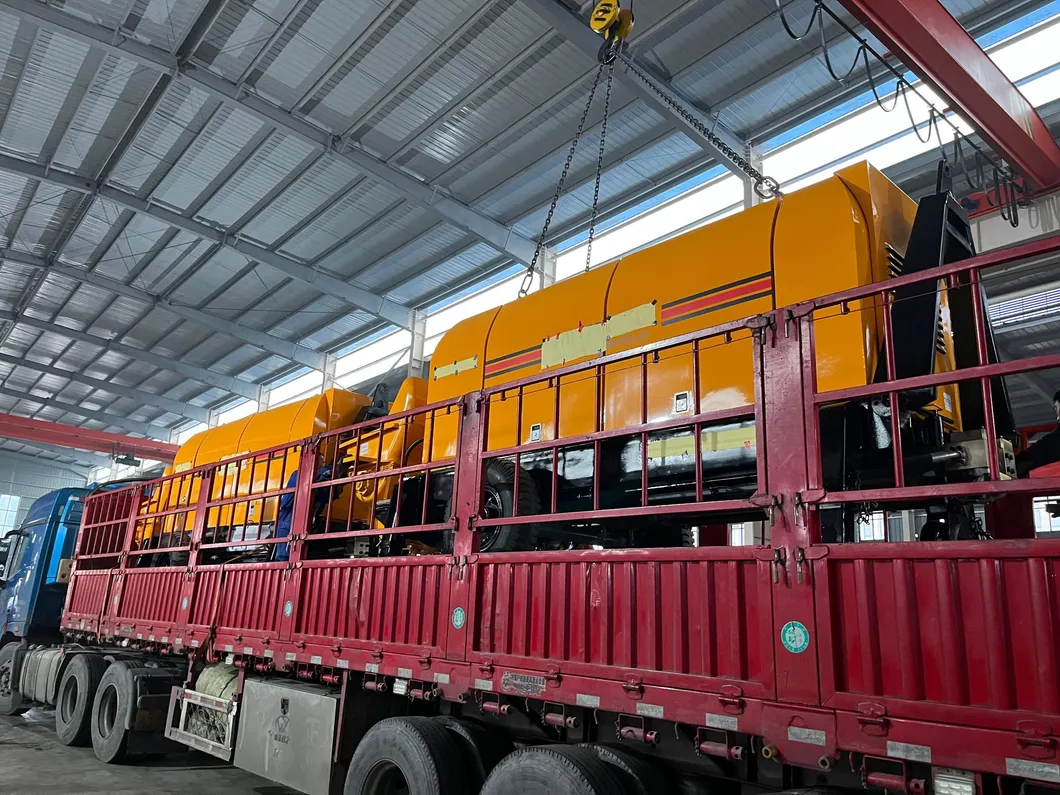

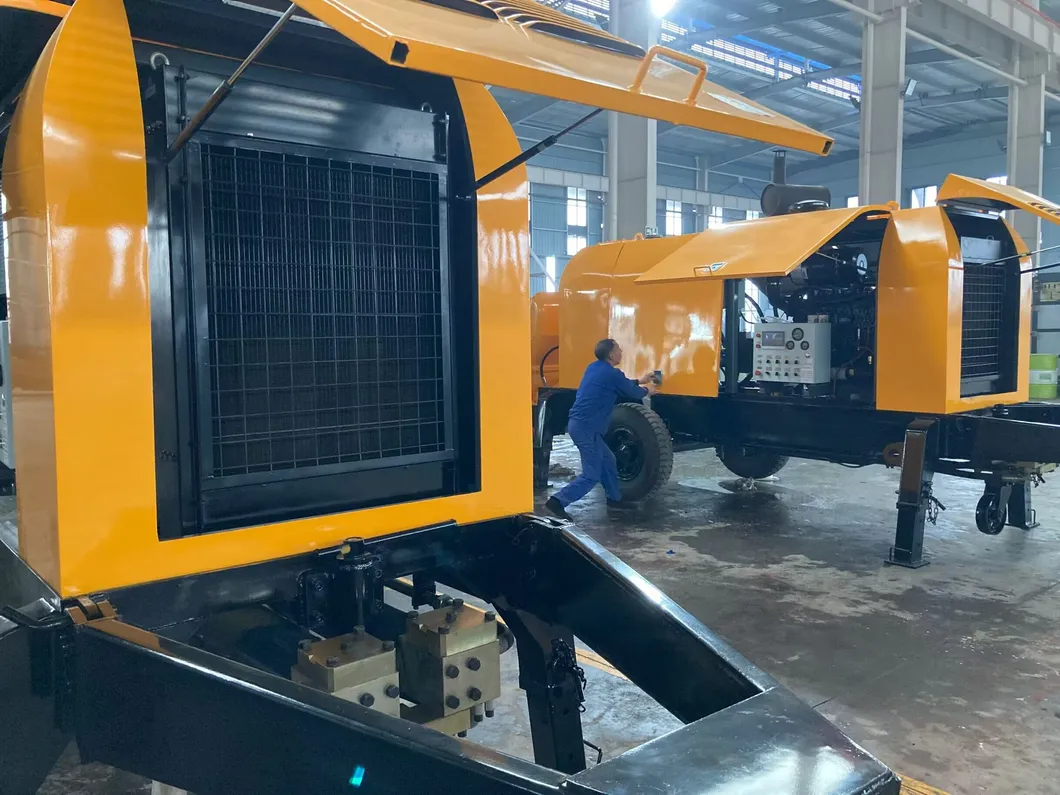

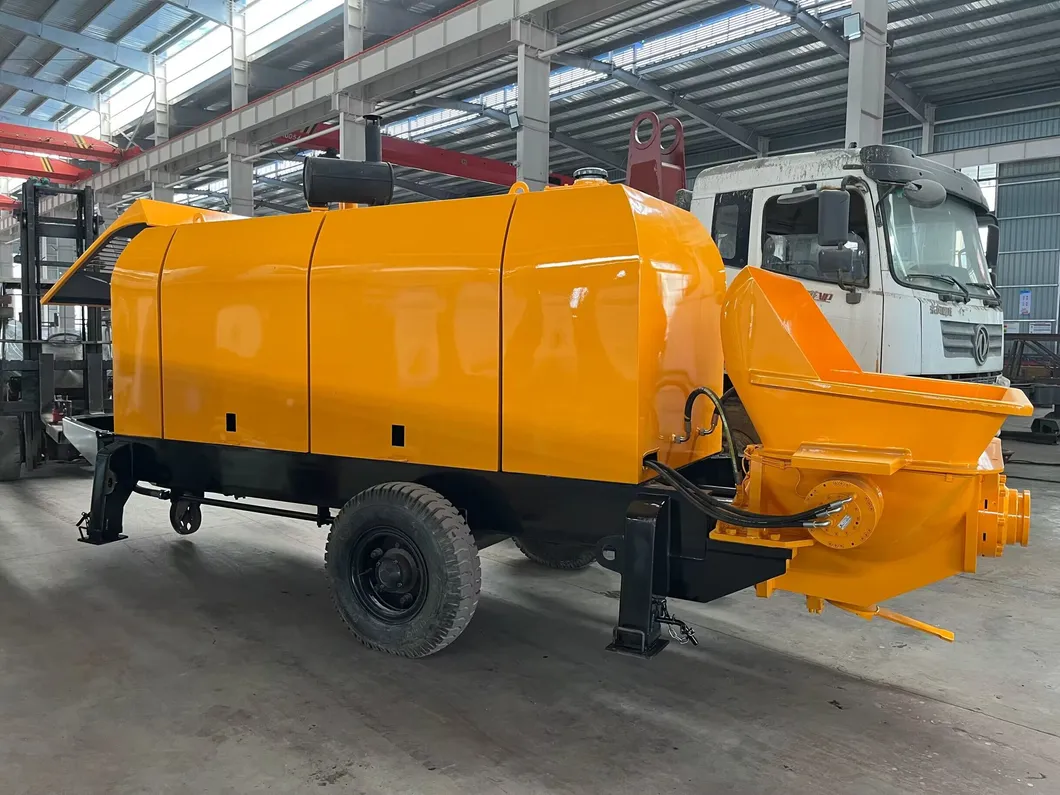

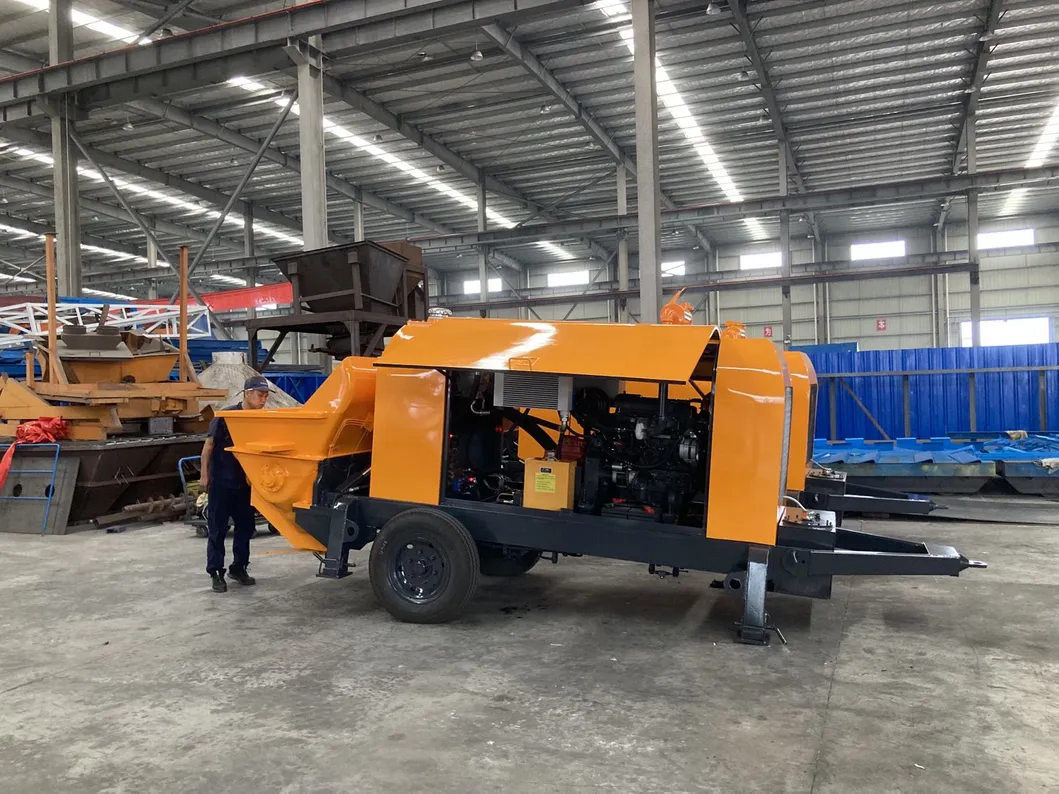

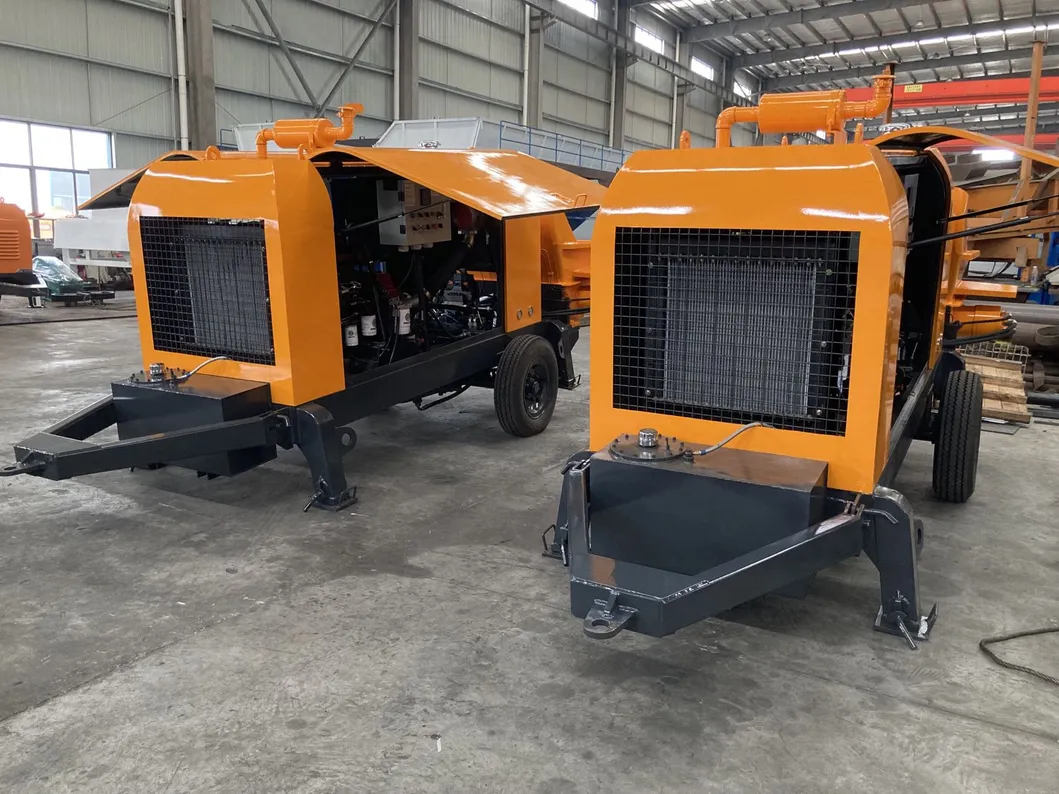

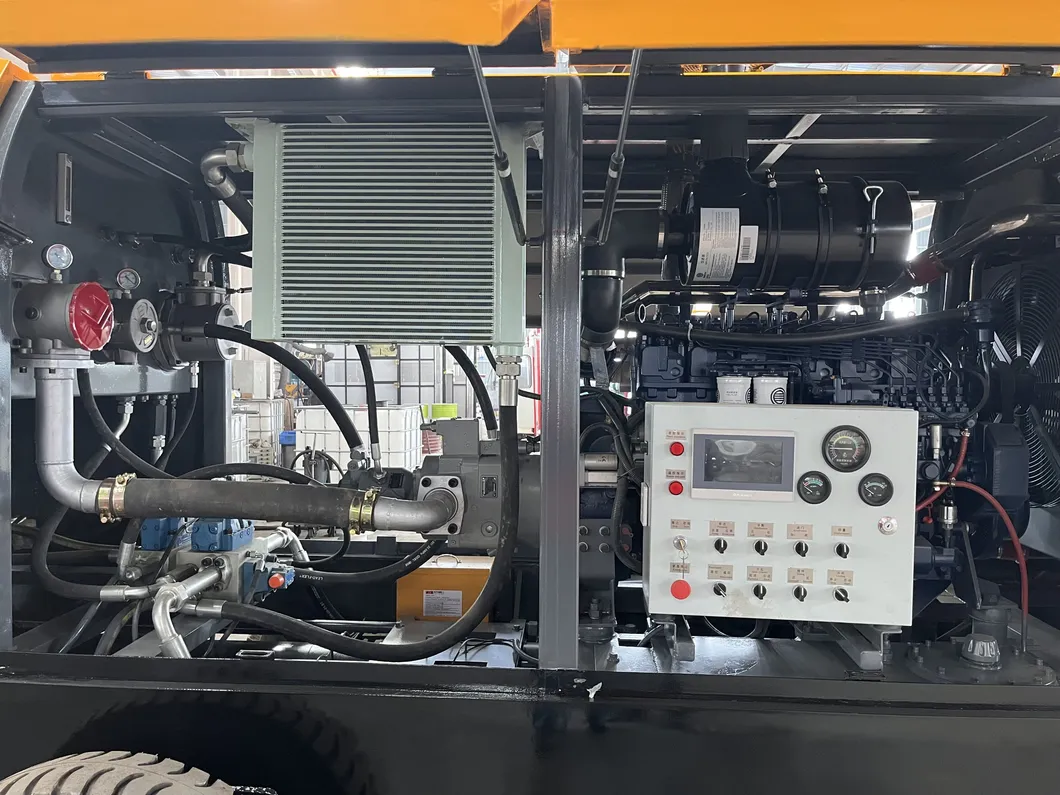

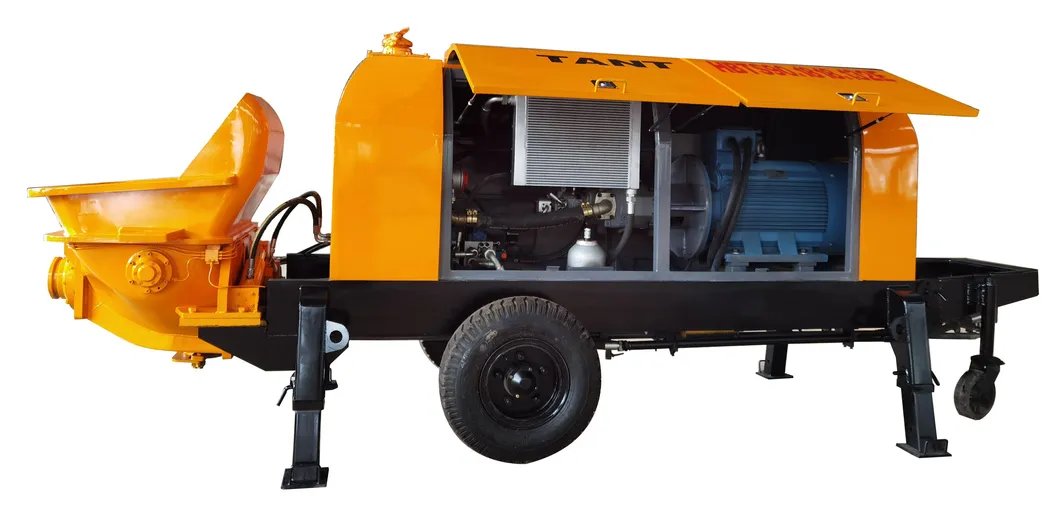

Product Details & Packaging

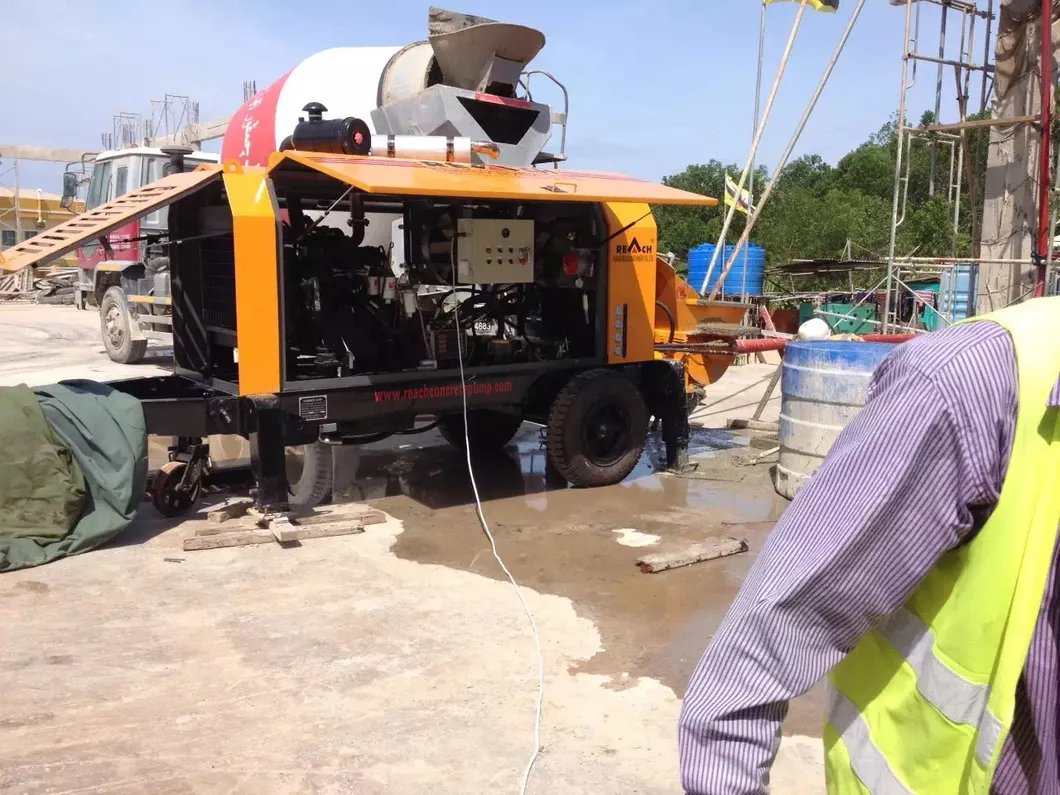

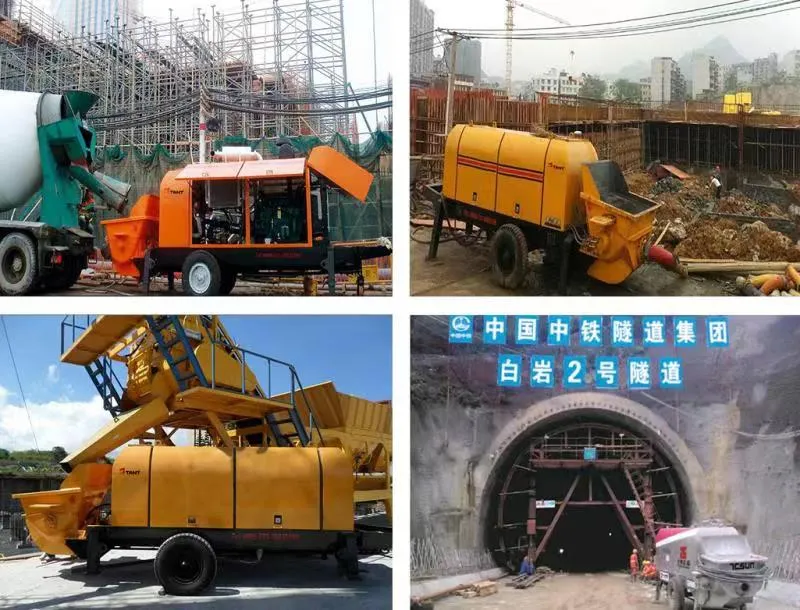

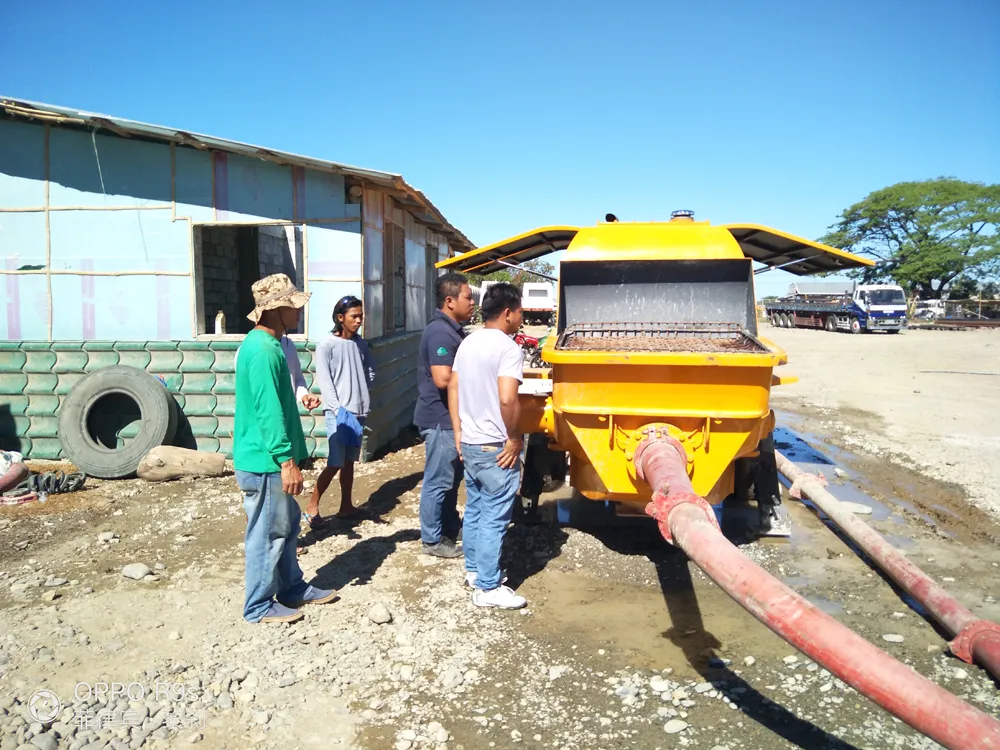

Construction Cases

Frequently Asked Questions

Are you a factory or a trading company?

We are a specialized factory located in the industrial hub of China, ensuring direct quality control and manufacturing excellence.

What brands are used for the main oil pumps?

We utilize world-class components, primarily German Rexroth or Korean Kawasaki main oil pumps, for maximum reliability.

Is the motor power electrical or diesel?

We provide both types. The electric version typically operates on 380V 50Hz, while the diesel version offers independent operation for remote sites.

How long is the warranty period?

We offer a 1-year warranty for structural parts and strictly adhere to professional warranty terms for core components.

What are your standard payment terms?

Standard terms are a 30% advance payment via T/T, with the remaining balance due before delivery, or via L/C.

What after-sales and maintenance services do you provide?

We provide comprehensive video technical support. If necessary, technicians can be dispatched, and we have local service teams in specific regions.
